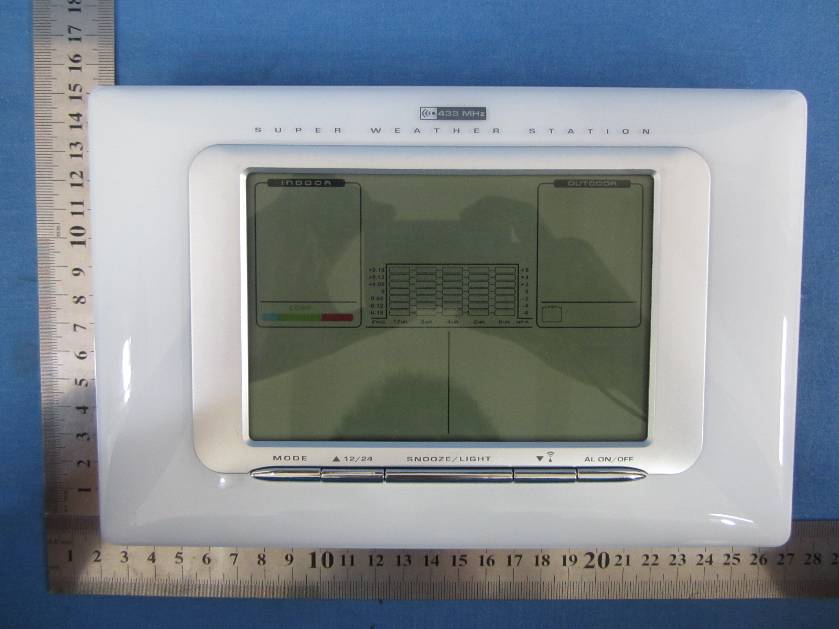

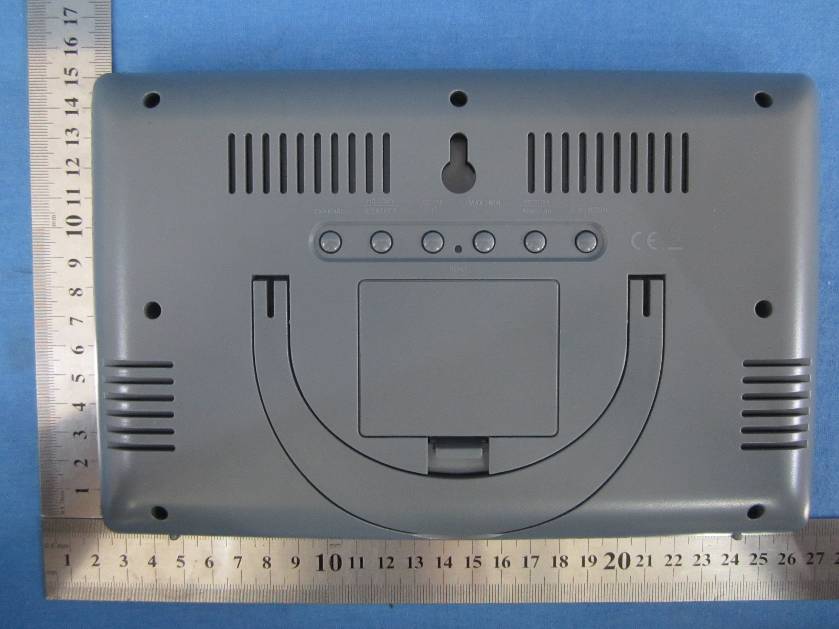

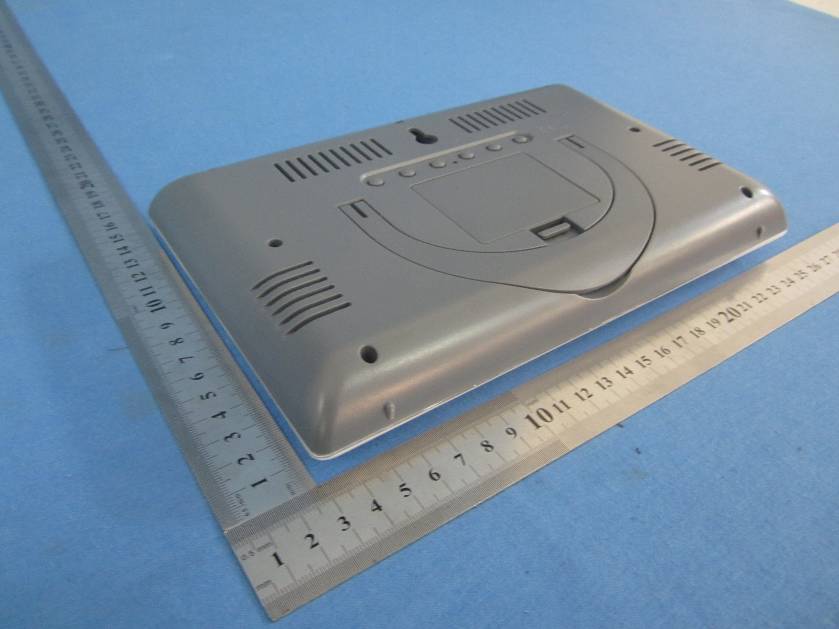

1 KW9007W‐S/M (2) WEATHER STATION (WWVB VERSION RC‐NONE) USER MANUAL 1. Features 1.1 Weather Forecast ‐ Sunny, Slightly Cloudy, Cloudy, Rainy and Snow animation 1.2 Time ‐ 12/24 hour user selectable ‐ Dual Daily Alarm function ‐ Daily Sunrise/Sunset, Moonrise/Moonset time for 3 countries ‐ Moon Phase display ‐ Perpetual Calendar Up to Year 2099 ‐ Day of week in 8 languages user selectable 1.3 Barometric Pressure ‐ Current and past 12hr Absolute and Relative Barometric Pressure reading ‐ Barometric Pressure bar chart ‐ Measures mb/hPa, inHg &mmHg user selectable 1.3 Humidity ‐ Measurable range: 20 ~ 99% ‐ Max/Min Memory 1.4 Temperature ‐ Indoor measurable range: 0 ~ 50°C [+32 ~ +122°F] ‐ Measures °C / °F user selectable ‐ Outdoor measurable range: ‐20 ~ 50°C [‐4 ~ +122°F] ‐ Max/Min Memory [indoor & outdoor] 1.5 Wireless Outdoor Sensor ‐ Low‐battery indicator for Outdoor Thermo Sensor ‐ Wall Mount or Table Stand ‐ One Wireless Thermo Sensor Included ‐ 433MHz RF transmitting frequency ‐ 30 meter [98 feet] transmission range in an open area 2 2. Main Unit Appearance 2.1 Part A‐ LCD A1: Air Pressure Trend A2: Weather Forecast A3: Barometric Pressure Bar Graph A4: Indoor Temperature A5: Indoor Humidity A6: Comfort Indicator Bar A7: Outdoor Temperature Trend A8: Outdoor Temperature A9: Selected Channel A10: Outdoor Humidity A11: Outdoor Humidity Trend A12: Barometric pressure of previous hour A13: Absolute/Relative Barometric Pressure Reading A14: Time A15: Date A16: Day Of Week A17: Sunrise Time A18: Moonrise Time A19: Moon phase A20: Location A21: Moonset Time A22: Sunset Time 2.2 Part B‐ Buttons B1: “MODE“ button B2: “▲/ (12/24)” button B3: “SNOOZE/LIGHT” button B4: “▼” button B5: “AL ON/OFF” button B6: “CHANNEL” button B7: “HISTORY/WEATHER” button B8: “+/C/F” button B9: “‐/MAX/MIN” button B10: “RELATIVE/ABSOLUT” button B11: “SUN/MOON” button B12: “RESET” button 3 2.3 Part C‐ Structure C1: Wall Mount Hole C2: Battery Cover C3: Stand 3. Outdoor Thermo Sensor D1: Transmission Indication LED D2: Outdoor Temperature display D3: Outdoor Humidity display D4: Battery Compartment D5: Wall Mount Hole D6: “RESET” button D7: “C/F” button D8: Channel Select Switch D9: Stand 4. Getting Started: 4.1 Main Unit: z Open main unit battery compartment cover [C2] z Insert 3 x AA batteries observing polarity [ “+” and “ –“ marks] z Replace main unit battery compartment cover [C2] z Use a pin to press the RESET [B12] button on the rear of the main unit, the main unit is now ready for use 4.2 Outdoor Thermo Sensor z Batteries compartment (D4) of thermo sensor is locating behind the back cover, unscrews the batteries cover to open. z Insert 2 x AAA batteries observing polarity [ “+” and “–“ marks] 4 5. Installation 5.1 Main Unit The main unit can be placed onto any flat surface (C3), or wall mounted by the hanging hole (C1) at the back of the unit. 5.2 Outdoor Thermo sensor The remote sensor should be securely mounted onto a horizontal surface. Note: Transmissions between receiver and transmitter can reach up to 30m in open area. Open Area: there are no interfering obstacles such as buildings, trees, vehicles, high voltage lines, etc. 6. Weather Forecast Function 6.1 Operation z After Batteries inserted, or holding “WEATHER” button (B7) for 3 seconds, weather icon flash (A2) on the LCD. Enter the current weather by pressing “-” (B9) or “+ “(B8) button. Press “WEATHER” (B7) button to confirm the setting. The weather forecast may not be accurate if the current weather entered is not correct. z The current weather status should be entered again if the altitude of the Main Unit is changed. (Barometric pressure is lower at higher altitude location. Therefore, altitude change will affect the weather forecast). The weather station will start the first forecast at 6 hours later after the current weather status is entered. 6.2 Weather Conditions There are totally 5 different weather status animations in the weather forecast. Note: z “ “is shown if the weather forecast is Rainy and outdoor temperature (any channel) under 0°C. Sunny Slightly Cloudy Cloudy Rain Freezing or Snow Freezing or Snow 5 z Frost Alert: “” is shown if the outdoor temperature (any channel) is between ‐2°C ~ +3 °C z If there is any inconsistency of weather forecast between Local Weather Station and this unit, the Local Weather Station's forecast should prevail. The manufacture will not hold responsible for any trouble that may come up due to wrong forecasting from this unit. 7. Barometric Pressure Reading 7.1 Barometric Trend Pointer (A1) The trend pointer displayed on the LCD (A1) indicates the trend of the Barometric pressure. Indicating the barometric pressure trend is rising Indicating the barometric pressure trend is steady Indicating the barometric pressure trend is falling 7.2 Absolute / Relative Air Pressure z Press the “Absolute / Relative” button [B10] to toggle between Absolute or Relative pressure display. “ABS” is shown for Absolute Pressure; “REL” is shown for Relative pressure z Absolute pressure is the actual pressure measured by the Main Unit z When viewing Relative pressure, hold “Absolute/Relative” button [B10] for 3 seconds, press “‐” (B9) or “+ “(B8) button to adjust, press “Absolute / Relative” button [B10] to confirm. Note: Check your local weather station for Sea Level pressure information 7.3 Past Hour Air Pressure (History) Reading z Press “HISTORY” button [B7] to view the past 12 hour’s Barometric Pressure history. The hour is indicated on LCD [A12] z Hold “+” button [B8] for 3 seconds to select the unit for barometric pressure meter in hPa, inHg or mmHG. Press “HISTORY” button — 0 HR = Current Barometric Pressure Reading — ‐1HR = Barometric Pressure Reading in 1 hour ago — ‐2HR = Barometric Pressure Reading in 2 hour ago ........etc 6 7.4 Barometric Pressure Bar Graph The Barometric Pressure Reading at 0hr, –2hr,‐4hr,‐8hr,‐12hr is recorded and shown on Barometric Pressure Bar Graph [A3]. The Graph is displayed in both hPa and …
