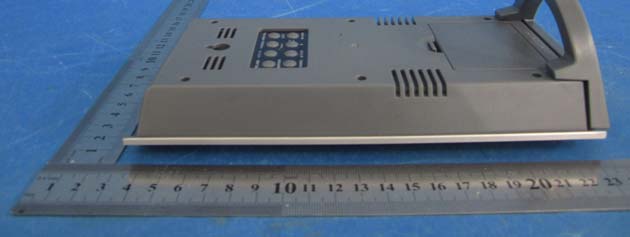

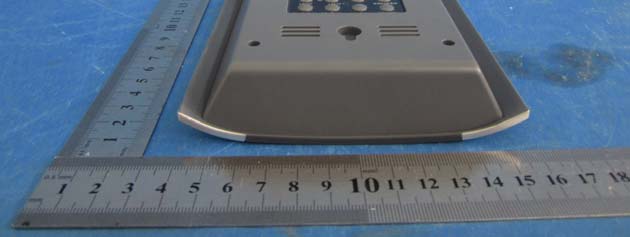

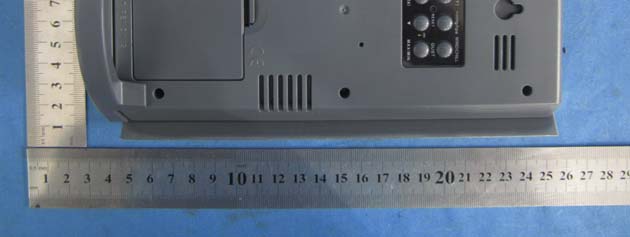

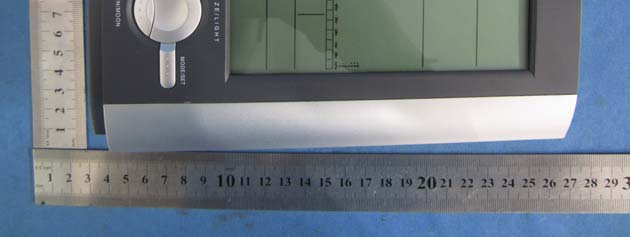

VX5-348RXHOME WEATHER STATION WITH WIND SPEED

1 HOME WEATHER STATION WITH WIND SPEED USER MANUAL 1. Features 1.1 Weather Forecast ‐ Sunny, Slightly Cloudy, Cloudy, Rainy and Cloudburst animation 1.2 Wind ‐ Wind Speed, Wind Chill and Gust ‐ Displays m/s, knots, kmph and mph user selectable ‐ Beaufort scale 1 ~ 12 [calm ~ hurricane] 1.2 Time ‐ Radio controlled time with Manual Time setting option ‐ 12/24 hour user selectable ‐ Dual Daily Alarm function ‐ Daily Sunrise/Sunset, Moonrise/Moonset for 239 cities in USA, Canada & Mexico ‐ Moon Phase display ‐ Perpetual Calendar Up to Year 2099 1.3 Barometric Pressure ‐ Current and past 30hr Absolute and Relative Barometric Pressure reading ‐ Barometric Pressure bar chart ‐ Measures mb/hPa, inHg user selectable 1.3 Humidity ‐ Measurable range: 20 ~ 99% ‐ Max/Min Memory 1.4 Temperature ‐ Indoor measurable range: 0 ~ 50°C [+32 ~ +122°F] ‐ Measures °C / °F user selectable ‐ Outdoor measurable range: ‐20 ~ 50°C [‐4 ~+ 122°F] ‐ Max/Min Memory [indoor & outdoor] 1.5 Wireless Outdoor Sensor ‐ Low‐battery indicator for Outdoor Thermo Sensor ‐ Wall Mount or Table Stand ‐ One Wireless Thermo Sensor Included ‐ 433MHz RF transmitting frequency ‐ 30 meter [98 feet] transmission range in an open area 2 2. Main Unit Appearance 2.1 Part A‐ LCD A1: Radio Controlled Icon A2: Time A3: Date A4: Day of Week A5: Sunset & Sunrise Time A6: Moon Phase A7: Moonset & Moonrise Time A8: Location A9: Barometric Pressure Trend A10: Weather Forecast A11: Absolute/Relative Barometric Pressure Reading A12: Barometric Pressure Bar Graph A13: Beaufort scale A14: Wind Speed A15: Wind Chill A16: Indoor Temperature A17: Indoor Humidity A18: Channel A19: Outdoor Temperature A20: Outdoor Humidity 2.2 Part B‐ Buttons B1: “SNOOZE/LIGHT” button B2: “AL ON/OFF” button B3: “SUN/MOON” button B4: “MODE/SET” button B5: “REL/ABS/ WEATHER” button B6: “+ (C/F)” button B7: “‐/inHg/hPa” button B8: “WIND CHILL/GUST” button B9: “RESET” button B10: “CHANNEL” button B11: “▲/ 12/24” button B12: “MAX/MIN” button B13: “▼/” button 3 2.3 Part C‐ Structure C1: Wall Mount Hole C2: Battery Cover C3: Stand 3. Wind speed with thermo Sensor Unit Appearance. D1: Transmission Indication LED D2: Outdoor Temp. & Humidity D3: Wind Sensor Plug D4: Wind Speed Sensor D5: Wall Mount Hole D6: Battery Cover D7: Battery Compartment D8: “C/F” button D9: “TX” button D10: Stand 4. Getting Started: 4.1 Main Unit: z Open main unit battery compartment cover [C2] z Insert 3 x AA batteries observing polarity [ “+” and “ –“ marks] z Replace main unit battery compartment cover [C2] z Use a pin to press the RESET [B9] button on the rear of the main unit, the main unit is now ready for use 4.2 Outdoor Remote Sensor & Wind Sensor z Batteries compartment (D7) of thermo sensor is locating behind the back cover, unscrews the batteries cover to open. z Insert 2 x AAA batteries observing polarity [ “+” and “–“ marks] z Plug the Wind Speed sensor into the side of remote sensor (D3) 4 5. Installation 5.1 Main Unit The main unit can be placed onto any flat surface (C3), or wall mounted by the hanging hole (C1) at the back of the unit. 5.2 Outdoor Thermo sensor The remote sensor should be securely mounted onto a horizontal surface. Note: Transmissions between receiver and transmitter can reach up to 30m in open area. Open Area: there are no interfering obstacles such as buildings, trees, vehicles, high voltage lines, etc. 5.3 Wind Sensor Using the U‐bolt, 2x nuts and 2 x washers, secure the wind speed sensor to a stable mast/antenna/pole. 6. Weather Forecast Function 6.1 Operation z After Batteries inserted, or holding “WEATHER” button (B5) for 3 seconds, weather icon flash (A10) on the LCD. Enter the current weather pressing “-” (B7) or “+ “(B6) button. Press “WEATHER” (B5) button to confirm the setting. The weather forecast may not be accurate if the current weather entered is not correct. z The current weather status should be entered again if the altitude of the Main Unit is changed. (Barometric pressure is lower at higher altitude location. Therefore, altitude change will affect the weather forecast). The weather station will start the first forecast at 6 hours later after the current weather status is entered. 6.2 Weather Conditions There are totally 5 different weather status animations in the weather forecast. Sunny Slightly Cloudy Cloudy Rain Cloudburst 5 Note: “ is shown if the weather forecast is Rainy OR Cloudburstand and outdoor temperature under 0°C. z If there is any inconsistency of weather forecast between Local Weather Station and this unit, the Local Weather Station's forecast should prevail. We will not hold responsible for any trouble that may come up due to wrong forecasting from this unit. 7. Barometric Pressure Reading Press “‐“button (B7) to select the barometric pressure readout in inHg or mb/hPa 7.1 Barometric Trend Pointer (A9) The trend pointer displayed on the LCD (A9) indicates the trend of the Barometric pressure. Indicating the barometric pressure trend is rising Indicating the barometric pressure trend is steady Indicating the barometric pressure trend is falling 7.2 Absolute / Relative Air Pressure z Press the “REL/ABS” button [B5] to toggle between Absolute or Relative pressure display. “Abs” is shown for Absolute Pressure; “Rel” is shown for Relative pressure z Absolute pressure is the actual pressure measured by the Main Unit z Hold “REL/ABS/WEATHER” button [B5] for 3 seconds, to set the current weather forecast firstly. Once the current weather forecast icon is set and confirmed, the relative air pressure digit will begin to flash. Press “‐” (B7) or “+ “(B6) button to set the local relative air pressure, and press “REL/ABS/WEATHER” button (B5) to confirm. Note: Check your local weather station for Sea Level pressure information 7.3 Barometric Pressure Bar Graph The Barometric Pressure Reading at 0hr, –1hr (pressure one hour ago),‐2hr (pressure 2 hours ago),‐3hr,‐6hr, ‐12hr,‐24hr, ‐30hr is recorded and shown on Barometric Pressure Bar Graph [A12]. The Gra…
