VYTLP-7694802.11b/g/n Wireless PCI-E Card (2T2R)

1 LP-7694(100mW) 802.11 B/G/N Wireless PCI-E Card(2T2R) User Manual 1.1 © 2012 2 Table of Contents 1.Introduction............................................................................................................3 1.1Welcome.................................................................................................3 1.2Contents of Package...............................................................................3 2.Designing Your PCI Adapter..................................................................................3 3.Installation..............................................................................................................3 3.1Install Your PCI Adapter ........................................................................3 3.2Install Driver and Utility........................................................................4 4.Windows Wireless Utility ......................................................................................8 4.1Windows AutoConfig Service for Win 7 ...............................................8 4.1.1Ralink Wireless Utility and Windows AutoConfig Service ...........8 4.1.2Windows AutoConfig Service .......................................................9 5.Ralink Wireless Utility (RaUI) ............................................................................17 5.1Start ......................................................................................................17 5.1.1Start RaUI ....................................................................................17 5.2Profile...................................................................................................20 5.2.1Profile...........................................................................................20 5.2.2Add/Edit Profile ...........................................................................21 5.2.3Pre-logon Connect .......................................................................24 5.3Network................................................................................................24 5.3.1Network........................................................................................24 5.4Advanced .............................................................................................27 5.4.1Advanced .....................................................................................27 5.4.2Certificate Management...............................................................28 5.5Link Information ..................................................................................28 5.5.1Link Status ...................................................................................28 5.5.2Throughput...................................................................................29 5.5.3Statistics .......................................................................................29 5.6About....................................................................................................30 5.6.1About............................................................................................30 5.7WPS .....................................................................................................31 5.7.1WPS .............................................................................................31 6.Security ................................................................................................................33 6.1Auth.\ Encry. Setting – WEP/TKIP/AES.............................................33 6.2802.1x Setting ......................................................................................34 7.Trouble Shooting..................................................................................................38 3 1.Introduction 1.1Welcome PCI Adapter connects you with IEEE802.11n networks at receiving rate up to an incredible 300Mbps! By using the reflection signal, 802.11n technology increases the range and reduces "dead spots” in the wireless coverage area. Unlike ordinary wireless networking of 802.11b/g standards that are confused by wireless reflections, 802.11n can actually use these reflections to increase four times transmission range of 802.11g products. Besides, when both ends of the wireless link are 802.11n products, The PCI can utilize twice radio band to increase three times transmission speed of ordinary 802.11g standard products, and can comply with backwards 802.11b/802.11g standards. Soft AP supported by PCI Adapter can help you establish wireless LAN networking with lowest cost. Besides, WPS (PBC and PIN) encryption method can free you from remembering the long passwords. Complete WMM function makes your voice and video more smooth. 1.2Contents of Package One PCI Card One Installation CD Detachable 2 dBi antenna Contact your local authorized reseller or the store purchased from for any items damaged and/or missing. 2.Designing Your PCI Adapter The status LED indicators of PCI Card are described in the following. Lnk/Act ON (Green): Indicates a valid connection. Lnk/Act Flashing: Indicates the Adapter is transmitting or receiving data. 3.Installation 3.1Install Your PCI Adapter Open your PC case and locate an available PCI on the motherboard. Slide PCI Adapter into the PCI slot. Make sure that all of its pins are touching the slot's contacts. You may have to apply a bit of pressure to slide PCI Adapter all the way in. after it is firmly in place, secure its fastening tab to your PC's chassis with a mounting screw. Then close your PC. Attach the external antennas to PCI Adapter's antenna port. Power on the PC. Note: SelectCancelwhen “Found New Hardware” window appears. 4 3.2Install Driver and Utility NOTE: Snap-shot screens of the following installation procedure are based on Windows 7 Installation procedures will be similar for other windows operating systems. 1. Insert Installation CD to your CD-ROM drive. And clickDriver Installation. The wizard will run…

Text truncated - open the document above for the full version.

Loopcomm Technology Inc. 6F., No.236, Bo’ai St., Shulin Dist., New Taipei City, Taiwan FCC Declaration of Conformity Number:CF302 Version:V01 Date: 01-02-2010 DoC We, (legal entity within the US, such as importer or manufacturer) Company Name: Loopcomm Technology Inc. Address: 6F., No.236, Bo’ai St., Shulin Dist., Postal/Zip:City: New Taipei City State/Province:Country:Taiwan Contact Person:Mr.Ms.Name: Kevin Liu Function: DQA Engineer Email: [email protected] Web:Phone: +886-2-8686-9685 EXT: 8362 Fax: +886-2-8686- 9687 declare for the equipment identified by: Product Description 802.11 B/G/N Wireless PCI –E Card (2T2R) Type or Model(s) LP-7694(100mW) Tradename or Brand(s) Loopcomm that: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired op- eration. The following documents are subject to this declaration: Test Firm or Laboratory:Test Report Number:Date of issue: Cerpass Technology Corporation TEFI1206193Aug. 17, 2012 Attestation: City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) New Taipei CityAug. 27, 2013Kevin LiuDQA Engineer

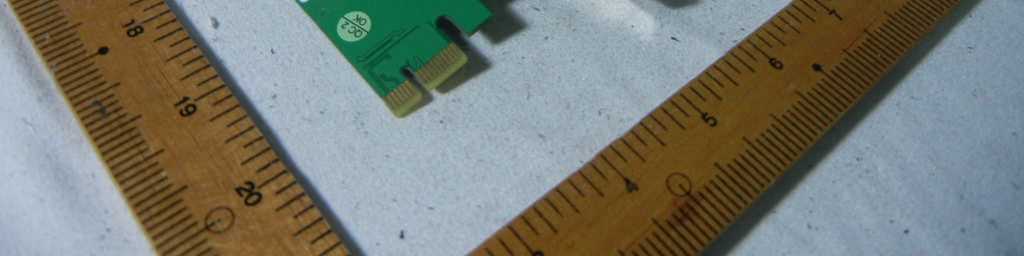

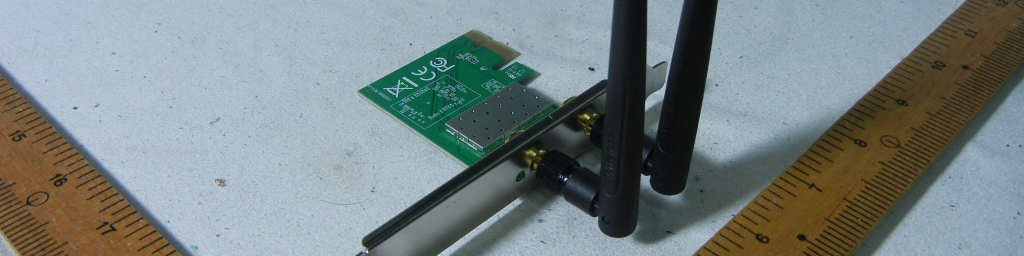

CERPASS TECHNOLOGY CORP. Report No.: TEFI1206193 Cerpass Technology Corp.Issued Date:Aug. 17, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A1 of A4 FCC ID:VYTLP-7694 Appendix A. Photographs of EUT

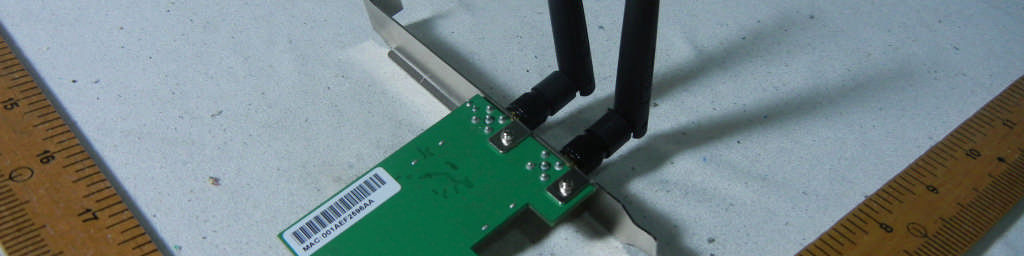

Label & Location

CERPASS TECHNOLOGY CORP. Report No.: TEFI1206193 Cerpass Technology Corp.Issued Date:Aug. 17, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A1 of A4 FCC ID:VYTLP-7694 Appendix A. Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: TEFI1206193 Cerpass Technology Corp.Issued Date:Aug. 17, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A2 of A4 FCC ID:VYTLP-7694 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206193 Cerpass Technology Corp.Issued Date:Aug. 17, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A3 of A4 FCC ID:VYTLP-7694 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206193 Cerpass Technology Corp.Issued Date:Aug. 17, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A4 of A4 FCC ID:VYTLP-7694

CERPASS TECHNOLOGY CORP. Report No.: TEFI1206193 Cerpass Technology Corp. Issued date: Aug. 17, 2012 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No.:1 of 3 FCC ID: VYTLP-7694 Radio Frequency Exposure LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUTUAP AC Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.150GHz ~ 5.250GHz WLAN: 5.725GHz ~ 5.850GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 802.11b:18.89dBm (77.36mW) 802.11g:15.12dBm (32.51mW) 802.11n (20MHz):14.04dBm (25.32mW) 802.11n (40MHz):14.00dBm (25.13mW) Antenna gain (Max) ANT R: 2 dBi ANT L: 2 dBi Directional antenna gain for N mode: 5.01 dBi Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 18.89 dBm (77.36 mW)at 2437MHz(with numeric 5.01 antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. *Note: Simultaneous transmission is not applicable for this EUT. CERPASS TECHNOLOGY CORP. Report No.: TEFI1206193 Cerpass Technology Corp. Issued date: Aug. 17, 2012 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No.:2 of 3 FCC ID: VYTLP-7694 TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 3770 2 E S WhereE = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   2 2 0796.0 100/3770 1000/30 d GP d GP S     Equation 1 Whered = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: TEFI1206193 Cerpass Technology Corp. Issued date: Aug. 17, 2012 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No.:3 of 3 FCC ID: VYTLP-7694 Maximum Permissible Exposure Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 802.11b2412-246218.895.01200.0491 802.11g2412-246215.12 5.01 200.0201 802.11n (20MHz)2412-246214.04 5.01 200.0161 802.11n (40MHz)2422-245214.00 5.01 200.0161 NOTE: Total (Chain0+Chain1) , the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density

CERPASS TECHNOLOGY CORP. Report No.: TEFI1206193 Cerpass Technology Corp. Issued date : Aug. 17, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 1 of 134 FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant : Loopcomm Technology Inc. Address : 6F., No.236, Bo’ai St., Shulin Dist., New Taipei City 238, Taiwan (R.O.C.) Equipment : 802.11 B/G/N Wireless PCI –E Card (2T2R) Model No. : LP-7694(100mW) Trade Name : Loopcomm ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFI1206193 Cerpass Technology Corp. Issued date : Aug. 17, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 2 of 134 Contents 1. Report of Measurements and Examinations .................................................................................... 6 1.1 List of Measurements and Examinations ................................................................................... 6 2. Test Configuration of Equipment under Test ................................................................................... 7 2.1 Feature of Equipment under Test ............................................................................................... 7 2.2 Carrier Frequency of Channels .................................................................................................. 7 2.3 Test Mode and Test Software ..................................................................................................... 8 2.4 Description of Test System ......................................................................................................... 8 2.5 General Information of Test ........................................................................................................ 9 2.6 Measurement Uncertainty .......................................................................................................... 9 3. Antenna Requirements ..................................................................................................................... 10 3.1 Standard Applicable ................................................................................................................. 10 3.2 Antenna Construction and Directional Gain ............................................................................. 10 4. Test of Conducted Emission ............................................................................................................ 11 4.1 Test Limit .................................................................................................................................. 11 4.2 Test Procedures ....................................................................................................................... 11 4.3 Typical Test Setup .................................................................................................................... 12 4.4 Measurement Equipment ......................................................................................................... 12 4.5 Test Result and Data ................................................................................................................ 13 4.6 Test Photographs ..................................................................................................................... 19 5. Test of Radiated Emission ............................................................................................................... 20 5.1 Test Limit .................................................................................................................................. 20 5.2 Test Procedures ....................................................................................................................... 20 5.3 Typical Test Setup .................................................................................................................... 21 5.4 Measurement Equipment ......................................................................................................... 21 5.5 Test Result and Data (9kHz ~ 30MHz) ..................................................................................... 22 5.6 Test Result and Data ................................................................................................................ 22 5.7 Test Photographs (30MHz~1000MHz) ..................................................................................... 58 5.8 Test Photographs (1000MHz~25000MHz) ............................................................................... 59 6. 6dB Bandwidth Measurement Data ................................................................................................. 60 6.1 Test Limit .................................................................................................................................. 60 6.2 Test Procedures ....................................................................................................................... 60 6.3 Test Setup Layout .................................................................................................................... 60 6.4 Measurement Equipment ......................................................................................................... 60 6.5 Test Result and Data ................................................................................................................ 60 7. Maximum Peak and Average Output Power ................................................................................... 73 7.1 Test Limit .......................................................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1206193 Cerpass Technology Corp. Issued date : Aug. 17, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 19 of 134 4.6 Test Photographs Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1206193 Cerpass Technology Corp. Issued date : Aug. 17, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 58 of 134 5.7 Test Photographs (30MHz~1000MHz) Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1206193 Cerpass Technology Corp. Issued date : Aug. 17, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 59 of 134 5.8 Test Photographs (1000MHz~25000MHz) Front View Rear View
