VYTLP-7767802.11 a/b/g/n Wireless USB Adapter

1/61 802.11 a/b/g/n Wireless USB Adapter User Manual 1.1 © 2013 2/61 Contents 1.Windows Wireless Utility ......................................................................................4 1.1Windows Zero Configuration for XP.........................................................4 1.1.1Ralink Wireless Utility and Windows Zero Configuration............4 1.1.2Windows Zero Configuration (WZC) ............................................5 1.2Windows AutoConfig Service for Vista...................................................10 1.2.1Ralink Wireless Utility and Windows AutoConfig Service .........10 1.2.2Windows AutoConfig Service ..................................................... 11 2.Ralink Wireless Utility (RaUI) ............................................................................18 2.1Start ..........................................................................................................18 2.1.1Start RaUI ....................................................................................18 2.2Profile.......................................................................................................21 2.2.1Profile...........................................................................................21 2.2.2Add/Edit Profile ...........................................................................22 2.2.3Example to Add Profile in Profile................................................25 2.2.4Pre-logon Connect .......................................................................27 2.3Network....................................................................................................27 2.3.1Network........................................................................................27 2.3.2Example on Adding Profile in Network.......................................30 2.4Advanced .................................................................................................31 2.4.1Advanced .....................................................................................31 2.4.2Certificate Management...............................................................32 2.5Link Information ......................................................................................33 2.5.1Link Status ...................................................................................33 2.5.2Throughput...................................................................................34 2.5.3Statistics .......................................................................................34 2.6About........................................................................................................35 2.6.1About............................................................................................35 2.7WPS .........................................................................................................36 2.7.1WPS .............................................................................................36 2.7.2Example to Add to Registrar Using PIN Method ........................38 2.7.3Example to Add to Registrar Using PBC Method .......................41 2.7.4Example to Configure a Network/AP Using PIN or PBC Method 45 3.Security ................................................................................................................47 3.1Auth.\ Encry. Setting – WEP/TKIP/AES.................................................47 3.2802.1x Setting ..........................................................................................48 3.3Example to Configure Connection with WEP on ....................................51 3/61 3.4Example to Configure Connection with WPA-PSK ................................53 3.5Example to Configure Connection with WPA .........................................55 4.Appendix..............................................................................................................60 4.1Acknowledgements..................................................................................60 5.FAQ ......................................................................................................................60 5.1FAQ ..........................................................................................................60 4/61 1.Windows Wireless Utility 1.1Windows Zero Configuration for XP 1.1.1Ralink Wireless Utility and Windows Zero Configuration Windows XP includes a wireless configuration utility named "Windows Zero configuration" (WZC) which provides basic configuration functions to the Ralink Wireless NIC. Ralink's utility (RaUI) additionally provides WPA functionality. To make it easier for the user to select the correct utility. RaUI will let users make a selection when it first runs after windows XP boots. Right-clicking the icon will bring up the selection window and allow the user to make a selection. Figure 1-1 RaUI.exe RaUI can co-exist withWZC. When coexisting withWZC, RaUI only provides monitoring functions, such as surveying the link status, network status, statistic counters, advanced feature status, WMM status and WPS status. It won't interfere with WZC's configuration or profile functions. It is shown as Figure 1-2. Figure 1-2 Select WZC or RaUI If "Use RaConfig as Configuration utility" is selected, please jump to Section 2 on running RaUI. If "Use Zero Configuration as Configuration utility" is selected, please continue. We will explain the difference between RaUI andWZC. Figure 1-3 shows the RaUI status whenWZCis activated as the main control utility. Figure 1-3 RaUI status with WZC active 5/61 When activatingWZC, there are several difference with the RaUI status, compared to the RaUI status withoutWZCrunning. The profile button will be gray. Profile functionality is removed since the NIC is controlled byWZC. The Connect and Add Profile function will be gray. Profile functionality is removed since the NIC is controlled byWZC. Please read through this document for full details on th…

Text truncated - open the document above for the full version.

Dual Band Omni-Antenna

8F, No.63, Juguang Rd, Zhonghe Dist, New Taipei City 235, Taiwan, R.O.C. Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw RFA-25-AP09-UA2000 Specifications Frequency (MHz) 2400 ~ 2500 MHz, 4900~5875MHz Antenna gain(dBi) <4 <6 VSWR 3.0：1 max. 5.0：1 max. Polarization Linear, vertical Impedance 50 Ω Temperature - 10°C to +55°C Humidity 95％ @ 25°C PORT 1 PORT 2

DECLARATION OF CONFORMITY (DoC) Equipment: 802.11 a/b/g/n Wireless USB Adapter Trademark(s): Loopcomm Technology Inc. Model(s): LP-7767 Manufacturer: Loopcomm FCC ID in case other parts of this equipment are subject to certification: VYTLP-7767 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. The following test reports are subject to this declaration: Test report number:Issue date: TEFD1111093Jun. 18, 2012 The following manufacturer is responsible for this declaration: Company name:Loopcomm Technology Inc. Name/Title (legal representative): Address:6F., No.236, Bo’ai St., Shulin Dist., New Taipei City 238, Taiwan (R.O.C.) Phone:+886-2-8686-9685 EXT: 8362 Fax:+886-2-8686-9687 E-mail:[email protected] Date:2013/10/02 Signature:

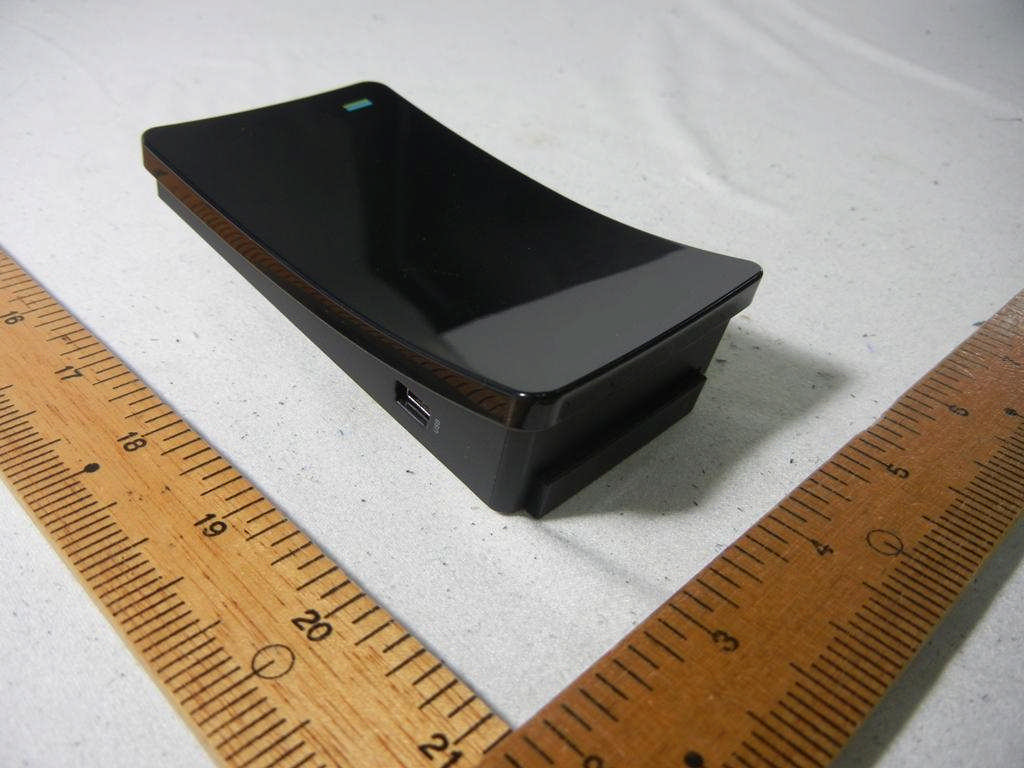

CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued Date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A1 of A9 FCC ID:VYTLP-7767 Appendix A. Photographs of EUT Antenna Type: Dipole Antenna CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued Date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A5 of A9 FCC ID:VYTLP-7767 Antenna Type: PCB Antenna

Label & Location

CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued Date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A2 of A9 FCC ID:VYTLP-7767 CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued Date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A3 of A9 FCC ID:VYTLP-7767 CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued Date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A4 of A9 FCC ID:VYTLP-7767 CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued Date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A6 of A9 FCC ID:VYTLP-7767 CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued Date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A7 of A9 FCC ID:VYTLP-7767 CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued Date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A8 of A9 FCC ID:VYTLP-7767 CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued Date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A9 of A9 FCC ID:VYTLP-7767

CERPASS TECHNOLOGY CORP. Report No.: 1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200Page No.:1 of 3 IC ID:VYTLP-7767 Radio Frequency Exposure LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUTHigh Power Wireless-N 600mW Gigabit Dual Band Router Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.150GHz ~ 5.250GHz WLAN: 5.725GHz ~ 5.850GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 802.11b: 25.83 dBm (382.87 mW) 802.11g: 25.87 dBm (386.39 mW) 802.11n (20MHz): 25.87 dBm (386.39 mW) 802.11n (40MHz): 25.87 dBm (386.40 mW) 802.11a: 23.06 dBm (202.37 mW) 802.11an (20MHz): 22.99 dBm (199.06 mW) 802.11an (40MHz): 22.68 dBm (185.24 mW) Antenna gain (Max) Dipole Antenna 802.11b/g/n: 2 dBi ; 802.11a, an: 4 dBi PCB Antenna 802.11b/g/n: 4 dBi ; 802.11a, an: 6 dBi Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 25.87 dBm (386.40 mW)at 2437MHz(with numeric 4.0 antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: 1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200Page No.:2 of 3 IC ID:VYTLP-7767 TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 3770 2 E S WhereE = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   2 2 0796.0 100/3770 1000/30 d GP d GP S     Equation 1 Whered = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: 1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200Page No.:3 of 3 IC ID:VYTLP-7767 Maximum Permissible Exposure Dipole Antenna Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 802.11b2412-246225.832.020 0.121 1 802.11g2412-246225.872.020 0.122 1 802.11n (20MHz)2412-246225.875.0120 0.244 1 802.11n (40MHz)2422-245225.875.0120 0.244 1 802.11a5150-525016.824.020 0.024 1 802.11a5725-585023.064.020 0.101 1 802.11an (20MHz)5150-525016.797.0120 0.048 1 802.11an (20MHz)5725-585022.997.0120 0.199 1 802.11an (40MHz)5190-523016.697.0120 0.047 1 802.11an (40MHz)5755-579522.687.0120 0.185 1 PCB Antenna Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 802.11b2412-246225.834.020 0.191 1 802.11g2412-246225.874.020 0.193 1 802.11n (20MHz)2412-246225.877.0120 0.386 1 802.11n (40MHz)2422-245225.877.0120 0.386 1 802.11a5150-525016.826.020 0.038 1 802.11a5725-585023.066.020 0.160 1 802.11an (20MHz)5150-525016.799.0120 0.076 1 802.11an (20MHz)5725-585022.999.0120 0.315 1 802.11an (40MHz)5190-523016.699.0120 0.074 1 802.11an (40MHz)5755-579522.689.0120 0.294 1 NOTE: Total (Chain0+Chain1) , the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density

CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:1 of 295 FCC ID:VYTLP-7767 FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant: Loopcomm Technology Inc. Address: 6F., No.236, Bo’ai St., Shulin Dist., New Taipei City 238, Taiwan (R.O.C.) Equipment: 802.11 a/b/g/n Wireless USB Adapter Model No.: LP-7767 Trade Name:Loopcomm FCC ID::VYTLP-7767 The test result refers exclusively to the test presented test model / sample., Without written approval ofCerpass Technology Corp.,the test report shall not be reproduced except in full. The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:2 of 295 FCC ID:VYTLP-7767 Contents 1.Report of Measurements and Examinations ....................................................................................6 1.1List of Measurements and Examinations ...................................................................................6 2.Test Configuration of Equipment under Test ...................................................................................7 2.1Feature of Equipment under Test...............................................................................................7 2.2Carrier Frequency of Channels ..................................................................................................7 2.3Test Mode and Test Software.....................................................................................................8 2.4Description of Test System.........................................................................................................8 2.5General Information of Test........................................................................................................9 2.6Measurement Uncertainty ..........................................................................................................9 3.Antenna Requirements.....................................................................................................................10 3.1Standard Applicable .................................................................................................................10 3.2Antenna Construction and Directional Gain.............................................................................10 4.Test of Conducted Emission............................................................................................................ 11 4.1Test Limit .................................................................................................................................. 11 4.2Test Procedures ....................................................................................................................... 11 4.3Typical Test Setup ....................................................................................................................12 4.4Measurement Equipment .........................................................................................................12 4.5Test Result and Data ................................................................................................................13 4.6Test Photographs .....................................................................................................................37 5.Test of Radiated Emission ...............................................................................................................39 5.1Test Limit ..................................................................................................................................39 5.2Test Procedures .......................................................................................................................39 5.3Typical Test Setup ....................................................................................................................40 5.4Measurement Equipment .........................................................................................................40 5.1Test Result and Data (9kHz ~ 30MHz).....................................................................................41 5.2Test Result and Data ................................................................................................................41 5.3Test Photographs (30MHz~1000MHz)...................................................................................170 5.4Test Photographs (1000MHz~40000MHz).............................................................................172 6.6dB Bandwidth Measurement Data ...............................................................................................174 6.1Test Limit ................................................................................................................................174 6.2Test Procedures .....................................................................................................................174 6.3Test Setup Layout ..................................................................................................................174 6.4Measurement Equipment .......................................................................................................174 6.5Test Result and Data ..............................................................................................................175 7.Maximum Peak and Average Output Power .................................................................................196 7.1Test Limit ................................................................................................................................196 7.2Tes…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:81 of 295 FCC ID:VYTLP-7767 Power:FROM SYSTEMPol/Phase:HORIZONTAL Test Mode 1:802.11a, CH149Temperature:25 °C Memo:Antenna Type: DipoleHumidity:65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:82 of 295 FCC ID:VYTLP-7767 Power:FROM SYSTEMPol/Phase:VERTICAL Test Mode 1:802.11a, CH149Temperature:22 °C Memo:Antenna Type: DipoleHumidity:65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:83 of 295 FCC ID:VYTLP-7767 Power:FROM SYSTEMPol/Phase:HORIZONTAL Test Mode 1:802.11a, CH149Temperature:22 °C Memo:Antenna Type: DipoleHumidity:65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:84 of 295 FCC ID:VYTLP-7767 Power:FROM SYSTEMPol/Phase:VERTICAL Test Mode 1:802.11a, CH157Temperature:22 °C Memo:Antenna Type: DipoleHumidity:65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:85 of 295 FCC ID:VYTLP-7767 Power:FROM SYSTEMPol/Phase:HORIZONTAL Test Mode 1:802.11a, CH157Temperature:22 °C Memo:Antenna Type: DipoleHumidity:65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:86 of 295 FCC ID:VYTLP-7767 Power:FROM SYSTEMPol/Phase:VERTICAL Test Mode 1:802.11a, CH165Temperature:22 °C Memo:Antenna Type: DipoleHumidity:65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:87 of 295 FCC ID:VYTLP-7767 Power:FROM SYSTEMPol/Phase:HORIZONTAL Test Mode 1:802.11a, CH165Temperature:22 °C Memo:Antenna Type: DipoleHumidity:65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:88 of 295 FCC ID:VYTLP-7767 Power:From SystemPol/Phase:VERTICAL Test Mode 1:802.11an HT20, CH149Temperature:25 °C Memo:Antenna Type: DipoleHumidity:65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:89 of 295 FCC ID:VYTLP-7767 Power:From SystemPol/Phase:VERTICAL Test Mode 1:802.11an HT20, CH149Temperature:25 °C Memo:Antenna Type: DipoleHumidity:65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:90 of 295 FCC ID:VYTLP-7767 Power:From SystemPol/Phase:HORIZONTAL Test Mode 1:802.11an HT20, CH149Temperature:25 °C Memo:Antenna Type: DipoleHumidity:65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:91 of 295 FCC ID:VYTLP-7767 Power:From SystemPol/Phase:HORIZONTAL Test Mode 1:802.11an HT20, CH149Temperature:25 °C Memo:Antenna Type: DipoleHumidity:65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:92 of 295 FCC ID:VYTLP-7767 Power:From SystemPol/Phase:VERTICAL Test Mode 1:802.11an HT20, CH149Temperature:22 °C Memo:Antenna Type: DipoleHumidity:65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:93 of 295 FCC ID:VYTLP-7767 Power:From SystemPol/Phase:HORIZONTAL Test Mode 1:802.11an HT20, CH149Temperature:22 °C Memo:Antenna Type: DipoleHumidity:65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:94 of 295 FCC ID:VYTLP-7767 Power:From SystemPol/Phase:VERTICAL Test Mode 1:802.11an HT20, CH157Temperature:22 °C Memo:Antenna Type: DipoleHumidity:65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:95 of 295 FCC ID:VYTLP-7767 Power:From SystemPol/Phase:HORIZONTAL Test Mode 1:802.11an HT20, CH157Temperature:22 °C Memo:Antenna Type: DipoleHumidity:65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:96 of 295 FCC ID:VYTLP-7767 Power:From SystemPol/Phase:VERTICAL Test Mode 1:802.11an HT20, CH165Temperature:22 °C Memo:Antenna Type: DipoleHumidity:65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:97 of 295 FCC ID:VYTLP-7767 Power:From SystemPol/Phase:HORIZONTAL Test Mode 1:802.11an HT20, CH165Temperature:22 °C Memo:Antenna Type: DipoleHumidity:65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:98 of 295 FCC ID:VYTLP-7767 Power:From SystemPol/Phase:VERTICAL Test Mode 1:802.11an HT40, CH151Temperature:25 °C Memo:Antenna Type: DipoleHumidity:65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:99 of 295 FCC ID:VYTLP-7767 Power:From SystemPol/Phase:VERTICAL Test Mode 1:802.11an HT40, CH151Temperature:25 °C Memo:Antenna Type: DipoleHumidity:65 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:100 of 295 FCC ID:VYTLP-7767 Power:From SystemPol/Phase:HORIZONTAL Test Mode 1:802.11an HT40, CH151Temperature:25 °C Memo:Antenna Type: DipoleHumidity:65 % CERPASS TECHNOLOGY CO…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:174 of 295 FCC ID:VYTLP-7767 6. 6dB Bandwidth Measurement Data 6.1 Test Limit The minimum of 6dB Bandwidth Measurement is 0.5 MHz. 6.2 Test Procedures a.The transmitter output was connected to the spectrum analyzer. b.Set RBW of spectrum analyzer to 1~5% of the emission bandwidth and VBW ≥ 3x RBW. c.The 6 dB bandwidth is defined as the total spectrum the power of which is higher than peak power minus 6 dB. d.The 6dB Bandwidth was measured and recorded. 6.3 Test Setup Layout 6.4 Measurement Equipment Instrument/AncillaryManufacturerModel No.Serial No.Calibration DateValid Date Spectrum AnalyzerR&SFSP401002192011/11/242012/11/23 CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:175 of 295 FCC ID:VYTLP-7767 6.5 Test Result and Data Test Date: Jun. 01, 2012 Temperature: 25°C Atmospheric pressure: 1020 hPaHumidity: 65% Modulation StandardChannel Frequency (MHz) 6dB Bandwidth (MHz) ANT RANT L 802.11b (11Mbps) 01241211.912.0 06243712.012.0 11246212.012.0 802.11g (54Mbps) 01241216.616.4 06243716.316.4 11246216.416.4 802.11n HT20 (130Mbps) 01241217.817.6 06243717.617.6 11246217.717.5 802.11n HT40 (270Mbps) 03242236.036.0 06243736.035.6 09245236.036.0 Test Date: Jun. 05, 2012 Temperature: 25°C Atmospheric pressure: 1020 hPaHumidity: 65% Modulation StandardChannel Frequency (MHz) 6dB Bandwidth (MHz) ANT RANT L 802.11a (54Mbps) 149574516.416.4 157578516.616.3 165582516.616.5 802.11an HT20 (130Mbps) 149574517.617.6 157578517.517.5 165582517.517.6 802.11n HT40 (270Mbps) 151575536.036.3 1555775------ 159579535.836.0 CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:176 of 295 FCC ID:VYTLP-7767 Modulation Standard: 802.11b (11Mbps), ANT R Channel: 01 Modulation Standard: 802.11b (11Mbps), ANT R Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:177 of 295 FCC ID:VYTLP-7767 Modulation Standard: 802.11b (11Mbps), ANT R Channel: 11 Modulation Standard: 802.11g (54Mbps), ANT R Channel: 01 CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:178 of 295 FCC ID:VYTLP-7767 Modulation Standard: 802.11g (54Mbps), ANT R Channel: 06 Modulation Standard: 802.11g (54Mbps), ANT R Channel: 11 CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:179 of 295 FCC ID:VYTLP-7767 Modulation Standard: 802.11n HT20 (130Mbps), ANT R Channel: 01 Modulation Standard: 802.11n HT20 (130Mbps), ANT R Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:180 of 295 FCC ID:VYTLP-7767 Modulation Standard: 802.11n HT20 (130Mbps), ANT R Channel: 11 Modulation Standard: 802.11n HT40 (270Mbps), ANT R Channel: 03 CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:181 of 295 FCC ID:VYTLP-7767 Modulation Standard: 802.11n HT40 (270Mbps), ANT R Channel: 06 Modulation Standard: 802.11n HT40 (270Mbps), ANT R Channel: 09 CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:182 of 295 FCC ID:VYTLP-7767 Modulation Standard: 802.11a (54Mbps), ANT R Channel: 149 Modulation Standard: 802.11a (54Mbps), ANT R Channel: 157 CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:183 of 295 FCC ID:VYTLP-7767 Modulation Standard: 802.11a (54Mbps), ANT R Channel: 165 Modulation Standard: 802.11an HT20 (130Mbps), ANT R Channel: 149 CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:184 of 295 FCC ID:VYTLP-7767 Modulation Standard: 802.11an HT20 (130Mbps), ANT R Channel: 157 Modulation Standard: 802.11an HT20 (130Mbps), ANT R Channel: 165 CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:185 of 295 FCC ID:VYTLP-7767 Modulation Standard: 802.11an HT40 (270Mbps), ANT R Channel: 151 Modulation Standard: 802.11an HT40 (270Mbps), ANT R Channel: 159 CERPASS TECHNOLOGY CORP. Report No.: TEFI1111093 Cerpass Technology Corp.Issued date:Jul. 09, 2012 Tel:…

Text truncated - open the document above for the full version.
