VYTLP-8696CLP-8696C 802.11n WIRELESS AP ROUTER

Loopcomm Technology,.Inc.
LP-8696C 802.11n WIRELESS AP ROUTER - FCC ID VYTLP-8696C - Loopcomm Technology,.Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Dec 06, 2010
Application Purpose
Original Equipment
Date of Application
Dec 06, 2010
Equipment Note
LP-8696C 802.11n WIRELESS AP ROUTER
Frequency Range
2422.00000000 - 2452.00000000
Company
Loopcomm Technology,.Inc.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗
↗

RF Exposure Info

↗

Schematics

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

© 2009 User's Manual of WLAN Broadband router (2T2R) USER MANUAL 1.0.0 -2- Table of Contents Chapter I Terminology 5 Chapter II Introduction 6 ................................................................................................................................... 61. Package contents ................................................................................................................................... 62. Product Specifications ................................................................................................................................... 73. Product Features ................................................................................................................................... 84. Front Panel Description ................................................................................................................................... 95. Rear Panel Description Chapter III Installation 9 ................................................................................................................................... 91. Hardware Installation ................................................................................................................................... 102. Software Installation Chapter IV Software configuration 10 ................................................................................................................................... 101. Prepare your PC to configure the WLAN Broadband Router ................................................................................................................................... 112. Connect to the WLAN Broadband Router ................................................................................................................................... 123. Management and configuration on the WLAN Broadband Router ......................................................................................................................................................... 123.1 Status ......................................................................................................................................................... 143.2 Setup Wizard ......................................................................................................................................................... 183.3 Operation Mode ......................................................................................................................................................... 183.4 Wireless - Basic Settings ......................................................................................................................................................... 203.5 Wireless - Advanced Settings ......................................................................................................................................................... 213.6 Wireless - Security Setup ......................................................................................................................................................... 233.7 Wireless - Access Control ......................................................................................................................................................... 243.8 WDS Settings .................................................................................................................................................. 253.8. WDS Security Setup .................................................................................................................................................. 263.8. WDS AP Table ......................................................................................................................................................... 273.9 Site Survey ......................................................................................................................................................... 273.10 WPS ......................................................................................................................................................... 293.11 LAN Interface Setup .................................................................................................................................................. 303.11. Static DHCP Setup ......................................................................................................................................................... 313.12 WAN Interface Setup .................................................................................................................................................. 323.12. Static IP .................................................................................................................................................. 343.12. DHCP Client .................................................................................................................................................. 363.12. PPPoE .................................................................................................................................................. 393.12. PPTP ......................................................................................................................................................... 413.13 Firewall - Port Filtering ......................................................................................................................................................... 423.14 Firewall - IP Filtering ......................................................................................................................................................... 433.15 Firewall - MAC Filtering ......................................................................................................................................................... 443.16 Firewall - Port Forwarding .....................................................................................…

Text truncated - open the document above for the full version.

External Photos

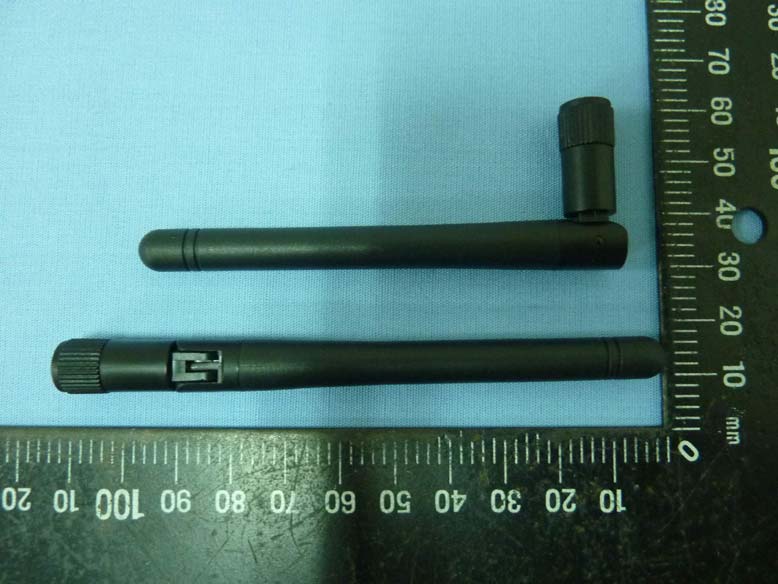

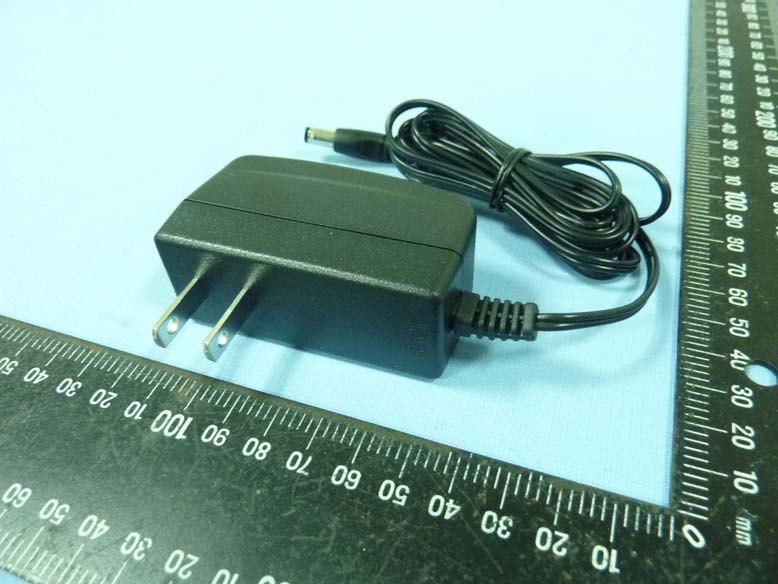

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Reference No.: A10110404 Photo Page: 1 of 5 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Reference No.: A10110404 Photo Page: 2 of 5 PHOTOS OF EUT PHOTOS OF EUT - Antenna Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Reference No.: A10110404 Photo Page: 3 of 5 PHOTOS OF EUT - Adapter

ID Label/Location Info

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Sample of FCC ID Label The device is large enough for it to be placed warning statement on the device as follow: FCC ID: VYTLP-8696C This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Reference No.: A10110404 Photo Page: 4 of 5 PHOTOS OF EUT – Top Inside PHOTOS OF EUT – Case Inside Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Reference No.: A10110404 Photo Page: 5 of 5 PHOTOS OF EUT - PCB

Operational Description

FCC ID: VYTLP-8696C Operational Description of the equipment The EUT is LP-8696C 802.11n Wireless AP Router. This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps and the device of RF carrier is DBPSK, DQPSK and CCK (IEEE 802.11b). The device provided of eight kinds of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mbps the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11g). The device provided of eight kinds of transmitting speed up to 72Mbps in 802.11n(20M-BW) mode and up to 150Mbps (40M-BW) the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11n). This Wireless AP Router, compliant with IEEE 802.11b and IEEE 802.11g/n, is a high-efficiency Wireless AP Router. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) radio transmission, the Wireless AP Router Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11g/n network. More detailed information see as bellow : PRODUCT LP-8696C 802.11n Wireless AP Router MODEL NO. LP-8696C BRAND LOOPCOMM POWER SUPPLY DC power source from external adapter Input:100-240V, 0.3A, 50-60Hz Output : 12V, 1A CABLE 1m unshielded power core. FREQUENCY BAND 2.400GHz ~ 2.483.5GHz CARRIER FREQUENCY 2.412GHz ~ 2.462GHz ; 2.422GHz ~ 2.452GHz CHANNEL SPACING 5 MHz NUMBER OF CHANNEL b/g/n(20M):11 ; n(40M):7 CHANNEL SPACING 20MHz RATED RF OUTPUT POWER 11b : 0.0588W ; 11g : 0.0245W 11n(20M):0.0227W ; 11n(40M):0.0095W MODULATION TYPE 11b : DSSS ; 11g/n : OFDM BIT RATE OF TRANSMISSION 11b: 1, 2, 5.5, 11Mbps 11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 11n(20M) : up to 72Mbps 11n(40M) : up to 150Mbps MODE OF OPERATION Half Duplex ANTENNA TYPE Reverse SMA Dipole ANTENNA GAIN 2 dBi OPERATING TEMPERATURE RANGE 0 ~ 60°C

Operational Description

TECHNOLOGICAL SPEC. 1. Product Name: LP-8696C 802.11n Wireless AP Router Model: LP-8696C Brand: LOOPCOMM 2. Power Source: ■ DC 12 V, 1 A; □ AC V, A 3. Frequency Band: 2.400GHz ~ 2.4835GHz Carrier Frequency: 2.412 ~ 2.462 GHz 4. Number of Channel: b/g/n(20M):11 ; n(40M):7 5. Channel Spacing: 5 MHz 6. RF Output Power (ERP or EIRP) : 11b : 0.0588W ; 11g : 0.0245W ; 11n(20M):0.0227W ; 11n(40M):0.0095W 7. I.F.: MHz; L.O.: MHz 8. Modulation Type: b: DSSS ; g/n: OFDM 9. Duty Cycle: % 10. Mode of operation (duplex, simplex, half duplex) : Half duplex 11. Bit Rate of Transmission: b: 1, 2, 5.5,11Mbps ; n(40MHz): up to 150Mbps g: 6, 9, 12, 18, 24, 36, 48, 54Mbps ; n(20MHz): up to 72Mbps 12. Antenna Type: Reverse SMA Dipole 13. Antenna gain: 2.0 dBi 14. Operating Temperature Range: 0 ~ 60 °C 15. Channel bandwidth : 20 MHZ

RF Exposure Info

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.: A10110404 Report No.:MPEA10110404 Page:2 of 6 Date: Nov. 15, 2010 FMNG-059.10 REPORT TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................... 3 1.1 BASIC RESTRICTION........................................................................................ 3 1.2 TABLE FOR FIELD ANTENNA ........................................................................... 3 2. EMF EXPOSURE MEASUREMENT .................................................................... 4 2.1 LIMIT .................................................................................................................. 4 2.2 EMF EXPOSURE LEVELS CALCULATED ........................................................ 6 2.3 TEST RESULT.................................................................................................... 6 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.: A10110404 Report No.:MPEA10110404 Page:3 of 6 Date: Nov. 15, 2010 FMNG-059.10 REPORT 1. GENERAL INFORMATION 1.1 BASIC RESTRICTION The essential requirements of Directive 99/5/EC in the article 3.1(a) and the limits must be taken from Council Recommendation 99/519/EC for General Population or from the ICNIRP Guidelines for Occupational Exposure. EN 50371:2002 Generic standard to demonstrate the compliance of low power electronic and electrical apparatus with the basic restrictions related to human exposure to electromagnetic fields. The average power of EUT is less than 20mW then comply with basic restriction (1999/519/EC) without test. 1.2 TABLE FOR FIELD ANTENNA Antenna Type Connector Gain (dBi) 1 Dipole Reverse SMA 2.0 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.: A10110404 Report No.:MPEA10110404 Page:4 of 6 Date: Nov. 15, 2010 FMNG-059.10 REPORT 2. EMF EXPOSURE MEASUREMENT 2.1 LIMIT Basic Restrictions Council Recommendation 99/519/EC Annex II Basic restrictions for electric, magnetic and electromagnetic fields (0 Hz to 300 GHz) Note : Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.: A10110404 Report No.:MPEA10110404 Page:5 of 6 Date: Nov. 15, 2010 FMNG-059.10 REPORT Basic Restrictions Council Recommendation 99/519/EC Annex III Basic restrictions for electric, magnetic and electromagnetic fields (0 Hz to 300 GHz) Note : Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.: A10110404 Report No.:MPEA10110404 Page:6 of 6 Date: Nov. 15, 2010 FMNG-059.10 REPORT 2.2 EMF EXPOSURE LEVELS CALCULATED 2.3 TEST RESULT Max EIRP Output Power (dBm) Max EIRP Output Power (W) Power Density (W/m 2 ) Limit of Power Density (W/m 2 ) 17.6937 0.0588 0.2339 10

Test Report

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.: A10110404 Report No.:FCCA10110404 FCC ID : VYTLP-8696C Page:2 of 122 Date: Nov. 15, 2010 FMNG-059.10 REPORT Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT................................................. 4 1.1 DOCUMENT POLICY ......................................................................................... 4 1.2 TEST STATEMENT ............................................................................................ 4 1.3 EUT MODIFICATION.......................................................................................... 4 2. DESCRIPTION OF EUT AND TEST MODE ....................................................... 5 2.1 GENERAL DESCRIPTION OF EUT ................................................................... 5 2.2 DESCRIPTION OF EUT INTERNAL DEVICE .................................................... 5 2.3 DESCRIPTION OF TEST MODE ....................................................................... 6 2.4 DESCRIPTION OF SUPPORT UNIT.................................................................. 6 2.5 EUT OPERATING CONDITION.......................................................................... 7 3. DESCRIPTION OF APPLIED STANDARDS....................................................... 8 4 . TECHNICAL CHARACTERISTICS TEST .......................................................... 9 4.1 CONDUCTED EMISSION TEST ........................................................................ 9 4.1.1 LIMIT ............................................................................................................... 9 4.1.2 TEST EQUIPMENT ......................................................................................... 9 4.1.3 TEST SETUP................................................................................................. 10 4.1.4 TEST PROCEDURE...................................................................................... 10 4.1.5 TEST RESULT............................................................................................... 11 4.2 RADIATED EMISSION TEST ........................................................................... 19 4.2.1 LIMIT ............................................................................................................. 19 4.2.2 TEST EQUIPMENT ....................................................................................... 20 4.2.3 TEST SET-UP................................................................................................ 21 4.2.4 TEST PROCEDURE...................................................................................... 23 4.2.5 TEST RESULT............................................................................................... 24 4.3 BANDWIDTH TEST .......................................................................................... 54 4.3.1 LIMIT ............................................................................................................. 54 4.3.2 TEST EQUIPMENT ....................................................................................... 54 4.3.3 TEST SET-UP................................................................................................ 54 4.3.4 TEST PROCEDURE...................................................................................... 54 4.3.5 EUT OPERATING CONDITION..................................................................... 54 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.: A10110404 Report No.:FCCA10110404 FCC ID : VYTLP-8696C Page:3 of 122 Date: Nov. 15, 2010 FMNG-059.10 REPORT 4.3.6 TEST RESULT............................................................................................... 55 4.4 PEAK POWER TEST ....................................................................................... 69 4.4.2 TEST EQUIPMENT ....................................................................................... 69 4.4.3 TEST SET-UP................................................................................................ 70 4.4.4 TEST PROCEDURE...................................................................................... 70 4.4.5 EUT OPERATING CONDITION..................................................................... 70 4.4.6 TEST RESULT............................................................................................... 71 4.5 BAND EDGE TEST .......................................................................................... 85 4.5.1 LIMIT ............................................................................................................. 85 4.5.2 TEST EQUIPMENT ....................................................................................... 86 4.5.3 TEST SET-UP................................................................................................ 87 4.5.4 TEST PROCEDURE...................................................................................... 88 4.5.5 EUT OPERATING CONDITION..................................................................... 88 4.5.6 TEST RESULT............................................................................................... 89 4.6 POWER DENSITY TEST .............................................................................. 103 4.6.1 LIMIT ........................................................................................................... 103 4.6.2 TEST EQUIPMENT ..................................................................................... 103 4.6.3 TEST SET-UP.............................................................................................. 103 4.6.4 TEST PROCEDURE.................................................................................... 103 4.6.5 EUT OPERATING CONDITION...................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.: A10110404 Report No.:FCCA10110404 FCC ID : VYTLP-8696C Page:119 of 122 Date: Nov. 15, 2010 6. PHOTOS OF TESTING - Conducted test Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.: A10110404 Report No.:FCCA10110404 FCC ID : VYTLP-8696C Page:120 of 122 Date: Nov. 15, 2010 - Radiated test (below 1G , TX + RX) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.: A10110404 Report No.:FCCA10110404 FCC ID : VYTLP-8696C Page:121 of 122 Date: Nov. 15, 2010 - Radiated test (above 1G , TX + RX)

Contact Information

Applicant

Jane Lee(vice president)
[email protected]+886-2-8686-9685Fax: +886-2-8686-9687

Test Firm

Spectrum Research & Testing Laboratory, IncJohnson Ho
[email protected]886-3-4987684Fax: 886-3-4986528

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.42 GHz - 2.45 GHz9.50 mW
Grant Notes
Power output listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance When operating in 802.11n, 40 MHz mode, the operating frequency segment is limited to 2422 to 2452MHz.
