VYTLP-9318AHigh Power 802.11B/G/N Outdoor Wireless AP Router(1T1R)

User Manual Ver 1.0.0 Ⓒ2013/9 1 Contents INTRODUCTION .............................................................................................................................................................. 3 GETTING STARTED ....................................................................................................................................................... 3 Package Contents ........................................................................................................................................................ 3 LED Indicators .............................................................................................................................................................. 4 Inside Panel .................................................................................................................................................................. 4 Power over Ethernet (PoE) Adapter .......................................................................................................................... 5 MOUNTING INSTRUCTIONS ....................................................................................................................................... 6 Desktop Mounting (Indoor) ......................................................................................................................................... 6 Wall Mounting ............................................................................................................................................................... 6 Pole Mounting ............................................................................................................................................................... 7 PLUG AND PLAY SETUP GUIDE ................................................................................................................................ 8 ADDITIONAL SETTINGS ............................................................................................................................................. 10 Accessing the Settings Menu ................................................................................................................................... 10 Open your Web Browser ........................................................................................................................................... 10 Welcome to the Smart Setup Wizard ...................................................................................................................... 11 Set the System Clock ................................................................................................................................................ 11 Wireless Network ID .................................................................................................................................................. 12 Wireless Network Security ........................................................................................................................................ 12 Setup Summary .......................................................................................................................................................... 14 WIRELESS SETTINGS ................................................................................................................................................. 15 Basic Settings ............................................................................................................................................................. 15 Security ........................................................................................................................................................................ 17 Wi-Fi Protected Setup (WPS) .................................................................................................................................. 17 WDS Settings ............................................................................................................................................................. 19 Antenna Settings ........................................................................................................................................................ 20 Advanced Settings ..................................................................................................................................................... 20 SMART FEATURES ...................................................................................................................................................... 21 Access Schedule ........................................................................................................................................................ 21 User Access Control .................................................................................................................................................. 21 Wireless Coverage Controls ..................................................................................................................................... 22 IP SETTINGS ................................................................................................................................................................. 23 MANAGEMENT FEATURES ....................................................................................................................................... 25 System Status............................................................................................................................................................. 25 Network Statistics ....................................................................................................................................................... 25 System Clock .............................................................................................................................................................. 25 Upgrade Firmware ..............…

Text truncated - open the document above for the full version.

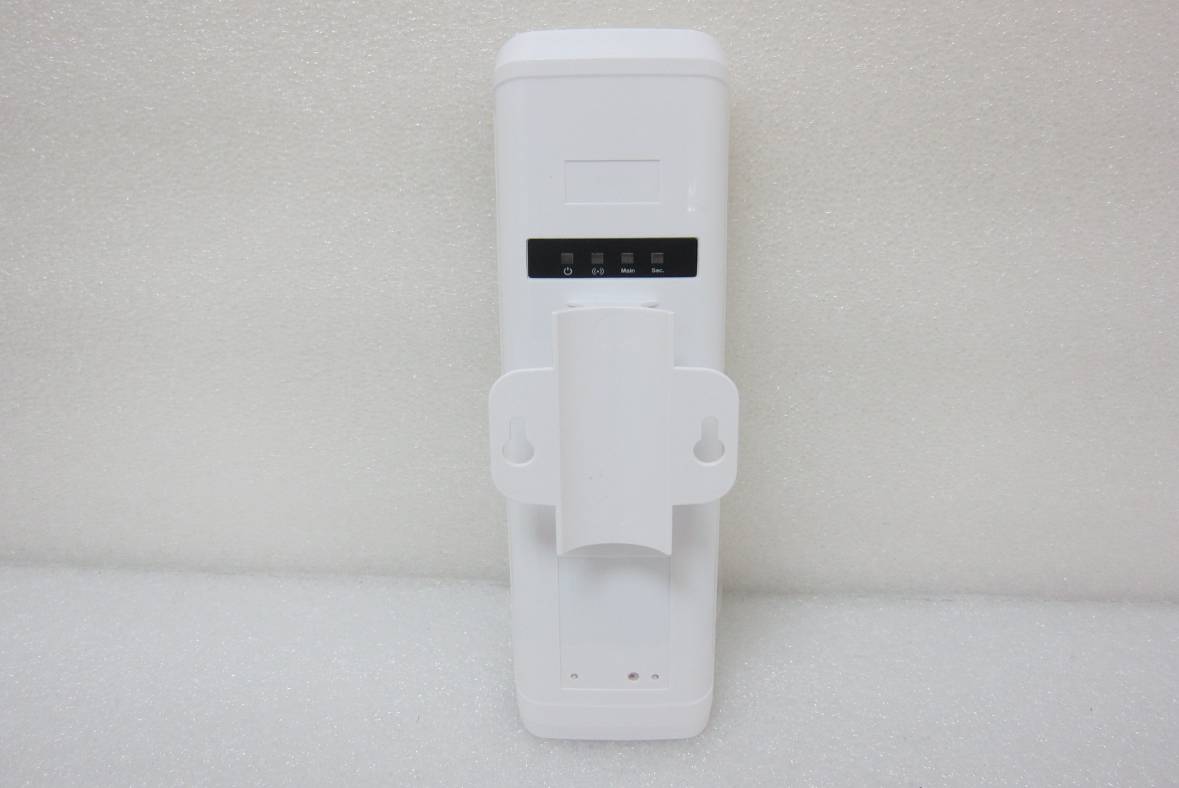

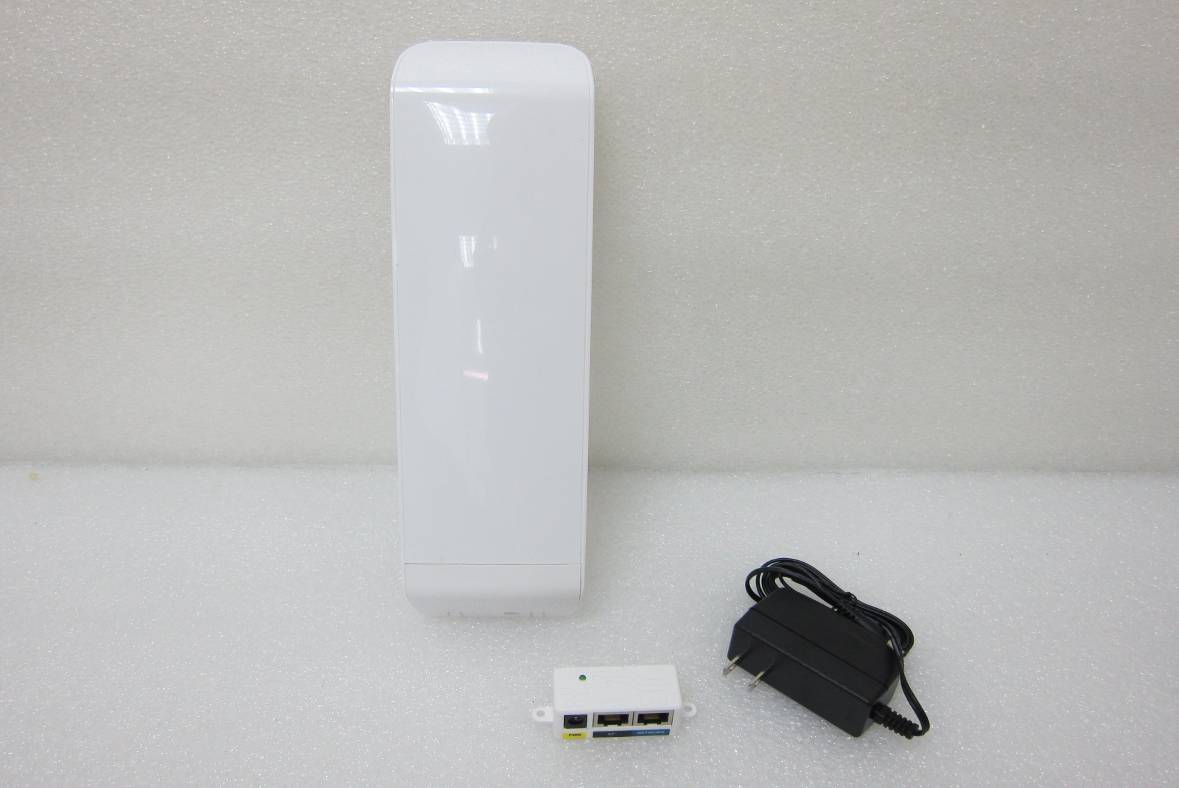

FCC ID: VYTLP-9318A International Standards Laboratory Report Number: ISL-13LR201FC EXTERNAL PHOTOGRAPHS OF EUT FCC ID: VYTLP-9318A International Standards Laboratory Report Number: ISL-13LR201FC EUT 1 EUT 2 FCC ID: VYTLP-9318A International Standards Laboratory Report Number: ISL-13LR201FC EUT 3 EUT 4 FCC ID: VYTLP-9318A International Standards Laboratory Report Number: ISL-13LR201FC EUT 5 POE

FCC ID LABEL FORMAT AND LOCATION Applicant: Loopcomm Technology, Inc. FCC ID: VYTLP-9318A

FCC ID: VYTLP-9318A International Standards Laboratory Report Number: ISL-13LR201FC INTERNAL PHOTOGRAPHS OF EUT FCC ID: VYTLP-9318A International Standards Laboratory Report Number: ISL-13LR201FC EUT 1 EUT 2 WLAN Ant. FCC ID: VYTLP-9318A International Standards Laboratory Report Number: ISL-13LR201FC EUT 3 EUT 4 FCC ID: VYTLP-9318A International Standards Laboratory Report Number: ISL-13LR201FC EUT 5 Antenna

FCC ID: VYTLP-9318A International Standards Laboratory 1 Maximum Permissible Exposure (MPE) 1.1 Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be op- erated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Mobile device, the MPE is required. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-15000 / / 1.0 30 F = frequency in MHz * = Plane-wave equipment power density -62 of 72- FCC ID: VYTLP-9318A International Standards Laboratory 1.2 Maximum Permissible Exposure (MPE) Evaluation The worst case of Average power: refer to section 6.5 for detail measurement date. 802.11b Cable loss = 0 Output Power limit CH Frequency (MHz) Detector PK (dBm) AV (dBm) (dBm) 1 2412 15.27 12.57 28 6 2437 15.14 12.87 28 11 2462 15.54 12.18 28 MPE Prediction (802.11b Mode)(the worst case) Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum Average output power at antenna input 12.87 (dBm ) Maximum Averger output power at antenna input 19.36421964 (m W ) Duty cycle: 99 (%) Maximum Pav : 19.17057744 ( mW) Antenna gain (typical): 10.76 (d B i) Maximum antenna gain: 11.91242008 (numeric) Prediction distance: 20 (cm) Prediction frequency: 2437 (M H z) MPE limit for uncontrolled exposure at prediction 1 ( mW/cm2) Power density at predication frequency at 20 (cm) 0.0454554 (m W/ cm^2) Measurement Result The predicted power density level at 20 cm is 0.0454mW/cm 2 . This is below the uncontrolled ex- posure limit of 1 mW/cm 2 at 2437MHz.

Page: 1 of 62 TEST REPORT of FCC Part 15 Subpart C New Application; Class I PC; Class II PC Product : High Power 802.11B/G/N Outdoor Wireless AP Router(1T1R) Brand: LOOPCOMM Model: LP-9316C, LP-9318A Model Difference: Market Segmentation FCC ID: VYTLP-9318A FCC Rule Part: §15.247, Cat: DTS Applicant: Loopcomm Technology, Inc. Address: 6F., No.236, Bo’ai St., Shulin Dist., New Taipei City 238, Taiwan (R.O.C.) Test Performed by: International Standards Laboratory <Lung-Tan LAB> *Site Registration No. BSMI: SL2-IN-E-0013; MRA TW1036; TAF: 0997; IC: IC4067B-3; *Address: No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-13LR201FC Issue Date : 2013/10/30 Test results given in this report apply only to the specific sample(s) tested and are traceable to nation- al or international standard through calibration of the equipment and evaluating measurement uncertainty herein. This report MUST not be used to claim product en- dorsement by TAF, NVLAP or any agency of the Government. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory. -2 of 62- FCC ID: VYTLP-9318A International Standards Laboratory Report Number: ISL-13LR201FC VERIFICATION OF COMPLIANCE Applicant: Loopcomm Technology, Inc. Product Description: High Power 802.11B/G/N Outdoor Wireless AP Router(1T1R) Brand Name: LOOPCOMM Model No.: LP-9316C, LP-9318A Model Difference: Market Segmentation FCC ID: VYTLP-9318A Date of test: 2013/10/14 ~ 2013/10/28 Date of EUT Received: 2013/10/14 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards de- scribed above and performed by an independent electromagnetic compatibility consultant, Interna- tional Standards Laboratory. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equip- ment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2013/10/30 Dino Chen / Engineer Prepared By: Date: 2013/10/30 Eva Kao / Technical Supervisor Approved By: Date: 2013/10/30 Vincent Su / Technical Manager -3 of 62- FCC ID: VYTLP-9318A International Standards Laboratory Report Number: ISL-13LR201FC Version Version No. Date Description 00 2013/10/30 Initial creation of document -4 of 62- FCC ID: VYTLP-9318A International Standards Laboratory Report Number: ISL-13LR201FC Table of Contents 1 GENERAL INFORMATION .................................................................................................... 6 1.1 Related Submittal(s) / Grant (s) ..................................................................................................... 7 1.2 Test Methodology .......................................................................................................................... 7 1.3 Test Facility .................................................................................................................................... 7 1.4 Special Accessories ........................................................................................................................ 7 1.5 Equipment Modifications ............................................................................................................... 7 2 SYSTEM TEST CONFIGURATION ....................................................................................... 8 2.1 EUT Configuration ........................................................................................................................ 8 2.2 EUT Exercise ................................................................................................................................. 8 2.3 Test Procedure ................................................................................................................................ 8 2.4 Configuration of Tested System ..................................................................................................... 9 3 SUMMARY OF TEST RESULTS .......................................................................................... 10 4 DESCRIPTION OF TEST MODES ....................................................................................... 10 5 CONDUCTED EMISSION TEST........................................................................................... 11 5.1 Standard Applicable: .................................................................................................................... 11 5.2 Measurement Equipment Used: ................................................................................................... 11 5.3 EUT Setup: ................................................................................................................................... 11 5.4 Measurement Procedure: ............................................................................................................. 12 5.5 Measurement Result: ................................................................................................................... 12 6 PEAK /AVERAGE OUTPUT POWER MEASUREMENT................................................. 15 6.1 Standard Applicable: .................................................................................................................... 15 6.2 Measurement Equipment Used: ................................................................................................... 16 6.3 Test Set-up: .................................................................................................................................. 16 6.4 Measurement Procedure: ............................................................................................................. 16 6.5 Measurement Result: ...............................................................…

Text truncated - open the document above for the full version.

FCC ID: VYTLP-9318A International Standards Laboratory Report Number: ISL-13LR201FC PHOTOGRAPHS OF SET UP FCC ID: VYTLP-9318A International Standards Laboratory Report Number: ISL-13LR201FC Radiated Emission Set up Photo FCC ID: VYTLP-9318A International Standards Laboratory Report Number: ISL-13LR201FC Conducted Emission Set up Photo
