VZB-CM6623RF Remote Controller

CM6623 RF remote controller PLEASE READ THE INSTRUCTIONS BEFORE USE CM6623 RF remote controller is for LED series WL66231Y, WL66251Y, WL6640Y. It use RF remote technology and was very convenient for user. 1. Function introduction 1.1 The functions of the three buttons are as followed: Dimmer & Memory button : Pressing for the first time, the color will change gradually, pressing the button for the second time 1 second, it will remember the current color, and then you can press to withdraw the memory color. Pressing the button for the third time is for turn off... Multiple choice & Candle button : When pressing the button, the collaboration of the color is white, RGB candle, red, green, blue, yellow, purple, cyan, light yellow, light purple, RGB white, and off. Light adjust button : there are 7 levels different intensity brightness. 1.2 Keep the distance of the LED light and remote, you can control the LED light by remote. 2. Technical specifications 2.1. Dimensions: （L）86.2 mm *（W）40.2*（H）13.3 mm；Weight: 28.5g 2.2 RF characteristic: Transmission frequency: 433.92MHZ； Remote distance: 10-15M 2.3 Working current: 20mA, standby mode current: 2-5uA 2.4 Working pressure: Alkaline dry battery, 12V 23A 3. Notes: Please read carefully the following items and use it according the rules. 3.1 Use outdoor or indoor, do not put in the fire or burn, to avoid environmental pollution. 3.2 Do not clean it with corrosive liquid. Avoid any scratched to its face. 3.3 Do not put it under where too hot, too cold, and too wet or too dust, avoid the sun shine directly. 3.4 Clean its face with dry cloth, do not use corrosive liquid. 3.5 Do not dismantle or modify any part of this product, otherwise it will broken. If you want to drop it, please give it to the recycle station. 3.6. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause Harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 4. Package 4.1 remote 1 pcs 4.2 manual 1 pcs 5. Contact Add: Building 49, Baotian Industrial Zone, Xixiang town, Baoan District, Shenzhen, China Tel: 86-755-33881688/33881689 Fax: 86-755-27455440 Post code: 518126

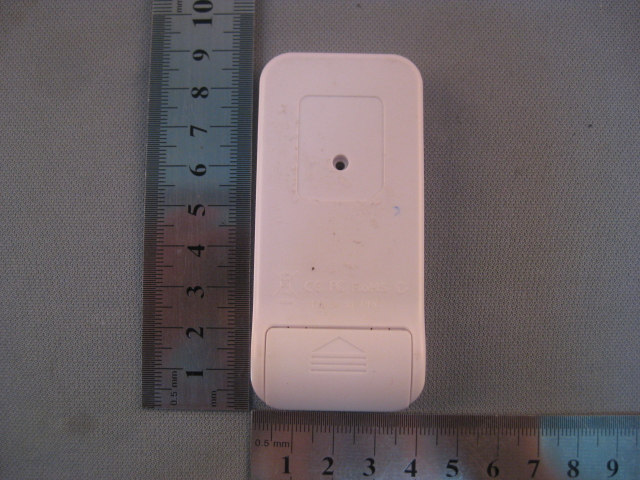

Photographs - EUT Constructional Details

SIZE: 19.8*24.8 MM IC: 8383A-CM6623
