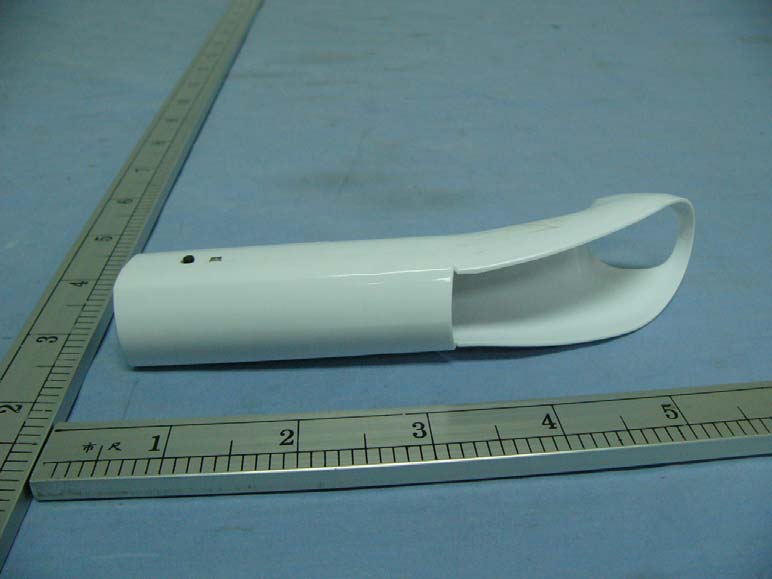

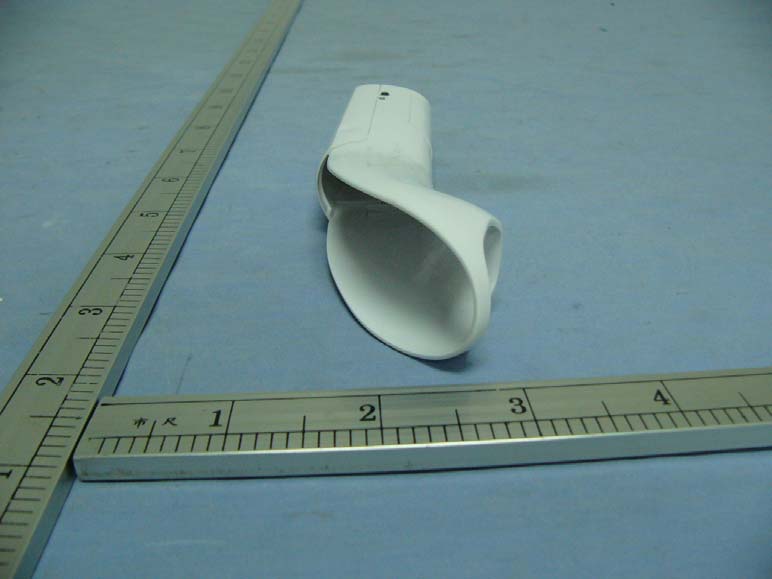

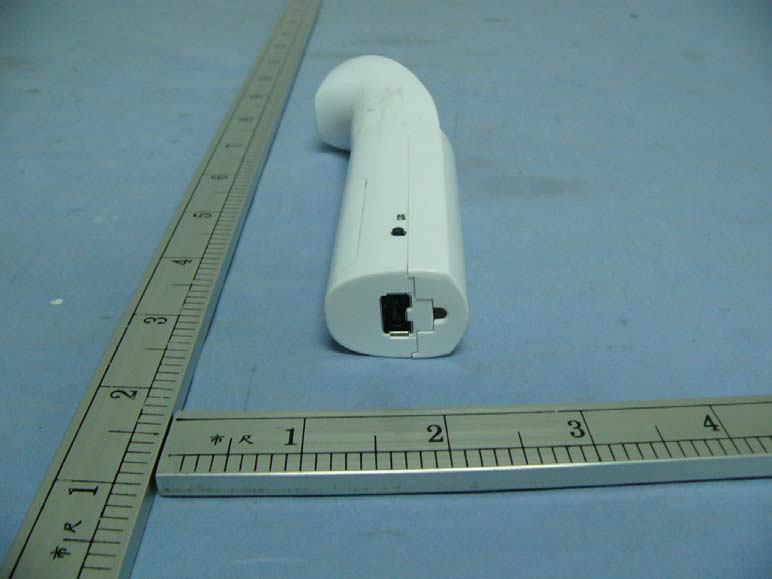

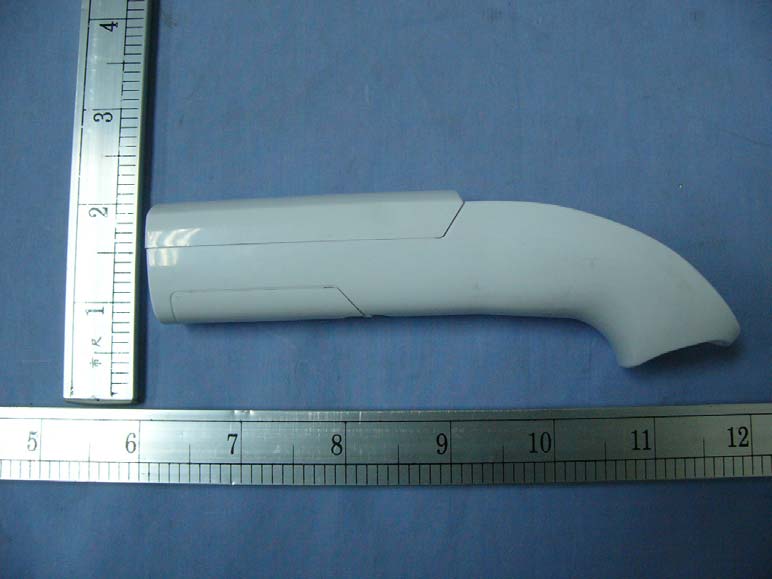

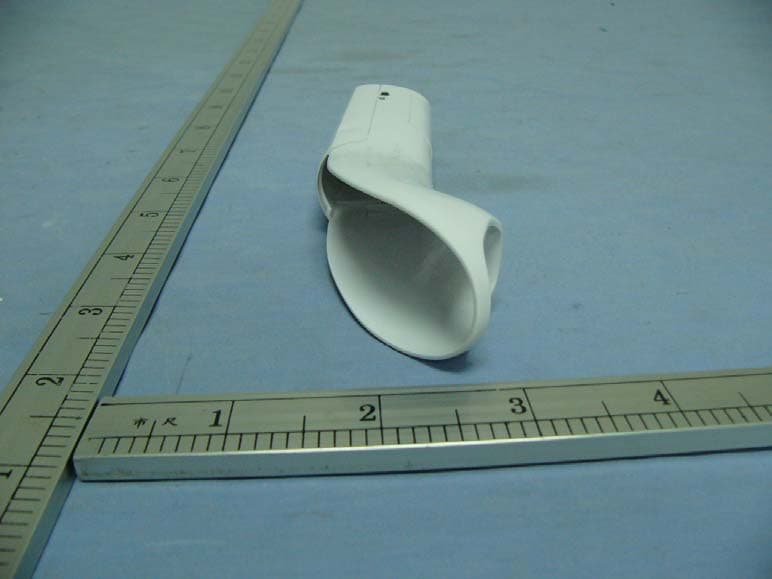

VZBCM3920080131WII CONTROLLER RF CONNECTOR

1 USER’S MANUAL OF WII Controller RF connector CM3920 ■Product Description： The Wii Controller RF Connector is adapt to the connection use of between Wii Remote Control and Nunchuk, This product actualized the connection via wireless and improved the distance of game. It can enhance your game feeling through the transfer of ISM Band 2.4 Wireless. ■Specification Description： RF Specification Description 1. 2.4GHz Multi Channel RF Mode Using a 2.4 GHz Multi Channel RF (2402 ~ 2476MHz) transfer modules frequency-jumping mode. 2. Channel searching for the address automatically to complete one-on-one matching function. when the connection between transmitter and receiver completed, It will exchange data throught frequency-hopping mode in 75 channel data exchange. Dongle in Wii Nunchuk 1. Compatible with the Wii Nunchuk tie-in specification Compatible with the corresponding function of Wii Nunchuk tie-in 2. Support a Comb button ● When the Dongle be in sleeping mode, press the Comb Key to wake up the Dongle,then access to the registration mode.Waiting for the connection with Remote. ●After the Dongle in the data transfer mode ,press the Comb Key and keep 4 seconds ,then Dongle enter into the registration mode , waiting for the connection with the un-registered Remote, if the connection has been lost in the 10 seconds,the Status LED will be off, the Dongle access to Sleeping Mode, Re-press the Comb Key within 10 seconds to establish the connection between Dongle and Remote . 3. Support a Status LED function ●Link mode：Status LED flash as the frequency 1Hz(On500mS Off500mS)  After complete the connection with Remote, then display the date transfer status. 2  If you turn the Remote off , the data transfer of Dongle will be disconnection and access to the link mode. The Satus LED flash 10 seconds as the frequency 1Hz, if the connection has been lost in the 10 seconds, the Status LED will be off and Dongle access to Sleeping Mode. ●Data transfer mode：Status LED flash as frequency 1Hz(On 100ms Off 900ms)indicating the data link status. ●Registration mode：Status LED flash as frequency 2Hz The Status LED is off when the Dongle un-link in the Sleep Mode ,press the Comb Key,the Status LED flash as the frequency 2Hz indicating the Dongle access to registration mode, if the connection with Remote has been lost in 10 seconds ,the Status LED will be off and the Dongle access to Sleeping Mode  After enter into the data mode, Press the Comb Key located on the Dongle and keep 4 seconds， When the Status LED flash as frequency 2Hz indicating the Dongle enter into the registration mode and waitng the new registration，if the connection with new Remote has been lost in the 10 seconds , the Dongle will enter into the Sleeping mode。 ● Low Power status：The Status LED will begin to flash as frequency 4Hz indication the voltage be in under 2.3V (2 battery)；When the voltage down to 1.8V(2 battery)，recommended that more replacement batteries to ensure that the products of normal function. ● If Wii Nunchuk un- insert to the end of Dongle,the Status LED will flash as frequency 5 Hz , when Dongle did not detect insertion Wii Nunchuk in 30 sec, Dongle will enter into sleeping mode. 4. When the Wii Nunchuk inserted to the Dongle, do not swing 3D-VR, this action can be ensure the WiiNunchuk to normal operation. If the Wii Nunchuk occur the abnormal status, plug WiiNunchuk to reset the action. Remote in Wii Remote Control 1. Compatible with the Wii Remote Control connector specifications Compatible with the corresponding function of Wii Remote Control ◆Support a Connect LED display ● Connect line mode：Connect LED flashes as frequency 1 Hz  Remote wait for a connection with the Dongle .  After the connection completed , then enter into the data transfer mode  When the disconnection between Remote and Dongle , Remote will enter into the connect line mode automatically, and wait for a connection with the Dongle. ●Data transfer mode： 1. When Dongle be in static, Connect LED On 100ms Off 900ms to show that the data connecting line status. 2. When a button output of the Dongle, Connect LED flashes quickly to show that the data connecting line status. ● Registration mode: Remote access to the registration mode, Connect LED flashes as frequency 2 Hz and Start the registration with the new Dongle ■ Connect line mode operation instruction: 3 If the Dongle be in sleep mode, press the Comb key to wake up, then Dongle access to registration mode, Status LED will flash as frequency 2 Hz to wait for the connection with Remote ,Remote and Dongle reset the identification ID and confirm the channel to complete the wireless connection, the Status LED located on the Remote flashes On 100msOff 900ms ●Step 1 : After press Comb Key to wake up the Dongle,, Dongle access to the registration mode, the Status LED will flash quickly as frequency 2 Hz ● Step 2 : When Remote access to the registration mode, the Connect LED will flash quickly as frequency 2 Hz ●Step 3 : Wireless Remote and Dongle re-set identification ID and confirm the channel to complete the connection. ■ Connect line status description: ● When Remote and Dongle be in connection status, if Dongle interrupted, the Connect LED located on the Remote access to the connect line mode, flash as frequency 1 Hz, then turn Dongle on or press the Comb Key to complete the connection with Remote ● When Remote and Dongle be in connection status, press Comb Key located on the Dongle and keep 4 sec, Dongle access to the registration mode ,the Status LED flash as frequency 2Hz and disconnect with the Remote , The Stauts LED flash as frequency 1 Hz indicatin the Remote access to the connection mode.If the connection has been lost in 10 sec. The Dongle will access to the sleep mode.Repress the Comb Key return to the connection mode to complete the connection. ● Remote access to registration mode, Connect LED flashes as frequency 2 Hz, if more than two-Dongle Be in registration or connection mode, the c…

Text truncated - open the document above for the full version.

SHENZHEN XIN ZHEN SHENG ELECTRONICS CO., LTD. Building 49, Baotian Industrial Zone Xixiang Town, Baoan District, Shenzhen, China FCC ID: VZBCM3920080131 POWER OF ATTORNEY March 07, 2008. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Compliance Certification Service (Shenzhen) Inc. (Aven Zhou/Assistant) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Compliance Certification Service (Shenzhen) Inc. (Aven Zhou/Assistant) on our behalf shall have the same effect as acts of our own. This authorization expires on Jan 14, 2009. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, SHENZHEN XINZHENSHENG ELECTRONICS CO., LTD., are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, SHENZHEN XINZHENSHENG ELECTRONICS CO., LTD.

Label location ITME No.: CM3920 (Transmitter) WII CONTROLLER RF CONNECTOR FCC ID: VZBCM3920080131 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. MADE IN CHINA 25mm 20mm

Type : PCB Antenna Antenna Gain: 0dBi

Reference No.: Report No.: SZ080118B03-RP(TX) FCC ID : VZBCM3920080131 Page 1 / 29 FCC TEST REPORT for Wii Controller RF connector MODEL: CM3920 Test Report Number: SZ080118B03-RP Issued for SHENZHEN XINZHENSHENG ELECTRONICS CO., LTD. Building 49, Baotian Industrial Zone Xixiang Town, Baoan District, Shenzhen,China Issued by: COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. (aka Compliance Engineering Service (China)) NO. 5, JINAO INDUSTRIAL PARK, NO. 35 JUKENG ROAD, DASHUIKENG VILLAGE, GUANLAN TOWN, BAOAN DISTRICT, SHENZHEN, CHINA TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: January 24, 2008 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test results in the report only apply to the tested sample. Reference No.: Report No.: SZ080118B03-RP(TX) FCC ID : VZBCM3920080131 Page 2 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 January 24, 2008 Initial Issue ALL Clinton Kao Reference No.: Report No.: SZ080118B03-RP(TX) FCC ID : VZBCM3920080131 Page 3 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST CERTIFICATION ................................................................................................. 4 2 EUT DESCRIPTION....................................................................................................... 5 3 TEST METHODOLOGY................................................................................................. 6 3.1. DESCRIPTION OF TEST MODES ...................................................................................... 6 4 TEST METHODOLOGY................................................................................................. 7 4.1. EUT EXERCISE ...................................................................................................................7 4.2. FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................................... 7 5 INSTRUMENT CALIBRATION ...................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ....................................................................... 8 6.1. DESCRIPTION OF SUPPORT UNITS................................................................................. 8 6.2. CONFIGURATION OF SYSTEM UNDER TEST ................................................................. 8 7 FACILITIES AND ACCREDITATIONS .......................................................................... 9 7.1. FACILITIES .......................................................................................................................... 9 7.2. ACCREDITATIONS ............................................................................................................. 9 7.3. MEASUREMENT UNCERTAINTY....................................................................................... 9 8 FCC PART 15.249 REQUIREMENTS ......................................................................... 10 8.1. BAND EDGES MEASUREMENT....................................................................................... 10 8.2. POWER LINE CONDUCTED EMISSIONS MEASUREMENT........................................... 16 8.3. SPURIOUS EMISSIONS MEASUREMENT....................................................................... 19 APPENDIX II PHOTOGRAPHS OF THE TEST CONFIGURATION ............................... 29 Reference No.: Report No.: SZ080118B03-RP(TX) FCC ID : VZBCM3920080131 Page 4 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST CERTIFICATION Product: Wii Controller RF connector Model: CM3920 Brand: N/A Tested: January 17-24, 2008 Applicant: SHENZHEN XINZHENSHENG ELECTRONICS CO., LTD. Building 49,Baotian Industrial Zone Xixiang Town, Baoan District,Shenzhen.China Manufacturer: SHENZHEN XINZHENSHENG ELECTRONICS CO., LTD. Building 49,Baotian Industrial Zone Xixiang Town, Baoan District,Shenzhen.China APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted DEVIATION FROM APPLICABLE STANDARD None We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.249. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Clinton Kao Manager Compliance Certification Service Inc. Vincent Yao Assistant manager Compliance Certification Service Inc. Reference No.: Report No.: SZ080118B03-RP(TX) FCC ID : VZBCM3920080131 Page 5 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2 EUT DESCRIPTION Product Wii Controller RF connector Trade Name N/A Model Number CM3920 Model Discrepancy N/A Serial Number N/A EUT Power Rating TX: DC3V powered by the battery Frequency Range 2402 ~ 2476 MHz Transmit Power 88.45 dBuV/m (Max.) Modulation Technique FSK Number of Channels 75 Channel Antenna Specification PCB antenna with 0dBi gain (Max) Note: 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. This submittal(s) (test report) is…

Text truncated - open the document above for the full version.

Reference No.: Report No.: SZ080118B03-RP(TX) FCC ID : VZBCM3920080131 Page 29 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX II PHOTOGRAPHS OF THE TEST CONFIGURATION Radiated Emissions Setup Photos
