VZFSWN24EA0Wi-Fi Module

Suga Electronics Limited © Suga Electronics Limited. All Rights Reserved. Information in this document is subject to change without prior notice. 1 IEEE 802.11b/g/n (2T2R) WLAN Half-size Mini PCIe Module User Manual Model: SWN24EA-0 Version: 1.0 Date: Nov 24, 2015 Contents 1. FCC & IC Statement ...............................................................................................2 1.1. FCC Caution..................................................................................................2 1.2. FCC Radiation Exposure Statement...........................................................2 1.3. IC Warning....................................................................................................3 2. Hardware Installation .............................................................................................4 2.1. Hardware Installation Procedures..............................................................4 3. Software Installation................................................................................................5 3.1. STA Linux driver installation......................................................................5 4. Example.....................................................................................................................6 4.1. Router setting.................................................................................................6 4.2. Associate SWN24EA-0 with the router........................................................6 5. Device Labeling........................................................................................................6 6. Disclaimer.................................................................................................................7 Suga Electronics Limited © Suga Electronics Limited. All Rights Reserved. Information in this document is subject to change without prior notice. 2 1. FCC & IC Statement 1.1. FCC Caution Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 1.2. FCC Radiation Exposure Statement IMPORTANT NOTE: This equipment complies with FCC radiation exposure limits. This equipment should be installed and operated with minimum distance 20cm between the radiator & your b ody. This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module The final end product must be labeled in a visible area with the following” Contains FCC ID: VZFSWN24EA0 The device supports the highest gain of atenna is 4.0dBi. Suga Electronics Limited © Suga Electronics Limited. All Rights Reserved. Information in this document is subject to change without prior notice. 3 1.3. IC Warning RSS (Category I Equipment): This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. This module is intended for OEM integrator. The OEM integrator is still responsible for the IC compliance requirement of the end product, which integrates this module The final end product must be labeled in a visible area with the following” Contains IC: 10609A-SWN24EA0 This radio transmitter (identify the device by certification number) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Cet émetteur radio (identification de l'appareil par numéro de certification) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne ci‐dessous avec le maximum de gain admissible indiqué. Types d'antenne non inclus dans cette liste, ayant un gain supérieur au gain maximum indiqué pour ce type, sont strictement interdits pour une utilisation avec cet appareil The device supports the highest gain of antenna is 4.0dBi. Suga Electronics Limited © Suga Electronics Limited. All Rights Reserved. Information in this document is subject to change without prior notice. 4 2. Hardware Installation 2.1. Hardware Installation Procedures 2.1.1. Plug SWN24EA-0 module into the mini-PCIE slot of the desktop computer with PCI-E 1X to Half-size Mini PCIE converter board installed, as shown below). Suga Electronics Limited © Suga Electronics Limited. All Rights Reserved. Information in this document is subject to change without prior notice. 5 2.1.2. Connect one antenna to CON0 port, and connect another antenna to CON1 port, as shown below. 3. Software Installation 3.1. STA Linux driver installation 3.1.1. The desktop computer must install Linux system (Ubuntu 2.30.2, or above) 3.1.2. Install MT7603E STA Linux driver (MT7603-STA-PCI-V3.0.0.0) into the desktop computer, as shown below: Open the terminal, input below commands: # cd MT7603_wifi/DPA/os/linux # …

Text truncated - open the document above for the full version.

Suga Electronics Limited Add: 22/F., Tower B, Billion Centre, 1 Wang Kwong Road, Kowloon Bay, Kowloon, Hong Kong Tel 852-29530383 Fax 852-29530393 FCC Authorization November 26, 2015 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Suga Electronics Limited the undersigned, hereby authorize Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Tony Tsang Asst. Electronic Engineering Manager QA-FR-170-B

Suga Electronics Limited Add: 22/F., Tower B, Billion Centre, 1 Wang Kwong Road, Kowloon Bay, Kowloon, Hong Kong Tel 852-29530383 Fax 852-29530393 FCC Confidential Authorization November 26, 2015 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: VZFSWN24EA0 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (Suga Electronics Lim ited). hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Tony Tsang Asst. Electronic Engineering Manager

Suga Electronics Limited Add: 22/F., Tower B, Billion Centre, 1 Wang Kwong Road, Kowloon Bay, Kowloon, Hong Kong Tel 852-29530383 Fax 852-29530393 Modular Approval Letter November 27, 2015 Dear Application Examiner: We Suga Electronics Limited is submitting this application for certification of their Wifi module 802.11 b/g/n with AP (Access Point) / Router function under FCC ID: VZFSWN24EA0. It is seeking modular approval. The radio meets most of the requirements for modular approval as detailed in FCC 15.212. Compliance to each of the requirements is described below: 1. “The modular transmitter must have its own RF shielding.” Yes
it is fulfilled.The radio portion of the module has its own RF shielding. The shielding isinstalled at the factory.Please see the EUT photos. 2. “The modular transmitter must have buffered modulation/data inputs.” Yes,it is fulfilled.The EUT has buffered data inputs to insure compliance with Part 15 requirements under conditions of excessive data rates or over modulation. Please see the Schematics exhibit. 3. “The modular transmitter must have its own power supply regulation.” Yes,it is fulfilled. The EUT has its own power supply regulation to insure compliance . 4. “The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c).” Yes,it is fulfilled.The module supports maximum gain of antenna is 4.0dBi when installed to the end product.Please refer to the EUT photos. 5. “The modular transmitter must be tested in a stand-alone configuration.” 6. “The modular transmitter must be labeled with its own FCC ID number.” Yes,it is fulfilled.The module will be labeled with its own FCC ID number. The FCC ID:VZFSWN24EA0 .Please see FCC ID label & location exhibit 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” Yes,it is fulfilled.The module complies with all applicable of FCC rules.Instructions for Yes.The EUT was tested in a stand-alone configuration. Suga Electronics Limited Add: 22/F., Tower B, Billion Centre, 1 Wang Kwong Road, Kowloon Bay, Kowloon, Hong Kong Tel 852-29530383 Fax 852-29530393 maintaining compliance are given in the use manual.. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” Yes,it is fulfilled.The EUT is compliant with all applicable RF exposure requirements. Please see technical report and user manual. Please contact me if you have additional questions. Your attention to this matter is greatly appreciated. Sincerely Yours, Signature: Tony Tsang Asst. Electronic Engineering Manager

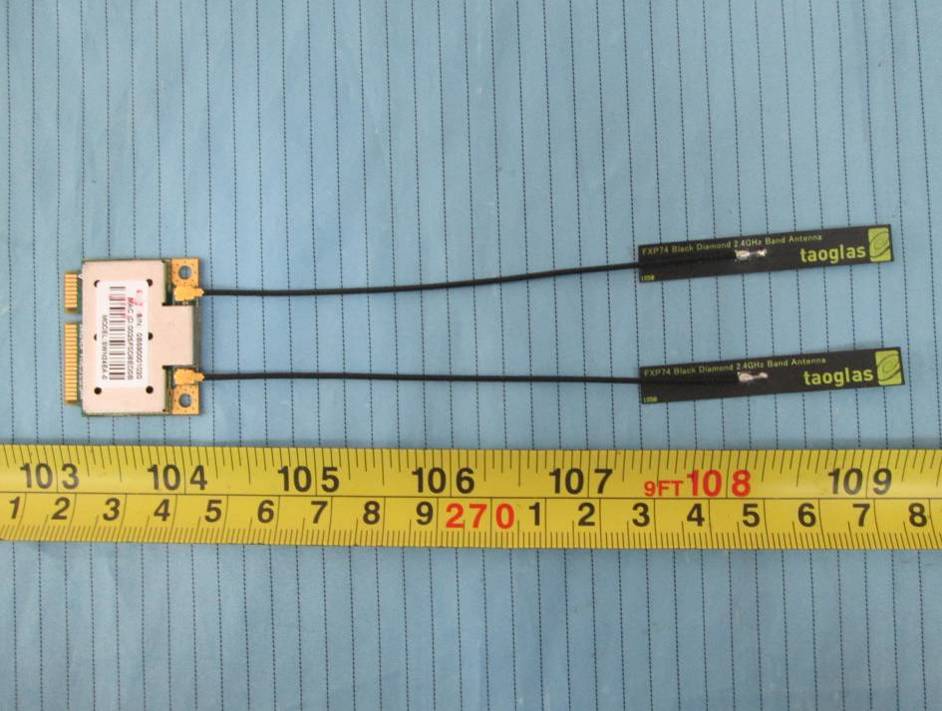

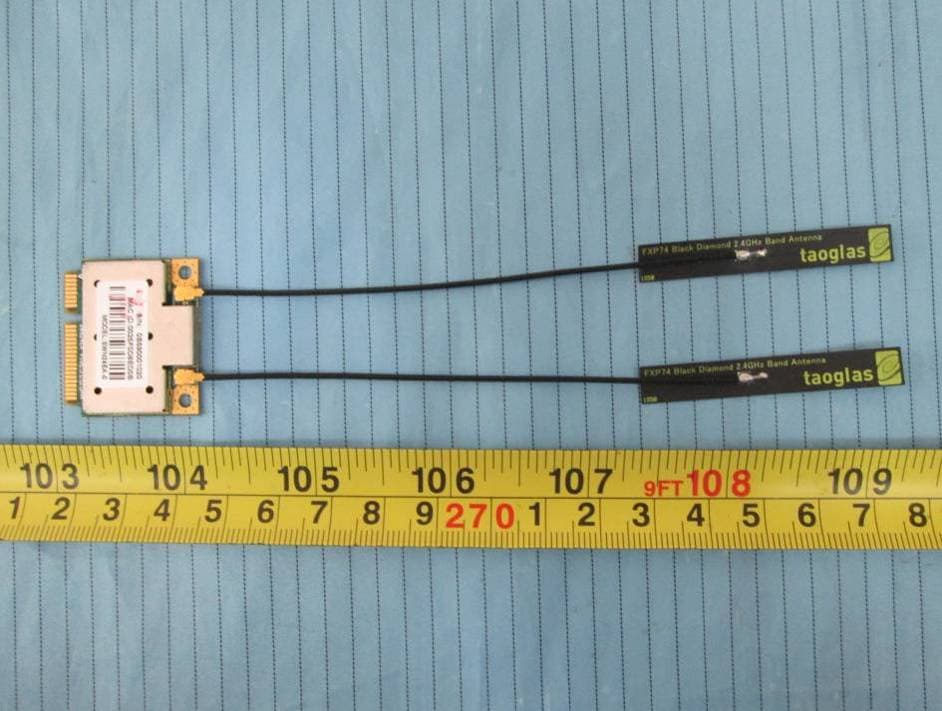

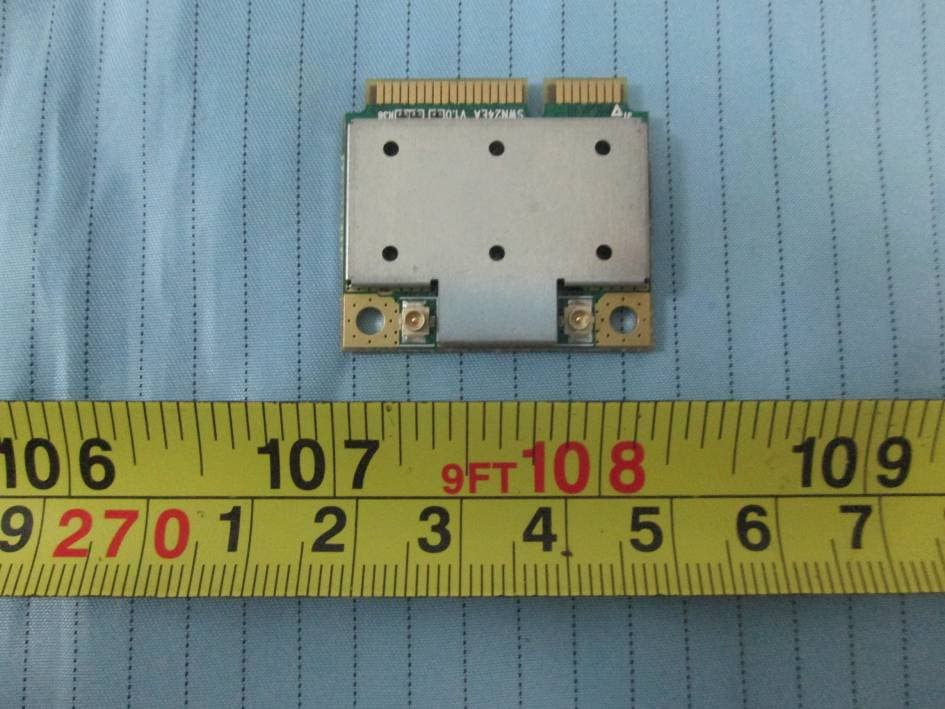

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – All View EUT – Top View EUT – Bottom View

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Top Shielding off View EUT – IC Chip View

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ151106002-00 FCC Part 15.247 Page 9 of 79 FCC§15.247 (I), §1.1307 (B) (1) & §2.1091 –MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247(i)and subpart §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Mode Antenna Gain (dBi) Max tune-up Conducted power (dBm) Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) 802.11b 4.0 23.7 20 0.117 1.0 802.11g 4.0 25.18 20 0.163 1.0 802.11n20 4.0 24.36 20 0.136 1.0 802.11n40 4.0 25.06 20 0.160 1.0 Note: 1. to maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliance

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 15.247 TEST REPORT For Suga Electronics Limited 22/F., Tower B, Billion Centre, 1 Wang Kwong Road, Kowloon Bay, Kowloon, Hong Kong FCC ID: VZFSWN24EA0 Report Type: Original Report Product Type: Wifi module 802.11 b/g/n with AP (Access Point) / Router function Test En gineer: Rocky Kang Re port Number: RSZ151106002-00 Re port Date: 2015-11-24 Reviewed B y: Bell Hu RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ151106002-00 FCC Part 15.247 Page 2 of 79 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE .................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 FCC§15.247 (I), §1.1307 (B) (1) & §2.1091 –MAXIMUM PERMISSIBLE EXPOSURE (MPE) ................................ 9 APPLICABLE STANDARD .............................................................................................................................................. 9 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 10 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 MEASUREMENT UNCERTAINTY .................................................................................................................................. 11 EUT SETUP ................................................................................................................................................................ 11 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 12 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 12 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 13 TEST RESULTS SUMMARY .......................................................................................................................................... 13 TEST DATA ................................................................................................................................................................ 13 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 16 APPLICABLE STANDARD ............................................................................................................................................ 16 MEASUREMENT UNCERTAINTY .................................................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions – Front View (Below 1 GHz) Radiated Emissions – Rear View (Below 1 GHz) EUT Installed Location Radiated Emissions – Front View (Above 1 GHz) Radiated Emissions – Rear View (Above 1 GHz) EUT Installed Location
