VZFSWP23MA802.11b/g/n (2T2R) WLAN AP/Router Module

Suga Electronics Limited © Suga Electronics Ltd. All Rights Reserved. Information in this document is subject to change without prior notice 1 802.11b/g/n (2T2R) WLAN AP/Router Module User Manual Model: SWP23MA-0, SWP23MA-1 Version: 1.0 Sep 2012 Contents 1.1 FCC Caution.................................................................. 2 1.2 FCC Radiation Exposure Statement................................. ..... 2 2.1 Module Connection And Booting up...................................... 3 2.2 Operation Mode Configuration............................................ 4 2.3 Local Area Network (LAN) Settings.................................... . 5 2.4 Basic Wireless Settings.................................................... .. 6 2.5 Advanced Wireless Settings................................................ 7 2.6 Wireless Security/Encryption Settings................................... 8 2.7 Station List.................................................................... 9 2.8 Disclaimer...................................................................... 9 Suga Electronics Limited © Suga Electronics Ltd. All Rights Reserved. Information in this document is subject to change without prior notice 2 1.1 FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: 1.2 FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Suga Electronics Limited © Suga Electronics Ltd. All Rights Reserved. Information in this document is subject to change without prior notice 3 2.1 Module Connection And Booting up Connect the power adapter to two 2x 8pin-2.0mm pitch connectors to power up the module, Connect the Ethernet port to the PC, then enter http://10.10.10.254 into Internet Explorer to open the AP/router home page. As below: Suga Electronics Limited © Suga Electronics Ltd. All Rights Reserved. Information in this document is subject to change without prior notice 4 2.2 Operation Mode Configuration Select “Operation Mode” to configure the operation mode to fit you environment, in this menu, there are four options, please follow the description to choose the option you needed. If you want the SWP23MA module to act as an AP and Client, you should select “AP Client” mode and “enable” then click “Apply”. Suga Electronics Limited © Suga Electronics Ltd. All Rights Reserved. Information in this document is subject to change without prior notice 5 2.3 Local Area Network(LAN) Settings Select “LAN” option to set your home page IP, subnet mask, default gateway etc. the default IP is 10.10.10.254. Suga Electronics Limited © Suga Electronics Ltd. All Rights Reserved. Information in this document is subject to change without prior notice 6 2.4 Basic Wireless Settings You could configure the minimum number of Wireless settings for communication, such as Network Name (SSID), Network Mode (802.11b/g/n) and Channel. The Access Point can be set simply with only the minimum setting items. Suga Electronics Limited © Suga Electronics Ltd. All Rights Reserved. Information in this document is subject to change without prior notice 7 2.5 Advanced Wireless Settings Use the Advanced Setup page to make detailed settings for the Wireless. Advanced Setup includes items that are not available from the Basic Setup page, such as Beacon Interval, Control Tx Rates and Basic Data Rates. Suga Electronics Limited © Suga Electronics Ltd. All Rights Reserved. Information in this document is subject to change without prior notice 8 2.6 Wireless Security/Encryption Settings Setup the wireless security and encryption to prevent from unauthorized access and monitoring. Suga Electronics Limited © Suga Electronics Ltd. All Rights Reserved. Information in this document is subject to change without prior notice 9 2.7 Station List You could monitor stations which associated to this AP here. 2.8 Disclaimer Suga Electronics Limited assumes no responsibility for errors or omissions in the materials available on this Document. THESE MATERIALS AND INFORMATION ARE PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED , INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT. SugaE uses reasonable efforts to include accurate and up-to-date information on this Document; it does not, however, make any representations as to its accuracy or completeness of the information, text, graphics, links or other items contained within these materials. Your use of this Document is at your own responsibility. SugaE, its suppliers, and other parties involved in creating and delivering this Document’s contents shall not be liable for any special, indirect, incidental, or consequential damages, including without limitation, lost revenues or lost profits.

RT3352 SPI Flash DDR2 RJ45 SPDT 1.8VDC 3.3VDC 20MHz Crystal SPDT Suga Electronics Limited Block Diagram ANT 1 ANT 0 2.4GHz TX/RX 2.4GHz TX/RX

Suga Electronics Limited 22/F.,Tower B, Billion Centre, 1 Wang Kwong Road, Kowloon Bay, Kowloon, Hong Kong Tel: (852) 2953 0383 Fax: (852) 2953 0393 FCC Authorization 2012-9-10 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Suga Electronics Limited , the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Tony Tsang Asst. Electronic Engineering Manager

2012-09-20

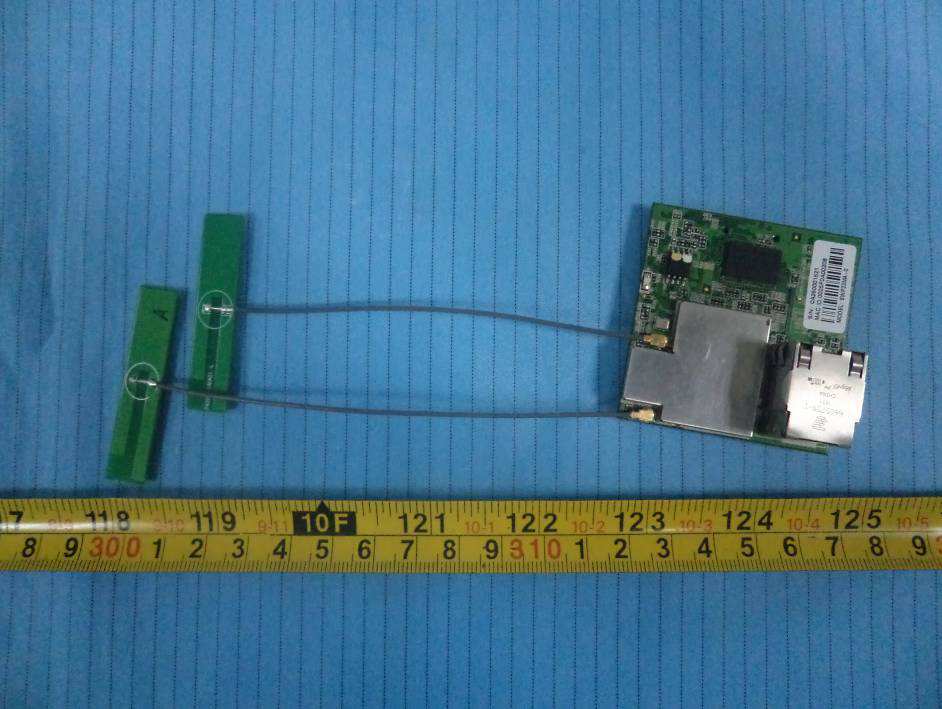

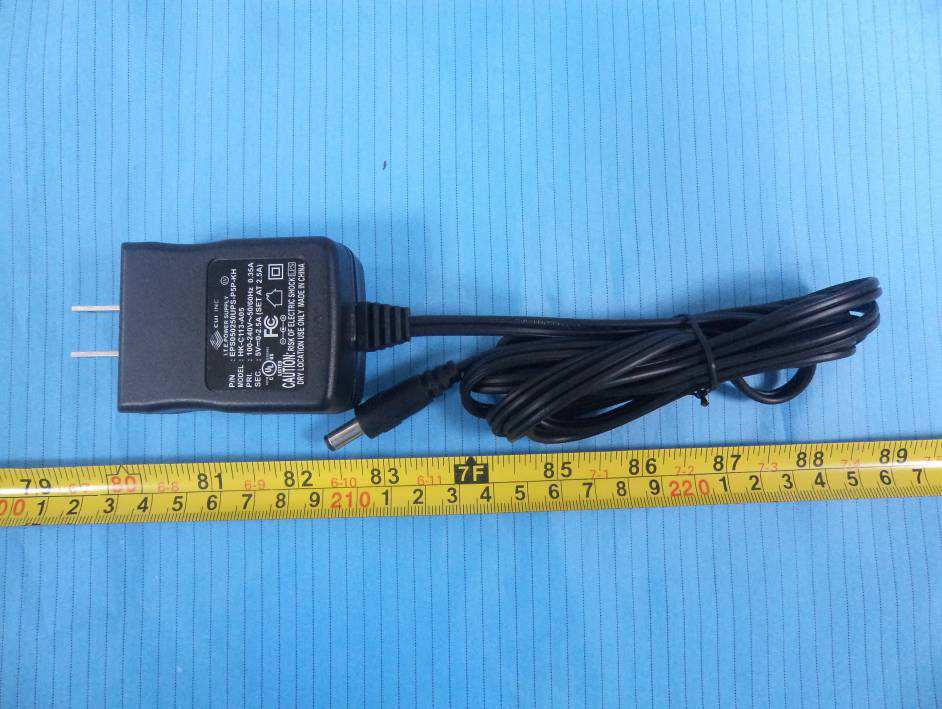

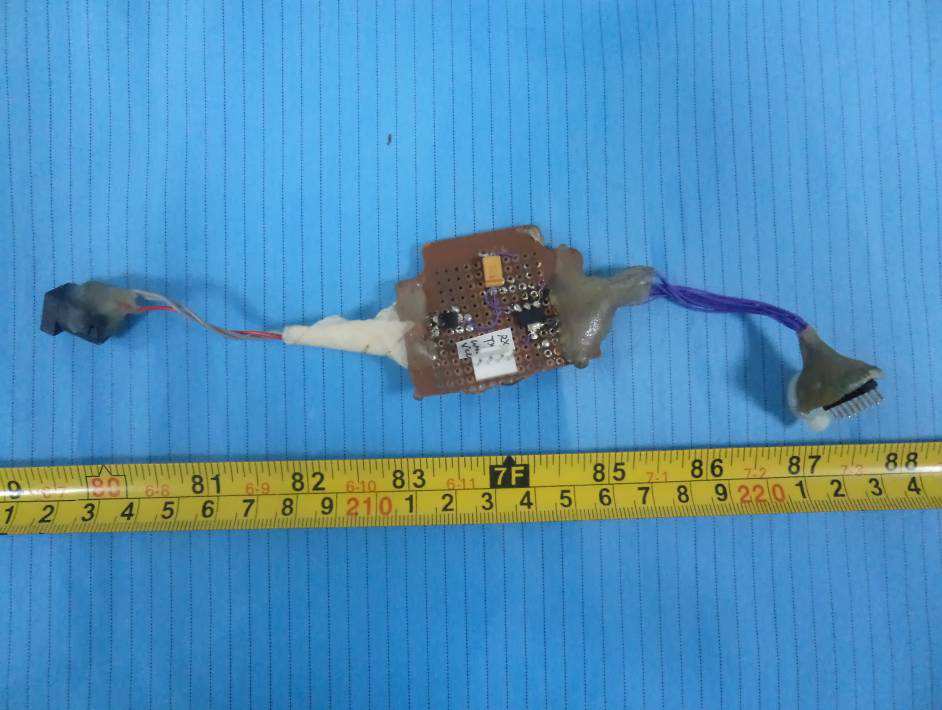

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT -Front with Antenna View EUT -Front View Antenna EUT -Rear View EUT – Port View Adapter View Patch Board of Power Supply View Adapter Label View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location Label here The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

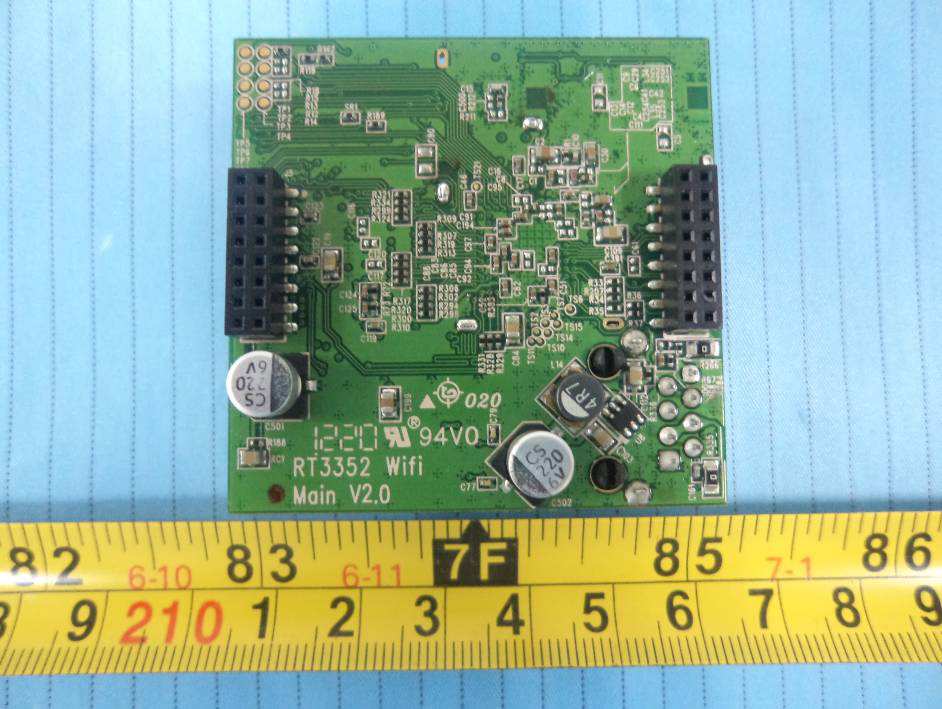

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Shielding off View EUT -Rear View

Suga Electronics Limited SWP23MA-0/ SWP23MA-1 Circuit Description Version 1.0 SWP23MA-0/ SWP23MA-1 is a 2T2R AP/Router module which includes an main chip RT3352 with an 802.11n media access controller (MAC) and baseband, a 2.4GHz radio and FEM, a 400 MHz MIPS 24K CPU core, a SPI flash, a 32M*16 DDR2, two 2.4GHz antennas with gain 2dBi, a 20MHz crystal, a 10/100 Ethernet port, two 2x 8pin-2.0mm pitch connectors. This module requires less and includes everything needed to build an AP router from a single chip. The embedded, high performance CPU can process advanced applications effortlessly, such as routing, security, and VoIP. The reserved USB pin can connect a external USB port which can access external storage for digital home applications. The module also includes a wide selection of interfaces to enable many possible applications. RT3352 is a 2T2R/2.4G 802.11n all-in-one AP router-on-a-chip, with an integrated RF front-end module, intelligent NIC (iNIC) design available, providing existing wireless LAN platforms with an easy upgrade path to 802.11n. SPI flash is programmed the boot loader firmware and calibration data. The DDR2 provide the data cache to embedded high performance CPU RT3352 to process advanced management. Two 2x 8pin-2.0mm pitch connectors is provided the power and some certain IO communicated, the 20MHz crystal provide the base core clock for the RT3352, and the 10/100 Ethernet port can act as the LAN or WAN port to meet the user needed. 2x 2dBi 2.4GHz TX/RX antenna is used to transmit and receive 2.4GHz RF signals. As the transmitted paths (TX0/TX1), the 2.4GHz RF transmitted signal is generated from internal of RT3352 and transmitted via the 2.4GHz TX/RX antenna then broadcast out. And in the received paths (RX0/RX1), the 2.4GHz RF signal is received by the 2.4GHz TX/RX antenna and goes into the RT3352 processor, then is demodulated and converted into data bits to meet the IEEE 802.11 b/g/n standards. 12 Sep 2012

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ120806002-00 FCC Part 15.247 Page 9 of 91 FCC §15.247 (i) & §1.1307 (b) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247(i)and subpart §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Antenna Gain Conducted Power Mode Frequency (MHz) (dBi) (numeric)(dBm)(mW) Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) 802.11b 2412 2.0 1.58 16.98 49.89 20 0.0157 1 802.11g 2412 2.0 1.58 15.80 38.02 20 0.0120 1 802.11n-HT20 2462 2.0 1.58 18.61 72.61 20 0.0228 1 802.11n-HT40 2422 2.0 1.58 18.75 74.99 20 0.0236 1 Result: The EUT meets FCC MPE limt at 20 cm distance.

RT3352 Main V2.0 20111128.sch-1 - Wed Nov 30 15:37:42 2011 RT3352 Main V2.0 20111128.sch-2 - Wed Nov 30 15:37:42 2011 RT3352 Main V2.0 20111128.sch-3 - Wed Nov 30 15:37:42 2011 RT3352 Main V2.0 20111128.sch-4 - Wed Nov 30 15:37:42 2011 RT3352 Main V2.0 20111128.sch-5 - Wed Nov 30 15:37:43 2011 RT3352 Main V2.0 20111128.sch-6 - Wed Nov 30 15:37:43 2011 RT3352 Main V2.0 20111128.sch-7 - Wed Nov 30 15:37:43 2011 RT3352 Main V2.0 20111128.sch-8 - Wed Nov 30 15:37:43 2011 RT3352 Main V2.0 20111128.sch-9 - Wed Nov 30 15:37:43 2011 RT3352 Main V2.0 20111128.sch-10 - Wed Nov 30 15:37:43 2011 RT3352 Main V2.0 20111128.sch-11 - Wed Nov 30 15:37:44 2011 RT3352 Main V2.0 20111128.sch-12 - Wed Nov 30 15:37:44 2011 RT3352 Main V2.0 20111128.sch-13 - Wed Nov 30 15:37:44 2011 RT3352 Main V2.0 20111128.sch-14 - Wed Nov 30 15:37:44 2011 RT3352 Main V2.0 20111128.sch-15 - Wed Nov 30 15:37:44 2011 RT3352 Main V2.0 20111128.sch-16 - Wed Nov 30 15:37:44 2011 802.11b/g/n-HT20 (2412 MHz-2462 MHz) 802.11n40 (2422 MHz-2452 MHz) 802.11n40 (2422 MHz-2452 MHz) 802.11b/g/n-HT20 (2412 MHz-2462 MHz) RT3352 Main V2.0 20111128.sch-17 - Wed Nov 30 15:37:44 2011 RT3352 Main V2.0 20111128.sch-18 - Wed Nov 30 15:37:44 2011 RT3352 Main V2.0 20111128.sch-19 - Wed Nov 30 15:37:45 2011 RT3352 Main V2.0 20111128.sch-20 - Wed Nov 30 15:37:45 2011 RT3352 Main V2.0 20111128.sch-21 - Wed Nov 30 15:37:45 2011 RT3352 Main V2.0 20111128.sch-22 - Wed Nov 30 15:37:45 2011

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and shall bemarked with an asterisk “★”. FCC PART 15.247 MEASUREMENT AND TEST REPORT For Suga Electronics Limited 22/F.,Tower B, Billion Centre, 1 Wang Kwong Road, Kowloon Bay, Kowloon, Hong Kong Report Type: Original Report Product Type: 802.11b/g/n (2T2R) WLAN AP/Router Module Test Engineer: Brown Lu Report Number: RSZ120806002-00 Report Date: 2012-09-24 Reviewed By: Sula Huang EMC Engineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn FCC ID: VZFSWP23MA Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ120806002-00 FCC Part 15.247 Page 2 of 91 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 SUPPORT EQUIPMENT LIST AND DETAILS....................................................................................................................7 EXTERNAL I/O CABLE..................................................................................................................................................7 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................7 SUMMARY OF TEST RESULTS ...............................................................................................................................8 FCC §15.247 (i) & §1.1307 (b) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE)..............................9 APPLICABLE STANDARD..............................................................................................................................................9 FCC §15.203 - ANTENNA REQUIREMENT...........................................................................................................10 APPLICABLE STANDARD............................................................................................................................................10 ANTENNA CONNECTOR CONSTRUCTION....................................................................................................................10 FCC §15.207 (a) - CONDUCTED EMISSIONS .......................................................................................................11 APPLICABLE STANDARD............................................................................................................................................11 MEASUREMENT UNCERTAINTY..................................................................................................................................11 EUT SETUP................................................................................................................................................................11 EMI TEST RECEIVER SETUP.......................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 TEST RESULTS SUMMARY..........................................................................................................................................12 TEST DATA................................................................................................................................................................12 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS.............................................................................15 APPLICABLE STANDARD............................................................................................................................................15 MEASUREMENT UNCERTAINTY......................................................…
