W2E-MIKEYV13Wireless keychain device for lock operation

iControl Incorporated http://www.iControl‐Inc.com miKEY Operations Background The miKEY “key fob” is a small, battery powered 802.15.4 compliant radio transmitter. A miKEY has one LED and three buttons and resembles the keyless entry device found with most modern cars. The intent of the miKEY is to allow control of a mLOCK at times when no other communication link is possible. For example, a truck driver may carry a miKEY along with cargo which is secured by an mLOCK so that, in the case of an unscheduled inspection, he could unlock and then re‐lock the cargo. Operation There are three buttons on the key fob: Power – blue button located top left. This button is pressed and held to power the radio transmitter and to begin transmission of a 1‐second burst of radio traffic. The LED will illuminate (and possibly blink) for the duration of the button press. Note: the other two buttons (grey) are intended for future use and currently do nothing. These buttons do not power the device, and therefore would have to be held in combination with the Power button. Power LED iControl Incorporated http://www.iControl‐Inc.com Each miKEY is typically paired with one mLOCK. The two devices share common configuration which may include: channel designations, encryption keys, and addressing information. It is also possible to configure a one‐to‐many scenario whereby one miKEY could communicate with many mLOCKs. Maintenance The miKEY uses a small replaceable battery. Battery replacement is currently only done by the manufacturer. Radio Transmission When the Power button is pressed, the 802.15.4 radio will transmit a burst of approximately 100 frames with a short (several milliseconds) gap between frames. The duration of the “burst” will be approximately 1 second or until the miKEY receives an acknowledgment from the targeted mLOCK. The intent of the burst is to signal a mLOCK which may be in a low power state. When the mLOCK receives one of the frames in the burst it will acknowledge the signal and the burst will terminate. When this occurs, the LED on the miKEY will blink once. All communication between the miKEY and the mLOCK is done using 802.15.4 data frames which are typically encrypted. 802.15.4 Channels The IEEE 802.15.4 specific ion defines a set of channels: 11 (2405 MHz) though 26 (2480 MHz). A miKEY will typically be configured to utilize two of these channels known as the “wake” and “sleep” channels. The signal burst consists of one frame on the “wake” channel followed by repeated frames on the “sleep” channel. If an mLOCK is not in low power mode (i.e. “awake”) it will respond immediately, otherwise it will respond to the first “sleep” frame it receives. iControl Incorporated http://www.iControl‐Inc.com FCC NOTICE: FCC COMPLIANCE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference 2. This device must accept any interference received, including interference that may cause undesired operation. FCC ID: W2E‐MIKEYV13 miKEY miKEY_V13 ! Warning: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference and 2) This device must accept any interference received, including interference that may cause undesired o peration. iControl Incorporated http://www.iControl‐Inc.com FCC WARNING: Modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment under FCC Rules. This equipment has been evaluated in accordance with the FCC bulletin 56 “Hazards of radio frequency and electromagnetic fields” and bulletin 65 “ Human exposure to radio frequency and electromagnetic fields. Safe operation in an uncontrolled environment will result if the following distances from the device are maintained as a minimum.

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 12/3/2009 To whom it may concern: We, the undersigned, hereby authorize Eurofins ETS Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: W2E-MIKEYV13 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins ETS Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Fred Tubb President & CEO iControl Inc

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 12/3/2009 Request for Confidentiality Company name: iControl Incorporated. FCC ID: W2E-MIKEYV13 FCC Part 15 Certification Gentlemen, In accordance with 0.459 of CFR 47, iControl hereby requests confidentiality of all circuit descriptions, circuit diagrams and parts list attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which iControl considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, iControl considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature Fred Tubb President & CEO iControl Incorporated 3235 Kifer Rd, Suite 260 Santa Clara, CA 95051

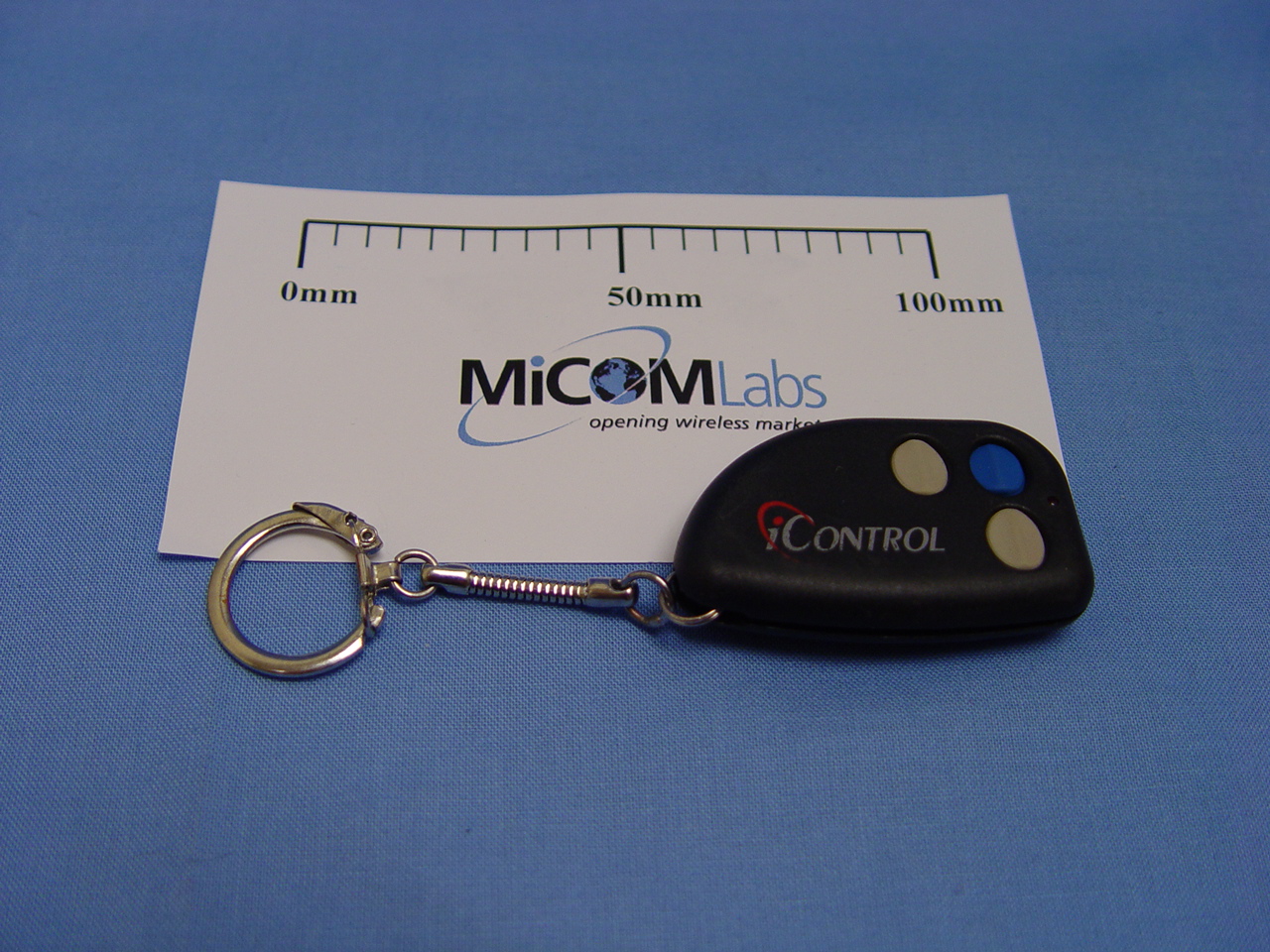

the wireless lab 24 September 2009 ICON07 – miKEY External Photographs MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab Page 2 of 2

Label Location miKEY

the wireless lab 24 September 2009 ICON07 – miKEY Internal Photographs Wireless PCB MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab Page 2 of 3 the wireless lab Page 3 of 3

COVER PAGE Test of iControl, miKEY 802.15.4 To: FCC 47 CFR Part 15.247 & IC RSS-210 Test Report Serial No.: ICON07-A2 Rev A TITLE PAGE TEST REPORT FROM Test of iControl, miKEY 802.15.4 to To FCC 47 CFR Part 15.247 & IC RSS-210 Test Report Serial No.: ICON07-A2 Rev A This report supersedes: None Applicant: iControl, Incorporated 3235 Kifer, Suite 260 Santa Clara California, 95051 USA Product Function: 802.15.4 Wireless Key Chain for mLOCK Copy No: pdf Issue Date: 16th December 2009 This Test Report is Issued Under the Authority of; MiCOM Labs, Inc. 440 Boulder Court, Suite 200 Pleasanton, CA 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com CERTIFICATE #2381.01 MiCOM Labs is an ISO 17025 Accredited Testing Laboratory This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. Title: iControl, miKEY 802.15.4 To: Serial #: Issue Date: Page: FCC 47 CFR Part 15.247 & IC RSS-210 ICON07-A2 Rev A 16th December 2009 3 of 78 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. This page has been left intentionally blank MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Title: iControl, miKEY 802.15.4 To: Serial #: Issue Date: Page: FCC 47 CFR Part 15.247 & IC RSS-210 ICON07-A2 Rev A 16th December 2009 4 of 78 This test report may be reproduced in full only. The document may only be updated by MiCOM TABLE OF CONTENTS ACCREDITATION, LISTINGS and RECOGNITION.........................................................5 1. TEST RESULT CERTIFICATE...................................................................................8 2. REFERENCES AND MEASUREMENT UNCERTAINTY..........................................9 2.1. Normative References...............................................................................................9 2.2. Test and Uncertainty Procedures..............................................................................9 3. PRODUCT DETAILS AND TEST CONFIGURATIONS..........................................10 3.1. Technical Details.....................................................................................................10 3.2. Scope of Test Program............................................................................................11 3.3. Equipment Model(s) and Serial Number(s).............................................................14 3.4. Antenna Details.......................................................................................................14 3.5. Cabling and I/O Ports..............................................................................................14 3.6. Test Configurations..................................................................................................15 3.7. Equipment Modifications..........................................................................................15 3.8. Deviations from the Test Standard..........................................................................15 4. TEST SUMMARY......................................................................................................16 5. TEST RESULTS........................................................................................................18 5.1. Device Characteristics.............................................................................................18 5.1.1. 6 dB and 99 % Bandwidth........................................................................18 5.1.2. Peak Output Power..................................................................................24 5.1.3. Peak Power Spectral Density...................................................................31 5.1.4. Maximum Permissible Exposure..............................................................37 5.1.5. Conducted Spurious Emissions...............................................................38 5.1.6. Radiated Emissions.................................................................................47 5.1.7. AC Wireline Conducted Emissions (150 kHz – 30 MHz)..........................70 6. PHOTOGRAPHS.......................................................................................................72 6.1. Radiated Spurious Emissions – Test Configuration................................................72 6.2. Radiated Spurious Emissions - below 1 GHz..........................................................73 6.3. Radiated Spurious Emissions - above 1 GHz..........................................................74 6.4. Conducted Measurement Test Set-Up....................................................................75 6.5. Conducted Measurement Test Equipment..............................................................76 Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com 7. TEST EQUIPMENT DETAILS...................................................................................77 Title: iControl, miKEY 802.15.4 To: Serial #: Issue Date: Page: FCC 47 CFR Part 15.247 & IC RSS-210 ICON07-A2 Rev A 16th December 2009 5 of 78 This test report may be reproduced in full only. The document may only be updated by MiCOM ACCREDITATION, LISTINGS and RECOGNITION ACCREDITATION MiCOM Labs, Inc. an accredited laboratory complies with the international standard BS EN ISO/IEC 17025. The company is accredited by the American Association for Laboratory Accreditation (A2LA) www.a2la.org test laboratory number 2381.01. MiCOM Labs test schedule is available at the following URL; http://www.a2la.org/scopepdf/2381-01.pdf Labs personnel. Any changes will be noted in the Docu…

Text truncated - open the document above for the full version.

MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab 16 December 2009 ICON07 – miKEY Test Set Up Photographs General Measurement Test Set Up Mother Board miKEY single printed circuit board Page 2 of 4 the wireless lab Page 3 of 4 the wireless lab Radiated Spurious Emissions – Test Configuration Page 4 of 4 the wireless lab Radiated Spurious Emissions - below 1 GHz Radiated Spurious Emissions - above 1 GHz
