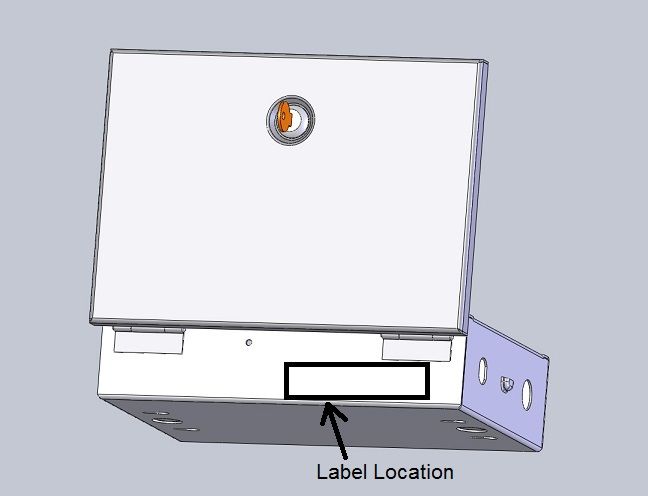

W3Z-D9129Mini Central Transmitter

1 CONFIDENTIAL D-9129 Mini Central Transmitter Service Manual INSTRUCTION TO THE USER 2 CONFIDENTIAL This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a typical installation. This equipment generates uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna on the device experiencing the interference • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the Door Manager is connected • Consult the dealer or experienced technician for the device experiencing the interference In order to maintain compliance with FCC regulations, no changes can be made to this equipment without the approval of Gatekeeper Systems, Inc. The user is cautioned that any changes or modifications made to the equipment without the approval of Gatekeeper Systems, Inc. could void the user’s authority to operate this equipment. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS The ambient temperature is -20°C to 50°C 3 CONFIDENTIAL Mini Central Transmitter: The Mini Central Transmitter is located in an area that is secure, has adequate air flow, is out of harm’s way, and accessible for service. Typically, this area is found near the receiving area at the rear of the store. The Mini Central Transmitter sends the locking signal and unlocking signal through the perimeter antenna. Once installed and plugged directly in to a 85-264volt AC outlet or Universal Power Supply (UPS), the Central Transmitter rarely requires service. Mini Central Transmitter side panel detail: 1. Alarm Buzzer Alarm will be ON while fault 2. Alarm Reset Switch Turn OFF the Alarm 3. Power Indicator Light Green LED to indicate the power is ON 4. Battery Indicator Light Yellow LED to indicate the battery charging 5. Alarm Indicator Light Fault Setting Alarm Buzzer Alarm Reset Switch Power Indicator Light Battery Indicator Light Alarm Indicator Light 4 CONFIDENTIAL SYSTEM COMPONENTS Perimeter Antenna The signal generated by the CentralTransmitter is carried around the designated store perimeter by a small, embedded cable known as the “Perimeter Antenna”. This antenna is embedded in a 1/4” wide by 1” deep saw cut around the parking lot which is sealed using a weatherproof sealant. The location of the perimeter antenna determines the boundary where carts will lock. The perimeter boundary is typically identified by a thick, painted yellow line found at all parking lot exits. Gatekeeper wheel Each shopping cart is equipped with Gatekeeper’s locking wheel. Inside each wheel is a signal receiver and locking mechanism. The receiver is factory programmed to listen for the locking signal emitted from the perimeter antenna. The Gatekeeper wheel also accepts a locking or unlocking signal from a CartKey remote control. CartKey2 The CartKey is a handheld device used by store employees to lock or unlock Gatekeeper wheels. The touch pad on the front of the CartKey has two buttons labeled “Lock” and “Unlock”. Use the “Unlock” button to unlock carts that have locked wheels. Gatekeeper recommends that you keep at least one CartKey in a secure location at all times in order to avoid losing or temporarily misplacing all CartKeys. 5 CONFIDENTIAL Contacting Gatekeeper Systems For more information about the Central Transmitter and troubleshooting, to order parts or report an issue, contact the Gatekeeper Systems Inc. regional Customer Support office nearest to your location. USA Gatekeeper Systems, Inc. 8 Studebaker Irvine, CA 92618 (888) 808-9433 Hong Kong Gatekeeper Systems (HK), Ltd. Unit 2318~2319, Level 23, Tower 1, Metroplaza NO. 223 Hing Fong Road, Kwai Fong, N.T., HONG KONG (852) 2413 3050 Canada Gatekeeper Systems Canada, Ltd. 272 Galaxy Boulevard Etobicoke, Ontario Canada M9W 5R8 (888) 525-3564

(4) Theory of Operation

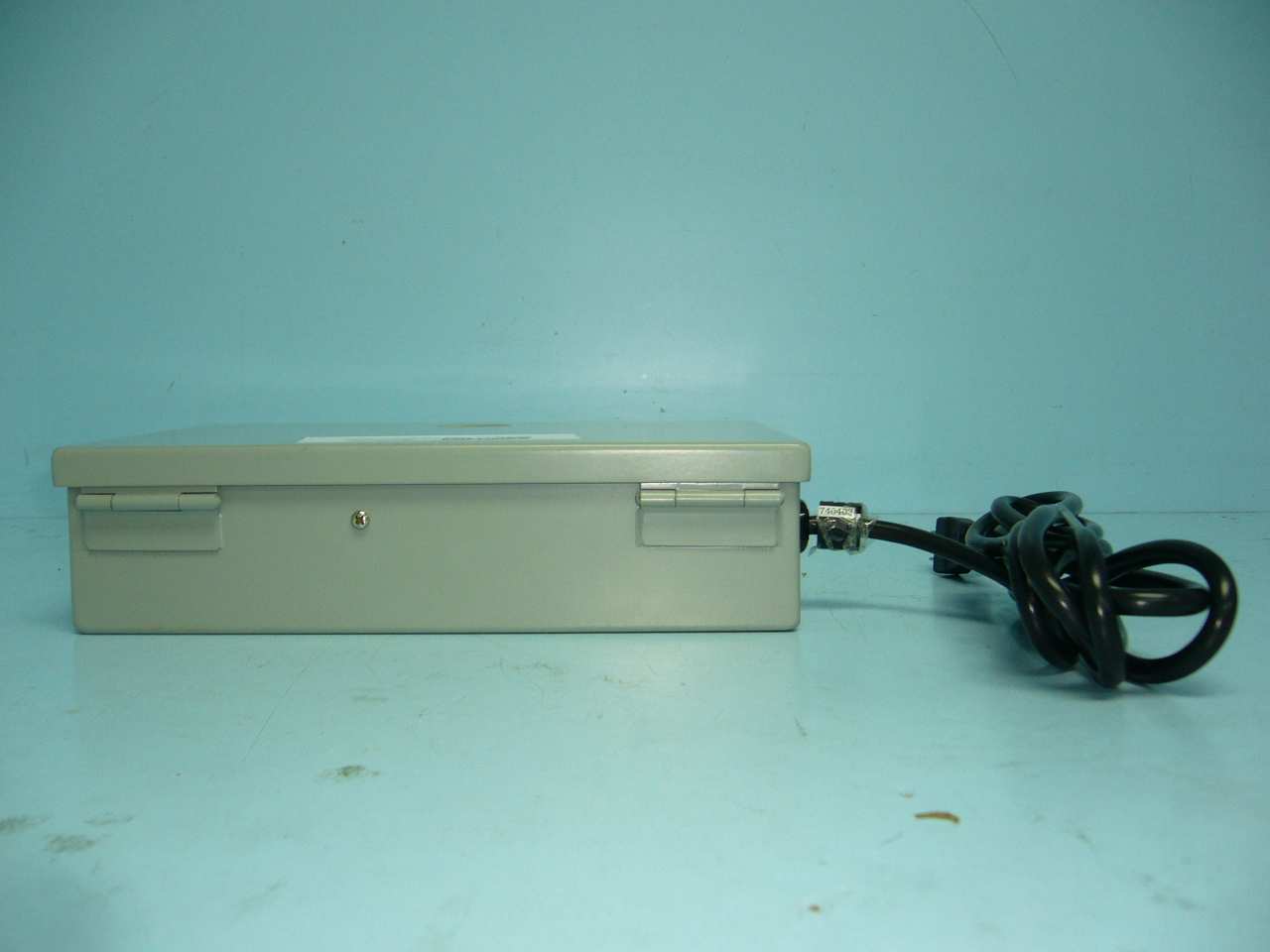

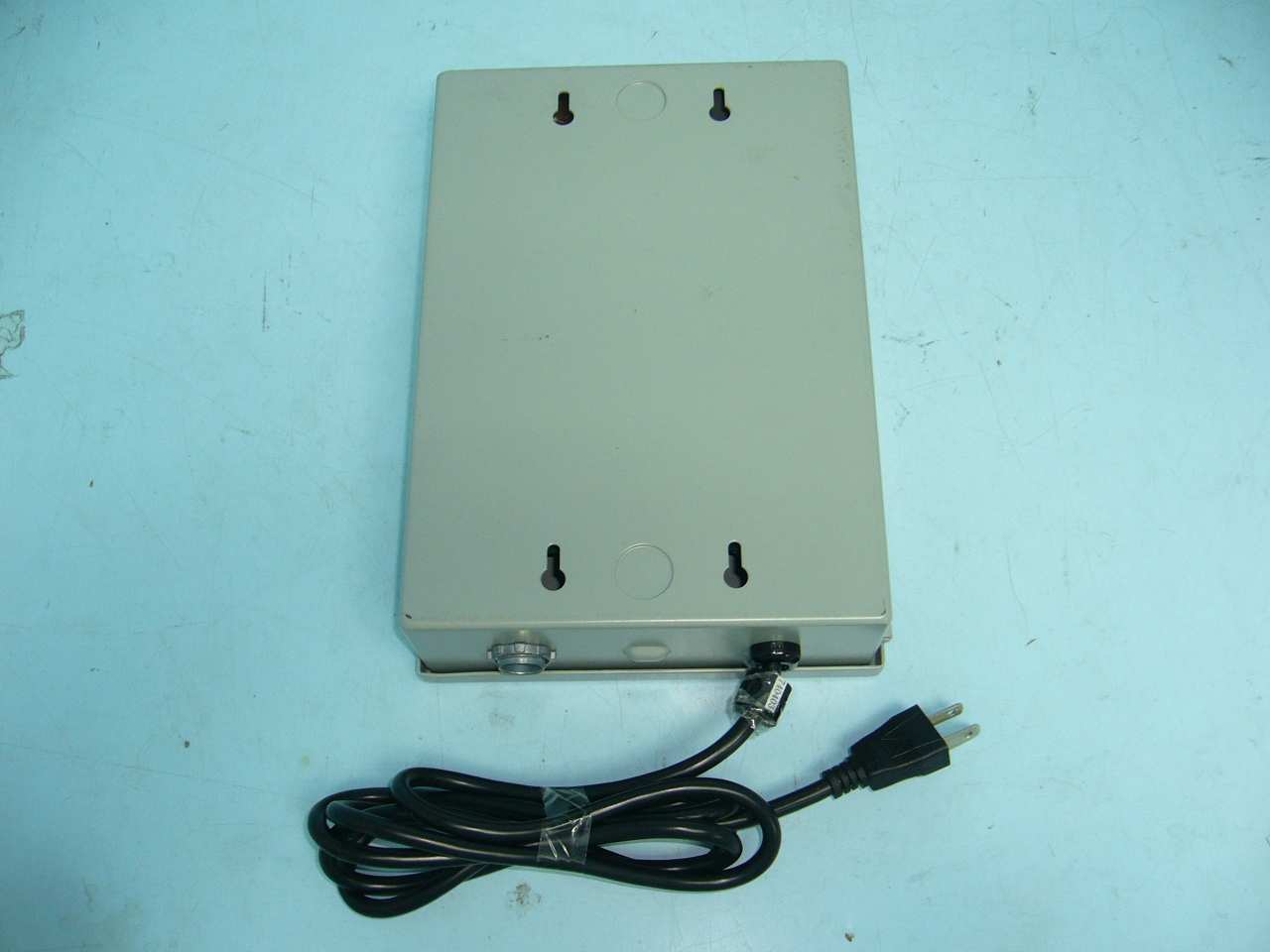

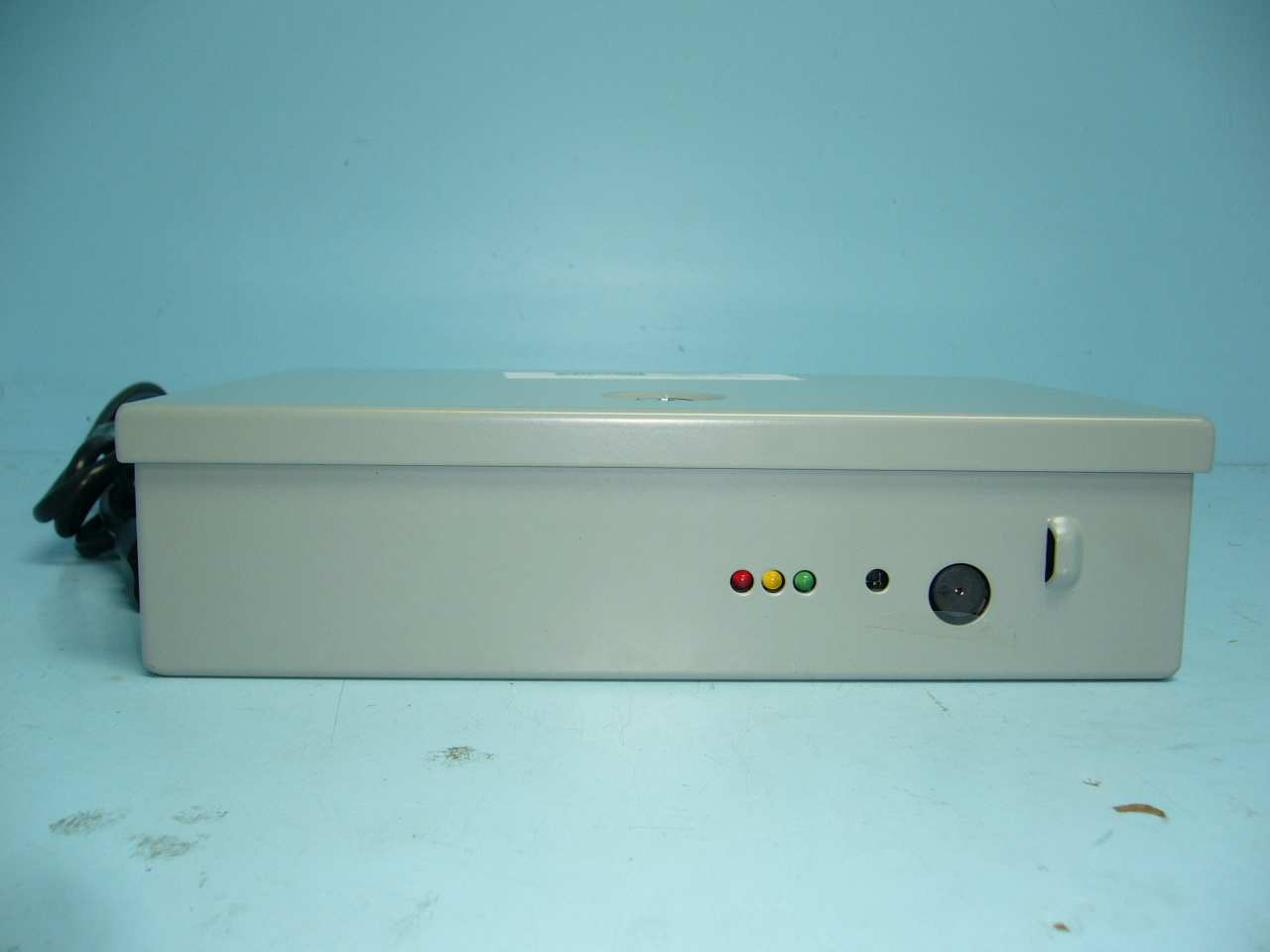

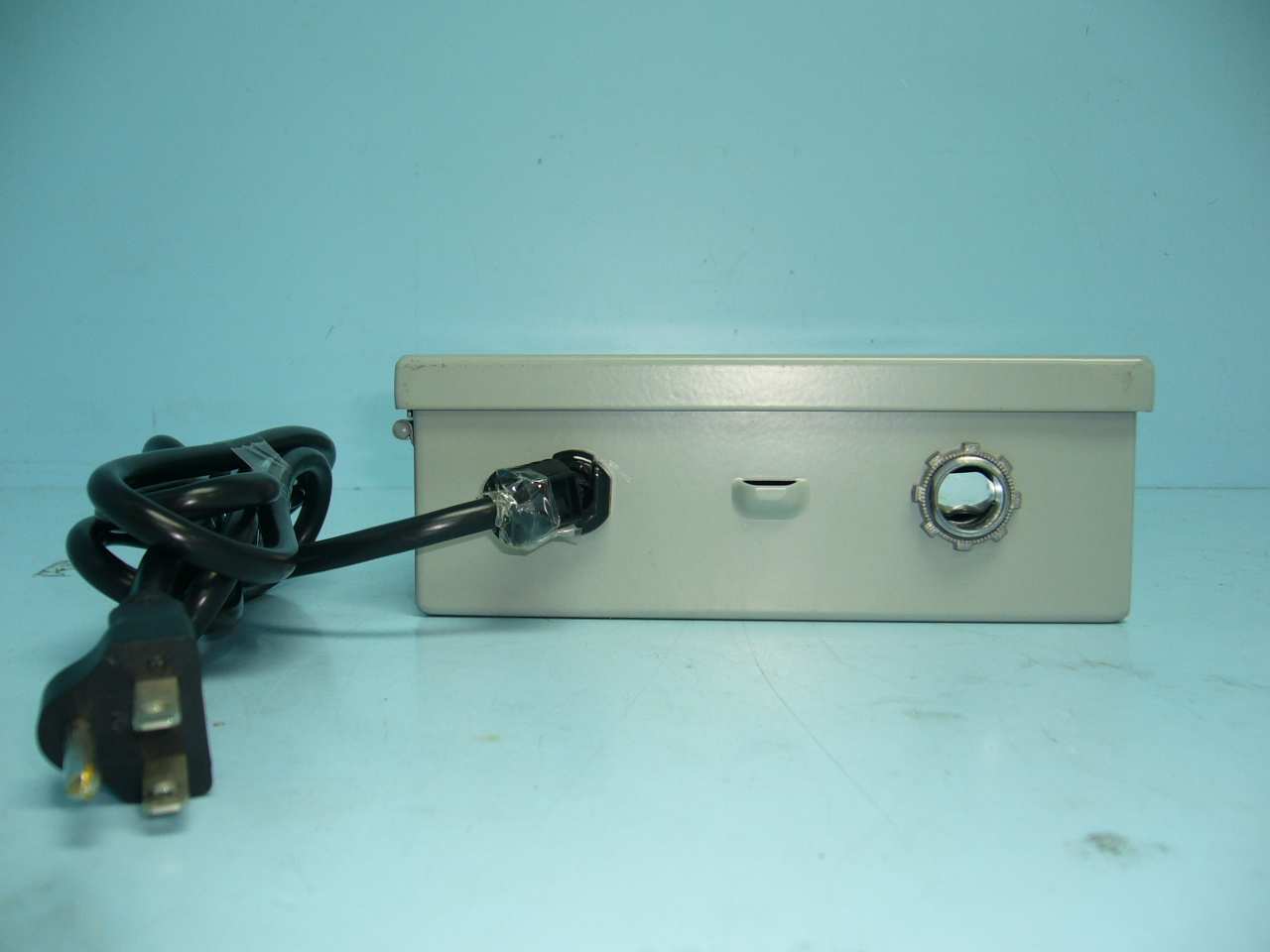

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT LEFT VIEW OF THE PRODUCT RIGHT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT TOP VIEW OF THE PRODUCT BTTOM VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT

STC Test Report Date : 2012-08-07 Page 1 of 23 No. : HM167709 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (GAS003): Gatekeeper Systems (HK) Ltd. Unit 2318-2319, Level 23, Tower 1, Metroplaza No. 223 Hing Fong Road, Kwai Fong, N.T., Hong Kong. Manufacturer: Gatekeeper Systems (HK) Ltd. Unit 2318-2319, Level 23, Tower 1, Metroplaza No. 223 Hing Fong Road, Kwai Fong, N.T., Hong Kong. Description of Sample(s): Submitted sample(s) said to be Product: Mini Central Transmitter Brand Name: Gatekeeper Systems Model Number: D-9129 FCC ID: W3Z-D9129 Date Sample(s) Received: 2012-06-27 Date Tested: 2012-07-30 to 2012-07-31 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2011 and ANSI C63.4:2009 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): --- Dr. LEE Kam Chuen Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2012-08-07 Page 2 of 23 No. : HM167709 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 23 Content Page 2 of 23 1.0 General Details 1.1 Equipment Under Test [EUT] Page 3 of 23 Description of EUT operation 1.2 Description of EUT Operation 1.3 Date of Order Page 3 of 23 1.4 Submitted Sample Page 3 of 23 1.5 Test Duration Page 3 of 23 1.6 Country of Origin Page 3 of 23 2.0 Technical Details 2.1 Investigations Requested Page 4 of 23 2.2 Test Standards and Results Summary Page 4 of 23 3.0 Test Results 3.1 Emission Page 5-19 of 23 Appendix A List of Measurement Equipment Page 20 of 23 Appendix B Photographs Page 21-23 of 23 STC Test Report Date : 2012-08-07 Page 3 of 23 No. : HM167709 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Equipment Under Test [EUT] Description of Sample(s) Product: Mini Central Transmitter Manufacturer: Gatekeeper Systems (HK) Ltd. Unit 2318-2319, Level 23, Tower 1, Metroplaza No. 223 Hing Fong Road, Kwai Fong, N.T., Hong Kong. Brand Name: Gatekeeper Systems Model Number: D-9129 Input Voltage: 110-240Va.c. 1.2 Description of EUT Operation The Equipment Under Test (EUT) is a Gatekeeper Systems (HK) Ltd., Mini Central Transmitter. The transmission signal is frequency hopping with channel frequency range 2402.9-2478.6MHz during normal use. The EUT was set to fixed frequency test mode before test by selecting the stored commands by turning the control knob. 1.3 Date of Order 2012-06-27 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2012-07-30 to 2012-07-31 1.6 Country of Origin China STC Test Report Date : 2012-08-07 Page 4 of 23 No. : HM167709 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2011 Regulations and ANSI C63.4:2009 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail N/A Field Strength of Fundamental & Harmonics Emissions FCC 47CFR 15.249 ANSI C63.4:2009 N/A Radiated Emissions FCC 47CFR 15.209 ANSI C63.4:2009 N/A AC Mains Conducted Emissions FCC 47CFR 15.207 N/A N/A Note: N/A - Not Applicable STC Test Report Date : 2012-08-07 Page 5 of 23 No. : HM167709 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 3.0 Test Results 3.1 Emission 3.1.1 Radiated Emissions Test Requirement: FCC 47CFR 15.249 Test Method: ANSI C63.4:2009 Test Date: 2012-07-30 Mode of Operation: Mode (500kbps) / Rx Mode Test Method: The sample was placed 0.8m above the ground plane on a standard radiated emission test site. Measurements in bo…
