W3Z-D9670Permission Manager

PermissionManager (D-9670) User Manual INSTRUCTION TO THE USER This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a typical installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna on the device experiencing the interference  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which this device is connected  Consult the dealer or experienced technician for the device experiencing the interference In order to maintain compliance with FCC regulations, no changes can be made to this equipment without the approval of Gatekeeper Systems, Inc. The user is cautioned that any changes or modifications made to the equipment without the approval of Gatekeeper Systems, Inc. could void the user’s authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Hereby, Gatekeeper Systems (HK), Ltd ,declares that this PermissionManager is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Crossed out wheeled bin symbol 126. All new EEE products must be marked with the crossed out wheeled bin symbol. In exceptional cases, where this is not possible because of the size or function of the product, the crossed out wheeled bin symbol must be printed on the packaging, the instructions for use and the accompanying warranty where applicable. This symbol aims to encourage the consumer to discard the product separately from general waste, either at the network of designated collection facilities or by returning it to a distributor who provides in-store take-back of WEEE The suggested ambient temperature is around 25°C 1. PermissionManager: The Gatekeeper Systems D-9760 PermissionManager contains two 2.4GHz transceivers and it is used to send commands to and receive data from the Gatekeeper Systems wheels. 2. PermissionManager detail: Power up PermissionManager, by providing +3.3V DC power supply at connector block pin 1 and grounding at connector block pin 4. While power up, Green LED will be ON to indicate PermissionManager is power up. Then the Green LED will start flashing. It indicates that the PermissionManager is in operating mode. Connector Block Definition: Pin Name Description 1 3.3VDC +3.3V DC, 1.5A 2 SIGNAL 1 Control the ON/OFF of antenna 1 3 SIGNAL 2 Control the ON/OFF of antenna 2 4 GND IN Power Grounding LED Definition: Status Description Solid Power Up Flashing Operating Mode 3. Installation Mount PermissionManager on the table or on the wall flatly by two screw holes with the bottom surface (The surface with connector block and Dip switch) facing the mounting surface of table or wall Screw hole Connector Block Green LED DIP Switch DIP Switch Definition: DIP Switch Position 10 9 8 7 6 5 4 3 2 1 Definition x x X x x x x 0 0 0 power 3, threshold 44 x x X x x x x 0 0 1 power 4, threshold 44 x x X x x x x 0 1 0 power 5, threshold 44 x x X x x x x 0 1 1 power 6, threshold 44 x x x x x x x 1 0 0 power 7, threshold 44 x x x x x x x 1 0 1 power 8, threshold 44 x x x x x x x 1 1 0 power 9, threshold 44 x x x x x x x 1 1 1 power 10, threshold 44 Dwell Command 0 0 10 sec dwell 0 1 20 sec dwell 1 0 30 sec dwell 1 1 60 sec dwell 0 0 2 rotations 0 1 4 rotations 1 0 8 rotations 1 1 250 rotations 0 0 0 10 min permission 0 0 1 30 min permission 0 1 0 1 hr permission 0 1 1 3 hr permission 1 0 0 E Disarm 1 1 0 1 E Disarm 2 Instant Commands 1 1 0 0 0 0 0 30 Sec permission 1 1 0 0 0 0 1 1 min permission 1 1 0 0 0 1 0 2 min permission 1 1 0 0 0 1 1 5 min permission 1 1 0 0 1 0 0 10 min permission 1 1 0 0 1 0 1 30 min permission 1 1 0 0 1 1 0 1 hr permission 1 1 0 0 1 1 1 3 hr permission 1 1 0 1 0 0 0 12 hr permission 1 1 0 1 0 0 1 AP Unlock 1 1 0 1 0 1 0 AP Lock 1 1 0 1 0 1 1 E Arm 1 1 0 1 1 0 0 E Lock 1 1 0 1 1 0 1 Clear 1 1 0 1 1 1 0 E Disarm 1 1 1 0 1 1 1 1 E Disarm 2 Reserved Settings 1 1 1 x x x x Reserved Contacting Gatekeeper Systems For more information about the PermissionManager and troubleshooting, to order parts or report an issue, contact the Gatekeeper Systems Inc. regional Customer Support office nearest to your location. Hong Kong Gatekeeper Systems (HK), Ltd. Unit 2318~2319, Level 23, Tower 1, Metroplaza NO. 223 Hing Fong Road, Kwai Fong, N.T., HONG KONG (852) 2413 3050 USA Gatekeeper Systems, Inc. 8 Studebaker Irvine, CA 92618 (888) 808-9433 Canada Gatekeeper Systems Canad…

Text truncated - open the document above for the full version.

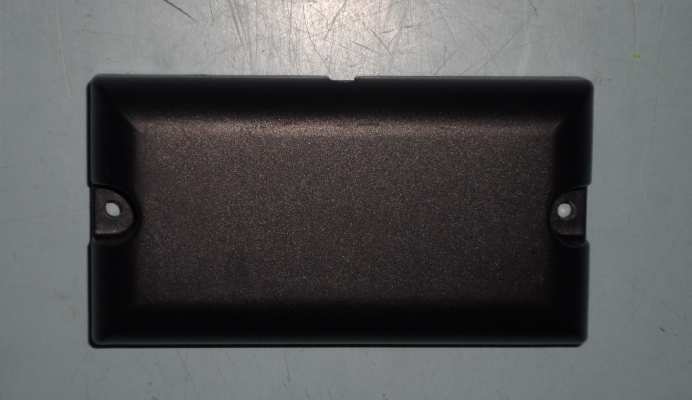

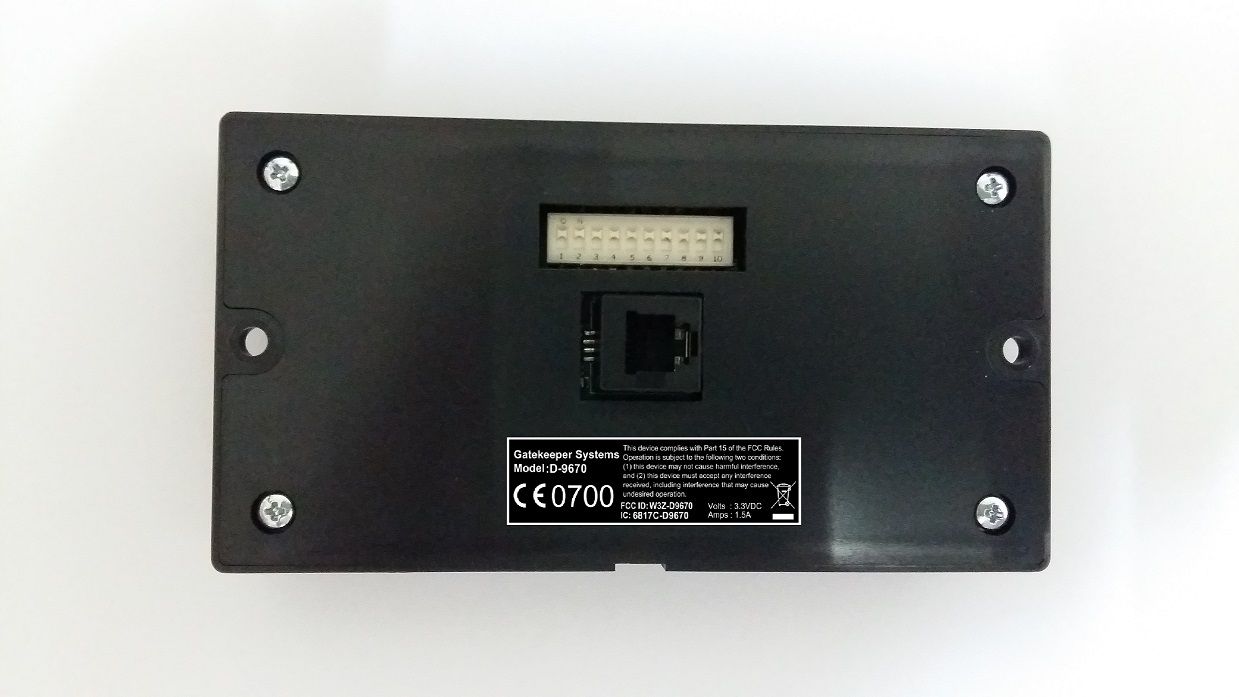

FCC ID: W3Z-D9670 IC ID: 6817C-D9670 PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT FCC ID: W3Z-D9670 IC ID: 6817C-D9670 PHOTOGRAPH OF THE PRODUCT LEFT VIEW OF THE PRODUCT RIGHT VIEW OF THE PRODUCT TOP VIEW OF THE PRODUCT BTTOM VIEW OF THE PRODUCT

FCC ID: W3Z-D9670 IC ID: 6817C-D9670 PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW FCC ID: W3Z-D9670 IC ID: 6817C-D9670 PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

STC Test Report Date : 2015-08-06 Page 1 of 33 No. : HM169934 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc-group.org This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. Applicant: Gatekeeper System (HK) Ltd. Unit 2305, Level 23, Tower 2, Metroplaza, No. 223 Hing Fong Road, Kwai Fong, N.T., Hong Kong Manufacturer: Gatekeeper System (HK) Ltd. Unit 2305, Level 23, Tower 2, Metroplaza, No. 223 Hing Fong Road, Kwai Fong, N.T., Hong Kong Description of Sample(s): Product: PermissionManager Brand Name: Gatekeeper Systems Model Number: D-9670 FCC ID: W3Z-D9670 Date Sample(s) Received: 2015-07-08 Date Tested: 2015-07-31 to 2015-11-06 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2014 and ANSI C63.10:2013 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): --- _______________________________ Dr. LEE Kam Chuen Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2015-08-06 Page 2 of 33 No. : HM169934 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc-group.org This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. CONTENT: Cover Page 1 of 33 Content Page 2 of 33 1.0 General Details 1.1 Equipment Under Test [EUT] Page 3 of 33 Description of EUT operation 1.2 Description of EUT Operation 1.3 Date of Order Page 3 of 33 1.4 Submitted Sample Page 3 of 33 1.5 Test Duration Page 3 of 33 1.6 Country of Origin Page 3 of 33 2.0 Technical Details 2.1 Investigations Requested Page 4 of 33 2.2 Test Standards and Results Summary Page 4 of 33 3.0 Test Results 3.1 Emission Page 5-29 of 33 Appendix A List of Measurement Equipment Page 30 of 33 Appendix B Photographs Page 31-33 of 33 STC Test Report Date : 2015-08-06 Page 3 of 33 No. : HM169934 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc-group.org This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 1.0 General Details 1.1 Equipment Under Test [EUT] Description of Sample(s) Product: PermissionManager Manufacturer: Gatekeeper System (HK) Ltd. Unit 2305, Level 23, Tower 2, Metroplaza, No. 223 Hing Fong Road, Kwai Fong, N.T., Hong Kong Brand Name: Gatekeeper Systems Model Number: D-9670 Rating: 3.3Vd.c. (Powered by DC power supply at connector block pin 1) The AC/DC Adaptor used for the tests was a "Winstar" adaptor: Two pins (Live / Neutral) only adaptor, Model Number: NA-12, Input: 100-120/220- 240Va.c., Output: 3-15Vd.c. 1200mA max. 1.2 Description of EUT Operation The Equipment Under Test (EUT) is a PermissionManager of Gatekeeper System (HK) Ltd.., it is two 2.4GHz transceivers and it is used to send commands to and receive data from the Gatekeeper Systems wheels, The RF signal was modulated by IC. The Announce mode transmissions were modulated with 500K MSK (Minimum Shift Keying), the Data mode transmissions (data request and data acknowledge) were modulated with 500K MSK (Minimum Shift Keying) while data received from the wheel was modulated with 20K FSK (Frequency Shift Keying). Antenna 1 (The announce radio) and Antenna 2 (The data radio) will not send out the announce radio commends with the same channel at the same time. 1.3 Date of Order 2015-07-08 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2015-07-31 to 2015-11-06 1.6 Country of Origin China STC Test Report Date : 2015-08-06 Page 4 of 33 No. : HM169934 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc-group.org This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2014 Regulations and ANSI C63.10:2013 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail Field Strength of Fundamental & Harmonics Emissions FCC 47CFR 15.249 ANSI C63.10:2013 N/A Radiated Emissions FCC 47CFR 15.209 ANSI C63.10:2013 N/A Conducted Emissions FCC 47CFR 15.207 ANSI C63.10:2013 N/A Note: N/A - Not Applicable STC Test Report Date : 2015-08-06 Page 5 of 33 No. : HM169934 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Em…

Text truncated - open the document above for the full version.

FCC ID: W3Z-D9670 IC ID: 6817C-D9670 PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
