W5M-DMSSE07DMS-SE07

TobiiGlasses2 EyeTracker User’s Manual TobiiGlassesHeadUnit TobiiGlassesRecordingUnit TobiiGlassesControllerSoftware User’s manualTobiiGlasses2 Eye Tracker Version1.0.2 12/2014 All rightsreserved. Copyright© TobiiTechnologyAB The informationcontainedin this documentis proprietaryto TobiiTechnology.Any reproductionin part or wholewithout prior writtenauthorizationby TobiiTechnologyis prohibited. Productsthat are referredto in this documentmay be either trademarksand/orregisteredtrademarksof the respective owners.The publisherand the authormakeno claimto these trademarks. Whileeveryprecautionhas beentakenin the preparationof this document,the publisherand the authorassumeno responsibilityfor errorsor omissions,or for damages resultingfrom the use of informationcontainedin this documentor from the use of programsand sourcecodethat may accompanyit. In no eventshall the publisherand the authorbe liablefor any loss of profitor any othercommercial damagecausedor allegedto have beencauseddirectlyor indirectlyby this document. Contentsubjectto changewithoutnotice. PleasecheckTobiiweb site www.tobii.comfor updated versionsof this document. Tableof Contents 1 Safetyand Compliance.................................................................................................................. 1 1.1Safetyand Usage...................................................................................................................1 1.1.1UsageWarning.......................................................................................................1 1.1.2EmergencyWarning................................................................................................1 1.1.3ChildSafety...........................................................................................................1 1.1.4InfraredWarning.....................................................................................................1 1.1.5EpilepsyWarning....................................................................................................1 1.1.6MechanicalShockWarning......................................................................................2 1.1.7BendingWarning....................................................................................................2 1.1.8Do not openthe devices..........................................................................................2 1.1.9Connectors............................................................................................................2 1.1.10HDMICableWarning..............................................................................................2 1.1.11Environment...........................................................................................................2 1.1.12BatteryWarning......................................................................................................3 1.1.13WirelessWarning...................................................................................................3 1.1.14Transportation........................................................................................................3 1.1.15Accessories...........................................................................................................3 1.1.16Cleaning................................................................................................................3 1.1.17Disposal.................................................................................................................3 1.2ComplianceInformation..........................................................................................................4 1.2.1FederalCommunicationCommissionInterferenceStatement........................................4 1.2.2CanadianComplianceStatement..............................................................................4 1.2.3EU ComplianceStatement......................................................................................4 1.2.4Declarationof Conformity(Standards).......................................................................4 1.3Otherlimitationsand considerations.........................................................................................5 1.3.1Intendeduse ..........................................................................................................5 1.3.2SD memorycards...................................................................................................5 1.3.3MultipleconnectionsbetweenGlassesControllerSoftwareand RecordingUnit .............5 1.3.4Eye movementclassification.....................................................................................5 1.3.5Lightconditions......................................................................................................5 1.3.6Eyelashes...............................................................................................................5 1.3.7Droopyeyelids........................................................................................................6 1.3.8Eye glassesand contactlenses.................................................................................6 1.3.9WLANconnectivity..................................................................................................6 1.3.10Power....................................................................................................................6 1.3.11KeepingTobiiGlassesControllerSoftwareand the RecordingUnit firmwareup to date.......................................................................................................................6 2 Introduction.................................................................................................................................... 7 2.1Intendeduse..........................................................................................................................7 2.2Usageoverview.........................................................................…

Text truncated - open the document above for the full version.

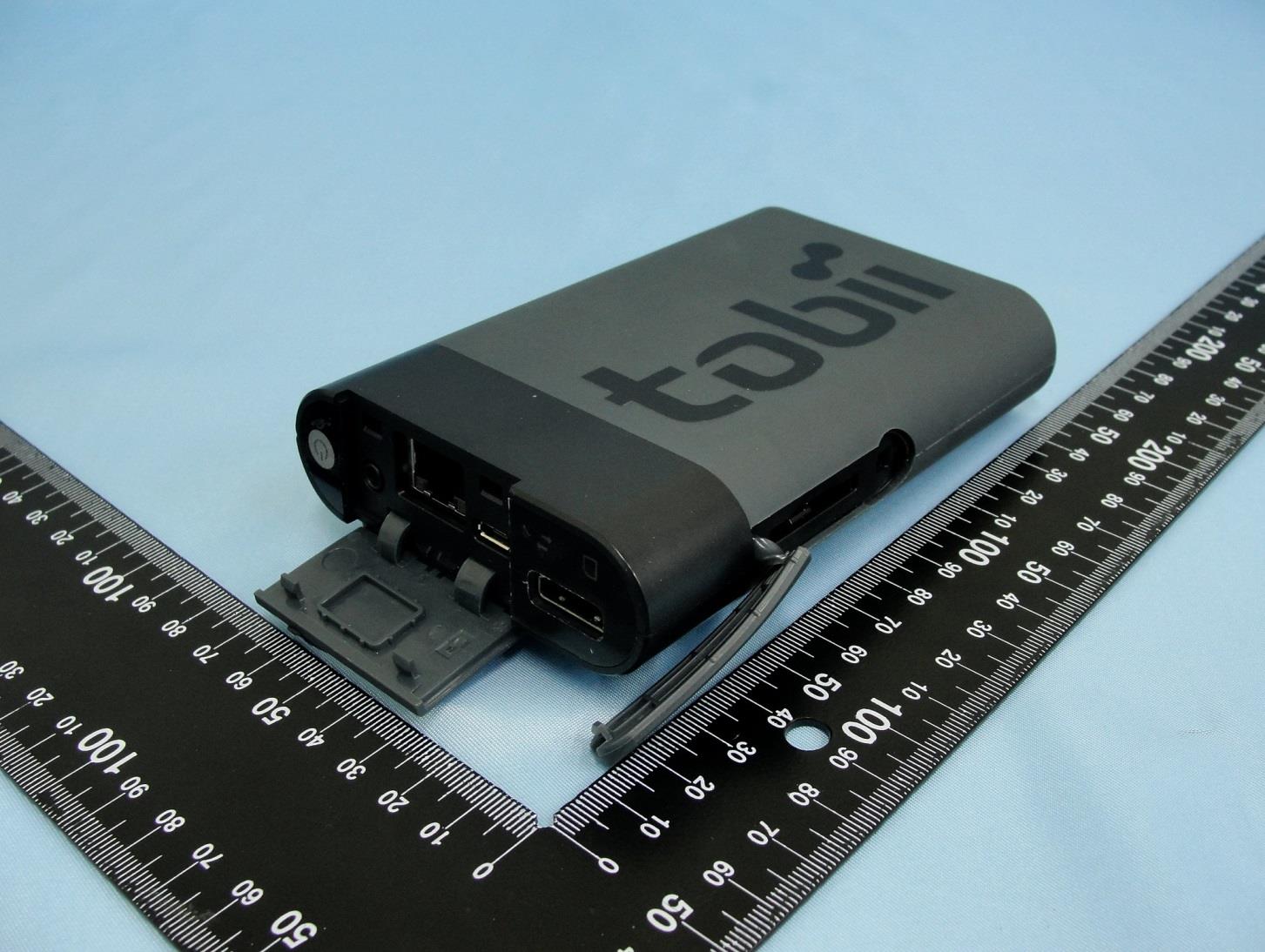

Photographs of EUT Report No.: EP4O2406 Brand Name: Tobii / Model Name: Glasses2 RU SPORTON INTERNATIONAL INC. Page Number : 1 of 25 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W5M-DMSSE07 IC : 8099A-DMSSE07 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP4O2406 Brand Name: Tobii / Model Name: Glasses2 RU SPORTON INTERNATIONAL INC. Page Number : 2 of 25 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W5M-DMSSE07 IC : 8099A-DMSSE07 Photographs of EUT Report No.: EP4O2406 Brand Name: Tobii / Model Name: Glasses2 RU SPORTON INTERNATIONAL INC. Page Number : 3 of 25 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W5M-DMSSE07 IC : 8099A-DMSSE07 Photographs of EUT Report No.: EP4O2406 Brand Name: Tobii / Model Name: Glasses2 RU SPORTON INTERNATIONAL INC. Page Number : 4 of 25 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W5M-DMSSE07 IC : 8099A-DMSSE07 Photographs of EUT Report No.: EP4O2406 Brand Name: Tobii / Model Name: Glasses2 RU SPORTON INTERNATIONAL INC. Page Number : 5 of 25 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W5M-DMSSE07 IC : 8099A-DMSSE07 Photographs of EUT Report No.: EP4O2406 Brand Name: Tobii / Model Name: Glasses2 RU SPORTON INTERNATIONAL INC. Page Number : 6 of 25 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W5M-DMSSE07 IC : 8099A-DMSSE07 Specification of Accessory AC Adapter Brand Name CMP POWERSUPPLY Model Name GPE010H-050210-Z Battery Brand Name Formosan United Corp Model Name TL-1 USB Cable Brand Name N/A Model Name N/A Signa Line 1.0 meter non-shielded cable without ferrite core HDMI Cable Brand Name Utec Model Name UT-50M LAN Cable Brand Name DELTACO Model Name STP-63S Glasses Brand Name Tobii Model Name Glasses2 Head Unit Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP4O2406 Brand Name: Tobii / Model Name: Glasses2 RU SPORTON INTERNATIONAL INC. Page Number : 7 of 25 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W5M-DMSSE07 IC : 8099A-DMSSE07 720510 Photographs of EUT Report No.: EP4O2406 Brand Name: Tobii / Model Name: Glasses2 RU SPORTON INTERNATIONAL INC. Page Number : 8 of 25 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W5M-DMSSE07 IC : 8099A-DMSSE07 AC Adapter Photographs of EUT Report No.: EP4O2406 Brand Name: Tobii / Model Name: Glasses2 RU SPORTON INTERNATIONAL INC. Page Number : 9 of 25 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W5M-DMSSE07 IC : 8099A-DMSSE07 Battery

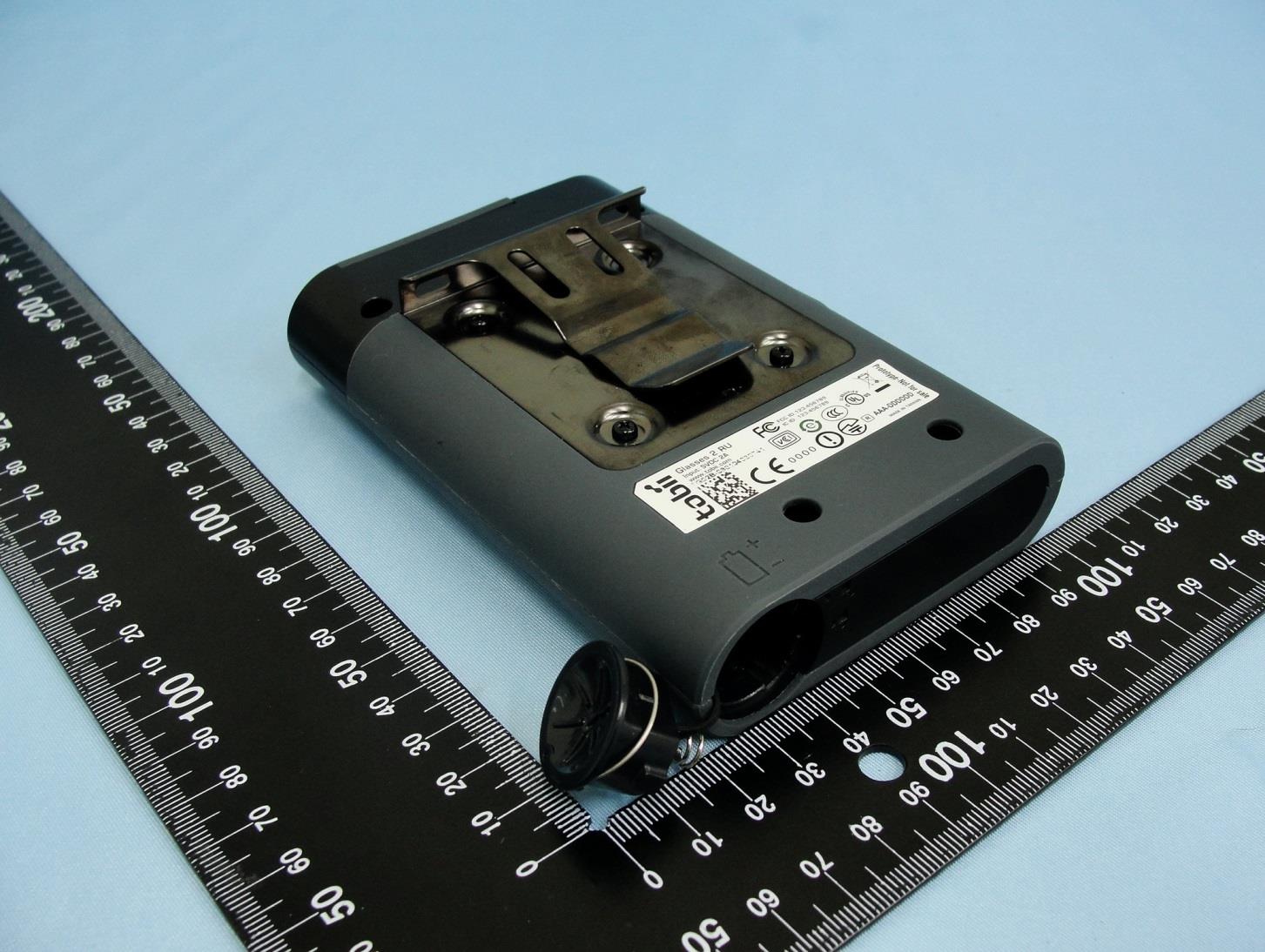

Back of the EUT Label Location

Photographs of EUT Report No.: EP4O2406 Brand Name: Tobii / Model Name: Glasses2 RU SPORTON INTERNATIONAL INC. Page Number : 10 of 25 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W5M-DMSSE07 IC : 8099A-DMSSE07 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP4O2406 Brand Name: Tobii / Model Name: Glasses2 RU SPORTON INTERNATIONAL INC. Page Number : 11 of 25 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W5M-DMSSE07 IC : 8099A-DMSSE07 Photographs of EUT Report No.: EP4O2406 Brand Name: Tobii / Model Name: Glasses2 RU SPORTON INTERNATIONAL INC. Page Number : 12 of 25 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W5M-DMSSE07 IC : 8099A-DMSSE07 Photographs of EUT Report No.: EP4O2406 Brand Name: Tobii / Model Name: Glasses2 RU SPORTON INTERNATIONAL INC. Page Number : 13 of 25 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W5M-DMSSE07 IC : 8099A-DMSSE07 Photographs of EUT Report No.: EP4O2406 Brand Name: Tobii / Model Name: Glasses2 RU SPORTON INTERNATIONAL INC. Page Number : 14 of 25 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W5M-DMSSE07 IC : 8099A-DMSSE07 Photographs of EUT Report No.: EP4O2406 Brand Name: Tobii / Model Name: Glasses2 RU SPORTON INTERNATIONAL INC. Page Number : 15 of 25 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W5M-DMSSE07 IC : 8099A-DMSSE07 Photographs of EUT Report No.: EP4O2406 Brand Name: Tobii / Model Name: Glasses2 RU SPORTON INTERNATIONAL INC. Page Number : 16 of 25 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W5M-DMSSE07 IC : 8099A-DMSSE07 Photographs of EUT Report No.: EP4O2406 Brand Name: Tobii / Model Name: Glasses2 RU SPORTON INTERNATIONAL INC. Page Number : 17 of 25 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W5M-DMSSE07 IC : 8099A-DMSSE07 Photographs of EUT Report No.: EP4O2406 Brand Name: Tobii / Model Name: Glasses2 RU SPORTON INTERNATIONAL INC. Page Number : 18 of 25 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W5M-DMSSE07 IC : 8099A-DMSSE07 Photographs of EUT Report No.: EP4O2406 Brand Name: Tobii / Model Name: Glasses2 RU SPORTON INTERNATIONAL INC. Page Number : 19 of 25 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W5M-DMSSE07 IC : 8099A-DMSSE07 Photographs of EUT Report No.: EP4O2406 Brand Name: Tobii / Model Name: Glasses2 RU SPORTON INTERNATIONAL INC. Page Number : 20 of 25 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W5M-DMSSE07 IC : 8099A-DMSSE07 Photographs of EUT Report No.: EP4O2406 Brand Name: Tobii / Model Name: Glasses2 RU SPORTON INTERNATIONAL INC. Page Number : 21 of 25 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W5M-DMSSE07 IC : 8099A-DMSSE07 Photographs of EUT Report No.: EP4O2406 Brand Name: Tobii / Model Name: Glasses2 RU SPORTON INTERNATIONAL INC. Page Number : 22 of 25 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W5M-DMSSE07 IC : 8099A-DMSSE07 Photographs of EUT Report No.: EP4O2406 Brand Name: Tobii / Model Name: Glasses2 RU SPORTON INTERNATIONAL INC. Page Number : 23 of 25 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W5M-DMSSE07 IC : 8099A-DMSSE07 Photographs of EUT Report No.: EP4O2406 Brand Name: Tobii / Model Name: Glasses2 RU SPORTON INTERNATIONAL INC. Page Number : 24 of 25 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W5M-DMSSE07 IC : 8099A-DMSSE07 WLAN 5GHz & 2.4GHz Antenna Photographs of EUT Report No.: EP4O2406 Brand Name: Tobii / Model Name: Glasses2 RU SPORTON INTERNATIONAL INC. Page Number : 25 of 25 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W5M-DMSSE07 IC : 8099A-DMSSE07

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Feb. 17, 2015 FCC ID : W5M-DMSSE07 Page 1 of 23 Form version. : 141020 FCC SAR Test Report Report No. : FA4O2406 FCC SAR Test Report APPLICANT : Tobii Technology AB EQUIPMENT : DMS-SE07 BRAND NAME : Tobii MODEL NAME : Glasses2 RU FCC ID : W5M-DMSSE07 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and had been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No.52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan District, Taoyuan City, Taiwan R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Feb. 17, 2015 FCC ID : W5M-DMSSE07 Page 2 of 23 Form version. : 141020 FCC SAR Test Report Report No. : FA4O2406 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 4 3. Guidance Standard ....................................................................................................................................................... 5 4. Equipment Under Test (EUT) ....................................................................................................................................... 5 4.1 General Information ............................................................................................................................................... 5 4.2 Maximum Tune-up Limit ......................................................................................................................................... 5 5. RF Exposure Limits....................................................................................................................................................... 6 5.1 Uncontrolled Environment ...................................................................................................................................... 6 5.2 Controlled Environment .......................................................................................................................................... 6 6. Specific Absorption Rate (SAR) ................................................................................................................................... 7 6.1 Introduction ............................................................................................................................................................ 7 6.2 SAR Definition ........................................................................................................................................................ 7 7. System Description and Setup .................................................................................................................................... 8 8. Measurement Procedures ............................................................................................................................................ 9 8.1 Spatial Peak SAR Evaluation ................................................................................................................................. 9 8.2 Power Reference Measurement............................................................................................................................10 8.3 Area Scan .............................................................................................................................................................10 8.4 Zoom Scan ............................................................................................................................................................ 11 8.5 Volume Scan Procedures ...................................................................................................................................... 11 8.6 Power Drift Monitoring ........................................................................................................................................... 11 9. Test Equipment List .....................................................................................................................................................12 10. System Verification ....................................................................................................................................................13 10.1 Tissue Verification ...............................................................................................................................................13 10.2 System Performance Check Results ...................................................................................................................14 11. Conducted RF Output Power (Unit: dBm) ................................................................................................................15 12. Antenna Location .......................................................................................................................................................17 13. SAR Test Results .......................................................................................................................................................18 13.1 Body SAR ...........................................................................................................................................................18 13.2 Repeated SAR Measurement .......…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/11/22 System Check_Body_2450MHz_141122 DUT: D2450V2-869 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_141122 Medium parameters used: f = 2450 MHz; σ = 1.92 S/m; ε r = 53.118; ρ = 1000 kg/m 3 23.3 22.3 DASY5 Configuration: - Probe: EX3DV4 - SN3753; ConvF(7.31, 7.31, 7.31); Calibrated: 2014/3/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2014/7/23 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1227 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 20.7 W/kg Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 101.8 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 26.3 W/kg SAR(1 g) = 13 W/kg; SAR(10 g) = 6.06 W/kg Maximum value of SAR (measured) = 19.8 W/kg 0 dB = 19.8 W/kg = 12.97 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/11/21 System Check_Body_5200MHz_141121 DUT: D5GHzV2-1006 Communication System: CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: MSL_5G_141121 Medium parameters used: f = 5200 MHz; σ = 5.244 S/m; ε r = 47.499; ρ = 1000 kg/m 3 23.6 22.6 DASY5 Configuration: - Probe: EX3DV4 - SN3753; ConvF(4.67, 4.67, 4.67); Calibrated: 2014/3/26; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2014/7/23 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1227 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Configuration/Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 19.1 W/kg Configuration/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 67.88 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 35.6 W/kg SAR(1 g) = 7.83 W/kg; SAR(10 g) = 2.12 W/kg Maximum value of SAR (measured) = 20.2 W/kg 0 dB = 20.2 W/kg = 13.05 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/11/21 System Check_Body_5800MHz_141121 DUT: D5GHzV2-1006 Communication System: CW; Frequency: 5800 MHz;Duty Cycle: 1:1 Medium: MSL_5G_141121 Medium parameters used: f = 5800 MHz; σ = 6.127 S/m; ε r = 46.464; ρ = 1000 kg/m 3 23.6 22.6 DASY5 Configuration: - Probe: EX3DV4 - SN3753; ConvF(4.24, 4.24, 4.24); Calibrated: 2014/3/26; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2014/7/23 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1227 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Configuration/Pin=100mW/Area Scan (91x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 22.4 W/kg Configuration/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 62.84 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 39.1 W/kg SAR(1 g) = 8.23 W/kg; SAR(10 g) = 2.26 W/kg Maximum value of SAR (measured) = 21.3 W/kg 0 dB = 21.3 W/kg = 13.28 dBW/kg

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/11/22 #01_WLAN2.4GHz_802.11b 1Mbps_Bottom Side_0cm_Ch1 Communication System: 802.11b ; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: MSL_2450_141122 Medium parameters used: f = 2412 MHz; σ = 1.876 S/m; ε r = 53.364; ρ = 1000 kg/m 3 23.3 22.3 DASY5 Configuration: - Probe: EX3DV4 - SN3753; ConvF(7.31, 7.31, 7.31); Calibrated: 2014/3/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2014/7/23 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1227 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Configuration/Ch1/Area Scan (41x101x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.37 W/kg Configuration/Ch1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 28.03 V/m; Power Drift = -0.17 dB Peak SAR (extrapolated) = 2.15 W/kg SAR(1 g) = 0.957 W/kg; SAR(10 g) = 0.408 W/kg Maximum value of SAR (measured) = 1.41 W/kg 0 dB = 1.41 W/kg = 1.49 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/11/21 #02_WLAN5GHz_802.11a 6Mbps_Front_0cm_Ch44 Communication System: 802.11a ; Frequency: 5220 MHz;Duty Cycle: 1:1.021 Medium: MSL_5G_141121 Medium parameters used : f = 5220 MHz; σ = 5.257 S/m; ε r = 47.44; ρ = 1000 kg/m 3 23.6 22.6 DASY5 Configuration: - Probe: EX3DV4 - SN3753; ConvF(4.67, 4.67, 4.67); Calibrated: 2014/3/26; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2014/7/23 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1227 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Configuration/Ch44/Area Scan (51x61x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.75 W/kg Configuration/Ch44/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 19.59 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 3.12 W/kg SAR(1 g) = 0.737 W/kg; SAR(10 g) = 0.241 W/kg Maximum value of SAR (measured) = 1.74 W/kg 0 dB = 1.74 W/kg = 2.41 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/11/21 #03_WLAN5GHz_802.11a 6Mbps_Front_0cm_Ch149 Communication System: 802.11a ; Frequency: 5745 MHz;Duty Cycle: 1:1.021 Medium: MSL_5G_141121 Medium parameters used : f = 5745 MHz; σ = 6.069 S/m; ε r = 46.672; ρ = 1000 kg/m 3 23.6 22.6 DASY5 Configuration: - Probe: EX3DV4 - SN3753; ConvF(4.24, 4.24, 4.24); Calibrated: 2014/3/26; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2014/7/23 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1227 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Configuration/Ch149/Area Scan (51x61x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 2.01 W/kg Configuration/Ch149/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 20.60 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 3.99 W/kg SAR(1 g) = 0.856 W/kg; SAR(10 g) = 0.268 W/kg Maximum value of SAR (measured) = 2.18 W/kg 0 dB = 2.18 W/kg = 3.38 dBW/kg

In Cotteboretion with Add: No.52 Huayuanbei Road, Haidian District, Beijing, 100191, China Tel: +86-1 0-62304633-2079 Fax: +86 -1 0-62304633-2504 E-mail: [email protected] Http: //www.emcite.com Client Au den Certificate No: Z14-97009 - CALIBRATION CERTIFICATE Object EX3DV4 - SN:3753 Calibration Procedure(s) TMC-OS-E-02-195 Calibration Procedures for Dosimetric E-field Probes Calibration date: March 26, 2014 This calibration Certificate documents the traceability to national standards, which realize the physical units of measurements(SI). The measurements and the uncertainties with confidence probability are given on the following pages and are part of the certificate. All calibrations have been conducted in the closed laboratory facility: environment temperature(22±3)'C and humidity<70%. Calibration Equipment used (M&TE critical for calibration) Primary Standards ID # Cal Date(Calibrated by, Certificate No.) Power Meter NRP2 101919 01-Jul- 13 (TMC, No.JW13-044) Power sensor NRP-Z91 101547 01-Jul-13 (TMC, No.JW13-044) Power sensor NRP-Z91 101548 01-Jul-13 (TMC, No.JW13-044) Reference1 OdBAttenuator BT0520 12-Dec-12(TMC,No.JZ12-867) Scheduled Calibration Jun-14 Jun-14 Jun-14 Dec-14 Reference20dBAttenuator Reference Probe EX3DV4 DAE4 BT0267 SN 3846 SN 777 12-Dec-12(TMC,No.JZ12-866) Dec-14 03-Sep-13(SPEAG, No. EX3-3846 _ Sep 13) Sep-14 22-Feb-13 (SPEAG, DAE4-777 _Feb13) Feb -14 DAE4 SN 915 Secondary Standards ID# SignaiGeneratorMG3700A 6201052605 Network Analyzer E5071 C MY46110673 Name Calibrated by: Yu Zongying Reviewed by: Qi Dianyuan Approved by: Lu Singsong 11-Jun-13 (SPEAG, DAE4-915_Jun13) Cal Date(Calibrated by, Certificate No.) 01-Jul-13 (TMC, No.JW13-045) 15-Feb-14 (TMC, No.JZ14-781) Function SAR Test Engineer SAR Project Leader~: ,..__ Jun -14 Scheduled Calibration Jun-14 Feb-15 Signature --$~ ~ Deputy Director of the-laboratory "-':[;a. ~ ~ Issued: March ~8, 2014 This calibration certificate shall not be reproduced except in full without written approval of the laboratory. Certificate No: 214-97009 Pag~ 1 of 11 In Collaboration with s p e a 9 Add: No.52 Huayuanbci Road, Haidian District. Beij ing, 100191, China Tel: +86-1 0-6230463 3-2079 Fax : +86-1 0-62304633-2504 E-ma il: lnfora 'emcite.com Http://www.emcite.com Glossary: TSL NORMx,y,z ConvF DCP CF A,B,C,D Polarization <l> Polarization a tissue simulating liquid sensitivity in free space sensitivity in TSL I NORMx,y,z diode compression point crest factor (1/duty_cycle) of the RF signal modulation dependent linearization parameters <l> rotation around probe axis a rotation around an axis that is in the plane normal to probe axis (at measurement center), i a=o is normal to probe axis Connector Angle information used in DASY system to align probe sensor X to the robot coordinate system Calibration is Performed According to the Following Standards: a) IEEE Std 1528-2013, "IEEE Recommended Practice for Determining the Peak Spatial-Averaged Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques ", June 2013 b) IEC 62209-1, "Procedure to measure the Specific Absorption Rate (SAR) for hand-held devices used in close proximity to the ear (frequency range of 300MHz to 3GHz)", February 2005 Methods Applied and Interpretation of Parameters: • NORMx,y, z: Assessed for E-field polarization a=O (f:S900MHz in TEM-cell; f > 1800MHz: waveguide). NORMx,y,z are only intermediate values, i.e ., the uncertainties of NORMx,y,z does not effect the E 2 -field uncertainty inside TSL (see below ConvF). • NORM(f)x,y,z = NORMx,y,z* frequency_response (see Frequency Response Chart). This linearization is implemented in DASY 4 software versions later than 4.2. The uncertainty of the frequency response is included in the stated uncertainty of ConvF. • DCPx,y,z: DCP are numerical linearization parameters assessed based on the data of power sweep (no uncertainty required). DCP does not depend on frequency nor media. • PAR: PAR is the Peak to Average Ratio th…

Text truncated - open the document above for the full version.
