W6R-L600NDual Band Wireless Router

L600N - Dual Band Wireless Router 2 CONTENTS INTRODUCTION ........................................................................................ 4 PRODUCT OVERVIEW .............................................................................. 5 Package Content ...................................................................................... 5 LED Indicator ............................................................................................ 6 Back Panel Indicator ................................................................................ 7 Side Panel Indicator ................................................................................. 8 Quick Setup Guide .................................................................................. 9 Connecting Guide..................................................................................... 9 Wireless Connecting Guide................................................................... 13 Configuration Guide ............................................................................... 16 Web Management Guide...................................................................... 16 Running Status ....................................................................................... 17 Router Status .................................................................................... 18 Client List .......................................................................................... 22 Network Setup ....................................................................................... 23 LAN Interface Setup ........................................................................ 24 WAN Interface Setup ...................................................................... 26 Wireless Setup ........................................................................................ 27 Basic Setup ........................................................................................ 28 Guest Network ................................................................................. 31 WPS Setup ........................................................................................ 32 Advanced Setup ................................................................................ 33 Forwarding ............................................................................................. 36 UPnP .................................................................................................. 37 Port Forwarding ................................................................................ 38 Port Triggering ................................................................................... 39 Access Control ........................................................................................ 40 Time of Day to Block ........................................................................ 41 Block Sites ......................................................................................... 42 Block Services ................................................................................... 43 QoS Setup .......................................................................................... 44 Dynamic DNS .......................................................................................... 46 Static Route ............................................................................................. 47 E-mail Setup ............................................................................................ 48 L600N - Dual Band Wireless Router 3 CONTENTS Security Options ......................................................................................... 49 Remote Management ..................................................................... 50 WAN Security Setup ........................................................................ 51 Multicast Control ....................................................................................... 54 Storage Setup ............................................................................................. 55 FTP Server Setup .............................................................................. 56 FTP Server Account Manager ......................................................... 57 USB Browse ...................................................................................... 58 Samba Setting .................................................................................. 59 System Tools ............................................................................................... 60 Physical Specification ................................................................................ 62 Troubleshooting ......................................................................................... 64 L600N - Dual Band Wireless Router 4 INTRODUCTION Thank you for purchasing this Rosewill Networking product. At Rosewill we believe that excellence is a standard. Our customers deserve nothing less than the best. By purchasing a Rosewill product you are choosing exceptional value, unrivaled customer service and top quality hardware. If you have any questions please feel free to contact us. We’d love to hear from you and thank you for your support! Support: [email protected] Call Center: (800) 575-9885 FAX: (626) 271-9504 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of Rosewill Inc. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from Rosewill Inc. Copyright © 2010 Rosewill Inc. All rights reserved. http://www.rosewill.com L600N - Dual Band Wireless Router 5 PRODUCT OVERVIEW Package Content - L600N Dual Band Wireless N Router - Power Adapter for L600N - Quick Installation…

Text truncated - open the document above for the full version.

CERTIFICATE OF COMPLIANCE Ref No.: NEI-FCCE-1-1210C034 Date of Issue: Oct. 31, 2012 Authorized under Declaration of Conformity according to 47 CFR, Part 2 and Part 15 of the FCC Rules. The product listed in follows was (were) tested in the Neutron EMC Laboratory to comply with the criteria limits Class B of conducted and radiated emissions of the Technical Standards FCC Part 15, Subpart B, established by the FCC, USA. Equipment Dual Band Wireless Router Model Name L600N Brand Name Rosewill Applicant Rosewill Inc. Address 17708 Rowland Street, City of Industry, California 91748 United States Measurement ANSI C63.4 (2009) Method The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCE-1-1210C034) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Andy Chiu Authorized Signatory Neutron Engineering Inc. B1, No.37, Lane 365, Yang Guang St., NeiHu District 114., Taipei, Taiwan TEL：+886-2-2657-3299 FAX：+886-2-2657-3331

Neutron Engineering Inc. Project No.: 1210C034 Page 2 of 9 Neutron Engineering Inc. Project No.: 1210C034 Page 3 of 9 Neutron Engineering Inc. Project No.: 1210C034 Page 8 of 9 Neutron Engineering Inc. Project No.: 1210C034 Page 9 of 9

1 2 3 4 A B C D 56 1 2 3 4 56 A B C D DATE: 60800001XXXX 盒底标贴 catch-tec W6R-L600N 1:1 A0 1. 黑色印刷，无边框,R1.5 2.材料: 50# PET+光膜,背胶 NOTES(技术要求）: (Material:50# PET+Film,adhesive) (Black printing,no frame,) R1.5 XXXX N/A CHECK DRAW PDE Editor Description Remark Date 121008 钟丹群 蒋先晓 刘欢 Scale: 2:1 0 -0.2 0 - 0 . 2 40.50 mm 2 0 . 5 0 m m 来料方式：卷装 Rosewill Inc. Dual Band Wireless Router FCC ID:W6R-L600N Default Gateway: 192.168.1.1 Username/password: admin/admin Model: L600N Power: 12V 1A 3. .原材料及后处理工艺均能满足我司《环保技术标准》要求 (Raw materials and the corresponding post processing should meet requirements defined in the T&W Environmental Protection Technical Standards) Rosewill Inc. Dual Band Wireless Router FCC ID:W6R-L600N Default Gateway: 192.168.1.1 Username/password: admin/admin Model: L600N Power: 12V 1A

Neutron Engineering Inc. Project No.: 1210C034 Page 4 of 9 Neutron Engineering Inc. Project No.: 1210C034 Page 5 of 9 Neutron Engineering Inc. Project No.: 1210C034 Page 6 of 9 Neutron Engineering Inc. Project No.: 1210C034 Page 7 of 9

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: W6R-L600N Issued Date : Oct. 31, 2012 Project No. : 1210C034 Equipment : Dual Band Wireless Router Model Name : L600N Applicant : Rosewill Inc. Address : 17708 Rowland Street,City of Industry, California 91748 United States According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Neutron Engineering Inc. Test Result: EUT： Dual Band Wireless Router Model Name ： L600N Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 20.13 103.0386 0.064856031 Complies 5 3.1623 20.06 101.3911 0.063819061 Complies 5 3.1623 20.07 101.6249 0.063966171 Complies EUT： Dual Band Wireless Router Model Name ： L600N Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 22.53 179.0606 0.112706861 Complies 5 3.1623 22.10 162.1810 0.102082281 Complies 5 3.1623 22.26 168.2674 0.105913271 Complies EUT： Dual Band Wireless Router Model Name ： L600N Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N MODE-20MHz /CH01, CH06, CH11-ANT 1 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 18.43 69.6627 0.043848061 Complies 5 3.1623 18.22 66.3743 0.041778261 Complies 5 3.1623 18.46 70.1455 0.044152001 Complies Neutron Engineering Inc. EUT： Dual Band Wireless Router Model Name ： L600N Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N MODE-20MHz /CH01, CH06, CH11-ANT 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 17.40 54.9541 0.034589981 Complies 5 3.1623 17.45 55.5904 0.034990521 Complies 5 3.1623 17.43 55.3350 0.034829751 Complies EUT： Dual Band Wireless Router Model Name ： L600N Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N MODE-20MHz /CH01, CH06, CH11-ANT 1+ANT 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 20.96 124.7384 0.078514591 Complies 5 3.1623 20.86 121.8990 0.076727381 Complies 5 3.1623 20.99 125.6030 0.079058831 Complies EUT： Dual Band Wireless Router Model Name ： L600N Temperature: 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N MODE-40MHz /CH03, CH06, CH09-ANT 1 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5 3.1623 16.36 43.2514 0.027223901 Complies 5 3.1623 16.32 42.8549 0.026974311 Complies 5 3.1623 16.12 40.9261 0.025760271 Complies Neutron Engineering Inc. EUT： Dual Band Wireless Router Model Name ： L600N Temperature: 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N MODE-40MHz /CH03, CH06, CH09-ANT 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5 3.1623 16.37 43.3511 0.027286661 Complies 5 3.1623 16.53 44.9780 0.028310681 Complies 5 3.1623 16.17 41.4000 0.026058561 Complies EUT： Dual Band Wireless Router Model Name ： L600N Temperature: 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N MODE-40MHz /CH03, CH06, CH09-ANT 1+ANT 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5 3.1623 19.38 86.6962 0.054569551 Complies 5 3.1623 19.44 87.9023 0.055328691 Complies 5 3.1623 19.16 82.4138 0.051874081 Complies

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: W6R-L600N Issued Date : Oct. 31, 2012 Project No. : 1210C034 Equipment : Dual Band Wireless Router Model Name : L600N Applicant : Rosewill Inc. Address : 17708 Rowland Street,City of Industry, California 91748 United States According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Neutron Engineering Inc. Test Result: EUT： Dual Band Wireless Router Model Name ： L600N Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX A MODE /CH149, CH157, CH165 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 13.84 24.2103 0.015238791 Complies 5 3.1623 13.70 23.4423 0.014755381 Complies 5 3.1623 13.81 24.0436 0.015133881 Complies EUT： Dual Band Wireless Router Model Name ： L600N Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N20 MODE / CH149, CH157, CH165-ANT 1 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 10.82 12.0781 0.007602391 Complies 5 3.1623 10.87 12.2180 0.007690431 Complies 5 3.1623 10.73 11.8304 0.007446471 Complies EUT： Dual Band Wireless Router Model Name ： L600N Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N20 MODE / CH149, CH157, CH165-ANT 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 10.75 11.8850 0.007480841 Complies 5 3.1623 10.78 11.9674 0.007532691 Complies 5 3.1623 10.91 12.3310 0.007761581 Complies Neutron Engineering Inc. EUT： Dual Band Wireless Router Model Name ： L600N Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N20 MODE / CH149, CH157, CH165-ANT 1+ANT 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 21.36 136.7729 0.086089541 Complies 5 3.1623 21.23 132.7394 0.083550751 Complies 5 3.1623 21.45 139.6368 0.087892211 Complies EUT： Dual Band Wireless Router Model Name ： L600N Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N40 MODE /CH151, CH159-ANT 1 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 10.93 12.3880 0.007797411 Complies 5 3.1623 10.95 12.4451 0.007833401 Complies EUT： Dual Band Wireless Router Model Name ： L600N Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N40 MODE / CH151, CH159-ANT 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 10.86 12.1899 0.007672741 Complies 5 3.1623 10.80 12.0226 0.007567461 Complies EUT： Dual Band Wireless Router Model Name ： L600N Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N40 MODE / CH151, CH159-ANT 1+ANT 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 20.58 114.2878 0.071936681 Complies 5 3.1623 20.43 110.4079 0.069494491 Complies

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1210C034 Page 1 of 155 FCC Radio Test Report FCC ID: W6R-L600N This report concerns (check one) : Original Grant Class II Change Issued Date : Oct. 31, 2012 Project No. : 1210C034 Equipment : Dual Band Wireless Router Model Name : L600N Applicant : Rosewill Inc. Address : 17708 Rowland Street, City of Industry, California 91748 United States Manufacturer : Shenzhen Gongjin Electronics Co.,Ltd. Address : B116, B118, A211-A213, B201-B213, A311-A313, B411-413, BF08-09 Nanshan Medical Instrument Industry Park,1019# Nanhai Road, Nanshan District, Shenzhen, Guangdong, 518067, P.R. China Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Oct. 09, 2012 Date of Test: Oct. 09, 2012 ~ Oct. 30, 2012 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1210C034 Page 2 of 155 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1210C034 Page 3 of 155 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 15 4.1.3 TEST PROCEDURE 16 4.1.4 DEVIATION FROM TEST STANDARD 16 4.1.5 TEST SETUP 16 4.1.6 EUT OPERATING CONDITIONS 16 4.1.7 TEST RESULTS 17 4.2 RADIATED EMISSION MEASUREMENT 22 4.2.1 RADIATED EMISSION LIMITS 22 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 23 4.2.3 TEST PROCEDURE 24 4.2.4 DEVIATION FROM TEST STANDARD 24 4.2.5 TEST SETUP 25 4.2.6 EUT OPERATING CONDITIONS 26 4.2.7 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 27 4.2.8 TEST RESULTS (ABOVE 1000 MHZ) 32 5 . BANDWIDTH TEST 80 5.1 APPLIED PROCEDURES / LIMIT 80 5.1.1 MEASUREMENT INSTRUMENTS LIST 80 5.1.2 TEST PROCEDURE 80 5.1.3 DEVIATION FROM STANDARD 80 5.1.4 TEST SETUP 80 5.1.5 EUT OPERATION CONDITIONS 80 5.1.6 TEST RESULTS 81 6 . MAXIMUM OUTPUT POWER TEST 93 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1210C034 Page 4 of 155 Table of Contents Page 6.1 APPLIED PROCEDURES / LIMIT 93 6.1.1 MEASUREMENT INSTRUMENTS LIST 93 6.1.2 TEST PROCEDURE 93 6.1.3 DEVIATION FROM STANDARD 93 6.1.4 TEST SETUP 93 6.1.5 EUT OPERATION CONDITIONS 93 6.1.6 TEST RESULTS 94 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 106 7.1 APPLIED PROCEDURES / LIMIT 106 7.1.1 MEASUREMENT INSTRUMENTS LIST 106 7.1.2 TEST PROCEDURE 106 7.1.3 DEVIATION FROM STANDARD 106 7.1.4 TEST SETUP 106 7.1.5 EUT OPERATION CONDITIONS 106 7.1.6 TEST RESULTS 107 8 . POWER SPECTRAL DENSITY TEST 137 8.1 APPLIED PROCEDURES / LIMIT 137 8.1.1 MEASUREMENT INSTRUMENTS LIST 137 8.1.2 TEST PROCEDURE 137 8.1.3 DEVIATION FROM STANDARD 137 8.1.4 TEST SETUP 137 8.1.5 EUT OPERATION CONDITIONS 137 8.1.6 TEST RESULTS 138 9 . EUT TEST PHOTO 152 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1210C034 Page 5 of 155 1. CERTIFICATION Equipment : Dual Band Wireless Router Brand Name : Rosewill Model Name : L600N Applicant : Rosewill Inc. Factory : 1) SHENZHEN GONGJIN Electronics CO., LTD. 2) Taicang T&W Electronics Co., Ltd Address : 1) No 2&3 Buildings, Mingwei Factory Area, Songgang Road West, No. A Building, 1#Songgang Road Songgang Sub-District, Shenzhen, Guangdong, 518105, P.R. China 2) Feihu North Road, Ludu Town, Taicang, Jiangsu,China Date of Test : Oct. 09, 2012 ~ Oct. 30, 2012 Test Item : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1210C034) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1210C034 Page 6 of 155 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standar…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-2-1210C034 Page 1 of 120 FCC Radio Test Report FCC ID: W6R-L600N This report concerns (check one): Original Grant Class I Change Issued Date : Oct. 31, 2012 Project No. : 1210C034 Equipment : Dual Band Wireless Router Model Name : L600N Applicant : Rosewill Inc. Address : 17708 Rowland Street, City of Industry, California 91748 United States Manufacturer : Shenzhen Gongjin Electronics Co.,Ltd. Address : B116, B118, A211-A213, B201-B213, A311-A313, B411-413, BF08-09 Nanshan Medical Instrument Industry Park,1019# Nanhai Road, Nanshan District, Shenzhen, Guangdong, 518067, P.R. China Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Oct. 09, 2012 Date of Test: Oct. 09, 2012 ~ Oct. 30, 2012 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-2-1210C034 Page 2 of 120 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of CHINA, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-2-1210C034 Page 3 of 120 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 10 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 14 4.1.3 TEST PROCEDURE 15 4.1.4 DEVIATION FROM TEST STANDARD 15 4.1.5 TEST SETUP 15 4.1.6 EUT OPERATING CONDITIONS 15 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 21 4.2.1 RADIATED EMISSION LIMITS 21 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 22 4.2.3 TEST PROCEDURE 23 4.2.4 DEVIATION FROM TEST STANDARD 23 4.2.5 TEST SETUP 24 4.2.6 EUT OPERATING CONDITIONS 24 4.2.7 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 25 4.2.8 TEST RESULTS (ABOVE 1000 MHZ) 30 5 . BANDWIDTH TEST 62 5.1 APPLIED PROCEDURES / LIMIT 62 5.1.1 MEASUREMENT INSTRUMENTS LIST 62 5.1.2 TEST PROCEDURE 62 5.1.3 DEVIATION FROM STANDARD 62 5.1.4 TEST SETUP 62 5.1.5 EUT OPERATION CONDITIONS 62 5.1.6 TEST RESULTS 63 6 . MAXIMUM OUTPUT POWER TEST 73 Neutron Engineering Inc. Report No.: NEI-FCCP-2-1210C034 Page 4 of 120 Table of Contents Page 6.1 APPLIED PROCEDURES / LIMIT 73 6.1.1 MEASUREMENT INSTRUMENTS LIST 73 6.1.2 TEST PROCEDURE 73 6.1.3 DEVIATION FROM STANDARD 73 6.1.4 TEST SETUP 73 6.1.5 EUT OPERATION CONDITIONS 73 6.1.6 TEST RESULTS 74 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 83 7.1 APPLIED PROCEDURES / LIMIT 83 7.1.1 MEASUREMENT INSTRUMENTS LIST 83 7.1.2 TEST PROCEDURE 83 7.1.3 DEVIATION FROM STANDARD 83 7.1.4 TEST SETUP 83 7.1.5 EUT OPERATION CONDITIONS 83 7.1.6 TEST RESULTS 84 8 . POWER SPECTRAL DENSITY TEST 107 8.1 APPLIED PROCEDURES / LIMIT 107 8.1.1 MEASUREMENT INSTRUMENTS LIST 107 8.1.2 TEST PROCEDURE 107 8.1.3 DEVIATION FROM STANDARD 107 8.1.4 TEST SETUP 107 8.1.5 EUT OPERATION CONDITIONS 107 8.1.6 TEST RESULTS 108 9 . EUT TEST PHOTO 117 Neutron Engineering Inc. Report No.: NEI-FCCP-2-1210C034 Page 5 of 120 1. CERTIFICATION Equipment : Dual Band Wireless Router Brand Name : Rosewill Model Name : L600N Applicant : Rosewill Inc. Factory : 1) SHENZHEN GONGJIN Electronics CO., LTD. 2) Taicang T&W Electronics Co., Ltd Address : 1) No 2&3 Buildings, Mingwei Factory Area, Songgang Road West, No. A Building, 1#Songgang Road Songgang Sub-District, Shenzhen, Guangdong, 518105, P.R. China 2) Feihu North Road, Ludu Town, Taicang, Jiangsu,China Date of Test : Oct. 09, 2012 ~ Oct. 30, 2012 Test Item : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4 : 2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-2-1210C034) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Test result included in this report is only for the 5725~5825MHz part of the product. Neutron Engineering Inc. Report No.: NEI-FCCP-2-1210C034 Page 6 of 120 2. SUMMARY OF TEST RESULTS FCC Part15 (15.24…

Text truncated - open the document above for the full version.

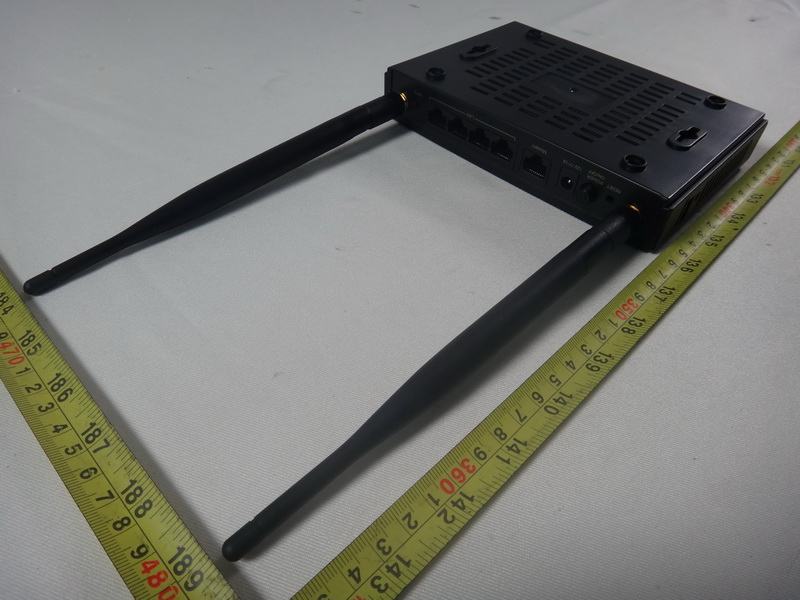

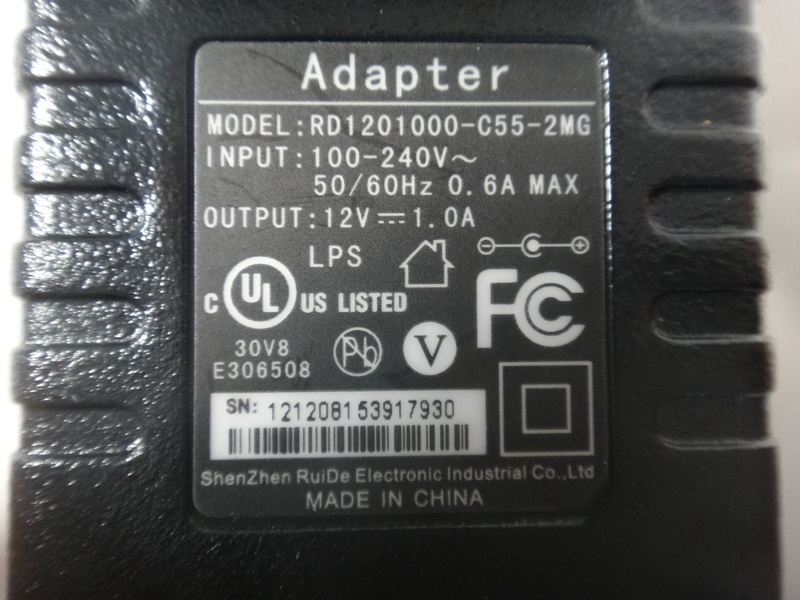

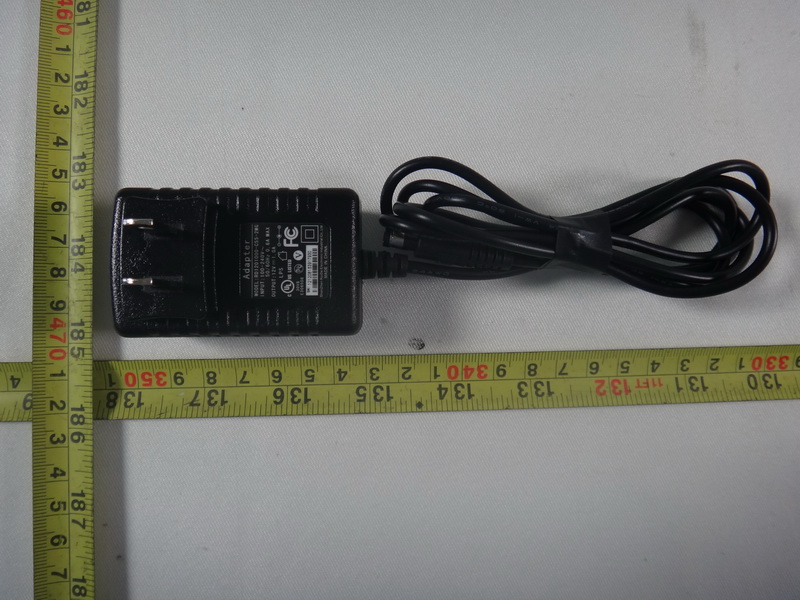

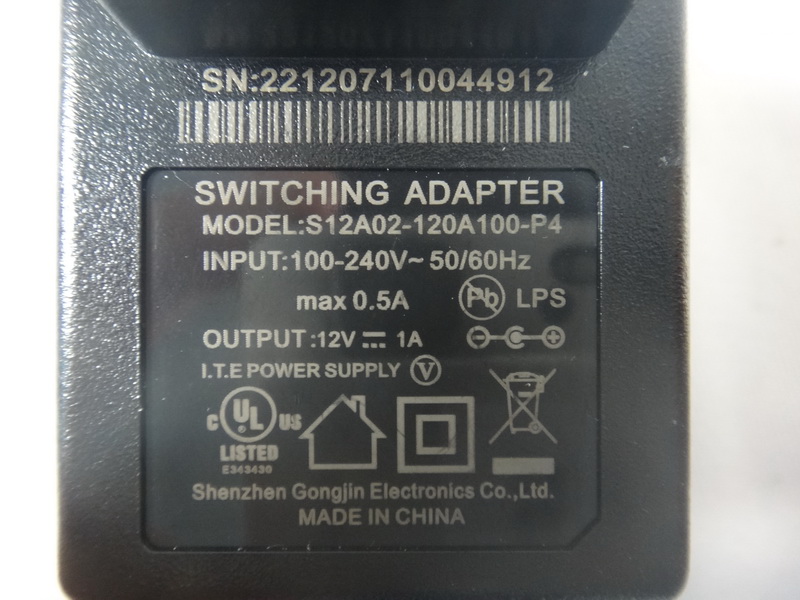

Report No.: NEI-FCCP-3-1210C034 Page 128 of 131 Neutron Engineering Inc. 11. EUT TEST PHOTO Conducted Measurement Photos Adapter: RD1201000-C55-2MG Report No.: NEI-FCCP-3-1210C034 Page 129 of 131 Neutron Engineering Inc. Conducted Measurement Photos Adapter: S12A02-120A100-P4 Report No.: NEI-FCCP-3-1210C034 Page 130 of 131 Neutron Engineering Inc. Radiated Measurement Photos Adapter: RD1201000-C55-2MG Report No.: NEI-FCCP-3-1210C034 Page 131 of 131 Neutron Engineering Inc. Radiated Measurement Photos Ada…
