W6RRW-TH68NBluetooth Headphone

1 2 3 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. FCC WARNING

FCC ID: W6RRW-TH68N

1.5cm 0.6cm Label Location FCC ID: W6RRW-TH68N Rosewill Inc. Model name: Bluetooth Headphone Model No.: RW-TH68N

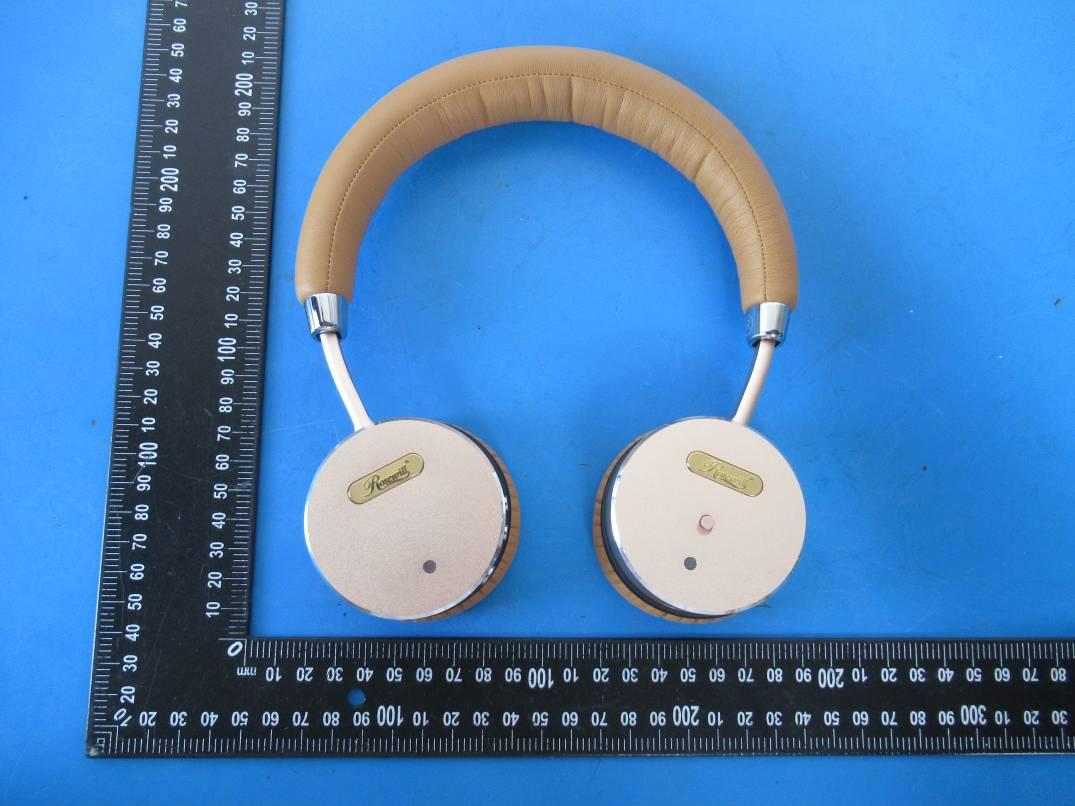

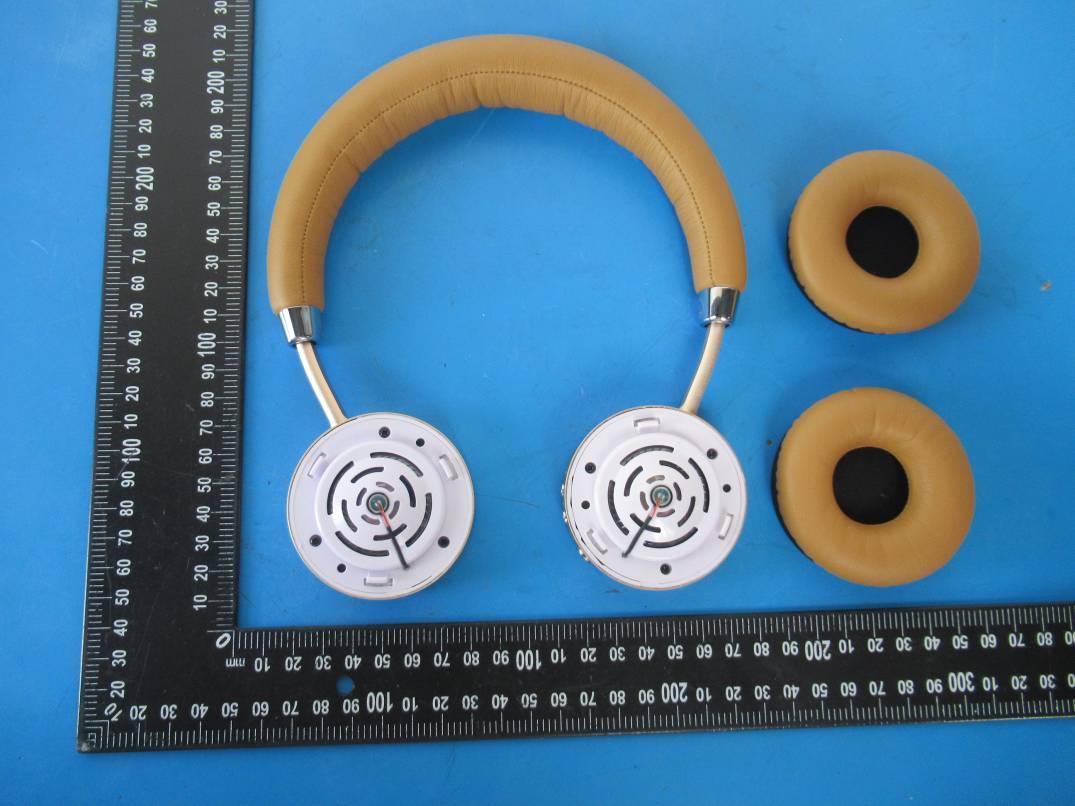

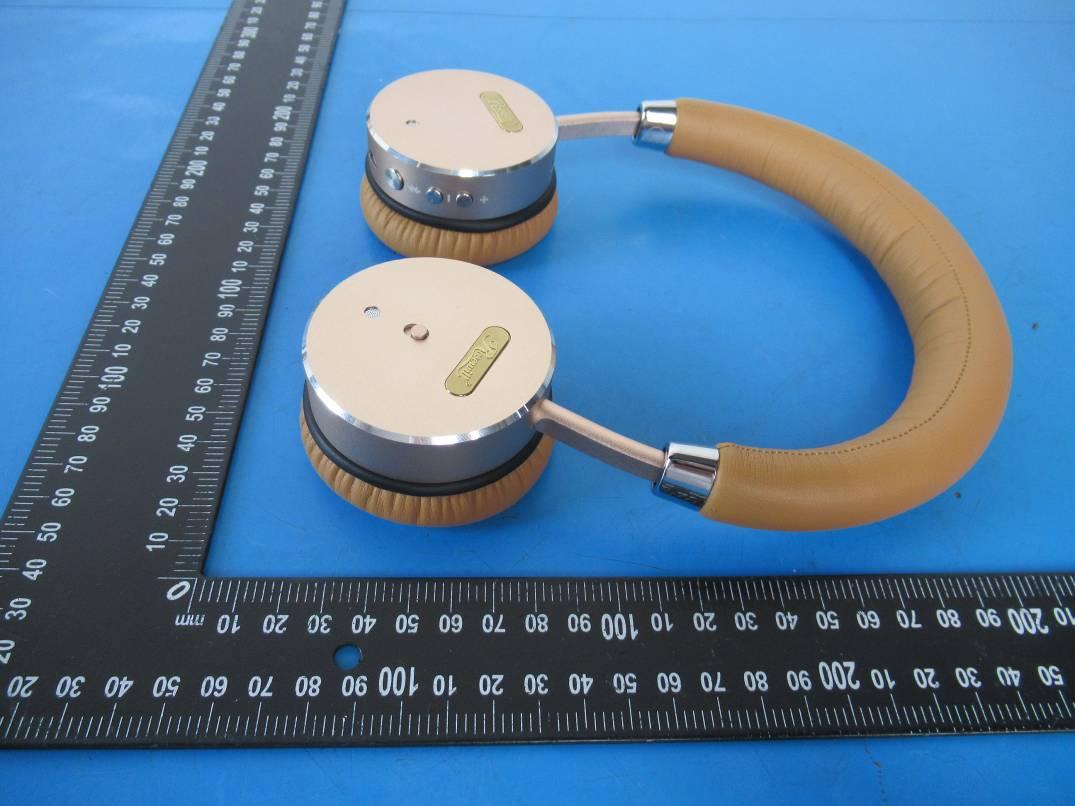

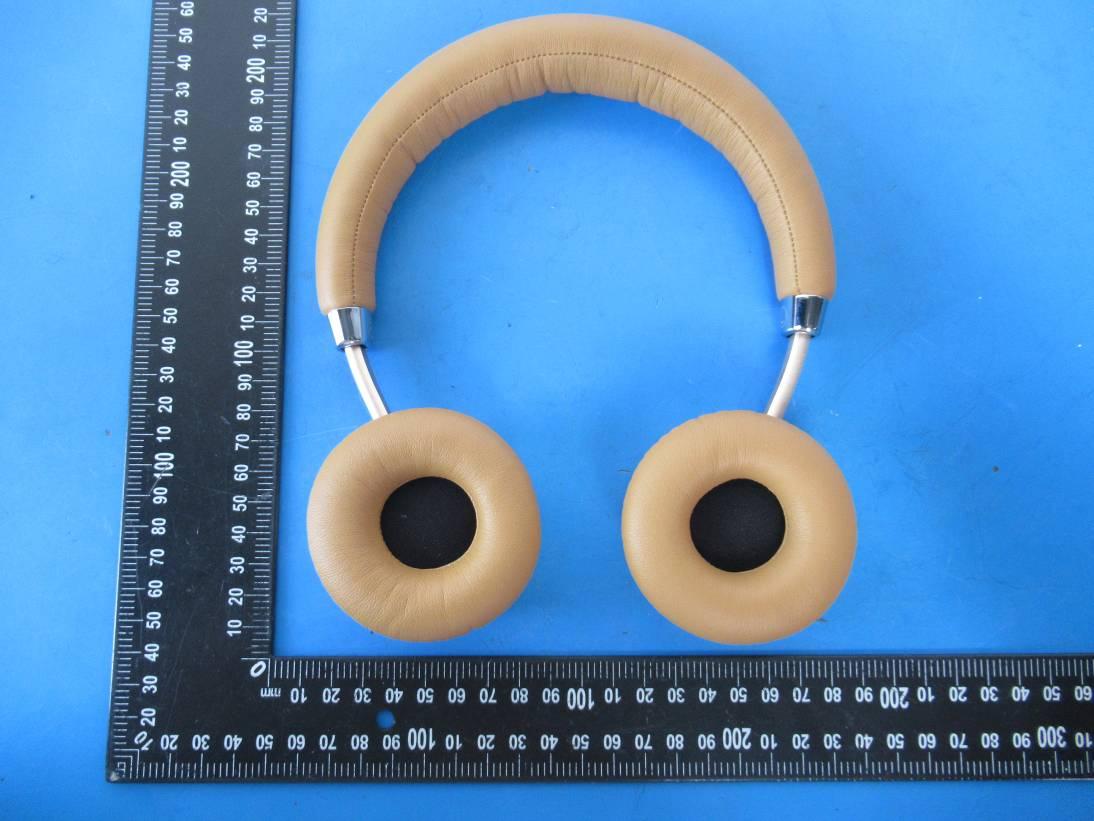

FCC ID: W6RRW-TH68N Internal Photos FCC ID: W6RRW-TH68N Antenna FCC ID: W6RRW-TH68N FCC ID: W6RRW-TH68N

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10- g SAR test exclusion thresholds for 100 MHz t o 6 GHz at test separation distances ≤ 50 mm are determined by : [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2480MHz: 1.455dBm (1.398mW) output power] (1.398mW /5mm)·[√2.480(GHz)]= 0.44<3.0 for 1-g SAR Then SAR evaluation i s not required

FCC TEST REPORT FCC ID: W6RRW-TH68N On Behalf of Rosewill Inc. Bluetooth Headphone Model No.: RW-TH68N Prepared for : Rosewill Inc. Address : 17780, Rowland Street, City of Industry CA 91748 United States Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao’an District, 518103, Shenzhen, Guangdong, China Report Number : A2007192-C01-R01 Date of Receipt : July 23, 2020 Date of Test : July 23-27, 2020 Date of Report : July 27, 2020 Version Number : V0 Page 2 of 61 Report No.: A2007192-C01-R01 TABLE OF CONTENTS Description Page 1. Summary of Standards And Results .................................................................................................... 6 1.1. Description of Standards and Results .......................................................................... 6 2. General Information .............................................................................................................................. 7 2.1. Description of Device (EUT) ....................................................................................... 7 2.2. Accessories of Device (EUT) ...................................................................................... 8 2.3. Tested Supporting System Details ............................................................................... 8 2.4. Block Diagram of connection between EUT and simulators ...................................... 8 2.5. Test Mode Description ................................................................................................. 8 2.6. Test Conditions ............................................................................................................ 9 2.7. Test Facility ................................................................................................................. 9 2.8. Measurement Uncertainty ............................................................................................ 9 2.9. Test Equipment List ................................................................................................... 10 3. Maximum Peak Output power ........................................................................................................... 11 3.1. Limit .......................................................................................................................... 11 3.2. Test Procedure ........................................................................................................... 11 3.3. Test Setup ................................................................................................................... 11 3.4. Test Result ................................................................................................................. 11 4. Bandwidth ............................................................................................................................................. 12 4.1. Limit .......................................................................................................................... 12 4.2. Test Procedure ........................................................................................................... 12 4.3. Test Result ................................................................................................................. 12 5. Carrier Frequency Separation ............................................................................................................ 22 5.1. Limit .......................................................................................................................... 22 5.2. Test Procedure ........................................................................................................... 22 5.3. Test Result ................................................................................................................. 22 6. Number Of Hopping Channel ............................................................................................................. 24 6.1. Limit .......................................................................................................................... 24 6.2. Test Procedure ........................................................................................................... 24 6.3. Test Result ................................................................................................................. 24 7. Dwell Time ............................................................................................................................................ 26 7.1. Test limit .................................................................................................................... 26 7.2. Test Procedure ........................................................................................................... 26 7.3. Test Result ................................................................................................................. 26 8. Radiated emissions ............................................................................................................................... 30 8.1. Limit .......................................................................................................................... 30 8.2. Block Diagram of Test setup ..................................................................................... 31 8.3. Test Procedure ........................................................................................................... 32 8.4. Test Result ................................................................................................................. 32 9. Band Edge Compliance ....................................................................................................................... 38 Page 3 of 61 Report No.: A2007192-C01-R01 9.1. Block Diagram of Test Setup ..................................................................................... 38 9.2. Limit .…

Text truncated - open the document above for the full version.

FCC ID: W6RRW-TH68N Photos of Radiated emission FCC ID: W6RRW-TH68N Photos of Conducted Emission test
