W6RRNX-GX4IEEE802.11 B/G Wireless AP ROUTER

Wireless Router RNX-GX4 User’s Manual Wireless Router RNX-GX4 User’s Manual 2 Table of Content: Safety Warning...............................................................................................4 Before We Begin............................................................................................6 1. Installing RNX-GX4.................................................................................8 1.1 Network + System Requirements .......................................................8 1.2 Installation Environment .....................................................................8 1.3 Establish Hardware Connection .........................................................8 2. Connect RNX-GX4 with your PC/NB...................................................10 2.1 Setup for Window XP .......................................................................10 2.2 Setup for Window Vista ....................................................................13 2.2 Connect test with the Router............................................................18 2.3 Accessing RNX-GX4 with Web Browser ..........................................19 3. Managing RNX-GX4 with Web Browser..............................................21 3.1 Navigating the Web Management Page ...........................................21 3.2 RNX-GX4’s Convenient Setup Page .................................................22 3.2.1 DHCP user (for Cable modem) in Convenient Setup..............22 3.2.2 PPPoE user (for DSL modem) in Convenient Setup ...............22 3.2.3 Static user in Convenient Setup .............................................23 3.3 RNX-GX4’s System information Page ..............................................23 3.4 RNX-GX4’s Internet Setup Page .......................................................25 3.4.1 DHCP user (for Cable modem) in Internet Setup....................26 3.4.2 PPPoE user (for DSL modem) in Internet Setup .....................26 3.4.3 Static user in Internet Setup ...................................................27 3.5 Wireless Management ......................................................................28 3.5.1 Primary AP Setup ...................................................................29 3.5.2 Secondary AP Setup ..............................................................36 3.5.3 AP Sharing Technique ............................................................37 3.6 RNX-GX4’s LAN Setup Page ............................................................38 3.7 RNX-GX4’s Advance Usage - Applications and Gaming Page.........39 3.7.1 Virtual Service.........................................................................39 3.7.2 DMZ........................................................................................40 3.7.3 UPNP......................................................................................41 3.8 RNX-GX4’s Advance Usage - Application Gateway Page ................41 3.8.1 FTP Pass-through...................................................................42 3.8.2 VPN Pass-through ..................................................................42 3.9 RNX-GX4’s Advance Usage - Security Management Page ..............43 3.9.1 Internet Access Control ..........................................................43 Wireless Router RNX-GX4 User’s Manual 3 3.9.2 Firewall ...................................................................................45 3.10 RNX-GX4’s Advance Usage - DDNS Page .....................................46 3.11 RNX-GX4’s Advance Usage - Routing Page ..................................46 3.12 RNX-GX4’s System Management Page..........................................47 3.12.1 Manually Restore Default......................................................48 Appendix A – Product Specification ..............................................................49 Appendix B – Troubleshooting.......................................................................50 Wireless Router RNX-GX4 User’s Manual 4 Safety Warning • Place connecting cables carefully so that no one will step on them or stumble over them. • Always disconnect all cables from this device before servicing or disassembling. • Use ONLY an appropriate power adaptor or cord for your device. • Connect the power adaptor or cord to the right supply voltage (for example, 110V AC in North America or 230V AC in Europe). • Do not allow anything to rest on the power adaptor or cord and do not place the product where anyone can walk on the power adaptor or cord. • Do not use the device if the power adaptor or cord is damaged as it might cause electrocution. • If the power adaptor or cord is damaged, remove it from the power outlet. • Do not attempt to repair the power adaptor or cord. Contact your local vendor to order a new one. • Do not use the device outside, and make sure all the connections are indoors. • Do not obstruct the device ventilation slots, as insufficient airflow may harm your device. • Do not use this product near water, eg, in wet basement, or near a swimming pool. • Do not expose your device to dampness, dust or corrosive liquids. • Do not install, use, or service this device during a thunderstorm. There is a remote risk of electric shock from lightning. • Connect ONLY suitable accessories to the device. • Do not open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks. ONLY qualified service personnel should service or disassemble this device. Please contact your vendor for further information. • Make sure to connect the cables to the correct ports. • If you wall mount your device, make sure that no electrical lines, gas or water pipes will be damaged. Your product is marked with this symbol, which is known as the WEEE mark. WEEE stands for Waste Electronics and Electrical Equipment. It means that used electrical and electronic products should not be mixed with general waste. Used electrical and electr…

Text truncated - open the document above for the full version.

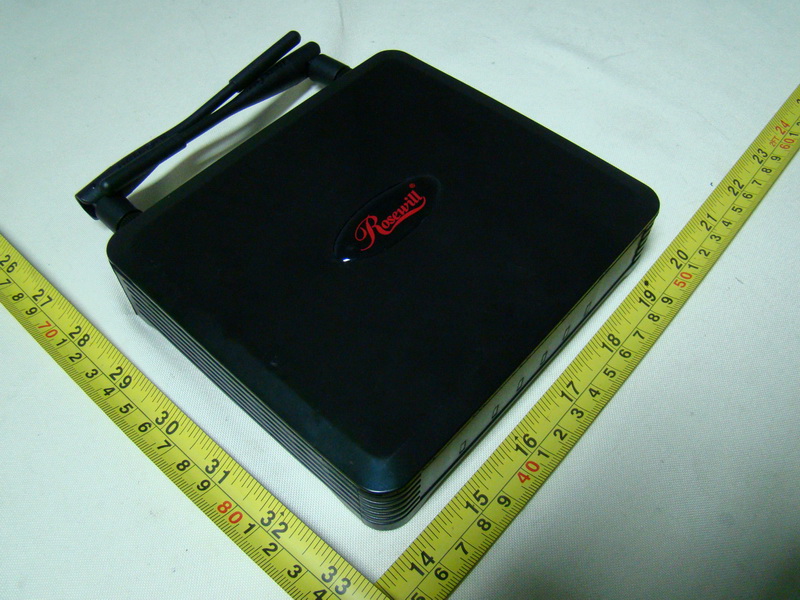

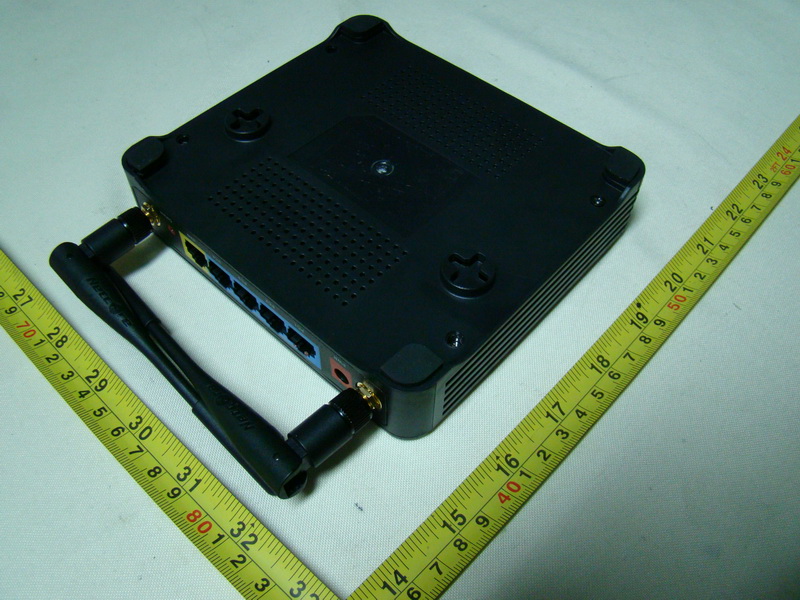

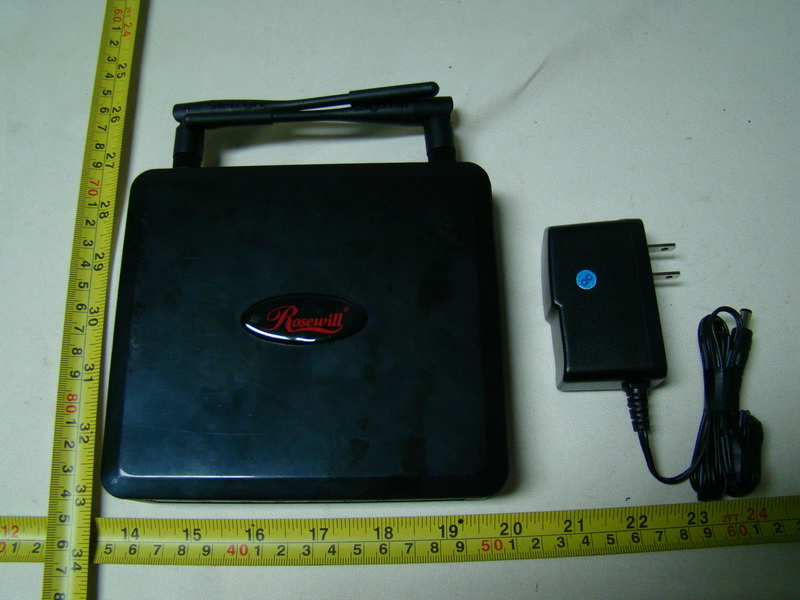

Neutron Engineering Inc. Project No.: 0909C158 Page 2 of 8 0909C158 Neutron Engineering Inc. Project No.: 0909C158 Page 3 of 8 0909C158 0909C158 Neutron Engineering Inc. Project No.: 0909C158 Page 3 of 8 0909C158 0909C158 Neutron Engineering Inc. Project No.: 0909C158 Page 4 of 8 0909C158 0909C158 Neutron Engineering Inc. Project No.: 0909C158 Page 4 of 8 0909C158 0909C158

6mm * 4mm

Neutron Engineering Inc. Project No.: 0909C158 Page 5 of 8 0909C158 0909C158 Neutron Engineering Inc. Project No.: 0909C158 Page 5 of 8 0909C158 0909C158 Neutron Engineering Inc. Project No.: 0909C158 Page 6 of 8 0909C158 0909C158 Neutron Engineering Inc. Project No.: 0909C158 Page 6 of 8 0909C158 0909C158 Neutron Engineering Inc. Project No.: 0909C158 Page 7 of 8 0909C158 0909C158 Neutron Engineering Inc. Project No.: 0909C158 Page 7 of 8 0909C158 0909C158 Neutron Engineering Inc. Project No.: 0909C158 Page 8 of 8 0909C158 0909C158 Neutron Engineering Inc. Project No.: 0909C158 Page 8 of 8 0909C158 0909C158

1.1. Test Result of RF Exposure Evaluation . Product: IEEE802.11 B/G Wireless AP ROUTER Test Item: RF Exposure Evaluation Data . Test site: OATS . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is 2.00 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Modulation Standard: DSSS Test Date: Nov 18, 2009 Temperature: 30°C Humidity: 60％ TX B MODE CH01, CH06, CH11 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) ( mW/cm 2 ) 01 2412 8.32 0.002143 06 2437 9.87 0.003062 11 2462 10.20 0.003303 Modulation Standard: OFDM Test Date: Nov 18, 2009 Temperature: 30°C Humidity: 60％ TX G MODE CH01, CH06, CH11 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) ( mW/cm 2 ) 01 2412 7.94 0.001963 06 2437 8.86 0.002426 11 2462 9.49 0.002805 The MPE is calculated as 0.003303 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required. a For 2412~2462 MHz, the EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-0909C158 Page 2 of 77 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-0909C158 Page 3 of 77 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 3.5 DESCRIPTION OF SUPPORT UNITS 12 4 . EMC EMISSION TEST 13 4.1 CONDUCTED EMISSION MEASUREMENT 13 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 13 4.1.3 TEST PROCEDURE 14 4.1.4 DEVIATION FROM TEST STANDARD 14 4.1.5 TEST SETUP 14 4.1.6 EUT OPERATING CONDITIONS 14 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 17 4.2.1 RADIATED EMISSION LIMITS 17 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 18 4.2.3 TEST PROCEDURE 19 4.2.4 DEVIATION FROM TEST STANDARD 19 4.2.5 TEST SETUP 20 4.2.6 EUT OPERATING CONDITIONS 20 4.2.7 TEST RESULTS (BETWEEN30 – 1000 MHZ) 21 4.2.8 TEST RESULTS (ABOVE 1000 MHZ) 23 4.2.9 TEST RESULTS (RESTRICTED BANDS REQUIREMENTS) 47 5 . BANDWIDTH TEST 55 5.1 APPLIED PROCEDURES / LIMIT 55 5.1.1 MEASUREMENT INSTRUMENTS LIST 55 5.1.2 TEST PROCEDURE 55 5.1.3 DEVIATION FROM STANDARD 55 5.1.4 TEST SETUP 56 5.1.5 EUT OPERATION CONDITIONS 56 Neutron Engineering Inc. Report No.: NEI-FCCP-1-0909C158 Page 4 of 77 Table of Contents Page 5.1.6 TEST RESULTS 57 6 . PEAK OUTPUT POWER TEST 61 6.1 APPLIED PROCEDURES / LIMIT 61 6.1.1 MEASUREMENT INSTRUMENTS LIST 61 6.1.2 TEST PROCEDURE 61 6.1.3 DEVIATION FROM STANDARD 61 6.1.4 TEST SETUP 61 6.1.5 EUT OPERATION CONDITIONS 61 6.1.6 TEST RESULTS 62 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 63 7.1 APPLIED PROCEDURES / LIMIT 63 7.1.1 MEASUREMENT INSTRUMENTS LIST 63 7.1.2 TEST PROCEDURE 63 7.1.3 DEVIATION FROM STANDARD 63 7.1.4 TEST SETUP 63 7.1.5 EUT OPERATION CONDITIONS 64 7.1.6 TEST RESULTS 65 8 . POWER SPECTRAL DENSITY TEST 69 8.1 APPLIED PROCEDURES / LIMIT 69 8.1.1 MEASUREMENT INSTRUMENTS LIST 69 8.1.2 TEST PROCEDURE 69 8.1.3 DEVIATION FROM STANDARD 69 8.1.4 TEST SETUP 69 8.1.5 EUT OPERATION CONDITIONS 69 8.1.6 TEST RESULTS 70 9 . RF EXPOSURE TEST 74 9.1 APPLIED PROCEDURES / LIMIT 74 9.1.1 MPE CALCULATION METHOD 74 9.1.2 DEVIATION FROM STANDARD 74 9.1.3 EUT OPERATION CONDITIONS 74 9.1.4 TEST RESULTS 75 Neutron Engineering Inc. Report No.: NEI-FCCP-1-0909C158 Page 5 of 77 1. CERTIFICATION E q u i p m e n t : IEEE802.11 B/G Wireless AP ROUTER Brand Name : ROSEWILL Model Name : RNX-GX4 A p p l i c a n t : Rosewill Inc. F a c t o r y : Netcore Technology INC A d d r e s s : 10th Building ,SanKeng Industrial District,Qinghutou,Tangxia Town,Dongguan City,Guangdong Province Date of Test : Sep. 23, 2009 ~ Nov. 18, 2009 T e s t I t e m : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANCI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-0909C158) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-0909C158 Page 6 of 77 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (c) Antenna conducted Spurious EmissionPASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.203 Antenna Requirement PASS 1.1307 1.1310 2.1091 2.1093 RF Exposure Compliance PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Neutron Engineering Inc. Report No.: NEI-FCCP-1-0909C158 Page 7 of 77 2.1 TEST FACILITY The test facilities used to collect the test data in this report is C01/OS02 at the location of No.132-1, Lane 329, Sec. 2, Palian Road, Shijr City, Taipei, Taiwan. Neutron's test firm number is 95335 2.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximat…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-0909C158 Page 76 of 77 10. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-0909C158 Page 76 of 77 10. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-0909C158 Page 77 of 77 Radiated Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-0909C158 Page 77 of 77 Radiated Measurement Photos
