W6RRNX-MININ1Wireless N Adapter

Wireless N Adapter RNX-MiniN1 User Manual Wireless N Adapter RNX-MiniN1 User Manual FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National Restrictions 2400.0-2483.5 MHz Country Restriction Reason/remark Bulgaria General authorization required for outdoor use and public service France Outdoor use limited to 10 mW EIRP. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 2 Wireless N Adapter RNX-MiniN1 User Manual Italy If used outside of own premises, general authorization is required Luxembourg General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation Only for indoor applications Note: Please don’t use the product outdoors in France. 3 Wireless N Adapter RNX-MiniN1 User Manual Table of Content Chapter 1 Overview....................................................................................................... 5 1.1 Package Content......................................................................................... 5 1.2 Overview of the Product ............................................................................ 5 1.3 Features...................................................................................................... 5 1.4 Product Specification................................................................................. 6 1.5 System Requirement.................................................................................. 6 Chapter 2 Installation Guide.......................................................................................... 7 2.1 Hardware Installation................................................................................. 7 2.2 Installation using Driver CD:..................................................................... 8 Chapter 3 Wireless Connection Guide......................................................................... 11 3.1 Connecting with Microsoft Zero Configuration tool (Win XP).................... 11 3.2 Connecting with Window 7........................................................................... 12 3.3 Connecting with Rosewill Wireless Utility................................................... 14 Chapter 4 Rosewill Utility Configuration – Station Mode.......................................... 16 4.1 General..................................................................................................... 16 4.2 Profile....................................................................................................... 17 4.2.1 Add....................................................................................................... 18 4.2.2 Remove................................................................................................ 19 4.2.3 Edit....................................................................................................... 19 4.2.4 Duplicate.............................................................................................. 20 4.2.5 Set default............................................................................................ 20 4.3 Available Network................................................................................... 21 4.4 Status........................................................................................................ 22 4.5 Statistics................................................................................................... 22 4.6 Wi-Fi Protect Setup.................................................................................. 23 4.6.1 Method 1 PIN Input Config (PIN)....................................................... 23 4.6.2 Method 2 Push Button......................................................................... 24 4.7 Virtual Wifi Allowed – (Windows 7 only).............................................. 26 4.7.1 Enabling the Virtual WiFi...............................................................…

Text truncated - open the document above for the full version.

Block Diagram USB Interface RTL8188CUS MAC/BBP 2.4G Transceivers Crystal 40MHz TX BG RX BG 802.11 Band Switch Antenna

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Rosewill Inc. 17708 Rowland St. City Of Industry, CA91748, United States Tel: 626-271-1420 Fax: 626-271-9504 2011-04-27 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Man & Machine Inc. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product name: Wireless N Adapter, Model no.: RNX-MININ1 We affirm that between SIEMIC and Man & Machine Inc., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely,

Rosewill Inc. 17708 Rowland St. City Of Industry, CA91748, United States Tel: 626-271-1420 Fax: 626-271-9504 Date:2011-05-02 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: W6RRNX-MiniN1 To Whom It May Concern: This letter is to ascertain that Rosewill Inc. Product URF-35-I has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Signature

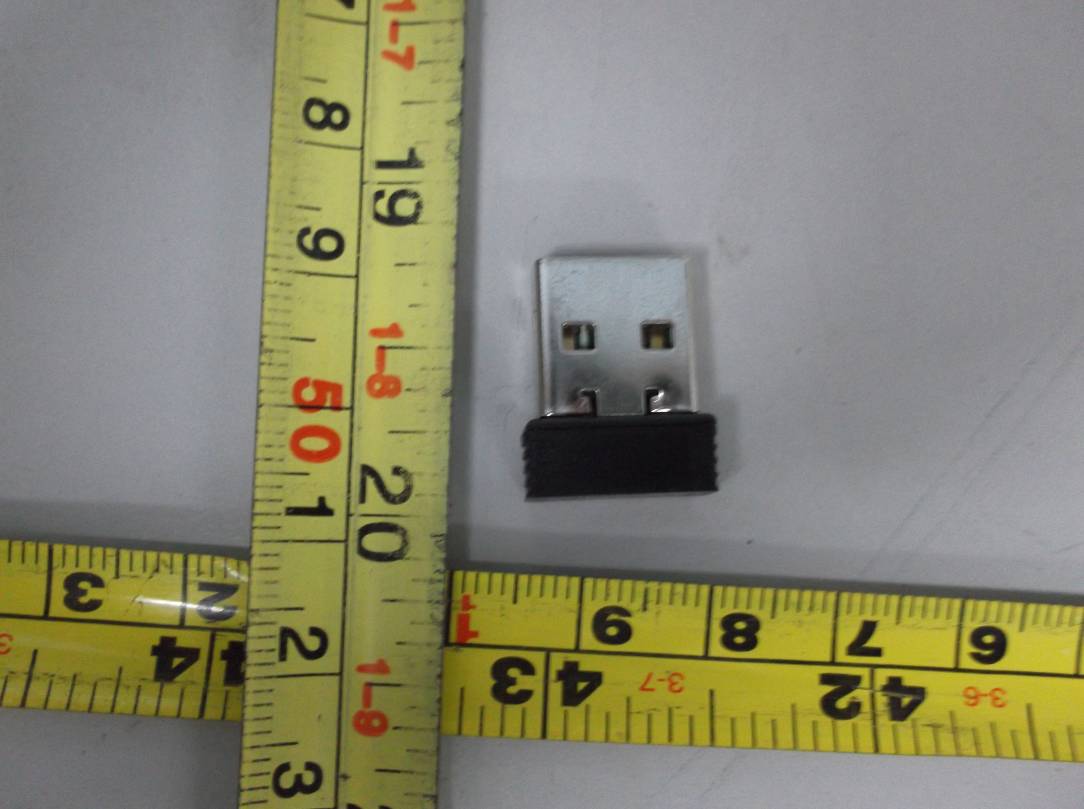

FCC ID: W6RRNX-MiniN1 SHENZHEN LCS CERTIFICATION SERVICES INC. Report No. LCS1104050341F This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Certification Services Inc. Page 1 of 1 EXTERNAL PHOTOS OF EUT Fig. 1 Fig. 2

FCC ID: W6RRNX-MiniN1 SHENZHEN LCS CERTIFICATION SERVICES INC. Report No. LCS1104050341F This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Certification Services Inc. Page 1 of 1 LABEL AND LOCATION Label Location FCC ID: W6RRNX-MiniN1

FCC ID: W6RRNX-MiniN1 SHENZHEN LCS CERTIFICATION SERVICES INC. Report No. LCS1104050341F This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Certification Services Inc. Page 1 of 3 INTERNAL PHOTOS OF EUT Fig. 1 Fig.2 FCC ID: W6RRNX-MiniN1 SHENZHEN LCS CERTIFICATION SERVICES INC. Report No. LCS1104050341F This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Certification Services Inc. Page 2 of 3 Fig. 3 Fig. 4 FCC ID: W6RRNX-MiniN1 SHENZHEN LCS CERTIFICATION SERVICES INC. Report No. LCS1104050341F This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Certification Services Inc. Page 3 of 3 Fig. 5 Fig. 6 Antenna

Description of Operation The EUT is a Wireless 150M wireless USB adapter. This device is backward compatible 802.11b/g standards. It uses the powerful 802.11n technology which has further coverage, less dead spots and higher throughput. In addition, it supports higher data throughput than the IEEE 802.11g standard (up to 150Mbps). It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) radio transmission, the Wireless USB adapter Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11g network.

FCC ID : W6RRNX-MiniN1 WLAN (Portable device) According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498 (2)(a)(i) Frequency Range Low Frequency (MHz) High Frequency(MHz) Center frequency (MHz) 60/f SAR Limitation (mw) 2412 2462 2437 25 Maximum measured transmitter power: 802.11b Conducted Power (mw) Max Antenna Gain (dBi) EIRP (mw) 17.06 1.5 24.10 Maximum measured transmitter power: 802.11g Conducted Power (mw) Max Antenna Gain (dBi) EIRP (mw) 12.76 1.5 18.03 Maximum measured transmitter power: 802.11n Conducted Power (mw) Max Antenna Gain (dBi) EIRP (mw) 11.53 1.5 16.29 Threshold at which no SAR required is 25 mw. Maximum Tx power is 24.10EIRP. Conclusion: No SAR is required. SIMULTANEOUS TRANSMISSION EVALUATION Wish N/A

55 44 33 22 11 D D C C B B A A TX2G_PAON_0 VD12D_LDO REXT VD33PA_0 VD15R_1 VD33A XO TX2G_PAOP_0 VD15A VD33R VDD33 5V LED_0 5V HSDM VDD33 VDD33 XI VD12A VD25P VD12S HSDPHSDM LED_0 VD15R_1 VD15R_0 VD15R_0 VD15D VD33PA_0 VDD33 VD33SPS VD33USB VDD33 VDD33 GPIO2 GPIO2 5V VD33PA_0 VD33A HSDP 5V_IN VDD33 TitleSize Document Number Rev Date: Sheet of <Doc> <RevCode> C 11 Wednesday, April 28, 2010 TitleSize Document Number Rev Date: Sheet of <Doc> <RevCode> C 11 Wednesday, April 28, 2010 TitleSize Document Number Rev Date: Sheet of <Doc> <RevCode> C 11 Wednesday, April 28, 2010 RTL8188CU 1T1R USB 4V0 LED1 90ohm UD88C00_1V0 initial 20090922 WPS CONFIGURE C311uFC311uF C310pFC310pF C410pFC410pF C300.1uFC300.1uF C23100pFC23100pF C52 10nF C52 10nF C810pFC810pF C12 1.5pF C12 1.5pF C69 NC C69 NC R33 100K R33 100K C54 10nF C54 10nF 12 R16100KR16100K R2324KR2324K R22NC / 1.2pF (RTK PIFA)R22NC / 1.2pF (RTK PIFA) CON1CON1 IN 1 GND 3 GND 4 GND 5 GND 2 L36.8nHL36.8nH C93pFC93pF C191uFC191uF C60.1uFC60.1uF C1022pFC1022pF C200.1uFC200.1uF L26.8nHL26.8nH RTL8188CU QFN46 U2 RTL8188CU QFN46 U2 PAPE[0] 46 RX2G_IP[0] 6 VD15R[0] 5 TX2G_PAON[0] 3 TX2G_PAOP[0] 4 VD33PA[0] 2 TRSWP[0] 1 VD15R[1] 8 LED1 / ANT_SEL_N 11 LED0 / ANT_SWL_P 10 VD33A 12 RETX 13 VD15A 14 VD12A_LDO 15 XI 16 XO 17 CK_BT_40M/DA6 18 GNDS 28 GPIO[9] 33 WL_RX/GPIO[1] 21 GPIO[2]/BT_STAT 22 GPIO[3]/BT_PRI 23 NC 19 VD12D_LDO 25 VD25P 27 VD15D 26 GPIO[11]/PDN 24 VD12S_LDO 29 HSDP 30 HSDM 31 V33USB 32 WL_ACT/GPIO[0] 20 TRSWN[0] / LED2 34 VD33IO 35 VDSPS33 36 LX_SPS0 37 GND_SPS0 38 VD12D 39 BT_Suspend 41 GPIO[5] 42 EEDO 43 EEDI 44 EESK 45 VD33R 9 RX2G_IN[0] 7 GND_D 40 PAD 47 C3322pFC3322pF CON3A USB_A-PLUG CON3A USB_A-PLUG 4 4 3 3 2 2 1 1 L334.7uHL334.7uH C65 10uF C65 10uF C250.1uFC250.1uF C70 10nF C70 10nF R21NCR21NC C51 10uF C51 10uF R120 / NCR120 / NC R11 22pF R11 22pF L63.3nHL63.3nH R35 150K R35 150K C110uFC110uF R260RR260R R370R370 L72.7nHL72.7nH L56.8nHL56.8nH C183.3nHC183.3nH C241uFC241uF C222uFC222uF C291uFC291uF C131.2pFC131.2pF C223.3nHC223.3nH C68 NC C68 NC C143pFC143pF XTAL140MHzXTAL140MHz XTALP 1 GND 4 XTALP 3 GND 2 ANT_FeedANT_Feed ANT_IN 1 ANT_GndANT_Gnd ANT_GND 1 R36 680K R36 680K C260.1uFC260.1uF C171uFC171uF R3410KR3410K L16.8uHL16.8uH R31560R31560 SW1SW1 2 1 C11 1.2pF C11 1.2pF R25NCR25NC U4 G5725 U4 G5725 EN 1 GND 2 SW 3 VIN 4 FB 5 L42.7nHL42.7nH C510uFC510uF C53 NC C53 NC L810nHL810nH C27 0.1uF C27 0.1uF C67 10nF C67 10nF C71.2pFC71.2pF C3222pFC3222pF C351uFC351uF

FCC ID: W6RRNX-MiniN1 SHENZHEN LCS CERTIFICATION SERVICES INC. No. LCS1104050341F This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Certification Services Inc. Page 1 of 48 FCC PART 15.247 TEST REPORT For Rosewill Inc. Wireless N Adapter Model No.: RNX-MININ1 Report Number : LLCS1104050341F Date of Test : April 06, 2011 – April 26, 2011 Date of Report : April 26, 2011 Prepared for : Rosewill Inc. Address : 17708 Rowland St. City Of Industry, CA91748, United States Prepared by : SHENZHEN LCS CERTIFICATION SERVICES INC. Address : Xingyuan Industrial Park, Tongda Road, Bao’an Blvd, Bao’an District, Shenzhen, Guangdong, China FCC ID: W6RRNX-MiniN1 SHENZHEN LCS CERTIFICATION SERVICES INC. No. LCS1104050341F This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Certification Services Inc. Page 2 of 48 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION........................................................................................................................ 3 2. GENERAL INFORMATION .................................................................................................................................. 4 2.1. PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................. 4 2.2. OBJECTIVE............................................................................................................................................................ 4 2.3. RELATED SUBMITTAL(S)/GRANT(S) ..................................................................................................................... 4 2.4. TEST METHODOLOGY........................................................................................................................................... 4 2.5. FACILITIES............................................................................................................................................................ 5 2.6. EXTERNAL I/O CABLE.......................................................................................................................................... 5 2.7. LABORATORY ACCREDITATIONS AND LISTINGS.................................................................................................. 5 3. SYSTEM TEST CONFIGURATION ..................................................................................................................... 6 3.1. JUSTIFICATION...................................................................................................................................................... 6 3.2. EUT EXERCISE SOFTWARE................................................................................................................................... 6 3.3. SPECIAL ACCESSORIES......................................................................................................................................... 6 3.4. BLOCK DIAGRAM/SCHEMATICS............................................................................................................................ 6 3.5. EQUIPMENT MODIFICATIONS................................................................................................................................6 3.6. BLOCK DIAGRAM OF TEST SETUP......................................................................................................................... 6 4. SUMMARY OF TEST RESULTS .......................................................................................................................... 7 5. TEST RESULT ......................................................................................................................................................... 8 5.1. MAXIMUM CONDUCTED OUTPUT POWER MEASUREMENT................................................................................... 8 5.2. POWER SPECTRAL DENSITY MEASUREMENT...................................................................................................... 15 5.3. 6 DB SPECTRUM BANDWIDTH MEASUREMENT................................................................................................... 23 5.4. RADIATED EMISSIONS MEASUREMENT............................................................................................................... 31 5.5. BAND EDGE EMISSIONS MEASUREMENT............................................................................................................ 40 5.6. ANTENNA REQUIREMENTS................................................................................................................................. 47 6. LIST OF MEASURING EQUIPMENTS ............................................................................................................. 48 FCC ID: W6RRNX-MiniN1 SHENZHEN LCS CERTIFICATION SERVICES INC. No. LCS1104050341F This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Certification Services Inc. Page 3 of 48 1. TEST RESULT CERTIFICATION Applicant : Rosewill Inc. Manufacturer : Shenzhen AEE Technology Co., Ltd. EUT : Wireless N Adapter Trade Mark : Model No. : RNX-MININ1 Serial Number : N/A Test Rule Part(s) : 47 CRR FCC Part Subpart C §15.247 Date of Test : April 06, 2011 – April 26, 2011 APPLICABLE STANDARDS STANDARD TESTRESULT FCC PART 15.247 (2010) No non-compliance noted SHENZHEN LCS CERTIFICATION SERVICES INC. as requested by the applicant to evaluate the EMC performance of the product Sample received on April 06, 2010 would like to declare that the tested sample has been evaluated And found to be in compliance with the tested rule parts. The data recorded as well as the test Configuration specified is true and accurate for showing the sample’s EMC nature. Compiled by: Supervised by: Approved by: Bobo Li/ File administrators Vito/ Technique principal Gavin Liang/ Manager FCC ID: W6RRNX-MiniN1 SHENZHEN LCS CERTIFICATION SERVICES INC. No. LCS1104050341F This report shall not b…

Text truncated - open the document above for the full version.

FCC ID: W6RRNX-MiniN1 SHENZHEN LCS CERTIFICATION SERVICES INC. Report No. LCS1104050341F This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Certification Services Inc. Page 1 of 2 1. PHOTOGRAPH 1.1. Photo of Radiated Measurement Below 1GHz Above 1GHz FCC ID: W6RRNX-MiniN1 SHENZHEN LCS CERTIFICATION SERVICES INC. Report No. LCS1104050341F This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Certification Services Inc. Page 2 of 2 EUT EUT Position
