W6RRNX-N150RT150M Wireless Lite-N Router

Wireless Router RNX-N150RT User Manual Wireless Router RNX-N150RT User Manual COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of Rosewill Inc. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from Rosewill Inc. Copyright © 2011 Rosewill Inc. All rights reserved. http://www.rosewill.com FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. Wireless Router RNX-N150RT User Manual FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction Reason/remark Bulgaria None General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy None If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation None Only for indoor applications Note: Please don’t use the product outdoors in France. Wireless Router RNX-N150RT User Manual Industry Canada statement: This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This device has been designed to operate with an antenna having a maximum gain of 2 dBi. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms. Safety Warning • Place connecting cables carefully so that no one will step on them or stumble over them. • Always disconnect all cables from this device before servicing or disassembling. • Use ONLY an appropriate power adaptor or cord for your device. • Connect the power adaptor or cord to the right supply voltage (for example, 110V AC in North America or 230V AC in Europe). • Do not allow anything to rest on the power adaptor or cord and do not place the product where anyone can walk on the power adaptor or cord. • Do not use the device if the power adaptor or cord is damaged as it might cause electrocution. • If the power adaptor or cord is damaged, remove it from the power outlet. • Do not attempt to repair the power adaptor or cord. Contact your local vendor to order a new one. • Do not use the device outside, and make sure all the connections are indoors. Wireless Router RNX-N150RT User Manual • Do not obstruct the device ventilation slots, as insufficient airflow may harm your device. • Do not use this product near water, eg, in wet basement, or near a swimming pool. • Do …

Text truncated - open the document above for the full version.

Rosewill Inc. Attestation for FCC Declaration of Conformity FCC ID: W6RRNX-N150RT Date: March, 24,2011 Please be notified that we, the undersigned, Rosewill Inc., declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is EM-F1000251 , with is issued by an accredited lab, Audix Technology Corporation, EMC Department located at No. 53-11, Tin-Fu Tsun, Lin-Kou , Taipei Hsien , Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer: Jett Chu Title of authorized signer: Product Manager Company Name: Rosewill Inc. Tel: 886-2-8752-3555 Fax: 886-2- 8572-3556 Web site: WWW.ROSEWILL.COM

Rosewill Inc. Date: March 14,2011 Communications Commission Authorization and Evaluation Division FCC ID: W6RRNX-N150RT Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name of authorized signer: Jett Chu Title of authorized signer: Product Manager Company Name: Rosewill Inc. Tel: 886-2-8752-3555 Fax: 886-2- 8572-3556 Web site: WWW.ROSEWILL.COM

Rosewill Inc. AGENCY AUTHORIZATION LETTER FCC ID：W6RRNX-N150RT Date: March, 14,2011 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd （No. 6, Ke Feng Rd., 52 Block， Shenzhen Science & Industrial Park,Nantou,Shenzhen, Guangdong, China）to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name of authorized signer: Jett Chu Title of authorized signer: Product Manager Company Name: Rosewill Inc. Tel: 886-2-8752-3555 Fax: 886-2- 8572-3556 Web site: WWW.ROSEWILL.COM

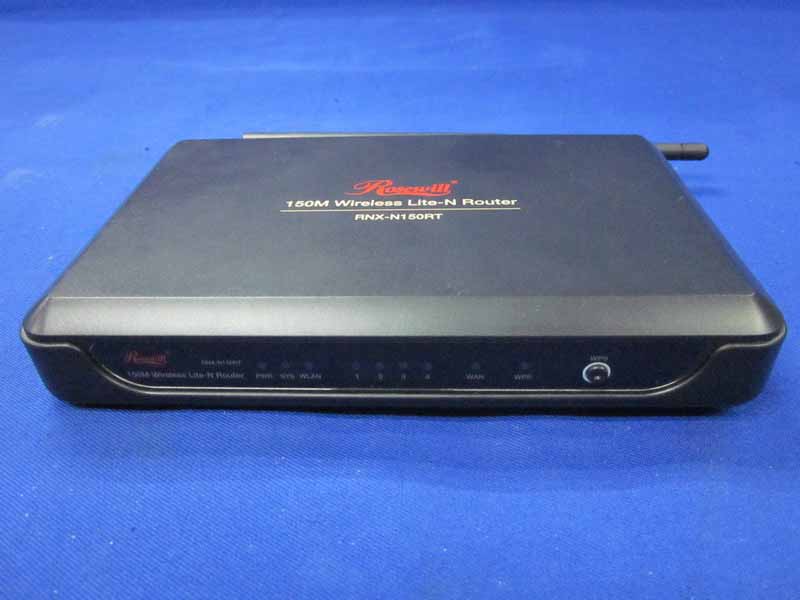

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:W6RRNX-N150RT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11060 13-1 13. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:W6RRNX-N150RT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11060 13-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT Label

Serial Number Default WPS PIN Label

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:W6RRNX-N150RT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11060 13-4 Figure 7 Components Side of the PCB Figure 8 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:W6RRNX-N150RT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11060 13-5 Figure 9 Components Side of the PCB Figure 10 Components Side of the PCB

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:W6RRNX-N150RT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11060 11-143 11. MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures             Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 11.2.2, Estimation Result Mode CH Frequency (MHz) PK Output power (dBm) Output power (mW) antenna Gain (dBi) antenna Gain(linear) MPE 11b 1 2412 20.80 120.2332.000.0477 6 2437 21.22 132.4332.000.0526 11 2462 21.36 136.7732.000.0543 11g 1 2412 21.33 135.8332.000.0539 6 2437 25.29 338.0632.000.1343 11 2462 21.49 140.9332.000.0560 11n HT20 1 2412 19.73 93.9732.000.0373 6 2437 25.13 325.8432.000.1294 11 2462 19.77 94.8432.000.0377 11n HT40 1 2422 15.58 36.1432.000.0144 4 2437 23 199.5332.000.0792 7 2452 15.7 37.1532.000.0148 Note: The estimation distance is 20cm

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:W6RRNX-N150RT Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11060 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Rosewill Inc. 150M Wireless Lite-N Router Model No.: RNX-N150RT FCC ID: W6RRNX-N150RT Prepared for : Rosewill Inc. 17708 Rowland Street, City of Industry, CA91748, USA Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F11060 Date of Test ： Mar.08, 2011 Date of Report ： Mar.11, 2011 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:W6RRNX-N150RT Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11060 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS .......................................................... 1-1 1.1. Description of Standards and Results .................................................................................. 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Test Information ................................................................................................................... 2-2 2.3. Tested Supporting System Details ....................................................................................... 2-3 2.4. Block diagram of connection between the EUT and simulators .......................................... 2-3 2.5. Test Facility ......................................................................................................................... 2-4 2.6. Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-4 3. POWER LINE CONDUCTED EMISSION TEST ....................................................... 3-1 3.1. Test Equipments ................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ............................................................................................... 3-1 3.3. Power Line Conducted Emission Test Limits ...................................................................... 3-1 3.4. Configuration of EUT on Test ............................................................................................. 3-2 3.5. Operating Condition of EUT ................................................................................................ 3-2 3.6. Test Procedure ...................................................................................................................... 3-2 3.7. Power Line Conducted Emission Test Results .................................................................... 3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment .................................................................................................................... 4-1 4.2. Block Diagram of Test Setup ............................................................................................... 4-1 4.3. Radiated Emission Limit ...................................................................................................... 4-2 4.4. EUT Configuration on Test .................................................................................................. 4-3 4.5. Operating Condition of EUT ................................................................................................ 4-3 4.6. Test Procedure ...................................................................................................................... 4-3 4.7. Radiated Emission Test Results ........................................................................................... 4-4 5. CONDUCTED SPURIOUS EMISSIONS.................................................................... 5-79 5.1. Test Equipment .................................................................................................................. 5-79 5.2. Limit ................................................................................................................................... 5-79 5.3. Test Procedure .................................................................................................................... 5-79 5.4. Test result ........................................................................................................................... 5-79 6. BAND EDGE COMPLIANCE TEST .......................................................................... 6-90 6.1. Test Equipment .................................................................................................................. 6-90 6.2. Limit ................................................................................................................................... 6-90 6.3. Test Produce ....................................................................................................................... 6-90 6.4. Test Results ........................................................................................................................ 6-90 7. 6dB Bandwidth Test ..................................................................................................... 7-123 7.1. Test Equipment ................................................................................................................ 7-123 7.2. Limit ................................................................................................................................. 7-123 7.3. Test Procedure .................................................................................................................. 7-123 7.4. Test Results .......................................................................................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:W6RRNX-N150RT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11060 12-1 12. PHOTOGRAPH OF TEST 12.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:W6RRNX-N150RT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11060 12-2 12.2.Photos of Radiated Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:W6RRNX-N150RT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11060 12-3 (Above 1000MHz)
