W6RRNX-N180UBEWireless Lan USB 2.0 Adapter

1 802.11n Wireless USB Dongle USER MANUAL 1.0 2 Contents 1 Introduction..................................................................................................3 2 Driver Installation........................................................................................4 2.1 Windows XP/2K..........................................................................................................4 2.2 Windows Vista.........................................................................................................6 3 Wireless Network Configuration.................................................................9 3.1 Utility Icon..................................................................................................................9 3.2 Client Mode .............................................................................................................9 3.2.1 Wireless Device Control ..............................................................................................9 3.2.2 General Setting..........................................................................................................9 3.2.3 Profile Setting................ ........................................................................................10 3.2.4 Available Network Setting..........................................................................................11 3.2.5 Status....... .................................................................................................................13 3.2.6 Statistics .....................................................................................................................14 3.2.7 Wi-Fi Protected Setup.................................................................................................15 4 Troubleshooting..........................................................................................................17 5 Glossary........................................................................................................18 3 1 Introduction Thank you for your purchase of the WLAN Dongle. Featuring wireless technology, this wireless networking solution has been designed for both large and small businesses, and it is scalable so that you can easily add more users and new network features depending on your business scale. SYSTEM REQUIREMENTS Windows System : 2000, XP 32/64, Vista 32/64 PCs must have a device driver installed. It allows you to communicate with WLAN Dongle. BEFORE YOU START 1. Contents confirmation ٛ Wireless LAN USB Dongle ٛ Driver CD CONNECTING YOUR WLAN Dongle TO PC 2. Connect your WLAN USB dongle to your PC after the driver installation. GETTING TO KNOW WIRELESS LAN USB Dongle 3. LED LED turns on when the WLAN dongle linking normally. LED is blinking when WLAN Adapter is active. 4 2 Driver Installation Warning! Do not cover or block the airflow to the adapter. The adapter will reach a high temperature during use. 2.1 Windows XP/2K Step 1 : Insert the installation CD into your CD-ROM. Installation program will prompt language setup. Choose the Setup Language you would like to use and click Next button. Step 2 : Welcome Installation dialog prompt shown. Click Next to continue. Click Cancel to close installation. Installing and configuring WLAN utility. 5 Step 3 : Click Install 6 Step 4 : Click Finish to complete installation. 2.2 Windows Vista Step 1 : Insert the installation CD into your CD-ROM. Installation program will prompt language setup. Choose the Setup Language you would like to use and click Next button. 7 Step 2 : Welcome Installation dialog prompt shown. Click Next to continue. Click Cancel to close installation. Installing and configuring WLAN utility. Step 3 : Click Install. 8 Step 4 : Click Finish to complete installation. 9 3 Wireless Network Configuration The management software is provided for the WLAN dongle. When you insert the WLAN Adapter into your laptop or desktop, an icon should appear in the Windows System Tray automatically. 3.1 Utility Icon ٛ Client mode utility running but no WLAN Adapter plugged. ٛ Client mode utility running and WLAN Adapter scan available network. Client mode utility running and WLAN Adapter can not scan any AP. 3.2 Client Mode (Default Setting) 3.2.1 Wireless Device Control ٛ Show Tray Icon – Show icon or not show icon in systray. ٛ Radio Off – Stop wireless signal. ٛ Disable Adapter – Stop wireless device. 3.2.2 GENERAL SETTING Once device is set, double click on that icon and the configuration window will pop up as shown. It shows the current connected network. The signal strength and link quality are displayed also. The bar graph displays the quality and strength of the link between the node and its Access Point. Link Quality is a measurement of receiving and transmitting performances over the radio. Network Address displays current MAC Address, IP Address, Subnet. and Gateway. Click Renew IP button to refresh IP address leased from wireless AP. 10 3.2.3 PROFILE SETTING In profile tab, you can Add, Remove, Edit, Duplicate and Set Default to manipulate profile content manually. Strongly recommend to use profile after you do Available Network. 11 3.2.4 AVAILABLE NETWOEK SETTING Click Available Network tab and it will show all available networks that radio can reaches. Select proper SSID & BSSID you want to connect. Click Refresh button to force and rescan available networks currently. Select one of SSIDs, and click Add to Profile to create profile that can be configured more wireless parameters. 12 In this page, you can edit your profile name, configure wireless security like WEP, WPA, WPA2, 802.1x ...etc. After finishing setup, click OK button to save configuration. 13 3.2.5 Status In this page, it shows all wireless, networking and device driver version in details. 14 3.2.6 Statistics Statistics page tab will show real-time TX/RX relative counters to check or evaluate the wireless performance. Click Reset button to set counter to zero. 15 3.…

Text truncated - open the document above for the full version.

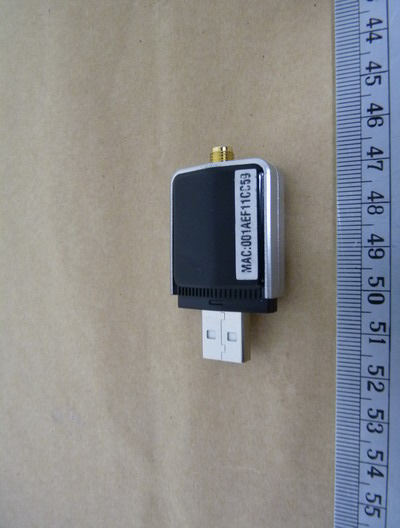

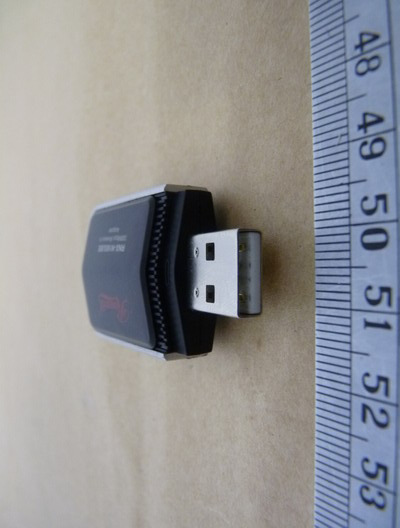

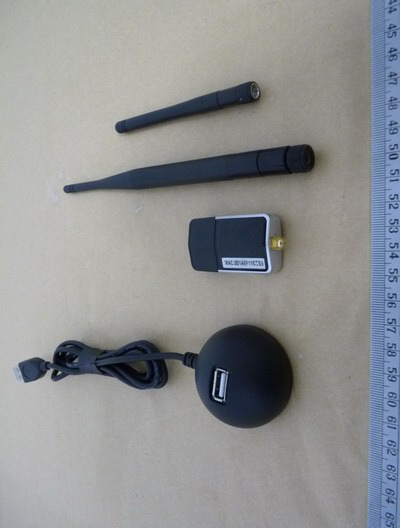

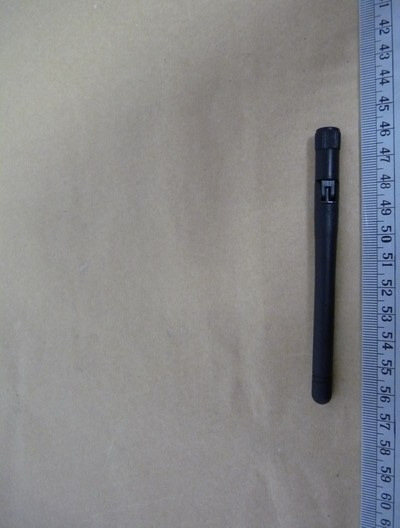

Registration number: W6D21101-11182 FCC ID: W6RRNX-N180UBE Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 13 External Photos Registration number: W6D21101-11182 FCC ID: W6RRNX-N180UBE Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 13 Registration number: W6D21101-11182 FCC ID: W6RRNX-N180UBE Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 13 Registration number: W6D21101-11182 FCC ID: W6RRNX-N180UBE Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 13 Registration number: W6D21101-11182 FCC ID: W6RRNX-N180UBE Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 13 Registration number: W6D21101-11182 FCC ID: W6RRNX-N180UBE Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 13 Registration number: W6D21101-11182 FCC ID: W6RRNX-N180UBE Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 8 of 13

Label and Location

Registration number: W6D21101-11182 FCC ID: W6RRNX-N180UBE Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 9 of 13 Internal Photos Registration number: W6D21101-11182 FCC ID: W6RRNX-N180UBE Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 10 of 13

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 16.61 (dBm) Maximum peak output power at antenna input terminal: 45.8141 (mW) Antenna gain(maximal): 5 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2462 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.0288 (mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the users body.

of Applicant: Rosewill Inc. Address: 17708 Rowland St City of Industry, CA 91748 United States Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6D21101-11182-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for Wireless Lan USB 2.0 Adapter Model No.: RNX-N180UBE FCC ID: W6RRNX-N180UBE Registration number: W6D21101-11182-C-1 FCC ID: W6RRNX-N180UBE Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 54 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 2 1.1 NOTES................................................................................................................................... 2 1.2 TESTING LABORATORY......................................................................................................... 3 1.2.1 Location ....................................................................................................................... 3 1.2.2 Details of accreditation status ..................................................................................... 3 1.3 D ETAILS OF APPROVAL HOLDER............................................................................................ 3 1.4 APPLICATION DETAILS.......................................................................................................... 4 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 4 1.6 T EST STANDARDS.................................................................................................................. 5 2 TECHNICAL TEST .................................................................................................................. 6 2.1 SUMMARY OF TEST RESULTS................................................................................................. 6 2.2 T EST ENVIRONMENT............................................................................................................. 6 2.3 TEST EQUIPMENT LIST.......................................................................................................... 7 2.4 GENERAL TEST PROCEDURE............................................................................................... 10 3 TEST RESULTS (ENCLOSURE) ......................................................................................... 12 3.1 P EAK OUTPUT POWER (TRANSMITTER) ............................................................................... 13 3.2 EQUIVALENT ISOTROPIC RADIATED POWER......................................................................... 19 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS..................................................................... 19 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS............................................. 20 3.5 SPURIOUS EMISSIONS (TX) .................................................................................................. 21 3.6 R ADIATED EMISSION ON THE BAND EDGE........................................................................... 33 3.7 MINIMUM 6 dB BANDWIDTH............................................................................................... 38 3.8 PEAK POWER SPECTRAL DENSITY...................................................................................... 45 3.9 R ADIATED EMISSION FROM DIGITAL PART......................................................................... 51 3.10 POWER LINE CONDUCTED EMISSION.................................................................................. 52 APPENDIX Registration number: W6D21101-11182-C-1 FCC ID: W6RRNX-N180UBE Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 54 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. The test sample is able to work according IEEE 802.11 b/g/n. This report is related to FCC Part 15 C (DSSS and OFDM device). Tester: February 14, 2011 Rick Chen Date WTS-Lab. Name Signature Technical responsibility for area of testing: February 14, 2011 Chang Tse-Ming Date WTS Name Signature Registration number: W6D21101-11182-C-1 FCC ID: W6RRNX-N180UBE Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 54 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Shuang Sing Village, LiShuei Rd., Wanli Township, Taipei County 207, Taiwan (R.O.C.) Company Worldwide Testing Services(Taiwan) C…

Text truncated - open the document above for the full version.

Registration number: W6D21101-11182 FCC ID: W6RRNX-N180UBE Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 11 of 13 Set Up Photo of Radiated Emission EMI Registration number: W6D21101-11182 FCC ID: W6RRNX-N180UBE Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 12 of 13 RF Registration number: W6D21101-11182 FCC ID: W6RRNX-N180UBE Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 13 of 13 Set Up Photo of Conducted Emission
