W6RRNX-N250PC2300Mbps Wireless N PCI Adapter

Wireless N PCI Adapter RNX-N250PC2 User Manual Wireless N PCI Adapter RNX-N250PC2 User Manual Wireless N PCI Adapter RNX-N250PC2 User Manual FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” Wireless N PCI Adapter RNX-N250PC2 User Manual CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National Restrictions 2400.0-2483.5 MHz Country Restriction Reason/remark Bulgaria General authorization required for outdoor use and public service France Outdoor use limited to 10 mWEIRP. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy If used outside of own premises, general authorization is required Luxembourg General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation Only for indoor applications Note: Please don’t use the product outdoors in France. Wireless N PCI Adapter RNX-N250PC2 User Manual Table of Content Package Contents ...............................................................................................1 Chapter 1 Overview ...........................................................................................2 1.1 Overview of the product.........................................................................2 1.2 Features ................................................................................................3 1.3 LED Status.............................................................................................3 Chapter 2 Installation ........................................................................................4 2.1 Hardware Installation .............................................................................4 2.2 Software Installation ..............................................................................4 2.2.1 Overview ............................................................................................4 2.2.2 Software Installation for Windows XP .................................................4 2.2.3 Software Installation for Windows Vista ..............................................9 2.2.4 Software Installation for Windows 7..................................................13 Chapter 3 Connect to a Wireless Network .....................................................18 3.1 To connect using Wireless Utility .........................................................18 3.2 To connect using WPS.........................................................................21 3.2.1 PBC (Push Button Configuration) method ........................................21 3.2.2 PIN method ......................................................................................22 3.3 To connect using Windows built-in wireless utility................................24 3.3.1 In Windows 7 ....................................................................................24 3.3.2 In Windows Vista ..............................................................................26 3.3.3 In Windows XP .................................................................................28 Chapter 4 Configuration Using Wireless N Client Utility ..............................31 4.1 Profile......................................................................................................31 4.1.1 Add a profile.....................................................................................32 4.1.2 Modify …

Text truncated - open the document above for the full version.

Rosewill Inc. AGENCY AUTHORIZATION LETTER FCC ID：W6RRNX-N250PC2 Date: April 25, 2012 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd （No. 6, Ke Feng Rd., 52 Block， Shenzhen Science & Industrial Park,Nantou,Shenzhen, Guangdong, China）to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name of authorized signer: Jett Chu Title of authorized signer: Product Manager Company Name: Rosewill Inc. Tel: 886-2-8752-3555 F ax: 886-2- 8572-3556 Web site: WWW.ROSEWILL.COM

Rosewill Inc. Date: April 25, 2012 Communications Commission Authorization and Evaluation Division FCC ID: W6RRNX-N250PC2 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name of authorized signer: Jett Chu Title of authorized signer: Product Manager Company Name: Rosewill Inc. Tel: 886-2-8752-3555 F ax: 886-2- 8572-3556 Web site: WWW.ROSEWILL.COM

Rosewill Inc. Attestation for FCC Declaration of Conformity FCC ID: W6RRNX-N250PC2 Date:2012-4-27 Please be notified that we, the undersigned, Proware Technologies Co Ltd., LTD declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is EM-F1010271 , with is issued by an accredited lab, Audix Technology Corporation, EMC Department located at No. 53-11, Tin-Fu Tsun, Lin-Kou , Taipei Hsien , Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer: Jett Chu Title of authorized signer: Product Manager Company Name: Rosewill Inc. Tel: 886-2-8752-3555 Fax: 886-2- 8572-3556 Web site: WWW.ROSEWILL.COM

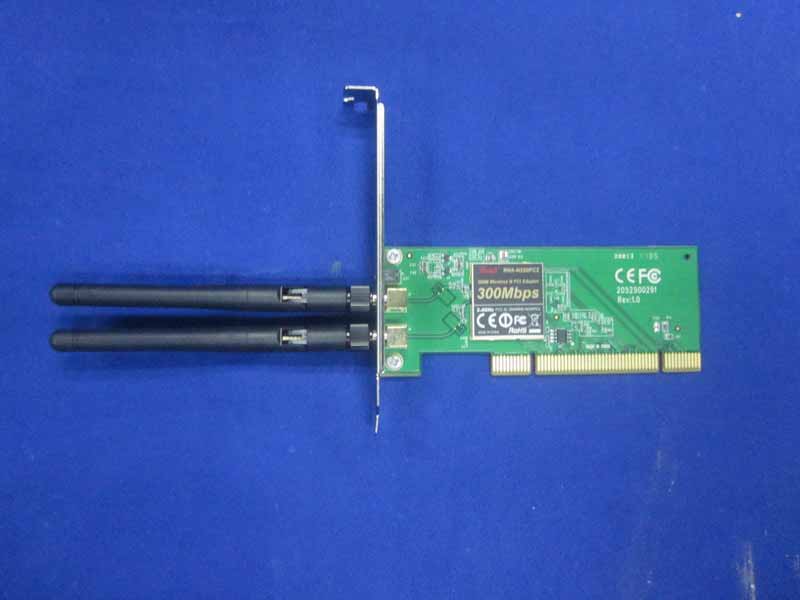

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:W6RRNX-N250PC2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12063 14-1 14. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT

RNX-N250PC2 1.0产品规格标贴 第一版 80g艾利铜版纸+雾膜 RNX-N250PC2 1.0 2011-12-29 PANTONE 187C 白色、PANTONE 8382C 李婧 黑色 1 2 E D C B A 1 2 3 4 5 6 7 8 9 E D C 3 4 5 6 7 8 B A 9 料号： 设 计 审 核 颜 色 名 称 版 本 材 质 模 具 机型版本号 完成日期 logo 底色 文字 其它 记 录 与上一版的区别 1:2放大效果图

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:W6RRNX-N250PC2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12063 14-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:W6RRNX-N250PC2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12063 14-3 Figure 5 General Appearance of the EUT Figure 6 General Appearance of the EUT

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:W6RRNX-N250PC2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12063 11-1 11. MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 11.2.Estimation Result EUT: 300Mbps Wireless N PCI Adapter M/N: RNX-N250C2 Test date:2012-04-12 Pressure: 100.6 kpa Humidity: 47% Tested by: Leo-Li Test site: RF Site Temperature：25°C Cable loss: 1 dB Attenuator loss: 20 dB Antenna Gain: 2 dBi Test Mode CH Frequency （MHz） Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE CH1 2412 19.56 90.36 2 1.42 0.0285 CH6 2437 18.67 73.62 2 1.42 0.0232 11b CH11 2462 18.70 74.13 2 1.42 0.0234 CH1 2412 22.54 179.47 2 1.42 0.0566 CH6 2437 24.37 273.53 2 1.42 0.0863 11g CH11 2462 16.87 48.64 2 1.42 0.0153 CH1 2412 19.84 96.38 2 1.42 0.0304 CH6 2437 25.96 394.46 2 1.42 0.1244 11n HT20 CH11 2462 18.96 78.70 2 1.42 0.0248 CH1 2412 17.79 60.12 2 1.42 0.0190 CH4 2437 25.90 389.05 2 1.42 0.1227 11n HT40 CH7 2462 17.78 59.98 2 1.42 0.0189 Note: The estimation distance is 20cm

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:W6RRNX-N250PC2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12063 ] FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Rosewill Inc. 300Mbps Wireless N PCI Adapter Model No.: RNX-N250PC2 FCC ID: W6RRNX-N250PC2 Prepared for : Rosewill Inc. 17708 Rowland Street, City of Industry, CA91748, USA Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F12063 Date of Test ： Apr.12, 2012 Date of Report ： Apr.13, 2012 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:W6RRNX-N250PC2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12063 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS .......................................................... 1-1 1.1. Description of Standards and Results .................................................................................. 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Test Information ................................................................................................................... 2-2 2.3. Tested Supporting System Details ....................................................................................... 2-3 2.4. Block diagram of connection between the EUT and simulators .......................................... 2-3 2.5. Test Facility ......................................................................................................................... 2-4 2.6. Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-4 3. POWER LINE CONDUCTED EMISSION TEST ....................................................... 3-5 3.1. Test Equipments ................................................................................................................... 3-5 3.2. Block Diagram of Test Setup ............................................................................................... 3-5 3.3. Power Line Conducted Emission Test Limits ...................................................................... 3-5 3.4. Configuration of EUT on Test ............................................................................................. 3-6 3.5. Operating Condition of EUT ................................................................................................ 3-6 3.6. Test Procedure ...................................................................................................................... 3-6 3.7. Power Line Conducted Emission Test Results .................................................................... 3-6 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment .................................................................................................................... 4-1 4.2. Block Diagram of Test Setup ............................................................................................... 4-1 4.3. Radiated Emission Limit ...................................................................................................... 4-2 4.4. EUT Configuration on Test .................................................................................................. 4-3 4.5. Operating Condition of EUT ................................................................................................ 4-3 4.6. Test Procedure ...................................................................................................................... 4-3 4.7. Radiated Emission Test Results ........................................................................................... 4-4 5. CONDUCTED SPURIOUS EMISSIONS...................................................................... 5-1 5.1. Test Equipment .................................................................................................................... 5-1 5.2. Limit ..................................................................................................................................... 5-1 5.3. Test Procedure ...................................................................................................................... 5-1 6. BAND EDGE COMPLIANCE TEST ............................................................................ 6-1 6.1. Test Equipment .................................................................................................................... 6-1 6.2. Limit ..................................................................................................................................... 6-1 6.3. Test Produce ......................................................................................................................... 6-1 6.4. Test Results .......................................................................................................................... 6-1 7. 6dB Bandwidth Test ......................................................................................................... 7-1 7.1. Test Equipment .................................................................................................................... 7-1 7.2. Limit ..................................................................................................................................... 7-1 7.3. Test Procedure ...................................................................................................................... 7-1 7.4. Test Results .......................................................................................................................... 7-1 8. OUTPUT POWER TEST ...........................................................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:W6RRNX-N250PC2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12063 13-1 13. PHOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:W6RRNX-N250PC2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12063 13-2 13.2.Photos of Radiated Emission Test 30-1000MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:W6RRNX-N250PC2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12063 13-3 Above 1000MHz
