W6RRNX-N600PCEV2N600 Wireless Dual Band PCI Express Adapter

RNX-N600PCE_v2.0 N600 Wireless Dual Band PCI Express Adapter 1910020741 REV1.0.0 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice is a registered trademark of Rosewill Inc. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from Rosewill Inc. Copyright © 2015 Rosewill Inc. All rights reserved. http://www.Rosewill.com FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1） This device may not cause harmful interference. 2） This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. Warning According to old rule of 15.407, the frequency band of 5150-5250 MHz is restricted, this equipment is indoor using only. CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National Restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction Reason/remark Bulgaria None General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy None If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny- Ålesund Russian Federation None Only for indoor applications Note: Please don’t use the product outdoors in France. This device has been designed to operate with the antennas listed below, and having a maximum gain of 1.8 dBi. Antennas not included in this list or having a gain greater than 1.8 dBi are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. Canadian Compliance Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1)This device may not cause interference, and (2)This device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme aux norms CNR exemptes de licence d’Industrie Canada. Le fonctionnement est soumis aux deux conditions suivantes: (1)cet appareil ne doit pas provoquer d’interférences et (2)cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer un fonctionnement non souhaité de l’appareil. Industry Canada Statement Complies with the Canadian ICES-003 Class B specifications. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This device complies with RSS 210 of Industry Canada. This Class B device meets all the requirements of the Canadian interference-causing equipment regulations. Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам, що передбачені чинними законодавчими актами України. Safety Information z When product has power button, the power button is one of the way to shut off the product; when there is no power button, the only way to completely shut off power is to disconnect the product or the power adapter from the power source. z Don’t disassemble the product, or make repairs yourself. You run the risk of electric shock and voiding the limited warranty. If you need service, please contact us. z Avoid water and wet locations. This product can be used in the following countries: AT BG BY CA CZ DE DK EE ES FI FR GB GR HU IE IT LT LV MT NL NO PL PT RO RU SE SK TR UA US CONTENTS Package Contents..................…

Text truncated - open the document above for the full version.

Rosewill Inc. Date: 2015-03-19 FCC ID: W6RRNX-N600PCEV2 To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, Tel: 886-2-8752-3555 Fax: 886-2-8572-3556 Web site: WWW.ROSEWILL.COM Name of authorized signer: Wayne Chou Title of authorized signer: Product Manager Company Name: Rosewill Inc.

Rosewill Inc. Date: 2015-03-19 FCC ID: W6RRNX-N600PCEV2 AUTHORIZATION LETTER To whom it may concern: We, the undersigned, hereby authorize Andrea Hsia (Senior Specialist) of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all manners relating to FCC application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Andrea Hsia (Senior Specialist) of BV CPS Taoyuan on our behalf shall have the same effect as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, Name of authorized signer: Wayne Chou Title of authorized signer: Product Manager Company Name: Rosewill Inc. Tel: 886-2-8752-3555 Fax: 886-2-8572-3556 Web site: WWW.ROSEWILL.COM

Rosewill Inc. Attestation for FCC Declaration of Conformity FCC ID:W6RRNX-N600PCEV2 Date: 2015-03-13 Please be notified that we, the undersigned, Rosewill Inc. declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is FD121211E05A , with is issued by an accredited lab, Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer: Wayne Chou Title of authorized signer: Product Manager Company Name: Rosewill Inc. Tel: 886-2-8752-3555 Fax: 886-2-8572-3556 Web site: WWW.ROSEWILL.COM

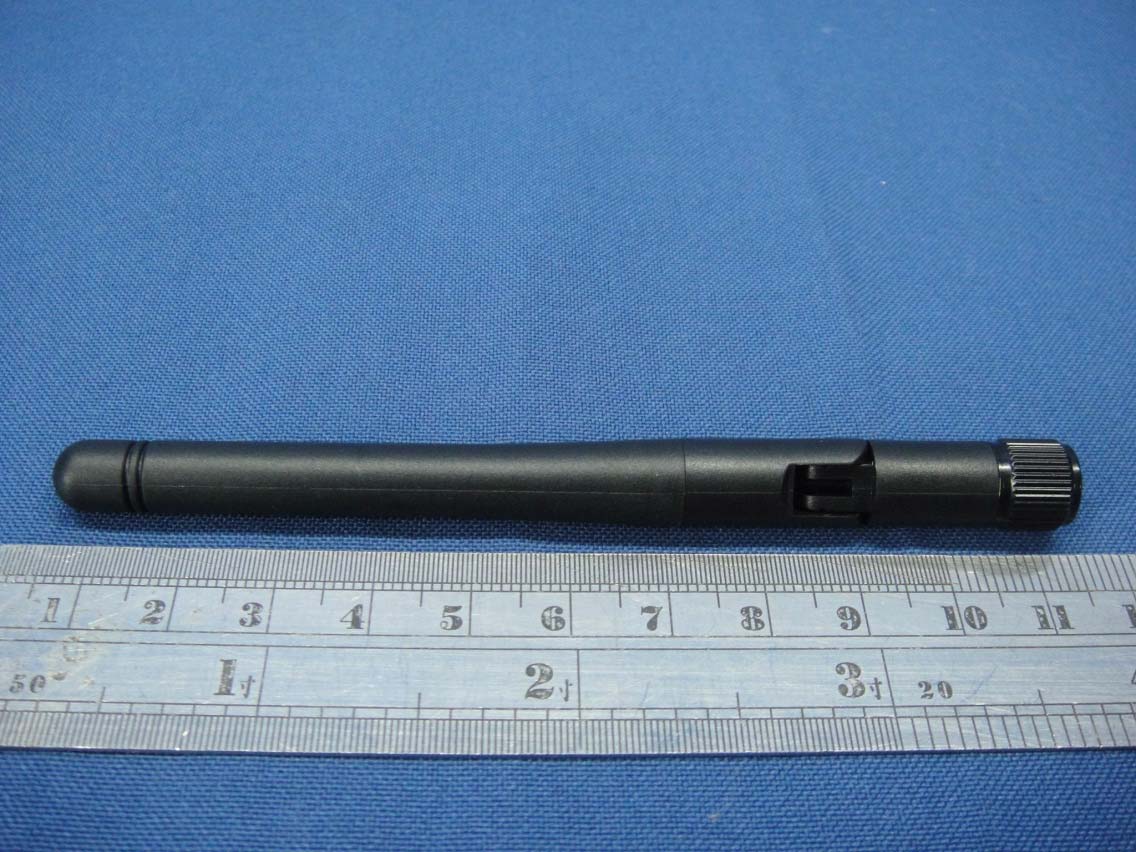

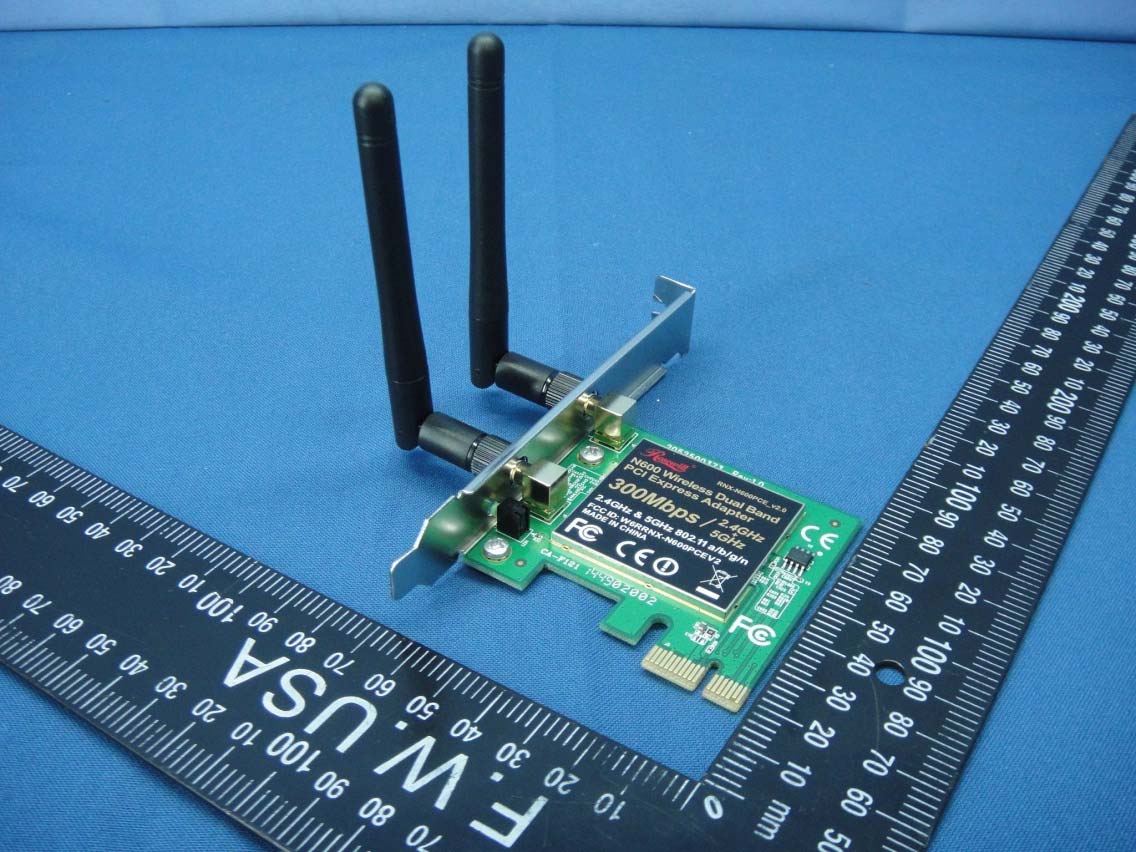

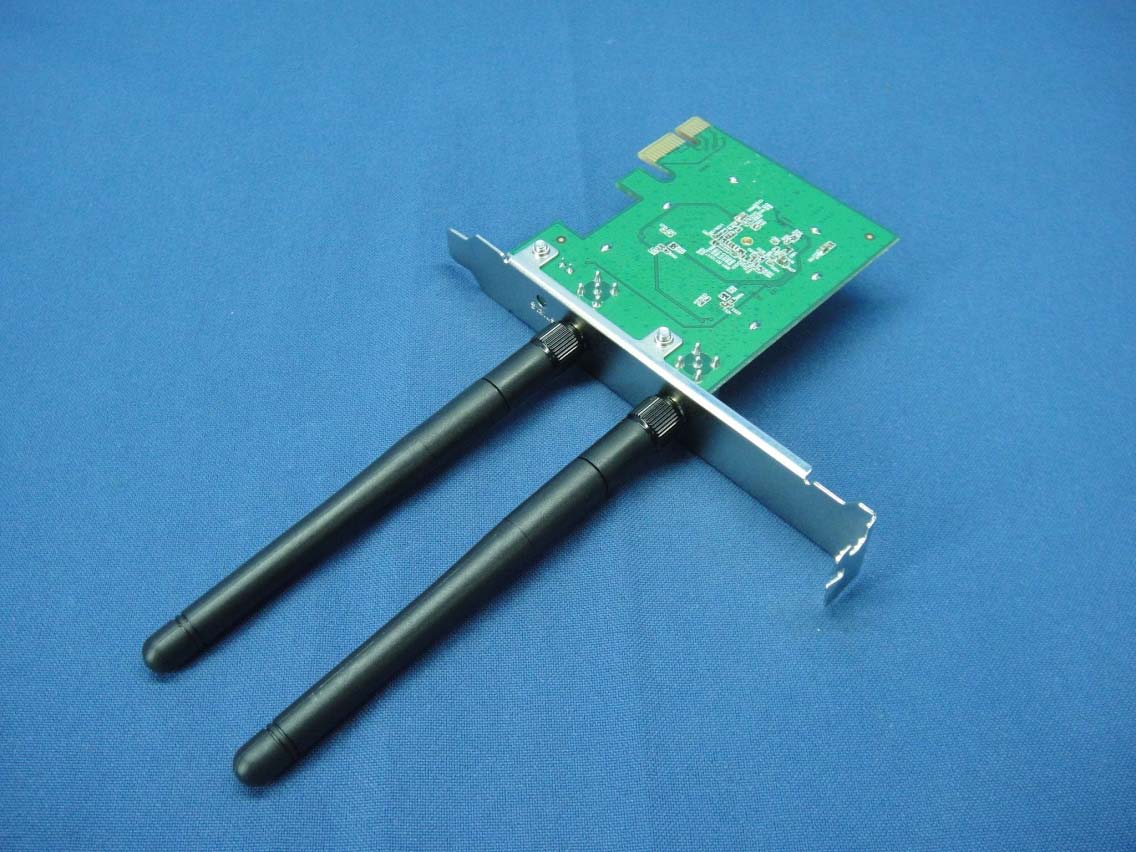

Report No.: 121211E05A Page 1 Reference No.: 150225C15 CONSTRUCTION PHOTOS OF EUT Report No.: 121211E05A Page 2 Reference No.: 150225C15 Report No.: 121211E05A Page 3 Reference No.: 150225C15 Report No.: 121211E05A Page 4 Reference No.: 150225C15

Label location

12 E D C B A 12 3456789 E D C 345678 B A 9 料号： 尺寸：39.8*37.5mm±0.2,0.5R等比例放大效果图 与上一版的区别 颜 色 名 称 版 本 材 质 模 具 机型版本号 logo 底色 文字 其它 结构工程师 硬件工程师 产品工程师 平面负责人 记 录 审 核 完成日期 设 计 RNX-N600PCE 2.0.0 屏蔽罩标贴 A1 80g艾利铜版纸+光膜 RNX-N600PCE 2.0.0 刘宇 2014-1-5 简化效果示意图 3~5mm 3mm 3~5mm2mm 文字方向文字方向 文字方向文字方向 Pantone 187C 黑色 Pantone 8382C&白色

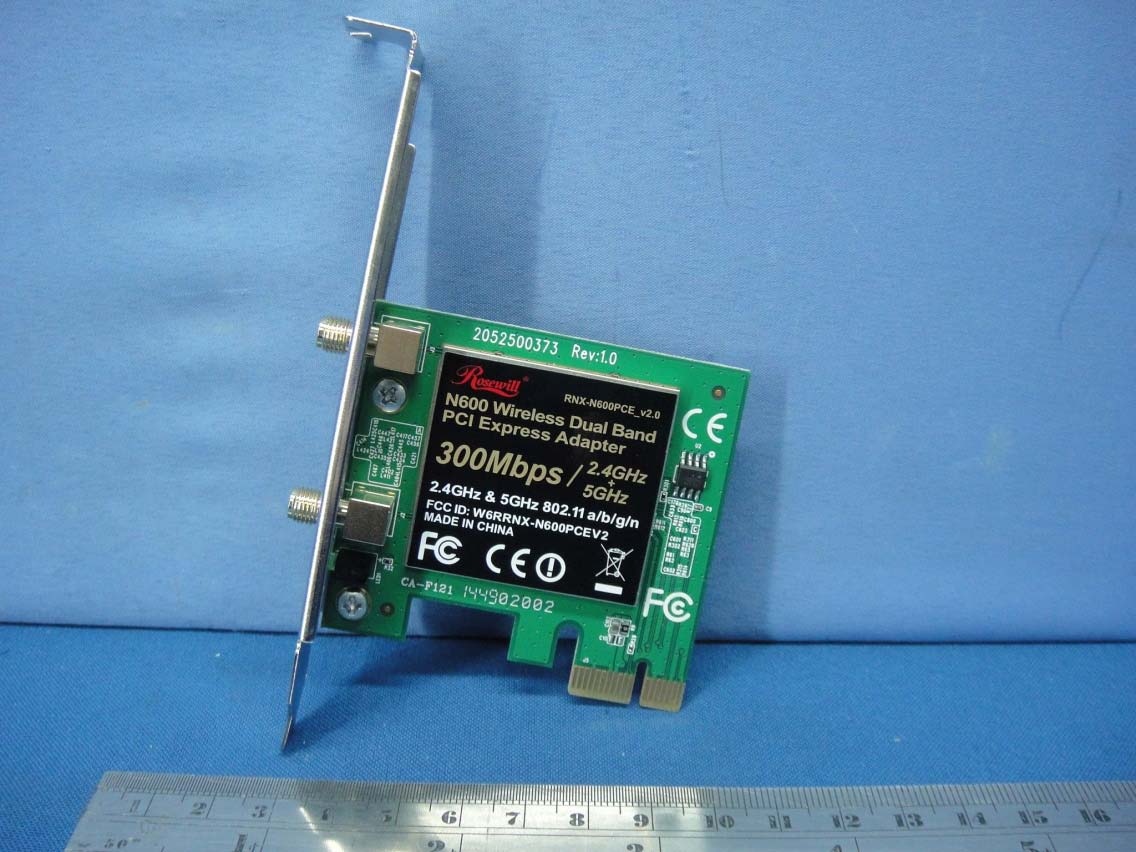

Report No.: 121211E05A Page 1 Reference No.: 150225C15 CONSTRUCTION PHOTOS OF EUT

Report No.: SA121211E05 A 1 of 6 Report Format Version 5.0.0 Reference No.: 150225C15 RF EXPOSURE REPORT REPORT NO.: SA121211E05A MODEL NO.: RNX-N600PCE FCC ID: W6RRNX-N600PCEV2 RECEIVED:Dec. 11, 2012 TESTED:Mar. 13, 2013 ISSUED:Mar. 17, 2015 APPLICANT: Rosewill Inc. ADDRESS: 17708 Rowland Street, City of Industry, CA 91748, USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: SA121211E05 A 2 of 6 Report Format Version 5.0.0 Reference No.: 150225C15 TABLE OF CONTENTS RELEASE CONTROL RECORD ..................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT ............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER .......................... 6 Report No.: SA121211E05 A 3 of 6 Report Format Version 5.0.0 Reference No.: 150225C15 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA121211E05A Original release Mar. 17, 2015 Report No.: SA121211E05 A 5 of 6 Report Format Version 5.0.0 Reference No.: 150225C15 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA121211E05 A 6 of 6 Report Format Version 5.0.0 Reference No.: 150225C15 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For 15.247(2.4GHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 358.015 1.8 20 0.10780 1 For 15.247(5GHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745 ~ 5825 292.455 1.8 20 0.08806 1 For 15.407(5GHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5180 ~ 5240 42.428 1.8 20 0.01278 1 --- END --- CONCLUSION: Both of the 2.4GHz and 5GHz WLAN can transmit simultaneously, the formula of calculated the MPE is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.09223 / 1 + 0.35211 / 1 = 0.444, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: RF121211E05A-2 1 of 24 Report Format Version 5.1.0 Reference No.: 150225C15 DFS TEST REPORT REPORT NO.: RF121211E05A-2 MODEL NO.: RNX-N600PCE FCC ID: TE7WDN3800 RECEIVED: Dec 11, 2012 TESTED: Jan. 22, 2013 ISSUED: Mar. 17, 2015 APPLICANT: Rosewill Inc. ADDRESS: 17708 Rowland Street, City of Industry, CA 91748, USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF121211E05A-2 2 of 24 Report Format Version 5.1.0 Reference No.: 150225C15 Table of Contents RELEASE CONTROL RECORD .......................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. EUT INFORMATION ................................................................................................. 5 2.1 OPERATING FREQUENCY BANDS AND MODE OF EUT ..................................... 5 2.2 EUT SOFTWARE AND FIRMWARE VERSION ....................................................... 5 2.3 DESCRIPTION OF AVAILABLE ANTENNAS TO THE EUT ..................................... 5 2.4 EUT MAXIMUM CONDUCTED POWER .................................................................. 6 2.5 EUT MAXIMUM E.I.R.P. POWER ............................................................................. 7 2.6 TRANSMIT POWER CONTROL (TPC) .................................................................... 8 2.7 STATEMENT OF MAUNFACTURER ....................................................................... 8 3. U-NII DFS RULE REQUIREMENTS ........................................................................ 9 3.1 WORKING MODES AND REQUIRED TEST ITEMS ............................................... 9 3.2 TEST LIMITS AND RADAR SIGNAL PARAMETERS ............................................ 10 4. TEST & SUPPORT EQUIPMENT LIST .................................................................. 12 4.1 TEST INSTRUMENTS ........................................................................................... 12 4.2 DESCRIPTION OF SUPPORT UNITS ................................................................... 12 5. TEST PROCEDURE .............................................................................................. 13 5.1 BVADT DFS MEASUREMENT SYSTEM: .............................................................. 13 5.2 CALIBRATION OF DFS DETECTION THRESHOLD LEVEL: ................................ 14 5.3 DEVIATION FROM TEST STANDARD .................................................................. 15 5.4 CONDUCTED TEST SETUP CONFIGURATION ................................................... 15 5.4.1 CLIENT WITHOUT RADAR DETECTION MODE .................................................. 15 6. TEST RESULTS ..................................................................................................... 16 6.1 SUMMARY OF TEST RESULTS ............................................................................ 16 6.2 DETAILED TEST RESULTS ................................................................................... 17 6.2.1 TEST MODE: DEVICE OPERATING IN CLIENT WITHOUT RADAR DETECTION MODE. .................................................................................................................... 17 6.2.1.1 DFS DETECTION THRESHOLD ........................................................................... 17 6.2.1.2 CHANNEL CLOSING TRANSMISSION AND CHANNEL MOVE TIME.................. 18 6.2.1.3 NON- OCCUPANCY PERIOD ................................................................................ 19 6.2.1.4 NON-ASSOCIATED TEST ..................................................................................... 21 6.2.1.5 NON- CO-CHANNEL TEST .................................................................................... 21 7. INFORMATION ON THE TESTING LABORATORIES ........................................... 22 8. APPENDIX-A .......................................................................................................... 23 9. APPENDIX B - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB ..........................................................................…

Text truncated - open the document above for the full version.

Report No.: RF121211E05A-1 1 of 67 Report Format Version 5.1.0 Reference No.: 150225C15 FCC TEST REPORT (15.407) REPORT NO.: RF121211E05A-1 MODEL NO.: RNX-N600PCE FCC ID: W6RRNX-N600PCEV2 RECEIVED: Dec. 11, 2012 TESTED: Dec. 13, 2012 to Mar. 13, 2013 and Mar. 11, 2015 ISSUED: Mar. 17, 2015 APPLICANT: Rosewill Inc. ADDRESS: 17708 Rowland Street, City of Industry, CA 91748, USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF121211E05A-1 2 of 67 Report Format Version 5.1.0 Reference No.: 150225C15 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................. 4 1. CERTIFICATION ........................................................................................... 5 2. SUMMARY OF TEST RESULTS .................................................................. 6 2.1 MEASUREMENT UNCERTAINTY ..................................................................... 7 3. GENERAL INFORMATION ........................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ............................................................. 8 3.2 DESCRIPTION OF TEST MODES ............................................................. 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .............. 11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................. 13 3.4 DUTY CYCLE OF TEST SIGNAL ............................................................... 14 3.5 DESCRIPTION OF SUPPORT UNITS ....................................................... 15 3.6 CONFIGURATION OF SYSTEM UNDER TEST ......................................... 16 4. TEST TYPES AND RESULTS .................................................................... 17 4.1 CONDUCTED EMISSION MEASUREMENT .............................................. 17 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................... 17 4.1.2 TEST INSTRUMENTS ................................................................................ 17 4.1.3 TEST PROCEDURES ................................................................................ 18 4.1.4 DEVIATION FROM TEST STANDARD ....................................................... 18 4.1.5 TEST SETUP .............................................................................................. 18 4.1.6 EUT OPERATING CONDITIONS ............................................................... 19 4.1.7 TEST RESULTS ......................................................................................... 20 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ..................... 22 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ... 22 4.2.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS22 4.2.3 TEST INSTRUMENTS ................................................................................ 23 4.2.4 TEST PROCEDURES ................................................................................ 24 4.2.5 DEVIATION FROM TEST STANDARD ....................................................... 24 4.2.6 TEST SETUP .............................................................................................. 25 4.2.7 EUT OPERATING CONDITION .................................................................. 25 4.2.8 TEST RESULTS ......................................................................................... 26 4.3 TRANSMIT POWER MEASUREMENT ...................................................... 43 4.3.1 LIMITS OF TRANSMIT POWER MEASUREMENT .................................... 43 4.3.2 TEST INSTRUMENTS ................................................................................ 44 4.3.3 TEST PROCEDURE ................................................................................... 45 4.3.4 DEVIATION FROM TEST STANDARD ....................................................... 45 4.3.5 TEST SETUP .............................................................................................. 45 4.3.6 EUT OPERATING CONDITIONS ............................................................... 46 4.3.7 TEST RESULTS .....................................................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION Set UUT as Client without radar detection mode (Radar injected into Master) Radar Master UUT (inside the PC)

Report No.: 120810E25C Page 1 Reference No.: 121009E05 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: 120810E25C Page 2 Reference No.: 121009E05 RADIATED EMISSION TEST
