W6RRNX-N600UBE300Mbps 802.11n/a/b/g Wireless Dual Band USB Adapter

Wireless N Dual Band Adapter RNX-N600UBE QUICK INSTALLATION GUIDE Introduction Thank you for choosing Rosewill’s 802.11n Wireless Dual Band USB adapter – RNX-N600UBE. This chapter is to introduce you more about this Wireless Adapter. 1.1 Package Content Before getting started, please verify that your package includes the following items: 1. Rosewill RNX-N600UBE 802.11n Wireless Dual Band USB Adapter x 1 2. External 4dBi Dual Band Antenna x 2 3. Quick Installation Guide x 1 4. USB Cable x1 5. Resource CD x 1, including: z Wireless Utility and Driver z User Manual Note: Make sure that the package contains the above items. If any of the listed items are damaged or missing, please contact with your distributor. 1.2 Overview of the Product With the 802.11n 2T2R MIMO technology, the RNX-N600UBE allows high packet throughput rate up to 300Mbps maximum download and upload. It can also interoperate with other wireless (802.11b, 802.11g, 802.11a) standard and support dual frequency at 2.4GHz and 5GHZ. The adapter supports 64/128/152 bit WEP, WPA and WPA2 encryptions to prevent outside intrusion and protect your personal information from being exposed. The adapter is easy to install and manage. The Quick Setup guides you step-by-step through the installation process; With unmatched wireless performance, reception, and security protection, the RNX-N600UBE is the best choice for easily adding or upgrading wireless connectivity to your notebook and computer. 1.3 Features z Complies with IEEE 802.11n and 802.11a/b/g standard for 2.4GHz/5GHz Wireless LAN z 2T2R up to 300 Mbps upload and download Transfer Rate in 802.11n mode of operation z High level of security with Wireless encryption of 64/128-bit WEP, WPA, WPA2, and Cisco CCX V5 Compliance. 1 Wireless N Dual Band Adapter RNX-N600UBE QUICK INSTALLATION GUIDE z Runs under most operating systems: Windows 2K/XP/Vista/7 (32/64 bits), Mac OSX 10.4~10.6 and Linux 2.6.x. z Supports One-Click WPS (WiFi Protected Setup) connection. z Supports MIMO Power Saving which reduce power under idle time 1.4 Product Specification Chipset Ralink RT5572N Standard IEEE 802.11a/b/g/n Modulation Type OFDM/CCK/16-QAM/64-QAM Bus Type USB Interface (Mini 5pin) Frequency Band 2.4GHz / 5GHz DUAL Data Rate 11n: 300/150/108/81/54/27 Mbps 11b: 1,2,5.5,11 Mbps 11g: 6,9,12,24,36,48,54 Mbps, 135/121.5/108/81/54/40.5/27/13.5Mbps, 130/117/104/78/52/39/26/13 Mbps, 65/58.5/52/39/26/19.5/13/6.5 Mbps 11a: 6,9,12,24,36,48,54 Mbps, 135/121.5/108/81/54/40.5/27/13.5Mbps, 130/117/104/78/52/39/26/13 Mbps, 65/58.5/52/39/26/19.5/13/6.5 Mbps Max. EIRP Output Power 2.4GHz band: 9 .0 mW Max 5 .2GHz band: 6.8mW Max ; 5.8GHz Band:5.8mW Receive Sensitivity 300M: -68 dBm@10% PER 150M: -68 dBm@10% PER 130M: -68 dBm@10% PER 108M: -68 dBm@10% PER 54M: -68 dBm@10% PER 11M: -85 dBm@ 8% PER 6M: -88 dBm@10% PER 1M: -90 dBm@8% PER Security 64/128/152 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES); WPS button; Cisco CCX5.0 Antenna 2x External 4dBi Dual Band Antenna (SMA Connector) OS support Windows 200; Windows XP/Vista/7 32 and 64 bit; Linux Kernel 2.6.x; Mac OS X 10.4, 10.5, and 10.6 Dimension 3.54” x 2.16” x 0.47” (90 x 55 x 12 mm) Temperature Operating: 32~104°F (0~40°C); Storage: -40~158°F (-40~70°C) 2 Wireless N Dual Band Adapter RNX-N600UBE QUICK INSTALLATION GUIDE Humidity Operating: 10~90% (Non-Condensing); Storage: Max. 95% (Non-Condensing) 1.5 System Requirement You must have at least the following z A laptop computer/desktop PC with an available USB port z At least a 300MHz processor and 32MB of memory z Windows OS for Win98SE, ME, 2000, XP, Vista, 7 or Mac OS X 10.4~10.6 z A CD-ROM Drive z USB controller properly installed and working in the computer z A 802.11n、802.11g or 802.11a/b Wireless (and Dual Band) Access Point/Router (for infrastructure Mode) or another 802.11n、802.11g or 802.11b wireless (and Dual Band) adapter (for Ad-Hoc; Peer-to-Peer networking mode). 1.6 LED Status This USB Adapter contains one LED. Please refer to the following description for LED definition. LED Indications Status Working Status Blink blue The Adapter is Radio on Blink blue and flashing intermittently The Adapter is already connected but is not transmitting or receiving data Blink blue and fast flashing The Adapter is activity and transmitting of receiving data. Radio/ACT LED Off The Adapter is Radio off 3 Wireless N Dual Band Adapter RNX-N600UBE QUICK INSTALLATION GUIDE Installation Guide 2.1 Hardware Installation z Please first connect the RNX-N600UBE with the USB cable, then insert into your PC or NB USB slot. z If the following window popup, please click Cancel or Close: „ Under Win XP „ Under Windows Vista/Win7 4 Wireless N Dual Band Adapter RNX-N600UBE QUICK INSTALLATION GUIDE 2.2 Installing Drivers and/or Utility : Please insert the CD into your CD-rom drive Click on the “Driver Installation” option when the Smart Wizard page popup. 5 Wireless N Dual Band Adapter RNX-N600UBE QUICK INSTALLATION GUIDE If the program didn’t run automatically, please select Browse CD, and then double click on the Setup.exe in the CD to start the process. Click Yes if the following window popup 6 Wireless N Dual Band Adapter RNX-N600UBE QUICK INSTALLATION GUIDE Upon Clicking Yes, you should see a “License Agreement” window popup. Please select “I accept the terms of the license agreement” then click “Next>” On the next window, you will have the option of “Install driver and Ralink WLAN Utility” or “Install Driver only” Win7 users are recommended to select “Install Driver only” Please select “Next >” after your selection to continue the installation process. 7 Wireless N Dual Band Adapter RNX-N600UBE QUICK INSTALLATION GUIDE When Install under Window XP, you may see this selection window, you can select among “Ralink Configuration Tool” or “Microsoft Zero Configuration Tool” Once select, please click “Next >” to continue. Please select “Install” to continue. 8 Wireless N Dual Band Adapter RNX-N600UBE QUICK INSTALLATION GUIDE Setup w…

Text truncated - open the document above for the full version.

Rosewill Inc. Add: 17708 Rowland Street, City of Industry, CA 91748, United States Tel: 626-271-1420 Fax: 626-271-9504 2013-03-02 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: W6RRNX-N600UBE We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description - Tune Up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Dennis Auyang / Product Management Directorr Contact information / address : 17708 Rowland Street, City of Industry, CA 91748, United States Tel: 626-271-1420 Fax: 626-271-9504 E-Mail: [email protected]

Rosewill Inc. Add: 17708 Rowland Street, City of Industry, CA 91748, United States Tel: 626-271-1420 Fax: 626-271-9504 2013-03-02 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD We, Rosewill Inc., declare that this EUT (FCC ID: W6RRNX-N600UBE ) doesn’t have Ad-Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11(2.412~2.462GHz ) And Channel 149-165(5.745~5.825GHz) & UII part of this device, only channels Channel 36-48(5.180~5.240GHz) will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Client’s name / title : Dennis Auyang / Product Management Directorr Contact information / address : 17708 Rowland Street, City of Industry, CA 91748, United States Tel: 626-271-1420 Fax: 626-271-9504 E-Mail: [email protected]

Rosewill Inc. Add: 17708 Rowland Street, City of Industry, CA 91748, United States Tel: 626-271-1420 Fax: 626-271-9504 Date: 2013-03-02 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD FCC ID: W6RRNX-N600UBE Dear Sir/Madam, We, Rosewill Inc. Hereby declares This EUT used two standard SMA antenna is fixed permanently by special glue. The max. gain is 4.0dBi. we will promise to implement this on all marketed product. Detail please refer to bellow: Sincerely, Client’s name / title : Dennis Auyang / Product Management Directorr Contact information / address : 17708 Rowland Street, City of Industry, CA 91748, United States Tel: 626-271-1420 Fax: 626-271-9504 E-Mail: [email protected] The Antenna was fixed permanently by special glue

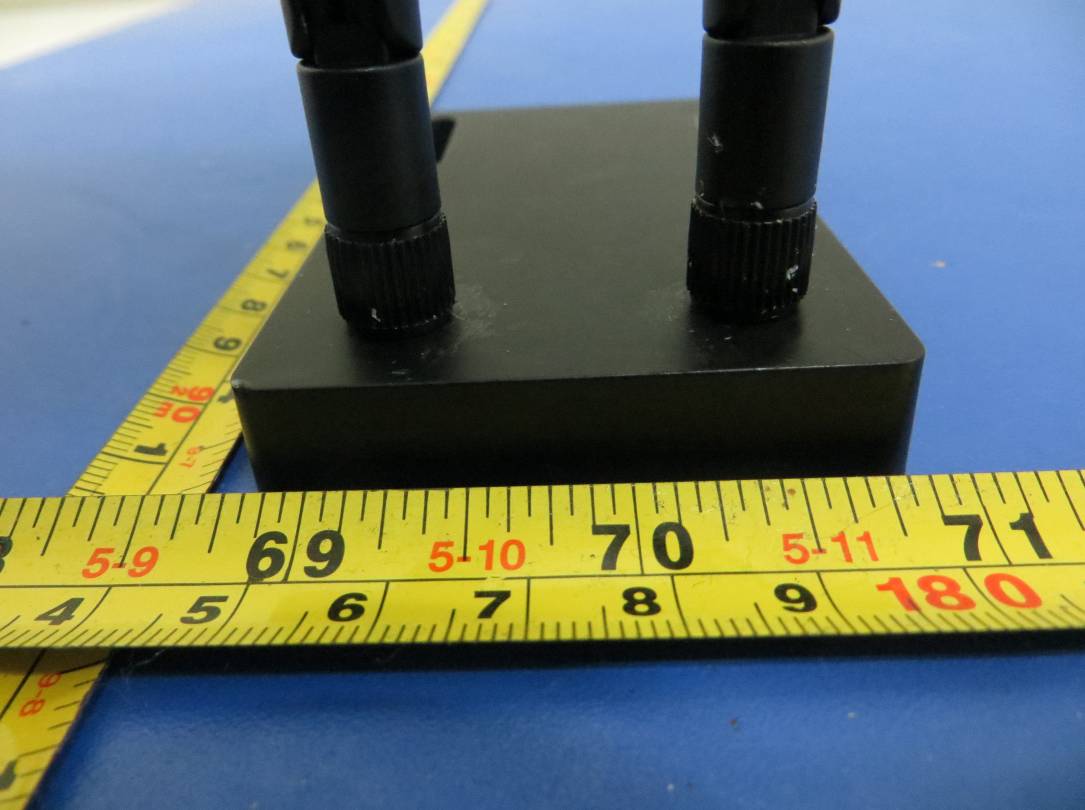

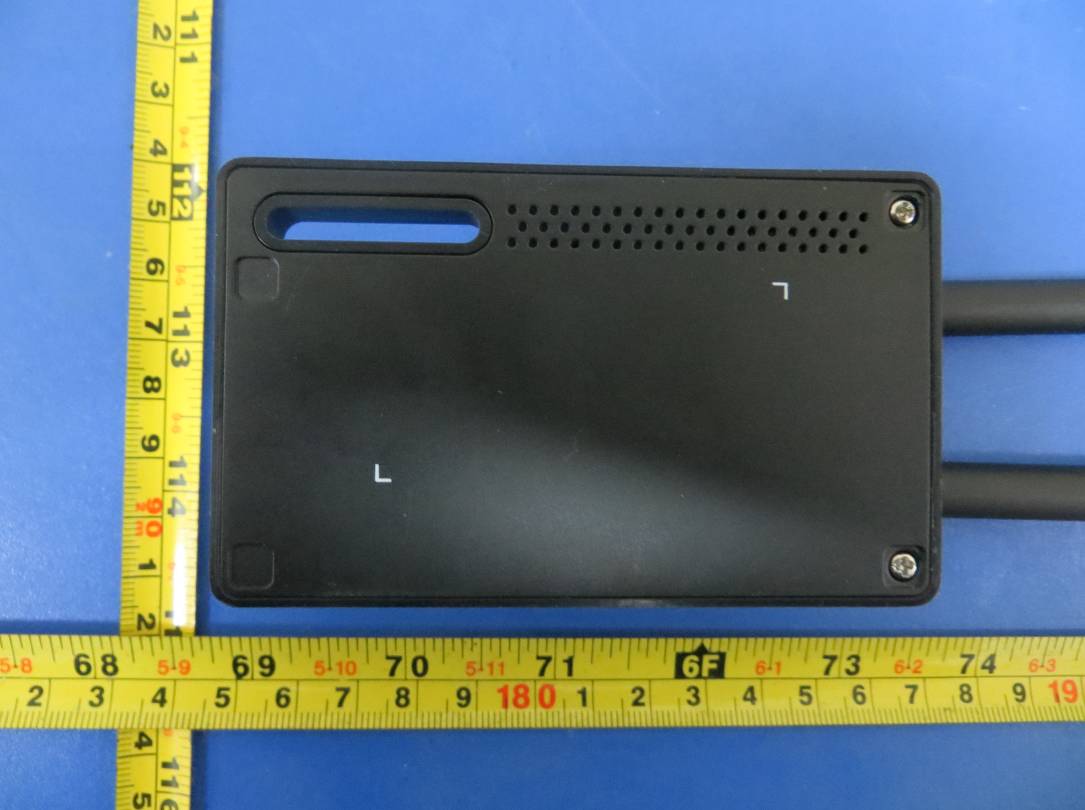

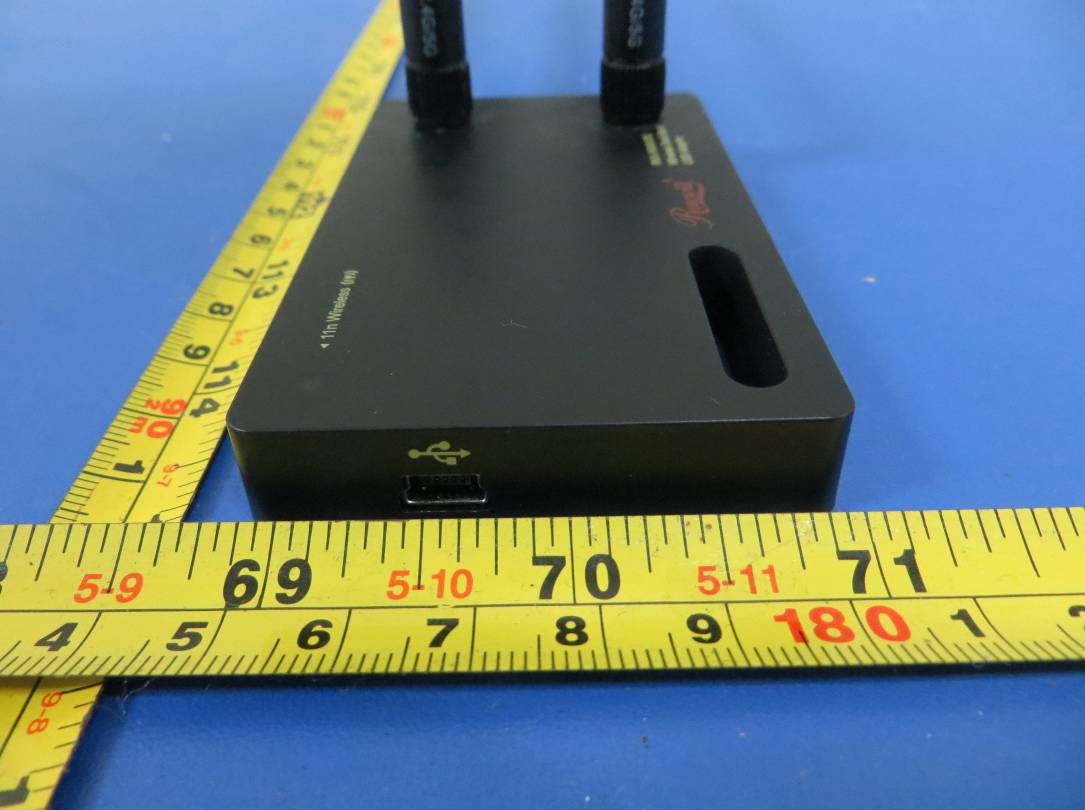

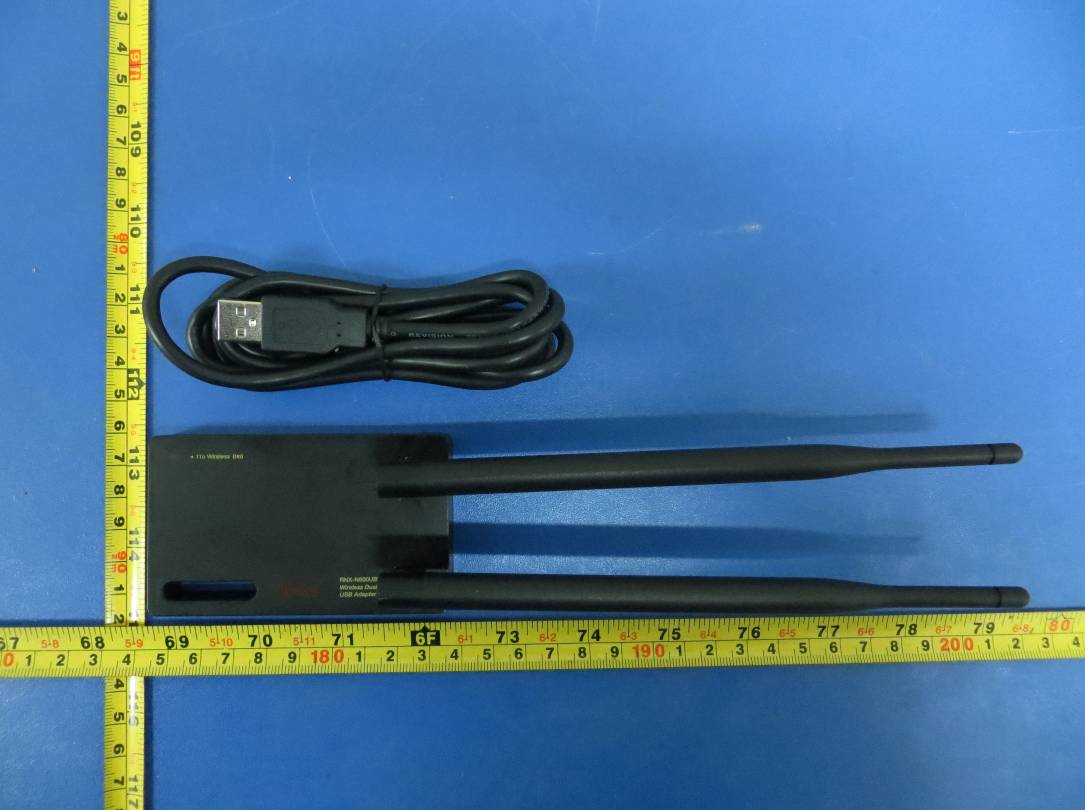

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: W6RRNX-N600UBE Report No.: LCS130122282TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: W6RRNX-N600UBE Report No.: LCS130122282TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: W6RRNX-N600UBE Report No.: LCS130122282TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 The Antenna was fixed permanently by special glue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: W6RRNX-N600UBE Report No.: LCS130122282TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: W6RRNX-N600UBE Report No.: LCS130122282TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Material: Tagboard Glue: adhesive sticker Font color: White Label color: Black Label Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: W6RRNX-N600UBE Report No.: LCS130122282TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 Antenna 1 Antenna 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: W6RRNX-N600UBE Report No.: LCS130122282TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3 Fig.4

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: W6RRNX-N600UBE Report No.: LCS130122282TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 8. RF Exposure Report 8.1. Limit According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See KDB 447498 D01 General RF Exposure Guidance V05. 8.2. EUT Specification Frequency Bands Max. EIRP (mW) 2.412~2.462GHz Band 9.0 5.180~5.240GHz Band 6.8 5.745~5.825GHz Band 5.8 For 2.4GHz Band: Maximum measured transmitter power: 802.11b / port.1 AV Conducted Power (dBm) Max. Antenna Gain (dBi) Max. EIRP (mw) SAR Limitation 3.53 4.0 5.66 10mW Maximum measured transmitter power: 802.11g / port.1 AV Conducted Power (dBm) Max. Antenna Gain (dBi) Max. EIRP (mw) SAR Limitation 4.19 4.0 6.59 10mW Maximum measured transmitter power: 802.11n HT20 / port.1+port.2 AV Conducted Power (dBm) Max. Antenna Gain (dBi) Max. EIRP (mw) SAR Limitation 4.39 4.0 6.90 10mW Maximum measured transmitter power: 802.11n HT40 / port.1+port.2 AV Conducted Power (dBm) Max. Antenna Gain (dBi) Max. EIRP (mw) SAR Limitation 3.53 4.0 5.66 10mW For 5GHz Band (5180-5240MHz): Maximum measured transmitter power: 802.11n HT20 / port.1+port.2 AV Conducted Power (dBm) Max. Antenna Gain (dBi) Max. EIRP (mw) SAR Limitation 3.93 4.0 6.21 7mW Maximum measured transmitter power: 802.11n HT40 / port.1+port.2 AV Conducted Power (dBm) Max. Antenna Gain (dBi) Max. EIRP (mw) SAR Limitation 3.81 4.0 6.04 7mW Maximum measured transmitter power: 802.11a / port.1+port.2 AV Conducted Power (dBm) Max. Antenna Gain (dBi) Max. EIRP (mw) SAR Limitation 3.25 4.0 5.31 7mW SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: W6RRNX-N600UBE Report No.: LCS130122282TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 For 5GHz Band (5745-5825MHz): Maximum measured transmitter power: 802.11n HT20 / port.1+port.2 AV Conducted Power (dBm) Max. Antenna Gain (dBi) Max. EIRP (mw) SAR Limitation 3.41 4.0 5.51 6mW Maximum measured transmitter power: 802.11n HT40 / port.1+port.2 AV Conducted Power (dBm) Max. Antenna Gain (dBi) Max. EIRP (mw) SAR Limitation 3.44 4.0 5.55 6mW Maximum measured transmitter power: 802.11a / port.1 AV Conducted Power (dBm) Max. Antenna Gain (dBi) Max. EIRP (mw) SAR Limitation 3.41 4.0 5.51 6mW 8.3. Test Results Threshold at which no SAR required Maximum Tx Output power for 2.4GHz Band(2.412~2.462GHz) is 6.90mW EIRP. Maximum Tx Output power for 5GHz Band(5.180-5.240GHz) is 6.21mW EIRP. Maximum Tx Output power for 5GHz Band(5.745-5.825GHz) is 5.55mW EIRP. Conclusion: No SAR is required.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: W6RRNX-N600UBE Report No.: LCS130122282TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 99 FCC TEST REPORT For Rosewill Inc. 300Mbps 802.11n/a/b/g Wireless Dual Band USB Adapter Model No.: RNX-N600UBE Prepared for : Rosewill Inc. Address : 17708, Rowland Street, City of Industry, CA, 91748, United States Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1F., Xingyuan Industrial Park, Tongda Road, Bao’an Blvd., Bao’an District, Shenzhen, Guangdong, China Date of receipt of test sample : January 22, 2013 Number of tested samples : 1 Serial number : Prototype Date of Test : January 22, 2013 - February 28, 2013 Date of Report : February 28, 2013 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: W6RRNX-N600UBE Report No.: LCS130122282TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 99 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. .............. : LCS130122282TF Date of Issue ................................ : February 28, 2013 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................ : 1F., Xingyuan Industrial Park, Tongda Road, Bao’an Blvd., Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name....................... : Rosewill Inc. Address ........................................ : 17708, Rowland Street, City of Industry, CA, 91748, United States Test Specification Standard ....................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No................. : LCSEMC-1.0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............... : 300Mbps 802.11n/a/b/g Wireless Dual Band USB Adapter Trade Mark .................................. : Model/ Type reference................. : RNX-N600UBE Ratings ......................................... : DC 5V Result ......................................... : Positive Compiled by: Supervised by: Approved by: Yoyo Wang/ File administrators Vito Cao/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: W6RRNX-N600UBE Report No.: LCS130122282TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 99 FCC -- TEST REPORT Test Result: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS130122282TF February 28, 2013 Date of issue Type / Model........................... : RNX-N600UBE EUT......................................... : 300Mbps 802.11n/a/b/g Wireless Dual Band USB Adapter Applicant............................... : Rosewill Inc. Address.................................. : 17708, Rowland Street, City of Industry, CA, 91748, United States Telephone............................... : / Fax.......................................... : / Manufacturer........................ : ZIONCOM ELECTRONICS (SHENZHEN) LTD. Address................................... : Building A1~A2, Lantian Science Technology Park, Xinyu Road Xinqiao Henggang Block, Shajing Street, Baoan District, Shenzhen City, China Telephone............................... : / Fax.......................................... : / Factory................................... : ZIONCOM ELECTRONICS (SHENZHEN) LTD. Address................................... : Building A1~A2, Lantian Science Technology Park, Xinyu Road Xinqiao Henggang Block, Shajing Street, Baoan District, Shenzhen City, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: W6RRNX-N600UBE Report No.: LCS130122282TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 99 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................................................................5 1.1. DESCRIPTION OF DEVICE (EUT) .....................................................................................................................................5 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS.......................................................................................................6 1.3. EXTERNAL I/O PORT.......................................................................................................................................................6 1.4. DESCRIPTION OF TEST FACILITY.....................................................................................................................................7 1.5. STATEMENT OF THE MEASUREMENT UNCERTAINTY......................................................................................................7 1.6. MEASUREMENT UNCERTAINTY.............................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: W6RRNX-N600UBE Report No.: LCS130122282TF _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emission Measurement（X Position） Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: W6RRNX-N600UBE Report No.: LCS130122282TF _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 1.2. Photo of Power Line Conducted Emission Measurement Fig.1
