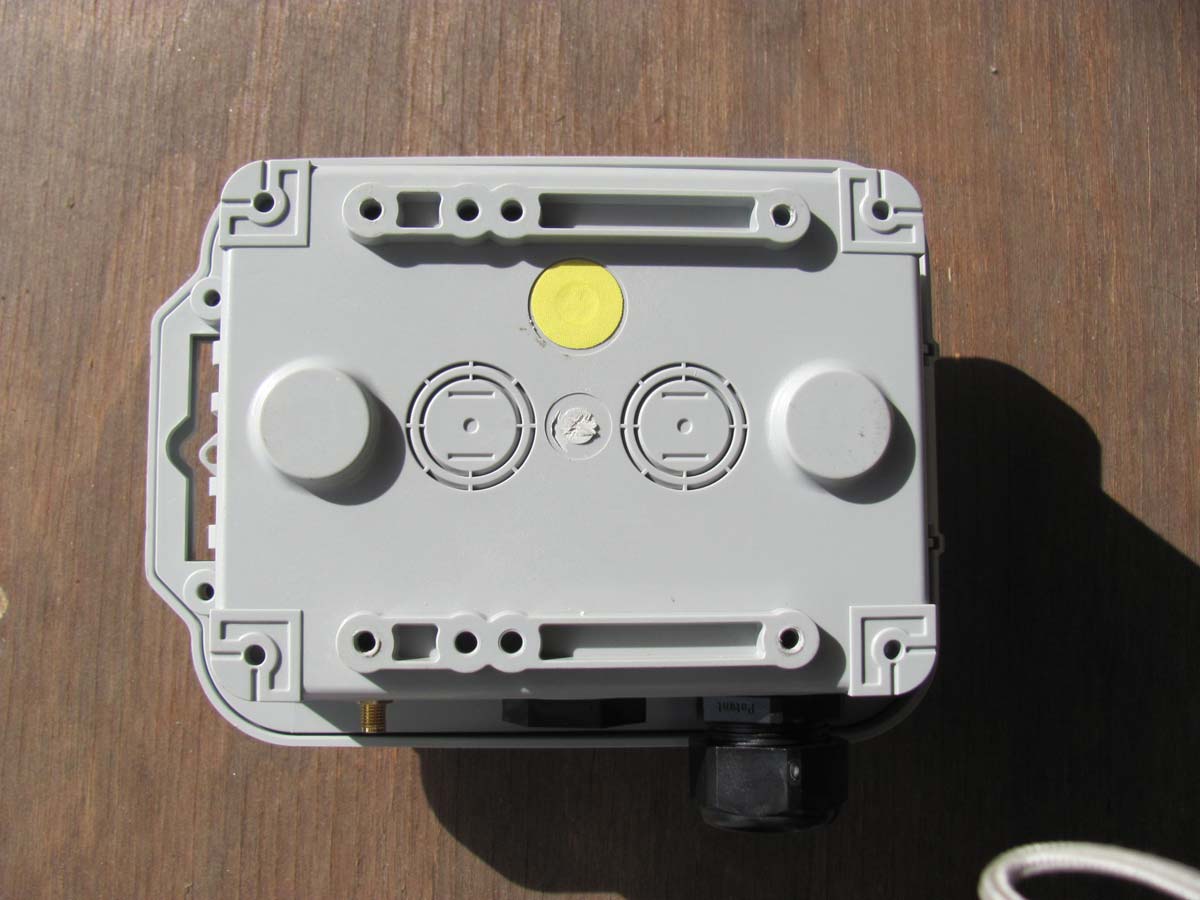

W9B15050802-APivot Scout

Revised: Version 2 Dated: February 1, 2011        PivotScout™ Base Station Installation Guide Only Smartfield ™ trained and certified installers are authorized to install and maintain equipment. Revised: Version 2 Dated: February 1, 2011   Copyright © 2010 Smartfield TM , Inc. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means electronic or mechanical, for any purpose without the express written permission of Smartfield TM , Inc. Information in this document is subject to change without prior notice. Certain names of program products and company names used in this document might be registered trademarks or trademarks owned by other entities. SMARTFIELD, INC. 2601 SE Loop 289, Suite B Lubbock, Texas 79404 http://www.smartfield.com/ For Sales Support: 2601 SE Loop 289, Suite B Lubbock, Texas 79404 877-412-8940 [email protected] For Technical Support: mailto:[email protected] This guide is frequently updated to reflect changes in the product. The latest version can always be found at http://www.smartfield.com/ Instructions to the User This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operations with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user’s authority to operate this equipment. Table of Contents Page Introduction 3 Guidebook Conventions 3 Important Safety Precautions 3 Contents/Tools Needed 3 Installation 4 Warranty 5-6   Revised: Version 2 Dated: February 1, 2011  Introduction Congratulations, you have just purchased the PivotScout ™ , one of the most advanced irrigation management tools available. PivotScout™ PivotScout™ is an add-on device for the SmartCrop® Base Station, which provides information gathered directly from the pivot and sends this information directly to the grower’s home computer. This system measures the GPS coordinates from the pivot to show the Grower the movement of the pivot, as well as, the pressure. In knowing the pressure of the pivot, the Grower would then know if the pivot system was active or not. With the SmartCrop® Base Station reading ambient and canopy temperatures and tracking rain events, the Grower would know whether to turn the pivot off or not. PivotScout™ communicates with the SmartCrop® Base Station to reliably monitor the pivot’s status including location and activity. Guidebook Conventions To highlight the most important points – we have used a set of simple icons, which draw attention to key information and settings. Key:  The Check Icon indicates a setting that we recommend you use or enable.  The Info Icon highlights important facts and information about PivotScout™, to help you make better use of the product.  The Hazard Icon highlights areas where potential problems can arise. Important Safety Precautions   Only Smartfield trained and certified installers are authorized to install and maintain equipment; non-certified installations void equipment warranty.   Important: DO NOT begin installation until all utility lines have been located and marked by your local utility company. Digging without knowing the location of utility lines can result in a damaged system, injury or death.   This manual contains important information about the installation, operation and safe use of this product. This information should be given to the owner and / or operator of this equipment.   Warning: Before installing this product, read and follow all warning notices and instructions, which are included. Failure to follow safety warnings and instructions can result in severe injury or property damage.  CAUTION: To comply with FCC RF exposure compliance requirements, a separation distance of 20 cm must be maintained between the antenna of this device and all persons. CC o n t e n t s One (1) PivotScout™ system One (1) RF Antenna One (1) Pressure switch Two (2) hose clamps OO t h e r M a t e r i a l s N e e d e d ¾ inch pipe 90º elbow with ¼ inch Reducing Bushing HH a r d w a r e K i t Seven (7) ¾ x 2 ¾ bolts Two (2) ¾ x ½ bolts One (1) four arm knob Eight (8) ¾ locknut One (1) spade TT o o l s N e e d e d 5/16 inch nut driver Flathead screwdriver 20-foot extension ladder Crescent Wrench Thread Sealant   Revised: Version 2 Dated: February 1, 2011  I I n s t a l l a t i o n 1. Location a. The PivotScout™ system should be installed on the first open drop location of the second or third Pivot tower. Note: Easiest to locate where installer can see the tower ladder. 2. Installing Pipe a. Remove the Pivot cap b. Install the ¾ inch pipe 90º elbow with ¼ inch reducing bushing into the opening using thread sealant, install bushing to e…

Text truncated - open the document above for the full version.

Correspondence by Project Project Number: Correspondence NumberMemo W9B15050802-A-1 1) The block diagram shows a different frequency than the frequencies tested. Please provide a block diagram with the correct frequency range listed. Response: The block diagram has been revised to show the correct frequency (904 MHz to 926 MHz) 2) The antenna used shows a standard antenna connector that does not meet the requirements of 15.203. Please provide justification for using a standard antenna connector. Response: A cover letter has been uploaded showing the unit will be require professional installation and the steps to ensure that. 3) The user manual does not have the required RF exposure statement. Please provide a new user manual with the appropriate statement. Response: The RF exposure statement is on page 3 of the revised owner's manual. 4) In the RF circuitry, the schematics do not show the value of oscillator X1. Please submit new schematics with this information. Response: The RF circuitry schematics have revised to show the value of X1. 5) Please provide information on the number of channels used for the device. Response: The device is programmed at the factory for a specific frequency. The user can pick the frequency (from a low of 904 MHz to a high of 926 MHz), but then cannot change it once it has been programmed at the factory. In other words, the customer must choose a frequency that is between 904 MHz and 926 MHz.

公话天线 AP Antenna 单号: 型号 Model BBT-Q081805GH 要技术参数 Main Technical Specifications 频率范围 Frequency 824-896/1710-1990MHz 驻波 VSWR ≤2 增益 Gain 5dBi 极化形式 Polarization Type Vertical 最大功率 Rated power 50w 输入阻抗 Input Impedance 50Ω 接口形式 Connector Type SMA male 线型 Cable type LMR200 线长 length 3(m) 天线尺寸 Dimensions Φ50*430(mm) 1355. 513512MHz hp 1: 1. 8245 824 MHz 2: 1. 7967 896 MHz 3：1. 7519 1710 MHz 4：1. 8519 1990 MHz START 824 000 000 MHz STOP 1990 000 000 MHz 1355. 513512 MHz 面 面

车台天线 Car Antenna 单号: 型号 Model TQC-800/1900-3B 主要技术参数 Main Technical Specifications 频率范围 Frequency 824-896/1850-1990MHz 驻波比 VSWR ≤2 增益 Gain 3dBi 极化形式 Polarization Type Vertical 最大功率 Rated power 50w 输入阻抗 Input Impedance 50Ω 接口形式 Connector Type SMA male 天线尺寸 Dimensions Φ28.5X317(mm) 线型 Cable type RG174 线长 length 3(m) 安装方式 Install the way Adsorption 重量 Weight 69g 水平方向图垂直方向图

FCC ID: W9B15050802-A | This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. www.smartfield.com PivotScout 05030801-0002A

MPE Calculations For RF Exposure Requirements Pivot Scout Model: 15020801-A Page 1 of 1 MAXIMUM PERMISSIBLE EXPOSURE FOR SUBPART C 2.4 GHz BAND Calculations Power density at the specific separation: S = PG/(4R 2 π) S = (10.76 * 3.162) / (4 * 20 2 * π) S = 0.006769 mW/cm 2 (at 20 cm) Limit = 1 mW/cm 2 where S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) – 10.32 dBm G = Numeric power gain of the antenna R = distance to the center of the radiation of the antenna (20 cm = limit for MPE) The maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density at 20 cm does not exceed the 1 mW/cm 2 . Therefore, the exposure condition is compliant with FCC rules. The numeric gain (G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain/10) G = Log -1 (5 dBi/10) G = 3.162

Report Number: B01217D3 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Pivot Scout Model: 15020801-A Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 20 FCC PART 15, SUBPART B and C TEST REPORT for PIVOT SCOUT MODEL: 15020801-A Prepared for SMARTFIELD, INC. 2601 SE LOOP 289 LUBBOCK, TEXAS 79404 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ JAMES ROSS COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: DECEMBER 28, 2010 REPORT APPENDICES TOTAL BODY A B C D E PAGES 20 2 2 2 11 43 80 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B01217D3 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Pivot Scout Model: 15020801-A Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 20 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE 6 2. ADMINISTRATIVE DATA 7 2.1 Location of Testing 7 2.2 Traceability Statement 7 2.3 Cognizant Personnel 7 2.4 Date Test Sample was Received 7 2.5 Disposition of the Test Sample 7 2.6 Abbreviations and Acronyms 7 3. APPLICABLE DOCUMENTS 8 4. DESCRIPTION OF TEST CONFIGURATION 9 4.1 Description of Test Configuration - EMI 9 4.1.1 Cable Construction and Termination 10 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 11 5.1 EUT and Accessory List 11 5.2 EMI Test Equipment for Brea Facility 12 6. TEST SITE DESCRIPTION 13 6.1 Test Facility Description 13 6.2 EUT Mounting, Bonding and Grounding 13 7. CHARACTERISTICS OF THE TRANSMITTER 14 7.1 Antenna Gain 14 8. TEST PROCEDURES 15 8.1 RF Emissions 15 8.1.1 Conducted Emissions Test 15 8.1.2 Radiated Emissions (Spurious and Harmonics) Test 16 8.2 6 dB Bandwidth 18 8.3 Peak Output Power 18 8.4 RF Antenna Conducted Test 18 8.5 Spectral Density Output 19 8.6 RF Band Edges 19 9. CONCLUSIONS 20 Report Number: B01217D3 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Pivot Scout Model: 15020801-A Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 20 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated and Conducted Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map and Layout of 3 Meter Radiated Site Report Number: B01217D3 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Pivot Scout Model: 15020801-A Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 20 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST, or any other agency of the U.S. Government. Device Tested: Pivot Scout Model: 15020801-A S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was not modified during the testing. Manufacturer: Smartfield, Inc. 2601 SE Loop 289 Lubbock, Texas 79404 Test Dates: December 8, 10, and 14, 2010 Test Specifications : EMI requirements Limits: CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.207, 15.209, and 15.247 Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. Report Number: B01217D3 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Pivot Scout Model: 15020801-A Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 20 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz – 30 MHz This test was not performed because the EUT operates on battery power only and cannot be plugged into the AC public mains. 2 Spurious Radiated RF Emissions, 10 kHz – 9.3 GHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and CFR Title 47, Part 15, Subpart C, section 15.247(d) Highest reading in relation to spec limit: 34.01 dBuV @ 36.89 MHz (*U = 3.18 dB) 3 Fundamental and Emissions produced by the intentional radiator in non-restricted bands, 10 kHz – 9.3 GHz Complies with the relevant requirements of CFR Title 47, Part 15, Subpart C, section 15.247(d) 4 Emissions produced by the intentional radiator in restricted bands, 10 kHz – 9.3 GHz Complies with the relevant requireme…
