W9B15051102-ASmart Profile

Revised: Version 2 Dated: February 1, 2011 1 SmartProfile Base Station Installation Guide Only Smartfield trained and certified installers are authorized to install and maintain equipment. Revised: Version 2 Dated: February 1, 2011 2 Copyright © 2010 Smartfield TM , Inc. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means electronic or mechanical, for any purpose without the express written permission of Smartfield TM , Inc. Information in this document is subject to change without prior notice. Certain names of program products and company names used in this document might be registered trademarks or trademarks owned by other entities. SMARTFIELD, INC. 2601 SE Loop 289, Suite B Lubbock, Texas 79404 http://www.smartfield.com/ For Sales Support: 2601 SE Loop 289, Suite B Lubbock, Texas 79404 877-412-8940 [email protected] For Technical Support: mailto:[email protected] This guide is frequently updated to reflect changes in the product. The latest version can always be found at http://www.smartfield.com/ Instructions to the User This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operations with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user’s authority to operate this equipment. Table of Contents Page Introduction 3 Guidebook Conventions 3 Important Safety Precautions 3 Contents/Tools Needed 3 Installation 4-5 Warranty 6-7 Revised: Version 2 Dated: February 1, 2011 3 Introduction Congratulations, you have just purchased the SmartProfile Base Station, one of the most advanced irrigation management tools available. SmartProfile Base Station SmartProfile is a remote soil moisture sensing station, which provides information from the grower’s field to their home computer. This system utilizes Watermark sensors to determine a value for soil water suction, which can be used to determine the overall soil moisture content. How does it know? Once SmartProfile is installed; the system is setup on our website (www.cropinsight.com). On the website, the user inputs what crop is planted in their field, the soil type, and sets up limits for all measurement recorded. All measurements from this point will be compared to the limits set by the user and can send alert messages, via email or text messaging, to the user when these limits are exceeded. Guidebook Conventions To highlight the most important points – we have used a set of simple icons, which draw attention to key information and settings. Key: The Check Icon indicates a setting that we recommend you use or enable. The Info Icon highlights important facts and information about SmartProfile Base Station, to help you make better use of the product. The Hazard Icon highlights areas where potential problems can arise. Important Safety Precautions Only Smartfield trained and certified installers are authorized to install and maintain equipment; non-certified installations void equipment warranty. Important: DO NOT begin installation until all utility lines have been located and marked by your local utility company. Digging without knowing the location of utility lines can result in a damaged system, injury or death. This manual contains important information about the installation, operation and safe use of this product. This information should be given to the owner and / or operator of this equipment. Warning: Before installing this product, read and follow all warning notices and instructions, which are included. Failure to follow safety warnings and instructions can result in severe injury or property damage. CAUTION: To comply with FCC RF exposure compliance requirements, a separation distance of 20 cm must be maintained between the antenna of the device and all persons. Contents One (1) SmartProfile box assembly One (1) 6 foot inside pole One (1) 5-watt Solar Panel Assembly with attached power cord One (1) RF Antenna Hardware Kit Three (3) ¾ x 2 ¾ x ¾ inch bolts Two (2) ¾ inch x 1inch Four (4) ¾ inch locknuts One (1) 4 arm knob One (1) spade Tools Needed Two (2) 7/16 inch wrenches ¾ inch open wrench ¾ inch deep socket wrench #2 Phillips screwdriver Dyke pliers T-post driver Post level Drive cap (provided b y Smartfield) GPS Locator Device Small standard screwdriver Revised: Version 2 Dated: February 1, 2011 4 Installation The SmartProfile Base Station box weighs approximately 20 lbs. Please remember to lift with your legs. After opening the box, remove the SmartProfile Base Station and gently set aside. 1. Spade install from sensor and base station documents. 2. Driving post: a. Choose a convenient or user-preferred location for the SmartProfile system. Remember the system must be withi…

Text truncated - open the document above for the full version.

Correspondence by Project Project Number: Correspondence Number Memo W9B15051102-A-1 1) The block diagram shows a different frequency than the frequencies tested. Please provide a block diagram with the correct frequency range listed. Response: The block diagram has been revised to show the correct frequency (904 MHz to 926 MHz) 2) The antenna used shows a standard antenna connector that does not meet the requirements of 15.203. Please provide justification for using a standard antenna connector. Response: A cover letter has been uploaded showing the unit will be require professional installation and the steps to ensure that. 3) The user manual does not have the required RF exposure statement. Please provide a new user manual with the appropriate statement. Response: The RF exposure statement is on page 3. 4) In the RF circuitry, the schematics do not show the value of oscillator X1. Please submit new schematics with this information. Response: The RF circuitry schematics have revised to show the value of X1. 5) Please provide information on the number of channels used for the device. Response: The device is programmed at the factory for a specific frequency. The user can pick the frequency (from a low of 904 MHz to a high of 926 MHz), but then cannot change it once it has been programmed at the factory. In other words, the customer must choose a frequency that is between 904 MHz and 926 MHz. 6) Please show internal photos of the boards installed in the enclosure. Response: The Internal Photos have been revised to also include this photo.

公话天线 AP Antenna 单号: 型号 Model BBT-Q081805GH 要技术参数 Main Technical Specifications 频率范围 Frequency 824-896/1710-1990MHz 驻波 VSWR ≤2 增益 Gain 5dBi 极化形式 Polarization Type Vertical 最大功率 Rated power 50w 输入阻抗 Input Impedance 50Ω 接口形式 Connector Type SMA male 线型 Cable type LMR200 线长 length 3(m) 天线尺寸 Dimensions Φ50*430(mm) 1355. 513512MHz hp 1: 1. 8245 824 MHz 2: 1. 7967 896 MHz 3：1. 7519 1710 MHz 4：1. 8519 1990 MHz START 824 000 000 MHz STOP 1990 000 000 MHz 1355. 513512 MHz 面 面

车台天线 Car Antenna 单号: 型号 Model TQC-800/1900-3B 主要技术参数 Main Technical Specifications 频率范围 Frequency 824-896/1850-1990MHz 驻波比 VSWR ≤2 增益 Gain 3dBi 极化形式 Polarization Type Vertical 最大功率 Rated power 50w 输入阻抗 Input Impedance 50Ω 接口形式 Connector Type SMA male 天线尺寸 Dimensions Φ28.5X317(mm) 线型 Cable type RG174 线长 length 3(m) 安装方式 Install the way Adsorption 重量 Weight 69g 水平方向图垂直方向图

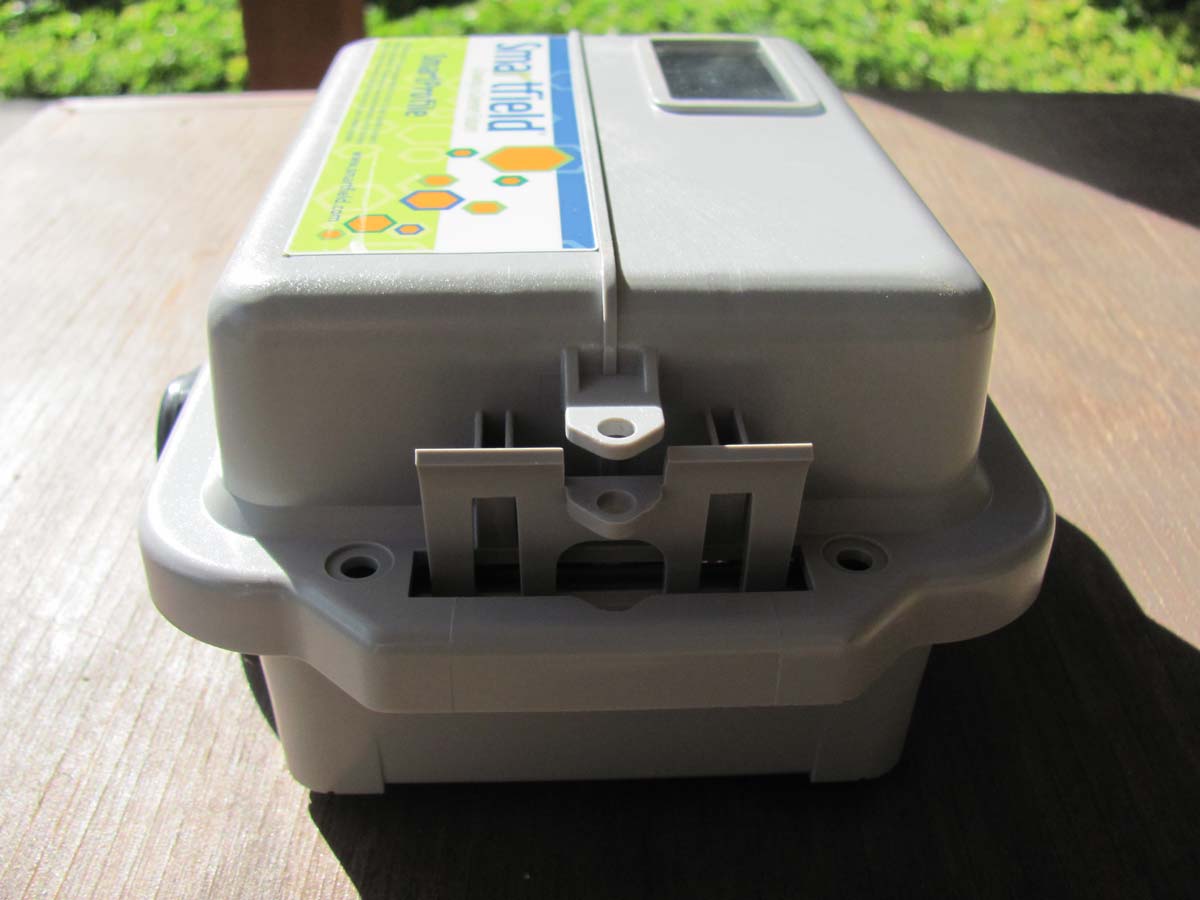

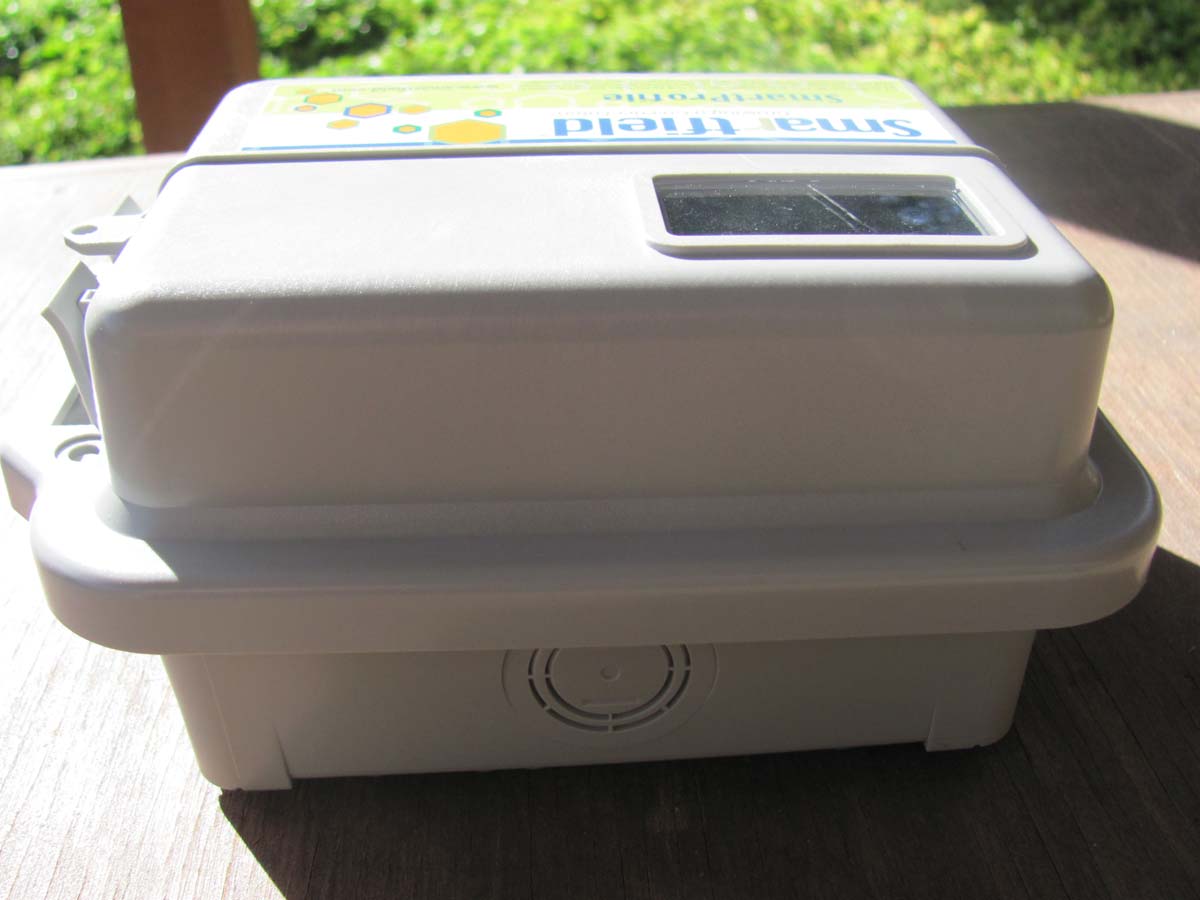

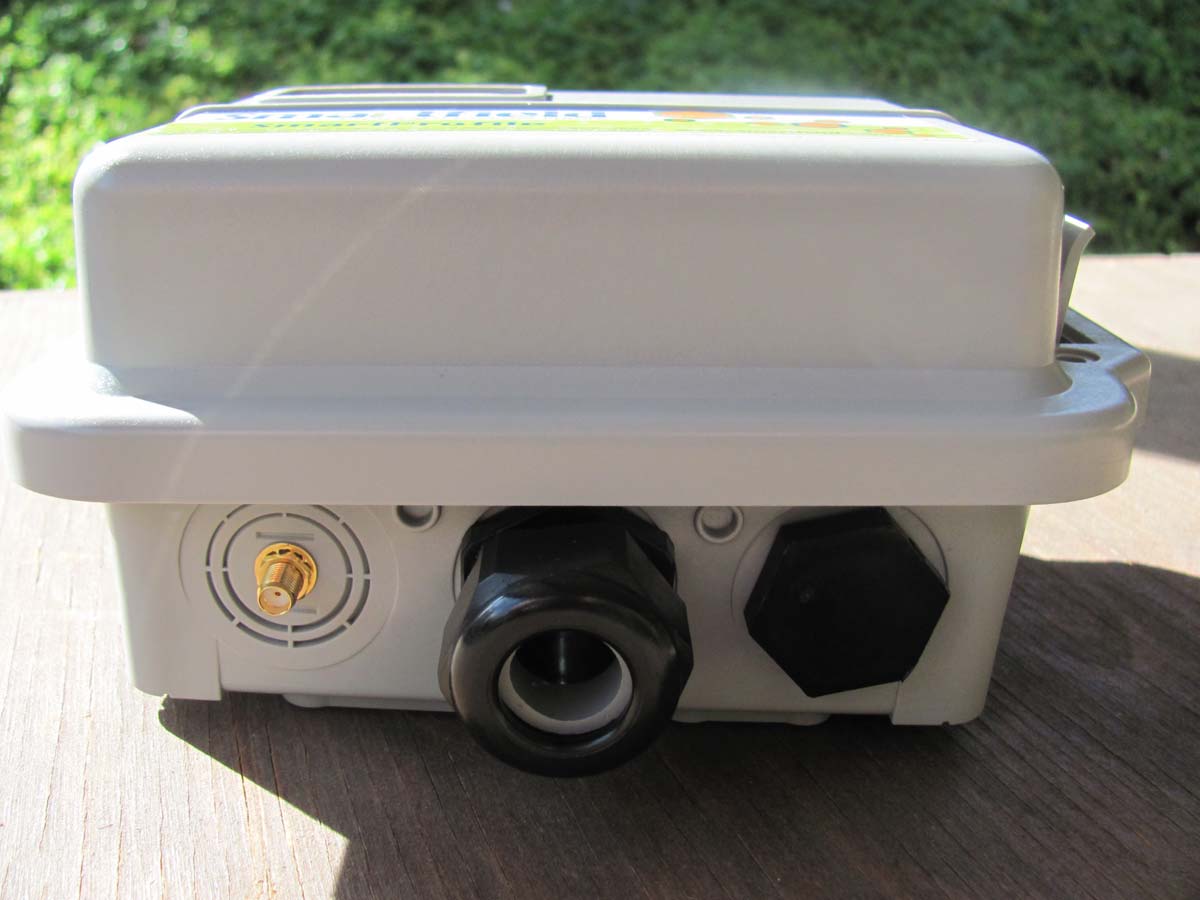

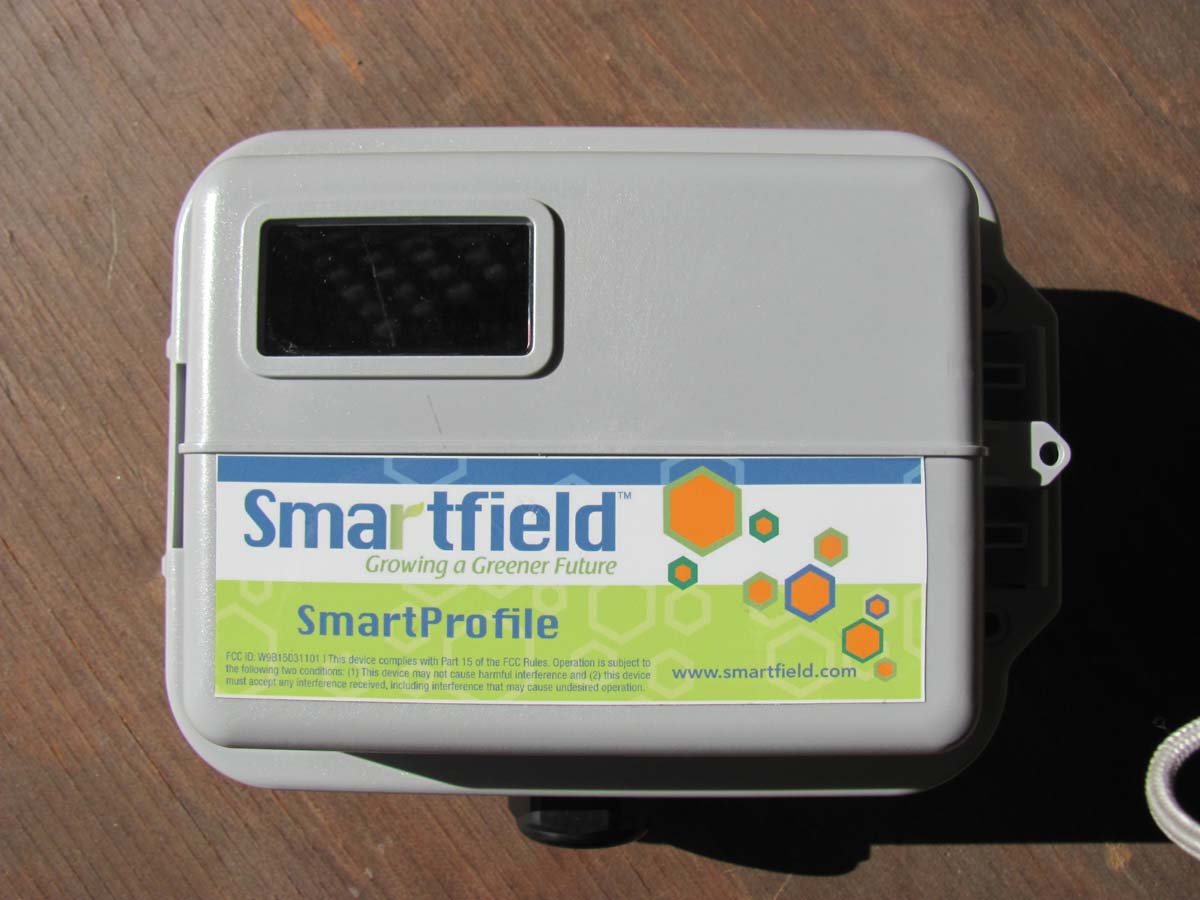

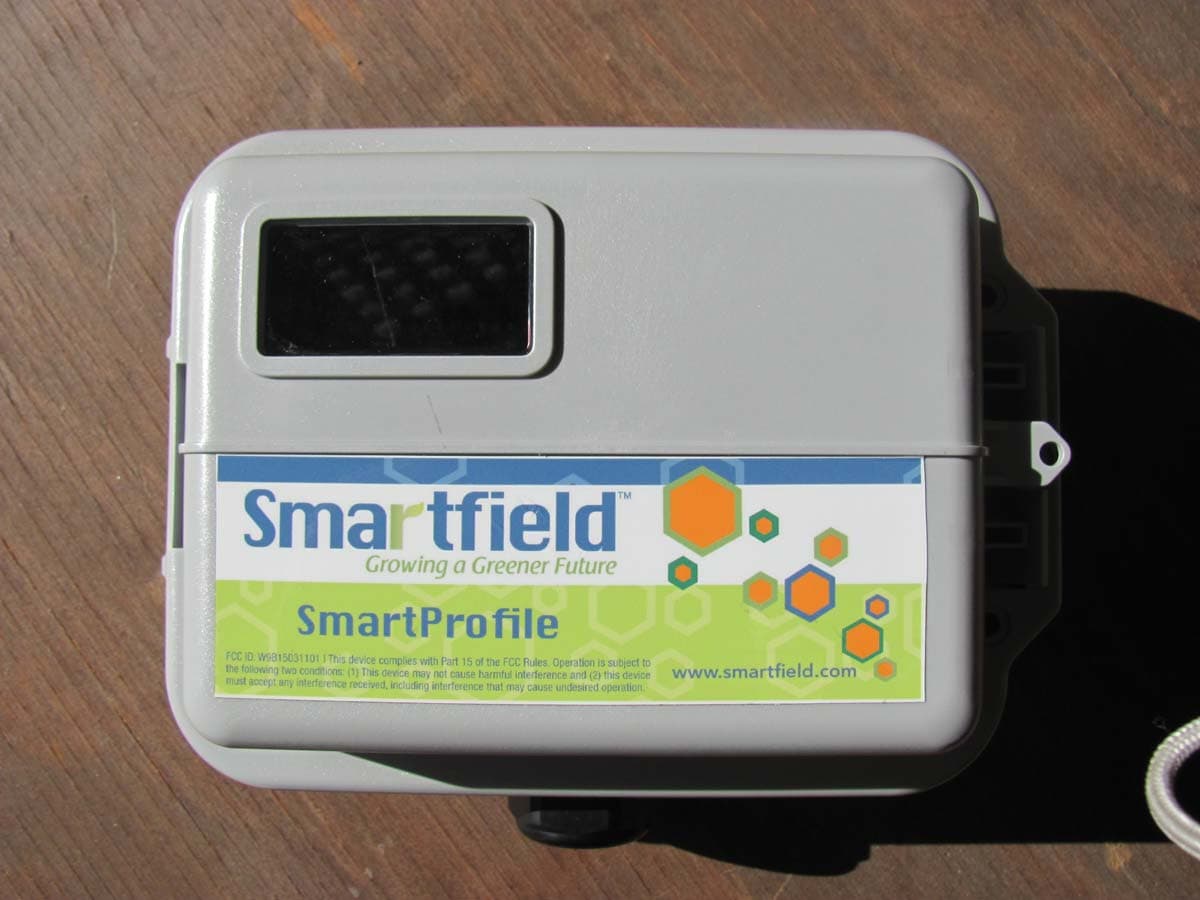

www.smartfield.com SmartProfile ™ FCC ID: W9B15051102-A | This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. 05031101-0002A

MPE Calculations For RF Exposure Requirements Smart Profile Model: 15051102-A Page 1 of 1 MAXIMUM PERMISSIBLE EXPOSURE FOR SUBPART C 2.4 GHz BAND Calculations Power density at the specific separation: S = PG/(4R 2 π) S = (8.974 * 3.162) / (4 * 20 2 * π) S = 0.0056452 mW/cm 2 (at 20 cm) Limit = 1 mW/cm 2 where S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) – 9.53 dBm G = Numeric power gain of the antenna R = distance to the center of the radiation of the antenna (20 cm = limit for MPE) The maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density at 20 cm does not exceed the 1 mW/cm 2 . Therefore, the exposure condition is compliant with FCC rules. The numeric gain (G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain/10) G = Log -1 (5 dBi/10) G = 3.162

Report Number: B01217D4 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Smart Profile Model: 15051102-A Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 21 FCC PART 15, SUBPART B and C TEST REPORT for SMART PROFILE MODEL: 15051102-A Prepared for SMARTFIELD, INC. 2601 SE LOOP 289 LUBBOCK, TEXAS 79404 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ JAMES ROSS COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: DECEMBER 29, 2010 REPORT APPENDICES TOTAL BODY A B C D E PAGES 21 2 2 2 11 43 81 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B01217D4 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Smart Profile Model: 15051102-A Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 21 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE 6 2. ADMINISTRATIVE DATA 7 2.1 Location of Testing 7 2.2 Traceability Statement 7 2.3 Cognizant Personnel 7 2.4 Date Test Sample was Received 7 2.5 Disposition of the Test Sample 7 2.6 Abbreviations and Acronyms 7 3. APPLICABLE DOCUMENTS 8 4. DESCRIPTION OF TEST CONFIGURATION 9 4.1 Description of Test Configuration - EMI 9 4.1.1 Cable Construction and Termination 10 4.1.2 Cable Construction and Termination (Continued) 11 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 12 5.1 EUT and Accessory List 12 5.2 EMI Test Equipment for Brea Facility 13 6. TEST SITE DESCRIPTION 14 6.1 Test Facility Description 14 6.2 EUT Mounting, Bonding and Grounding 14 7. CHARACTERISTICS OF THE TRANSMITTER 15 7.1 Antenna Gain 15 8. TEST PROCEDURES 16 8.1 RF Emissions 16 8.1.1 Conducted Emissions Test 16 8.1.2 Radiated Emissions (Spurious and Harmonics) Test 17 8.2 6 dB Bandwidth 19 8.3 Peak Output Power 19 8.4 RF Antenna Conducted Test 19 8.5 Spectral Density Output 20 8.6 RF Band Edges 20 9. CONCLUSIONS 21 Report Number: B01217D4 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Smart Profile Model: 15051102-A Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 21 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated and Conducted Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map and Layout of 3 Meter Radiated Site Report Number: B01217D4 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Smart Profile Model: 15051102-A Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 21 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST, or any other agency of the U.S. Government. Device Tested: Smart Profile Model: 15051102-A S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was not modified during the testing. Manufacturer: Smartfield, Inc. 2601 SE Loop 289 Lubbock, Texas 79404 Test Dates: December 13, 15, and 17, 2010 Test Specifications : EMI requirements Limits: CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.207, 15.209, and 15.247 Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. Report Number: B01217D4 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Smart Profile Model: 15051102-A Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 21 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz – 30 MHz This test was not performed because the EUT operates on battery power only and cannot be plugged into the AC public mains. 2 Spurious Radiated RF Emissions, 10 kHz – 9.3 GHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and CFR Title 47, Part 15, Subpart C, section 15.247(d) Highest reading in relation to spec limit: 31.19 dBuV @ 49.87 MHz (*U = 3.18 dB) 3 Fundamental and Emissions produced by the intentional radiator in non-restricted bands, 10 kHz – 9.3 GHz Complies with the relevant requirements of CFR Title 47, Part 15, Subpart C, section 15.247(d) 4 Emissions produced by the intentional radiator in …
