W9V-DT235-GPTDD-LTE BAND 41 INDOOR CPE

DT-235 & DT-350 Quick User Guide 1 Device Package One device body One AC/DC adapter Device External Interface Note: USB Port is not functional. Environmental Specification Feature Specs. Operating temperature 0 ~ 40 o C Storage temperature -20~60 o C Operating humidity 0 ~ 95% Storage humidity 0 ~ 95% DT-235 & DT-350 Quick User Guide 2 LED Indication LED Indicators Behavior Description Power & Wi-Fi Status Solid blue While power is supplied to the device. System is booting, or Wi-Fi disabled. Solid purple Wi-Fi is enabled (while the BLUE power LED is always ON; mixing blue & orange red) Blinking purple (and blue) When data is being transmitted via Wi-Fi All 6 LEDs off No power is supplied to the device Mode Indication Blinking blue Scanning, connecting, finalizing LTE connection Solid blue LTE mode (camped on the LTE network). Blinking orange red Searching, connecting, finalizing WiMAX connection Solid orange red WiMAX mode (camped on the WiMAX network). VoIP Activity Solid blue Phone service registered and ready Blinking blue Incoming call / Ringing Solid orange red Off-hook / Busy Blinking orange red New incoming call during conversation Blinking purple Incoming voicemail waiting Off Phone service not registered / disabled LTE / WiMAX Signal Strength Off No signal Solid green LED 1 Signal is weak Solid green LED 1+2 Signal is good Solid green LED 1+2+3 Signal is excellent Getting your Device Ready for Connection Step 1: Insert SIM Card (LTE Mode Only) DT-235 & DT-350 Quick User Guide 3 Before powering on the CPE, please make sure to insert the LTE SIM card provided by your service provider. Note: To insert SIM card, please make sure to follow the direction as below. The medal part of SIM card is facing bottom. Step 2: Power On Connect your CPE to power with the power cord and plug. Then, the LEDs will blink for a few seconds and go off. Step 3: Establish LTE Connection Once powered on, the CPE will automatically connect to your subscribed LTE services. The operation to set up connections takes place. Note: Adjust the location of the LTE CPE for optimized signal reception. You can try several spots in the house for an optimal location. Usually, it is recommended to place the indoor modem near the window, facing toward the base station. DT-235 & DT-350 Quick User Guide 4 Using Web User Interface to Access Device Follow these steps to log in to the web management page: 1. Connect to the device via the LAN cable or WLAN. To connect WLAN, please refer to the SSID and WPA key on the device label, located on the device back. Note: In DT series product package, only one AC/DC power adapter is provided. RJ-45 or RJ- 11 is not included. 2. Configure the computer's IP address so that the IP addresses of the computer and the device are in the same network segment. Note: The device's default IP address is 192.168.15.1, the subnet mask is 255.255.255.0, and the login password is admin. If the device operates in routing mode, it is recommended you automatically obtain the IP address and DNS server address. Open the browser, and enter http://192.168.15.1 in the address box. 3. Enter administrator / administrator as the Username and Password to log in to the web management page. After the login information is verified, the web management page is loaded. Note: The Username and Password to the device may vary depending on your LTE/WiMAX service providers. 4. Once login, the Dashboard will be displayed, and you can have a status overview on device activity. DT-235 & DT-350 Quick User Guide 5 5. On the Dashboard, you can click on each section (Mobile Networks, Network, Wi-Fi, VoIP, Firewall, Management, Monitoring, and About) to see the information or detailed configurations. Below is an example on Firewall section. Note: If you make any change to the settings, make sure to click the Apply button to have the configuration take effect. Reboot System Logout DT-235 & DT-350 Quick User Guide 6 Claim of FCC Regulatory Compliance FCC Regulatory This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Radio Frequency Exposure Compliance This equipment complies with radio frequency (RF) exposure limits adopted by the Federal Communications Commission for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body.

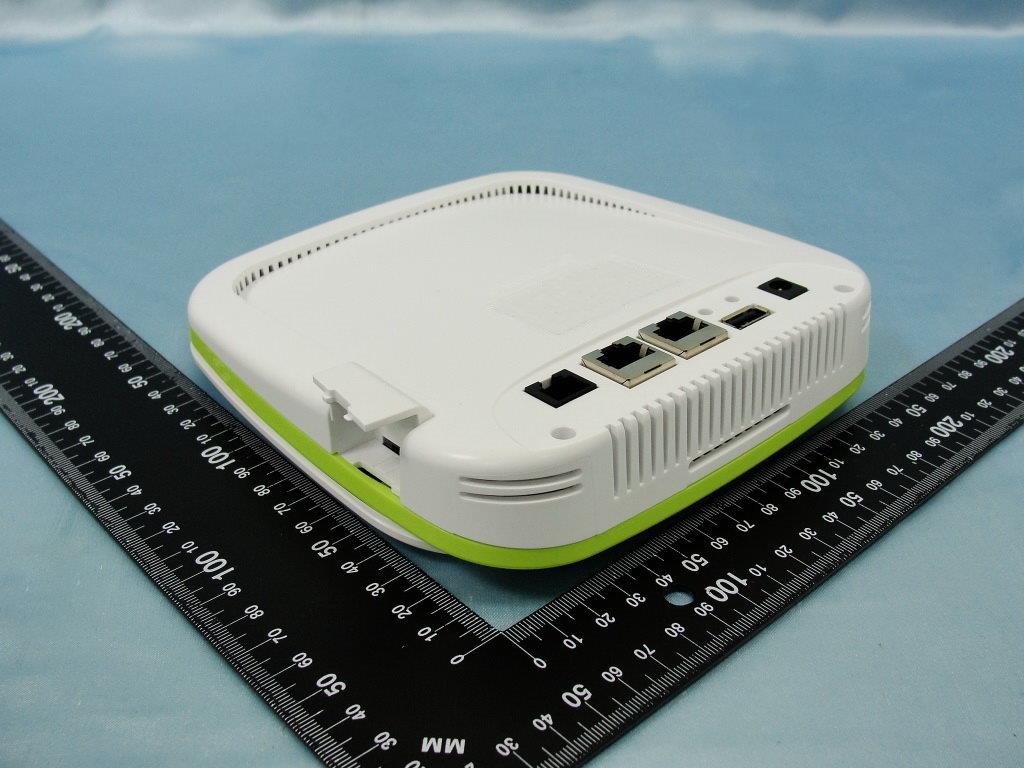

Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 1 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP 1. External Photograph of EUT Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 2 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 3 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP 720510 Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 4 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP Specification of Accessory AC Adapter 1 Brand Name Phihong Model Name PSA18R-120P AC Adapter 2 Brand Name Asian Power Devices Model Name WB-18D12R WWAN Module Brand Name TDD-LTE Band 41 Module Model Name SQTD4041 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 5 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 6 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP AC Adapter 1 Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 7 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP 720510 AC Adapter 2

Back of the EUT Label Location

Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 8 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP 3. Internal Photograph of EUT Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 9 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 10 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 11 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 12 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 13 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 14 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 15 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 16 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 17 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 18 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP LTE Module Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 19 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 20 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 21 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 22 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 23 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 24 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 25 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP LTE Antenna Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 26 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 27 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP WLAN Antenna 1 Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 28 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 29 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP WLAN Antenna 2 Photographs of EUT Report No.: EP412441 Brand Name: Green Packet / Model Name: DT-235 SPORTON INTERNATIONAL INC. Page Number : 30 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 8…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 8 TEL : 886-3-327-3456 Report Issued Date : Apr. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : W9V-DT235-GP RF Exposure Evaluation Report Report No. : FA412441 RF Exposure Evaluation Report APPLICANT : Green Packet Berhad, Taiwan EQUIPMENT : TDD-LTE Band 41 Indoor CPE BRAND NAME : Green Packet MODEL NAME : DT-235 FCC ID : W9V-DT235-GP STANDARD : 47 CFR Part 2.1091 We, SPORTON INTERNATIONAL INC., would like to declare that the device has been evaluated in accordance with 47 CFR Part 2.1091, and pass the limit. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 8 TEL : 886-3-327-3456 Report Issued Date : Apr. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : W9V-DT235-GP RF Exposure Evaluation Report Report No. : FA412441 Table of Contents 1. ADMINISTRATION DATA ........................................................................................................................... 4 1.1. Testing Laboratory ............................................................................................................................. 4 1.2. Applicant ............................................................................................................................................ 4 1.3. Manufacturer ...................................................................................................................................... 4 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 5 3. MAXIMUM RF AVERAGE OUTPUT POWER AMONG PRODUCTION UNITS ........................................ 5 4. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................... 7 5. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ............................................................... 8 5.1. Standalone Power Density Calculations............................................................................................ 8 5.2. Collocated Power Density Calculations ............................................................................................. 8 SPORTON INTERNATIONAL INC. Page Number : 3 of 8 TEL : 886-3-327-3456 Report Issued Date : Apr. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : W9V-DT235-GP RF Exposure Evaluation Report Report No. : FA412441 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA412441 Rev. 01 Initial issue of report Mar. 31, 2014 FA412441 Rev. 02 Revise WLAN Gain. Apr. 07, 2014 SPORTON INTERNATIONAL INC. Page Number : 4 of 8 TEL : 886-3-327-3456 Report Issued Date : Apr. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : W9V-DT235-GP RF Exposure Evaluation Report Report No. : FA412441 1. Administration Data 1.1. Testing Laboratory Test Site SPORTON INTERNATIONAL INC. Test Site Location No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. TEL: +886-3-327-3456 FAX: +886-3-328-4978 1.2. Applicant Company Name Green Packet Berhad, Taiwan Address 6F, No.21, Lane 583, Rueiguang Rd. Neihu District, Taipei City 11492, Taiwan 1.3. Manufacturer Company Name Green Packet Berhad, Taiwan Address 6F, No.21, Lane 583, Rueiguang Rd. Neihu District, Taipei City 11492, Taiwan SPORTON INTERNATIONAL INC. Page Number : 5 of 8 TEL : 886-3-327-3456 Report Issued Date : Apr. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : W9V-DT235-GP RF Exposure Evaluation Report Report No. : FA412441 2. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type TDD-LTE Band 41 Indoor CPE Brand Name Green Packet Model Name DT-235 FCC ID W9V-DT235-GP Wireless Technology and Frequency Range LTE Band 41: 2498.7 MHz ~ 2687.3 MHz WLAN 2.4GHz Band: 2412 MHz ~ 2462 MHz Mode •LTE: QPSK, 16QAM •802.11b/g/n HT20/HT40 Antenna Type WWAN: Omni Antenna WLAN: PCB Antenna HW Version miniPCI e, LTE module: WLTCS-101_V02 main: WLTXFSR-100GN_V00 SW Version 01.01.02.018 EUT Stage Production Unit Remark: The above EUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. 3. Maximum RF average output power among production units LTE Band 41 Average power(dBm) Modulation BW (MHz) RB size Target MPR Power QPSK 20 ≤ 18 0 23.0 QPSK 20 > 18 0 23.0 16QAM 20 ≤ 18 0 23.0 16QAM 20 > 18 0 23.0 QPSK 15 ≤ 16 0 23.0 QPSK 15 > 16 0 23.0 16QAM 15 ≤ 16 0 23.0 16QAM 15 > 16 0 23.0 QPSK 10 ≤ 12 0 23.0 QPSK 10 > 12 0 23.0 16QAM 10 ≤ 12 0 23.0 16QAM 10 > 12 0 23.0 QPSK 5 ≤ 8 0 23.0 QPSK 5 > 8 0 23.0 16QAM 5 ≤ 8 0 23.0 16QAM 5 > 8 0 23.0 Band / Frequency (MHz) IEEE 802.11 Average Power (dBm) Ant 0 Ant 1 Ant 0+1 11b 11g HT20 HT40 11b 11g HT20 HT40 HT20 HT40 2.4GHz Band 2412 13.5 11.5 11.5 13.5 11.5 11 14.5 2422 11.5 10 14 2437 13.5 11.5 11.5 11.5 13.5 11.5 11 11 14.5 14 2452 11.5 9 14 2462 13.5 11.5 11.5 13.5 11.5 11 14.5 SPORTON INTERNATIONAL INC. Page Number : 6 of 8 TEL : 886-3-327-3456 Report Issued Date : Apr. 07, 2014 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : W9V-DT235-GP RF Exposure Evaluation Report Report No. : FA412441 The table below summarized necessary items addressed in KDB 941225 D05 v02. FCC ID W9V-DT235-GP EUT TDD-LTE Band 41 Indoor CPE Operating Frequency Range of each LTE transmission band LTE Band 41: 2498.7 MHz ~ 2687.3 MHz Channel Bandwidth LTE Band 41: 5MHz, 10MHz, 15MHz, 20MHz Transmission (H, M, L) channel numbers and frequencies in each LTE band LTE Band 41 Bandwidth 5 MHz Bandwidth 10 MHz Bandwidth 15 MHz Bandwidth 20 MHz Ch. # Freq. (MHz) Ch. # Freq. (MHz) Ch. # Freq. (MHz) Ch. # Freq. (MHz) L 39677 249…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 77 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP Report Template No.: BU5-FR15CWL Version 1.0 FCC RF Test Report Report No. : FR412441 FCC RF Test Report APPLICANT : Green Packet Berhad, Taiwan EQUIPMENT : TDD-LTE Band 41 Indoor CPE BRAND NAME : Green Packet MODEL NAME : DT-235 FCC ID : W9V-DT235-GP STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : (DTS) Digital Transmission System The product was received on Jan. 24, 2014 and testing was completed on Feb. 21, 2014. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown to be compliant with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Joseph Lin / Supervisor Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 77 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP Report Template No.: BU5-FR15CWL Version 1.0 FCC RF Test Report Report No. : FR412441 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Product Specification of Equipment Under Test ................................................................................ 6 1.5 Modification of EUT ........................................................................................................................... 6 1.6 Testing Site ........................................................................................................................................ 7 1.7 Applied Standards ............................................................................................................................. 7 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 2.1 Carrier Frequency and Channel ........................................................................................................ 8 2.2 Pre-Scanned RF Power ..................................................................................................................... 9 2.3 Test Mode ........................................................................................................................................ 11 2.4 Connection Diagram of Test System ............................................................................................... 12 2.5 Support Unit used in test configuration and system ........................................................................ 13 2.6 EUT Operation Test Setup .............................................................................................................. 13 2.7 Measurement Results Explanation Example ................................................................................... 13 3 TEST RESULT ........................................................................................................................................... 14 3.1 6dB Bandwidth Measurement ......................................................................................................... 14 3.2 Peak Output Power Measurement .................................................................................................. 17 3.3 Power Spectral Density Measurement ............................................................................................ 20 3.4 Conducted Band Edges and Spurious Emission Measurement ..................................................... 23 3.5 Radiated Band Edges and Spurious Emission Measurement ........................................................ 48 3.6 AC Conducted Emission Measurement........................................................................................... 70 3.7 Antenna Requirements .................................................................................................................... 74 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 76 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 77 APPENDIX A. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL INC. Page Number : 3 of 77 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP Report Template No.: BU5-FR15CWL Version 1.0 FCC RF Test Report Report No. : FR412441 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FR412441 Rev. 01 Initial issue of report Mar. 28, 2014 SPORTON INTERNATIONAL INC. Page Number : 4 of 77 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP Report Te…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : A1 of A2 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP FCC RF Test Report Report No. : FR412441 Appendix A. Setup Photographs <Conducted Emission> SPORTON INTERNATIONAL INC. Page Number : A2 of A2 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-DT235-GP FCC RF Test Report Report No. : FR412441 <Radiated Emission> Z Plane LF HF
