W9V-MF250-GPPortable WiMAX WiFi Router

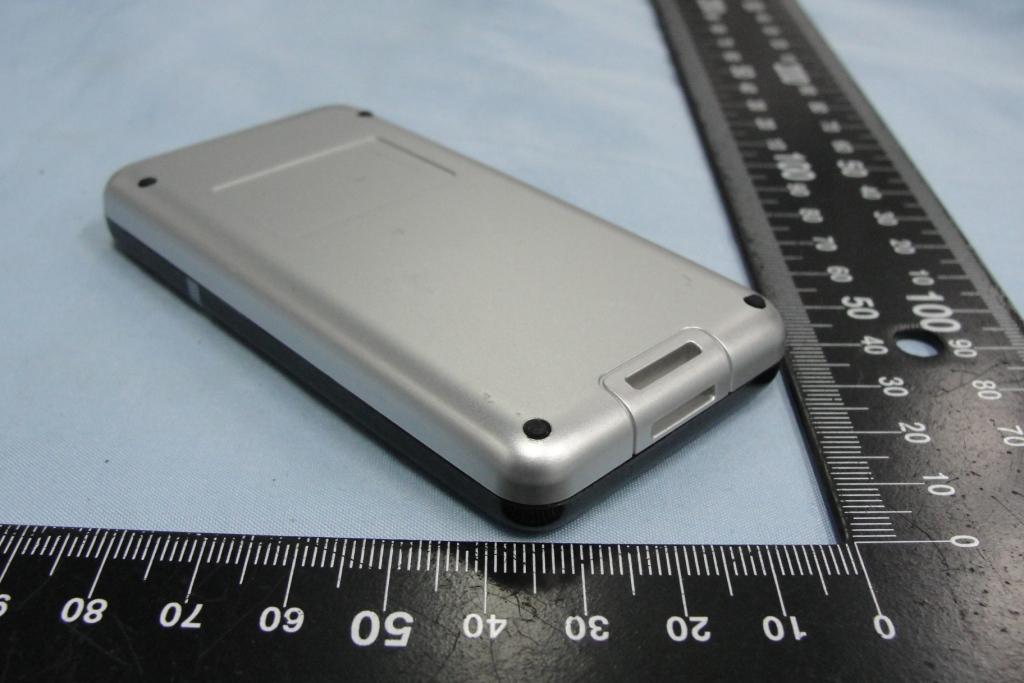

Photographs of EUT Report No.: EP0O0616 Brand Name: Green Packet / Model Name: MF-250 SPORTON INTERNATIONAL INC. Page Number : 1 of 7 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 1. External Photograph of EUT Photographs of EUT Report No.: EP0O0616 Brand Name: Green Packet / Model Name: MF-250 SPORTON INTERNATIONAL INC. Page Number : 2 of 7 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 720510

Label Location FCC ID:W9V-MF250-GP Rear side of EUT FCC Label

Photographs of EUT Report No.: EP0O0616 Brand Name: Green Packet / Model Name: MF-250 SPORTON INTERNATIONAL INC. Page Number : 3 of 7 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 2. Internal Photograph of EUT Photographs of EUT Report No.: EP0O0616 Brand Name: Green Packet / Model Name: MF-250 SPORTON INTERNATIONAL INC. Page Number : 4 of 7 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 Photographs of EUT Report No.: EP0O0616 Brand Name: Green Packet / Model Name: MF-250 SPORTON INTERNATIONAL INC. Page Number : 5 of 7 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 WLAN Antenna Photographs of EUT Report No.: EP0O0616 Brand Name: Green Packet / Model Name: MF-250 SPORTON INTERNATIONAL INC. Page Number : 6 of 7 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 WiMAX Main Antenna Photographs of EUT Report No.: EP0O0616 Brand Name: Green Packet / Model Name: MF-250 SPORTON INTERNATIONAL INC. Page Number : 7 of 7 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 720510 WiMAX Aux. Antenna

SPORTON INTERNATIONAL INC. Page Number : 1 of 30 TEL : 886-3-327-3456 Report Issued Date : Feb. 01, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-MF250-GP FCC SAR Test Report Report No. : FA0O0616A FCC SAR Test Report APPLICANT : Green Packet Berhad, Taiwan EQUIPMENT : Portable WiMAX WiFi Router BRAND NAME : Green Packet MODEL NAME : MF-250 FCC ID : W9V-MF250-GP STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Oct. 06, 2010 and completely tested on Nov. 22, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 30 TEL : 886-3-327-3456 Report Issued Date : Feb. 01, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-MF250-GP FCC SAR Test Report Report No. : FA0O0616A Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 6 3.3 Applied Standards ............................................................................................................................................ 6 3.4 Device Category and SAR Limits ..................................................................................................................... 6 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 8 4.1 Introduction ....................................................................................................................................................... 8 4.2 SAR Definition .................................................................................................................................................. 8 5. SAR Measurement System ........................................................................................................................................ 9 5.1 E-Field Probe...................................................................................................................................................10 5.1.1 E-Field Probe Specification ...................................................................................................................10 5.1.2 E-Field Probe Calibration ....................................................................................................................... 11 5.2 Data Acquisition Electronics (DAE) .................................................................................................................. 11 5.3 Robot ............................................................................................................................................................... 11 5.4 Measurement Server .......................................................................................................................................12 5.5 Phantom ..........................................................................................................................................................13 5.6 Device Holder ..................................................................................................................................................14 5.7 Data Storage and Evaluation ...........................................................................................................................16 5.7.1 Data Storage ..…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/11/22 System Check_Body_2450MHz_101122 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_101122 Medium parameters used: f = 2450 MHz; σ = 1.96 mho/m; ε r = 51.5; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.3 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.03, 4.03, 4.03); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2010/8/18 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 5.83 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.8 V/m; Power Drift = 0.013 dB (0.3%) Peak SAR (extrapolated) = 12.1 W/kg SAR(1 g) = 5.12 mW/g; SAR(10 g) = 2.35 mW/g Maximum value of SAR (measured) = 5.68 mW/g 0 dB = 5.68mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/11/22 #34 802.11b_Front Face_1cm_Ch6 DUT: 0O0616 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1.37 Medium: MSL_2450_101122 Medium parameters used: f = 2437 MHz; σ = 1.95 mho/m; ε r = 51.6; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.3 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.03, 4.03, 4.03); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2010/8/18 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch6/Area Scan (41x61x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.165 mW/g Ch6/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.16 V/m; Power Drift = -0.177 dB (-4.0%) Peak SAR (extrapolated) = 0.334 W/kg SAR(1 g) = 0.144 mW/g; SAR(10 g) = 0.074 mW/g Maximum value of SAR (measured) = 0.151 mW/g 0 dB = 0.151mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/11/22 #34 802.11b_Front Face_1cm_Ch6_2D DUT: 0O0616 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1.37 Medium: MSL_2450_101122 Medium parameters used: f = 2437 MHz; σ = 1.95 mho/m; ε r = 51.6; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.3 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.03, 4.03, 4.03); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2010/8/18 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch6/Area Scan (41x61x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.165 mW/g Ch6/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.16 V/m; Power Drift = -0.177 dB (-4.0%) Peak SAR (extrapolated) = 0.334 W/kg SAR(1 g) = 0.144 mW/g; SAR(10 g) = 0.074 mW/g Maximum value of SAR (measured) = 0.151 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/11/22 #35 802.11b_Rear Face_1cm_Ch6 DUT: 0O0616 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1.37 Medium: MSL_2450_101122 Medium parameters used: f = 2437 MHz; σ = 1.95 mho/m; ε r = 51.6; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.3 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.03, 4.03, 4.03); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2010/8/18 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch6/Area Scan (41x61x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.112 mW/g Ch6/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.77 V/m; Power Drift = 0.166 dB (3.9%) Peak SAR (extrapolated) = 0.223 W/kg SAR(1 g) = 0.083 mW/g; SAR(10 g) = 0.047 mW/g Maximum value of SAR (measured) = 0.089 mW/g 0 dB = 0.089mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/11/22 #37 802.11b_Left Side_1cm_Ch6 DUT: 0O0616 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1.37 Medium: MSL_2450_101122 Medium parameters used: f = 2437 MHz; σ = 1.95 mho/m; ε r = 51.6; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.3 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.03, 4.03, 4.03); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2010/8/18 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch6/Area Scan (31x61x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.076 mW/g Ch6/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.32 V/m; Power Drift = 0.112 dB (2.6%) Peak SAR (extrapolated) = 0.172 W/kg SAR(1 g) = 0.076 mW/g; SAR(10 g) = 0.039 mW/g Maximum value of SAR (measured) = 0.083 mW/g 0 dB = 0.083mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/11/22 #39 802.11b_Bottom Side_1cm_Ch6 DUT: 0O0616 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1.37 Medium: MSL_2450_101122 Medium parameters used: f = 2437 MHz; σ = 1.95 mho/m; ε r = 51.6; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.3 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.03, 4.03, 4.03); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2010/8/18 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch6/Area Scan (41x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.142 mW/g Ch6/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.65 V/m; Power Drift = -0.027 dB (-0.6%) Peak SAR (extrapolated) = 0.300 W/kg SAR(1 g) = 0.132 mW/g; SAR(10 g) = 0.067 mW/g Maximum value of SAR (measured) = 0.137 mW/g 0 dB = 0.137mW/g

SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY Dipole Verification Model / SN : D2450V2 / 736 Verification Date : Dec. 01, 2010 Antenna Parameters with Head TSL Impedance, Transformed to Feed Point 46.51Ω - 3.06jΩ (50±5Ω) Return Loss -25.97 dB (<= -20 dB) SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY Antenna Parameters with Body TSL Impedance, Transformed to Feed Point 51.39Ω - 3.72jΩ (50±5Ω) Return Loss -28.15 dB (<= -20 dB) SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY

SPORTON INTERNATIONAL INC. Page Number : 1 of 57 TEL : 886-3-327-3456 Report Issued Date : Feb. 01, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-MF250-GP FCC RF Test Report Report No. : FR0O0616 FCC RF Test Report APPLICANT : Green Packet Berhad, Taiwan EQUIPMENT : Portable WiMAX WiFi Router BRAND NAME : Green Packet MODEL NAME : MF-250 FCC ID : W9V-MF250-GP STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : Digital Transmission System (DTS) The product was received on Oct. 06, 2010 and completely tested on Nov. 24, 2010 . We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.4-2003 and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Anderson Chiu / Deputy Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 57 TEL : 886-3-327-3456 Report Issued Date : Feb. 01, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-MF250-GP FCC RF Test Report Report No. : FR0O0616 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Testing Site ........................................................................................................................................ 6 1.5 Applied Standards ............................................................................................................................. 6 1.6 Ancillary Equipment List .................................................................................................................... 6 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1 RF Power ........................................................................................................................................... 7 2.2 Test Mode .......................................................................................................................................... 8 2.3 Connection Diagram of Test System ................................................................................................. 9 2.4 RF Utility ............................................................................................................................................ 9 3 TEST RESULT ........................................................................................................................................... 10 3.1 6dB Bandwidth Measurement ......................................................................................................... 10 3.2 Output Power Measurement ............................................................................................................ 15 3.3 Band Edges Measurement .............................................................................................................. 17 3.4 Spurious Emission Measurement .................................................................................................... 23 3.5 Power Spectral Density Measurement ............................................................................................ 30 3.6 AC Conducted Emission Measurement........................................................................................... 35 3.7 Radiated Emission Measurement .................................................................................................... 39 3.8 Antenna Requirements .................................................................................................................... 54 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 55 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 56 APPENDIX A. PHOTOGRAPHS OF EUT APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL INC. Page Number : 3 of 57 TEL : 886-3-327-3456 Report Issued Date : Feb. 01, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-MF250-GP FCC RF Test Report Report No. : FR0O0616 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FR0O0616 Rev. 01 Initial issue of report Feb. 01, 2011 SPORTON INTERNATIONAL INC. Page Number : 4 of 57 TEL : 886-3-327-3456 Report Issued Date : Feb. 01, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-MF250-GP FCC RF Test Report Report No. : FR0O0616 SUMMARY OF TEST RESULT Report Section FCC Rule IC Rule Description Limit Result Remark 3.1 15.247(a)(2) A8.2(a) 6dB Bandwidth ≥ 0.5MHz Pass - 3.2 15.247(b) A8.4 Power Output ≤ 30dBm Pass - 3.3 15.247(d) A8.5 Frequency Band Edges ≤ 20dBc Pass - 3.4 15.247(d) A8.5 Spurious Emission < 20 dBc Pass - 3.5 15.247(e) A8.2(b) Power Spectral Density ≤ 8dBm Pass - 3.6 15.207 Gen 7.2.2 AC Conducted Emission 15…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : D1 of D1 TEL : 886-3-327-3456 Report Issued Date : Feb. 01, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-MF250-GP FCC SAR Test Report Report No. : FA0O0616A Appendix D. Product Photos Antenna Location and Separation Distance The separation distance for WLAN Ant to WiMAX Main Ant is 8.3 cm. The separation distance for WLAN Ant to WiMAX Aux Ant is 5.0 cm. WLAN Ant (Tx/Rx) WiMAX Aux Ant (Tx/Rx) WiMAX Main Ant (Tx/Rx) 5 cm 8.3 cm SPORTON INTERNATIONAL INC. Page Number : E1 of E1 TEL : 886-3-327-3456 Report Issued Date : Feb. 01, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-MF250-GP FCC SAR Test Report Report No. : FA0O0616A Appendix E. Test Setup Photos Front Face of the DUT with Phantom 1.0 cm Gap Rear Face of the DUT with Phantom 1.0 cm Gap Left Side of the DUT with Phantom 1.0 cm Gap Bottom Side of the DUT with Phantom 1.0 cm Gap

SPORTON INTERNATIONAL INC. Page Number : B1 of B2 TEL : 886-3-327-3456 Report Issued Date : Feb. 01, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-MF250-GP FCC RF Test Report Report No. : FR0O0616 Appendix B. Setup Photographs <Conducted Emission> SPORTON INTERNATIONAL INC. Page Number : B2 of B2 TEL : 886-3-327-3456 Report Issued Date : Feb. 01, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-MF250-GP FCC RF Test Report Report No. : FR0O0616 <Radiated Emission>

SPORTON INTERNATIONAL INC. Page Number : 1 of 57 TEL : 886-3-327-3456 Report Issued Date : Feb. 01, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-MF250-GP FCC RF Test Report Report No. : FR0O0616 FCC RF Test Report APPLICANT : Green Packet Berhad, Taiwan EQUIPMENT : Portable WiMAX WiFi Router BRAND NAME : Green Packet MODEL NAME : MF-250 FCC ID : W9V-MF250-GP STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : Digital Transmission System (DTS) The product was received on Oct. 06, 2010 and completely tested on Nov. 24, 2010 . We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.4-2003 and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Anderson Chiu / Deputy Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 57 TEL : 886-3-327-3456 Report Issued Date : Feb. 01, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-MF250-GP FCC RF Test Report Report No. : FR0O0616 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Testing Site ........................................................................................................................................ 6 1.5 Applied Standards ............................................................................................................................. 6 1.6 Ancillary Equipment List .................................................................................................................... 6 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1 RF Power ........................................................................................................................................... 7 2.2 Test Mode .......................................................................................................................................... 8 2.3 Connection Diagram of Test System ................................................................................................. 9 2.4 RF Utility ............................................................................................................................................ 9 3 TEST RESULT ........................................................................................................................................... 10 3.1 6dB Bandwidth Measurement ......................................................................................................... 10 3.2 Output Power Measurement ............................................................................................................ 15 3.3 Band Edges Measurement .............................................................................................................. 17 3.4 Spurious Emission Measurement .................................................................................................... 23 3.5 Power Spectral Density Measurement ............................................................................................ 30 3.6 AC Conducted Emission Measurement........................................................................................... 35 3.7 Radiated Emission Measurement .................................................................................................... 39 3.8 Antenna Requirements .................................................................................................................... 54 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 55 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 56 APPENDIX A. PHOTOGRAPHS OF EUT APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL INC. Page Number : 3 of 57 TEL : 886-3-327-3456 Report Issued Date : Feb. 01, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-MF250-GP FCC RF Test Report Report No. : FR0O0616 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FR0O0616 Rev. 01 Initial issue of report Feb. 01, 2011 SPORTON INTERNATIONAL INC. Page Number : 4 of 57 TEL : 886-3-327-3456 Report Issued Date : Feb. 01, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-MF250-GP FCC RF Test Report Report No. : FR0O0616 SUMMARY OF TEST RESULT Report Section FCC Rule IC Rule Description Limit Result Remark 3.1 15.247(a)(2) A8.2(a) 6dB Bandwidth ≥ 0.5MHz Pass - 3.2 15.247(b) A8.4 Power Output ≤ 30dBm Pass - 3.3 15.247(d) A8.5 Frequency Band Edges ≤ 20dBc Pass - 3.4 15.247(d) A8.5 Spurious Emission < 20 dBc Pass - 3.5 15.247(e) A8.2(b) Power Spectral Density ≤ 8dBm Pass - 3.6 15.207 Gen 7.2.2 AC Conducted Emission 15…

Text truncated - open the document above for the full version.
