W9V-UT235-GPWiMAX USB Modem

XXX.XXXXX.XXX Notice: 1) Please consult local service providers or operators for extra front panel availability. 2) With the nature of being fragile, please handle the front panel with caution. Flip out the USB connector and insert your USB dongle into the computer via the USB port as shown above. Flip out USB Connector Software Installation Software Upgrade Device Safety Notice Troubleshooting Device Indication LED Status Description The device has a two-color LED, on the front side, to indicating the operating status of the device. The LED indicator helps to determine the power status, connectivity, and operations of the device. - Power ON - Detecting signal/whether the device is out of WiMAX service coverage - WiMAX detected - Connected to WiMAX / Transmitting or receiving data Red / On Red / Blinking Blue / On Blue / Blinking Once the device is connected to the laptop /PC, the Auto-Installation program will start running. If users are operating on Windows 7, please select the “Run SetupLoader.exe” to proceed when being prompted with the AutoPlay dialog box. If your WiMAX Connection Manager does launched automatically, go to Start > AII Programs > WiMAX Connection Manager > WiMAX or double-click the WiMAX Connection Manager icon on the desktop. If the WCM has been minimized to the system tray, click on the icon to restore it. Step 1 Step 1 When seeing the Software License Agreement, please select “I accept the terms in the license agreement.” Then, click “Next” to continue. Select the setup type you need and click “Next” to begin installation. From the “Menu,” select “Check for Updates.” Click “Yes,” and then click “Next” to start software updating. WiMAX Connection Manager User Interface 1. Connect / Disconnect 2. Click the Menu to display the WCM functions 3. Setting: Click this option to see configurations 4. About: Click this option to see the information on WCM information. 5. Check for Updates: Click this option to check for software update. 6. Signal strength indicator Notice: If the WiMAX reception signal is weak, adjust the device to another direction or move closer to the window for enhanced reception. - The operating temperature is 0°C~40°C; do not store the device in extremely high or cold temperature. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics parts. When the device has been warmed up to its normal temperature from code temperatures, moisture can form insides the devices and damage electronic circuit boards. - Always keep the device dry. Precipitation, humidity, and all types of liquids or moisture contain the minerals that corrode electronic circuits. - The device and any of its accessories should be kept away from children. - Do not use or store the device in dusty, dirty areas. Its moving parts and electronic components can be damaged. - Do not attempt to open the device other than as instructed in this guide. - Do not drop, knock, or shake the device. Rough handing can break internal circuit boards and fine mechanics. - Do not use any chemicals, cleaning solvents, or strong detergents to clean the device. Only use soft, clean and dry cloth to clean the device surface. - Be sure to update the device software at regular basis for optimized performance. installation file at ''WiMAX CD" from "My Computer." Double-click the file to proceed with the installation process. Q4: Unable to connect to the WiMAX network or Internet with the device being securely connected to the laptop/PC. - Check the signal strength to make sure it is still within the WiMAX service coverage. Also, ensure the Intouch Connection Manager is properly started. If the problem still persists, please contact local distributors or service operators. Q1: LED does not light up when the device is connected to the Laptop/PC. - Check the USB port to make sure the USB dongle is securely connected to the laptop. Or, use another USB port and try again. Q2: LED does not blink when the device is connected to the Intouch Connection Manager. - When the device is connected to the laptop/PC for the first time, the Intouch Connection Manager will be installed. By then, the LED should blink in RED; if not, please contact local distributors or service operators. Q3: Auto-installation does not work when the device is connected to the laptop/PC for the first time. - Make sure the auto-run feature is not disabled from the laptop/PC. Alternatively, locate the WiMAX Notice: Green Packet will be launching over-the-air device software service in near future. Please consult local distributors or service operators or visit Green Packet website frequently to receive the update-to-date information. Step 2 Step 2 Step 3 When “Setup-My Program” dialogue is displayed, users may choose a different to install the software upgrade. Otherwise, the default directory will be used. Then, click “Next” to proceed. Users can click “Finish” when “Completing My Program Setup Wizard” is displayed. Step 3 Step 4 5 1 3 4 5 2 6 It may take a few of minutes to the installation process to complete. When the installation wizard is displayed indicating the installation has successfully completed, select “Finish” to complete. Now, a WCM icon will be displayed on the desktop. Users can double click the icon to get started. Notice: The Auto-Connect option is enabled by default; users are able to connect to the Internet automatically when the system starts. Step 4 Step 5 Step 6 How to Change the Front Panel Step 1 With the USB connector flipped out, remove the front panel from Spot 2. Step 2 Place another front panel at Spot 1, and gently press the panel until the click is heard. Step 3 Make sure the front panel is tightly fastened onto the device body before proceeding. 1 2 Declaration of Conformity We, Green Packet Berhad, Taiwan, Address: 6F., No. 21, Lane 583, Rueiguang Rd., Neihu District, Taipei City, Taiwan (R.O.C.) Declare under our own responsibility that the product: Model: UT-35…

Text truncated - open the document above for the full version.

Green Packet Berhad, Taiwan 6F, NO.21, LANE 583 RUEIGUANG RD, NEIHU DISTRICT, Taipei City, 11492, Taiwan Tel: +886 2 2627 1355 ; Fax: +886 2 2627 2553 Date: July 26, 2011 Power of Attorney To whom it may concern, Please be notified that I, James Wang, have designated Jones Tsai in Sporton International Inc. and Frank Hsu in Green Packet Berhad, Taiwan as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. and Frank Hsu in Green Packet Berhad, Taiwan on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: W9V-UT235-GP If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, 王彰顯 James Wang Contact Person: Frank Hsu Company: Green Packet Berhad, Taiwan TEL: +886 2 2627 1355 FAX: +886 2 2627 2553 E-mail: [email protected]

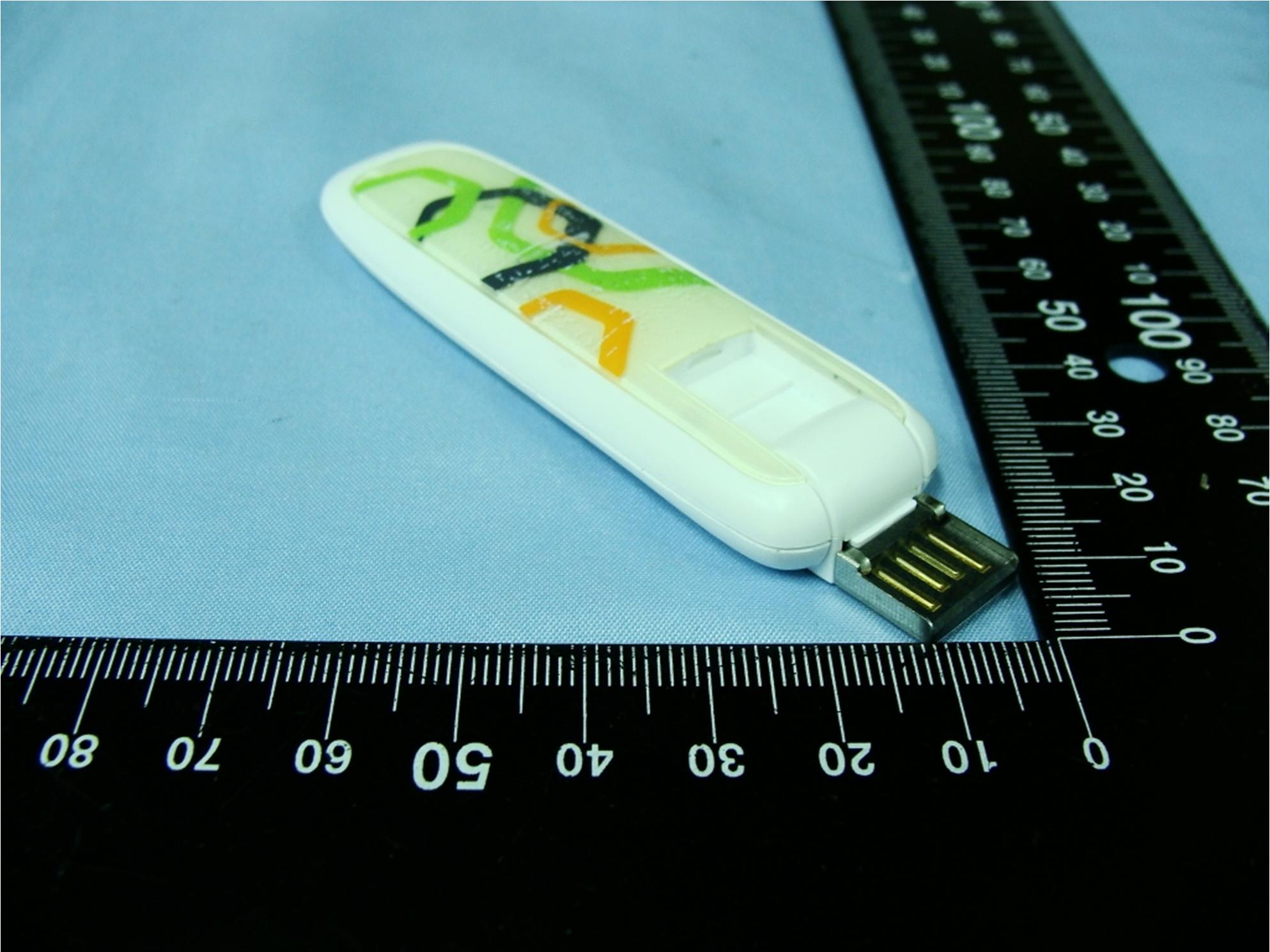

Photographs of EUT Report No.: EP122523 Brand Name: Green Packet / Model Name: UT-235 SPORTON INTERNATIONAL INC. Page Number : 1 of 5 TEL : 886-3-327-3456 Report Issued Date : May 31, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-UT235-GP 1. External Photograph of EUT Photographs of EUT Report No.: EP122523 Brand Name: Green Packet / Model Name: UT-235 SPORTON INTERNATIONAL INC. Page Number : 2 of 5 TEL : 886-3-327-3456 Report Issued Date : May 31, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-UT235-GP

Label Location

Model Name: UT-235

Photographs of EUT Report No.: EP122523 Brand Name: Green Packet / Model Name: UT-235 SPORTON INTERNATIONAL INC. Page Number : 3 of 5 TEL : 886-3-327-3456 Report Issued Date : May 31, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-UT235-GP 2. Internal Photograph of EUT Photographs of EUT Report No.: EP122523 Brand Name: Green Packet / Model Name: UT-235 SPORTON INTERNATIONAL INC. Page Number : 4 of 5 TEL : 886-3-327-3456 Report Issued Date : May 31, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-UT235-GP 5mm Photographs of EUT Report No.: EP122523 Brand Name: Green Packet / Model Name: UT-235 SPORTON INTERNATIONAL INC. Page Number : 5 of 5 TEL : 886-3-327-3456 Report Issued Date : May 31, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-UT235-GP WiMAX Antenna <Tx / Rx>

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/4/11 System Check_Body_2450MHz_110411 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_110411 Medium parameters used: f = 2450 MHz; σ = 2 mho/m; ε r = 54; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.03, 4.03, 4.03); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=100mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 14.4 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 84.3 V/m; Power Drift = -0.112 dB Peak SAR (extrapolated) = 30.5 W/kg SAR(1 g) = 12.7 mW/g; SAR(10 g) = 5.83 mW/g Maximum value of SAR (measured) = 14.1 mW/g 0 dB = 14.1mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/5/10 System Check_Body_2450MHz_110510 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_110510 Medium parameters used: f = 2450 MHz; σ = 1.99 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: EX3DV4 - SN3754; ConvF(6.84, 6.84, 6.84); Calibrated: 2011/1/11 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 15.3 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 83.3 V/m; Power Drift = 0.006 dB Peak SAR (extrapolated) = 28.3 W/kg SAR(1 g) = 12.5 mW/g; SAR(10 g) = 5.6 mW/g Maximum value of SAR (measured) = 13.9 mW/g 0 dB = 13.9mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/4/11 System Check_Body_2600MHz_110411 DUT: Dipole 2600 MHz Communication System: CW; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: MSL_2600_110411 Medium parameters used: f = 2600 MHz; σ = 2.21 mho/m; ε r = 51.1; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3731; ConvF(6.85, 6.85, 6.85); Calibrated: 2010/9/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 16.4 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 85.7 V/m; Power Drift = -0.019 dB Peak SAR (extrapolated) = 31.3 W/kg SAR(1 g) = 13.9 mW/g; SAR(10 g) = 6 mW/g Maximum value of SAR (measured) = 16.1 mW/ g 0 dB = 16.1mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/5/10 System Check_Body_2600MHz_110510 DUT: Dipole 2600 MHz Communication System: CW; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: MSL_2600_110510 Medium parameters used: f = 2600 MHz; σ = 2.2 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY4 Configuration: - Probe: EX3DV4 - SN3754; ConvF(6.76, 6.76, 6.76); Calibrated: 2011/1/11 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 15.9 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 83.5 V/m; Power Drift = -0.037 dB Peak SAR (extrapolated) = 32.7 W/kg SAR(1 g) = 13.9 mW/g; SAR(10 g) = 6.02 mW/g Maximum value of SAR (measured) = 15.7 mW/g 0 dB = 15.7mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/4/11 #01 Wimax2600_QPSK1-2_5M_Horizontal Up_0.5cm_Ch2_Ant0 DUT: 122523 Communication System: Wimax; Frequency: 2687.5 MHz;Duty Cycle: 1:3.24 Medium: MSL_2600_110411 Medium parameters used: f = 2687.5 MHz; σ = 2.26 mho/m; ε r = 50.9; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3731; ConvF(6.85, 6.85, 6.85); Calibrated: 2010/9/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch2/Area Scan (31x61x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 1.08 mW/g Ch2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.96 V/m; Power Drift = -0.166 dB Peak SAR (extrapolated) = 2.3 W/kg SAR(1 g) = 1.06 mW/g; SAR(10 g) = 0.522 mW/g Maximum value of SAR (measured) = 1.17 mW/ g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/4/11 #02 Wimax2600_QPSK1-2_5M_Horizontal Down_0.5cm_Ch2_Ant0 DUT: 122523 Communication System: Wimax; Frequency: 2687.5 MHz;Duty Cycle: 1:3.24 Medium: MSL_2600_110411 Medium parameters used: f = 2687.5 MHz; σ = 2.26 mho/m; ε r = 50.9; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3731; ConvF(6.85, 6.85, 6.85); Calibrated: 2010/9/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch2/Area Scan (31x61x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.934 mW/g Ch2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.22 V/m; Power Drift = 0.146 dB Peak SAR (extrapolated) = 1.79 W/kg SAR(1 g) = 0.866 mW/g; SAR(10 g) = 0.400 mW/g Maximum value of SAR (measured) = 0.975 mW/ g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/4/11 #03 Wimax2600_QPSK1-2_5M_Vertical Front_0.5cm_Ch2_Ant0 DUT: 122523 Communication System: Wimax; Frequency: 2687.5 MHz;Duty Cycle: 1:3.24 Medium: MSL_2600_110411 Medium parameters used: f = 2687.5 MHz; σ = 2.26 mho/m; ε r = 50.9; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3731; ConvF(6.85, 6.85, 6.85); Calibrated: 2010/9/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch2/Area Scan (31x61x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.721 mW/g Ch2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.38 V/m; Power Drift = 0.129 dB Peak SAR (extrapolated) = 1.4 W/kg SAR(1 g) = 0.630 mW/g; SAR(10 g) = 0.278 mW/g Maximum value of SAR (measured) = 0.701 mW/ g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/4/11 #04 Wimax2600_QPSK1-2_5M_Vertical Back_0.5cm_Ch2_Ant0 DUT: 122523 Communication System: Wimax; Frequency: 2687.5 MHz;Duty Cycle: 1:3.24 Medium: MSL_2600_110411 Medium parameters used: f = 2687.5 MHz; σ = 2.26 mho/m; ε r = 50.9; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3731; ConvF(6.85, 6.85, 6.85); Calibrated: 2010/9/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch2/Area Scan (31x61x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.775 mW/g Ch2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4 V/m; Power Drift = 0.164 dB Peak SAR (extrapolated) = 1.63 W/kg SAR(1 g) = 0.734 mW/g; SAR(10 g) = 0.329 mW/g Maximum value of SAR (measured) = 0.825 mW/ g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/4/11 #05 Wimax2600_QPSK1-2_5M_Tip Mode_0.5cm_Ch2_Ant0 DUT: 122523 Communication System: Wimax; Frequency: 2687.5 MHz;Duty Cycle: 1:3.24 Medium: MSL_2600_110411 Medium parameters used: f = 2687.5 MHz; σ = 2.26 mho/m; ε r = 50.9; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3731; ConvF(6.85, 6.85, 6.85); Calibrated: 2010/9/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch2/Area Scan (51x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.018 mW/g Ch2/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.13 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 0.041 W/kg SAR(1 g) = 0.020 mW/g; SAR(10 g) = 0.00451 mW/g Maximum value of SAR (measured) = 0.015 mW/g Ch2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.13 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 0.026 W/kg SAR(1 g) = 0.016 mW/g; SAR(10 g) = 0.00813 mW/g Maximum value of SAR (measured) = 0.021 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/4/11 #06 Wimax2600_QPSK1-2_5M_Horizontal Up_0.5cm_Ch2_Ant1 DUT: 122523 Communication System: Wimax; Frequency: 2687.5 MHz;Duty Cycle: 1:3.24 Medium: MSL_2600_110411 Medium parameters used: f = 2687.5 MHz; σ = 2.26 mho/m; ε r = 50.9; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3731; ConvF(6.85, 6.85, 6.85); Calibrated: 2010/9/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch2/Area Scan (31x61x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpol…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY

SPORTON INTERNATIONAL INC. Page Number : F1 of F3 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-UT235-GP FCC SAR Test Report Report No. : FA122523 Appendix F. Plots of Duty Cycle The plot below shows the waveform characteristics of the signal used in the SAR measurement. The pulse duration corresponds to a DL:UL symbol ratio of 29:18 and control symbols are not active. The time vector plots are shown as below. The plot A is used to get the frame length of test signal and the plot B is used to get the time of UL data symbols. Since there was no energy in the control symbols, the effective power is only across 15 data symbols. The calculation of duty cycle is as below: Duty Cycle = 15 data symbols UL time / Frame Length x 100 % PUSC, QPSK 1/2, BW 5MHz PUSC, QPSK 1/2, BW 10MHz Duty Cycle = Traffic Symbols / Frame Size = (Mark 3 – Mark 2) / (Mark 4 – Mark 1) x 100% = (21.87 – 20.29) / (24.98 – 19.97) x 100% = 31.5 % Duty Cycle = Traffic Symbols / Frame Size = (Mark 3 – Mark 2) / (Mark 4 – Mark 1) x 100% = (21.87 – 20.29) / (24.98 – 19.97) x 100% = 31.5 % A Offset 12.5 dB LVL Att 30 dB * Ref 30 dBm TRG * Center 2.593 GHz1 ms/ RBW 3 MHz VBW 3 MHz SWT 10 ms 3DB 1 AP VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -41.25 dBm 19.970000 ms 2 Marker 2 [T1 ] 10.11 dBm 20.290000 ms 3 Marker 3 [T1 ] -41.39 dBm 21.870000 ms 4 Marker 4 [T1 ] -37.72 dBm 24.980000 ms TRG -20 dBm Date: 6.MAY.2011 16:00:46 A Offset 12.5 dB LVL Att 30 dB * Ref 30 dBm TRG * Center 2.593 GHz1 ms/ 3DB RBW 3 MHz VBW 3 MHz SWT 10 ms 1 AP VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -40.89 dBm 19.970000 ms 2 Marker 2 [T1 ] 7.74 dBm 20.290000 ms 3 Marker 3 [T1 ] -42.25 dBm 21.870000 ms 4 Marker 4 [T1 ] -41.26 dBm 24.980000 ms TRG -20 dBm Date: 6.MAY.2011 15:52:46 SPORTON INTERNATIONAL INC. Page Number : F2 of F3 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-UT235-GP FCC SAR Test Report Report No. : FA122523 PUSC, QPSK 3/4, BW 5MHz PUSC, QPSK 3/4, BW 10MHz Duty Cycle = Traffic Symbols / Frame Size = (Mark 3 – Mark 2) / (Mark 4 – Mark 1) x 100% = (21.87 – 20.29) / (24.98 – 19.97) x 100% = 31.5 % Duty Cycle = Traffic Symbols / Frame Size = (Mark 3 – Mark 2) / (Mark 4 – Mark 1) x 100% = (21.87 – 20.29) / (24.98 – 19.97) x 100% = 31.5 % PUSC, 16QAM 1/2, BW 5MHz PUSC, 16QAM 1/2, BW 10MHz Duty Cycle = Traffic Symbols / Frame Size = (Mark 3 – Mark 2) / (Mark 4 – Mark 1) x 100% = (21.87 – 20.29) / (24.98 – 19.97) x 100% = 31.5 % Duty Cycle = Traffic Symbols / Frame Size = (Mark 3 – Mark 2) / (Mark 4 – Mark 1) x 100% = (21.87 – 20.29) / (24.98 – 19.97) x 100% = 31.5 % A Offset 12.5 dB LVL Att 30 dB * Ref 30 dBm TRG * Center 2.593 GHz1 ms/ RBW 3 MHz VBW 3 MHz SWT 10 ms 3DB 1 AP VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -39.64 dBm 19.970000 ms 2 Marker 2 [T1 ] 9.25 dBm 20.290000 ms 3 Marker 3 [T1 ] -41.28 dBm 21.870000 ms 4 Marker 4 [T1 ] -40.22 dBm 24.980000 ms TRG -20 dBm Date: 6.MAY.2011 16:00:30 A Offset 12.5 dB LVL Att 30 dB * Ref 30 dBm TRG * Center 2.593 GHz1 ms/ RBW 3 MHz VBW 3 MHz SWT 10 ms 3DB 1 AP VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -42.15 dBm 19.970000 ms 2 Marker 2 [T1 ] 9.53 dBm 20.290000 ms 3 Marker 3 [T1 ] -40.18 dBm 21.870000 ms 4 Marker 4 [T1 ] -40.11 dBm 24.980000 ms TRG -20 dBm Date: 6.MAY.2011 15:53:01 A Offset 12.5 dB LVL Att 30 dB * Ref 30 dBm TRG * Center 2.593 GHz1 ms/ RBW 3 MHz VBW 3 MHz SWT 10 ms 3DB 1 AP VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -40.55 dBm 19.970000 ms 2 Marker 2 [T1 ] 5.72 dBm 20.290000 ms 3 Marker 3 [T1 ] -40.23 dBm 21.870000 ms 4 Marker 4 [T1 ] -38.28 dBm 24.980000 ms TRG -20 dBm Date: 6.MAY.2011 15:57:22 A Offset 12.5 dB LVL Att 30 dB * Ref 30 dBm RBW 3 MHz * VBW 3 MHz TRG Center 2.501 GHz1 ms/ SWT 10 ms 3DB 1 AP VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -40.52 dBm 19.970000 ms 2 Marker 2 [T1 ] 7.72 dBm 20.290000 ms 3 Marker 3 [T1 ] -40.87 dBm 21.870000 ms 4 Marker 4 [T1 ] -40.65 dBm 24.980000 ms TRG -20 dBm Date: 6.MAY.2011 15:48:23 SPORTON INTERNATIONAL INC. Page Number : F3 of F3 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : W9V-UT235-GP FCC SAR Test Report Report No. : FA122523 PUSC, 16QAM 3/4, BW 5MHz PUSC, 16QAM 3/4, BW 10MHz Duty Cycle = Traffic Symbols / Frame Size = (Mark 3 – Mark 2) / (Mark 4 – Mark 1) x 100% = (21.87 – 20.29) / (24.98 – 19.97) x 100% = 31.5 % Duty Cycle = Traffic Symbols / Frame Size = (Mark 3 – Mark 2) / (Mark 4 – Mark 1) x 100% = (21.87 – 20.29) / (24.98 – 19.97) x 100% = 31.5 % A Offset 12.5 dB LVL Att 30 dB * Ref 30 dBm TRG * Center 2.593 GHz1 ms/ RBW 3 MHz VBW 3 MHz SWT 10 ms 3DB 1 AP VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -40.72 dBm 19.970000 ms 2 Marker 2 [T1 ] 8.31 dBm 20.290000 ms 3 Marker 3 [T1 ] -39.00 dBm 21.870000 ms 4 Marker 4 [T1 ] -40.26 dBm 24.980000 ms TRG -20 dBm Date: 6.MAY.2011 16:00:11 A Offset 12.5 dB LVL Att 30 dB * Ref 30 dBm TRG * Center 2.593 GHz1 ms/ RBW 3 MHz VBW 3 MHz SWT 10 ms 3DB 1 AP VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -41.36 dBm 19.970000 ms 2 Marker 2 [T1 ] 7.69 dBm 20.290000 ms 3 Marker 3 [T1 ] -41.75 dBm 21.870000 ms 4 Marker 4 [T1 ] -40.78 dBm 24.980000 ms TRG -20 dBm Date: 6.MAY.2011 15:53:16

SPORTON INTERNATIONAL INC. Page Number : 1 of 42 TEL : 886-3-327-3456 Report Issued Date : Oct. 04, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : W9V-UT235-GP FCC SAR Test Report Report No. : FA122523 FCC SAR Test Report APPLICANT : Green Packet Berhad, Taiwan EQUIPMENT : WiMAX USB Modem BRAND NAME : Green Packet MODEL NAME : UT-235 FCC ID : W9V-UT235-GP STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Feb. 25, 2011 and completely tested on May 10, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 42 TEL : 886-3-327-3456 Report Issued Date : Oct. 04, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : W9V-UT235-GP FCC SAR Test Report Report No. : FA122523 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 6 3.3 Applied Standards ............................................................................................................................................ 7 3.4 Device Category and SAR Limits ....................…
