WAP-CY8CKIT-142

Cypress Semiconductor

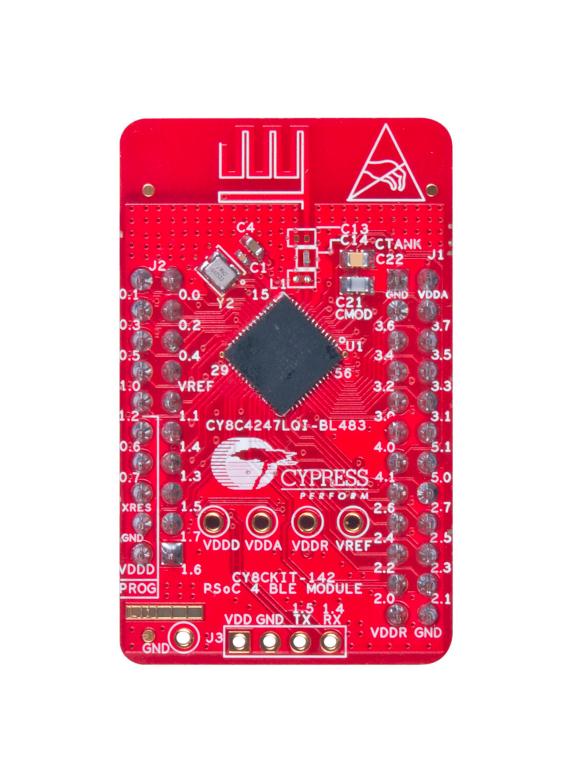

CY8CKIT-142 PSoC 4 BLE Module

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Dec 31, 2014
Application Purpose: Original Equipment
Date of Application: Dec 21, 2014
Equipment Note: CY8CKIT-142 PSoC 4 BLE Module
Frequency Range: 2402.00000000 - 2480.00000000
Company: Cypress Semiconductor
Country: United States

Documents & Files

Select a file to view

Users Manual

Block Diagram

Cover Letter(s)

External Photos

ID Label/Location Info

Internal Photos

Operational Description

Parts List/Tune Up Info

RF Exposure Info

Schematics

Test Report

Test Setup Photos

Contact Information

Applicant

Juan Martinez(Senor System Engineer)

[email protected]8317446217Fax: 408-544-1694

Test Firm

TUV Rheinland (India) Pvt. Ltd.,B GURUPRASAD

[email protected]91-80-3989-9888Fax: 91-80-3055-4342

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	1.17 mW

Modular Type

Limited Single Modular Approval

Grant Notes

Output power listed is conducted. This grant is valid only when the device is sold to OEM integrators and installation is done under the control of the Grantee. This transmitter is restricted for use with the specific antenna(s) tested in this application for Certification and must not be co-located or operating in conjunction with any other antenna or transmitters within a host device, except in accordance with FCC multi-transmitter product procedures.
