WAP3066EZ-BT WICED Module

www.infineon.com Please note that Cypress is an Infineon Technologies Company. The document following this cover page is marked as “Cypress” document as this is the company that originally developed the product. Please note that Infineon will continue to offer the product to new and existing customers as part of the Infineon product portfolio. Continuity of document content The fact that Infineon offers the following product as part of the Infineon product portfolio does not lead to any changes to this document. Future revisions will occur when appropriate, and any changes will be set out on the document history page. Continuity of ordering part numbers Infineon continues to support existing part numbers. Please continue to use the ordering part numbers listed in the datasheet for ordering. PRELIMINARY CYBT-213066-02 CYBT-213067-02 EZ-BT Module Cypress Semiconductor Corporation• 198 Champion Court• San Jose,CA 95134-1709 • 408-943-2600 Document Number: 002-30628 Rev. ** Revised June 18, 2020 CYBT-213066-02, CYBT-213067-02, EZ-BT Module General Description The CYBT-213066-02/CYBT-213067-02 is a dual-mode Bluetooth  BR/EDR and Low Energy (BLE) wireless module solution. The CYBT-213066-02/CYBT-213067-02 includes an onboard crystal oscillator, passive components, and the Cypress CYW20819 silicon device. The CYBT-213066-02/CYBT-213067-02 supports a number of peripheral functions (ADC, PWM), as well as multiple serial communication protocols (UART, SPI, I 2 C, I 2 S/PCM). The CYBT-213066-02/CYBT-213067-02 includes a royalty-free stack compatible with Bluetooth 5.0 in a 12.0 × 16.61 × 1.70 mm module form-factor. The CYBT-213066-02/CYBT-213067-02 includes an integrated PCB trace antenna, is qualified by Bluetooth SIG, and includes regulatory certification approval for FCC, ISED, MIC, and CE. The CYBT-213066-02 includes integrated serial flash used for OTA functionality. Module Description ■Module size: 12.00 mm × 16.61 mm × 1.70 mm ■Complies with Bluetooth Core Specification version 5.0 and includes support for BR, EDR 2/3 Mbps, eSCO, BLE, LE 2 Mbps, as well as Bluetooth Mesh. ❐QDID: TBD ❐Declaration ID: TBD ■Certified to FCC, ISED, MIC, and CE standards ■256-KB on-chip Flash, 176-KB on-chip RAM ■512-KB integrated serial flash for OTA ■Industrial temperature range: –30 °C to +85 °C ■Integrated Arm ® Cortex ® -M4 microprocessor core with floating point unit (FPU) RF Characteristics ■Maximum TX output power: +4.0 dBm ■BLE RX Receive Sensitivity: –95.0 dBm Power Consumption ■TX current consumption ❐BLE silicon: 5.8 mA (radio only, 0 dBm) ■RX current consumption ❐Bluetooth silicon: 5.9 mA (radio only) ■Cypress CYW20819 silicon low power mode support ❐PDS: 16.5 μA with 176 KB RAM retention ❐ePDS: 8.7 μA ❐HIDOFF (wake on external or timed interrupt): 1.75 μA Functional Capabilities ■Up to 18 GPIOs (CYBT-213066-02) ■Up to 22 GPIOs (CYBT-213067-02) ■I 2 C, I2S, UART, and PCM interfaces ■Two Quad-SPI interfaces ■Auxiliary ADC with up to 15 analog channels ■Programmable key scan 20 × 8 matrix ■General-purpose timers and six PWMs ■Real-time clock (RTC) and watchdog timers (WDT) ■Bluetooth Basic Rate (BR) and Enhanced Data Rate (EDR) Support ■BLE protocol stack supporting generic access profile (GAP) Central, Peripheral, Observer, or Broadcaster roles Benefits CYBT-213066-02/CYBT-213067-02 is fully integrated and certified solution that provides all necessary components required to operate Bluetooth communication standards. ■Proven hardware design ready to use ■Ultra-flexible supermux I/O design allows maximum flexibility for GPIO function assignment ■Over-the-air update capable for development or field updates ■Bluetooth SIG qualified. ■ModusToolbox™ provides an easy-to-use integrated design environment (IDE) to configure, develop, program, and test your Bluetooth application Document Number: 002-30628 Rev. ** Page 2 of 46 PRELIMINARY CYBT-213066-02 CYBT-213067-02 More Information Cypress provides a wealth of data at www.cypress.com to help you to select the right module for your design, and to help you to quickly and effectively integrate the module into your design. References ■Overview: EZ-BLE/EZ-BT Module Portfolio, Module Roadmap ■Development Kits: ❐CYBT-243068-EVAL, CYBT-243068-02 Evaluation Board ❐CYBT-213043-MESH, Mesh Evaluation Kit ❐CYW920819Q40EVB-01, Evaluation Kit for CYW20819 silicon device ■Test and Debug Tools: ❐CYSmart, Bluetooth ® LE Test and Debug Tool (Windows) ❐CYSmart Mobile, Bluetooth ® LE Test and Debug Tool (Android/iOS Mobile App) ■Knowledge Base Article ❐KBA97095 - EZ-BLE™ Module Placement ❐RF Regulatory Certifications for CYBT-213066-02/CYBT-213067-02 EZ-BT™ WICED Modules (TBD) ❐KBA213976 - FAQ for BLE and Regulatory Certifications with EZ-BLE modules ❐KBA210802 - Queries on BLE Qualification and Declaration Processes ❐KBA218122 - 3D Model Files for EZ-BLE/EZ-BT Modules ❐KBA223428 - Programming an EZ-BT WICED Module ❐KBA225450 - Putting 2073x, 2070x, and 20719 Based De- vices or Modules in HCI Mode Development Environments ModusToolbox Integrated Development Environment (IDE) ModusToolbox simplifies development for IoT designers. It delivers easy-to-use tools and a familiar microcontroller (MCU) integrated development environment (IDE) for Windows ® , macOS ® , and Linux ® . It provides a sophisticated environment for system setup, wireless connectivity libraries, power analysis, application-specific configurators for Bluetooth ® Low Energy (BLE), CapSense ® , as well as other peripherals. In addition, code examples, documentation, technical support and community forums are available to help your IoT development process along. These tools and features enable an IoT designer to develop innovative IoT applications efficiently and with ease. Technical Support ■Cypress Community: Whether you are a customer, partner, or a developer interested in the latest Cypress innovations, the Cypress Developer Community offers you a place to learn, share, and engage with both Cypress experts an…

Text truncated - open the document above for the full version.

Model CYBT-213067-02 is identical to Model CYBT-213066-02 except for whether there is a flash memory inside. Details see table below. IC Flash CYBT-213066-02 CYW20819 Y CYBT-213067-02 CYW20819 N

Cypress Semiconductor 198 Champion Court, San Jose, CA, USA, 95134 Date: 6/5/2020 Authorization letter for equipment authorization before FCC and/or IC Canada, Re: FCC ID: WAP3066 IC: 7922A-3066 To whom it may concern: Please be advised that Cypress Semiconductor Corporation authorizes Xuejiao Zhang of Cypress Semiconductor Technology (shanghai) co. ltd., to act on our behalf on all matters relating to application for equipment authorization before the federal communication Commission and Industry Canada, including signing of documents related to these matters. Cypress Semiconductor Corporation, certifies that neither the applicant nor any party to this application, as defined in 47CFR Ch.1.2002 (b), is subjected to denial to federal benefits that includes FCC benefits, pursuant to section 5301 of anti-drug abuse act of 1998, 21 U.S.C.835 (a). Sincerely David Solda Business Unit Vice President Cypress Semiconductor Corporation Phone: (408)943-2600 1639 Email: [email protected]

Cypress Semiconductor We Name: Cypress Semiconductor Address: 198 Champion Court San Jose, CA 95134 United States Country: USA Declare that: Agent Company name: DEKRA Testing and Certification (Suzhou) Co., Ltd. Address: No.99 Hongye Rd., Suzhou Industrial Park , City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product description: EZ-BT WICED Module Type designation: CYBT-213066-02, CYBT-213067-02 Trademark: Cypress FCC ID: WAP3066 IC ID： 7922A-3066 on our behalf. Date: 2020-06-04 Name: Xuejiao Zhang Function: System Engineer Signature: Notes: Required for FCC & IC application

Cypress Semiconductor Date: 2020-06-04 Federal Communications Commission Authorization and Evaluation Division FCC ID: WAP3066 ATTESTATION FCC ID: WAP3066 Product: EZ-BT WICED Module Model: CYBT-213066-02, CYBT-213067-02 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, __________________ Xuejiao Zhang / [email protected] Cypress Semiconductor

Cypress Semiconductor Date：2020-06-04 Federal Communications Commission Authorization and Evaluation Division FCC ID: WAP3066 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1 Schematics 2 Block Diagram 3 Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Xuejiao Zhang / [email protected] Cypress Semiconductor

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) Equipment: EZ-BT WICED Module Trademark(s) and Model(s): CYBT-213066-02, CYBT-213067-02 Manufacturer: Cypress Semiconductor FCC ID in case other parts of this equipment are subject to certification: WAP3066 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following test reports are subject to this declaration: Test report number: 2040805R-IT-US-P01V01 Issue date: 2020/05/20 The following manufacturer/importer/entity (located in the USA) is responsible for this declaration: Company name: Cypress Semiconductor Name/Title (legal representative): Xuejiao Zhang Address: 198 Champion Court San Jose, CA 95134 United States Phone: +86-21-61622600-7062647 Fax: E-mail: [email protected] Date: 2020.06.04 Signature: FCC

RF_734_02 04 April 16 Modular Approval Request FCC (KDB 996369 D01 & Part 15.212) FCC ID: WAP3066 Items to be covered by Single modular transmitters. Answer from applicant 1. The modular transmitter must have its own RF shielding. The module contains a metal shield which covers all RF components and circuitry. The shield is located on the top of the board next to antenna connector YES 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Data to the modulation circuit is buffered as described in the operational description provided with the application YES 3. The modular transmitter must have its own power supply regulation. The module contains its own power supply regulation. Please refer to schematic filed with this application YES 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(b)(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The module connects to its antenna using an UFL connector which is considered a non- standard connector. A list of antennas tested and approved with this device may be found in users manual provided with the application YES 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. The module was tested stand-alone as shown in test setup photographs filed with this application YES 6. The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number in accordance with 15.212 (a)(1)(vi)(A) / (B). There is a label on the module as shown in the labeling exhibit filed with this application. Host specific labeling instructions are shown in the installation manual .filed with this application. YES 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The module complies with FCC Part 15C requirements. Instructions to the OEM installer are provided in the installation manual filed with this application. YES 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 1.1310, 2.1091, 2.1093, and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance. Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific YES RF_734_02 04 April 16 installation and operating instructions for users, installers and other interested parties to ensure compliance. The module meets Portable exclusion levels as shown in the RF exposure information filed with this application Items to be covered by Split modular transmitters. Answer from applicant 1. The modular transmitter must comply with all requirements of a single modular transmitter except for items (1) & (5) of the above single modular approval requirements. 2. Only the radio front end must be shielded. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The interface between the split sections of the modular system must be digital with a minimum signalling amplitude of 150 mV peak-to-peak. 3. Control information and other data may be exchanged between the transmitter control elements and radio front end. 4. The sections of a split modular transmitter must be tested installed in a host device(s) similar to that which is representative of the platform(s) intended for use. 5. Manufacturers must ensure that only transmitter control elements and radio front end components that have been approved together are capable of operating together. The transmitter module must not operate unless it has verified that the installed transmitter control elements and radio front end have been authorized together. Manufacturers may use means including, but not limited to, coding in hardware and electronic signatures in software to meet these requirements, and must describe the methods in their application for equipment authorization. Note: A limited modular approval (LMA) may be granted for single or split modular transmitters that comply partially with the requirements above. Name and surname of applicant (or authorized representative): ___ Xuejiao Zhang __ Date: __2020/06/04______ Signature:

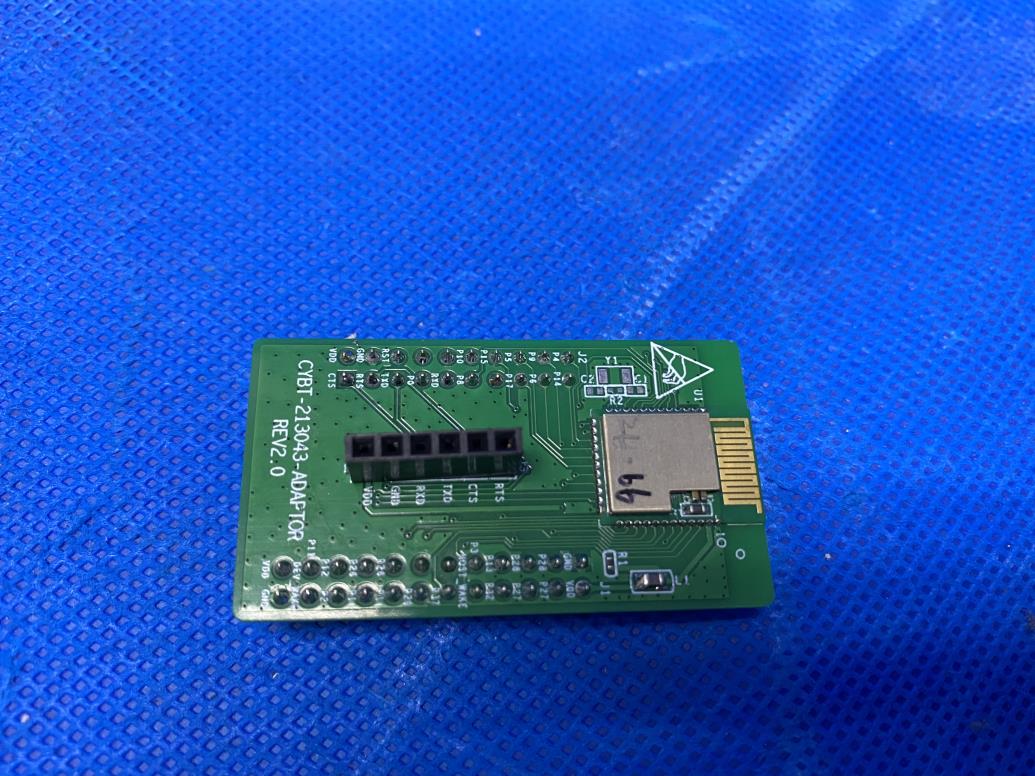

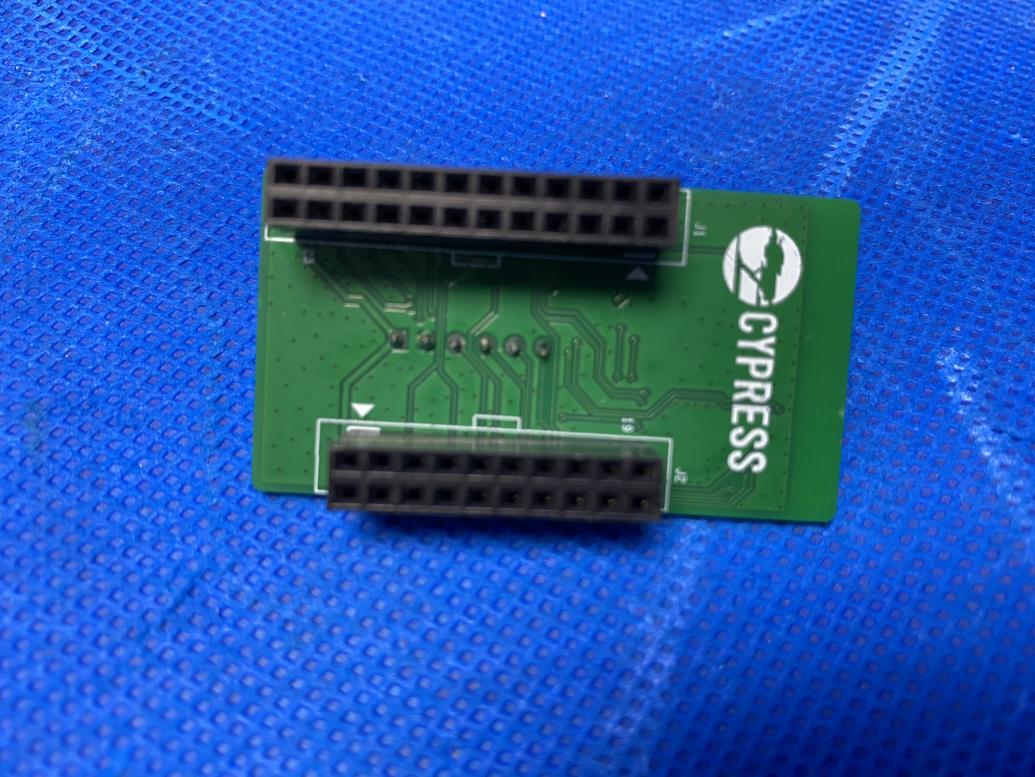

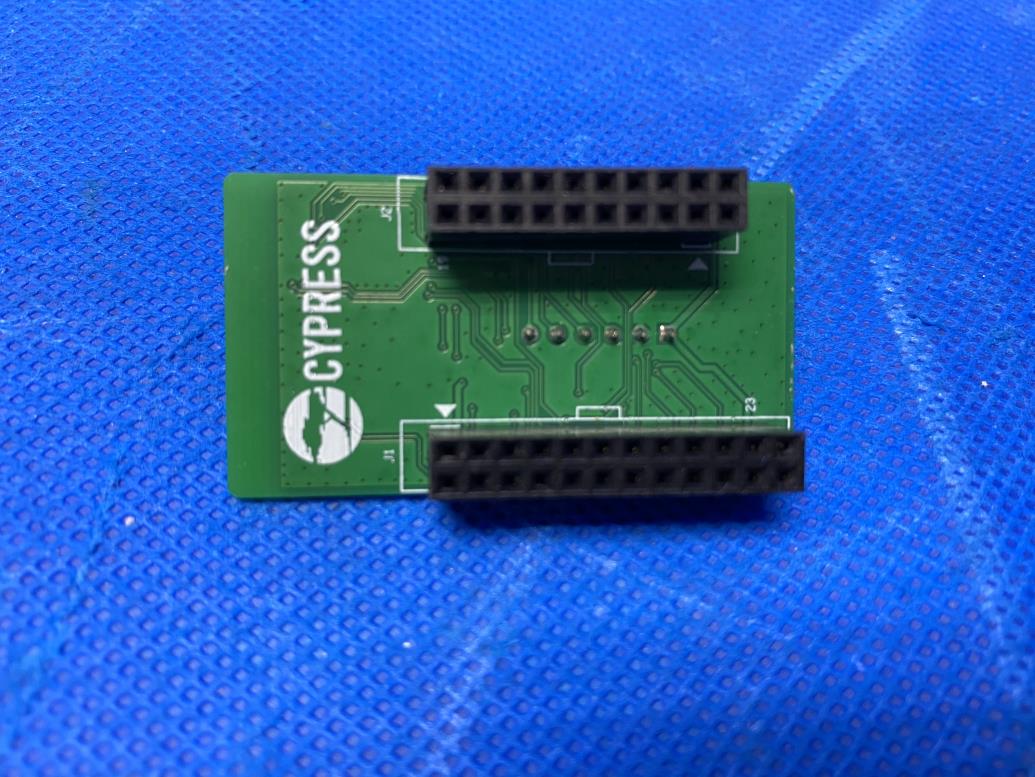

Page: 1 of 2 (1) EUT Photo (CYBT-213066-02) (2) EUT Photo (CYBT-213066-02) Page: 2 of 2 (3) EUT Photo (CYBT-213067-02) (4) EUT Photo (CYBT-213067-02)

Page: 1 of 1 (1) EUT Photo (CYBT-213066-02) (2) EUT Photo (CYBT-213067-02)

DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Test report No: 2040805R-RF-US-P20V01 SAR Exemption Evaluation Report Product Name EZ-BT WICED Module Trademark Cypress Model and /or type reference CYBT-213066-02, CYBT-213067-02 FCC ID AP3066 Applicant ́s name / address Cypress Semiconductor Technology (Shanghai) Co., Ltd. 198 Champion Ct, San Jose, California 95134, United States Test method requested, standard KDB 447498D01V06 FCC Part1.1310 Verdict Summary IN COMPLIANCE Documented by (name / position & signature) Kitty Li/Project Assistant Reviewed by (name / position & signature) Frank He/ Technical Supervisor Approved by (name / position & signature) Jack Zhang/ Supervisor Date of issue 2020-06-03 Report template No Template_FCC .1310-RF-V1.0 DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 2040805R-RF-US-P20V01 Page 2 / 7 INDEX page Competences and Guarantees ................................................................................................................................... 3 General conditions ...................................................................................................................................................... 3 Environmental conditions............................................................................................................................................ 3 Possible test case verdicts ......................................................................................................................................... 4 Abbreviations .............................................................................................................................................................. 4 Document History ....................................................................................................................................................... 5 Remarks and Comments ............................................................................................................................................ 5 1. RF Exposure Evaluation .................................................................................................................................... 6 1.1. Limits ................................................................................................................................................................. 6 1.2. Test Procedure .................................................................................................................................................. 7 1.3. Test Result of RF Exposure Evaluation ............................................................................................................ 7 DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 2040805R-RF-US-P20V01 Page 3 / 7 COMPETENCES AND GUARANTEES DEKRA is a testing laboratory competent to carry out the tests described in this report. In order to assure the traceability to other national and international laboratories, DEKRA has a calibration and maintenance program for its measurement equipment. DEKRA guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated in the report and it is based on the knowledge and technical facilities available at DEKRA at the time of performance of the test. DEKRA is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Test Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of DEKRA. GENERAL CONDITIONS Test Location No. 99, Hongye Road, Suzhou Industrial Park Suzhou, 215006, P.R. China Date(receive sample) Apr. 29, 2020 Date (start test) May. 01, 2020 Date (finish test) May. 25, 2020 1. This report is only referred to the item that has undergone the test. 2. This report does not constitute or imply on its own an approval of the product by the Certification Bodies or Competent Authorities. 3. This document is only valid if complete; no partial reproduction can be made without previous written permission of DEKRA. 4. This test report cannot be used partially or in full for publicity and/or promotional purposes without previous written permission of DEKRA. ENVIRONMENTAL CONDITIONS The climatic conditions during the tests are within the limits specified by the manufacturer for the operation of the EUT and the test equipment. The climatic conditions during the tests were within the following limits: Ambient temperature 15 °C – 35 °C Relative Humidity air 30% - 60% If explicitly required in the basic standard or applied product / product family standard the climatic values are recorded and documented separately in this test report. DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 2040805R-RF-US-P20V01 Page 4 / 7 POSSIBLE TEST CASE VERDICTS Test case does not apply to test object N/A Test object does meet requirement P (Pass) / PASS Test object does not meet requirement F (Fail) / FAIL Not measured N/M ABBREVIATIONS For the purposes of the present document, the following abbreviations apply: EUT : Equipment Under Test QP : Quasi-Peak CAV : CISPR Average AV : Average CDN : Coupling Decoupling Network SAC…

Text truncated - open the document above for the full version.

DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Test report No: 2040805R-RF-US-P06V01 FCC TEST REPORT & ISED TEST REPORT Product Name EZ-BT WICED Module Trademark Cypress Model and /or type reference CYBT-213066-02, CYBT-213067-02 FCC ID WAP3066 IC ID 7922A-3066 Applicant ́s name / address Cypress Semiconductor Technology (Shanghai) Co., Ltd. 198 Champion Ct, San Jose, California 95134, United States Test method requested, standard FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 KD558074 D01 15.247 Meas Guidance v05r02 RSS-Gen Issue 5 / RSS-247 Issue 2 Verdict Summary IN COMPLIANCE Documented by (name / position & signature) Kitty Li/Project Assistant Reviewed by (name / position & signature) Frank He/ Technical Supervisor Approved by (name / position & signature) Jack Zhang/ Supervisor Date of issue 2020-06-03 Report template No Template_FCC 15.247-RF-V1.0 DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 2040805R-RF-US-P06V01 Page 2 / 91 INDEX page General conditions ............................................................................................................................................................ 5 Environmental conditions .................................................................................................................................................. 5 Possible test case verdicts ................................................................................................................................................ 6 Abbreviations..................................................................................................................................................................... 6 Document History .............................................................................................................................................................. 7 Remarks and Comments .................................................................................................................................................. 7 Used Equipment ................................................................................................................................................................ 8 Uncertainty ...................................................................................................................................................................... 10 1 General Information ............................................................................................................................................... 11 1.1 General Description of the Item(s) ............................................................................................................... 11 1.2 Antenna Information .................................................................................................................................... 12 1.3 Channel List ................................................................................................................................................. 13 2 Description of Test Setup....................................................................................................................................... 14 2.1 Operating mode(s) used for tests ................................................................................................................ 14 2.2 Auxiliary equipment / Test software for the EUT ......................................................................................... 14 2.3 Test Configuration / Block diagram used for tests ....................................................................................... 15 2.4 Testing process ........................................................................................................................................... 16 3 Verdict summary section ........................................................................................................................................ 17 3.1 Standards .................................................................................................................................................... 17 3.2 Deviation(s) from the Standard(s) / Test Specification(s) ............................................................................ 17 3.3 Overview of results ...................................................................................................................................... 18 3.4 Test Facility .................................................................................................................................................. 20 4 Test Results ........................................................................................................................................................... 21 4.1 Conducted Emission .................................................................................................................................... 21 4.1.1 Limit ................................................................................................................................................... 21 4.1.2 Test Setup ......................................................................................................................................... 21 4.1.3 Test Procedure .................................................................................................................................. 21 4.1.4 Test Data ........................................................................................................................................... 22 4.2 Emissions in restricted frequency bands ..................................................................................................... 24…

Text truncated - open the document above for the full version.

FCC Part15.247&IC Test Setup Photograph Description: Conducted emission Test Setup Description: Radiated Emission Test Setup for Below 1GHz Description: Radiated Emission Test Setup for 1~18GHz Description: Radiated Emission Test Setup for Above 18GHz
