WBV-AP3X0Access Point

Aerohive QuickStart for the AP370 and AP390 This guide explains how to install an Aerohive AP370 or AP390 access point so it can make a network connection to HiveManager. The instructions in this document apply to both models. To register, get the latest product documentation, (including translations of select documents), see compliance information, and download software updates, visit www.aerohive.com/support. © 2013 Aerohive Networks, Inc. Aerohive ® is a U.S. registered trademark of Aerohive Networks, Inc. P/N 330102-01 Rev. A You can mount the AP370 or AP390 on a dust-free surface, on a wall, or to the tracks of a dropped ceiling grid that will support its weight (AP370: 1 lb or .45 kg; AP390: 20 oz or .57 kg). The wall and ceiling mounting options are explained below and on the next panel. Mounting the AP370 and AP390 Cut a small hole in the ceiling tile to accommodate the cables. Connect the cables and, for optimal reception, align external antennas for the AP390 as shown below. The status LED on the top of the device displays the following activity states: • Dark: Power is off, or the indicator has been disabled. • Amber (fl ashing): The device is performing a fi rmware upgrade. Do not power off the device during this process. • Amber (solid): This indicates that the CAPWAP connection has not been successfully established, or the device is booting or shutting down. • White: The device is powered on and operating properly, and has made a successful CAPWAP connection through the ETH0 interface. Status LED You can mount the AP370 or AP390 to the tracks of a dropped ceiling grid using the mounting tabs and clips on the back of the device. The tabs slip over the edge of the ceiling track and the clips click into place to secure the device. The ceiling mounting options are shown below. The mounting hardware on the device allows you to mount it diagonally, or square to the track. Ceiling Mount To mount the device on a ceiling track in either the diagonal or square position, hold the device so that you are touching the appropriate tabs (as shown in the previous illustrations). Hold the device upside down and press it gently against the ceiling track. Use your fi ngers to guide one of the tabs over the edge of the track. Then rotate the device counter-clockwise (facing the device) until the clips click into place. To remove the device, press the clips toward the device until they disengage from the track, then rotate the device gently and pull it away from the track. The illustrations below show how to install the device on a ceiling track in the diagonal position. To mount the device the square position, use the square-mount tabs and clips and follow the same steps. Use your fi ngertips to align the tabs with the track. 1 2 Rotate the device until the clips click into place. You can secure the AP using a Kensington lock, or you can use the security bracket and screw that ships with the device to secure it to a ceiling track or to a wall, as shown in the illustrations below. To use a Kensington lock, loop the lock cable around a secure object, insert the T-bar component of the lock into the lock slot on the AP and then turn the key to engage the lock. To secure the AP to a ceiling track or a wall using the security bracket and screw, you will need a spanner bit for size #6 security screws, and a driver handle that will accept the bit. Bits are available from Aerohive in sets of three (AH-ACC-SEC-BIT-300-100-3PK). To use the security screw, refer to the illustrations below. If you use a slotted screw, you will need a fl at-blade screwdriver. Aerohive recommends the following Kensington lock models: • NOTE: This list to be completed after PVT phase. Locking the Device Diagonal mount lock slot Square mount lock slot 5GHz(0) Kensington lock slot Guide security bracket along the lock slot until the screw holes align and the end of the bracket slips under the clip. Clip Security bracket Security screw Aligning AP390 External Antennas Diagonal mount clip Diagonal mount clip Diagonal mount tab (under fingertip) CLICK! CLICK! Diagonal mount tab (under fingertip) Note: For a square mount, rotate in the opposite direction. Ceiling track Diagonal installation Square installation You can attach the AP to any surface that supports its weight (less than x lb or .xx kg for either device), and to which you can install M4 mounting screws. There are four wall mount slots on the back of the device. Measure the distances between the centers of these slots and drill corresponding holes in the wall, or use the template in the Aerohive Hardware Reference Guide at www.aerohive.com/support/tech-docs-and-online-training to mark the drill holes. Install size M4 screws. If you are connecting to cables from inside the wall, drill a hole in the wall so that you can pass the cables through to the AP. Finally, connect the cables to the device. Wall Mount Wall mount slots Diagonal mount clip and tab Square mount clip and tab Diagonal mount clip and tab Ta b Clip Square mount clip and tab After you power on the AP, it automatically tries to get network settings and contact HiveManager. This process takes about fi ve minutes. When you see the AP listed on the All Devices page in the Monitor section of the HiveManager GUI, the initial setup is complete and you can begin managing the AP using HiveManager. If the AP does not appear after about ten minutes, see the Aerohive product documentation and computer-based training modules to learn what you can do to help establish the connection. These resources are available for free at www.aerohive.com/support/tech-docs-and-online-training. Switch DHCP server Firewall Internet Some other network devices (They might all be incorporated in the same device, such as a router or firewall.) 1 Ethernet cable 2 ETH0 Connect a standard RJ45 Ethernet cable from ETH0 on the AP to a switch. 3 For AP390 models, attach external antennas to the 5 GHz and 2.4 GHz connectors. AP370 Connecting the Devi…

Text truncated - open the document above for the full version.

Aerohive Networks, Inc. 330 Gibralter Drive, Sunnyvale, CA94089 Tel: 408-510-6159 / Fax: 408-510-6199 Confidential Letter Date: 2013/7/29 Federal Communications Commission Authorization and Evaluation Division FCC ID：WBV-AP3X0 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Aerohive Networks, Inc. Applicant’s company address : 330 Gibralter Drive, Sunnyvale, CA94089 Signature : Name and Job Title : Serdar Ergene / Director Hardware Engineering E-Mail : [email protected] Tel. : 408-510-6159

Aerohive Networks, Inc. 330 Gibralter Drive, Sunnyvale, CA94089 Tel: 408-510-6159 / Fax: 408-510-6199 DoC Attestation Letter Date: 2013/7/29 We Aerohive Networks, Inc., as the grantee of this project (FCC ID: WBV-AP3X0 / Brand Name: Aerohive / Model No.: AP370 / AP390), would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures (Sproton report No.: FD362046, FCC Test Firm Registration No.: 187376). The final product shall consequently comply with the FCC rule applied for DoC Procedure. Regards, FCC Grantee contact person information. Applicant’s company name : Aerohive Networks, Inc. Applicant’s company address : 330 Gibralter Drive, Sunnyvale, CA94089 Signature : Name and Job Title : Serdar Ergene / Director Hardware Engineering E-Mail : [email protected] Tel. : 408-510-6159

Aerohive Networks, Inc. 330 Gibralter Drive, Sunnyvale, CA94089 Tel: 408-510-6159 / Fax: 408-510-6199 Power of Attorney Date: 2013/7/29 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: Aerohive / AP370 / AP390 FCC ID: WBV-AP3X0 Product name: Access Point FCC Grantee contact person information. Applicant’s company name : Aerohive Networks, Inc. Applicant’s company address : 330 Gibralter Drive, Sunnyvale, CA94089 Signature : Name and Job Title : Serdar Ergene / Director Hardware Engineering E-Mail : [email protected] Tel. : 408-510-6159

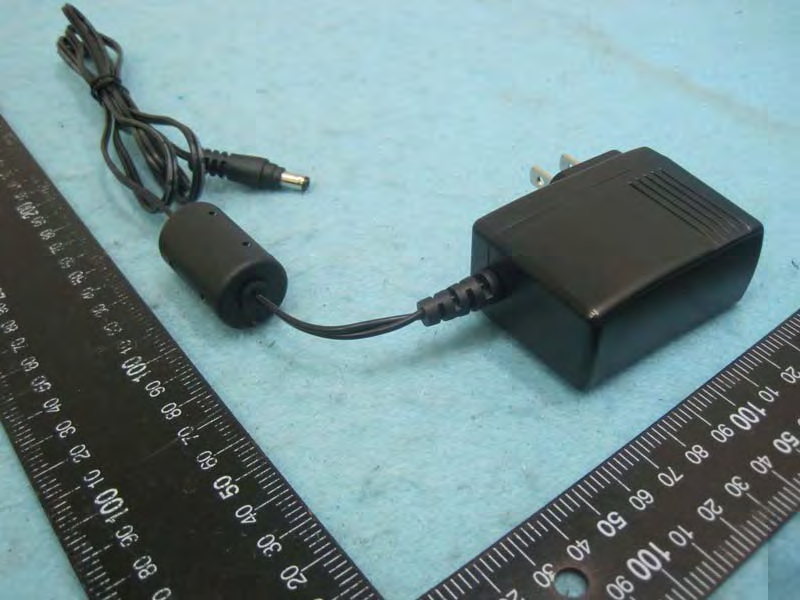

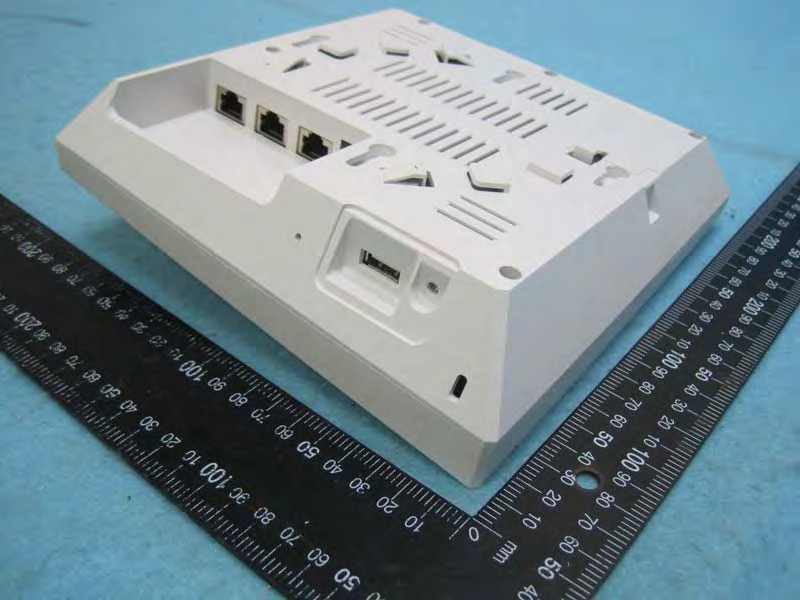

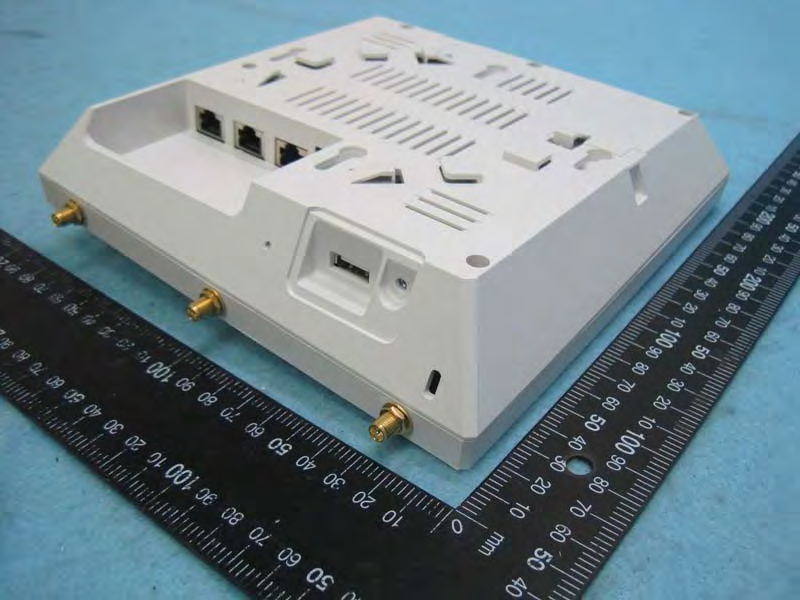

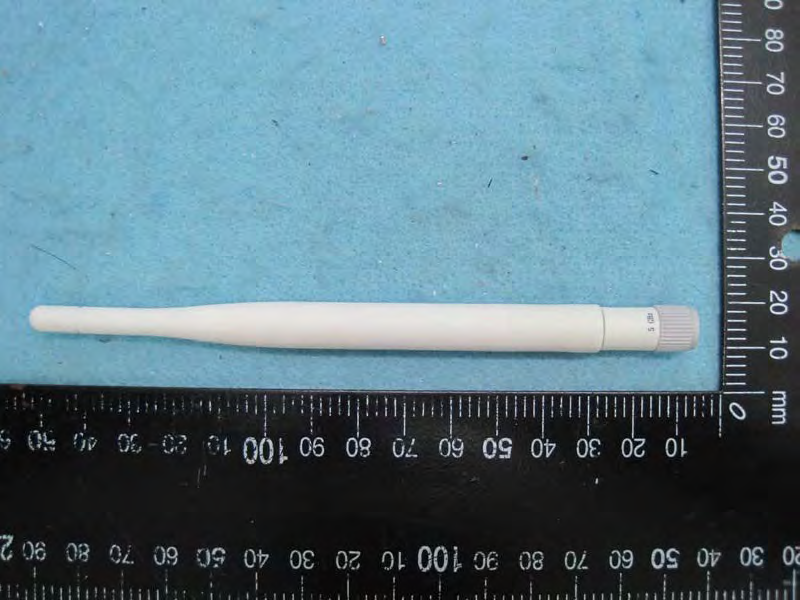

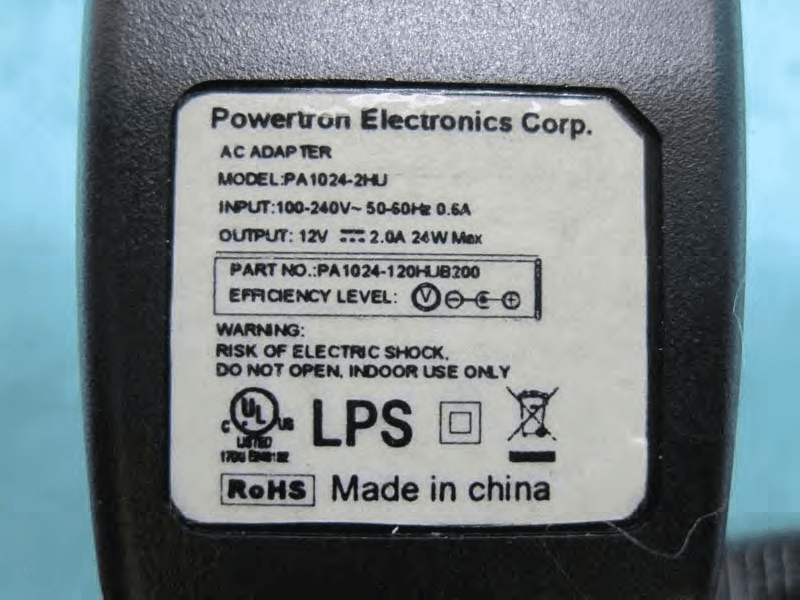

Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 1 OF 8 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Photographs of EUT EUT 1 Model No. AP370 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 2 OF 8 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 3 OF 8 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 EUT 2 Model No. AP390 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 4 OF 8 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 5 OF 8 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 6 OF 8 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Dipole Antenna Ant. 1 (Only for EUT 2) Dipole Antenna Ant. 2 (Only for EUT 2) Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 7 OF 8 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Power Adapter Model No. PA1024-2HU Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 8 OF 8 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085

Unit: mm

Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 1 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Photographs of EUT EUT 1 Model No. AP370 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 2 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 3 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 4 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 5 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 6 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 7 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 8 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 9 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 10 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 11 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 12 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 13 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 14 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 15 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 16 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 17 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 18 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 19 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 20 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 21 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 22 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 EUT 2 Model No. AP390 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 23 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 24 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 25 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 26 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 27 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 28 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 29 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 30 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 31 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 32 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 33 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 34 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 35 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 36 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 37 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 38 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 39 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 40 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 41 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 42 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug. 15, 2013 FAX : 886-3-656-9085 Report No.: 362046 SPORTON International Inc. PAGE NUMBER : 43 OF 43 TEL : 886-3-656-9065 ISSUED DATE : Aug.…

Text truncated - open the document above for the full version.

Report No.: FR362046 FCC ID: WBV-AP3X0 Page No. : B1 of B4 Appendix B. Maximum Permissible Exposure Report No.: FR362046 FCC ID: WBV-AP3X0 Page No. : B2 of B4 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR362046 FCC ID: WBV-AP3X0 Page No. : B3 of B4 1.3. Calculated Result and Limit EUT 1 (Model No. AP370) For 5GHz UNII Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11ac MCS0, Nss1 80MHz / Chain 4+ Chain 5+ Chain 6 : 16.98dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.54 2.8445 16.9790 49.8771 0.028239 1 Complies For 5GHz ISM Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11a / Chain 4+ Chain 5+ Chain 6 : 28.86dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.54 2.8445 28.8565 768.5113 0.435112 1 Complies For 2.4GHz Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11b / Chain 1+ Chain 2+ Chain 3 : 28.35dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.42 2.7669 28.3519 684.2161 0.376828 1 Complies CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.376828 / 1 + 0.435112 / 1 = 0.81194, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. Report No.: FR362046 FCC ID: WBV-AP3X0 Page No. : B4 of B4 For EUT 2 (Model No. AP390) For 5GHz UNII Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11ac MCS0, Nss1 40MHz / Chain 4+ Chain 5+ Chain 6 : 16.88dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.30 2.1380 16.8792 48.7437 0.020743 1 Complies For 5GHz ISM Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11a / Chain 4+ Chain 5+ Chain 6 : 28.86dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.30 2.1380 28.8638 769.8001 0.327588 1 Complies For 2.4GHz Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11n MCS0 20MHz / Chain 1+ Chain 2+ Chain 3 : 26.25dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.60 2.2909 26.2546 422.1440 0.192491 1 Complies CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.192491 / 1 + 0.327588 / 1 = 0.520079, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: FR362046 FCC ID: WBV-AP3X0 Page No. : C1 of C5 Appendix C. Co-location Report No.: FR362046 FCC ID: WBV-AP3X0 Page No. : C2 of C5 1. Results of Radiated Emissions for Co-located Temperature 24.5°C Humidity 57% Test Engineer Serway Li Configurations Normal Link / 2.4G + 5G Test Mode Mode 1. EUT 1 put vertically+PoE Horizontal Report No.: FR362046 FCC ID: WBV-AP3X0 Page No. : C3 of C5 Vertial Report No.: FR362046 FCC ID: WBV-AP3X0 Page No. : C4 of C5 Temperature 24.5°C Humidity 57% Test Engineer Serway Li Configurations Normal Link / 2.4G + 5G Test Mode Mode 2. EUT 2 put vertically+PoE Horizontal Report No.: FR362046 FCC ID: WBV-AP3X0 Page No. : C5 of C5 Vertial

SPORTON International Inc. No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Ph: 886-3-656-9065 / FAX: 886-3-656-9085 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Aerohive Networks, Inc. Applicant Address 330 Gibraltar Drive, Sunnyvale, CA 94089 FCC ID WBV-AP3X0 Manufacturer’s company Accton Technology Corporation Manufacturer Address 1, Creation Road 3, Hsinchu Science Park , Hsinchu 30077 , Taiwan , R.O.C Product Name Access Point Brand Name Aerohive Model No. AP370 / AP390 Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250MHz Received Date Jun. 20, 2013 Final Test Date Jul. 28, 2013 Submission Type Original Equipment Operating Mode Master Statement Test result included is for the IEEE 802.11n and IEEE 802.11a/ac (5150 ~ 5250MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart E, KDB 789033 D01 v01r03 and KDB 662911 D01 v02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR362046AB Report Format Version: 01 Page No. : i of ii FCC ID: WBV-AP3X0 Issued Date :Aug. 15, 2013 Table of Contents 1. CERTIFICATE OF COMPLIANCE ........................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT ............................................................................................................................ 2 3. GENERAL INFORMATION..................................................................................................................................... 3 3.1. Product Details ........................................................................................................................................................................................... 3 3.2. Accessories ................................................................................................................................................................................................. 5 3.3. Table for Filed Antenna ............................................................................................................................................................................. 6 3.4. Table for Carrier Frequencies ................................................................................................................................................................... 7 3.5. Table for Test Modes .................................................................................................................................................................................. 8 3.6. Table for Testing Locations...................................................................................................................................................................... 11 3.7. Table for Multiple Listing .......................................................................................................................................................................... 11 3.8. Table for Supporting Units ....................................................................................................................................................................... 11 3.9. Table for Parameters of Test Software Setting ..................................................................................................................................... 12 3.10. EUT Operation during Test ....................................................................................................................................................................... 13 3.11. Duty Cycle................................................................................................................................................................................................. 14 3.12. Test Configurations................................................................................................................................................................................... 20 4. TEST RESULT......................................................................................................................................................... 23 4.1. AC Power Line Conducted Emissions Measurement ......................................................................................................................... 23 4.2. 26dB Bandwidth & 99% Occupied Bandwidth Measurement.......................................................................................................... 29 4.3. Maximum Conducted Output Power Measurement......................................................................................................................... 48 4.4. Power Spectral Density Measurement.................................................................................................................................................. 54 4.5. Peak Excursion Measurement ................................................................................................................................................................ 67 4.6. Radiated Emissions Measurement......................................................................................................................................................... 79 4.7. Band Edge Emissions Measurement.................................................................................................................................................... 112 4.8. Frequency Stability Measurement.............................................................…

Text truncated - open the document above for the full version.

Report No.: FR362046 FCC ID: WBV-AP3X0 Page No. : A1 of A8 Appendix A. Test Photos Report No.: FR362046 FCC ID: WBV-AP3X0 Page No. : A2 of A8 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR362046 FCC ID: WBV-AP3X0 Page No. : A3 of A8 Test Mode: Mode 3 FRONT VIEW REAR VIEW Report No.: FR362046 FCC ID: WBV-AP3X0 Page No. : A4 of A8 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR362046 FCC ID: WBV-AP3X0 Page No. : A5 of A8 Test Configuration: 30MHz~1GHz / Test Mode: Mode 3 FRONT VIEW REAR VIEW Report No.: FR362046 FCC ID: WBV-AP3X0 Page No. : A6 of A8 Test Mode: Mode 6 FRONT VIEW REAR VIEW Report No.: FR362046 FCC ID: WBV-AP3X0 Page No. : A7 of A8 Test Configuration: Above 1GHz / Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR362046 FCC ID: WBV-AP3X0 Page No. : A8 of A8 Test Mode: Mode 3 FRONT VIEW REAR VIEW
