WCGP5CWireless Power Monitor

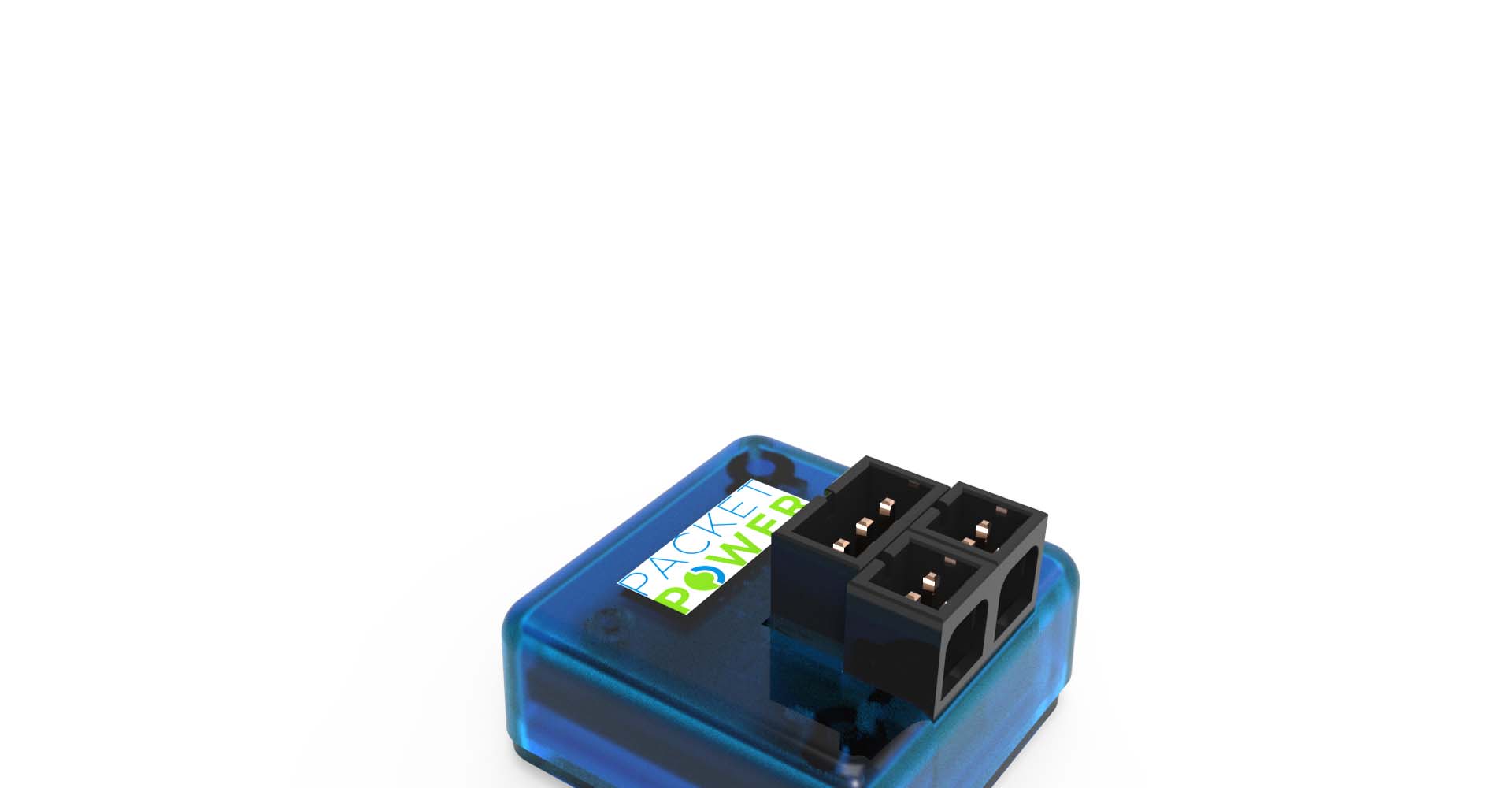

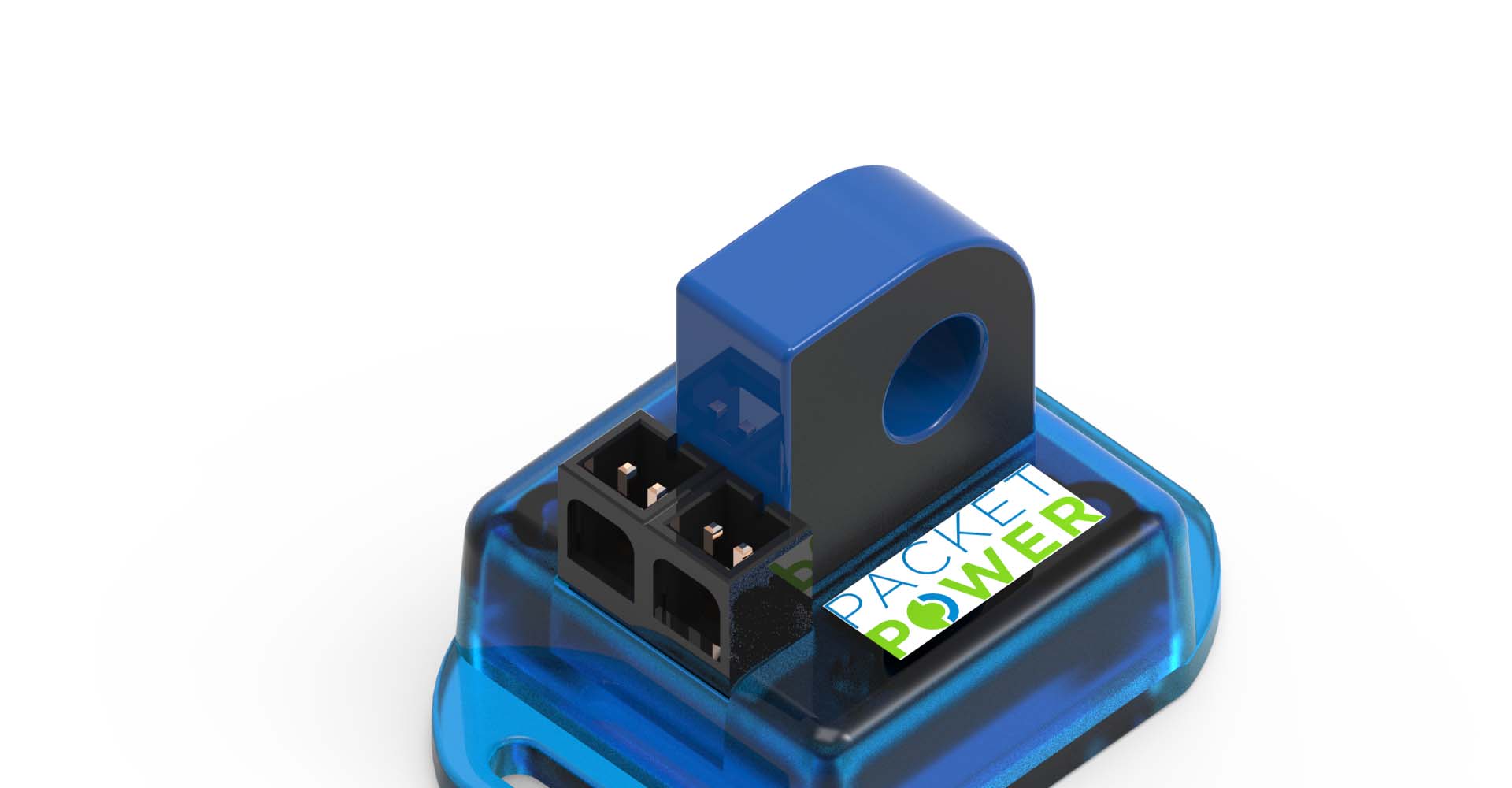

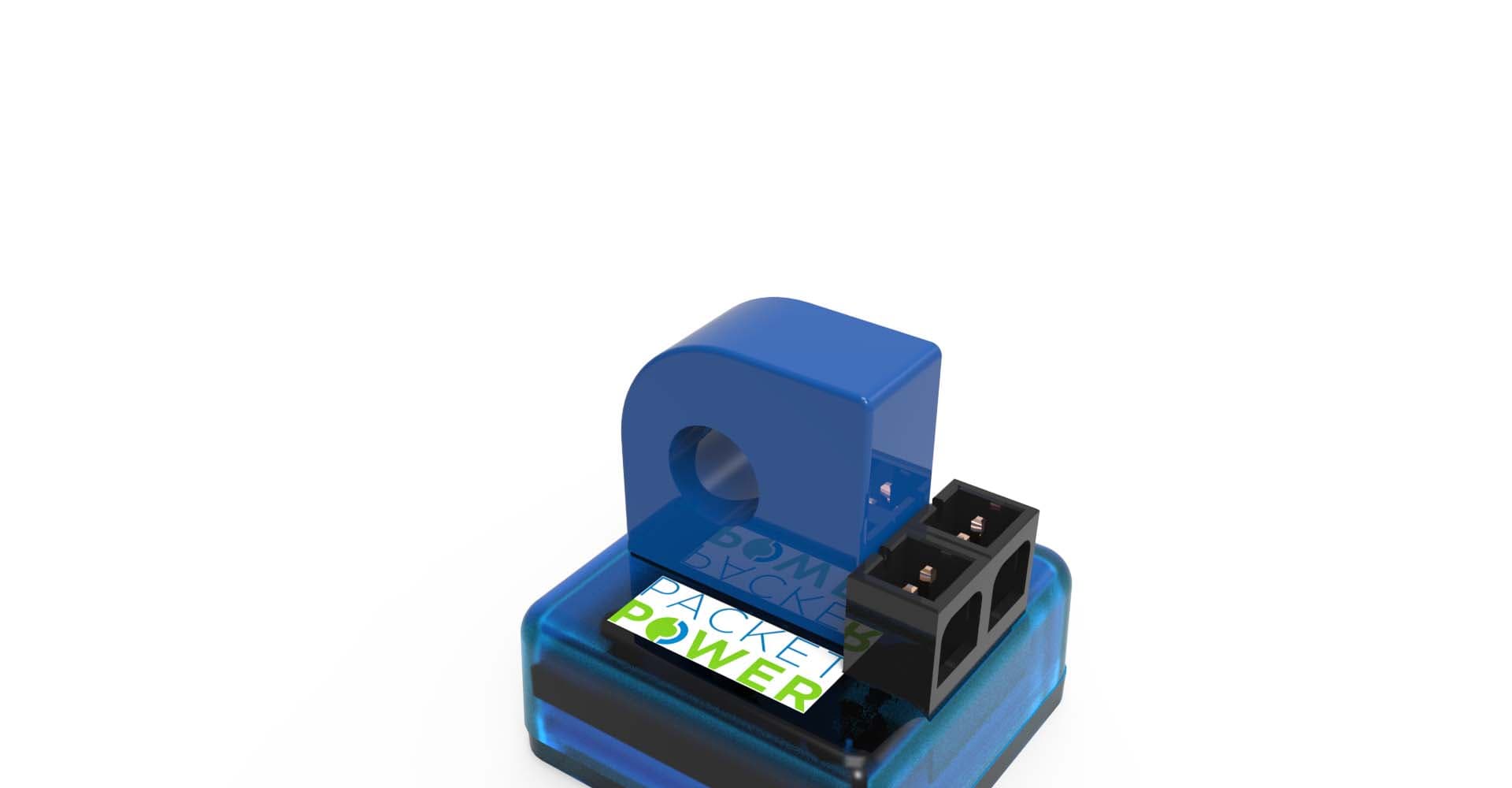

Packet Power™ Wireless Smart DC Power Monitoring System User’s Manual Version 1.1 Packet Power, LLC 2716 Summer St. NE Minneapolis, MN 55413 1-877-560-8770 Email: [email protected] www.packetpower.com Indicates a POTENTIAL HAZARD. Consult documentation carefully. CAUTION  Read all instructions carefully prior to installation.  The DC Power Monitor should only be connected to DC power sources in the range noted in the manual and / or label.  Installation shall only be performed by a qualified electrical professional.  Adhere to voltage and amperage guidelines and utilize a proper branch circuit protector.  No field-serviceable parts. Do not attempt to disassemble the product as potentially severe electrical shock may result. Installation and maintenance must be performed by qualified personnel.  Follow basic safety precautions to reduce the risk of electrical shock and damage to equipment.  Store in a clean, dry location. Clean with a dry cloth.  Intended for indoor use only, do not install in a wet location.  Adhere to all local electrical codes and guidelines.  Failure to use the product in the specified manner may lead to injury or death and damage to equipment. P5C P5C PACKETPOWER.COM SEE MANUAL FCC ID: WCGP5C IC: 8751A P5C MADE INUSA PACKETPOWER.COM SEE MANUAL FCC ID: WCGP5C IC: 8751A P5C MADE INUSA REGULATORY INFORMATION This product has been certified to meet the following requirements:  Conforms to UL/ANSI/EN/IEC STD 61010-1  Conforms to CAN/CSA STD C22.2 No. 61010-1  CAN/CSA-C22.2 No. 61010-1, second edition, including Amendment 1, or a later version of the same standard incorporating the same level of testing requirements.  Council Directive 2006/95/EC (December 12, 2006) on Low Voltage Equipment Safety; IEC 61010-1:2001 (Second Edition) and EN 61010-1:2001 (Second Edition)  Council Directive 1999/05/EC - European Union (EU) Radio & Telecommunications Terminal Equipment Directive (R&TTE) ETSI EN 300 220-2, Issued:2006/04/01 and ETSI EN 301 489-3, Issued:2002/08/01 V1.4.1  Council Directive 2004/108/EC (December 15, 2004) on Electromagnetic Compatibility CENELEC EN 61326-1 Issued:2006/05/01; IEC 61326-1:2005;:1997 –  AS/NZS 4268: 2008 Class B Device Statement / FCC Regulations: Section 15.105(a) of the FCC Rules: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Section 15.19 of the FCC Rules: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to this product not expressly approved by Packet Power LLC might cause harmful interference and void the FCC authorization to operate this product. Pursuant to part 2.1091c of the FCC rules device is categorically excluded from routine RF Exposure regulations. Industry Canada (IC) Compliance Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Per section RSS-102, 2.5 of Industry Canada regulations, this device is categorically excluded from Routine Evaluation Limits. Industrie Canada (IC) Déclaration de conformité Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance ipoosotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. Packet Power™ Wireless Smart DC Monitoring System Manual Copyright 2015 © Packet Power, LLC. 1 Safety summary and specifications This manual is intended for use by personnel responsible for installing the Packet Power Wireless Smart DC Monitoring System. Packet Power LLC assumes no liability for user’s failure to comply with these safety guidelines. Please read this manual carefully before proceeding. This symbol is used throughout this manual to indicate critical safety information. Failure to observe the information following this symbol may result in injury or death.  Wireless Smart DC Monitors should only be connected to the type of power source indicated on the label or manual.  Do not connect to AC line voltage sources. For use with DC power sources only. …

Text truncated - open the document above for the full version.

Packet Power, LLC  Phone +1(877)560-8770  Fax +1(866)324-2511  www.packetpower.com 2716 Summer St NE, Minneapolis, MN 55413 USA July 14, 2015 Compliance Testing LLC 1724 S. Nevada Way Mesa, AZ 85204 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, Steve VanTassel CEO Packet Power LLC [email protected] (877) 560-8770

Packet Power, LLC  Phone +1(877)560-8770  Fax +1(866)324-2511  www.packetpower.com 2716 Summer St NE, Minneapolis, MN 55413 USA July 14, 2015 Compliance Testing LLC 1724 S. Nevada Way Mesa, AZ 85204 RE: CONFIDENTIALITY REQUEST FOR P5C / FCC ID: WCGP5C To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the following documents required to be submitted with this application be permanently withheld from public review.  Block Diagram  Schematics  Theory of Operation  Parts List/BOM These documents contain detailed system and equipment descriptions and related information about the product, which manufacturer/applicant considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, manufacturer/applicant feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Steve VanTassel CEO Packet Power LLC [email protected] (877) 560‐8770

Packet Power, LLC  Phone +1(877)560-8770  Fax +1(866)324-2511  www.packetpower.com 2716 Summer St NE, Minneapolis, MN 55413 USA July 14, 2015 Compliance Testing LLC 1724 S. Nevada Way Mesa, AZ 85204 RE: Short Term Confidentiality Request for P5C / FCC ID: WCGP5C To Whom It May Concern: In accordance with sections 0.457 and 0.459 of CFR 47, Packet Power LLC requests short-term Confidentiality of following sections of this application for a period of 45 days after grant is issued. 1. Test setup photos 2. External photos 3. Internal photos 4. User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which manufacturer/applicant considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, manufacturer/applicant feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Grantee will not market or distribute product during the period requested. Once product is available for marketing, Grantee will notify FCC or TCB. Please contact me if there is any information you may need. Sincerely, Steve VanTassel CEO Packet Power LLC [email protected] (877) 560-8770

Form: CB-7.2.1 Issued by: QM Issue Date: 9/22/2011 Page 1 of 2 Revised by: QM-JS Revised Date: 6/23/2014 L:\Project\2015\p1560010-Packet Po\TCB Folder\RT's\CB-7.2.1 - Technical Review RT Form_SM revised.docx CB-7.2.1 – Technical Review RT Form FCC ID: WCGP5C IC ID: CT Project: P1560010 From: Shawn McMillen Date: 7/30/15 1--The test report is missing radiated data 30-1000MHz as well as emissions 18GHz to the 10th harmonic of the fundamental. Alex: The test report has been updated 2--The plots provided on pages 14 and 15 of the report show band edge emissions in a 100kHz RBW. If the intent is to meet the 15.249 band edge 50dBc requirement then none of the plots provided demonstrate that the EUT is compliant. Alternatively if 15.209 is being used to demonstrate compliance then the requirement is per MHz and 100KHz plots provided will not meet the requirements when the additional 10log(MHz/KHz) is added to the band edge emissions. Also note that if 15.209 is being used for the band edge emissions then the requirement is both peak and average due to the restricted bands. In addition the test report should indicated that spectrum analyzer settings below 1GHz are 100KHz and 300KHz RBW and VBW. The report indicates that only 1MHz and 3MHz RBW and VBW were used. Alex: The report has been updated with the correct plots 3--The label is making use of the FCC logo of which this device is not subject to the DoC requirements and should not be used with this product. This also appears in the user’s manual. Client: I was under the impression that we could use the FCC logo as we have in the past when completing identical testing with Compliance Testing? Why is this a different case? What logo / markers do we use to indicate compliance? SM_The logo shouldn’t have been on any of your products in the past as this device is not subject to the DoC requirements. Client: Will correct. 4--Please note that RF exposure is not applicable to this product. Alex: Noted 5--The block diagram is missing from this application. Diana: I extracted block diagram from theory of operation. 6--The user’s manual indicates that the devices frequency range is 2400-2463 which is inconsistent with the test report. Also the user’s manual indicates that the channels are 1Mhz wide however the measured channel bandwidth per the test report demonstrates that the bandwidths are around 500kHz. Form: CB-7.2.1 Issued by: QM Issue Date: 9/22/2011 Page 2 of 2 Revised by: QM-JS Revised Date: 6/23/2014 L:\Project\2015\p1560010-Packet Po\TCB Folder\RT's\CB-7.2.1 - Technical Review RT Form_SM revised.docx Client: Please see the change to the users manual. We have removed specific frequency and bandwidth references other than mentioning that the radio transmits in the 2.4 GHz band. CT - Response by: Submitted by: Date:

FCC ID: WCGP5CIC: 8751A - P5C P5C MADE INUSA 3194625 SEE MANUAL PACKETPOWER.COM FCC ID: WCGP5CIC: 8751A - P5C P5C MADE INUSA 3194625 SEE MANUAL PACKETPOWER.COM Bottom View (label is located on bottom side) FCC ID: WCGP5CIC: 8751A - P5C P5C MADE INUSA 3194625 SEE MANUAL PACKETPOWER.COM

p1560010_FCC_Part 15.249_Rev 2.0 Page 1 of 17 Test Report Prepared for: Packet Power, LLC Model: P5C Description: Wireless Smart DC Power Monitors Serial Number: N/A FCC ID: WCGP5C To FCC Part 15.249 Date of Issue: July 30, 2015 On the behalf of the applicant: Packet Power, LLC 2716 Summer St NE Minneapolis, MN 55413 Attention of: Paul Bieganski, CTO Ph: (877)560-8770 E-mail: [email protected] Prepared by Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 (480) 926-3100 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p1560010 Alex Macon Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing. All results contained herein relate only to the sample tested. p1560010_FCC_Part 15.249_Rev 2.0 Page 2 of 17 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 July 27, 2015 Alex Macon Original Document 2.0 July 30, 2015 Alex Macon Included 30-1000MHz radiated plot and updated band edge plots for better clarification. p1560010_FCC_Part 15.249_Rev 2.0 Page 3 of 17 Table of Contents Description Page Standard Test Conditions Engineering Practices ............................................................................. 6 Test Results Summary ..................................................................................................................... 8 Fundamental Field Strength ............................................................................................................. 9 Radiated Spurious Emissions ......................................................................................................... 11 99% Occupied Bandwidth .............................................................................................................. 16 Test Equipment Utilized .................................................................................................................. 17 p1560010_FCC_Part 15.249_Rev 2.0 Page 4 of 17 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer to the joint ISO-ILAC-IAF Communiqué dated January 2009). The tests results contained within this test report all fall within our scope of accreditation, unless noted below. Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC Site Reg. #349717 IC Site Reg. #2044A-2 Non-accredited tests contained in this report: N/A p1560010_FCC_Part 15.249_Rev 2.0 Page 5 of 17 The applicant has been cautioned as to the following 15.21: Information to User The user’s manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 15.27(a): Special Accessories Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator the responsible part may employ other methods of ensuring that the special accessories are provided to the consumer, without an additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. p1560010_FCC_Part 15.249_Rev 2.0 Page 6 of 17 Standard Test Conditions Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing: In accordance with ANSI C63.10-2009 and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104°F) unless the particular equipment requirements specified testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Measurement results, unless otherwise noted, are worst-case measurements. Environmental Conditions Temperature (°C) Humidity (%) Pressure (mbar) 24.6 – 25.3 34.5 – 48.2 962.5 – 966.1 EUT Description Model: P5C Description: Wireless Smart DC Power Monitors Firmware: N/A Software: N/A Serial Number: N/A Additional Information: EUT incorporates a 2.4 GHz radio and is powered with 5 VDC EUT Operation during Tests EUT was placed in test modes using the NMX PacketPower URL paired with the node configurator. p1560010_FCC_Part 15.249_Rev 2.0 Page 7 of 17 Accessories: Qty Description Manufacturer Model S/N 1 Power Supply Meanwell APV-12-5 N/A 1 Node Configurator Packet Power 63E1-0200-2014-001D N/A Cables: Qty Description Length (M) Shielding Y/N Shielded Hood Y/N Ferrite Y/N 1 Power lines, twisted pair .5 N N N Modifications: None 15.203: Antenna Requirement: X The antenna is permanently attached to the EUT The antenna uses a unique coupling The EUT must be professionally inst…

Text truncated - open the document above for the full version.

Test Setup Photos FCC ID: WCGP5C RF Radiated #1 RF Radiated #2 RF Radiated #3
