WEF-C83068Wireless Electronic Lock

Copyright ©2012 Stanley Security Solutions, Inc. All rights reserved. Information in this document is subject to change without notice and does not represent a commitment on the part of Stanley Security Solutions, Inc. The software described in this document are furnished under a license agreement or nondisclosure agreement. This publication is intended to be an accurate description and set of instructions pertaining to its subject matter. However, as with any publication of this complexity, errors or omissions are possible. Please call Stanley Security Solutions, Inc. at (317) 849-2250 if you see any errors or have any questions. No part of this manual and/or databases may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or information storage and retrieval systems, for any purpose, without the express written permission of Stanley Security Solutions, Inc. This document is distributed as is, without warranty of any kind, either express or implied, respecting the contents of this book, including but not limited to implied warranties for the publication’s quality, performance, merchantability, or fitness for any particular purpose. Neither Stanley Security Solutions, Inc, nor its dealers or distributors shall be liable to the user or any other person or entity with respect to any liability, loss, or damage caused or alleged to be caused directly or indirectly by this publication. The Stanley Wi-Q AMS and Wi-Q Technology are registered trademarks of Stanley Security Solutions, Inc. Bonjour is a registered trademark of Apple Inc. Wi-Spy and MetaGeek are registered trademarks of MetaGeek, LLC. Microsoft, Windows, CE, and ActiveSync are registered trademarks of Microsoft Corporation. T85202/Rev D June 2015 FCC/IC Certification CAUTION: Please keep the PG antenna 20cm away from people to ensure that FCC RF exposure compliance requirements are not exceeded. This equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, you can try to correct the interference by taking one or more of the following measures. „Reorient or relocate the receiving antenna „Increase the separation between the equipment and receiver „Connect the equipment into an outlet on a circuit different from that to which the receiver is connected „Consult the dealer or an experienced radio/TV technician for help. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including any interference that may cause undesired operation of the device. Cet appareil est conforme à la norme RSS Industrie Canada exempt de licence. Son fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne doit pas provoquer d’interférences et (2) cet appareil doit accepter toute interférence, y compris les interferences pouvant causer un mauvais fonctionnement du dispositif. This Class [B] digital apparatus meets all requirements of the Canadian Interference- Causing Equipment Regulations. Cet appareil numérique de la classe [B] respecte toutes les exigences du Réglement sur le matériel brouilleur du Canada. Warning! Changes or modifications not expressly approved by {Applicant name} could void the user’s authority to operate the equipment. Approved antennas are listed below and antennas not included in this list are strictly prohibited for use with these devices. The required antenna impedance is 50 ohms. Approved Antennas Portal Gateway „HG2402RD-RSF - 2.4GHz Rubber Duck Antenna „MP24008XFPTNF - 2.4GHz ISM-XF Panel Antenna „MC2400PTMSMA - 2.4GHz Omni-Directional Antenna „BS2400XL3 - 2.4GHz Outdoor Omni-Directional Antenna Controller „Integrated Antenna IMPORTANT! Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Contents 1 Overview System Overview .............................................................7 Setup Checklist ..............................................................12 2 Hardware Installation Hardware Overview ......................................................13 Installing System Hardware ........................................16 Install Portal Gateways (Task 8).................................24 Install Door Hardware (Task 9) ...................................28 3 Software Installation Prepare Your Computer (Task 3) .................................33 Gather and Organize Segment Data ( Task 4 ) .............................................................................43 Install Software (Task 5) ..............................................45 4 Configuring Segments, Portal Gateways and Controllers Create Your Segment (Task 6) .....................................63 Add and Configure Portal Gateways ( Task 7 ) .............................................................................67 Sign on and Configure Controllers ( Task 10 ) ...........................................................................84 5 Configure AMS Software (Task 11) Associations ...................................................................96 Credential Settings ......................................................108 Daylight Saving Settings ............................................…

Text truncated - open the document above for the full version.

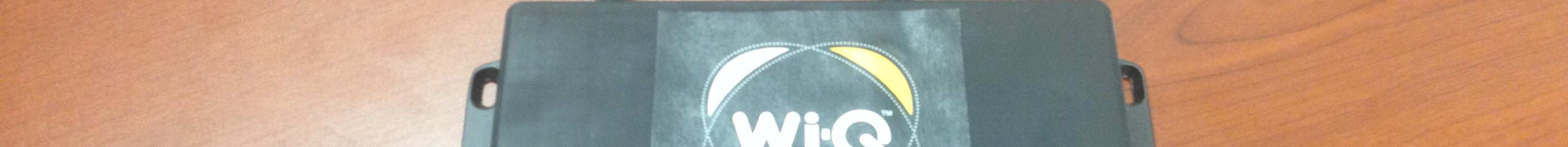

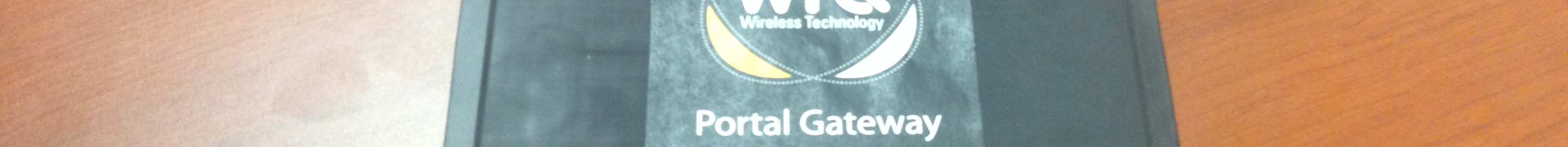

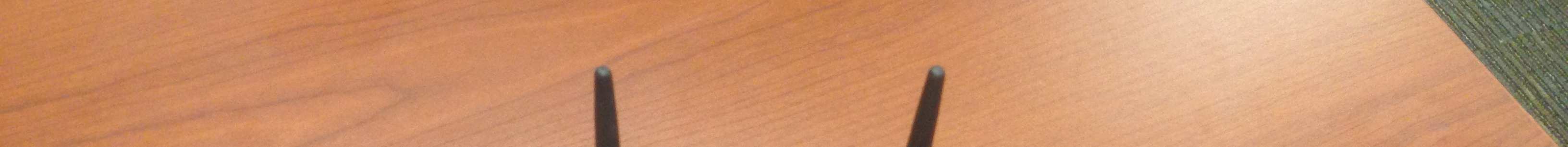

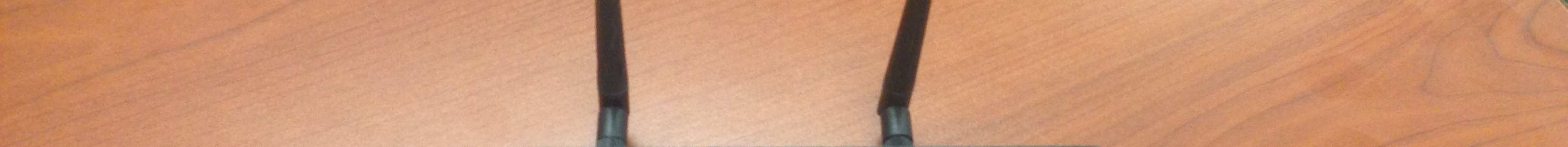

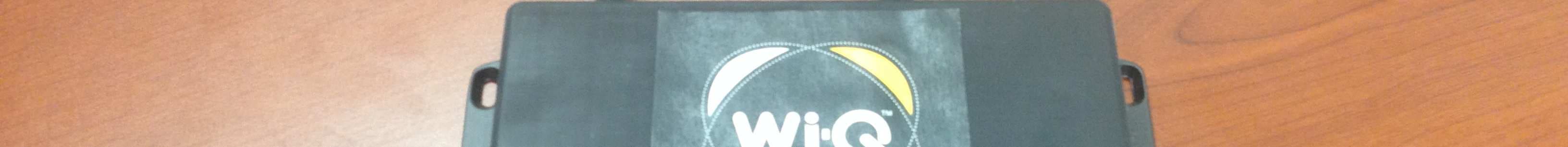

External Photos

13 A B 24 C DRAWING PRODUCT FAMILY THIRD ANGLE PROJECTION ( ) BRAND STANLEY SECURITY 6161 E. 75TH STREET INDIANAPOLIS, IN 46250 SIZE PROJECT SHEET SCALE HARDNESS: FINISH: MATERIAL: TITLE * 2.500.015 .620.015 Q-SERIES STANLEY This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: WEF-C83068 Model: C83068 IC: 7713A-C83068 NOTES: 1. MATERIAL: 2MIL GLOSS WHITE POLYESTER COLOR: WHITE ADHESIVE: 3M 7871 TEXT COLOR: BLACK 2. FONT: ARIAL SIZE .06" STYLE: NORMAL 3. FONT: ARIAL SIZE .08" STYLE: BOLD SEE NOTE #3 SEE NOTE #2 C C A A82315 "Copyright © 2015 Stanley Security Solutions, Inc. All Rights Reserved." PORTAL GATEWAY "Export of this document to countries outside the United States is subject to U.S. export administration regulations." 2.000 FCC LABEL "CONFIDENTIAL - This document and all information contained herein is the sole property of Stanley Security Solutions, Inc. and may not be disclosed to unauthorized persons or reproduced by any means or used for any purpose other than that submitted without the express written permission from Stanley Security Solutions, Inc." 1 OF 1 SPECIFICATIONS ARE TO BE INTERPRETED ACCORDING TO ASME Y14.5M-1994. CTQ'S TO BE INTREPRETED ACCORDING TO SP02.3.BAS DUAL DIMENSIONS INCH TO BE SHOWN AS: [Millimeter] .XXX = BASIC DIMENSION ALL DIMENSIONS ARE IN INCHES UNLESS OTHERWISE SPECIFIED REVISIONS = CHANGED IN THIS REVISION REV.ECN/EAFBYDATEAPR. BY A100313BDH6/10/2008BJB B100998BDH7/31/2009BJB C00267BDH1/22/2015TXS Label location

731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com MPE Calculation § 1.1310: The criteria listed in table 1 shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. Part 1.1310 Limits for Maximum Permissible Exposure (MPE) 1.1 Test Procedure An MPE evaluation for was performed in order to show that the device was compliant with §2.1091. The maximum power density was calculated for each transmitter at a separation distance of 20cm. For each transmitter the maximum RF exposure at a 20 cm distance using the formula: 10/)( 10 dBmowerConductedP mW PowerConducted= 2 )20(4 . cm mW GainAntPowerConducted tyPowerDensi × × = π 2 )20(4 )( cm mWEIRP tyPowerDensi × = π 731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com 1.2 Results: • EIRP calculated from conducted power + antenna gain = 162.2 mW Power Density = (162.2 mW)/ 5025.6 Power Density = 0.032 mW/cm 2 Limit in 2.4GHz ISM Band = 1.0 mW/cm 2 The calculated maximum power density at 20cm distance is less that the limit for general population / uncontrolled exposure.

This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. EMC Report for Stanley Security Solutions on the Portal Gateway Page 1 of 46 731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com FINAL TEST REPORT Report Number: 101968343LEX-002 Project Number: G101968343 Report Issue Date: 2/2/2015 Product Name: Portal Gateway Standards: Title 47 CFR Part 15.247 RSS-210 Issue 8 Tested by: Client: Intertek Testing Services NA, Inc. 731 Enterprise Drive Lexington, KY 40510 Stanley Security Solutions 6161 E 75th Street Indianapolis, IN 46250 Report prepared by Report reviewed by Jason Centers, Staff Engineer Bryan Taylor, Team Leader Intertek Report Number: 101968343LEX-002 Issued: 2/2/2015 EMC Report for Stanley Security Solutions on the Portal Gateway Page 2 of 46 TABLE OF CONTENTS 1 Introduction and Conclusion .............................................................................................................. 3 2 Test Summary ...................................................................................................................................... 3 3 Description of Equipment Under Test ............................................................................................... 4 4 Peak Conducted Power ....................................................................................................................... 6 5 Occupied Bandwidth ......................................................................................................................... 13 6 Conducted Spurious Emissions ....................................................................................................... 22 7 Power Spectral Density ..................................................................................................................... 25 8 Radiated Spurious Emissions (Transmitter) ................................................................................... 29 9 AC Powerline Conducted Emissions ............................................................................................... 39 10 Antenna Requirement per FCC Part 15.203 ................................................................................. 44 11 Measurement Uncertainty.............................................................................................................. 45 12 Revision History ............................................................................................................................. 46 Intertek Report Number: 101968343LEX-002 Issued: 2/2/2015 EMC Report for Stanley Security Solutions on the Portal Gateway Page 3 of 46 1 Introduction and Conclusion The tests indicated in section 2 were performed on the product constructed as described in section 3. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test method, a list of the actual test equipment used, documentation photos, results and raw data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complied with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. The INTERTEK-Lexington is located at 731 Enterprise Drive, Lexington Kentucky, 40510. The radiated emission test site is a 10-meter semi-anechoic chamber. The chamber meets the characteristics of CISPR 16-1 and ANSI C63.4. For measurements, a remotely controlled flush-mount metal-top turntable is used to rotate the EUT a full 360 degrees. A remote controlled non-conductive antenna mast is used to scan the antenna height from one to four meters. The test site is listed with the FCC under registration number 485103. The test site is listed with Industry Canada under site number IC 2042M-1. 2 Test Summary Page Test full name FCC Reference IC Reference Result 6 Peak Conducted Power § 15.247(b)(3)(4) RSS-210 (A8.4) Pass 13 Occupied Bandwidth § 15.247(a)(2) RSS-210 (A8.2), RSS-GEN (4.6.1) Pass 22 Conducted Spurious Emissions § 15.247(d) RSS-210 (A8.5) Pass 25 Power Spectral Density § 15.247(e) RSS-210 A8.2(B) Pass 29 Radiated Spurious Emissions (Transmitter) § 15.247(d), § 15.209, and § 15.205 RSS-210 (2.2) Pass 39 AC Powerline Conducted Emissions § 15.107, § 15.207 RSS-Gen (7.2.4) Pass 44 Antenna Requirement per FCC Part 15.203 § 15.203 RSS-Gen (7.1.2) Pass Intertek Report Number: 101968343LEX-002 Issued: 2/2/2015 EMC Report for Stanley Security Solutions on the Portal Gateway Page 4 of 46 3 Description of Equipment Under Test Equipment Under Test Manufacturer Stanley Security Solutions Model Number C83068 Serial Number Not Labeled FCC Identifier WEF-C83068 IC Identifier 7713A-C83068 Receive Date 1/13/2015 Test Start Date 1/13/2015 Test End Date 1/31/2015 Device Received Condition Good Test Sample Type Production Frequency Band 2405MHz – 2480MHz Mode(s) of Operation Zigbee Modulation Type OFDM Duty Cycle 100% Transmission Control Test C…

Text truncated - open the document above for the full version.

Radiated Spurious Emissions – HG2402RD-RSF Antenna Radiated Spurious Emissions - MP24008XFPTNF Antenna Radiated Spurious Emissions - MC2400PTMSMA Antenna Radiated Spurious Emissions - BS2400XL3 Antenna
