WEF-QEWWireless Portal Gateway

www.stanleyblackanddecker.com/Zeus QEL 200 User Guide Wireless & Stand-Alone Copyright© 2013 Stanley Security Solutions, Inc. All rights reserved. Information in this document is subject to change without notice and does not represent a commitment on the part of Stanley Security Solutions, Inc. The software described in this document are furnished under a license agreement or nondisclosure agreement. This publication is intended to be an accurate description and set of instructions pertaining to its subject matter. However, as with any publication of this complexity, errors or omissions are possible. Please call Stanley Security Solutions, Inc at (317) 849-2250 if you see any errors or have any questions. No part of this manual and/or databases may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or information storage and retrieval systems, for any purpose, without the express written permission of Stanley Security Solutions, Inc. This document is distributed as is, without warranty of any kind, either express or implied, respecting the contents of this book, including but not limited to implied warranties for the publication’s quality, performance, merchantability, or fitness for any particular purpose. Neither Stanley Security Solutions, Inc, nor its dealers or distributors shall be liable to the user or any other person or entity with respect to any liability, loss, or damage caused or alleged to be caused directly or indirectly by this publication. QEL 200 is a registered trademark of Stanley Security Solutions, Inc. Intelli-M is a registered trademark of Infinias Inc. Microsoft, Windows, CE, and ActiveSync are registered trademarks of Microsoft Corporation. A86094-01 • April 2013 FCC Certification This equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, you can try to correct the interference by taking one or more of the following measures: „Reorient or relocate the receiving antenna „Increase the separation between the equipment and receiver „Connect the equipment into an outlet on a circuit different from that to which the receiver is connected „Consult the dealer or an experienced radio/TV technician for help. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. This radio transmitter (identify the device by certification number, or model number if Category II) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device Approved antennas are listed below. Cet appareil est conforme aux normes d’Industrie Canada exempts de licence RSS (s). Son fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne doit pas provoquer d’interférences, et (2) cet appareil doit accepter toute interférence, y compris les interférences pouvant provoquer un fonctionnement indésirable de l’appareil. En vertu de la réglementation de l’industrie du Canada, cet émetteur de radio ne peut fonctionner à l’aide d’une antenne d’un type et un maximum (ou moins) Gain approuvé pour l’émetteur par Industrie Canada. Pour réduire le risque d’interférence aux autres utilisateurs, le type d’antenne et son gain doivent être choisis afin que la puissance isotrope rayonnée équivalente (PIRE) ne dépasse pas ce qui est nécessaire pour une communication réussie. Cet émetteur radio (identifier le périphérique par numéro de certification, ou si le numéro de modèle de catégorie II) a été approuvé par Industrie Canada pour fonctionner avec les types d’antennes énumérés ci-dessous avec le gain maximal admissible et impédance d’antenne requise pour chaque type d’antenne indiqué. Types d’antennes n’est pas inclus dans cette liste, ayant un gain supérieur au gain maximal indiqué pour ce type, sont strictement interdits pour une utilisation avec cet appareil antennes approuvés sont énumérés ci-dessous. Approved Antennas „Rubber Duck Antenna (L-Com HG2402RD-RSF, 2.2dBi Gain , 50 Ohms ) „Remote Mount Antenna (Maxrad Model MC2400PT, 2.5dBi Gain, 50 Ohms) „Rubber Duck Antenna (Antenna Factor ANT-2.4-CW-RCT-xx, 2.2dBi Gain , 50 Ohms ) This product produces radio frequency energy and was evaluated to and met the general population / uncontrolled RF exposure limits at a separation distance of 20cm. Installation of this device must be such that the 20cm is ensured. IMPORTANT! Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 4 Conten…

Text truncated - open the document above for the full version.

Stanley Security Solutions, Inc.: Corporate Headquarters: 6161 East 75 th Street, Indianapolis, IN 46250 Ph: 317 849 2250 Fax: 317 806 3528 www.stanleysecurity.com Attention: Application Examiner Re: Request for confidentiality Applicant: Stanley Security Solutions, Inc. FCC ID: WEF-QEW To whom it may concern, Permanent Confidentiality Request is hereby submitted by Stanley Security Solutions, Inc. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: Χ Schematics Χ Detailed Block diagrams Χ Detailed Operational/Functional Description Χ Tune up procedure Χ Parts list Rationale for request for confidentiality: To keep the design and information from being copied. Stanley Security Solutions, Inc. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Sincerely, Robert Strong Product Engineer/Standards Coordinator Stanley Security Solutions, Inc. Robert Strong Product Engineer/Standards Coordinator Stanley Security Solutions, Inc 6161 E. 75 th Street Indianapolis, IN 46250 Phone 317 806 3288 [email protected]

Stanley Security Solutions, Inc.: Corporate Headquarters: 6161 East 75 th Street, Indianapolis, IN 46250 Ph: 317 849 2250 Fax: 317 806 3528 www.stanleysecurity.com September 7, 2012 Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement Re: We, Stanley Security Solutions, Inc., hereby authorized Intertek Testing Services to act as our agent for the purpose of preparing application for FCC ID number WEF-QEW under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is, September 3, 2012. The limited agency agreement expires on, February 28, 2013, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, Robert Strong Product Engineer/Standards Coordinator Robert Strong Product Engineer/Standards Coordinator Stanley Security Solutions, Inc 6161 E. 75 th Street Indianapolis, IN 46250 Phone 317 806 3288 [email protected]

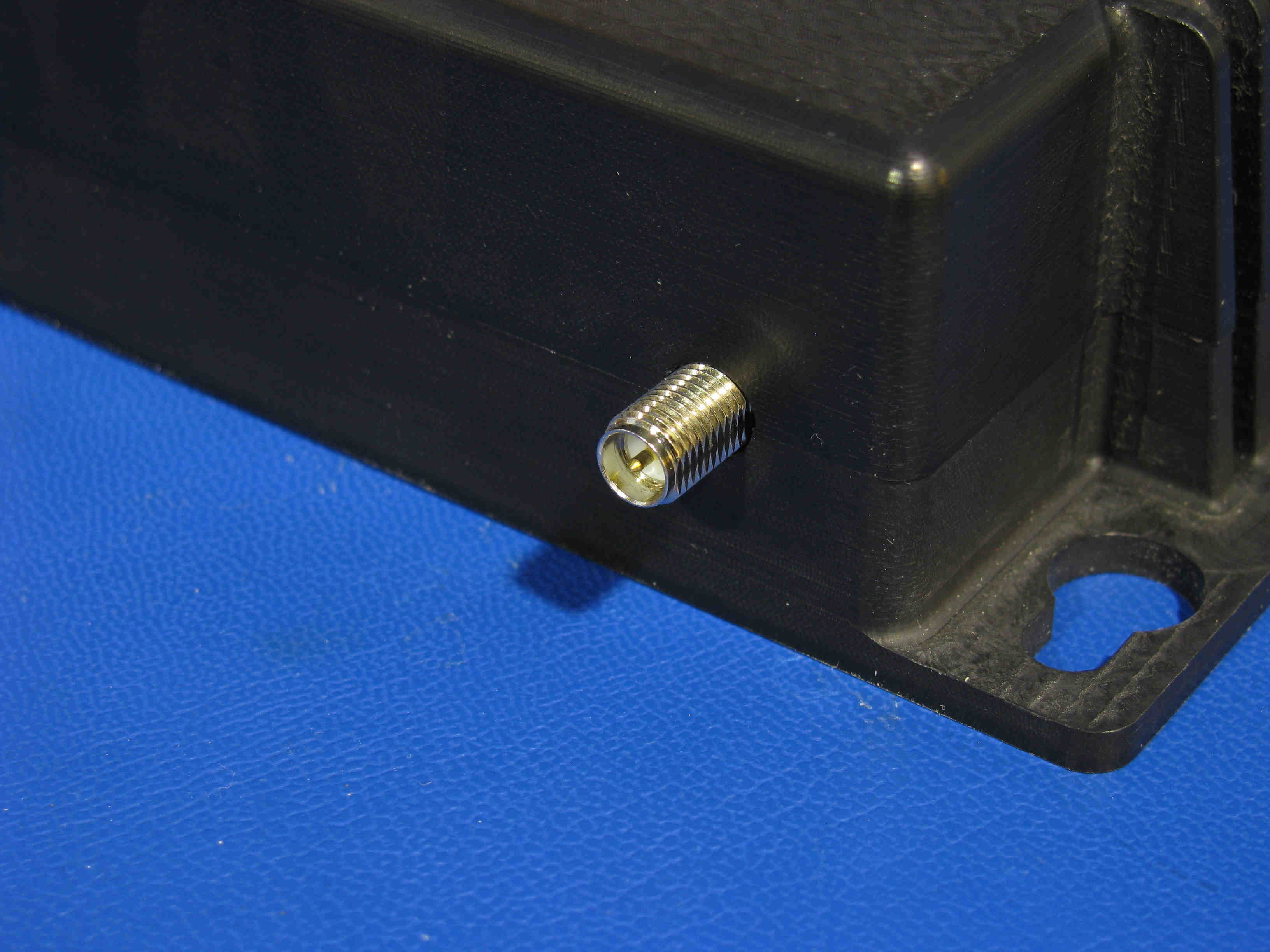

Reverse Polarity SMA Connector Rubber Duck Antenna Remote Mount Antenna

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: WEF-QEW IC: 7713A-QEW Model: QEW

Both Cards Connected Together Mother Card, Top Side Mother Card, Bottom Side Daughter Card, Bottom Side Daughter Card, Top Side

4590 Patrick Henry Drive Santa Clara, CA 95054-1817 Telephone: (408) 919-2500 Facsimile: (408) 988-0279 ZICM357SP2-1 Internal Photo Label & Location Dimensions (0.48” x 0.56”) ZICM357SP2-1 Photo of Back

Intertek Report Number: 100891782LEX-002 Issued: 11/4/2012 EMC Report for Stanley Security Solutions, Inc. on the Gateway FCCID:WEF-QEW ; ICID:7713A-QEW 1 RF Exposure Requirements (MPE Calculations) 1.1 Test Limits § 1.1310: The criteria listed in table 1 shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. Part 1.1310 Limits for Maximum Permissible Exposure (MPE) Intertek Report Number: 100891782LEX-002 Issued: 11/4/2012 EMC Report for Stanley Security Solutions, Inc. on the Gateway FCCID:WEF-QEW ; ICID:7713A-QEW 1.2 Test Procedure The maximum equivalent isotropic radiated output power was calculated using the peak conducted output power (measured) and the manufacturer’s peak declared antenna gain in dBi. Calculation of EIRP: Peak conducted output power = 19.37dBm Peak declared antenna gain = 2.5dBi Peak EIRP = 19.37dBm + 2.5dBi = 21.87dBm (EIRP) Converting EIRP to milliwatts: EIRP(mW) = 10^(21.87/10) = 153.8mW The EIRP in milliwatts was used to calculate the maximum RF exposure at a 20 cm distance as follows: Calculation of Maximum RF Exposure at 20cm: Maximum RF Exposure at 20cm = (EIRP in mW) / (4Pi(20cm) 2 ) Maximum RF Exposure at 20cm = 153.8mW / (4Pi(20cm) 2 ) Maximum RF Exposure at 20cm = 153.8mW / 5025.6cm 2 Maximum RF Exposure at 20cm = 0.03mW/cm 2 1.3 Results: The maximum RF exposure level (0.03mW/cm 2 ) is well below the limits for the general population described in the table above at a distance of 20cm (1 mW/cm 2 ).

This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. EMC Report for Stanley Security Solutions, Inc. on the Gateway Page 1 of 41 731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com TEST REPORT Report Number: 100891782LEX-002 Project Number: G100891782 Report Issue Date: 11/4/2012 Product Name: Gateway Model Number Tested: QEW FCCID: WEF-QEW ICID: 7713A-QEW FCC Standards: Title 47 CFR Part 15 Subpart B and C Industry Canada Standards: RSS-210 Issue 8 & RSS-GEN Issue 3 Tested by: Client: Intertek Testing Services NA, Inc. 731 Enterprise Drive Lexington, KY 40510 Stanley Security Solutions, Inc. 14670 Cumberland Road Noblesville, IN 46060 Report prepared by Report reviewed by Bryan Taylor, Team Leader James Sudduth, Assistant Chief Engineer Intertek Report Number: 100891782LEX-002 Issued: 11/4/2012 EMC Report for Stanley Security Solutions, Inc. on the Gateway Page 2 of 41 TABLE OF CONTENTS 1 Introduction and Conclusion .............................................................................................................. 3 2 Test Summary ...................................................................................................................................... 3 3 Description of Equipment Under Test ............................................................................................... 4 4 Peak Conducted Power ....................................................................................................................... 6 5 Occupied Bandwidth ........................................................................................................................... 7 6 Conducted Spurious Emissions....................................................................................................... 12 7 Power Spectral Density ..................................................................................................................... 18 8 Radiated Spurious Emissions (Transmitter) ................................................................................... 22 9 AC Powerline Conducted Emissions ............................................................................................... 35 10 Antenna Requirement per FCC Part 15.203 ................................................................................. 38 11 Duty Cycle Correction Factor Determination .............................................................................. 39 12 Measurement Uncertainty.............................................................................................................. 40 13 Revision History ............................................................................................................................. 41 Intertek Report Number: 100891782LEX-002 Issued: 11/4/2012 EMC Report for Stanley Security Solutions, Inc. on the Gateway Page 3 of 41 1 Introduction and Conclusion The tests indicated in Section 2 were performed on the product constructed as described in Section 3. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test method, a list of the actual test equipment used, documentation photos, results and raw data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complied with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. All testing was performed at the Intertek office located at 731 Enterprise Drive, Lexington Kentucky, 40510. The radiated emission test site is a 10-meter semi-anechoic chamber. The chamber meets the characteristics of CISPR 16-1 and ANSI C63.4. For measurements, a remotely controlled flush-mount metal-top turntable is used to rotate the EUT a full 360 degrees. A remote controlled non-conductive antenna mast is used to scan the antenna height from one to four meters. The test site is listed with the FCC under Registration Number 485103. The test site is listed with Industry Canada under Site Number IC 2042M-1. 2 Test Summary Page Test full name FCC Reference IC Reference Result 6 Peak Conducted Power § 15.247(b)(3)(4) RSS210 A8.4 (4) Pass 7 Occupied Bandwidth § 15.247(a)(2) RSS210 A8.2(A) Pass 12 Conducted Spurious Emissions § 15.247(d) RSS210 (A8.5) Pass 18 Power Spectral Density § 15.247(e) RSS210 A8.2(B) Pass 22 Radiated Spurious Emissions (Transmitter) § 15.247(d), § 15.209, and § 15.205 RSS-210 (2.2) Pass 35 AC Powerline Conducted Emissions § 15.207 RSS-Gen (7.2.2) Pass 38 Antenna Requirement per FCC Part 15.203 § 15.203 RSS-Gen (7.1.4) Pass Intertek Report Number: 100891782LEX-002 Issued: 11/4/2012 EMC Report for Stanley Security Solutions, Inc. on the Gateway Page 4 of 41 3 Description of Equipment Under Test Equipment Under Test Manufacturer Stanley Security Solutions, Inc. Model Number QEW Serial Number Test Sample 1 FCC Identifier WEF-QEW Industry Canada Identifier 7713A-QEW R…
