WF5SBWM3WiFi/BT Combo Module

Copyright © 2020 by Aroot Co., Ltd. all rights reserved 1 WiFi/BT Combo Module Model: SBW-M3 Product Specification Designed by Checked by Approved by Copyright © 2020 by Aroot Co., Ltd. all rights reserved 2 Revision Record Rev. No Date Item Modifications Approved Copyright © 2020 by Aroot Co., Ltd. all rights reserved 3 Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for reevaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: WF5SBWM3”. The grantee's FCC ID can be used only when all FCC compliance requirements are met. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. Copyright © 2020 by Aroot Co., Ltd. all rights reserved 4 ISED Canada (IC) Statement This Class B digital apparatus complies with Canadian ICES-003. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. RF Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Required end product labeling: Any device incorporating this module must include an external, visible, permanent marking or label which states: “Contains IC: 9080A-SBWM3” This radio transmitter (identify the device by certification number or model number if Category II) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Canada, Industrie Canada (IC) Déclaration Cet appareil numérique de classe B est conforme à la norme NMB-003. Le présent appareil est conforme aux CNR d'Industrie Canada applicables auxappareils radio exempts de licence.L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage adioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Déclaration d'exposition aux radiations: Cet appareil est conforme aux limites d'exposition aux rayonnements définies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé à une distance minimale de 20 centimètres entre le radiateur et votre corps. Obligation d'étiquetage du produit final: Tout dispositif intégrant ce module doit comporter…

Text truncated - open the document above for the full version.

M:\Master Documents\TEMPLATES\POA_Letter.doc Aroot Co., Ltd. 28-6 Gajangsaneopdong-ro, Osan-si, Gyeonggi-do, 18103, Republic of Korea Tel : +82-31-8077-5000 Fax : +82-31-624-5310 [email protected] Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2020.06.17 SUBJECT: FCC Application for (WF5SBWM3) To Whom It May Concern: We, the undersigned, hereby authorize Yong-Gwang, Kwon at ENG Co., Ltd. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by ENG Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Min-Seok Song

Rev 11/20/07 Aroot Co.,Ltd. 28-6 Gajangsaneopdong-ro, Osan-si, Gyeonggi-do, 18103, Republic of Korea Tel : +82-31-8077-5000 Fax : +82-31-624-5310 [email protected] Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: (WF5SBWM3). Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram, Operation Description, Schematics, Part List, Antenna Specification Tune Up Procedure Software Security Requirements For U-NII Devices SBW-M3_Block Diagram, SBW-M3_Operational Descriptions, SBW-M3_Schematics, SBW-M3_Part List, SBW-M3_Antenna Specification SBW-M3_Tune Up Procedure SBW-M3_ Software Security Requirements For U-NII Devices The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: (SHORT-TERM 180 days) Exhibit Type File Name External Photos, Internal Photos, Test Setup Photos, Manual SBW-M3_External Photos, SBW-M3_Internal Photos, SBW-M3_Test Setup Photos, SBW-M3_Manual Sincerely, Min-Seok Song

Aroot Co., Ltd. 28-6 Gajangsaneopdong-ro, Osan-si, Gyeonggi-do, 18103, Republic of Korea Tel : +82-31-8077-5000 Fax : +82-31-624-5310 [email protected] FCC DFS Uniform Spreading Declaration Date: 2020-06-17 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. FCC ID : WF5SBWM3 Product/ Model Number: WiFi/BT Combo Module / SBW-M3 Regarding Uniform Spreading requirements for DFS operation identified in FCC 06- 96 in ET Docket 03-122; “Uniform Channel Spreading: The spreading of U-NII device Operating Channels over the 5 250 MHz – 5 350 MHz and/or 5 470 MHz – 5 725 MHz bands to avoid dense clusters of devices operating on the same channel.” We declare the device provides on aggregate a Uniform Spreading of the Operating Channels across the entire band. This applies to the 5 250 MHz – 5 350 MHz and/or 5 470 MHz – 5 725 MHz bands. Min-Seok Song

Aroot Co., Ltd. 28-6 Gajangsaneopdong-ro, Osan-si, Gyeonggi-do, 18103, Republic of Korea Tel : +82-31-8077-5000 Fax : +82-31-624-5310 [email protected] FCC UNII Device 5600-5650MHz Band Non- Transmission Restrictions Declaration Date: 2020-06-17 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. FCC ID : WF5SBWM3 Product/ Model Number: WiFi/BT Combo Module / SBW-M3 Regarding restrictions for operation in the 5 600 MHz – 5 650 MHz band, as described in FCC KDB notice 905462 D06 Approval of DFS UNII devices v01 “Interim plans to Approve UNII Devices Operating in the 5 470 MHz – 5 725 MHz Band with Radar Detection and DFS capabilities.”, We declare that the device will not transmit on channels which overlap the 5 600 MHz – 5 650 MHz band. Min-Seok Song

Aroot Co.,Ltd. 28-6 Gajangsaneopdong-ro, Osan-si, Gyeonggi-do, 18103, Republic of Korea Tel : +82-31-8077-5000 Fax : +82-31-624-5310 [email protected] MODULAR APPROVAL LETTER FCC ID: WF5SBWM3 Modular Approval Requirement Yes No (i) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Yes (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. Yes (iii) The modular transmitter must have its own power supply regulation. Yes (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Yes (v) The modular transmitter must be tested in a stand- alone configuration Yes (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. Yes (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Yes (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Yes Min-Seok Song

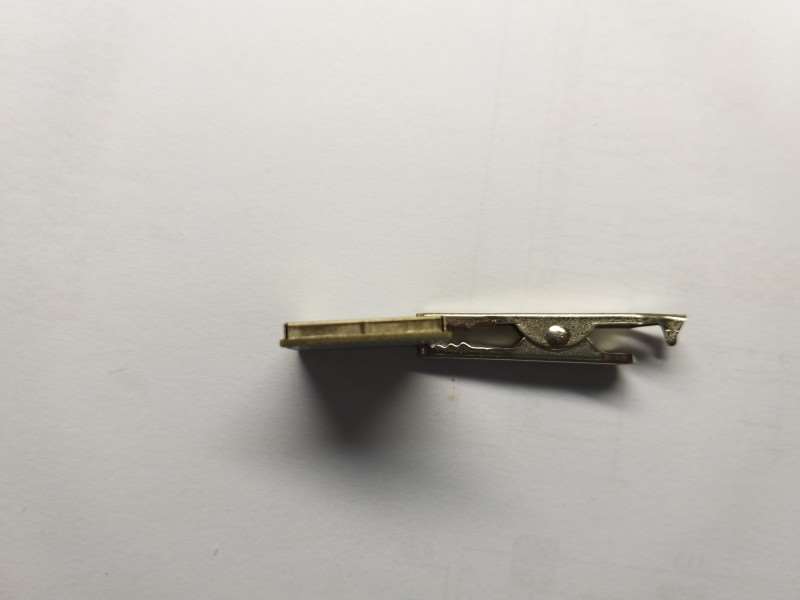

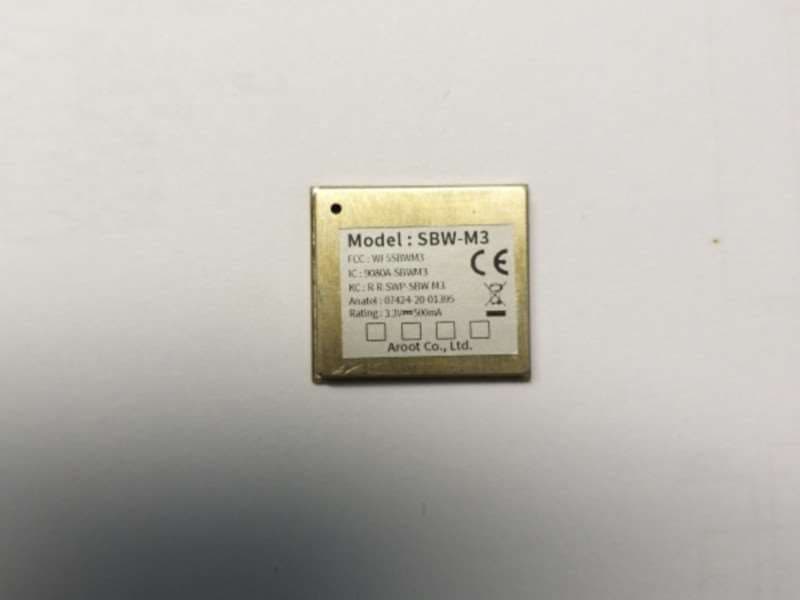

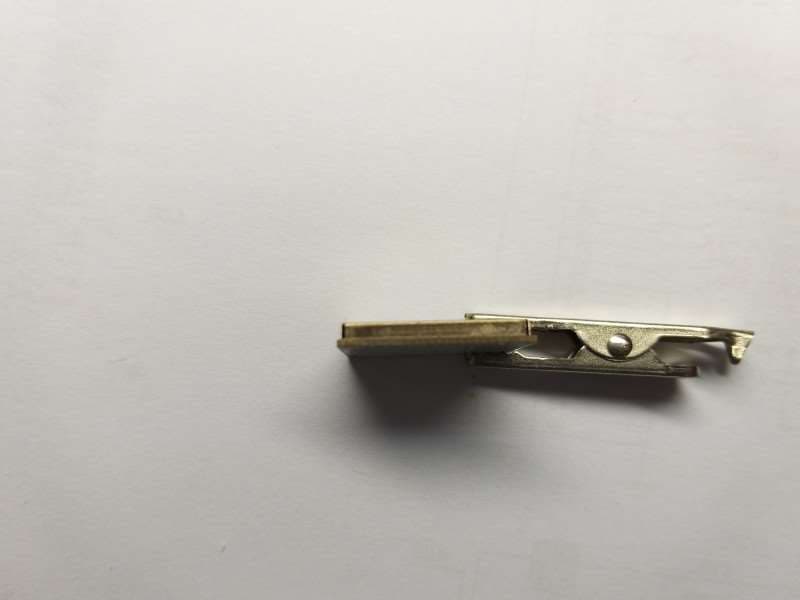

Page 1 of 3 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 464-942 TEL: +82-31-727-8300 FAX: +82-31-746-0800 http://www.the-eng.co.kr External Photos EUT – Front EUT – Rear Page 2 of 3 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 464-942 TEL: +82-31-727-8300 FAX: +82-31-746-0800 http://www.the-eng.co.kr EUT - Left side EUT - Right side Page 3 of 3 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 464-942 TEL: +82-31-727-8300 FAX: +82-31-746-0800 http://www.the-eng.co.kr EUT - Top EUT - Bottom

Model : SBW-M3 FCC : WF5SBWM3 IC : 9080A-SBWM3 KC : R-R-SWP-SBW-M3 Anatel : 07424-20-01395 Rating : Aroot Co., Ltd. 3.3V500mA Model : SBW-M3 FCC : WF5SBWM3 IC : 9080A-SBWM3 KC : R-R-SWP-SBW-M3 Anatel : 07424-20-01395 Rating : Aroot Co., Ltd. 3.3V500mA 1/1 C 1/1 김예희라벨샘플제작 20.06.24 DAT ESIGNDESCRIPTION REVISION ZONEISS 20.06.24 김예희 Aroot Co., Ltd. D C B A 1 50 - 80 80 - 120 120 - 180 - 6 18 - 30 6 - 18 30 - 50 180 - LIMITED TOLERANCE UNIT : mm E ±0.50 ±1.00 ±0.70 ±1.50 ±0.25 ±0.50 ±0.35 ±0.70 ±0.30 ±1.00 ±0.70 ±0.50 ±0.30 ±0.25 ±0.20 CD ±0.15 ±0.10 ±0.10 BA ±0.10 ±0.15 ±0.20 ±0.20±0.25±0.35 ±0.65 ±0.50 ±0.40 ±0.35 ±0.20 ±1.30 ±1.00 ±0.80 GRADE ±0.20 ±0.15 ±0.10 ±0.08 ±0.05 ±0.50 ±0.35 ±0.25 234576 D C B 8 A Date SCALE: DIRECTORY: 본 자료를 영수함으로서, 본 자료의 내용을 귀사의 사전 승인 없이는 비밀로 취급하겠으며 위반시 손해를 배상한다. 본 자료에 관한 모든 권리는 귀사에 유보되어 있음을 확인한다. NUMBER TITLE MTR'L CODE:RE V. Chk'd Dsn'd App'd SHEET:SIZE A4L Name Scale 1:1 ORIGINAL SIZE 16x12mm COLOR SIZE Material TEXT :BLACK 은무데드롱 16 12

Page 1 of 1 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 464-942 TEL: +82-31-727-8300 FAX: +82-31-746-0800 http://www.the-eng.co.kr Internal Photos Main board - Front Main board - Rear

Report No.: TR-W2006-022 Page 1 of 9 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 464-942 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-746-0800 http://www.the-eng.co.kr FCC & ISED MPE TEST REPORT Project Number : EA2002C-029 Test Report Number : TR-W2006-022 Type of Equipment : WiFi/BT Combo Module Model Name : SBW-M3 FCC ID : WF5SBWM3 ISED Canada ID : 9080A-SBWM3 Multiple Model Name : N/A Applicant : Aroot Co., Ltd. Address : 28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do, Republic of Korea Manufacturer : Aroot Co., Ltd. Address : 28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do, Republic of Korea Regulation : FCC CFR 47 Part 2.1091, ISED RSS-102 Issue5 Total page of Report : 9 Pages Date of Receipt : 2020-02-10 Date of Issue : 2020-06-23 Test Result : PASS This test report only contains the result of a single test of the sample supplied for the examination. It is not a generally valid assessment of the features of the respective products of the mass-production. Prepared by Song, In-young / Senior Engineer 2020-06-23 Signature Date Reviewed by Choi, Yeong-min / Technical Manager 2020-06-23 Signature Date Report No.: TR-W2006-022 Page 2 of 9 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 464-942 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-746-0800 http://www.the-eng.co.kr CONTENTS Page 1. EUT (EQUIPMENT UNDER TEST) INFORMATION .......................................................................4 1.1 GENERAL DESCRIPTION ...........................................................................................................4 1.2 ADDITIONAL MODEL ..................................................................................................................5 2. TEST RESULT ...............................................................................................................................6 Report No.: TR-W2006-022 Page 3 of 9 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 464-942 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-746-0800 http://www.the-eng.co.kr Release Control Record Issue Report No. Issued Date Details/Revisions TR-W2006-022 2020-06-23 Initial Release - - - Report No.: TR-W2006-022 Page 4 of 9 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 464-942 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-746-0800 http://www.the-eng.co.kr 1. EUT (Equipment Under Test) INFORMATION 1.1 General Description The Aroot Co., Ltd., Model SBW-M3 (referred to as the EUT in this report) is a WiFi/BT Combo Module. The product specification described herein was obtained from product data sheet or user’s manual. Type of Equipment □ Fixed ■ Mobile □ Portable EUT Power Source □ 100-120 Vac ■ DC Power □ Battery Operated Operating Frequency Bluetooth LE 2 402 MHz – 2 480 MHz Bluetooth 2 402 MHz – 2 480 MHz WLAN 2.4 GHz 2 412 MHz – 2 462 MHz (802.11b/g/n HT20) 2 422 MHz – 2 452 MHz (802.11n HT40) UNII 1 band 5 150 MHz – 5 250 MHz 5 180 MHz – 5 240 MHz (802.11a/n HT20/ac VHT20) 5 190 MHz – 5 230 MHz (802.11n HT40/ac VHT40) 5 210 MHz (802.11ac VHT80) UNII 2-A band 5 250 MHz – 5 350 MHz 5 260 MHz – 5 320 MHz (802.11a/n HT20/ac VHT20) 5 270 MHz – 5 310 MHz (802.11n HT40/ac VHT40) 5 290 MHz (802.11ac VHT80) UNII 2-C band 5 470 MHz – 5 725 MHz 5 500 MHz – 5 700 MHz (802.11a/n HT20/ac VHT20) 5 510 MHz – 5 670 MHz (802.11n HT40/ac VHT40) 5 530 MHz – 5 610 MHz (802.11ac VHT80) UNII 3 band 5 725 MHz – 5 850 MHz 5 745 MHz – 5 825 MHz (802.11a/n HT20/ac VHT20) 5 755 MHz – 5 795 MHz (802.11n HT40/ac VHT40) 5 775 MHz (802.11ac VHT80) Straddle channel UNII 2-C to 3 band 5 720 MHz (802.11a/n HT20/ac VHT20) 5 710 MHz (802.11n HT40/ac VHT40) 5 690 MHz (802.11ac VHT80) Modulation Type Bluetooth LE GFSK Bluetooth GFSK, π/4DQPSK, 8DPSK WLAN 2.4 GHz 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n HT20/HT40: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) WLAN 5 GHz 802.11g/n HT20/HT40: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11ac VHT20/VHT40/VHT80: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) Report No.: TR-W2006-022 Page 5 of 9 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 464-942 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-746-0800 http://www.the-eng.co.kr RF Output Power Bluetooth LE 1 Mbps 5.06dBm Bluetooth 1 Mbps 6.21 dBm 2 Mbps 5.69 dBm 3 Mbps 5.86 dBm WLAN 2.4 GHz 802.11b 11.92 dBm 802.11g 10.65 dBm 802.11n HT20 8.97 dBm 802.11n HT40 6.94 dBm UNII 1 band 5 150 MHz – 5 250 MHz 802.11a 12.53 dBm 802.11n HT20 12.57 dBm / 12.53 dBm 802.11n HT40 7.91 dBm / 7.82 dBm 802.11n VHT80 7.93 dBm UNII 2-A band 5 250 MHz – 5 350 MHz 802.11a 12.98 dBm 802.11n HT20 12.80 dBm / 12.81 dBm 802.11n HT40 7.95 dBm / 8.04 dBm 802.11n VHT80 8.72 dBm UNII 2-C band 5 470 MHz – 5 725 MHz 802.11a 12.87 dBm 802.11n HT20 12.90 dBm / 12.91 dBm 802.11n HT40 9.64 dBm / 9.59 dBm 802.11n VHT80 5.91 dBm UNII 3 band 5 725 MHz – 5 850 MHz 802.11a 7.47 dBm 802.11n HT20 7.28 dBm / 7.24 dBm 802.11n HT40 5.28 dBm / 5.26 dBm 802.11n VHT80 5.65 dBm Straddle channel UNII 2-C to 3 band 802.11a 10.80 dBm 802.11n HT20 10.60 dBm / 10.58 dBm 802.11n HT40 8.14 dBm / 8.08 dBm 802.11n VHT80 5.01 dBm Type of Antenna  Integrated Type(Bluetooth / Chip antenna)  Dedicated Type(WLAN / FPCB antenna) Antenna Gain (Bluetooth) 2.07dBi (WLAN 802.11b/g/n HT20/HT40) 3.37 dBi (WLAN 802.11a/ac/HT20/HT40/VHT20/VHT40/VHT80): 4.61 dBi 1.2 Additional Model None Report No.: TR-W2006-022 Page 6 of 9 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 464-942 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-746-0800 http://www.the-eng.co.kr 2. TEST RESULT 2.1 MPE Evaluation The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE sample calculation for this exposure is shown below. S = EIRP / (4 x R 2 x π) Note: S = Power density in mW/cm 2 = 6.73 / (4…

Text truncated - open the document above for the full version.

Report No.: TR-W2006-011 Page 1 of 1 39 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 464-942 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-746-0800 http://www.the-eng.co.kr FCC & ISED CERTIFICATION T EST REPORT Project Number : EA2002C-029 Test Report Number : TR-W2006-011 Type of Equipment : WiFi/BT Combo Module Model Name : SBW-M3 Equipment Class : NII - Unlicensed National Information Instructure TX FCC ID : WF5SBWM3 ISED Canada ID : 9080A-SBWM3 Multiple Model Name : N/A Applicant : Aroot Co., Ltd. Address : 28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do, Republic of Korea Manufacturer : Aroot Co., Ltd. Address : 28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do, Republic of Korea Regulation : FCC Part 15 Subpart E Section 15.407, ISED RSS-247 Issue2 Total page of Report : 139 Pages Date of Receipt : 2020-02-10 Date of Issue : 2020-06-09 Test Result : PASS This test report only contains the result of a single test of the sample supplied for the examination. It is not a generally valid assessment of the features of the respective products of the mass-production. Prepared by Song, In-young / Senior Engineer 2020-06-09 Signature Date Reviewed by Choi, Yeong-min / Technical Manager 2020-06-09 Signature Date Report No.: TR-W2006-011 Page 2 of 1 39 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 464-942 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-746-0800 http://www.the-eng.co.kr CONTENTS Page 1. TEST SUMMARY ............................................................................................................................ 4 1.1 REGULATIONS AND RESULTS ................................................................................................... 4 1.2 TEST METHODOLOGY................................................................................................................. 4 1.3 ADDITIONS, DEVIATIONS, EXCLUSIONS FROM STANDARDS ................................................ 4 1.4 PURPOSE OF THE TEST ............................................................................................................. 4 2. EUT (EQUIPMENT UNDER TEST) INFORMATION ........................................................................ 6 2.1 GENERAL DESCRIPTION ............................................................................................................ 6 2.2 ADDITIONAL MODEL ................................................................................................................... 8 3. TEST CONDITION ........................................................................................................................... 9 3.1 EQUIPMENT USED DURING TEST .............................................................................................. 9 3.2 MODE OF OPERATION DURING THE TEST ............................................................................... 9 3.3 PRELIMINARY TESTING FOR WORST CASE CONFIGURATION .............................................. 9 3.4 TEST SETUP DRAWING............................................................................................................. 10 3.5 EUT MODIFICATIONS ................................................................................................................ 10 4. ANTENNA REQUIREMENT .......................................................................................................... 11 5. TEST RESULT .............................................................................................................................. 12 5.1 26 DB BANDWIDTH .................................................................................................................... 12 5.2 6 DB BANDWIDTH ...................................................................................................................... 85 5.3 OUTPUT POWER MEASUREMENT ........................................................................................... 94 5.4 POWER SPECTRAL DENSITY ................................................................................................. 102 5.5 FREQUENCY STABILITY ......................................................................................................... 110 5.6 UNDESIRABLE EMISSION ....................................................................................................... 113 5.7 AC POWER LINE CONDUCTED EMISSION ............................................................................ 134 5.8 AUTOMATICALLY DISCONTINUE TRANSMISSION ............................................................... 137 APPENDIX I – TEST INSTRUMENTATION .................................................................................... 138 Report No.: TR-W2006-011 Page 3 of 1 39 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 464-942 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-746-0800 http://www.the-eng.co.kr Release Control Record Issue Report No. Issued Date Details/Revisions TR-W2006-011 2020-06-09 Initial Release - - - Report No.: TR-W2006-011 Page 4 of 1 39 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 464-942 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-746-0800 http://www.the-eng.co.kr 1. TEST SUMMARY 1.1 Regulations and results The sample submitted for evaluation (Hereafter referred to as the EUT) has been tested in accordance with the following regulations or standards. FCC Reference Section ISED Reference Section Description Result P F N.T. Note 15.203 RSS-247 6.2 Antenna Requirement P 15.205, 15.209,15.407(b) RSS-GEN 8.9 Radiated Unwanted Emissions P 15.407 (a) RSS-247 6.2 26 dB Bandwidth P 15.407 (a) RSS-247 6.2 Maximum Conducted Output Power P Note 1 15.407 (a) RSS-247 6.2 Power Spectral Density P 15.407 (b) RSS-247 6.2 Undesirable Emissions P 15.407 (C) RSS-247 6.4(a)- Automatically Discontinue Transmission 15.407 (e) RSS-247 6.2.4.1 6 dB Occupied Bandwidth …

Text truncated - open the document above for the full version.

Report No.: TR-W2006-011 Page 94 of 139 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 464-942 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-746-0800 http://www.the-eng.co.kr 5.3 Output Power Measurement 5.3.1 Limit For client devices in the 5.15-5.25 GHz band, the maximum conducted output power over the frequency band of operation shall not exceed 250 mW provided the maximum antenna gain does not exceed 6 dBi. For the 5.25-5.35 GHz and 5.47-5.725 GHz bands, the maximum conducted output power over the frequency bands of operation shall not exceed the lesser of 250 mW or 11 dBm + 10 log B, where B is the 26 dB emission bandwidth in MHz. For the band 5.725-5.85 GHz, the maximum conducted output power over the frequency band of operation shall not exceed 1 W. If transmitting antennas of directional gain greater than 6 dBi are used, maximum conducted output power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. 5.3.2 Method of Measurement Reference to KDB 789033 D02 General UNII Test Procedures New Rules v02r01: Section E.2.d) Method SA-2 (Trace averaging across on and off time of the EUT transmissions, followed by duty cycle correction) The cable assembly insertion loss was entered as an offset in the spectrum analyzer to allow for direct reading of power. 5.3. 3 Test Data for Output Power 5.3.3.1 Operating Mode: 802.11a Date of Test 2020.04.09 – 2020.04.10 Temperature (23.0 ± 1.0) °C Relative humidity (50.0 ± 3.0) % R.H. Test Result PASS Tested by In-yong Song Operating Mode: 802.11a (U-NII 1) Channel Frequency (MHz) Measured Value (dBm) Duty Factor Total Power (dBm) Limit (dBm) Margin (dB) Low 5 180 12.11 0.27 12.38 23.98 11.60 Middle 5 220 12.26 0.27 12.53 23.98 11.45 High 5 240 12.18 0.27 12.45 23.98 11.53 Operating Mode: 802.11a (U-NII 2-A) Channel Frequency (MHz) Measured Value (dBm) Duty Factor Total Power (dBm) Limit (dBm) Margin (dB) Low 5 260 12.33 0.27 12.60 23.98 11.38 Middle 5 300 12.47 0.27 12.74 23.98 11.24 High 5 320 12.71 0.27 12.98 23.98 11.00 Report No.: TR-W2006-011 Page 95 of 139 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 464-942 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-746-0800 http://www.the-eng.co.kr Operating Mode: 802.11a (U-NII 2-C) Channel Frequency (MHz) Measured Value (dBm) Duty Factor Total Power (dBm) Limit (dBm) Margin (dB) Low 5 500 12.60 0.27 12.87 23.98 11.11 Middle 5 560 12.33 0.27 12.60 23.98 11.38 High 5 700 11.93 0.27 12.20 23.98 11.78 Operating Mode: 802.11a (U-NII 3) Channel Frequency (MHz) Measured Value (dBm) Duty Factor Total Power (dBm) Limit (dBm) Margin (dB) Low 5 745 7.20 0.27 7.47 30.00 22.53 Middle 5 785 6.44 0.27 6.71 30.00 23.29 High 5 825 5.80 0.27 6.07 30.00 23.93 NOTE. 1. Margin = Limit - Total Power 2. Total Power = Measured value + Duty factor 3. Duty cycle(x) : 0.9387 4. Duty factor (10*log(1/x)) : 0.27 Report No.: TR-W2006-011 Page 96 of 139 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 464-942 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-746-0800 http://www.the-eng.co.kr 5.3.3.2 Operating Mode: 802.11n HT20 Date of Test 2020.04.09 – 2020.04.10 Temperature (23.0 ± 1.0) °C Relative humidity (50.0 ± 3.0) % R.H. Test Result PASS Tested by In-yong Song Operating Mode: 802.11n HT20 (U-NII 1) Channel Frequency (MHz) Measured Value (dBm) Duty Factor Total Power (dBm) Limit (dBm) Margin (dB) Low 5 180 12.03 0.28 12.31 23.98 17.69 Middle 5 220 12.23 0.28 12.51 23.98 17.49 High 5 240 12.29 0.28 12.57 23.98 17.43 Operating Mode: 802.11n HT20 (U-NII 2-A) Channel Frequency (MHz) Measured Value (dBm) Duty Factor Total Power (dBm) Limit (dBm) Margin (dB) Low 5 260 12.23 0.28 12.51 23.9…

Text truncated - open the document above for the full version.
