WF7PCG02202001Fanless Mini PC

DATE : 2020-12-24 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Jason Wu of Global United Technology Services Co., Ltd.and No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with MeLE Technologies (Shenzhen) Co., LTD. and 3FW Mele Building, No.28 Cuijing Rd., Pingshan District, Shenzhen,Guangdong Province, (518118),P.R.China Signature: Name: Ji Wang Title: Test manager Company: MeLE Technologies (Shenzhen) Co., LTD.

Differences Declaration To whom concern, We company MeLE Technologies (Shenzhen) Co., Ltd. Here by declares: The product model(s) PCG02 APO is the same PCB layout, interior structure and electrical circuits with PCG02 APL, which tested in Global United Technology Services Co., Ltd., the only differences between them are the model names. PCG02 APL and PCG02 APO are designed based on Apollo Lake and can support Apollo Lake processor. Both PCG02 APL and PCG02 APO will have two different PCB layout to support different DDR, and each PCB layout will have different configurations. Differences are listed as bellow. Model Appearance PCB Layout RAM Storage operating system PCG02 APL 2GB, 3GB, 4GB, 6GB, 8GB 32GB, 64GB, 128GB, 256GB Windows10/ NoOS/Linux /Ubuntu PCG02 APL 2GB, 3GB, 4GB, 6GB, 8GB 32GB, 64GB, 128GB, 256GB Windows10/ NoOS/Linux /Ubuntu PCG02 APO 2GB, 3GB, 4GB, 6GB, 8GB 32GB, 64GB, 128GB, 256GB Windows10/ NoOS/Linux /Ubuntu PCG02 APO 2GB, 3GB, 4GB, 6GB, 8GB 32GB, 64GB, 128GB, 256GB Windows10/ NoOS/Linux /Ubuntu Sincerely yours, Name (in print): Ji Wang Title: Test Manager Company name: MeLE Technologies (Shenzhen) Co., Ltd. Companyaddress: 3FW Mele Building, No.28 Cuijing Rd., Pingshan District, Shenzhen,Guangdong Province, (518118),P.R.China Te l : +86-755-86383226 E-Mail: [email protected]

DATE : 2020-12-24 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: WF7PCG02202001 Product Name: Fanless Mini PC Request for Confidentiality To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description FCC Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Signature: Name: Ji Wang Title: Test manager Company: MeLE Technologies (Shenzhen) Co., LTD.

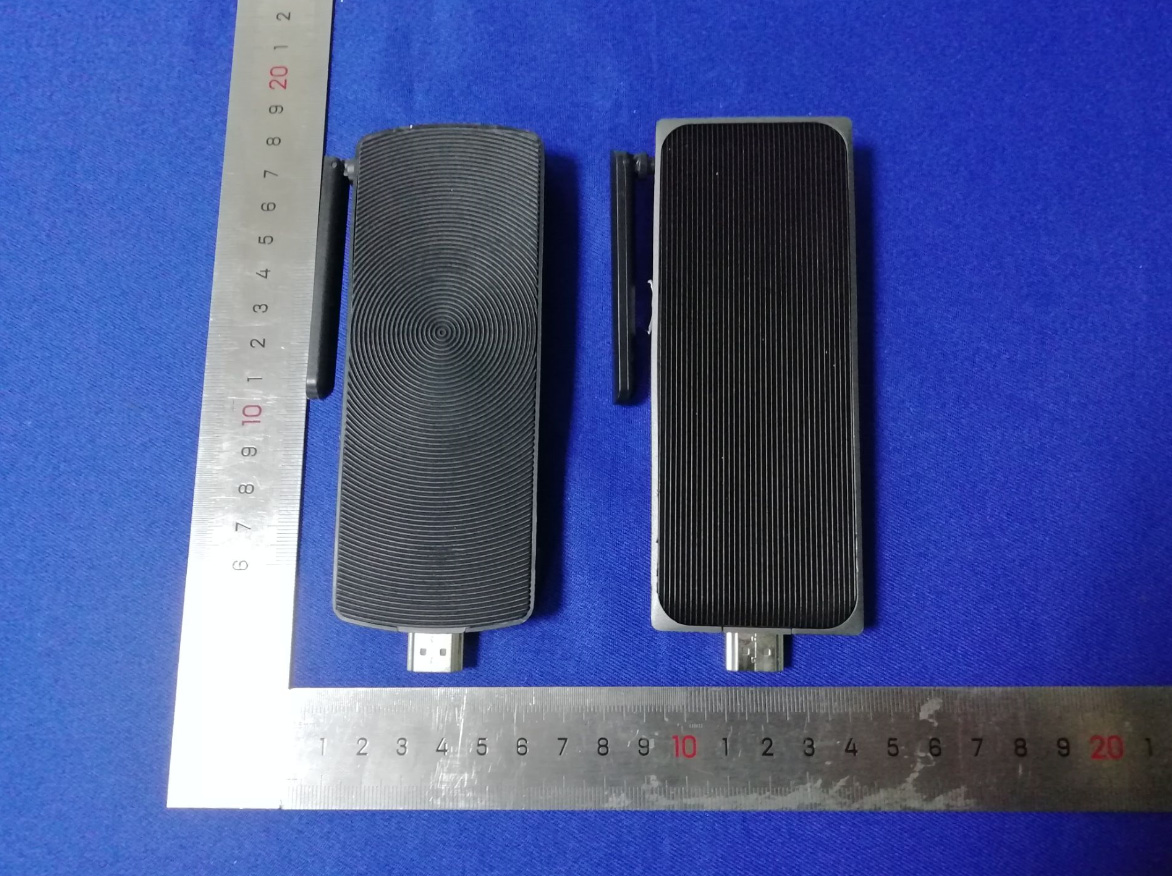

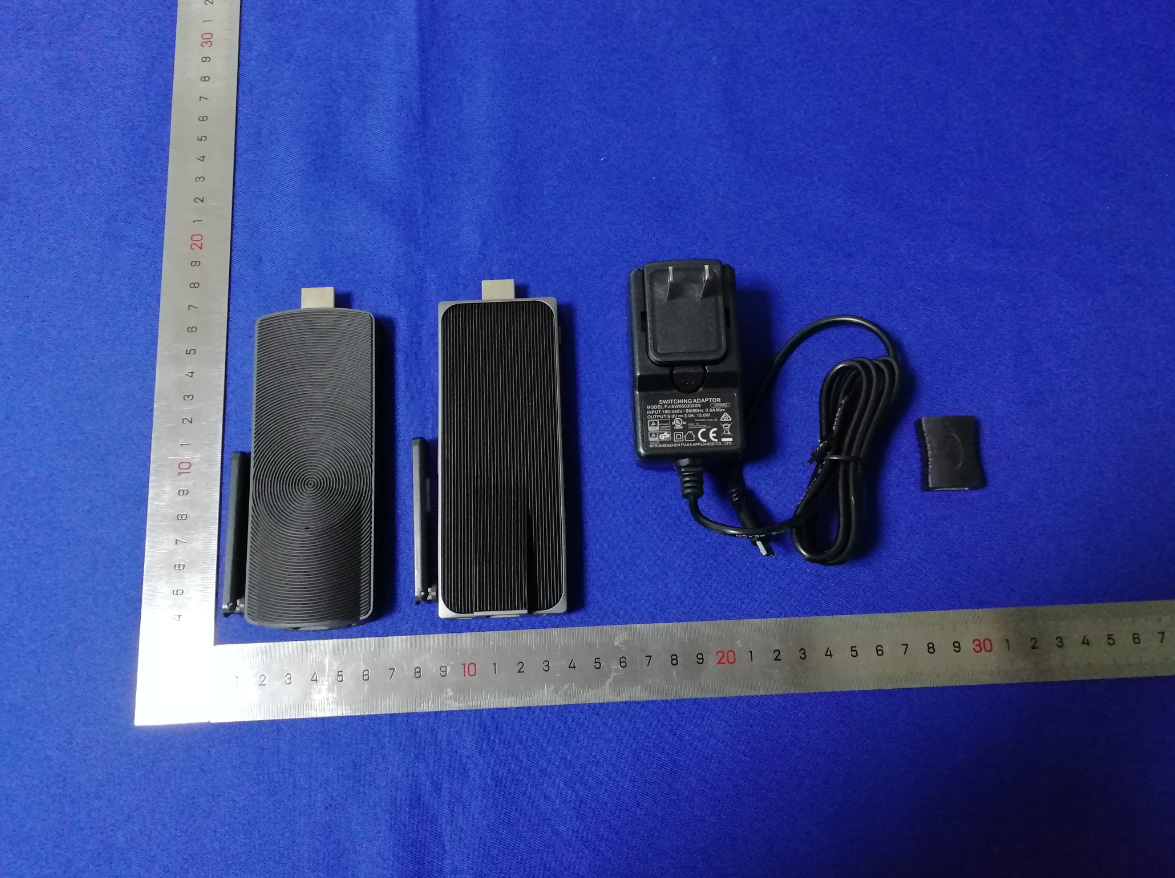

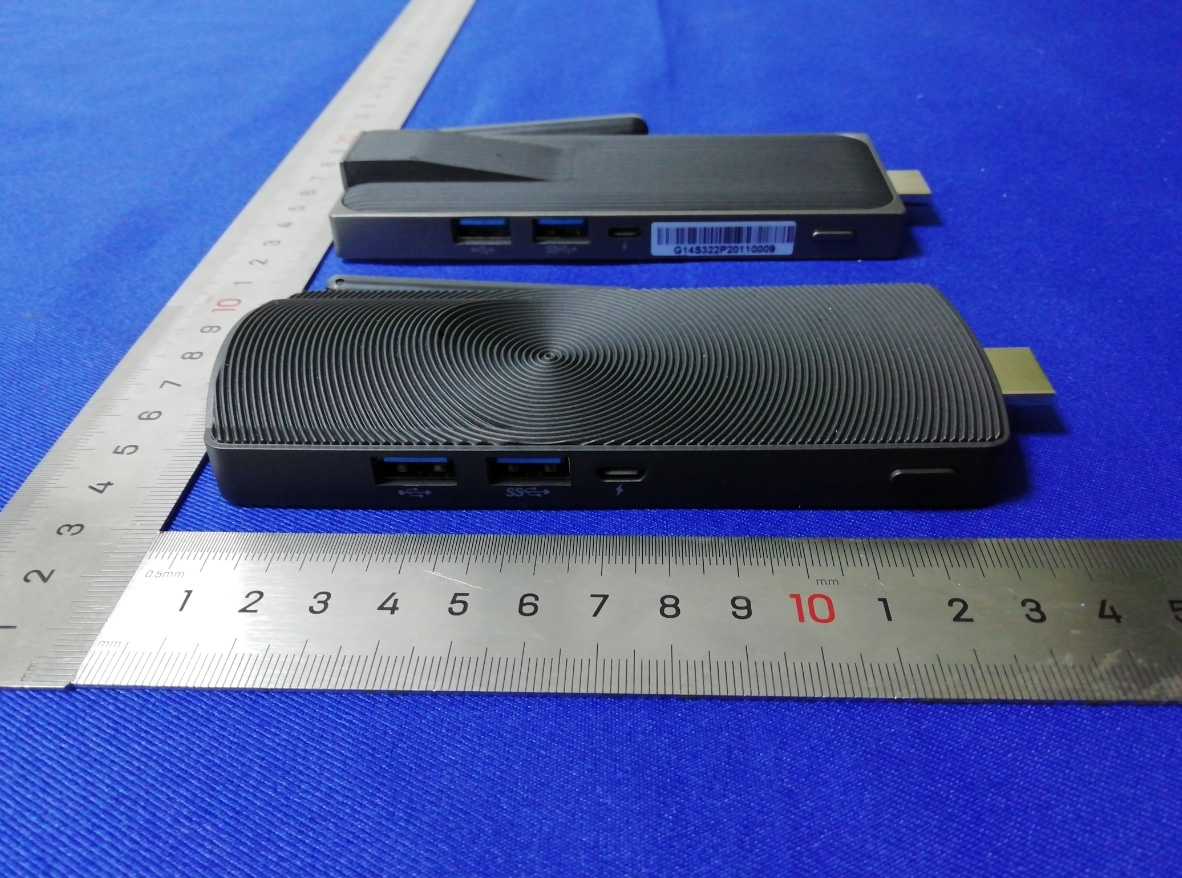

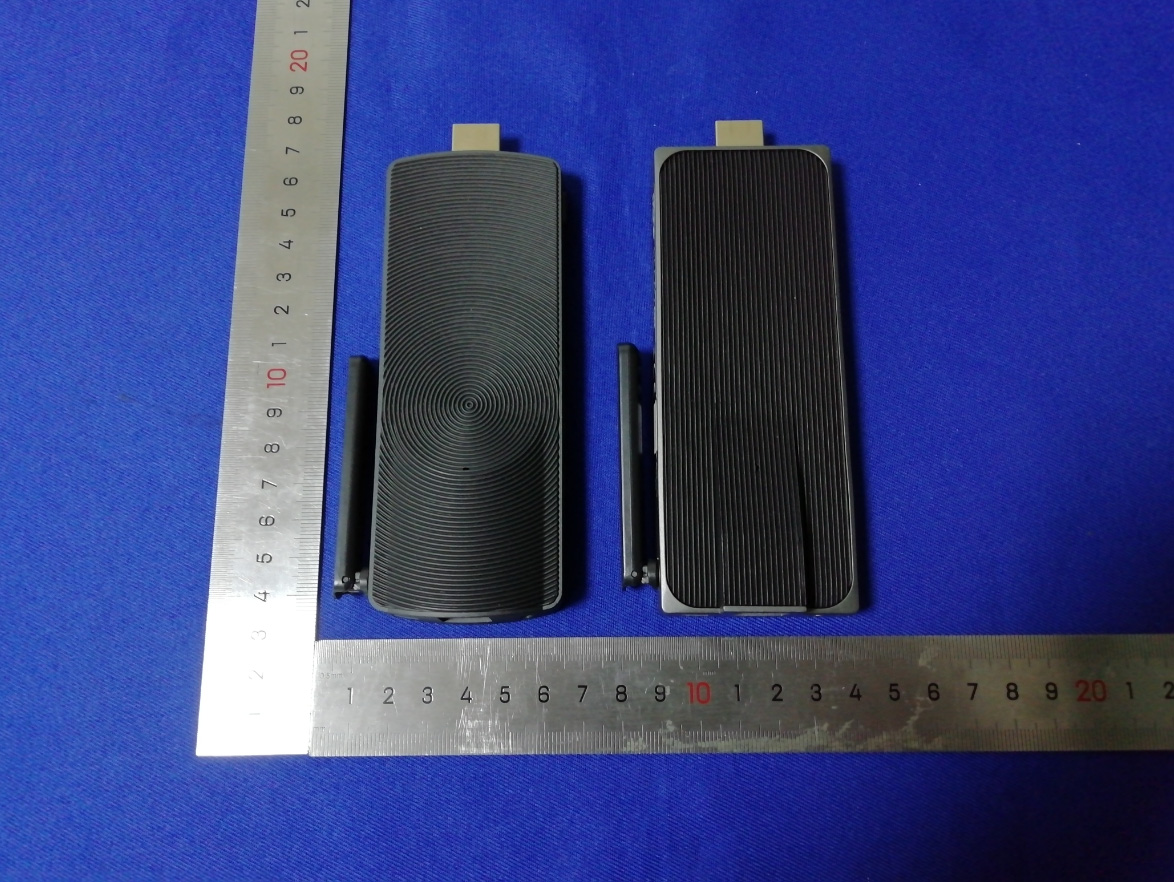

Test Model No.: PCG02 APL PCG02 APO PCG02 APL

Test Model No.: PCG02 APL WiFi Antenna 2 WiFi Antenna 1& BT EDR/BLE Antenna Front view of version A PCB Back view of version A PCB Front view of version B PCB Back view of version B PCB

FCC ID: WF7PCG02202001 RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation Wireless function Output power to antenna (dBm) Antenna Gain(dBi) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result BT EDR 3.317 2.00 2.146 0.00068 1.000 PASS BT BLE -3.191 2.00 0.480 0.00015 1.000 PASS 2.4G WiFi 22.44 5.00(MIMO) 175.388 0.11034 1.000 PASS 5.1G WiFi 16.45 5.00(MIMO) 44.157 0.02778 1.000 PASS 5.8G SRD 17.23 5.00(MIMO) 52.845 0.03325 1.000 PASS Directional gain of MIMO = G ANT + 10 log(N ANT ) dBi=5.00dBi

Global United Technology Services Co., Ltd. Report No.: GTS202012000016F03 Authorized Signature: Robinson Lo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 64 TEST REPORT Applicant: MeLE Technologies (Shenzhen) Co., LTD. Address of Applicant: 3FW Mele Building, No.28 Cuijing Rd., Pingshan District, Shenzhen,Guangdong Province, (518118),P.R.China Manufacturer/Factory : MeLE Technologies (Shenzhen) Co., LTD. Address of Manufacturer/Factory : 3FW Mele Building, No.28 Cuijing Rd., Pingshan District, Shenzhen,Guangdong Province, (518118),P.R.China Equipment Under Test (EUT) Product Name: Fanless Mini PC Model No.: PCG02 APL, PCG02 APO Trade Mark: MeLE FCC ID: WF7PCG02202001 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: Dec. 01, 2020 Date of Test: Dec. 01 - Dec. 15, 2020 Date of report issued: Dec. 18, 2020 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS202012000016F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 64 2 Version Version No. Date Description 00 Dec. 18, 2020 Original Prepared By: Date: Dec. 18, 2020 Project Engineer Check By: Date: Dec. 18, 2020 Reviewer Report No.: GTS202012000016F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 64 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 7 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.4 DEVIATION FROM STANDARDS ............................................................................................................. 7 5.5 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................... 7 5.6 TEST FACILITY .................................................................................................................................... 7 5.7 TEST LOCATION ................................................................................................................................. 7 5.8 ADDITIONAL INSTRUCTIONS ................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 10 7.1 ANTENNA REQUIREMENT ................................................................................................................... 10 7.2 CONDUCTED EMISSIONS ................................................................................................................... 11 7.3 CONDUCTED PEAK OUTPUT POWER .................................................................................................. 14 7.4 CHANNEL BANDWIDTH & 99% OCCUPY BANDWIDTH .......................................................................... 16 7.5 POWER SPECTRAL DENSITY ............................................................................................................. 22 7.6 BAND EDGES .................................................................................................................................... 28 7.6.1 Conducted Emission Method ..................................................................................................... 28 7.6.2 Radiated Emission Method ........................................................................................................ 33 7.7 SPURIOUS EMISSION ......................................................................................................................... 38 7.7.1 Conducted Emission Method ..................................................................................................... 38 7.7.2 Radiated Emission Method ........................................................................................................ 47 8 TEST SETUP PHOTO ............................................................................................................................ 64 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 64 Report No…

Text truncated - open the document above for the full version.

Report No.: GTS202012000016F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 26 of 64 Antenna 2: 802.11b 802.11g Lowest channel Middle channel Highest channel Report No.: GTS202012000016F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 27 of 64 802.11n(HT20) 802.11n(HT40) Lowest channel Middle channel Highest channel Report No.: GTS202012000016F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 28 of 64 7.6 Band edges 7.6.1 Conducted Emission Method Test Requirement: FCC Part15 C Section 15.247 (d) Test Method: KDB558074 D01 15.247 Meas Guidance v05or02 Limit: In any 100 kHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement. Test setup: Test Instruments: Refer to section 6.0 for details Test mode: Refer to section 5.2 for details Test results: Pass Report No.: GTS202012000016F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 29 of 64 Test plot as follows: Antenna 1: Test mode: 802.11b Lowest channel Highest channel Test mode: 802.11g Lowest channel Highest channel Report No.: GTS202012000016F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 30 of 64 Test mode: 802.11n(HT20) Lowest channel Highest channel Test mode: 802.11n(HT40) Lowest channel Highest channel Report No.: GTS202012000016F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 31 of 64 Antenna 2: Test mode: 802.11b Lowest channel Highest channel Test mode: 802.11g Lowest channel Highest channel Report No.: GTS202012000016F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 32 of 64 Test mode: 802.11n(HT20) Lowest channel Highest channel Test mode: 802.11n(HT40) Lowest channel Highest channel Report No.: GTS202012000016F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 33 of 64 7.6.2 Radiated Emission Method Test Requirement: FCC Part15 C Section 15.209 and 15.205 Test Method: ANSI C63.10: 2013 Test Frequency Range: All of the restrict bands were tested, only the worst band’s (2310MHz to 2500MHz) data was showed. Test site: Measurement Distance: 3m Receiver setup: Frequency Detector RBW VBW Value Above 1GHz Peak 1MHz 3MHz Peak Average 1MHz 3MHz Average Limit: Frequency Limit (dBuV/m @3m) Value Above 1GHz 54.00 Average 74.00 Peak Test setup: Test Procedure: 1. The EUT was placed on the top of a rotating table 1.5 meters above the ground at a 3 meter camber. The table was rotated 360 degrees to determine the position of the highest radiation. 2. The EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. 3. The antenna height is varied from one meter to four meters above the ground to determine the maximum value of the field strength. Both horizontal and vertical polarizations of the antenna are set to make the measurement. 4. For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned to heights from 1 meter to 4 meters and the rota table was turned from 0 degrees to 360 degrees to find the maximum reading. 5. The test-receiver system was set to Peak Detect Function and Specified Bandwidth with Maximum Hold Mode. 6. If the emission level of the EUT in peak mode was 10dB lower than the limit specified, then testing could be stopped and the peak values of the EUT would be reported. Otherwise the emissions that did not have 10dB margin would be re-tested one by one using peak, quasi- peak or average method as specified and then reported in a data sheet. 7. The radiation measurements are performed in X, Y, Z axis positioning. And found the Y axis positioning which it is worse case, only the test worst case mode is recorded in the report. Test Instruments: Refer to section 6.0 for details Test mode: Refer to section 5.2 for details Test results: Pass Report No.: GTS202012000016F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 34 of 64 Measurement data: All antennas have test, only the worst case ANT 1…

Text truncated - open the document above for the full version.

Global United Technology Services Co., Ltd. Report No.: GTS202012000016F02 Authorized Signature: Robinson Lo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 34 TEST REPORT Applicant: MeLE Technologies (Shenzhen) Co., LTD. Address of Applicant: 3FW Mele Building, No.28 Cuijing Rd., Pingshan District, Shenzhen,Guangdong Province, (518118),P.R.China Manufacturer/Factory: MeLE Technologies (Shenzhen) Co., LTD. Address of Manufacturer/Factory: 3FW Mele Building, No.28 Cuijing Rd., Pingshan District, Shenzhen,Guangdong Province, (518118),P.R.China Equipment Under Test (EUT) Product Name: Fanless Mini PC Model No.: PCG02 APL, PCG02 APO Trade Mark: MeLE FCC ID: WF7PCG02202001 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: Dec. 01, 2020 Date of Test: Dec. 01 - Dec. 15, 2020 Date of report issued: Dec. 18, 2020 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS202012000016F02 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 34 2 Version Version No. Date Description 00 Dec. 18, 2020 Original Prepared By: Date: Dec. 18, 2020 Project Engineer Check By: Date: Dec. 18, 2020 Reviewer Report No.: GTS202012000016F02 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 34 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 7 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.4 DEVIATION FROM STANDARDS ............................................................................................................. 7 5.5 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................... 7 5.6 TEST FACILITY .................................................................................................................................... 7 5.7 TEST LOCATION ................................................................................................................................. 7 5.8 ADDITIONAL INSTRUCTIONS ................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 10 7.1 ANTENNA REQUIREMENT ................................................................................................................... 10 7.2 CONDUCTED EMISSIONS ................................................................................................................... 11 7.3 CONDUCTED OUTPUT POWER ........................................................................................................... 14 7.4 CHANNEL BANDWIDTH ...................................................................................................................... 16 7.5 POWER SPECTRAL DENSITY ............................................................................................................. 18 7.6 BAND EDGES .................................................................................................................................... 20 7.6.1 Conducted Emission Method ..................................................................................................... 20 7.6.2 Radiated Emission Method ........................................................................................................ 21 7.7 SPURIOUS EMISSION ......................................................................................................................... 24 7.7.1 Conducted Emission Method ..................................................................................................... 24 7.7.2 Radiated Emission Method ........................................................................................................ 26 8 TEST SETUP PHOTO ............................................................................................................................ 34 9 EUT CONSTRUCTIONAL DETAILS ...........................................................................................…

Text truncated - open the document above for the full version.

Test Model No.: PCG02 APL Radiated emission Conducted emission
