WF7PCG02202002Fanless Mini PC

MeLE Technologies (ShenZhen) Co.,LTD. Agent Authorization Company: MeLE Technologies (ShenZhen) Co.,LTD. Address: 3FW Mele Building, No.28 Cuijing Rd., Pingshan District, Shenzhen,Guangdong Province, China Product Type: Fanless Mini PC Model Number(s): PCG02 GLE, PCG02 GLK Product Description: Fanless Mini PC We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-12-22 Name: Ji Wang Title: Test manager Company: MeLE Technologies (ShenZhen) Co.,LTD.

Differences Declaration To whom concern, We company MeLE Technologies (Shenzhen) Co., Ltd. Here by declares: The product model(s) PCG02 GLK is the same PCB layout, interior structure and electrical circuits with PCG02 GLE, which tested in Global United Technology Services Co., Ltd., the only differences between them are the model names. PCG02 GLE and PCG02 GLK are designed based on Gemini Lake and Gemini Lake Refresh and can support Gemini Lake and Gemini Lake Refresh processor. Both PCG02 GLE and PCG02 GLK will have different configurations. Differences are listed as bellow. Model Appearance RAM Storage operating system PCG02 GLE 2GB,3GB , 4GB, 6GB,8GB 32GB, 64GB, 128GB, 256GB Windows10/ NoOS/Linux /Ubuntu PCG02 GLK Sincerely yours, Name (in print): Ji Wang Title: Test Manager Company name: MeLE Technologies (Shenzhen) Co., Ltd. Companyaddress: 3FW Mele Building, No.28 Cuijing Rd., Pingshan District, Shenzhen,Guangdong Province, (518118),P.R.China Te l : +86-755-86383226 E-Mail: [email protected]

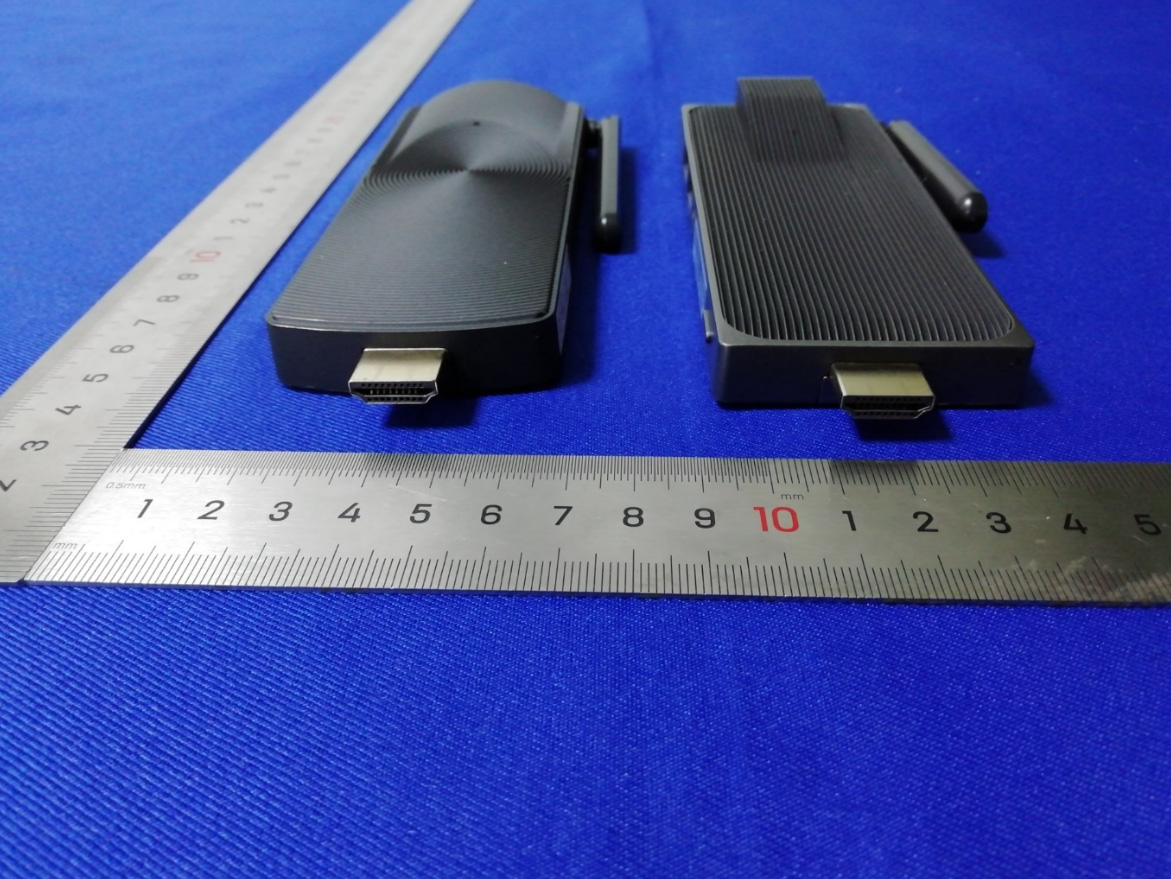

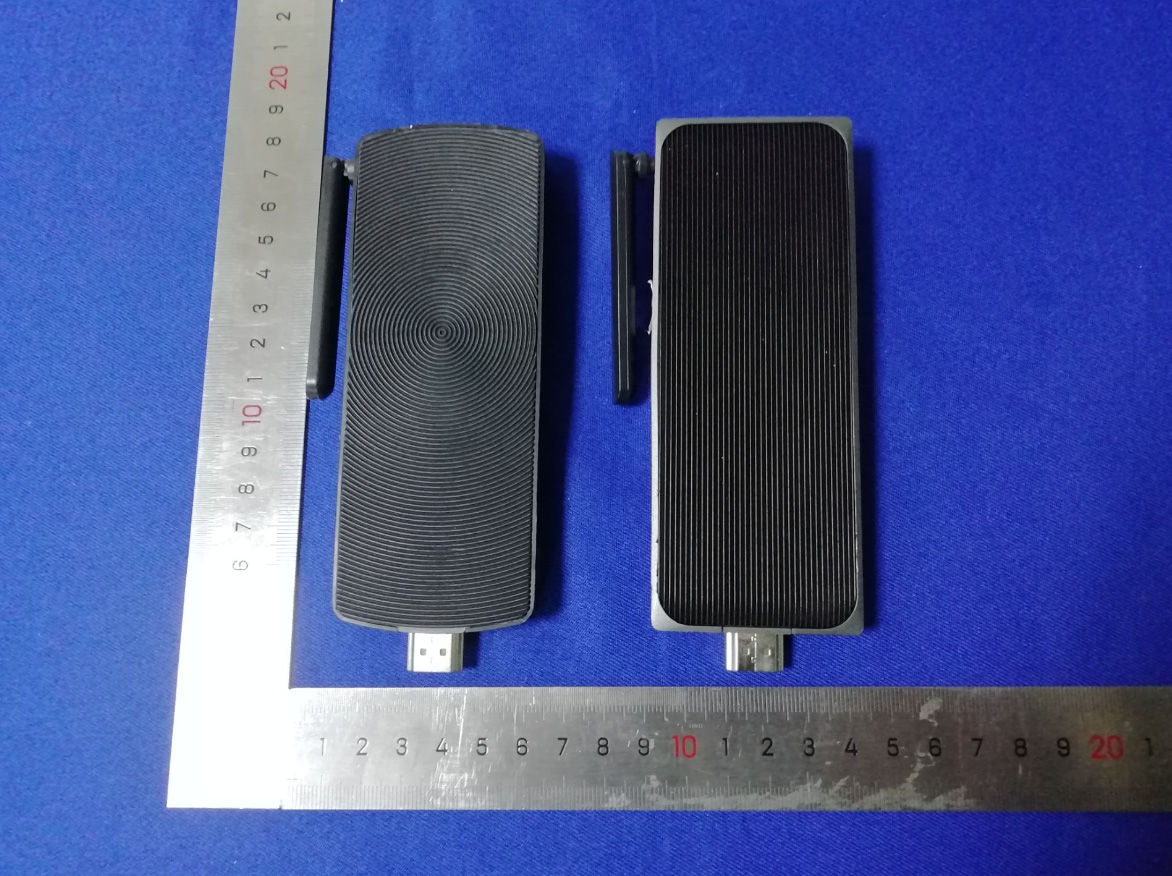

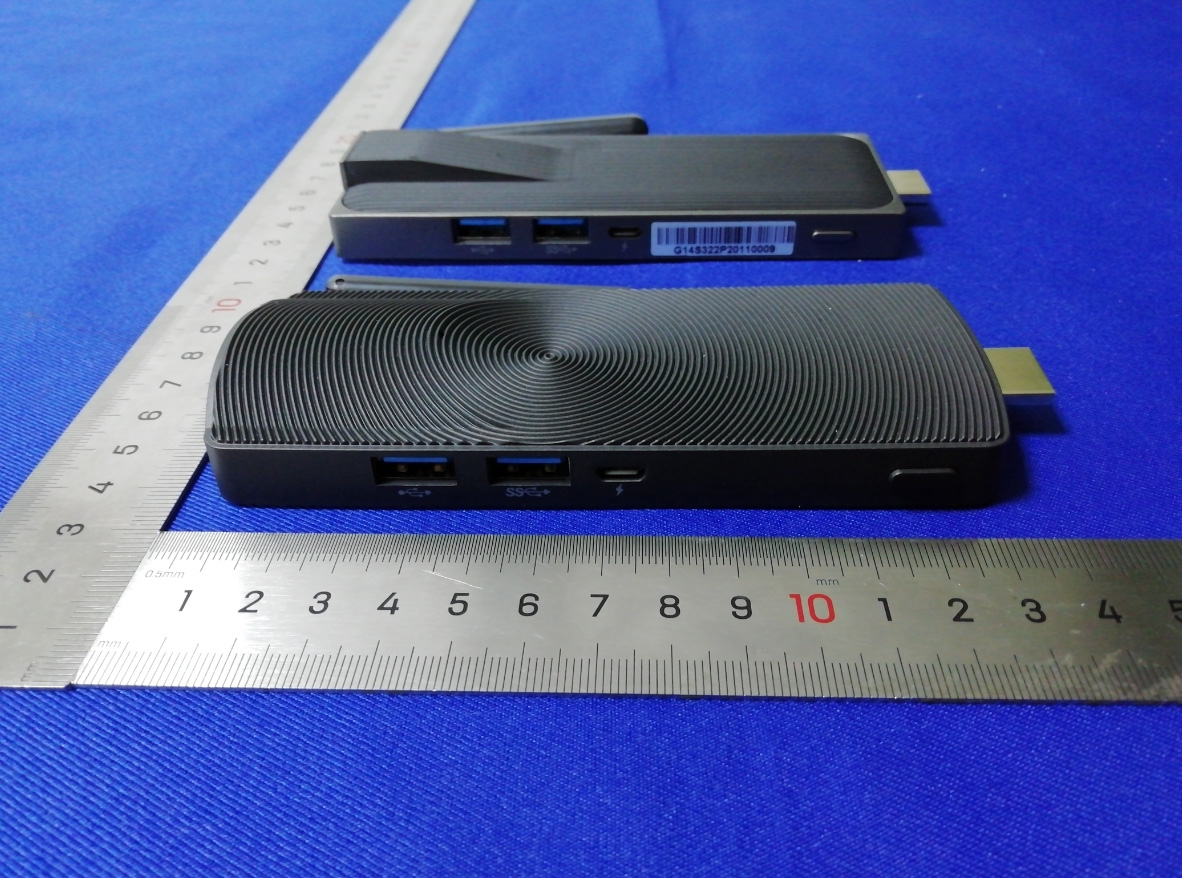

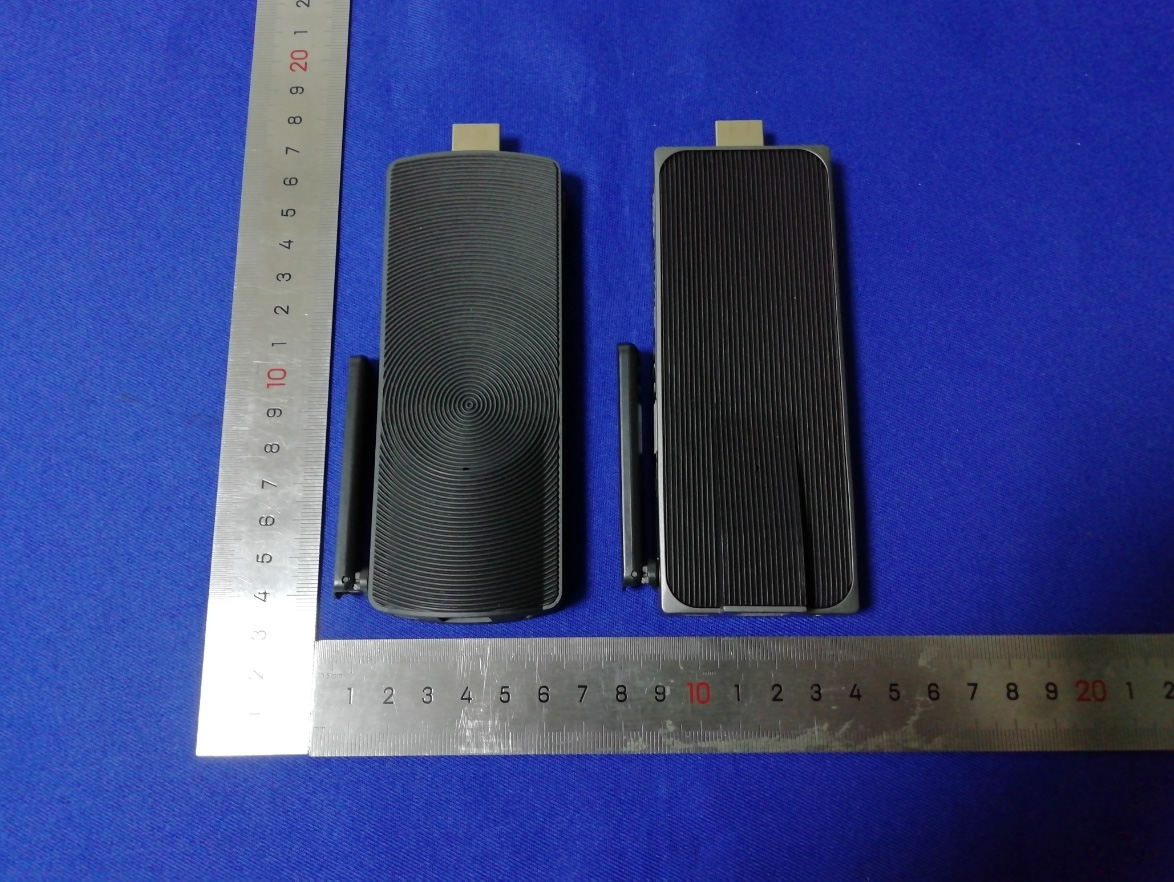

Test Model No.: PCG02 GLE PCG02 GLK PCG02 GLE

Test Model No.: PCG02 GLE WiFi Antenna 2 WiFi Antenna 1& BT Antenna

FCC ID: WF7PCG02202002 RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation Wireless function Output power to antenna (dBm) Antenna Gain(dBi) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result BT EDR 9.122 2.00 8.170 0.00258 1.000 PASS BT BLE 4.666 2.00 2.928 0.00092 1.000 PASS 2.4G WiFi 18.36 5.00(MIMO) 68.549 0.04313 1.000 PASS 5.1G WiFi 15.91 5.00(MIMO) 38.994 0.02453 1.000 PASS 5.8G SRD 12.86 5.00(MIMO) 19.320 0.01215 1.000 PASS Directional gain of MIMO = G ANT + 10 log(N ANT ) dBi=5.00dBi simultaneous transmission: Worst case of WLAN+BT=0.04313 +0.00258=0.04571 < 1.000
