FCC Part 15D – APPLICATION FORM & SELF-DECLARATION Applicant Name Clearsounds Communications Inc. Address 1743 Quincy Ave. Unit #155 Naperville, IL, USA Contact person Michele Ahlman Telephone No. 630.654.9200 Fax No. 630.654.9219 Manufacturer Name SHENZHEN G. CREDIT ELECTRONICS CO.,LTD Address Zhida Industrial Park, West Longping RD, Central City, Longgang Town, Shenzhen City, Guangdong Province 518172 China PP FP FCC ID WG8A500 WG8A500 Model Number A500/A500E/A500Bundle A500/ A500Bundle HW version DD2629-ALL-HM02 DD2622-ALL-BM02 SW version D20503VCH21 D20009NB09 Antenna Type Monopole internal Monopole internal Max, Antenna Gain(dBi) 0 0 Adapter Input AC 100~240 V Adapter Output DC 7 V Mains Power Voltage FP Input DC 7 V Battery Voltage DC 3.6 V Number of channels 5 Carrier frequency(MHz) 1921.536 1923.2641924.9921926.720 1928.448 Nominal Receive Bandwidth +/- 500KHz Frame period(ms) 10 Timeslot Plan 24 timeslots per frame. First 12 timeslots used for PP transmissions and other 12 timeslots used for FP transmissions. Operating Temperature Range( 。 C) Min 0 。 C Max 40 。 C Does a system built with the EUT that implement the provisions of 47CFR 15.323(c) (5) enabling the use of the upper threshold for deferral? Ye s N o According to 47CFR 15.323(c) (5).4, does your model not use bandwidth in further cooperation with other devices at any range? Ye s N o Does a system built using the EUT that operate under the provisions of 47CFR 25.323(c) (6) incorporating provisions for waiting for a channel to clear? Yes No According to 47CFR 15.323(c) (8), does EUT use the same antennas for transmission and reception as for monitoring? Ye s N o Does a system built with the EUT that operate under the provisions of 47CFR 15.323(c) (10) to test for deferral only in conjunction with a companion device? Yes No Does a system built using the EUT that operate under the provisions of 47CFR 15.323(c) (11) enabling the access criteria check on the receive channel while in the presence of collocated interferers? Yes No According to 47CFR 15.323(c) (12), does EUT not work in a mode with denies fair access to spectrum for other devices. Yes No Does you model have the monitoring made through the radio receiver used for communication? Yes No Does your model transmit control and signaling channels? Yes No According to 47CFR 15.307(b), does the applicant have the affidavit from UTAM Inc.? Yes No According to 47CFR 15.319(b), do all transmissions use only digital modulation techniques? Ye s N o According to FCC Part 15.319(f) Automatic Discontinuation of Transmissiona The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. The provisions in this section are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Ye s N o Reaction of EUT Situation FP PP Switch-off compare device N N Hook-on by compare device A C Switch-off by EUT N N Hook-on at EUT side B A Remove Power from EUT B N The provisions within the EUT for self-check, by which compliance with 47CFR 15.319(f) is obtained. A – Connection break down, cease of transmit B – Connection break down, EUT transmits its signaling information C – Connection break down, compare device transmits signaling information N – Not possible Remove Power from compare device N C Signature: Michele Ahlman President and CEO 2013-2-28

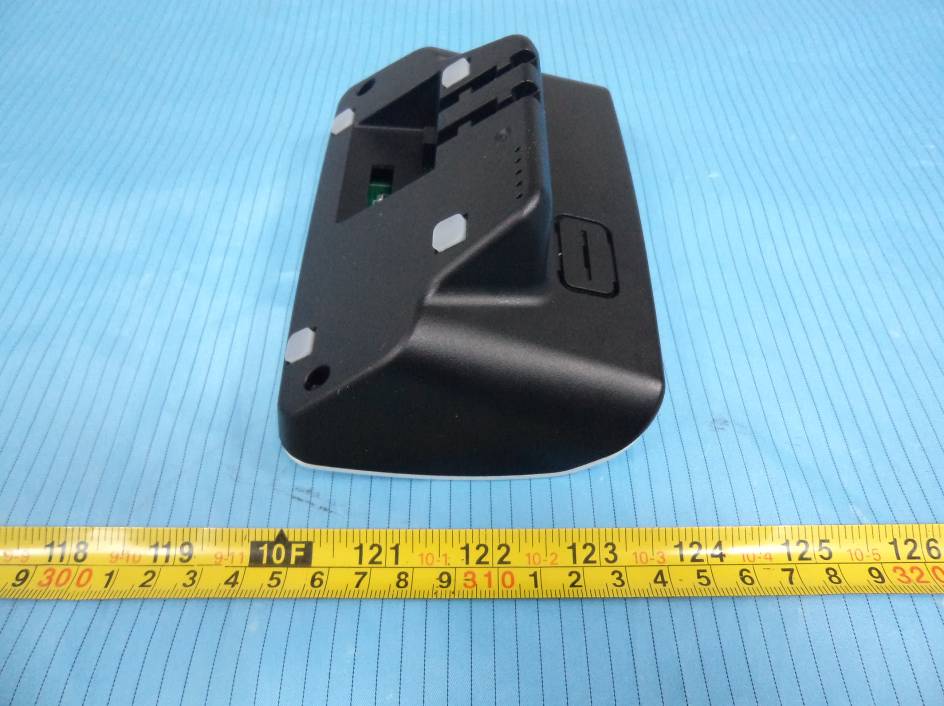

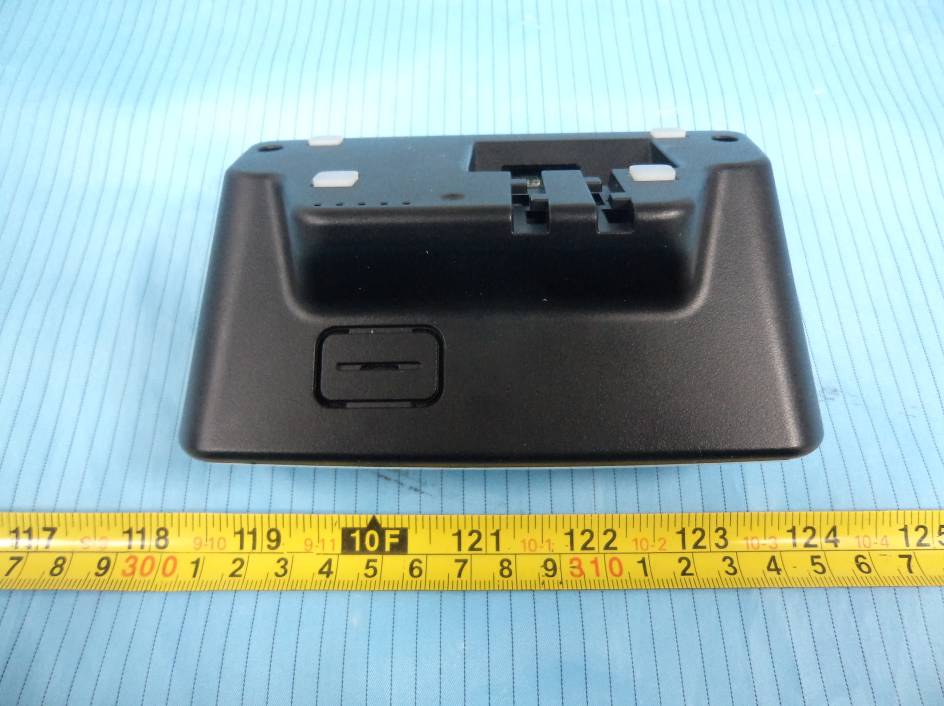

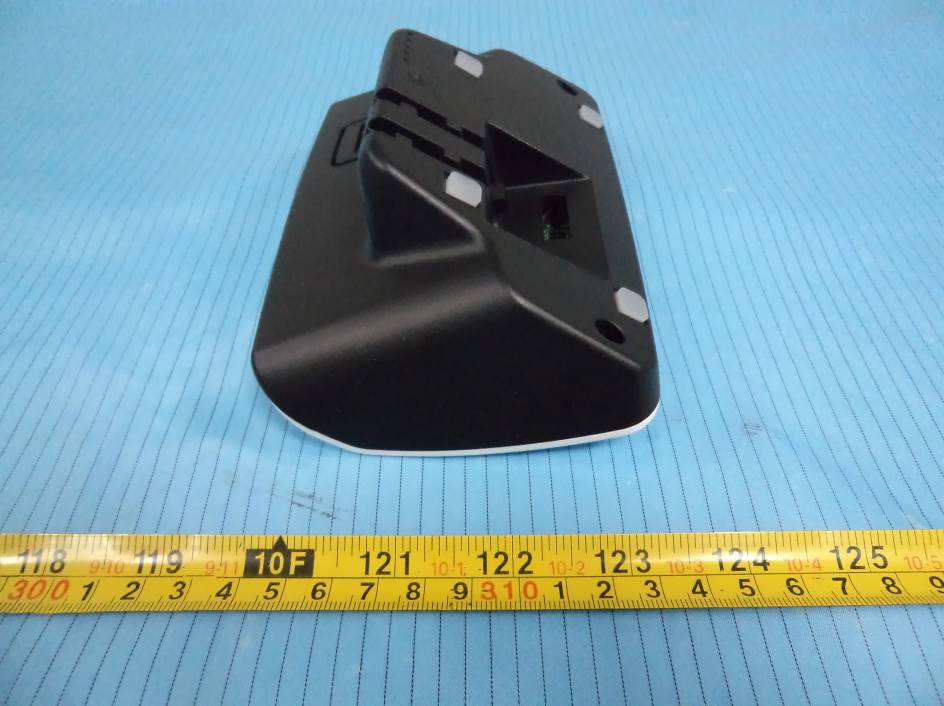

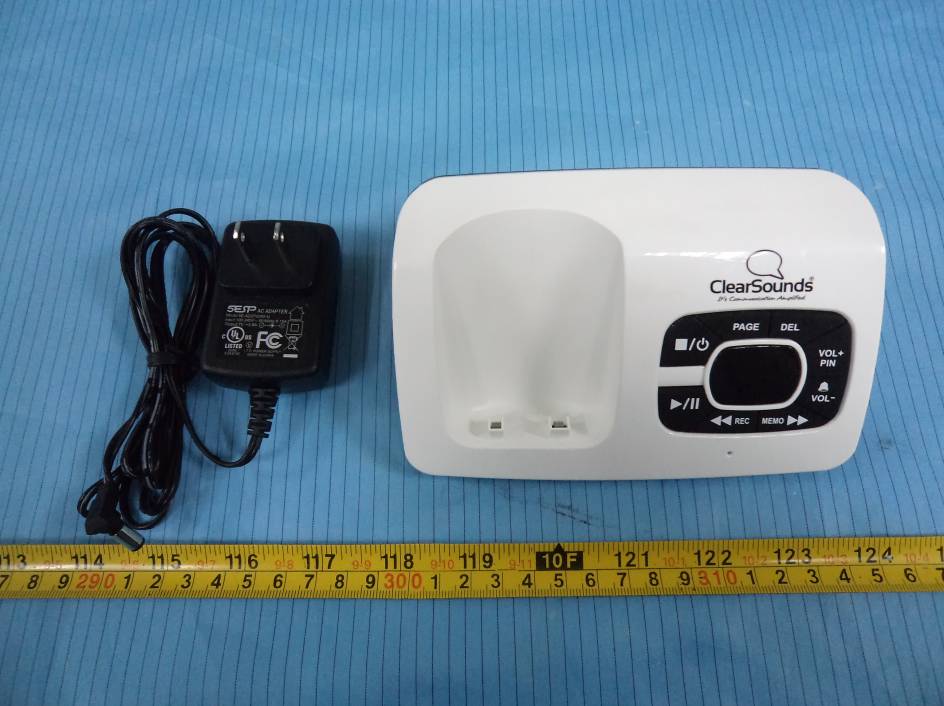

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – with Adapter View EUT – Front View EUT – Rear View EUT – Bottom View EUT – Left Side View EUT – Right Sdie View EUT – Adapter Label View

IC: 7800A-CSA500 FCC ID:WG8A500 US: CLSW400BA500 7V DC 800mA S/N: Base rating label(1:1) Handset rating label(1:1) 3 x NiMH AAA 3.6V 500mAh S/N: Model: A500 Model: A500 eg.: A500130303000001 Printed by factory COMPLIES WITH 47CFR FCC PART 68 AND IC CS-03 RULES PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS TELEPHONE! COMPLIES WITH 47CFR FCC PART 68 AND IC CS-03 RULES PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS TELEPHONE! eg.: A500130303000001 Printed by factory REN: 0.0 IC: 7800A-CSA500 FCC ID:WG8A500 US: CLSW400BA500 REN: 0.0 IC: 7800A-CSA500 FCC ID:WG8A500 US: CLSW400BA500 7V DC 800mA S/N: Model: A500 COMPLIES WITH 47CFR FCC PART 68 AND IC CS-03 RULES PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS TELEPHONE! REN: 0.0 3 x NiMH AAA 3.6V 500mAh S/N: Model: A500 COMPLIES WITH 47CFR FCC PART 68 AND IC CS-03 RULES PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS TELEPHONE! IC: 7800A-CSA500 FCC ID:WG8A500 US: CLSW400BA500 REN: 0.0 A500 R=2mm R=1mm IC: 7800A-CSA400 FCC ID:WG8A400 US: CLSW400BA400 7V DC 420mA S/N: Base rating label(1:1) Handset rating label(1:1) Model: A400 Printed by factory Printed by factory COMPLIES WITH 47CFR FCC PART 68 AND IC CS-03 RULES PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS TELEPHONE! eg.: A400130303000001 eg.: A400130303000001 IC: 7800A-CSA400 FCC ID : WG8A400 REN: 0.0 FCC Part 68 ID:CLSW400BA400 7V DC 420mA S/N: Model: A400 COMPLIES WITH 47CFR FCC PART 68 AND IC CS-03 RULES PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS TE LEPHONE! REN: 0.0 3 x NiMH AAA 3.6V 500mAh S/N: Model: A400 COMPLIES WITH 47CFR FCC PART 68 AND IC CS-03 RULES PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS TELEPHONE! IC: 7800A-CSA400 FCC ID:WG8A400 US: CLSW400BA400 REN: 0.0 3 x NiMH AAA 3.6V 500mAh S/N: Model: A400 COMPLIES WITH 47CFR FCC PART 68 AND IC CS-03 RULES PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS TELEPHONE! IC: 7800A-CSA400 FCC ID:WG8A400 US: CLSW400BA400 REN: 0.0 A400 A500E 7V DC 420mA S/N: Charger rating label(1:1) 7V DC 420mA S/N: Model: A500E Model: A500E A400E 7V DC 420mA S/N: Charger rating label(1:1) 7V DC 420mA S/N: Model: A400E Model: A400E Handset rating label(1:1) 3 x NiMH AAA 3.6V 500mAh S/N: Model: A500E COMPLIES WITH 47CFR FCC PART 68 AND IC CS-03 RULES PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS TELEPHONE! eg.: A500130303000001 Printed by factory IC: 7800A-CSA500 FCC ID:WG8A500 US: CLSW400BA500 REN: 0.0 3 x NiMH AAA 3.6V 500mAh S/N: Model: A500E COMPLIES WITH 47CFR FCC PART 68 AND IC CS-03 RULES PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS TELEPHONE! IC: 7800A-CSA500 FCC ID:WG8A500 US: CLSW400BA500 REN: 0.0 Handset rating label(1:1) Printed by factory eg.: A400130303000001 3 x NiMH AAA 3.6V 500mAh S/N: Model: A400E COMPLIES WITH 47CFR FCC PART 68 AND IC CS-03 RULES PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS TELEPHONE! IC: 7800A-CSA400 FCC ID:WG8A400 US: CLSW400BA400 REN: 0.0 3 x NiMH AAA 3.6V 500mAh S/N: Model: A400E COMPLIES WITH 47CFR FCC PART 68 AND IC CS-03 RULES PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS TELEPHONE! IC: 7800A-CSA400 FCC ID:WG8A400 US: CLSW400BA400 REN: 0.0 A500 Bundle 7V DC 420mA S/N: Charger rating label(1:1) 7V DC 420mA S/N: Model: A500Bundle Model: A500Bundle IC: 7800A-CSA500 FCC ID:WG8A500 US: CLSW400BA500 7V DC 800mA S/N: Base rating label(1:1) Model: A500Bundle eg.: A500130303000001 Printed by factory COMPLIES WITH 47CFR FCC PART 68 AND IC CS-03 RULES PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS TELEPHONE! REN: 0.0 IC: 7800A-CSA500 FCC ID:WG8A500 US: CLSW400BA500 7V DC 800mA S/N: Model: A500Bundle COMPLIES WITH 47CFR FCC PART 68 AND IC CS-03 RULES PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS TELEPHONE! REN: 0.0 Handset rating label(1:1) Model: A500Bundle COMPLIES WITH 47CFR FCC PART 68 AND IC CS-03 RULES PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED eg.: A500130303000001 Printed by factory 3 x NiMH AAA 3.6V 500mAh S/N: WHEN USING THIS TELEPHONE! IC: 7800A-CSA500 FCC ID:WG8A500 US: CLSW400BA500 REN: 0.0 3 x NiMH AAA 3.6V 500mAh S/N: Model: A500Bundle COMPLIES WITH 47CFR FCC PART 68 AND IC CS-03 RULES PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS TELEPHONE! IC: 7800A-CSA500 FCC ID:WG8A500 US: CLSW400BA500 REN: 0.0

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Main Board Top View Antenna EUT – Main Board Top Shielding off View EUT –Main Board Bottom View

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ121129003-00 FCC Part 15D Page 8 of 49 FCC§ 15.319 (i) &2.1091 - RF RADIATION EXPOSURE Applicable Standard According to FCC §15.319(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 842/f 2.19/f *(180/f\2\) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density MPE Calculation Predication of MPE limit at a given distance S = PG/4πR 2 Where: S = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Antenna Gain Conducted Power Frequency (MHz) (dBi) (numeric) (dBm) (mW) Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) 1921.536 0 1 17.98 62.81 20 0.01250 1.0 1924.992 0 1 18.06 63.97 20 0.01273 1.0 1928.448 0 1 17.13 51.64 20 0.01027 1.0 Result: The device meets MPE limit at 20 cm distance.

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 15D MEASUREMENT AND TEST REPORT For Clearsounds Communications, Inc. 1743 Quincy Avenue. #155 Naperville, IL, 60540, United States FCC ID: WG8A500 Report Type: Original Report Product Type: Amplified Cordless Phone (Base unit) Test Engineer: Brown Lu Report Number: RSZ121129003-00 Report Date: 2013-02-20 Reviewed By: Sula Huang RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ121129003-00 FCC Part 15D Page 2 of 49 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 REMOTE SUPPORT EQUIPMENT LIST AND DETAILS......................................................................................................6 EXTERNAL I/O CABLE..................................................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULTS...............................................................................................................................7 FCC§ 15.319 (I) &2.1091 - RF RADIATION EXPOSURE .......................................................................................8 APPLICABLE STANDARD..............................................................................................................................................8 MPE CALCULATION.....................................................................................................................................................8 FCC§15.317&§15.203 - ANTENNA REQUIREMENT .............................................................................................9 APPLICABLE STANDARD..............................................................................................................................................9 ANTENNA CONNECTOR CONSTRUCTION......................................................................................................................9 FCC§15.315 & §15.207 - CONDUCTED EMISSIONS............................................................................................10 APPLICABLE STANDARD............................................................................................................................................10 MEASUREMENT UNCERTAINTY..................................................................................................................................10 EUT SETUP................................................................................................................................................................10 EMI TEST RECEIVER SETUP.......................................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 TEST PROCEDURE......................................................................................................................................................11 TEST RESULTS SUMMARY..........................................................................................................................................11 TEST DATA................................................................................................................................................................11 FCC§15.323 (A) - EMISSION BANDWIDTH ..........................................................................................................14 APPLICABLE STANDARD............................................................................................................................................14 TEST PROCEDURE......................................................................................................................................................14 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................14 TEST DATA...............................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions – Front View (Below 1 GHz) Radiated Emissions – Rear View (Below 1 GHz) Radiated Emissions – Front View (Above 1 GHz) Radiated Emissions – Rear View (Above 1 GHz) Frequency Stability View
