WIJVVIN3574RWiDiGuard Receiver

User's Manual FEDERAL COMMUNICATIONS COMMISSION This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no grantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Notice: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CE DECLARATION This device complies with CE . These limits are designed to provide reasonable protection against harmful interface in a residential installation. Printed in TAIWAN R.O.C No. 10292010 All contents are subject to change without notice. All trademarks are the property of their respective owner. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device has been evaluated to be safe to use close to human body. It will not cause any harmful interference if client use this device within distance 20cm betwwen the radiator and body. This transfmitter must not be co-located or operating in conjunction with any other antenna or transmitter. TABLE OF CONTENTS CHAPTER 1. OVERVIEW............................................................................................................... 1 1 1 1 2 2 2 2 3 3 3 3 3 4 4 5 5 5 5 5 6 6 6 7 7 8 9 9 9 10 1.1 Introduction................................................................................................................................ 1.2 Features.................................................................................................................................... 1.3 Specifications............................................................................................................................ 1.4 System Requirements............................................................................................................... 1.5 Package Contents..................................................................................................................... 1.6 Application................................................................................................................................. 1.7 Hardware device description..................................................................................................... CHAPTER 2. INSTALLATION......................................................................................................... 2.1 Camera Installation.................................................................................................................... 2.2 Driver Installation....................................................................................................................... 2.3 Application Software Installation................................................................................................ 2.4 Receiver Hardware Installation.................................................................................................. CHAPTER 3. OPERATION.............................................................................................................. 3.1 Display........................................................................................................................................ 3.2 Recorder..................................................................................................................................... 3.3 Snapshot.................................................................................................................................... 3.4 Function...................................................................................................................................... 3. 4.1 FullScreen......................................................................................................................... 3.4.2 Playback............................................................................................................................ 3.4.3 Motion Detect.................................................................................................................... 3.5 Setting........................................................................................................................................ 3.5.1 Camera............................................................................................................................. 3.5.2 Record.............................................................................................................................. 3.5.3 MotionDetector................................................................................................................. 3.5.4 Schedule REC................................................................................................................. CHAPTER 4. MSNEyes..…

Text truncated - open the document above for the full version.

DOC Letter Nov. 15, 2010 Federal Communications Commission Authorization and Evaluation Division Dear Regulatory Authority, We, the undersigned, hereby declare that FCC Part 15B Declaration of Conformity procedures will be applied to the digital device portion of the following product: Type: WiDiGuard Receiver Model: VVIN3574 FCC Part 15B DoC report number: F080202 This Device complies with Part 15B DoC of the FCC rules, operation is subject to the following two conditions. This device may not cause harmful interference and, This device must accept any interference received, Including interference that may cause undesired operation TEST LABORATORY Global Certification Corp. No. 146, Shiang Charng Rd., Sec. 2, Hsi Chih, Taipei Hsien 221, Taiwan, R.O.C. Accredited Lab. Assigned under FCC number: TW1030 Sincerely, Jeff Yu/RD Director VideoHome Technology Corp. Address: 4F-1,No.190/192,Da Tung Rd.,Sec.3, Hsichih,Taipei Hsien 221,TAIWAN

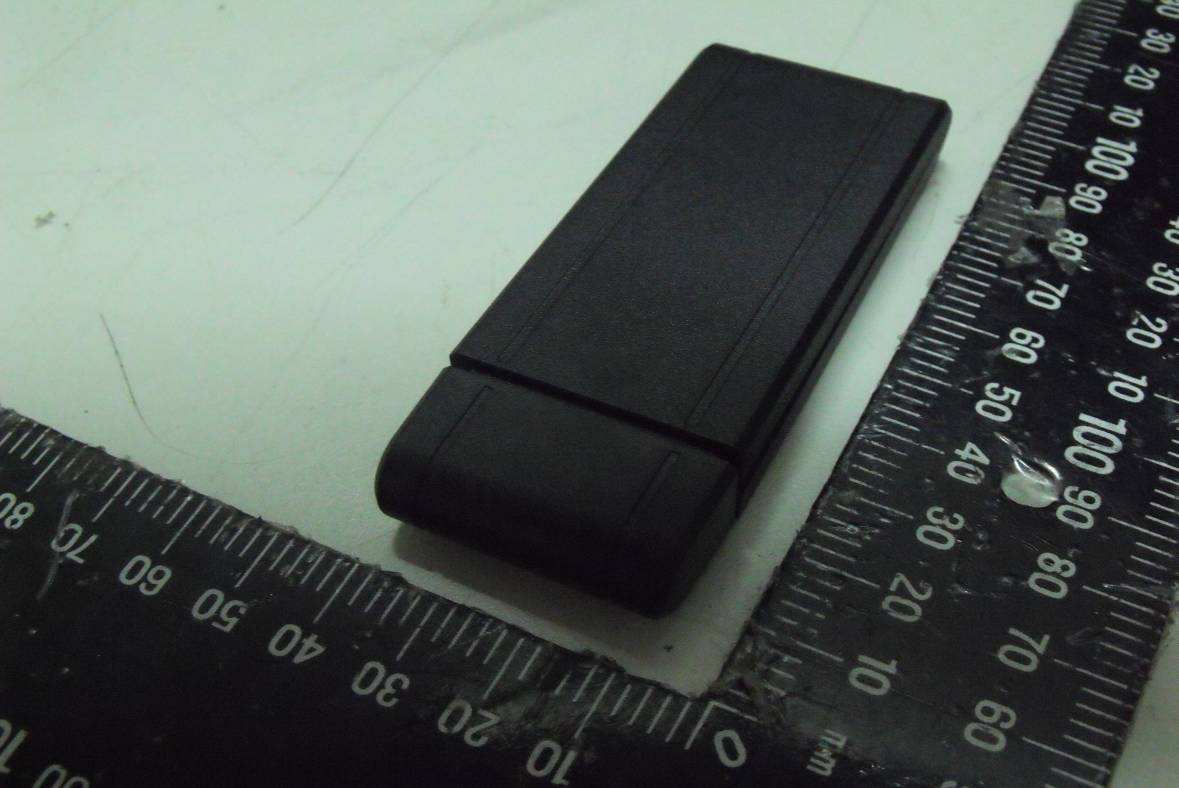

Global Certification Corp. PHOTO OF EUT PHOTOS OF EUT Global Certification Corp. Report No. : E080202 PHOTO OF EUT Front View of EUT Rear View of EUT

Label location

Global Certification Corp. Report No. : E080202 PHOTO OF EUT Inside View of EUT Global Certification Corp. Report No. : E080202 PHOTO OF EUT Component Side of Main Board Solder Side of Main Board Global Certification Corp. Report No. : E080202 PHOTO OF EUT Component Side of RF Module Board Solder Side of of RF Module Board

EUT RF Exposure The Max Conducted Peak Output Power is -3.62dBm (0.04mW) in Highest channel (2480MHz); The gain of the antenna is 2dBi. 2dBi logarithmic terms convert to numeric result is nearly 1.6. According to formula to calculate the EIRP test result: EIRT=P x G = 0.04 x 1.6 = 0.0064mW 1 SAR Requirement: S=60/f(GHz) = 60/2.48 = 24.19mW 2 1 11 1＜ ＜＜ ＜2 22 2 So SAR report is not required.

Global Certification Corp. Date of Issue: Oct. 21, 2010 Report No:F080202 Page1/39 FCC 47 CFR PART 15 SUBPART C 15.247 TEST REPORT FOR Product Name: WiDiGuard Receiver Model : VVIN3574 Trade Name: VIDEOHOME Issued to VideoHome Technology Corp. 4F-1,No.190/192,Da Tung Rd.,Sec.3,Hsichih,Taipei Hsien 221,TAIWAN Issued by Global Certification Corp. EMI Test Site Sansia Lab No. 34-3, Zihhe Rd., Sansia Township, Taipei County 237, Taiwan (R.O.C.) EMS Test Site Sijhih Office and Lab No. 146, Sec. 2, Siangjhang Rd., Sijhih City, Taipei County 221, Taiwan (R.O.C.) Note: This test refers exclusively to the test presented test model and sample. This report shall not be reproduced except in full, without the written approval of Global Certification Corporation. This document may be altered or revised by Global Certification Corporation. Personnel only, and shall be noted in the revision section of the document. Global Certification Corp. Date of Issue: Oct. 21, 2010 Report No:F080202 Page2/39 TABLE OF CONTENTS ----------------------------------------------------------------------------------------------------- 2 1. GENERAL INFORMATION -------------------------------------------------------------------------------------------------------- 4 1.1 DESCRIPTION OF THE TESTED SAMPLES --------------------------------------------------------------------------------------------------- 5 2. TEST METHODOLOGY ------------------------------------------------------------------------------------------------------------- 6 2.1 GENERAL TEST PROCEDURES ------------------------------------------------------------------------------------------------- 6 2.2 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS -------------------------------------------------------------- 6 2.3 DESCRIPTION OF TEST MODES ------------------------------------------------------------------------------------------------------ 7 2.3 DESCRIPTION OF THE SUPPORT EQUIPMENTS --------------------------------------------------------------------------- 8 3. TEST AND MEASUREMENT EQUIPMENT ------------------------------------------------------------------------------------ 9 3.1 CALIBRATION ---------------------------------------------------------------------------------------------------------------------------- 9 3.2 EQUIPMENT ------------------------------------------------------------------------------------------------------------------------------ 9 4. PEAK POWER ------------------------------------------------------------------------------------------------------------------------- 10 4.1 TEST SETUP ---------------------------------------------------------------------------------------------------------------------------- 10 4.2 LIMIT ------------------------------------------------------------------------------------------------------------------------------------ 10 4.3 TEST PROCEDURE ----------------------------------------------------------------------------------------------------------------- 10 4.4 TEST RESULT: PASSED ------------------------------------------------------------------------------------------------------------ 10 4.5 TEST DATA: ---------------------------------------------------------------------------------------------------------------------------- 11 5. AVERAGE POWER ------------------------------------------------------------------------------------------------------------------ 12 5.1 TEST SETUP ---------------------------------------------------------------------------------------------------------------------------- 12 5.2 LIMIT ------------------------------------------------------------------------------------------------------------------------------------ 12 5.3 TEST PROCEDURE --------------------------------------------------------------------------------------------------------------------- 12 5.4 TEST RESULT ------------------------------------------------------------------------------------------------------------------------- 12 5.5 TEST DATA ----------------------------------------------------------------------------------------------------------------------------- 13 6. SECTION 15.247 REQUIREMENTS (HARMONICS) ------------------------------------------------------------------------ 14 6.1 TEST SETUP----------------------------------------------------------------------------------------------------------------------------- 14 6.2 LIMIT ------------------------------------------------------------------------------------------------------------------------------------ 14 6.3 RESULT: PASSED ------------------------------------------------------------------------------------------------------------------- 14 6.4 TEST DATA ----------------------------------------------------------------------------------------------------------------------------- 15 7. SECTION 15.205 REQUIREMENTS (BAND EDGE) ------------------------------------------------------------------------- 17 7.1 TEST SETUP----------------------------------------------------------------------------------------------------------------------------- 17 7.2 LIMIT ------------------------------------------------------------------------------------------------------------------------------------ 17 7.3 RESULT: PASSED ------------------------------------------------------------------------------------------------------------------- 17 7.4 TEST DATA ----------------------------------------------------------------------------------------------------------------------------- 18 8. SECTION 15.209 REQUIREMENTS (GENERAL RADIATED EMISSION) -------------------------------------------- 23 8.1 TEST SETUP----------------------------------------------------------------------------------------------------------------------------- 23 8.2 LIMIT ------------------------------------------------------------------------------------------------------------------------------------ 24 8.3 TEST PROCEDURE -----------------------------------------------------------------------------------------…

Text truncated - open the document above for the full version.

Global Certification Corp. Appendix 1 PHOTOS OF TEST CONFIGURATION Global Certification Corp. Report No. : F080202 Radiated Emission Global Certification Corp. Report No. : F080202 Conducted Emissions
