WIJVVINWIFI89AV2Pad-WiFi

WiF-H100W01 Wireless 802.1 1n WiFi Module ELANsat Page of 10 20 11.11.28 www.elansat.com Version: 0.1 1 Description The WiF-H100W01 is a WLAN module supporting IEEE 802.11 b/g/n standards with 4-pin connector supporting USB 2.0 interface. This is a low cost compact WLAN module designed in the product with embedded system for the wireless connectivity. Scope: The WiF-H100W01 WLAN Module is designed to operate in 2.4GHz ISM frequency band, it applies a highly integrated MAC/BBP and RF single chip RT3070 with 150Mbps PHY rate supporting. It fully complies with IEEE802.11n draft 3.0 and IEEE802.11b/g feature. Features z 802.11b: 1, 2, 5.5, 11Mbps; z 802.11g: 6, 9, 12, 18，24, 36, 48, 54Mbps z 802.11n: (20MHz) MCS0-7, Support up to 72Mbps (40MHz) MCS0-7, Support up to 150Mbps z OFDM, Peak rate 150Mbps, Peak throughput 90Mbps. z Security support for 64/128 WEP, WPA, WPA2, TKIP, AES z Operates in 2.4GHz frequency bands. Power Management z Antenna configuration: I-PEX receptacle for external antenna. WiF-H100W01 Wireless 802.11n WiFi Module ELANsat Page of 10 2 011.11.28 www.elansat.com Version: 0.1 2 Product Information Specification Overview Standards IEEE802.11b/g & 802.11n (1T1R mode) USA (FCC): 2.412GHz ~ 2.462GHz (channel 1 – 11) ISM band Operating Frequency Europe (CE): 2.412GHz ~ 2.472GHz (channel 1 – 13) ISM band Protocols 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM Antenna External Antenna Security WPA/WP2, 64/128/152-bit WEP, WPS 11b: 21±1.0dBm @ 11Mbps; 11g: 16±1dBm @ 54Mbps Transmit Output Power (Typical) 802.11n: (HT20), 16+/-1dBm, 802.11n: (HT40), 16+/-1dBm, 11b: -88dBm @ 11Mbps; 11g: -73dBm @ 54Mpbs. Receive Sensitivity (Typical) 802.11n: (HT20), -71dBm@MSC7, (HT40),-68dBm@MSC7 Operating Voltage 5.0VDC ± 5% Operating Current <180mA at 5.0V DC input. Bus Interface USB 2.0/USB1.1 USB Interface 5-pin, 2.0mm pitch male jumper , Antenna Impedance 50 ohm WiF-H100W01 W ireless 802.11n WiFi Module ELANsat Page of 10 2011.11.28 www.elansat.com Version: 0.1 3 Hardware Information The WiF-H100W01 is low power consumption and low-cost compact WLAN module. This module can be built-in other embedded applications such as IP Camera, IP set top box, GPS, Internet radio apparatus. Block Diagram Figure 1: System Block Diagram of WiF-H100W01 WLAN Module Softw are and system Information Operation System CPU Supplier Driver Linux 2.4/2.6 ARM, MIPSII Available Windows 2000/XP/Vista/Window7 X86 Platform Available Windows CE 5.0/6.0 ARM, MIPSII Available WiF-H100W01 W ireless 802.11n WiFi Module ELANsat Page of 10 2011.11.28 www.elansat.com Version: 0.1 4 Mechanical Information OUTLINE and USB Connection Information （34x15mm） a). Product picture and PCB dimensions Top view: Bottom view: WiF-H100W01 W ireless 802.11n WiFi Module ELANsat Page of 10 2011.11.28 www.elansat.com Version: 0.1 5 PCB dimensions(Top View): WiF-H100W01 W ireless 802.11n WiFi Module ELANsat Page of 10 2011.11.28 www.elansat.com Version: 0.1 6 Pin definition (Top View): Pin 5-pin 2.0mm pitch connector + antenna pad 1 GND 2 VCC (5.0VDC) 3 D- ( USB data-) 4 D+ (USB data+) 5 GND (Ground) 6 LED (link light status) 7 GND 8 Antenna 9 GND 10 GND 11 GND Antenna Connection Information: An external antenna via a PCB pad soldering. Order information: P/N: WiF-H100W01 WiF-H100W01 W ireless 802.11n WiFi Module ELANsat Page of 10 2011.11.28 www.elansat.com Version: 0.1 7 Environment Temperature Operating Temperature Continuous reliable operation in ambient temperature: 0ºC to +50ºC. Storage Temperature The product is not damaged or degraded when keeping in -20ºC to +85ºC. Humidity Operating Humidity Conditions The product is capable of continuous reliable operation when subjected to relative humidity in the range of 20% to 80% (non-condensing). Non-Operating Humidity Conditions (including warehouse) The product is not damaged or degraded when kept in the relative humidity range from 20% to 80%. WiF-H100W01 W ireless 802.11n WiFi Module ELANsat Page of 10 2011.11.28 www.elansat.com Version: 0.1 8 Disclaimer THESE MATERIALS AND INFORMATION ARE PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT. We uses reasonable efforts to include accurate and up-to-date information on this document; it does not, however, make any representations as to its accuracy or completeness of the information, text, graphics, links or other items contained within these materials. Your use of this Document is at your own risk. Ogemray, its suppliers, and other parties involved in creating and delivering this Document’s contents shall not be liable for any special, indirect, incidental, or consequential damages, including without limitation, lost revenues or lost profits. Basic RF Test TX test TX test (802.11g) Test result 802.11g (Data Rate 54M OFDM) TX test Item Spec Ch 1 Ch 6 Ch 13 TX power (DBm) 16dbm-18dbm16.35 16.19 16.05 TX EVM (dB) <-28 -29.77 -30.26 -29.68 TX Freq Err(PPM) -20~20 -1.82 -1.79 0.87 Spec Flat(pt) -1.0~0.0 0.000 0.000 0.000 Spec Mask 2.0~0.0 0.000% 0.000% 0.000% WiF-H100W01 W ireless 802.11n WiFi Module ELANsat Page of 10 2011.11.28 www.elansat.com Version: 0.1 9 TX Test (802.11b) Test result 802.11b (Data Rate 11M CCK) TX test Item Spec Channel 1 Channel 6 Channel 11 Tx power (dBm) 18dbm~22dbm20.16-18.77 TX EVM (dB) -24.11 - -23.78 TX Freq Err(PPM) -20~20 2.55-1.72 RX test Test Environment Test result RX test (802.11g) (54M/-67dBm) 802.11g RX test Item Spec. Ch. 1 Ch. 6 Ch. 11 Rx FER OFDM 54M(<-73dbm) <10% 0.00% 0.00% 0.00% WiF-H100W01 W ireless 802.11n WiFi Module ELANsat Page of 10 2011.11.28 www.elansat.com Version: 0.1 10 Throughput test Procedure: Test its throughput by chariot 5.4 T est result : chariot 5.4 througput test distance Average(Mbps)Minimum(Mbps) Maximum(Mbps) 5m 50.8943.10172.728

FCC INFORMATION (additional) FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Co-location warning: This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Limited Channels fixed for use in the US: IEEE 802.11b or 802.11g or 802.11n(HT20) operation of this product in the U.S. is firmware-limited to Channel 1 through 11. IEEE 802.11n(HT40) operation of this product in the U.S. is firmware-limited to Channel 3 through 9. OEM integration instructions: This device is intended only for OEM integrators under the following conditions: The antenna must be installed such that 20 cm is maintained between the antenna and users, and the transmitter module may not be co-located with any other transmitter or antenna. The module shall be only used with the external antenna(s) that has been originally tested and certified with this module. As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). Validity of using the module certification: In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization for this module in combination with the host equipment is no longer considered valid and the FCC ID of the module cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. Custom design antennas may be used, however the OEM / installer must follow the FCC 15.21 requirements and verify if new FCC approval will be necessary. End product labeling: This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: WIJVVINWIFI89”. Information that must be placed in the end user manual: The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user's manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual.

2F-11, No. 3, Yuan Qu St., (Nankang Software Park), Taipei, Taiwan 115, R.O.C. (MRA desig. No. TW1049)

VideoHome Technology Corp. FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name VideoHome Technology Corp. Addresss 4F-1, NO. 190/192, SEC. 3, DATONG RD., XIZHI DIST., City New Taipei City Country Taiwan request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: WIJ VVINWIFI89 of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) x Operational Description x Block Diagrams x Schematics Diagrams Bill of Materials Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) New Taipei City, Taiwan 2013/08/28 Charles Li Director

VideoHome Technology Corp. FCC Authorization Letter Number: CF304 Version: V01 Date: 01-02-2010 We, (the approval holder) Company name VideoHome Technology Corp. Addresss 4F-1, NO. 190/192, SEC. 3, DATONG RD., XIZHI DIST., City New Taipei City Country Taiwan declare that the following representative (agent): Name (person) Delia Feng Company name Cerpass Technology Corporation Addresss No.3, 2F-11, YuanQu St., City Taipei City Country Taiwan is hereby authorized to apply the following equipment for certification on our behalf: Product Description AV2Pad-WiFi Type or Model(s) VVIN3589 Tradename or Brand(s) VideoHome We also authorize Teleconformity, Mr. M. Koop, (address: Rietven 31, 7534NH Enschede, Netherlands) to process this application. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) New Taipei City, Taiwan 2013/08/28 Charles Li Director

VideoHome Technology Corp. FCC Modular Approval Request Number:CF305 Version: V04 Date: 07-08-2012 To the FCC or FCC TCB handling this application Hereby we, Company name (grantee)VideoHome Technology Corp. Addresss4F-1, NO. 190/192, SEC. 3, DATONG RD. , XIZHI DIST. , City / ZIP / State / CountryNew Taipei City, Taiwan (R. O. C. ) request modular approval for the certification of our equipment within this application, identified by: FCC ID:WIJVVINWIFI89 The table below contains the justification for modular approval of this equipment: Requirement per 15.212 and KDB 996369 D01 Module Certification Guide v01r03Explanation from grantee (do not write yes / no, but explain why it complies / how it is achieved) 1. The modular transmitter must have its own RF shielding. Yes, the module has its own shielding 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Yes, the module has buffered inputs 3. The modular transmitter must have its own power supply regulation. Yes, the module has its own power supply regulation 4. The modular transmitter must comply with the antenna requirements of Section 15. 203 and 15. 204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). . Yes, the module uses fixed dipole (swivel) antenna. 5. The modular transmitter must be tested in a stand-alone configuration, i. e. , the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1. ” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Yes, the module has been labeled, and the user manual provides labeling instructions for the end- device in which the module is installed. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15. 231. For instance, data transmission is prohibited, except for operation under Section 15. 231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. Yes, the module complies with all specific rules and instructions are provided in the user manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2. 1091, 2. 1093 and specific Sections of Part 15, including 15. 319(i), 15. 407(f), 15. 253(f) and 15. 255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15. 247 are required to address RF Exposure compliance in accordance with Section 15. 247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. Yes, the module complies with RF exposure for mobile devices, calculated at 20cm distance. Attestation (by grantee) City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) New Taipei City, Taiwan2013/08/28Charles LiDirector

VideoHome Technology Corp. Limited Channel Declaration Number: CF309 Version: V01 Date: 08-09-2011 (This form must be used and submitted for applications concerning equipment that may risk operating on non-U.S. frequencies that not allowed to use in the U.S., or equipment that may risk operating beyond the frequency channels for which it is certified.) To: Federal Communications Commission 7345 Oakland Mills Road Columbia MD 21046 Attention: Application Examiner / Review Engineer Subject: Amount of Channels limited for devices marketed in the US Hereby, we: Company Name VideoHome Technology Corp. Address: 4F-1, NO. 190/192, SEC. 3, DATONG RD., XIZHI DIST., Postal/Zip: 221 City: New Taipei City State/Province: Country: Taiwan declare that this device identified by: Grantee Code (CG) Product Code FCC ID: WIJ VVINWIFI89 only supports IEEE802.11b/g/n(HT20) channel 1-11 (2412–2462 MHz) and IEEE802.11n(HT40) channel 3-9 (2422–2452 MHz) for marketing and use in the US. The end user will not be able to select any other channel or non US frequency that could violate the restricted bands in the US. (Attestation) City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) New Taipei City, Taiwan 2013/09/11 Charles Li Director

VideoHome Technology Corp. FCC Ad-Hoc Declaration Number: CF308 Version: V02 Date: 01-08-2011 (This form must be used and submitted for applications concerning equipment that may risk operating on non-U.S. frequencies that not allowed to use in the U.S., or equipment that may risk operating beyond the frequency channels for which it is certified.) To: Federal Communications Commission 7345 Oakland Mills Road Columbia MD 21046 Attention: Application Examiner / Review Engineer Subject: Ad Hoc Mode Function Declaration Hereby, we: Company Name VideoHome Technology Corp. Address: 4F-1, NO. 190/192, SEC. 3, DATONG RD., XIZHI DIST., Postal/Zip: 221 City: New Taipei City State/Province: Country: Taiwan declare that this device identified by: Grantee Code (CG) Product Code FCC ID: WIJ VVINWIFI89 is acting as slave and operating in the 2412–2462 MHz and 2422–2452 MHz band. Ad Hoc function is supported but not able to operate on non-US frequencies. (Attestation) City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) New Taipei City, Taiwan 2013/09/11 Charles Li Director

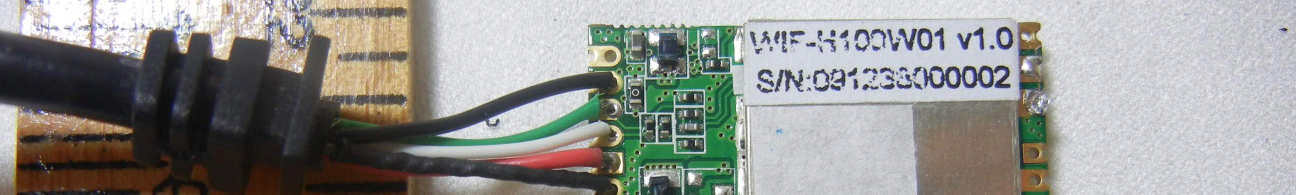

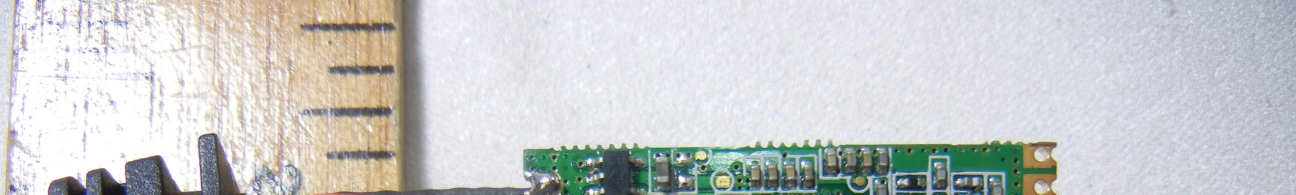

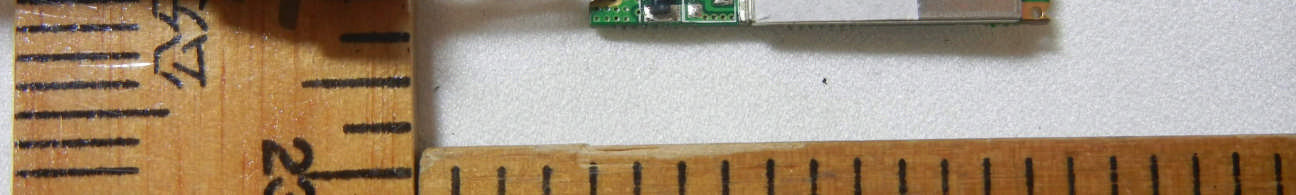

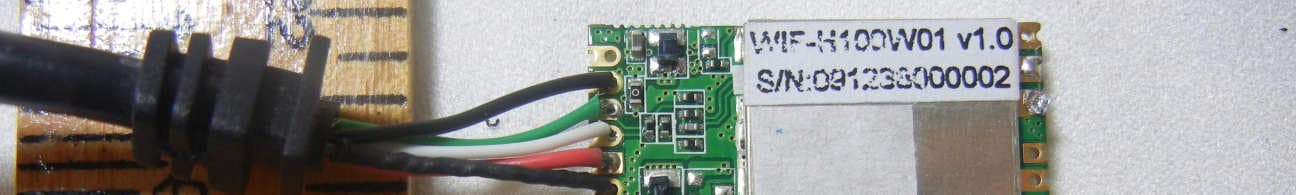

CERPASS TECHNOLOGY CORP. Report No.: TEFI1304208 Cerpass Technology Corp.Issued Date:Aug. 27, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A1of A2 FCC ID:WIJVVINWIFI89 Appendix A. Photographs of EUT

Label & Location

CERPASS TECHNOLOGY CORP. Report No.: TEFI1304208 Cerpass Technology Corp.Issued Date:Aug. 27, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A2of A2 FCC ID:WIJVVINWIFI89

CERPASS TECHNOLOGY CORP. Report No.: TEFI1304208 Cerpass Technology Corp.Issued date:Aug. 28, 2013 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200Page No.:1 of 3 FCC ID:WIJVVINWIFI89 Radio Frequency Exposure LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUTAV2Pad-WiFi Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.725GHz ~ 5.850GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 802.11b: 20.36 dBm (108.6 mW) 802.11g: 16.75 dBm (47.3 mW) 802.11n (20MHz): 16.28 dBm (42.5 mW) 802.11n (40MHz): 16.48 dBm ( 44.5 mW) Antenna gain (Max)2.89 dBi Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 20.36 dBm (108.6 mW)at 2462 MHz(with numeric 2.89 antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximumpower density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: TEFI1304208 Cerpass Technology Corp.Issued date:Aug. 28, 2013 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200Page No.:2 of 3 FCC ID:WIJVVINWIFI89 TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 3770 2 E S WhereE = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   2 2 0796.0 100/3770 1000/30 d GP d GP S     Equation 1 Whered = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: TEFI1304208 Cerpass Technology Corp.Issued date:Aug. 28, 2013 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200Page No.:3 of 3 FCC ID:WIJVVINWIFI89 Maximum Permissible Exposure Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 802.11b2412-246220.362.89200.0421 802.11g2412-246216.752.89200.0181 802.11n (20MHz)2412-246216.282.89200.0161 802.11n (40MHz)2422-245216.482.89200.0171 NOTE: Total (Chain0+Chain1) , the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density

CERPASS TECHNOLOGY CORP. Report No.: TEFI1304208 Cerpass Technology Corp.Issued date:Aug. 27, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:1 of 89 FCC ID:WIJVVINWIFI89 FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant:VideoHome Technology Corp. Address: 4F-1, NO. 190/192, SEC. 3, DATONG RD., XIZHI DIST., NEW TAIPEI CITY 221, TAIWAN Equipment:AV2Pad-WiFi Model No.:VVIN3589 Trade Name:VideoHome FCC ID:WIJVVINWIFI89 The test result refers exclusively to the test presented test model / sample., Without written approval ofCerpass Technology Corp.,the test report shall not be reproduced except in full. The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFI1304208 Cerpass Technology Corp.Issued date:Aug. 27, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:2 of 89 FCC ID:WIJVVINWIFI89 Contents 1.Report of Measurements and Examinations ....................................................................................6 1.1List of Measurements and Examinations ...................................................................................6 2.Test Configuration of Equipment under Test ...................................................................................7 2.1Feature of Equipment under Test...............................................................................................7 2.2Carrier Frequency of Channels ..................................................................................................7 2.3Test Mode and Test Software.....................................................................................................8 2.4Description of Test System.........................................................................................................9 2.5Connection Diagram of Test System..........................................................................................9 2.6General Information of Test......................................................................................................10 2.7Measurement Uncertainty ........................................................................................................10 3.Antenna Requirements..................................................................................................................... 11 3.1Standard Applicable ................................................................................................................. 11 3.2Antenna Construction and Directional Gain............................................................................. 11 4.Test of Conducted Emission............................................................................................................12 4.1Test Limit ..................................................................................................................................12 4.2Test Procedures .......................................................................................................................12 4.3Typical Test Setup ....................................................................................................................13 4.4Measurement Equipment .........................................................................................................13 4.5Test Result and Data ................................................................................................................14 4.6Test Photographs .....................................................................................................................20 5.Test of Radiated Emission ...............................................................................................................21 5.1Test Limit ..................................................................................................................................21 5.2Test Procedures .......................................................................................................................21 5.3Typical Test Setup ....................................................................................................................22 5.4Measurement Equipment .........................................................................................................22 5.1Test Result and Data (9kHz ~ 30MHz).....................................................................................23 5.2Test Result and Data (30MHz ~ 1GHz)....................................................................................23 5.3Test Result and Data (Above 1GHz) ........................................................................................35 5.4Test Photographs (30MHz~1GHz) ...........................................................................................59 5.5Test Photographs (Above 1GHz) .............................................................................................60 6.6dB Bandwidth Measurement Data .................................................................................................61 6.1Test Limit ..................................................................................................................................61 6.2Test Procedures .......................................................................................................................61 6.3Test Setup Layout ....................................................................................................................61 6.4Measurement Equipment .........................................................................................................61 6.5Test Result and Data ................................................................................................................62 7.Maximum Peak and Average O…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1304208 CerpassTechnologyCorp.Issued date : Aug. 27, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.: 37 of 88 FCC ID: WIJVVINWIFI89 Power: AC 120VPol/Phase: HORIZONTAL Test Mode 1: 802.11b, CH6Temperature: 26 °C Memo:Humidity: 47 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1304208 CerpassTechnologyCorp.Issued date : Aug. 27, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.: 38 of 88 FCC ID: WIJVVINWIFI89 Power: AC 120VPol/Phase: VERTICAL Test Mode 1: 802.11b, CH11Temperature : 26 °C Memo:Humidity: 47 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1304208 CerpassTechnologyCorp.Issued date : Aug. 27, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.: 39 of 88 FCC ID: WIJVVINWIFI89 Power: AC 120VPol/Phase: HORIZONTAL Test Mode 1: 802.11b, CH11Temperature : 26 °C Memo:Humidity: 47 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1304208 CerpassTechnologyCorp.Issued date : Aug. 27, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.: 40 of 88 FCC ID: WIJVVINWIFI89 Power: AC 120VPol/Phase: VERTICAL Test Mode 1: 802.11g, CH1Temperature : 26 °C Memo:Humidity: 47 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1304208 CerpassTechnologyCorp.Issued date : Aug. 27, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.: 41 of 88 FCC ID: WIJVVINWIFI89 Power: AC 120VPol/Phase: HORIZONTAL Test Mode 1: 802.11g, CH1Temperature : 26 °C Memo:Humidity: 47 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1304208 CerpassTechnologyCorp.Issued date : Aug. 27, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.: 42 of 88 FCC ID: WIJVVINWIFI89 Power: AC 120VPol/Phase: VERTICAL Test Mode 1: 802.11g, CH6Temperature : 26 °C Memo:Humidity: 47 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1304208 CerpassTechnologyCorp.Issued date : Aug. 27, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.: 43 of 88 FCC ID: WIJVVINWIFI89 Power: AC 120VPol/Phase: HORIZONTAL Test Mode 1: 802.11g, CH6Temperature : 26 °C Memo:Humidity: 47 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1304208 CerpassTechnologyCorp.Issued date : Aug. 27, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.: 44 of 88 FCC ID: WIJVVINWIFI89 Power: AC 120VPol/Phase: VERTICAL Test Mode 1: 802.11g, CH11Temperature : 26 °C Memo:Humidity: 47 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1304208 CerpassTechnologyCorp.Issued date : Aug. 27, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.: 45 of 88 FCC ID: WIJVVINWIFI89 Power: AC 120VPol/Phase: HORIZONTA…
