  1. Home/
  2. CASTLES TECHNOLOGY CO., LTD./
  3. WIYQP3000

WIYQP3000QPROX

CASTLES TECHNOLOGY CO., LTD.
QPROX - FCC ID WIYQP3000 - CASTLES TECHNOLOGY CO., LTD.
Click to zoom

Application Details

Equipment Class
DXT - Part 15 Low Power Transceiver, Rx Verified
Date of Grant
Apr 18, 2010
Application Purpose
Original Equipment
Date of Application
Apr 01, 2010
Equipment Note
QPROX
Frequency Range
13.56000000 - 13.56000000
Company
CASTLES TECHNOLOGY CO., LTD.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗
↗

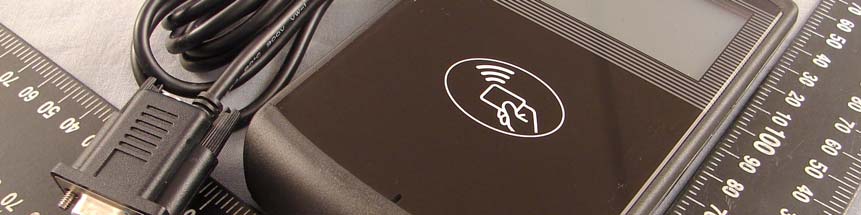

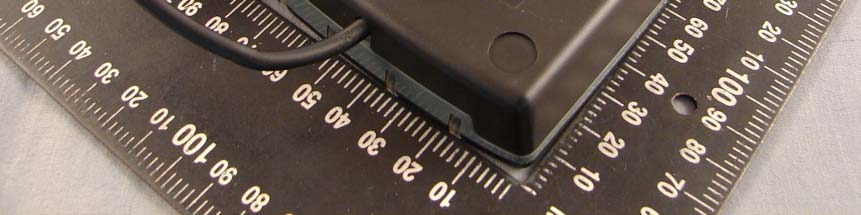

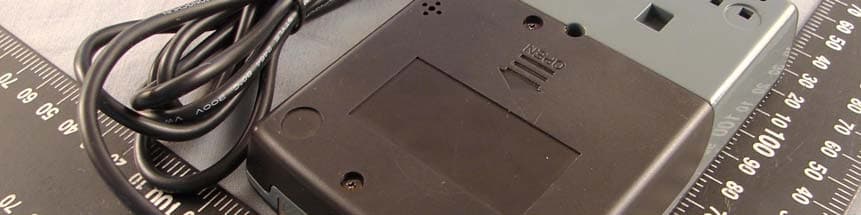

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗
↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Doc.# MAN-QPX0-FAET-02.00.0 Contactless Reader QProx User Manual Standard Version Version:02.00.0 Note: Print Date:2008-08-05 Print Dept:Research and Development Department Approved by Checked by Issued by Castles Technology Co., Ltd. 2F, No 205, Beishin Rd Sec. 3, Hsin-Tien City, Taipei Hsien, Taiwan R.O.C. Tel: 886-2-8913-1771 Fax: 886-2-8913-1772 http://www.castech.com.tw Doc.# MAN-QPX0-FAET-02.00.0 Contactless Reader QProx User Manual Standard Version Version:02.00.0 Note: Castles Technology Co., Ltd. 2F, No 205, Beishin Rd Sec. 3, Hsin-Tien City, Taipei Hsien, Taiwan R.O.C. Tel: 886-2-8913-1771 Fax: 886-2-8913-1772 http://www.castech.com.tw Copyright ©Castles Technology Co., Ltd. All Rights Reserved Doc.# MAN-QPX0-FAET-02.00.0 Revision History Version Date Editor Description 01.00.0 2008-08-05 Jackie Create 02.00.0 2010-03-26 Eaton 1. Added exterior and parts description of QP2000 & QP3000. 2. Added QP2000 & QP3000 SAM card installation procedures 3. QProx reader series’ external DC adaptor supplies 12V/1A of power through RS232 port. 4. Added pin assignment of internal pin out 8 pins connector. FCC Compliance Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radi-ate radio frequency energy and, if not in-stalled and used in accordance with the in-structions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equip-ment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the fol-lowing measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equip-ment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the re-ceiver is connected. —Consult the dealer or an experienced radio/ TV technician for help. Copyright ©Castles Technology Co., Ltd. All Rights Reserved Doc.# MAN-QPX0-FAET-02.00.0 Page1/14 Table of Contents TABLE OF CONTENTS................................................................................................................... 1 1 INTRODUCTION...................................................................................................................... 2 2 POWER.................................................................................................................................... 4 3 PAKING LIST........................................................................................................................... 4 4 CONNECTOR AND PIN ASSIGMENT..................................................................................... 5 4.1 RS232 Type........................................................................................................................................................................ 5 4.1.1 Standard D-SUB 9 Connector............................................................. 5 4.2 USB Type........................................................................................................................................................................... 5 4.2.1 Standard USB Type-A Connector.......................................................... 5 4.3 Internal Connector Pin Out........................................................................................................................................... 6 5 INSTALLATION........................................................................................................................ 7 5.1 Power and RS232 Cable................................................................................................................................................. 7 5.2 USB Cable.......................................................................................................................................................................... 7 5.3 SAM Card Installation Procedures.............................................................................................................................. 8 5.4 Reader Stand Installation............................................................................................................................................. 11 5.5 Installation Notice.......................................................................................................................................................... 12 6 LED INDICATOR.................................................................................................................... 13 6.1 LED Indicator.................................................................................................................................................................. 13 6.2 Status Discription of LED Indicators........................................................................................................................ 13 7 CONTACTLESS CARD LANDING ZONE.............................................................................. 14 Copyright ©Castles Technology Co., Ltd. All Rights Reserved Doc.# MAN-QPX0-FAET-02.00.0 Page2/14 1 Introduction Description of QP1000 and QP2000 readers: 1 LCD …

Text truncated - open the document above for the full version.

Attestation Statements

Attestation for FCC Declaration of Conformity FCC ID: WIYQP3000 Please be notified that we, the undersigned, CASTLES TECHNOLOGY CO., LTD. , declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is MLT1003P15002-1. Testing in regards to this report was done by Max Light Technology Co. Ltd., located at Room 5, 8F, No.125, Section 3 Roosevelt Road, Taipei, Taiwan. which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules . Sincerely yours, _____________________________________ (Signature) Original written signature of authorized signer: Eddie Lin / assistant manager Printed name of authorized signer / Title Date: Mar 31, 2010

Cover Letter(s)

AGENCY AUTHORIZATION LETTER To whom it may concern: We, the undersigned CASTLES TECHNOLOGY CO., LTD. , hereby authorize Max Light Technology Co. Ltd. (MLT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15 approval and any communication needed with the national authority. Any and all acts carried out by MLT on our behalf shall have the same effects as acts of our own. For questions regarding the authorization, please contact us. Thank you! Sincerely yours, _____________________________________ (Signature) Original written signature of authorized signer: Eddie Lin / assistant manager Printed name of authorized signer / Title Date: Mar 31, 2010

Cover Letter(s)

Date: 31, Mar 2010 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: WIYQP3000 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: Block Diagrams Schematics Operational Descriptions The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Eddie Lin / Assistant Manager _____________________________ (Signature)

External Photos

Report Number: MLT1003P15002 PHOTOGRAPHS OF EUT

ID Label/Location Info

Report Number: MLT1003P15002 Label Format: Label Position: Equipment Label 5cmX2.5cm This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received , including Interference that may cause undesired operation. Trade Name: CASTLES TECHNOLOGY Model No. : QP3000 FCC ID: WIYQP3000 Rear View

Internal Photos

Report Number: MLT1003P15002 Report Number: MLT1003P15002 Report Number: MLT1003P15002

Internal Photos

Report Number: MLT1003P15002

Test Report

Page: 1/ 24 Report Number: MLT1003P15002 (FCC : Part 15 Subpart C / ANSI C63.4-2003) Product :QPROX Trade Name :CASTLES TECHNOLOGY Model No. :QP3000 Applicant :CASTLES TECHNOLOGY CO., LTD.. Applicant Address :2F, No.205, Beishin Rd Sec. 3, Hsin-Tien City, Taipei Hsien, Taiwan 231, R.O.C. Page: 2/ 24 Report Number: MLT1003P15002 Report Number MLT1003P15002 Applicant CASTLES TECHNOLOGY CO., LTD. Product QPROX Sample Received Date 2010/03/22 Report Prepared By Jesse Tien Signature Date Prepared 2010/03/23 ~ 2010/03/24 Report Authorized By Roger Chen Signature Date Authorized 2010/03/29 Test By Max Light Technology Co., Ltd. Room 5, 8F, No.125, Section 3 Roosevelt Road, Taipei, Taiwan., R.O.C. Office : Tel: 886-2-2363-2447 Fax: 886-2-2363-2597 Lab. : Tel: 886-2-2663-3486 Fax: 886-2-2663-3582 I I t t m m a a y y b b e e d d u u p p l l i i c c a a t t e e d d c c o o m m p p l l e e t t e e l l y y f f o o r r l l e e g g a a l l u u s s e e w w i i t t h h t t h h e e a a l l l l o o w w a a n n c c e e o o f f t t h h e e a a p p p p l l i i c c a a n n t t . . I I t t s s h h a a l l l l n n o o t t b b e e r r e e p p r r o o d d u u c c e e d d e e x x c c e e p p t t i i n n f f u u l l l l , , w w i i t t h h o o u u t t t t h h e e w w r r i i t t t t e e n n a a p p p p r r o o v v a a l l o o f f o o u u r r l l a a b b o o r r a a t t o o r r y y . . Page: 3/ 24 Report Number: MLT1003P15002 Table of Contents : 1. General 5. 2. Conducted Emissions Requirements 9 3. Radiated Emissions Requirements 12 4. Frequency Tolerance Requirements 17. 5. Transmitter Bandwidth Measurements 19. Appendix I ( EUT Test Setup ) 22. Appendix II ( Brand / Trade Name & Model No. Multiple Listee ) 24. Page: 4/ 24 Report Number: MLT1003P15002 CERTIFICATION We here by verify that : The test data, data evaluation, test procedures and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4-2003. All test were conducted by MLT(Max Light Technology Co., Ltd) Room 5, 8F, No.125, Section 3 Roosevelt Road, Taipei, Taiwan, R.O.C Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with radiated emission limit of FCC Rules Part 15 Subpart C Section 15.225 . Applicant Name CASTLES TECHNOLOGY CO., LTD. Applicant Address 2F, No.205, Beishin Rd Sec. 3, Hsin-Tien City, Taipei Hsien, Taiwan 231, R.O.C. Manufacturer Name CASTLES TECHNOLOGY CO., LTD. Manufacturer Address 2F, No.205, Beishin Rd Sec. 3, Hsin-Tien City, Taipei Hsien, Taiwan 231, R.O.C. Equipment QPROX Model No QP3000 FCC ID WIYQP3000 Report Prepared By Jesse Tien Signature Report Authorized By Roger Chen Signature Page: 5/ 24 Report Number: MLT1003P15002 1. GENERAL 1.1 Introduction The following measurement report is submitted on behalf of CASTLES TECHNOLOGY CO., LTD. In support of an Intentional Periodic Radiator certification in accordance with Part 2 Subpart J and Part 15 Subpart A And C of the Commission’s and Regulations. 1.2 Customer Details Applicant Name CASTLES TECHNOLOGY CO., LTD. Applicant Address 2F, No.205, Beishin Rd Sec. 3, Hsin-Tien City, Taipei Hsien, Taiwan 231, R.O.C. Manufacturer Name CASTLES TECHNOLOGY CO., LTD. Manufacturer Address 2F, No.205, Beishin Rd Sec. 3, Hsin-Tien City, Taipei Hsien, Taiwan 231, R.O.C. 1.3 Technical data of EUT Equipment QPROX Model No QP3000 FCC ID WIYQP3000 Power Type Powered By DC12V , 1A The EUT ( QPROX ) is card reader. The card reader operation frequency is 13.56MHz. Page: 6/ 24 Report Number: MLT1003P15002 1.4 Summary Of Tests Description of Standards and Results Emission Test Item Standard Result Conducted Emission Requirements Part 15 15.207 PASS Radiated Emission Requirements Part 15 15.225(a)(b)(c)(d) Part 15 15.205 , 15.209 PASS Frequency Tolerance Requirements Part 15 15.225(e) PASS Bandwidth Emission Requirements Part 15 15.215 PASS 47 CFR Part 15 Subpart C ( 1.705MHz to 30MHz Emission Limit ) Frequency (MHz) Field Strength 30m(uV/30m) Distance (m) Field Strength 3m (dBuV/m) 1.705 to 13.110 30 3 69.5 13.110 to 13.410 106 3 80.5 13.410 to 13.553 334 3 90.5 13.553 to 13.567 15848 3 124.0 13.567 to 13.710 334 3 90.5 13.710 to 14.010 106 3 80.5 14.010 to 30.000 30 3 69.5 Note : Use quasi-peak meter. Distance Factor Limit (3m) = Limit (30m) + 40log(30/3) 15.209 Radiated Emission Limits; General Requirements. Frequency (MHz) Field Strength (uV/ m) dBuV/m Distance (m) 0.009 – 0.490 2400/F(kHz) 300 0.490 – 1.705 24000/F(kHz) 30 1.705 – 30.0 30 29.5 30 30 - 88 100** 40.0 3 88 - 216 150** 43.5 3 216 - 960 200** 46.0 3 Above 960 500 54.0 3 Page: 7/ 24 Report Number: MLT1003P15002 1.5 Description of Support Equipment In order to construct the minimum system which required by the ANSI C63.4-2003, following equipments were used as the support units. Component Manufacturer Model No. Serial No. FCC ID Monitor SONY SDM-HS74 1356906 FCC DOC Computer IBM IGV 99VB378 FCC DOC Keyboard Dell SK8110 MY-05N456-38843-2CV-0754 FCC DOC Mouse Dell SAW34 LZB34304316 DZL211029 Printer HP C4562B H946151BZ B94C2164X 1.6 Configuration of System Under Test 1.7 Test Procedure All measurements contained in this report were performed according to the techniques described in Measurement procedure ANSI C63.4: 2003 "Measurement of Intentional Radiators." Power Supply PC Monitor Printer K/B Mouse EUT RS232 Cable Page: 8/ 24 Report Number: MLT1003P15002 1.8 General Test Condition The conditions under which the EUT operates were varied to determine their effect on the equipment's emission characteristics. The final configuration of the test system and the mode of operation used during these tests was chosen as that which produced the highest emission levels. However, only those conditions which the EUT was considered likely to encounter in normal use were investigated. Page: 9/ 24 Report Number: MLT1003P15002 2. Conducted Emissions Requirements 2.1 General & Setup : The power line conducted em…

Text truncated - open the document above for the full version.

Test Setup Photos

Report Number: MLT1003P15002 Conducted Measurement Photos Front View of The Test Configuration Rear View of The Test Configuration Report Number: MLT1003P15002 Radiated Measurement Photos Front View of The Test Configuration Rear View of The Test Configuration

Contact Information

Applicant

Evelyn Chen(Project Manager of Product Certification Team)
[email protected]+886-2-8913-1771Fax: 886-2-8913-1772

Technical Contact

Max Light Technology Co., Ltd.Jesse Tien
[email protected]886-2-2663-3486

8F-5, No.125, Sec. 3, Roosevelt Rd. · Taipei City · Taiwan

Test Firm

Max Light Technology Co., Ltd.Jesse Tien
[email protected]+886-2-26633486Fax: +886-2-26633582

Technical Specifications

#Rule PartsFrequency RangePower Output
115C13.56 MHz - 13.56 MHz-
Confidentiality
Long Term
