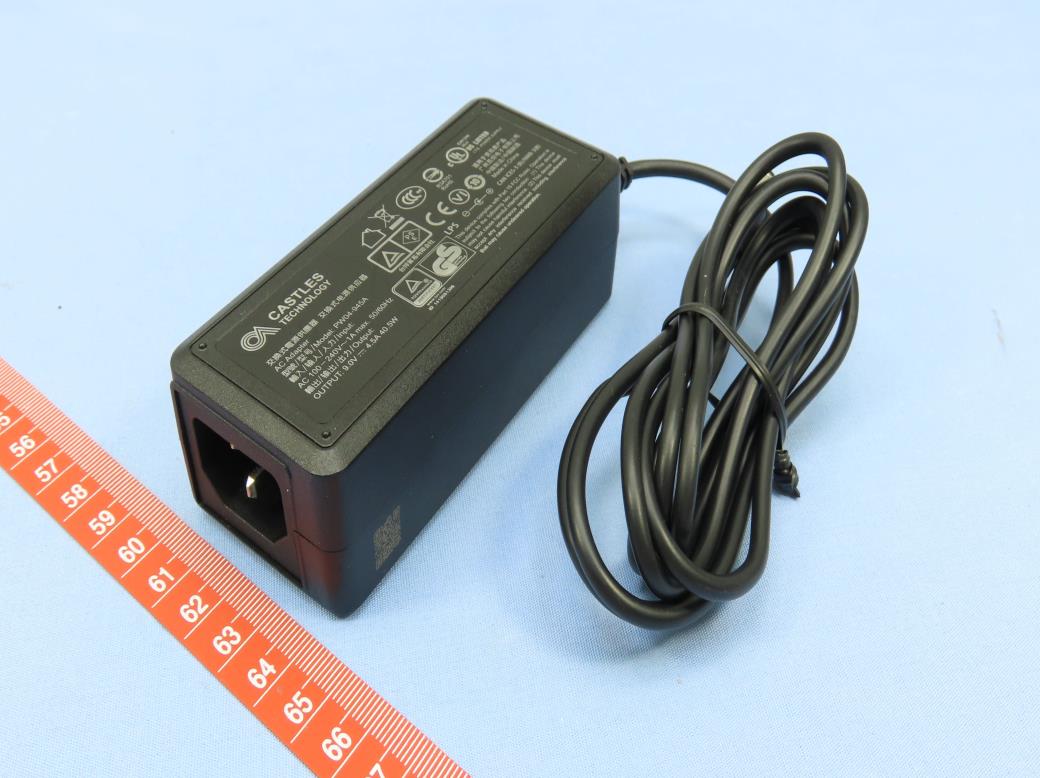

WIYS1EBPOS CRADLE

S1EB Cradle User Manual Confidential Version 1.6 June 2021 CERT-SATURN1000-08-02-02-V1.6 CASTLES TECHNOLOGY Castles Technology Co., Ltd. 6F, No. 207-5, Sec. 3, Beixin Rd., Xindian District, New Taipei City 23143, Taiwan R.O.C. http://www.castech.com.tw Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 2 WARNING Information in this document is subject to change without prior notice. No part of this publication may be reproduced, transmitted, stored in a retrieval system, nor translated into any human or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual, or otherwise, without the prior written permission of Castles Technology Co., Ltd. All trademarks mentioned are proprietary to their respective owners. Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 3 Revision History Version Date Descriptions Author 1.3 2021-05-27 Caution in introduction added, hw-202105 Tommy 1.4 2021-06-23 spec, hw-202105 Wira 1.5 2021-06-30 appendix, Wira 1.6 2021-07-13 Update Radiation Exposure Statement Remove Charging Discharging temp John Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 4 Contents 1. Introduction .................................................................................................................. 5 2. Hardware Setup ............................................................................................................ 6 2.1. Parts of S1EB ...................................................................................................... 6 2.2. Turn on S1EB ...................................................................................................... 8 2.3. Charge with S1EB ............................................................................................... 9 2.4. S1EB Cradle app ............................................................................................... 10 2.4.1. S1EB Connection mode USB ................................................................. 10 2.4.2. S1EB Connection mode (Wi-Fi) ............................................................. 11 2.4.3. S1EB Connection to Ethernet................................................................. 13 3. Appendix .................................................................................................................... 15 3.1. S1EB Specifications .......................................................................................... 15 3.2. FCC Statement .................................................................................................. 16 3.3. CE Statement .................................................................................................... 17 3.4. UL 62368 Safety Warning: ................................................................................. 17 3.5. Safety Warning for External Power Source ........................................................ 17 3.6. Canada IC Warning ........................................................................................... 18 Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 5 1. Introduction This document provides a guideline for operating and configuring of S1EB. 1) Waring: Power cord shall be connected to a socket-outlet with earthing connection. 2) This product is intended to be supplied by a Listed Power Adapter(Lucent Trans Electronics Co Ltd, type PW04-945A) "L.P.S." (or "Limited Power Source"), rated 9 Vdc, 4.5 A minimum, Tma = 40 degree C minimum. 3) CAUTION: To reduce the risk of fire, use only 26 AWG or larger (e.g., 24 AWG) UL Listed Telecommunication line cord. Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 6 2. Hardware Setup 2.1. Parts of S1EB Front/Top 1. Magnetic Stripe Reader 2. Charger pin 3. Power Indicator S1EB 1 3 2 Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 7 Rear /Bottom 4. Power Switch Button 5. Modem Port (reserved for engineering usage only) 6. USB Port1/2 7. COM Port 8. Ethernet Port 9. Power Connector S1EB 4 5 6 7 8 9 Left side Right side S1EB Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 8 2.2. Turn on S1EB Step 1: Plug in Power Supplies. Step 2: Turn on the power Step 3: The power indicator flashes Yellow light when starting up. After S1EB initializes, it will continuous green light. Step 1 Step 2 Step 3 S1EB S1EB Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 9 2.3. Charge with S1EB Insert SATURN1000E into S1EB, then S1EB will start charging SATURN1000E. S1EB Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 10 2.4. S1EB Cradle app User can use “Cradle app” to set up connection between Terminal and Cradle. Connection from Terminal to Ethernet via Wi-fi. 2.4.1. S1EB Connection mode USB Step 1. Open “Cradle app” and Click into “USB Setting”. Select your requirements. Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 11 2.4.2. S1EB Connection mode (Wi-Fi) Step 2: Click into “Wi-Fi Setting” and Check the Serial Number of S1EB Step 1: Select Cradle App S1EB S1EB Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 12 Step 3: Find S1EB Name and enter Wi-Fi password on SATURN1000F Note: Default Name for S1EB Wi-Fi is “CASWIFI_xxxxxxxxx(S/N)”. Default password for S1EB Wi-Fi is “9876543210”. Security: WPA2 PSK Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 13 2.4.3. S1EB Connection to Ethernet Step 1: Make Sure the Wi-Fi connection between Android terminal and Cradle, For more information, please refer to 2.4.2 S1EB Connection mode(WiFi). Step 2: After confirming connection between Android terminal and Cradle, go back to “Cradle app” main menu and select “Wi-Fi Setting”. S1EB Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 14 Step 3(Optional): The default setting of “DHCP” is On, if you want to set Static IP address, switch off the “DHCP”. After connected to Et…
