Castles Technology Contactless Reader Module CA-CLM User’s Manual 警語 依據低功率電波輻射性電機管理辦法 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司 、商號或使用 者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信。低功率 射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 Introduction Castles Technology CA-CLM contactless reader module is based on RFID (Radio Frequency Identification) technology and adopted HF (High Frequency) 13.56MHz band to have the communication protocol ISO14443 type A, B standard to interact the contactless smart card (a specified RFID tag) for specified applications like payment control and scheme. The reader has a baseband processer to handle host communication through RS232 interface, and to communicate RF analog front end (RF band chip) through SPI interface. RF chip is charged of air interface protocol and modulation to handle the communication with contactless smart card or so-called RFID tag through antenna. When the reader is operating, RF energy is transmitted by RF chip through antenna continually, and also the polling of response of card landing, once card is close to reader antenna, card will be energized by reader antenna RF energy, and responses to reader in specified standard for application required from host. The reading or writing of card will be occurred frequently during card landing on the reader. Also the indication LEDs and buzzer are included in this module for application need. Following is a block diagram about CA-CLM contactless reader to show the structure of RFID reader did. CA-CLM Contactless Module Contactless MB MCU STM32103RD 64KB SRAM 384KB FLASH LQFP-64 NXP RC531 ISO144 43 A, B Type ANTENNA/ B LED x 4 TX, LED x4, GND FFC BUZZE R RS-232 Driver UART TX,RX 5V, GND FFC 4pin Castles Contactless module ANTENNA/B MB FFC Cable 0.5mm 14P 8cm RS-232 (COM port), FFC Cable 1.0mm 5P J2 J1 Operation This module only allow 5V DC power source for operating power used, and a battery backup 3V DC for RTC used (backup power is required if necessary). The host side has a RS232 interface for host connection to receive or transmit relevant data from or to host may be like PC or Embedded system which AP (Application Program) executed. Antenna board should be connected to MB with a FFC cable when you received. The blue LED on antenna board will be on and buzzer beep when power on normally. At the meantime, this reader is operating and transmits RF (radio frequency) signal for card reading. Once contactless card landing or closing within reading distance, the orange LED will show the reading processing, and the green LED will show the success of reading. Alternative the red LED will show any error when reading process. May be buzzer beep also combine the LED indications in some case. Connection Type: FFC ZIF 1.0mm pitch 5 pin 90D upper contact (SCG BL113-05RU-TAND) Pin definition: Pin No. Name Type Remarks 1 GND Input 2 RS232 RX Input 3 RS232 TX Output 4 VCC_5V Input DC 5±0.05V Max. 350mA 5 VCC_BKP_3V Input RTC power 1.8V (MIN.) 3.6V(MAX.) Max. 5uA RF sensitive area in 2D, 3D In order to maintain good reading ability of contactless module for the requirements from EMV contactless certificate, the antenna board should be positioned and considered in specified area as following described. 2D: Any metal or conductive material is forbidden in the operating area shown as below. 3D: Any metal or conductive material is forbidden in the operating volume shown as below. Environmental
Operating temperature: 0°C to 40°C
Storage temperature: -20 to 80°C °C
Operating humidity: 15% to 90%, non-condensing Certificate Compliant
EMVCo 2.0
EMC (CE、FCC CLASS B) Vendor Information Antenna/B 3.5 cm 3.5 cm 2.5 cm 2.5 cm 4 cm 4 cm 3.5 cm 2.5 cm
虹堡科技股份有限公司 (Castles Technology Co., Ltd)
辛華熙 (Kevin Xin)
231 新北市新店區北新路三段205號2樓 (2F, No.205, Sec.3, Beixin Rd., Xindian District, New Taipei City 23143, Taiwan) 警語 依據低功率電波輻射性電機管理辦法 第十二條 經型式認證合格之低功率射頻 電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原 設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾 合法通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電 機設備之干擾。 Notice This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. End Product Labeling: The final end product must be labeled in a visible area with the following: "Contains TX FCC ID: WIYVEGA5000" Manual Information to the end User: The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user's manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual.

AGENCY AUTHORIZATION LETTER To whom it may concern: We, the undersigned CASTLES TECHNOLOGY CO., LTD. , hereby authorize Max Light Technology Co. Ltd. (MLT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15 approval and any communication needed with the national authority. Any and all acts carried out by MLT on our behalf shall have the same effects as acts of our own. For questions regarding the authorization, please contact us. Thank you! Sincerely yours, _____________________________________ (Signature) Original written signature of authorized signer: Eddie Lin / Vice Prisdent Printed name of authorized signer / Title Date: Jan 20, 2012

Date: Jan. 20, 2012 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: WIYVEGA5000 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: Block Diagrams Schematics Operational Descriptions The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Eddie Lin / Vice President _____________________________ (Signature)

Modular Approval Request Letter Date: Jan. 20, 2012 Dear Application Examiner, CASTLES TECHNOLOGY CO., LTD. / FCC ID: WIYVEGA5000 would like to have your authorization as a modular approval. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. Yes, The EUT provides the RF shielding. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The EUT has its buffered modulation. Please see the Schematic Diagram. 3. The modular transmitter must have its own power supply regulation. The EUT has its own power supply regulation, please see the Schematic Diagram. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The EUT meets the FCC antenna requirements; unique antenna connector and photo of antenna are shown in the test report. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. The EUT was tested in a stand-alone configuration via a test kit. Please see section photographs of test configuration in the test report. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: WIYVEGA5000” or “Contains FCC ID: WIYVEGA5000.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Please see exhibition label sample for the FCC ID of this module. And also in the exhibition Users manual, there are instructions give to the OEM on how to label the end product. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The EUT is compliant with all applicable FCC rules. Details instructions for maintaining compliance are give in the User Manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The EUT is comply with RF exposure requirement. RF exposure is addressed in the RF exposure exhibition. _____________________________________ (Signature) Original written signature of authorized signer: Eddie Lin / Vice Prisdent Printed name of authorized signer / Title Date: Jan 20, 2012

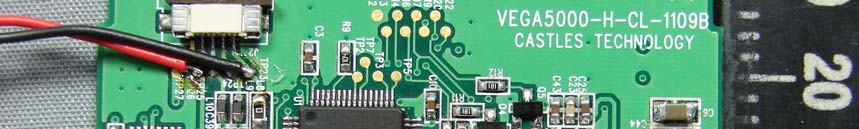

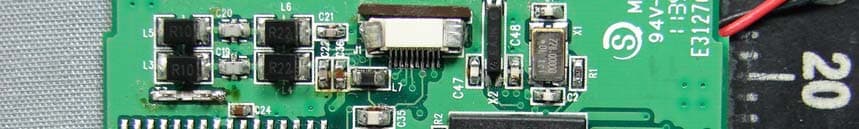

Report Number: MLT1110P15001 Photograph of EUT Report Number: MLT1110P15001 Report Number: MLT1110P15001

Report Number: MLT1110P15001 Label Format: Label Position: Equipment Label 3cmX1cm This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received , including Interference that may cause undesired operation. Trade Name: CASTLES TECHNOLOGY Model No. : VEGA5000 FCC ID: WIYVEGA5000 Rear View

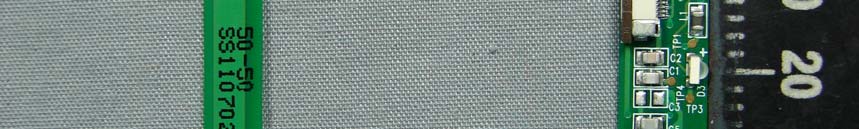

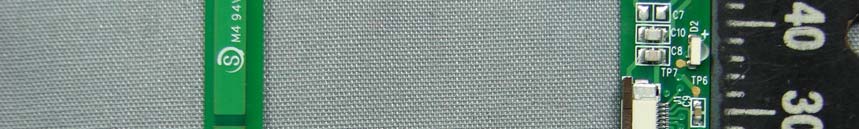

Report Number: MLT1110P15001 Photograph of EUT Report Number: MLT1110P15001 Report Number: MLT1110P15001

Page: 1 / 27 Report Number: MLT1110P15001 (FCC : Part 15 Subpart C 15.225 / ANSI C63.4-2003) Product :Contactless Module Trade Name :CASTLES TECHNOLOGY Model No. :VEGA5000 Applicant :CASTLES TECHNOLOGY CO., LTD Applicant Address :2F, No.205, Sec.3, Beixin Rd., Xindian District, New Taipei City 23143, Taiwan (R.O.C.) Page: 2 / 27 Report Number: MLT1110P15001 Report Number MLT1110P15001 Applicant CASTLES TECHNOLOGY CO., LTD Product Contactless Module Sample Received Date 2011/10/7 Report Prepared By Jesse Tien Signature Date Prepared 2011/10/7 ～ 2011/12/8 Report Authorized By Roger Chen Signature Date Authorized 2011/12/28 Test By Max Light Technology Co., Ltd. Room 5, 8F, No.125, Section 3 Roosevelt Road, Taipei, Taiwan., R.O.C. Office : Tel: 886-2-2363-2447 Fax: 886-2-2363-2597 Lab. : Tel: 886-2-2663-3486 Fax: 886-2-2663-3582 I I t t m m a a y y b b e e d d u u p p l l i i c c a a t t e e d d c c o o m m p p l l e e t t e e l l y y f f o o r r l l e e g g a a l l u u s s e e w w i i t t h h t t h h e e a a l l l l o o w w a a n n c c e e o o f f t t h h e e a a p p p p l l i i c c a a n n t t . . I I t t s s h h a a l l l l n n o o t t b b e e r r e e p p r r o o d d u u c c e e d d e e x x c c e e p p t t i i n n f f u u l l l l , , w w i i t t h h o o u u t t t t h h e e w w r r i i t t t t e e n n a a p p p p r r o o v v a a l l o o f f o o u u r r l l a a b b o o r r a a t t o o r r y y . . Page: 3 / 27 Report Number: MLT1110P15001 Table of Contents : History of Test Report .............................................................................................................. 4 1. General ................................................................................................................................ 6 2. Conducted Emissions Requirements ................................................................................. 10 3. Radiated Emissions Requirements .................................................................................... 14 4. Frequency Tolerance Requirements.................................................................................. 21 5. Transmitter Bandwidth Measurements .............................................................................. 23 Appendix I - EUT Test SETUP............................................................................................... 26 Appendix II - Brand / Trade Name & Model No. Multiple Listee............................................. 28 Page: 4 / 27 Report Number: MLT1110P15001 History of Test Report Original Report Issue Date: Dec. 28, 2011 ■ No additional attachment □ additional attachments were issued as in the following record: Attachment No. Issue Date Description MLT1110P15001 Dec. 28, 2011 Original report Page: 5 / 27 Report Number: MLT1110P15001 CERTIFICATION We here by verify that : The test data, data evaluation, test procedures and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4-2003. All test were conducted by MLT(Max Light Technology Co., Ltd) Room 5, 8F, No.125, Section 3 Roosevelt Road, Taipei, Taiwan, R.O.C Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with Class B radiated and conducted emission limit of FCC Rules Part 15 Subpart C (15.225). Applicant Name CASTLES TECHNOLOGY CO., LTD Applicant Address 2F, No.205, Sec.3, Beixin Rd., Xindian District, New Taipei City 23143, Taiwan (R.O.C.) Manufacturer Name CASTLES TECHNOLOGY CO., LTD Manufacturer Address 2F, No.205, Sec.3, Beixin Rd., Xindian District, New Taipei City 23143, Taiwan (R.O.C.) Equipment Contactless Module Model No VEGA5000 FCC ID WIYVEGA5000 Report Prepared By Jesse Tien Signature Report Authorized By Roger Chen Signature Page: 6 / 27 Report Number: MLT1110P15001 1. General 1.1 Introduction The following measurement report is submitted on behalf of CASTLES TECHNOLOGY CO., LTD In support of a Class B Digital Device certification in accordance with Part2 Subpart J and Part 15 Subpart C of the Commission’s and Regulations. 1.2 Customer Details Applicant Name CASTLES TECHNOLOGY CO., LTD Applicant Address 2F, No.205, Sec.3, Beixin Rd., Xindian District, New Taipei City 23143, Taiwan (R.O.C.) Manufacturer Name CASTLES TECHNOLOGY CO., LTD Manufacturer Address 2F, No.205, Sec.3, Beixin Rd., Xindian District, New Taipei City 23143, Taiwan (R.O.C.) 1.3 Technical data of EUT Equipment Contactless Module Model No VEGA5000 FCC ID WIYVEGA5000 Power Type Powered by DC 5V (use adapter model no.PA1008-1HU) Type of Modulation Pulse code Type of Antenna Loop antenna Frequency of Channel 1 Channel, 13.56MHz Note1: During testing the EUT was operated at Tx or Rx mode for each emission measured. This was done in order to ensure that maximum emission levels were attained. Note2: The adapter that used in this report is provided DC power (5V) only, it is not an accessory of VEGA5000 Page: 7 / 27 Report Number: MLT1110P15001 1.4 Summary Of Tests Description of Standards and Results Emission Test Item Standard Result Conducted Emission Requirements Part 15 15.207 PASS Radiated Emission Requirements Part 15 15.225(a)(b)(c)(d) Part 15 15.205 , 15.209 PASS Frequency Tolerance Requirements Part 15 15.225(e) PASS Bandwidth Emission Requirements Part 15 15.215 PASS 47 CFR Part 15 Subpart C (1.705MHz to 30MHz Emission Limit) Frequency (MHz) Field Strength (30m) (uV/30m) Field Strength (3m) (dBuV/m) 1.705 to 13.110 30 69.5 13.110 to 13.410 106 80.5 13.410 to 13.553 334 90.5 13.553 to 13.567 15848 124.0 13.567 to 13.710 334 90.5 13.710 to 14.010 106 80.5 14.010 to 30.000 30 69.5 Note : Use quasi-peak meter. Distance Factor Limit (3m) = Limit (30m) + 40log(30/3) 15.209 Radiated Emission Limits: General Requirements Frequency (MHz) Field Strength (uV/ m) dBuV/m Distance (m) 0.009 – 0.490 2400/F(kHz) 300 0.490 – 1.705 24000/F(kHz) 30 1.705 – 30.0 30 29.5 30 30 - 88 100 40.0 3 88 - 216…
