WIYVGA3000-2GEFTPOS

VEGA3000 EFT-POS Book 2 User Manual Confidential Version1.0 Jan 2015 CASTLES TECHNOLOGY Castles Technology Co., Ltd. 2F, No. 205, Sec. 3, Beixin Rd., XindianDistrict, New Taipei City 23143, Taiwan R.O.C. http://www.castech.com.tw Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 2 Revision History Version Date Descriptions 1.0 May 27, 2014 Initial creation. 1.1 Jan 14, 2015 Add FCC Warning Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 3 Contents 1. Introduction .................................................................................................................. 5 1.1. Type of Terminal .................................................................................................. 5 2. Hardware Setup ............................................................................................................ 7 2.1. Parts of the Terminal ........................................................................................... 7 2.2. Inserting the Battery ........................................................................................... 10 2.3. Inserting the SAM Card ..................................................................................... 11 2.4. Inserting the Paper Roll ..................................................................................... 12 2.5. Inserting the GSM SIM Card .............................................................................. 13 2.6. Inserting the Memory card ................................................................................. 14 2.7. Power Supply Specifications .............................................................................. 15 2.8. Operating Ambient Temperature ........................................................................ 15 3. Basic Operation ......................................................................................................... 16 3.1. Program Manager .............................................................................................. 16 3.2. Download AP ..................................................................................................... 16 3.3. System Info........................................................................................................ 18 3.4. Memory Status .................................................................................................. 19 3.5. System Settings ................................................................................................. 20 3.6. Test Utility .......................................................................................................... 23 3.7. Factory Reset .................................................................................................... 26 3.8. Power Off .......................................................................................................... 27 3.9. Function Key Password Change ........................................................................ 28 3.10. Share Object Management ................................................................................ 29 3.11. CastlesTMS ....................................................................................................... 30 3.12. Font Mng ........................................................................................................... 31 3.13. Debug Tools ...................................................................................................... 32 3.14. ULD Key Hash ................................................................................................... 33 3.15. Hardware Detect ................................................................................................ 34 4. Secure File Loading ................................................................................................... 35 4.1. ULD Key System ............................................................................................... 35 4.1.1. ULD Manufacturer Key ........................................................................... 35 4.1.2. ULD User Key ........................................................................................ 37 4.1.3. Key Change ........................................................................................... 37 4.2. File Signing ........................................................................................................ 38 Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 4 4.2.1. Signing Kernel Module ........................................................................... 38 4.2.2. Signing User Files .................................................................................. 40 4.3. File Loading ....................................................................................................... 44 4.3.1. Download by User Loader ...................................................................... 44 4.3.2. Download by Removable Media ............................................................. 47 4.4. Changing ULD User Key.................................................................................... 49 5. Font Management ...................................................................................................... 56 5.1. Loading New Font.............................................................................................. 56 5.2. Custom Font ...................................................................................................... 59 5.3. Using TrueType Font (TTF) ............................................................................... 67 6. Technical Notes ......................................................................................................... 69 6.1. Serial Cable PIN Assignment ............................................................................. 69 7. FCC Warning .............................................................…

Text truncated - open the document above for the full version.

Date: 2015/3/12 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, Signature Name/Title: Eddie Lin / Vice President of R & Division Company Name: Address: TEL: +886- FAX: +886- Email: [email protected]

Example of Agents letter (for TCB – TCB approval): Date: 2015-03-12 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, hereby authorize Compliance Certification Services Inc / David.Wang. to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 3/12/2016 Sincerely, Signature Name/Title: Eddie Lin / Vice President of R & Division Company Name: Address: TEL: +886- FAX: +886- Email: [email protected]

Date : 2015-03-12 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Theory of Operation Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Signature Name/Title: Eddie Lin / Vice President of R & Division Company Name: Address: TEL: +886- FAX: +886- Email: [email protected]

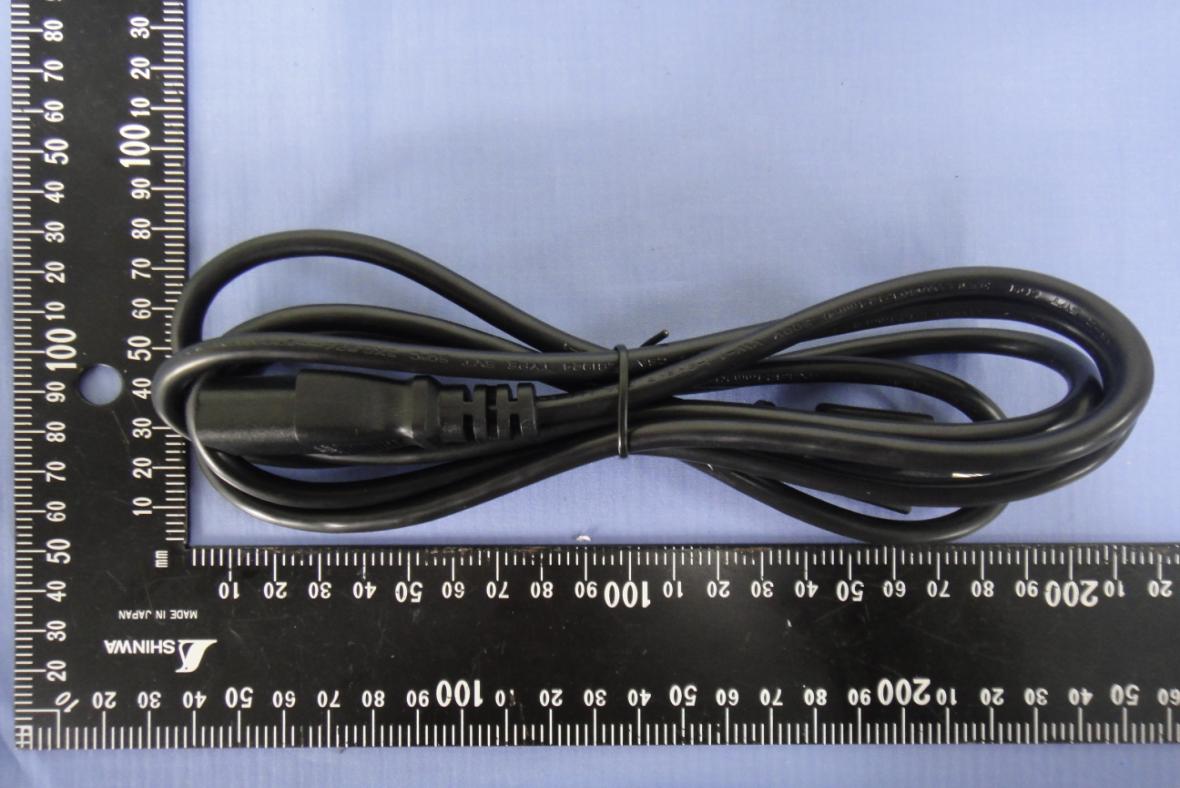

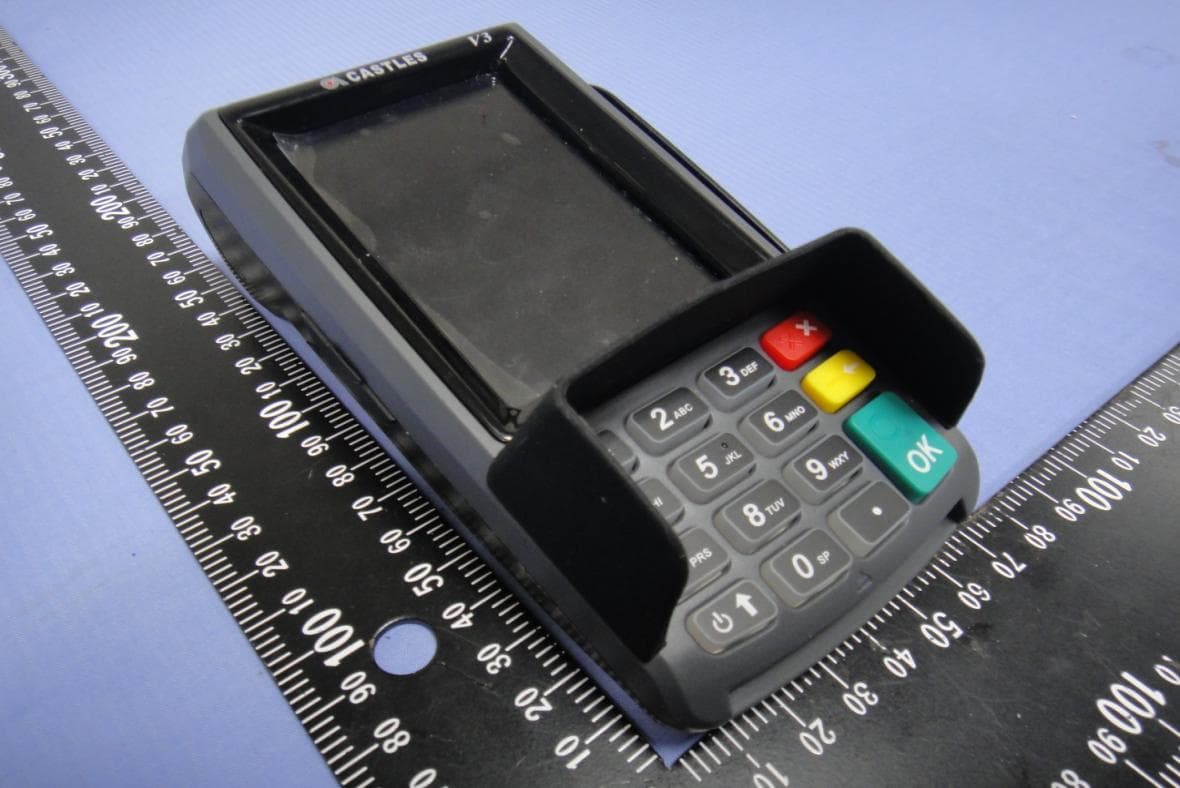

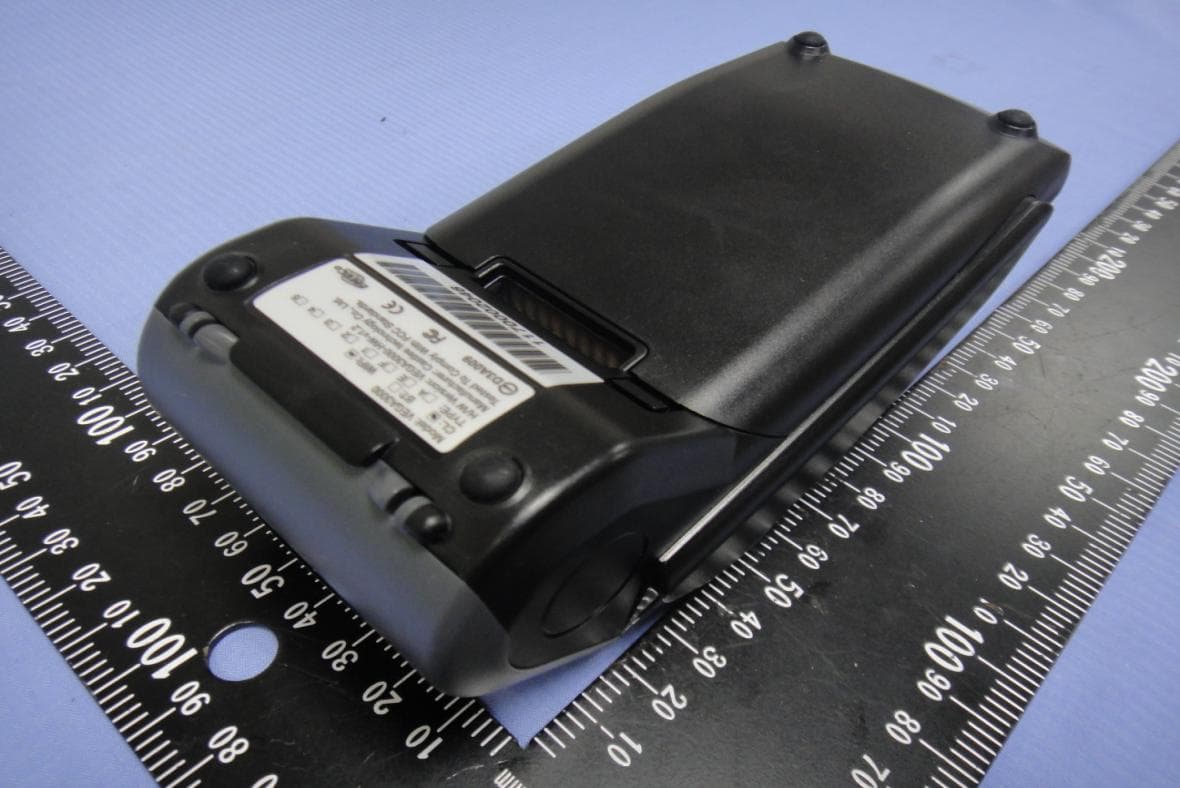

Compliance Certification Services Inc. Report No.: T141202W03 Date of Issue: January 14, 2015 A1 - 1 / 14 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T141202W03 Date of Issue: January 14, 2015 A1 - 2 Rev. 00 Compliance Certification Services Inc. Report No.: T141202W03 Date of Issue: January 14, 2015 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T141202W03 Date of Issue: January 14, 2015 A1 - 4 Rev. 00 Compliance Certification Services Inc. Report No.: T141202W03 Date of Issue: January 14, 2015 A1 - 5 Rev. 00

Compliance Certification Services Inc. Report No.: T141202W03 Date of Issue: January 14, 2015 A1 - 6 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T141202W03 Date of Issue: January 14, 2015 A1 - 7 Rev. 00 Compliance Certification Services Inc. Report No.: T141202W03 Date of Issue: January 14, 2015 A1 - 8 Rev. 00 Compliance Certification Services Inc. Report No.: T141202W03 Date of Issue: January 14, 2015 A1 - 9 Rev. 00 Compliance Certification Services Inc. Report No.: T141202W03 Date of Issue: January 14, 2015 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T141202W03 Date of Issue: January 14, 2015 A1 - 11 Rev. 00 2G & 3G Module Wifi Module Compliance Certification Services Inc. Report No.: T141202W03 Date of Issue: January 14, 2015 A1 - 12 Rev. 00 NFC Antenna Compliance Certification Services Inc. Report No.: T141202W03 Date of Issue: January 14, 2015 A1 - 13 Rev. 00 Wifi Antenna Compliance Certification Services Inc. Report No.: T141202W03 Date of Issue: January 14, 2015 A1 - 14 Rev. 00 Battery

Compliance Certification Services Inc. FCC ID: WIYVEGA3000-2G Report No: T141202W03-SF Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 38 Rev. 00 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62 FCC TEST REPORT For EFTPOS Trade Name: CASTLES TECHNOLOGY Model: VEGA3000 Issued to Castles Technology Co., Ltd. 2F, No.205, Sec. 3, Beixin Rd., Xindian District,New Taipei City 23143, Taiwan (R.O.C.) Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: 2015/3/6 Compliance Certification Services Inc. FCC ID: WIYVEGA3000-2G Report No: T141202W03-SF Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2015/3/6 Initial Issue ALL Peter Chen Compliance Certification Services Inc. FCC ID: WIYVEGA3000-2G Report No: T141202W03-SF Page 3 Rev. 00 Table Of Contents 1 Certificate of Compliance (SAR Evaluation) ............................................................... 5 2 Description of Equipment Under Test ....................................................................... 6 3 Requirements for Compliance Testing Defined .......................................................... 7 3.1 Requirements for Compliance Testing Defined by the FCC ........................................................................ 7 4 Dosimetric Assessment System ................................................................................ 8 4.1 Measurement System Diagram ....................................................................................................................... 9 4.2 System Components ........................................................................................................................................ 10 5 Evaluation Procedures ........................................................................................... 13 6 SAR Measurement Procedures ............................................................................... 15 6.1 Normal SAR Test Procedure ........................................................................................................................... 15 7 Device Under Test ................................................................................................. 17 7.1 Band Interface .................................................................................................................................................. 17 8 Summary of SAR Test Exclusion Configurations ....................................................... 18 8.1 Standalone SAR Test Exclusion Calculations ................................................................................................ 18 8.1.1 SAR Exclusion Calculations for WWAN Antenna < 50mm from the User ............................................... 19 8.1.2 SAR Exclusion Calculations for WWAN Antenna > 50mm from the User ............................................... 20 8.1.3 SAR test configuration ......................................................................................................................................... 21 9 Measurement Uncertainty ..................................................................................... 22 10 Exposure Limit ...................................................................................................... 23 11 Tissue Dielectric Properties .................................................................................... 24 11.1 Test Liquid Confirmation ................................................................................................................................. 24 11.2 Typical Composition of Ingredients for Liquid Tissue Phantoms .............................................................. 25 11.3 Simulating Liquids Parameter Check Results ............................................................................................... 26 12 System Performance Check .................................................................................... 27 12.1 System Performance Check Results .............................................................................................................. 28 13 RF Output Power Measurement ............................................................................. 29 13.1 CDMA BC0 Band ............................................................................................................................................... 29 13.2 CDMA BC1 Band ............................................................................................................................................... 30 13.3 Wi-Fi (2.4 GHz Band) ........................................................................................................................................ 31 14 SAR Measurements Results ............................................................................ 32 15 Simultaneous Transmission SAR Analysis ................................................................ 34 15.1 Sum of the SAR for Simultaneous Transmission Analysis .......................................................................... 35 15.1.1 Sum of the SAR for Wi-Fi & WWAN............................................................................................................... 35 16 Equipment List & Calibration Status ....................................................................... 36 17 Facilities ............................................................................................................... 37 Compliance Certification Services Inc. FCC ID: WIYVEGA3000-2G Report No: T141202W03-SF Page 4 Rev. 00 18 Refe…

Text truncated - open the document above for the full version.

Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 12/29/2014 20141229_System Check_Dipole835V2 SN4d015 Frequency: 835 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 835.3 MHz; σ = 0.979 mho/m; ε r = 55.2; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn558; Calibrated: 7/22/2014 - Probe: EX3DV4 - SN3554; ConvF(7.55, 7.55, 7.55); Calibrated: 9/24/2014 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN: 1052 Body/Pin=100mW, d=15mm/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.26 mW/g Body/Pin=100mW, d=15mm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.9 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 1.37 W/kg SAR(1 g) = 0.928 mW/g; SAR(10 g) = 0.617 mW/g Maximum value of SAR (measured) = 1.17 mW/g 0 dB = 1.17mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 12/29/2014 20141229_System Check_Dipole835V2 SN4d015 Frequency: 835 MHz; Duty Cycle: 1:1 Body/Pin=100mW, d=15mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 1.17 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 12/29/2014 20141229_System Check_Dipole1900V2 SN5d056 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 1900 MHz; σ = 1.57 mho/m; ε r = 54.1; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn558; Calibrated: 7/22/2014 - Probe: EX3DV4 - SN3554; ConvF(6.54, 6.54, 6.54); Calibrated: 9/24/2014 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: SAM 34-1; Type: SAM V4.0; Serial: TP-1150 Body/Pin=100mW, d=10mm/Area Scan (8x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 4.32 mW/g Body/Pin=100mW, d=10mm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.7 V/m; Power Drift = 0.051 dB Peak SAR (extrapolated) = 7.03 W/kg SAR(1 g) = 3.97 mW/g; SAR(10 g) = 2.11 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 5.59 mW/g 0 dB = 5.59mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 12/29/2014 20141229_System Check_Dipole1900V2 SN5d056 Frequency: 1900 MHz; Duty Cycle: 1:1 Body/Pin=100mW, d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 6.27 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 12/29/2014 20141229_System Check_Dipole2450 sn728 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 2450 MHz; σ = 1.97 mho/m; ε r = 53.5; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn558; Calibrated: 7/22/2014 - Probe: EX3DV4 - SN3554; ConvF(6.15, 6.15, 6.15); Calibrated: 9/24/2014 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: SAM 34-1; Type: SAM V4.0; Serial: TP-1150 Body/Pin=100mW, d=10mm/Area Scan (8x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 5.42 mW/g Body/Pin=100mW, d=10mm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 62.5 V/m; Power Drift = 0.022 dB Peak SAR (extrapolated) = 10.9 W/kg SAR(1 g) = 5.18 mW/g; SAR(10 g) = 2.41 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 7.95 mW/g 0 dB = 7.95mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 12/29/2014 20141229_System Check_Dipole2450 sn728 Frequency: 2450 MHz; Duty Cycle: 1:1 Body/Pin=100mW, d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 8.07 mW/g

Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 12/29/2014 CDMA_BC0 Band Frequency: 824.7 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 825.4 MHz; σ = 0.969 mho/m; ε r = 55.3; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn558; Calibrated: 7/22/2014 - Probe: EX3DV4 - SN3554; ConvF(7.55, 7.55, 7.55); Calibrated: 9/24/2014 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: SAM 34-1; Type: SAM V4.0; Serial: TP-1150 Bottom/Main Ant/CDMA_BC0/Ch 1013_5mm/Area Scan (8x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.878 mW/g Bottom/Main Ant/CDMA_BC0/Ch 1013_5mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.36 V/m; Power Drift = -0.109 dB Peak SAR (extrapolated) = 1.15 W/kg SAR(1 g) = 0.771 mW/g; SAR(10 g) = 0.508 mW/g Maximum value of SAR (measured) = 0.963 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 12/29/2014 CDMA_BC0 Band Frequency: 836.52 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.98 mho/m; ε r = 55.1; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn558; Calibrated: 7/22/2014 - Probe: EX3DV4 - SN3554; ConvF(7.55, 7.55, 7.55); Calibrated: 9/24/2014 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: SAM 34-1; Type: SAM V4.0; Serial: TP-1150 Bottom/Main Ant/CDMA_BC0/Ch 384_5mm/Area Scan (8x7x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.939 mW/g Bottom/Main Ant/CDMA_BC0/Ch 384_5mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.47 V/m; Power Drift = 0.011 dB Peak SAR (extrapolated) = 1.27 W/kg SAR(1 g) = 0.845 mW/g; SAR(10 g) = 0.548 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.08 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 12/29/2014 CDMA_BC0 Band Frequency: 836.52 MHz; Duty Cycle: 1:1 Bottom/Main Ant/CDMA_BC0/Ch 384_5mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.020 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 12/29/2014 CDMA_BC0 Band Frequency: 848.31 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 848.5 MHz; σ = 0.993 mho/m; ε r = 55; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn558; Calibrated: 7/22/2014 - Probe: EX3DV4 - SN3554; ConvF(7.55, 7.55, 7.55); Calibrated: 9/24/2014 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: SAM 34-1; Type: SAM V4.0; Serial: TP-1150 Bottom/Main Ant/CDMA_BC0/Ch 777_5mm/Area Scan (8x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.894 mW/g Bottom/Main Ant/CDMA_BC0/Ch 777_5mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.94 V/m; Power Drift = 0.119 dB Peak SAR (extrapolated) = 1.21 W/kg SAR(1 g) = 0.813 mW/g; SAR(10 g) = 0.528 mW/g Maximum value of SAR (measured) = 1.03 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 12/29/2014 CDMA_BC0 Band Frequency: 836.52 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.98 mho/m; ε r = 55.1; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn558; Calibrated: 7/22/2014 - Probe: EX3DV4 - SN3554; ConvF(7.55, 7.55, 7.55); Calibrated: 9/24/2014 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: SAM 34-1; Type: SAM V4.0; Serial: TP-1150 Bottom/Main Ant/CDMA_BC0/Ch 384_5mm _Repeat/Area Scan (8x7x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.960 mW/g Bottom/Main Ant/CDMA_BC0/Ch 384_5mm _Repeat/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.36 V/m; Power Drift = 0.123 dB Peak SAR (extrapolated) = 1.22 W/kg SAR(1 g) = 0.837 mW/g; SAR(10 g) = 0.551 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.04 mW/g

Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 12/29/2014 CDMA_BC1 Band Frequency: 1880 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 1880 MHz; σ = 1.54 mho/m; ε r = 54.1; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn558; Calibrated: 7/22/2014 - Probe: EX3DV4 - SN3554; ConvF(6.54, 6.54, 6.54); Calibrated: 9/24/2014 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: SAM 34-2; Type: SAM V4.0; Serial: TP-1150 Bottom/Main Ant/CDMA_BC1/Ch 600_5mm/Area Scan (8x7x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.788 mW/g Bottom/Main Ant/CDMA_BC1/Ch 600_5mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.26 V/m; Power Drift = -0.114 dB Peak SAR (extrapolated) = 1.16 W/kg SAR(1 g) = 0.692 mW/g; SAR(10 g) = 0.392 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.928 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 12/29/2014 CDMA_BC1 Band Frequency: 1880 MHz; Duty Cycle: 1:1 Bottom/Main Ant/CDMA_BC1/Ch 600_5mm Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.928 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 12/29/2014 CDMA_BC1 Band Frequency: 1851.25 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1851.7 MHz; σ = 1.51 mho/m; ε r = 54.2; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn558; Calibrated: 7/22/2014 - Probe: EX3DV4 - SN3554; ConvF(6.54, 6.54, 6.54); Calibrated: 9/24/2014 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: SAM 34-2; Type: SAM V4.0; Serial: TP-1150 Bottom/Main Ant/CDMA_BC1/Ch 25_5mm/Area Scan (8x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.749 mW/g Bottom/Main Ant/CDMA_BC1/Ch 25_5mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.57 V/m; Power Drift = 0.127 dB Peak SAR (extrapolated) = 1.09 W/kg SAR(1 g) = 0.649 mW/g; SAR(10 g) = 0.369 mW/g Maximum value of SAR (measured) = 0.872 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 12/29/2014 CDMA_BC1 Band Frequency: 1908.75 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 1908.75 MHz; σ = 1.58 mho/m; ε r = 54; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn558; Calibrated: 7/22/2014 - Probe: EX3DV4 - SN3554; ConvF(6.54, 6.54, 6.54); Calibrated: 9/24/2014 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: SAM 34-2; Type: SAM V4.0; Serial: TP-1150 Bottom/Main Ant/CDMA_BC1/Ch 1175_5mm/Area Scan (8x7x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.622 mW/g Bottom/Main Ant/CDMA_BC1/Ch 1175_5mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.50 V/m; Power Drift = -0.183 dB Peak SAR (extrapolated) = 1.55 W/kg SAR(1 g) = 0.650 mW/g; SAR(10 g) = 0.279 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.736 mW/g

Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 12/29/2014 2.4GHz Band Frequency: 2434 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2437 MHz; σ = 1.95 mho/m; ε r = 53.5 ρ = 1000 kg/m 3 ; DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn558; Calibrated: 7/22/2014 - Probe: EX3DV4 - SN3554; ConvF(6.15, 6.15, 6.15); Calibrated: 9/24/2014 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: SAM 34-1; Type: SAM V4.0; Serial: TP-1150 Bottom/Main Ant/802.11b/Ch 6_5mm/Area Scan (8x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.033 mW/g Bottom/Main Ant/802.11b/Ch 6_5mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 1.11 V/m; Power Drift = 0.131 dB Peak SAR (extrapolated) = 0.113 W/kg SAR(1 g) = 0.026 mW/g; SAR(10 g) = 0.014 mW/g Maximum value of SAR (measured) = 0.078 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 12/…

Text truncated - open the document above for the full version.
