User Manual Attentions General Note z JL-V2 should be charged for about 2 hours before first-use. Please charge it when in low battery. JL-V2 can keep normal operation continuously for about 7 hours, and with the stand-by time of about 150 hours (The charger indicator is red while charging and it turns green after full charged.). z 8 Teacher’s JL-V2 or Student’s JL-V2 can be charged simultaneously by using 8-port charger. z Power Supply: 3.6V, 3 Ni-MH batteries (AAA 1.5V batteries are also available). General Note z IPBOARD Vote Edition V2.0 is required to be installed before operation. Ensure that V4.0 driver is well connected. z The network ID of transceiver is supposed to be compatible with that said on the label stuck on the back of JL-V2, or the driver may fail in connection. z JL-V2 includes 7 models as follows: JL-V2 (08/16/24/32/64/128/256). The transceiver available for JL-V2 (64) is different from that for JL-V2 (128) and JL-V2 (256), and they are not allowed to be used interchangeably. General Note z JL-V2 defaults to auto-sleep mode. It will access to sleep mode and the backlight of LCD screen will be off automatically without any operation in 9 minutes. z Users can press Menu to wake up JL-V2. Besides, users can select whether access to sleep mode manually in connectivity status with Menu. Content Attentions................................................................................................................................. 1 Content..................................................................................................................................... 2 I Brief Introduction............................................................................................................... 3 II Unpacking JL-V2 Suite...................................................................................................... 4 1 JL-V2...................................................................................................................................... 4 2 Standard Accessories................................................................................................................ 5 III Installation of IPBOARD Vote Edition V2.0...................................................................... 7 IV Run the Software.............................................................................................................. 14 1 Start IPBOARD Vote Edition Driver........................................................................................ 14 2 Start IPBOARD Vote Edition.................................................................................................. 14 3 Start voting system................................................................................................................. 14 V Features of JL-V2 in-class Response System.............................................................. 16 1 Set Questions...................................................................................................................... 16 2 Question Management......................................................................................................... 17 3 Combined with JL-V2 response system to answer questions interactively................................ 18 4 Statistics............................................................................................................................. 19 VI Performance Specifications............................................................................................ 20 I Brief Introduction The in-class response system is very suitable for classroom training, creating a teaching system integrated with in-class assessment, feedback and interaction. The response system consists of IPBOARD Vote Edition V2.0 software, Teacher’s JL-V2 [JL-V2 (T)], Student’s JL-V2 [JL-V2 (S)] and transceiver [JL-V2 (I)]. With JL-V2, students can answer questions instantly and teachers can gain instant feedback visually. It is designed for modern interactive teaching, aiming at enabling teachers and students to be more engaged and interactive in class as well as enhancing teaching methodology. The interactive effect is shown as Figure 1: Figure 1 II Unpacking JL-V2 Suite 1 JL-V2 Statistic Report Power Switch Charge Interface Caps Lock Menu Answer Keypad LCD Display Submit Button Question Button Clear Button Confirm and Next&Back Buttons Front of JL-V2 (T) ¾ Users can select whether access to sleep mode using the next/back keys on the Menu. ¾ Statistic Area is set on the JL-V2 (T), which enables teachers to check scores, true/false report and right answers easily; and statistic reports are displayed in the form of bar chart. Answer Keypad Power Switch LCD Display Charge Interface Submit Button Caps Lock Menu Question Button Clear Button Confirm and Next&Back Buttons Front of JL-V2 (S) ROHS Identifier NetID&DeviceID Open Battery Cover Back of JL-V2 ¾ NetID, which is designed to build the network channel between transceiver and JL-V2, has been set ex factory. To ensure successful connection, NetID is supposed to be compatible with that said on the label stuck on the back of JL-V2. ¾ Device ID, which is used for identifying different terminals, is supposed to be corresponding to student's number. The device ID of JL-V2 (T) is a fixed value of 999. 2 Standard Accessories Standard Accessories include: Description Quantity Function Figure Transceiver (1-to-64) 1 Ensure that the computer connect with JL-V2 (8/16/24/32/64) Transceiver (1-to-128)/ Transceiver (1-to-256) 1 Used together with JL-V2 (128), the appearance of Student’s JL-V2 (128) is the same with that of Student’s JL-V2 (256). Transceiver (1-to-128) and Transceiver (1-to-256) are not allowed to be used interchangeably. IPBOARD Vote Edition Disc 1 JL-V2 driver and applications JL-V2 User Manual 1 Operation introduction 8-port Charger 1 Charge 8 JL-V2 (T) or JL-V2 (S) simultaneously III Installation of IPBOARD Vote Edition V2.0 4.1 Insert…

Text truncated - open the document above for the full version.

Block Diagram USB DATA USB HUB RF Transmitter Module 22.184MHz Crystal PCB embedded antenna Data Transmitter Port Power Supply MCU Display Module Keyboard Power Manager Module

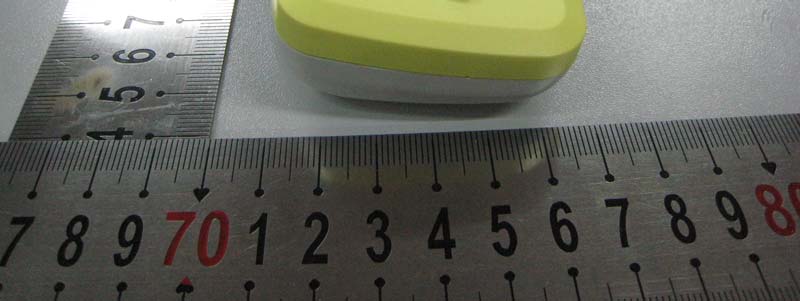

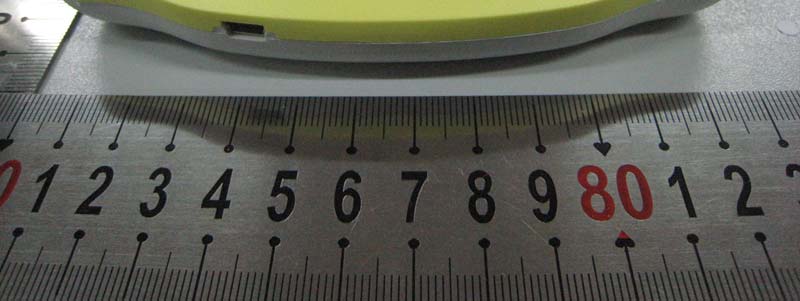

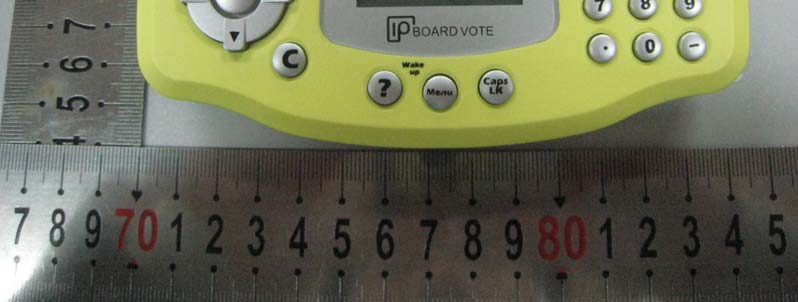

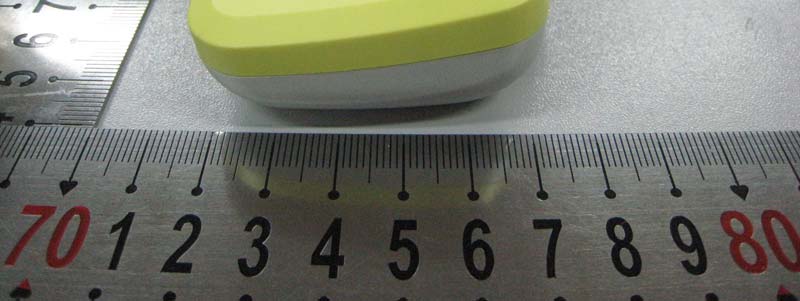

FCC ID: WJKJL-V2 Report No.: MOST/STS100108F1 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE FCC ID: WJKJL-V2 Report No.: MOST/STS100108F1 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE FCC ID: WJKJL-V2 Report No.: MOST/STS100108F1 TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE

FCC ID: WJKJL-V2 Report No.: MOST/STS100108F1 INTERNAL ANTENNA PHOTO OF SAMPLE

FCC ID: WJKJL-V2 Report No.: MOST/STS100108F1 INTERNAL PHOTO OF SAMPLE – 1 INTERNAL PHOTO OF SAMPLE - 2 FCC ID: WJKJL-V2 Report No.: MOST/STS100108F1 INTERNAL PHOTO OF SAMPLE - 3

Operation Description 1. Keyboard The keyboard circuit is a rectangle matrix. The power on is alone, the line is low electronic level. 2. Signal manage The sample has a MCU module, that it controlled the entire keyboard working, it screens the keyboard every time whichever the keyboard war pressed or not. When a key was pressed, The MCU can read it’s the details information and transmit it to the main device. 3. Power Supply The power is supplied by 3 * nickel-hydrogen battery, when the battery is low power, it can be charged by USB port. 4. Wireless Module The sample is used 2.4 GHz wireless communication module, it was connected with MCU and to transmit data.

编码 类别 厂家型号 内容描述 22610003 制成板 V 2 学生机 （ 教师机 ） 制成板 V1 002 31034077 接插件 图纸号V2TS-M005 两芯电源连接线32653001 塑胶件 图号：V2ST-P001 面壳(s)，ABS，浅黄32653002 塑料件 图号：V2ST-P002 底壳(s)，ABS，灰白32653003 塑胶件 图号：V2ST-P003 镜片，PMMA加硬，灰底黑字32653004 塑胶件 图号：V2ST-P004 五向键(s)，ABS，银灰32653005 塑胶件 图号：V2ST-P005 功能键(s)，ABS，银灰32653006 塑胶件 图号：V2ST-P006 数字键(s)，ABS，银灰32653007 塑胶件 图号：V2ST-P007 开关拨钮(s)，ABS，银灰32653009 塑胶件 图号：V2ST-P009 电池门(s)，ABS，灰白32653021 塑料制品 图号：V2TS-A031，尺寸：25*37*1MM EVA海棉，（单面背3M胶） 32690004 金属件 V2TS-M001 电池正极弹片 32690005 金属件 V2TS-M002 电池负极弹片 32690006 金属件 图号：V2TS-M004 V2左电池正负极连片，铁片镀镍32690007 金属件 图纸号 ： V 2 TS - M003 V2右电池正负极连片，铁片镀镍 32698001 紧固件 Φ2.6*6PA 自攻螺钉,镀镍 42604008 标签 V2学生机序号标贴 编码 类别 厂家型号 内容描述 单位 数量 替代产品 位号 22601001 专用芯片 V 2 学生机 （ 教师机 ） 专用芯片 V1 001 PCS 1 U1 30408101 二极管 MA729-2B 肖特基二极管，小于0.3V PCS 1 D1 30903025 贴片IC S-1167B33 150Ma，3.3V线性LDO(SOT-23-5)ROHS PCS 2 U3,U6 30905003 贴片电感 1206-15UHK 1206-15UH 精度±10%(ROHS) PCS 1 L1 30907004 贴片二极管 1N4148 4148贴片二极管(圆柱形)ROHS PCS 1 D3 JL-v2学生机整机物料清单 JL-v2学生机制成板物料清单 30914027 贴片电容 C2012Y5V1H105Z 0805-1UF,+80-20%精度 ( ROHS) PCS 9 C7，C8，C9，C10，C11，C12，C13，C14 ， C15 30915004 钽电容 TAJA106K016RNJ 10UF/16V (A型)±10%精度ROHS PCS 2 C2，C16 30915005 钽电容 TAJB226K016RNJ 22UF/16V(B型) ±10%精度ROHS PCS 1 C19 30919003 贴片电容 C2012COG1H330J 0805-NPO-50V-33PF±5%(ROHS) PCS 2 C4，C5 30919008 贴片电容 C2012X7R1H103K 0805-X7R-0.01UF±10%(ROHS) PCS 1 C17 30919009 贴片电容 C2012Y5V1H104Z 0805-Y5V-50V-0.1UF+80%--20%（ROHS ） PCS 8 C3，C6，C18，C20，C22，C23，C21 ， C27 30923102 贴片电阻 RC0805JR-071K 0805-1KΩ±5%(ROHS) PCS 2 R1，R12 30923103 贴片电阻 RC0805JR-0710K 0805-10KΩ±5%(ROHS) PCS 13 R2，R3，R4，R5，R6，R7，R8，R9，R10，R11，R18，R13 ， R22 30931005 发射器 2.4G，WM-5139-001-M00 2.4G标准功率模块 PCS 1 J1 30933001 贴片插座 MUB-2008 USB插座 PCS 1 J2 30933002 贴片插座 0.5mm间距扣式连 接 器 LCD上插式28PIN,扁平电缆条形扣 式 连 接 器 PCS 1 J3 30940001 晶振 3*8 22.1184MHZ 22.1184MHZ(3*9) ROHS PCS 1 X1 31034051 接插件 1124S 2PIN 2PIN插座,间距：2.0，180度 PCS 1 J4 31507001 贴片二极管 1N4004 IN4004 PCS 1 D2 32325512 贴片电阻 RC-05K512JT 0805-5.1KΩ，精度5% ROHS PCS 1 R21 32326272 贴片电阻 RC0805FR-072K7 0805-2.7KΩ±1%(ROHS) PCS 1 R15 32426332 贴片电阻 RC0805FR-073K3 0805-3K3±1%，ROHS PCS 1 R20 32603001 贴片IC T1064 驱动芯片 T1064(SOP-8) PCS 1 U4 32609001 贴片三极管 LULIIC6015 LMBT5551LT1G(SOT-23) PCS 2 V1,V2 32615001 钽电容 TAJD107K016R 100UF/16V，精度+-10%（D型），ROHS PCS 1 C1 32625362 贴片电阻 RC-0805JR-073K6 0805-3.6KΩ±5%(ROHS) PCS 1 R16 32643001 色环电感 AL0410-2.2MH1/2W AL0410-2.2MH 1/2W色环电感 PCS 2 L2，L3 32645001 液晶屏LCD HTG12864C COG模式液晶显示模块 PCS 1 32645002 背光源 EL背光片 EL背光片(兰色）31MM*39MM PCS 1 U5 32646001 拔动开关 MSK-12C02 拨动开关 MSK-12C02 PCS 1 SW1 32653008 塑胶件 图号：V2ST-P008 LCD支架，，ABS，原色 PCS 1 32653010 塑胶件 图号：V2ST-A001 EVA海棉，黑 PCS 1 32660001 PCB板 JL-V2 V1.005 V2 学生机（教师机）PCB板V1.005 ROHS PCS 1 32690001 金属件 XF1 锅仔片130克力Φ5mm x 7PCS PCS 1 F2 32690002 金属件 XF2 锅仔片130克力Φ5mm x 3PCS PCS 1 F1 32690003 金属件 XF3 锅仔片130 克力Φ5mm x 14PCS PCS 1 F3

Tune Up Description Product Vote Trade Name IPBOARD, Whiteboard Model Number JL-V2(S) Power Supply DC 3.6 V by 3* battery Frequency Range 2405 MHz -2480MHz Modulation Type QPSK Channel Number 16 (2405MHz, 2410MHz, 2415MHz, 2420MHz, 2425MHz, 2430MHz, 2435MHz, 2440MHz, 2445MHz, 2450MHz, 2455MHz, 2460MHz, 2465 MHz, 2470 MHz, 2475 MHz,2480 MHz) Temperature Range -20°C ~ 55°C

FCC 47 CFR PART 15 SUBPART C TEST REPORT For Applicant : JULONG EDUCATIONAL TECHNOLOGY CO., LTD Address : 4/F, Building T3, Keji Road South, Hi-Tech Industrial Park, Nanshan District , Shenzhen, China Product Name: Vote Model Name : JL-V2(S), JL-V2(T), JL-V2(I) Brand Name : IPBOARD, Whiteboard FCC ID : WJKJL-V2 Report No. : MOST/STS100108F1 Date of Issue : February 2, 2010 Issued by :Most Technology Service Co., Ltd. Address : No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel : 86-755-8617 0306 Fax : 86-755-8617 0310 The report consists 23 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by MOST. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. FCC ID: WJKJL-V2 Report No.: MOST/STS100108F1 Page 2 of 23 TABLE OF CONTENTS 1．VERIFICATION OF CONFORMITY .............................................................................................................. 3 2. GENERAL INFORMATION ............................................................................................................................ 4 2.1 Product Information ...................................................................................................................................... 4 2.2 Objective ...................................................................................................................................................... 5 2.3 Test Standards and Results .......................................................................................................................... 5 2.4 Environmental Conditions............................................................................................................................. 5 3. TEST FACILITY.............................................................................................................................................. 6 3.1TEST FACILITY............................................................................................................................................. 6 3.2 GENERAL TEST PROCEDURES ................................................................................................................ 6 3.3 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS..................................................................... 7 4. SETUP OF EQUIPMENT UNDER TEST ....................................................................................................... 8 4.1 SUPPORT EQUIPMENT.............................................................................................................................. 8 4.2 TEST EQUIPMENT LIST ............................................................................................................................. 9 5. 47 CFR Part 15C 15.249 Requirements....................................................................................................... 10 5.1 Spurious Emission Test .............................................................................................................................. 10 5.1.1 Requirement............................................................................................................................................ 10 5.1.2 Test Description ........................................................................................................................................11 5.1.3 Test Description ....................................................................................................................................... 12 5.1.4 Test Result............................................................................................................................................... 13 5.2 Band Edge ................................................................................................................................................. 19 5.2.1 Requirement............................................................................................................................................ 19 5.2.2 Test Description ....................................................................................................................................... 19 5.2.3Test Result................................................................................................................................................ 19 5.3 Power Line Conducted Emission Test (Not Applicable) .............................................................................. 21 5.3.1 Limits of Line Conducted Emission Test .................................................................................................. 21 5.3.2 BLOCK DIAGRAM OF TEST SETUP...................................................................................................... 21 5.3.3 PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................. 22 5.3.4 FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ........................................................... 22 5.3.5 TEST RESULT OF LINE CONDUCTED EMISSION TEST ..................................................................... 23 FCC ID: WJKJL-V2 Report No.: MOST/STS100108F1 Page 3 of 23 1．VERIFICATION OF CONFORMITY Equipment Under Test: Vote Brand Name: IPBOARD, Whiteboard Model Number: JL-V2(S), JL-V2(T), JL-V2(I) FCC ID： WJKJL-V2 JULONG EDUCATIONAL TECHNOLOGY CO., LTD Applicant: 4/F, Building T3, Keji Road South, Hi-Tech Industrial Park, Nanshan District , Shenzhen, China JULONG EDUCATIONAL TECHNOLOGY CO., LTD Manufacturer: Building 7, Detai Science and Technology Industrial Zone, Huarong Road, Dalang, Baoan District , Shenzhen, China Technical Standards: 47 CFR Part 15 Subpart …
