WKZ-RF358C39Wireless Remote

User Manuel No：JLDK.18.01.29 RF358C (39WIRELESS) Page 1 of 2 1 / 2 39wireless User Guide 1. Appearance 2. Function description 1. HEAD UP：Press this key, the head actuator out, release to stop it. 2. HEAD DOWN：Press this key, the head actuator in, release to stop it. 3. FOOT UP：Press this key, the foot actuator out, release to stop it. 4. FOOT DOWN：Press this key, the foot actuator in, release to stop it. 5. FLAT：Actuators are moved into FLAT automatically. The movement starts when the key is released. Click any key to stop it. 6. Pairing Key: Press this key for more than 1 second, the remote will enter pairing mode and a blue LED besides the pairing key will flash. Release this key to stop pairing .After User Manuel No：JLDK.18.01.29 RF358C (39WIRELESS) Page 2 of 2 2 / 2 the pairing is successful, LED will stop flashing. 7. LED :In unlocked state, the remote can control actuators normally and LED will on when you press any button. In locked state, LED will flash when you press any button which indicates the remote is locked. 8. Child lock Press and hold the HEAD UP & HEAD DOWN and the LED will flash by 1Hz at the same time . After 5 times flash, the LED will turn off and the remote will enter into locked mode. Press the FOOT UP & FOOT DOWN , the LED will flash by 1Hz. After 5 times flash, the LED will turn off and the remote will enter into normal mode. Fcc warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

QA-FR-171-A Jiaxing Shufude Electric Bed Co., Ltd. East No. 07 Provincial Road, Tengyun Village Wangjiangjing Development Zone, jiaxing, Zhejiang,China Tel：0 573-83582236-606 FCC Confidential Authorization Date: 2015-11-20 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: WKZ-RF358C In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Jiaxing Shufude Electric Bed Co., Ltd.Wireless Inc. hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  CircuitDescription The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Typed or Printed Name Jinhua Xu Title Engineer

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT - Front View EUT - Rear View EUT - Left View EUT - Right View EUT - Top View EUT - Bottom View

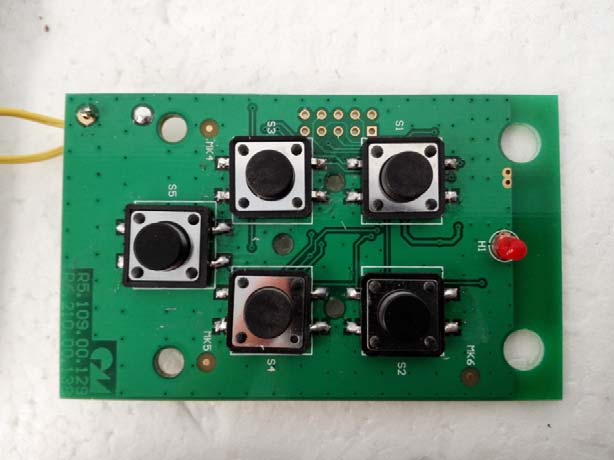

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover Off View EUT–Mainboard Front View EUT–Mainboard Rear View

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Kunshan). This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.249 TEST REPORT For Jiaxing Shufude Electric Bed Co., Ltd. East No. 07 Provincial Road, Tengyun Village Wangjiangjing Development Zone, Jiaxing, Zhejiang, China Report Type: Original Report Product Type: 39WirelessRemote Test Engineer: Matt Yao Report Number: RKS151119002-00A Report Date: 2015-11-23 Reviewed By: Jesse Huang EMC Manager Test Laboratory: Bay Area Compliance Laboratories Corp. (Kunshan) Chenghu Road,Kunshan Development Zone No.248,Kunshan, Jiangsu, China Tel: +86-0512-86175000 Fax: +86-0512-88934268 www.baclcorp.com.cn FCC ID: WKZ-RF358C Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKS151119002-00A FCC Part 15.249 Page 2 of 16 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 TEST FACILITY ............................................................................................................................................................. 3 SYSTEM TEST CONFIGURATION .......................................................................................................................... 4 JUSTIFICATION ............................................................................................................................................................. 4 EUT EXERCISE SOFTWARE .......................................................................................................................................... 4 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 4 SUMMARY OF TEST RESULTS ............................................................................................................................... 5 FCC§15.203 - ANTENNA REQUIREMENT .............................................................................................................. 6 APPLICABLE STANDARD .............................................................................................................................................. 6 ANTENNA CONNECTOR CONSTRUCTION ...................................................................................................................... 6 FCC§15.205, §15.209&§15.249- RADIATED EMISSIONS& OUT OF BAND EMISSION .................................. 7 APPLICABLE STANDARD .............................................................................................................................................. 7 MEASUREMENT UNCERTAINTY .................................................................................................................................... 7 EUT SETUP .................................................................................................................................................................. 8 TEST EQUIPMENT SETUP .............................................................................................................................................. 9 TEST PROCEDURE ........................................................................................................................................................ 9 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................... 9 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 10 TEST RESULTS SUMMARY .......................................................................................................................................... 10 TEST DATA ................................................................................................................................................................ 10 FCC §15.215(C) – 20 DB BANDWIDTH TESTING ................................................................................................ 14 APPLICABLE STANDARD ............................................................................................................................................ 14 TEST PROCEDURE ...................................................................................................................................................... 14 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 14 TEST DATA ................................................................................................................................................................ 14 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKS151119002-00A FCC Part 15.249 Page 3 of 16 GENERAL INFORMATION Product Description for Equipment under Test (EUT) The Jiaxing Shufude Electric Bed Co., Ltd.’ s product, model number: RF358C (FCC ID: WKZ-RF358C) (the "EUT") in this report was a Wirel…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions (Below 1GHz) Radiated Emissions (Above 1GHz)
