WKZRF358AREMOTE CONTROL 358A

California Arch User Guide 1.Appearance 2.Specification 1. Part Number: JLDK.33.01.02; 2. Working Voltage：3.0-5.0V; 3. Working Current：21.8mA @4.5V; 4. Operation Temperature：-20～55°C; 5. Storage temperature：-25～75°C; 6. RF Frequency Range：2.4~2.4835GHz; 7. RF Modulation：GFSK; 8. RF Transmitted Power: 0 dBm; 9. Housing Material: ABS; 3.Interface Description P1 HEAD MASSAGE P2 TIMER P3 FOOT MASSAGE P4 HEAD UP P5 ZERO G P6 FOOT UP P7 HEAD DOWN P8 LIGHT P9 FOOT DOWN P10 MEMORY I P11 MEMORY II P12 MEMORY III P13 FLAT 1. P1 (HEAD MASSAGE)：Turns head massage on and cycles trough all massage levels form lowest to highest. Turns head massage off if highest massage level was selected before button was pressed. 2. P2 (TIMER)：Sets massage timeout. Cycles trough a timeout of 10, 20 and 30 minutes, starting with 10 minutes. Massage is turned off if massage timeout was set to 30 minutes before button was pressed. 3. P3 (FOOT MASSAGE)：Turns foot massage on and cycles trough all massage levels form lowest to highest. Turns foot massage off if highest massage level was selected before button was pressed. 4. P4 (HEAD UP)：Press this key, the head actuator out, release to stop it. 5. P5 (ZERO G)： Actuators are moved into ZERO G position automatically. The movement starts when the key is released. Click any key to stop it. 6. P6 (FOOT UP)：Press this key, the foot actuator out, release to stop it. 7. P7 (HEAD DOWN)：Press this key, the head actuator in, release to stop it. 8. P8 (LIGHT)：Toggles on or off the floor light. 9. P9 (FOOT DOWN)：Press this key, the foot actuator in, release to stop it. 10. P10 (MEMORY I)：Actuators are moved into MEMORY I position automatically. The movement starts when the key is released. Click any key to stop it. If the key is pressed for more than 5 seconds the current position will be stored on this key. 11. P11 (MEMORY II)：Actuators are moved into MEMORY II position automatically. The movement starts when the key is released. Click any key to stop it. If the key is pressed for more than 5 seconds the current position will be stored on this key. 12. P12 (MEMORY III)：Actuators are moved into MEMORY III position automatically. The movement starts when the key is released. Click any key to stop it. If the key is pressed for more than 5 seconds the current position will be stored on this key. 13. P13 (FLAT)：Actuators are moved into FLAT automatically. The movement starts when the key is released. Click any key to stop it. 14. P13&P5 (FLAT&ZERO G): Memory positions( I II III ) can be restored by pressing Zero-G and All-Flat for 5 seconds. 15. P4&P6&P7&P9 ( HEAD UP & HEAD DOWN &FOOT UP & FOOT DOWN): Press P4,P6,P7,P9 simultaneously, the control box will enter self-test mode; 4.Operation Instructions Pairing: There is a white key under the battery cover. Press this key for more than 1 second, the remote will enter pairing mode and a LED besides the pairing key will be flashing. Release this key to stop pairing .After the pairing is successful, LED will stop flashing. 5.Fcc warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

QA-FR-171-A Jiaxing Shufude Electric Bed Co., Ltd. East No. 07 Provincial Road, Tengyun Village Wangjiangjing Development Zone, jiaxing, Zhejiang,China Tel：0 573-83582236-606 FCC Confidential Authorization Date: 2015-10-23 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: WKZRF358A In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Jiaxing Shufude Electric Bed Co., Ltd.Wireless Inc. hereby requests long-term confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics circuit discription The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Typed or Printed Name: Jinh ua Xu Title : Manager

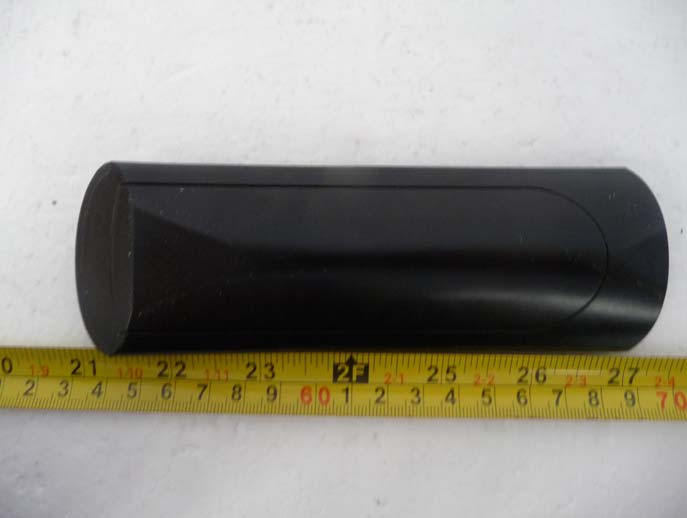

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Left View EUT – Right View EUT – Rear View EUT –Bottom View EUT –Top View

JLDK.33.01.02 REMOTE CONTROL RF358A 34/15 SW:V2.0 E150814010001 211-150702 FCC ID:WKZRF358A

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Main Board Top View EUT – Main Board Bottom View

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Kunshan). This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.249 TEST REPORT For Jiaxing Shufude Electric Bed Co., Ltd. East No. 07 Provincial Road, Tengyun Village Wangjiangjing Development Zone, Jiaxing, Zhejiang, China Report Type: Original Report Product Type: REMOTE CONTROL 358A Test Engineer: Matt Yao Report Number: RKS151012001-00A Report Date: 2015-10-16 Reviewed By: Jesse Huang EMC Mana ger Test Laboratory: Bay Area Compliance Laboratories Corp. (Kunshan) Chenghu Road,Kunshan Development Zone No.248,Kunshan, Jiangsu, China Tel: +86-0512-86175000 Fax: +86-0512-88934268 www.baclcorp.com.cn FCC ID: WKZRF358A Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKS151012001-00A FCC Part 15.249 Page 2 of 17 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 TEST FACILITY ............................................................................................................................................................. 3 SYSTEM TEST CONFIGURATION .......................................................................................................................... 4 JUSTIFICATION ............................................................................................................................................................. 4 EUT EXERCISE SOFTWARE .......................................................................................................................................... 4 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 4 SUMMARY OF TEST RESULTS ............................................................................................................................... 5 FCC§15.203 - ANTENNA REQUIREMENT .............................................................................................................. 6 APPLICABLE STANDARD .............................................................................................................................................. 6 ANTENNA CONNECTOR CONSTRUCTION ...................................................................................................................... 6 FCC§15.205, §15.209&§15.249- RADIATED EMISSIONS& OUT OF BAND EMISSION .................................. 7 APPLICABLE STANDARD .............................................................................................................................................. 7 MEASUREMENT UNCERTAINTY .................................................................................................................................... 7 EUT SETUP .................................................................................................................................................................. 8 TEST EQUIPMENT SETUP .............................................................................................................................................. 9 TEST PROCEDURE ........................................................................................................................................................ 9 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................... 9 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 10 TEST RESULTS SUMMARY .......................................................................................................................................... 10 TEST DATA ................................................................................................................................................................ 10 FCC §15.215(C) – 20 DB BANDWIDTH TESTING ................................................................................................ 15 APPLICABLE STANDARD ............................................................................................................................................ 15 TEST PROCEDURE ...................................................................................................................................................... 15 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 15 TEST DATA ................................................................................................................................................................ 15 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKS151012001-00A FCC Part 15.249 Page 3 of 17 GENERAL INFORMATION Product Description for Equipment under Test (EUT) The Jiaxing Shufude Electric Bed Co., Ltd.’ s product, model number: RF358A (FCC ID: WKZRF358A) (the "EUT") in this report was a REM…
