WOI-0852202T1000VEGA BT C1/C2 Area image Barcode Scanner

U s e r ’ s M a n u a l V-1020BT Handheld Bar Code Scanner Notice The manufacturer shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages in connection with the furnishing, performance or use of the publication Head Quarter CHAMPTEK INCORPORATED 5/F, No.2 Alley 2, Shin-Wei Lane, Chung Cheng Rd., Hsin Tien City 231, Taipei, Taiwan Tel:+886-2-2219-2385 Fax:+886-2-2219-2387 E-mail:[email protected] www.champtek.com China CHAMPTEK INCORPORATED #901, No. 39, Wuzhong Rd., Shanghai 200235, China Tel: +86-21-5489-0021 Fax: +86-21-5489-1833 EMEA SCANTECH-ID BV Nijverheidsweg Noord 60-34 3812 PM Amersfoort The Netherlands Tel:+31-33-4698400 Fax:+31-33-4650615 E-mail:[email protected] www.scantech-id.com User’s Installation and Configuration Manual Scantech-ID VEGA Copyright © 2009 Scantech-ID BV This manual is copyrighted, with all rights reserved. Under the copyright laws, this manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to any electronic medium or machine readable form without prior written consent of Scantech-ID BV. Limited Warranty Under all circumstances this manual should be read attentively, before installing and/or using the product. In no event shall Scantech-ID BV be liable for any direct, indirect, special, consequential or incidental damages arising out of the use or inability to use this documentation or product, even if advised of the possibility of such damages. In particular, Scantech-ID BV shall not be liable for any hardware, software, or data that is stored or used with the product, including the cost of repairing, replacing or recovering the above. Scantech-ID BV reserves the right to change parts of the device at any time without preceding or direct announcement to the client. Scantech-ID BV reserves the right to revise this manual, and to make changes in the contents without obligation to notify any person or entity of the revision or change. A serial number appears on the product. Make sure that this official registration number has not been removed. It should be used whenever servicing by Scantech-ID BV or an authorised Scantech dealer is necessary. P/N A270004 V1.0 May 2009 3 Table of contents Table of Contents ......................................................................................... 3 Introduction ................................................................................................. 6 Chapter 1 Product Safety ........................................................................... 7 1.1 Safety & Caution .............................................................. 8 1.2 FCC Warning .................................................................... 9 1.3 Scanner Labelling ........................................................... 10 Chapter 2 General Description .................................................................. 11 2.1 Use of the VEGA ............................................................. 12 Chapter 3 Installation of the VEGA V-1020 .................................................. 13 3.1 Unpacking ..................................................................... 14 3.2 Mounting ....................................................................... 15 3.3 USB Driver ..................................................................... 16 Chapter 4 Installation of the VEGA V-1020BT .............................................. 17 4.1 Unpacking ..................................................................... 18 4.2 Cradle Installation ........................................................... 19 4.3 Set Up Bluetooth Communication ..................................... 20 Chapter 5 Cover Display ........................................................................... 23 5.1 Setup Cover Display ....................................................... 24 4 Product Safety Chapter 6 Configuring the VEGA ................................................................ 29 6.1 Preface .......................................................................... 30 6.2 Factory Default Setting .................................................... 32 Chapter 7 Programming Codes ................................................................. 33 7.1 Return to Default ............................................................. 34 7.2 RS-232 Parameters ........................................................ 35 7.3 USB Mode ...................................................................... 38 7.4 Bluetooth Scanner Setup ................................................. 39 7.5 Bluetooth Cradle Setup ................................................... 43 7.6 Decoding Selection ......................................................... 45 7.7 EAN /UPC Parameters .................................................... 51 7.8 Code 11 Parameters ....................................................... 55 7.9 Code 39 Parameters ....................................................... 57 7.10 Code 93 Parameters ....................................................... 60 7.11 Code 128 / EAN 128 Parameters .................................... 61 7.12 Interleaved 2 of 5 Parameters ......................................... 63 7.13 MSi Code Parameters ..................................................... 65 7.14 Plessey Code Parameters ............................................... 67 7.15 Miscellaneous Parameters ............................................... 69 7.16 Preambles and Postambles ............................................. 70 7.17 Operating Settings .......................................................... 72 Scantech-ID VEGA Area Imager 5 Appendices ............................................................................................... 78 A ASCII Table ............................................................................................... 79 B Readable Symbologies ........…

Text truncated - open the document above for the full version.

晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Chung Ho City, CC&C Technologies, Inc. Taipei County, Taiwan 235, R.O.C. Tel: 886-2-8226-5088 Fax: 886-2-8226-5077 1 Product Specification Product: Bluetooth module, Class 1 Model Number: BM-395 Doc version: 1.0 Customer: CINO Date: June 27, 2006 Note：All electrical and mechanical specification may be changed by CC&C Technologies incorporation without notice. 晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Chung Ho City, CC&C Technologies, Inc. Taipei County, Taiwan 235, R.O.C. Tel: 886-2-8226-5088 Fax: 886-2-8226-5077 2 BM-395 Bluetooth module, Class 1 Description The Bluetooth module BM-395 is adopted CSR BlueCore 4 External ship solution. Which includes an 8Mbit Flash memory, used with CSR Bluetooth stack, provides a fully compliant Bluetooth system to v2.0 + EDR of the specification for data and voice communications. Features (1) Fully Qualified Bluetooth v2.0+EDR (2) Enhanced Data Rate (EDR) compliant with v2.0.E.2 of specification for both 2Mbps and 3Mbps modulation modes (3) Full speed USB v1.1 interface supports OHCI and UHCI host interfaces. Compliant with USB v2.0 (4) UART interface with programmable baud rate up to 3Mbaud with USB and an optional bypass mode (5) Support for 8Mbit External Flash (6) RoHS compliant (7) Bluetooth class 1 RF output (8) 2.4GHz~2.483GHZ ISM band (9) Bluetooth stack runs on-chip in a variety of configurations, includes Standard HCI (UART or USB), Fully embedded to RFCOMM, or customized builds with embedded application code. 晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Chung Ho City, CC&C Technologies, Inc. Taipei County, Taiwan 235, R.O.C. Tel: 886-2-8226-5088 Fax: 886-2-8226-5077 3 Specification Product Name Bluetooth Module, Class 1 Model Number BM-395 Standard Bluetooth v2.0+EDR Frequency Band 2.402GHz ~ 2.480GHz unlicensed ISM band Modulation Method GFSK for 1Mbps; Π/4-DQPSK for 2Mbps; 8-DPSK for 3Mbps Spread Spectrum FHSS (Frequency Hopping Spread Spectrum) Transfer rates (Max) Max UART baud rates of 3Mbps RF Output Power Class 1 (under 20 dBm) Antenna terminal 50 Ohms DC power DC 5V Dimension 48.5 x 19.5 mm Operating Temperature 0 ~ +60°C Storage Temperature -10 ~ +70°C Humidity 5 ~ 90% (non-condensing) 晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Chung Ho City, CC&C Technologies, Inc. Taipei County, Taiwan 235, R.O.C. Tel: 886-2-8226-5088 Fax: 886-2-8226-5077 4 Electronic Interface Specification The interface between the module and the host system is through a 24-pin connector defined below. Pin Signal Description 1 VCC_5 DC 5V power supply 2 GND Power ground 3 UART_RX UART data input 4 UART_TX UART data output 5 UART_RTS UART request to send active low 6 UART_CTS UART clear to send active low 7 RESET Reset signal input, active high 8 PIO2 Programmable input/output line 2 9 PIO3 Programmable input/output line 3 10 PIO4 Programmable input/output line 4 11 PIO5 Programmable input/output line 5 12 PIO6 Programmable input/output line 6 13 PIO7 Programmable input/output line 7 14 PIO8 Programmable input/output line 8 15 PIO9 Programmable input/output line 9 16 PIO10 Programmable input/output line 10 17 PIO11 Programmable input/output line 11 18 PCM_SYNC Synchronous data sync 19 PCM_IN Synchronous data input 20 PCM_OUT Synchronous data output 21 PCM_CLK Synchronous data clock 22 USB_D- USB data minus 23 USB_D+ USB data plus with selectable internal 1.5kohms pull-up resistor 24 GND Power ground 晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Chung Ho City, CC&C Technologies, Inc. Taipei County, Taiwan 235, R.O.C. Tel: 886-2-8226-5088 Fax: 886-2-8226-5077 5 Mechanical Specification All dimensions are in millimeters. 2.0 1.0 4.0 3.0 31.5 Shielded Cover Area Chip Antenna pin 1 24-pin connector 19.5 48.5 ACX Advanced Ceramic X AT9520 Series Multilayer Chip Antenna Features ™ Monolithic SMD with small, low-profile and light-weight type. ™ Wide bandwidth Applications ™2.4GHz WLAN, Home RF, Bluetooth Modules, etc. Specifications Part Number Frequency Range (MHz) Peak Gain (XZ-V) Average Gain (XZ-V) VSWR Impedance AT9520- B2R4HAA_ 2400~2500 3.0 dBi typ.1.0 dBi typ.2 max. 50 Ω Q’ty/Reel (pcs) : 1000pcs Operating Temperature Range : -40 ~ +85 o C Storage Temperature Range : -40 ~ +85 o C Power Capacity : 3W max. Part Number AT 9520 - B 2R4 HAA ‡ dc efgh c Type AT : Antenna d Dimensions ( L × W ) 9.5× 2.0 mm e Material Code B f Frequency Range 2R4=2400MHz g Specification Code HAA h Packaging T: Tape & Reel B: Bulk Terminal Configuration No. Terminal Name No. Terminal Name c Feeding Point d NC d c ACX Advanced Ceramic X Dimensions and Recommended PC Board Pattern Unit : mm a W T L Mark L W T a Dimensions 9.5±0.2 2.0±0.2 1.2+ 0.1/-0.2 0.5±0.3 (a) Without Matching Circuits (Moderate Bandwidth) * 7.5 10.5 1.0 * * 1.8 (b) With Matching Circuits (Wide Bandwidth) * 1.8 7.5 10.5 1.0 (Matching circuit and component values will be different, depending on PCB layout) 1.5pF 3.9nH * * *Line width should be designed to match 50Ωcharacteristic impedance, depending on PCB material and thickness. ACX Advanced Ceramic X Typical Electrical Characteristics (T=25 o C) ™Test Board ™Return Loss (a) Without Matching Circuits (b) With Matching Circuits Antenna No Ground Ground 20mm 12mm 40mm 19mm 50Ω Feed Line m1 freq=2.200GHz dB(S(1,1))=-10.197 m2 freq=2.440GHz dB(S(1,1))=-31.266 m3 freq=2.770GHz dB(S(1,1))=-10.189 1.21.41.61.82.02.22.42.62.83.03.23.43.63.81.04.0 -30 -20 -10 -40 0 m1 freq=2.305GHz dB(S(1,1))=-10.051 m2 freq=2.440GHz dB(S(1,1))=-13.020 m3 freq=2.635GHz dB(S(1,1))=-10.157 1.21.41.61.82.02.22.42.62.83.03.23.43.63.81.04.0 -15 -10 -5 -20 0 freq, GHz d B (S (1 ,1 ) ) freq, GHz d B (S (1 , 1 )) m1 m2 m3 m1 m2 m3 ACX ™Radiation Patterns Advanced Ceramic X 0 o 90 o 180 o 270 o X Z Y XZ-cut scanning direction 0 o 90 o 180 o 270 o X Z Y YZ-cut scanning direction XZ cut @2.45GHz Vertical Horizontal YZ cut @2.45GHz Vertical Horizontal XZ-V/XZ-H YZ-V/YZ-H Advanced Ceramic X Corp. 16 Tzu Chiang Road, Hsinchu Industrial District Hsinchu Hsien 303, Taiwan TEL:886-3-5987008 FAX:886…

Text truncated - open the document above for the full version.

晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Chung Ho City, CC&C Technologies, Inc. Taipei County, Taiwan 235, R.O.C. Tel: 886-2-8226-5088 Fax: 886-2-8226-5077 Product Specification Product: Bluetooth module, Class 2 Model Number: BM-396 Doc version: 1.0 Date: July 04, 2006 Note：All electrical and mechanical specification may be changed by CC&C Technologies incorporation without notice. 1 晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Chung Ho City, CC&C Technologies, Inc. Taipei County, Taiwan 235, R.O.C. Tel: 886-2-8226-5088 Fax: 886-2-8226-5077 Revision History BM-396 Bluetooth module, Class 2 Version Reason for revision Issue Date Written by 1.0 Initial Document 2006/6/27 Eddie Lin 1.0 Add revision histoy on Page2. 2008/2/1 Chile Wang 2 晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Chung Ho City, CC&C Technologies, Inc. Taipei County, Taiwan 235, R.O.C. Tel: 886-2-8226-5088 Fax: 886-2-8226-5077 Description The Bluetooth module BM-396 is adopted CSR BlueCore 4 External ship solution. Which includes an 8Mbit Flash memory, used with CSR Bluetooth stack, provides a fully compliant Bluetooth system to v2.0 + EDR of the specification for data and voice communications. Features (1) Fully Qualified Bluetooth v2.0+EDR (2) Enhanced Data Rate (EDR) compliant with v2.0.E.2 of specification for both 2Mbps and 3Mbps modulation modes (3) Full speed USB v1.1 interface supports OHCI and UHCI host interfaces. Compliant with USB v2.0 (4) UART interface with programmable baud rate up to 3Mbaud with USB and an optional bypass mode (5) Support for 8Mbit External Flash (6) RoHS compliant (7) Bluetooth Class 2 RF output (8) 2.4GHz~2.483GHZ ISM band (9) Bluetooth stack runs on-chip in a variety of configurations, includes Standard HCI (UART or USB), Fully embedded to RFCOMM, or customized builds with embedded application code. 3 晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Chung Ho City, CC&C Technologies, Inc. Taipei County, Taiwan 235, R.O.C. Tel: 886-2-8226-5088 Fax: 886-2-8226-5077 Specification Product Name Bluetooth Module, Class 2 Model Number BM-396 Standard Bluetooth v2.0+EDR Frequency Band 2.402GHz ~ 2.480GHz unlicensed ISM band Modulation Method GFSK for 1Mbps; Π/4-DQPSK for 2Mbps; 8-DPSK for 3Mbps Spread Spectrum FHSS (Frequency Hopping Spread Spectrum) Transfer rates (Max) Max UART baud rates of 3Mbps RF Output Power Class 2 (under 4 dBm) TX (Max) 55 mA RX (Max) 45 mA Power Consumption Normal 11 mA Antenna terminal Printing antenna DC power DC 3.3V Dimension 48.5 x 19.5 mm Operating Temperature 0 ~ +60°C Storage Temperature -10 ~ +70°C Humidity 5 ~ 90% (non-condensing) 4 晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Chung Ho City, CC&C Technologies, Inc. Taipei County, Taiwan 235, R.O.C. Tel: 886-2-8226-5088 Fax: 886-2-8226-5077 Electronic Interface Specification The interface between the module and the host system is through a 24-pin connector defined below. Pin Signal Description 1 VCC_3.3V DC 3.3V power supply 2 GND Power ground 3 UART_RX UART data input 4 UART_TX UART data output 5 UART_RTS UART request to send active low 6 UART_CTS UART clear to send active low 7 RESET Reset signal input, active high 8 PIO2 Programmable input/output line 2 9 PIO3 Programmable input/output line 3 10 PIO4 Programmable input/output line 4 11 PIO5 Programmable input/output line 5 12 PIO6 Programmable input/output line 6 13 PIO7 Programmable input/output line 7 14 PIO8 Programmable input/output line 8 15 PIO9 Programmable input/output line 9 16 PIO10 Programmable input/output line 10 17 PIO11 Programmable input/output line 11 18 PCM_SYNC Synchronous data sync 19 PCM_IN Synchronous data input 20 PCM_OUT Synchronous data output 21 PCM_CLK Synchronous data clock 22 USB_D- USB data minus 23 USB_D+ USB data plus with selectable internal 1.5kohms pull-up resistor 24 GND Power ground 5 晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Chung Ho City, CC&C Technologies, Inc. Taipei County, Taiwan 235, R.O.C. Tel: 886-2-8226-5088 Fax: 886-2-8226-5077 6 Mechanical Specification All dimensionsare in millimeters. 2.0 1.0 4.0 3.0 31.5 Shielded Cover Area pin 1 24-pin connector Printing Antenna 19.5 48.5

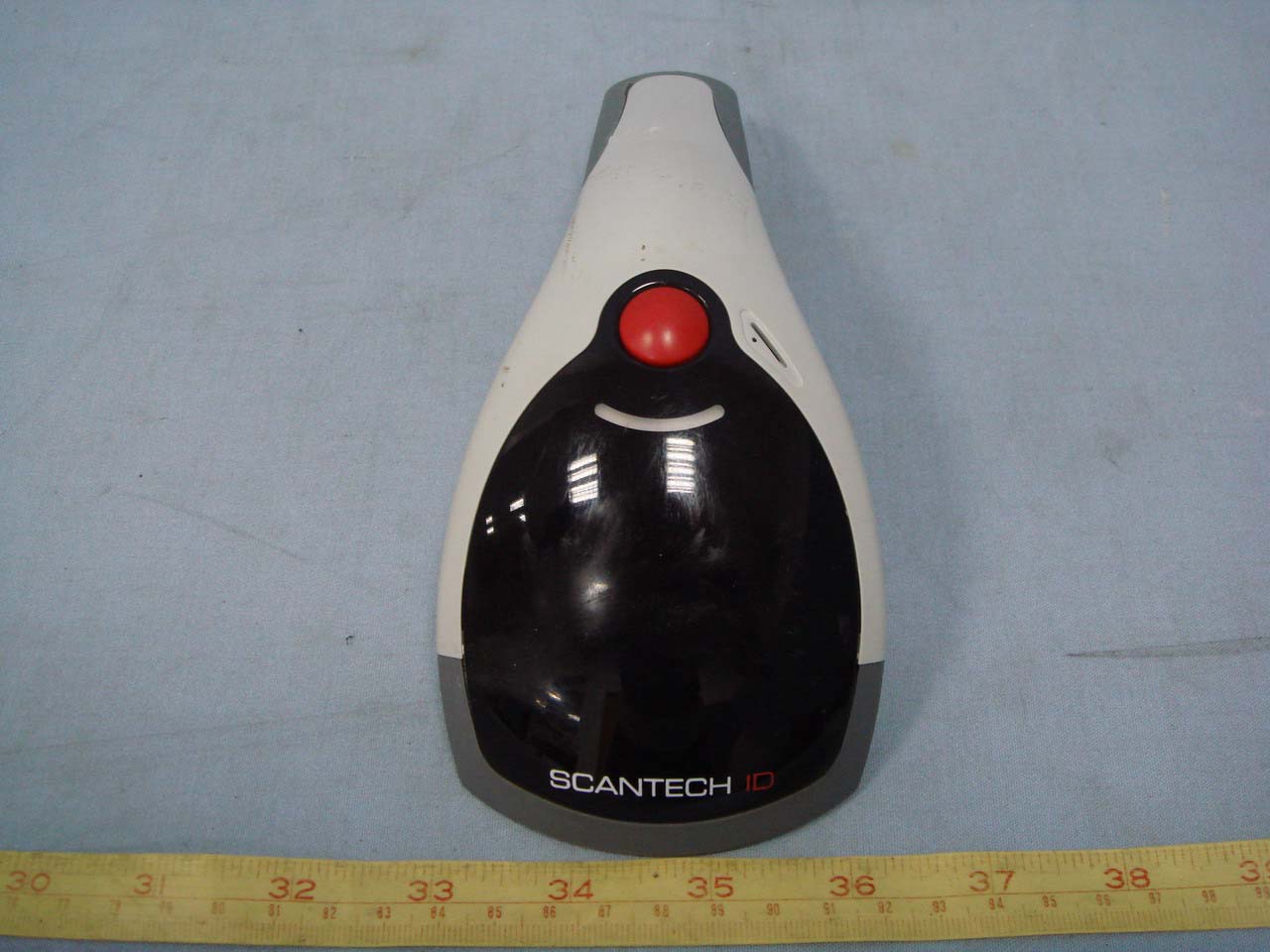

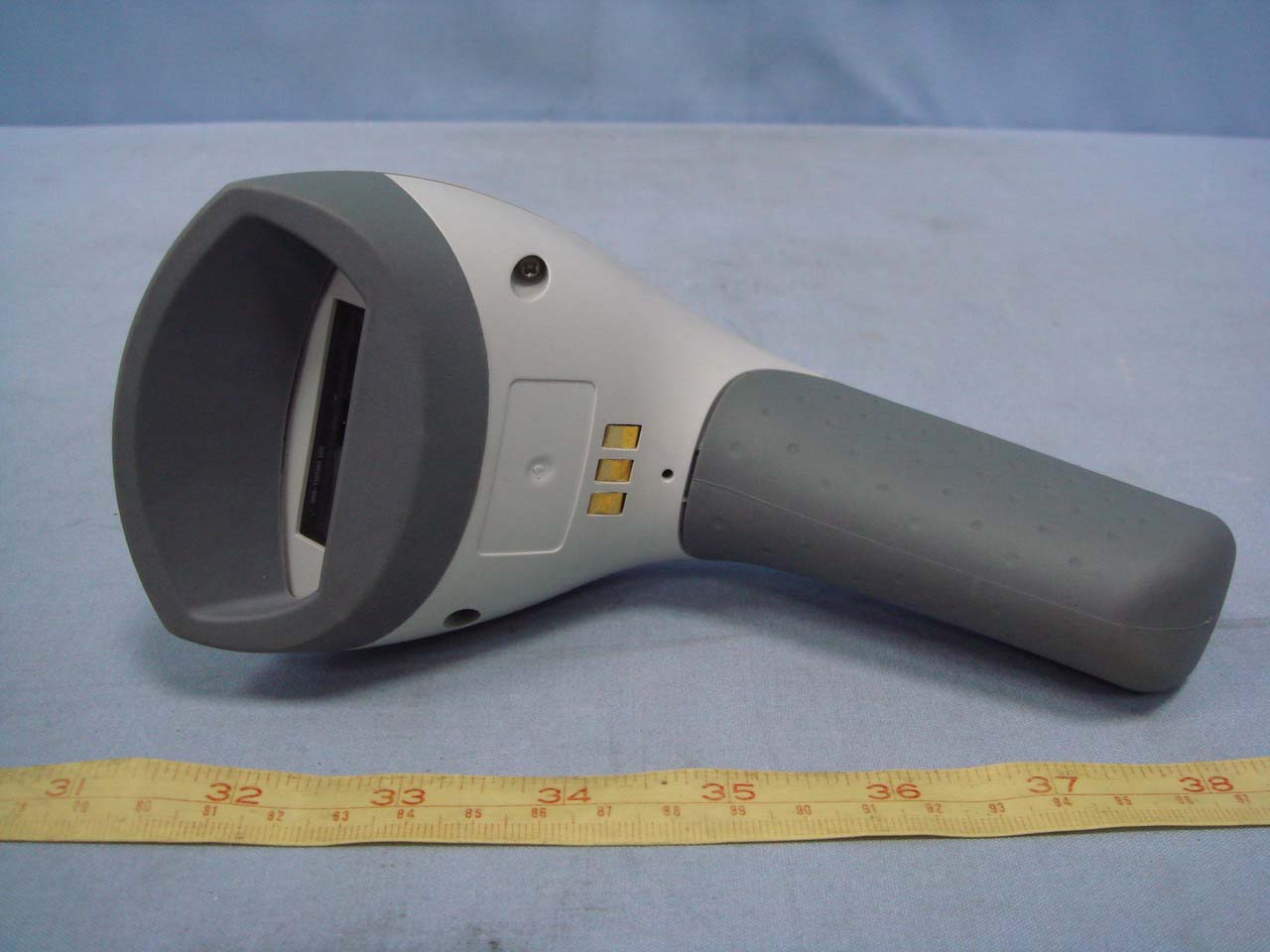

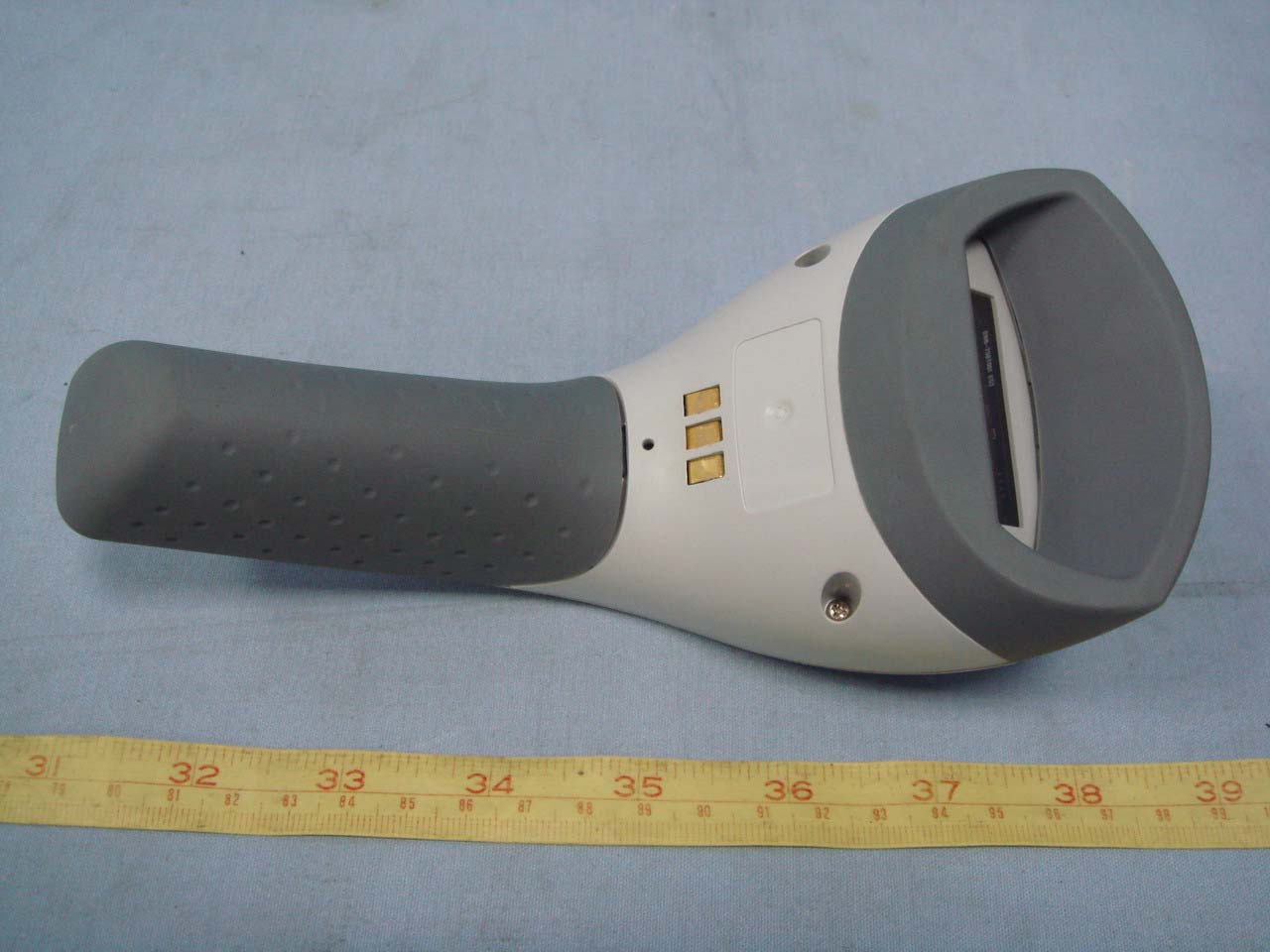

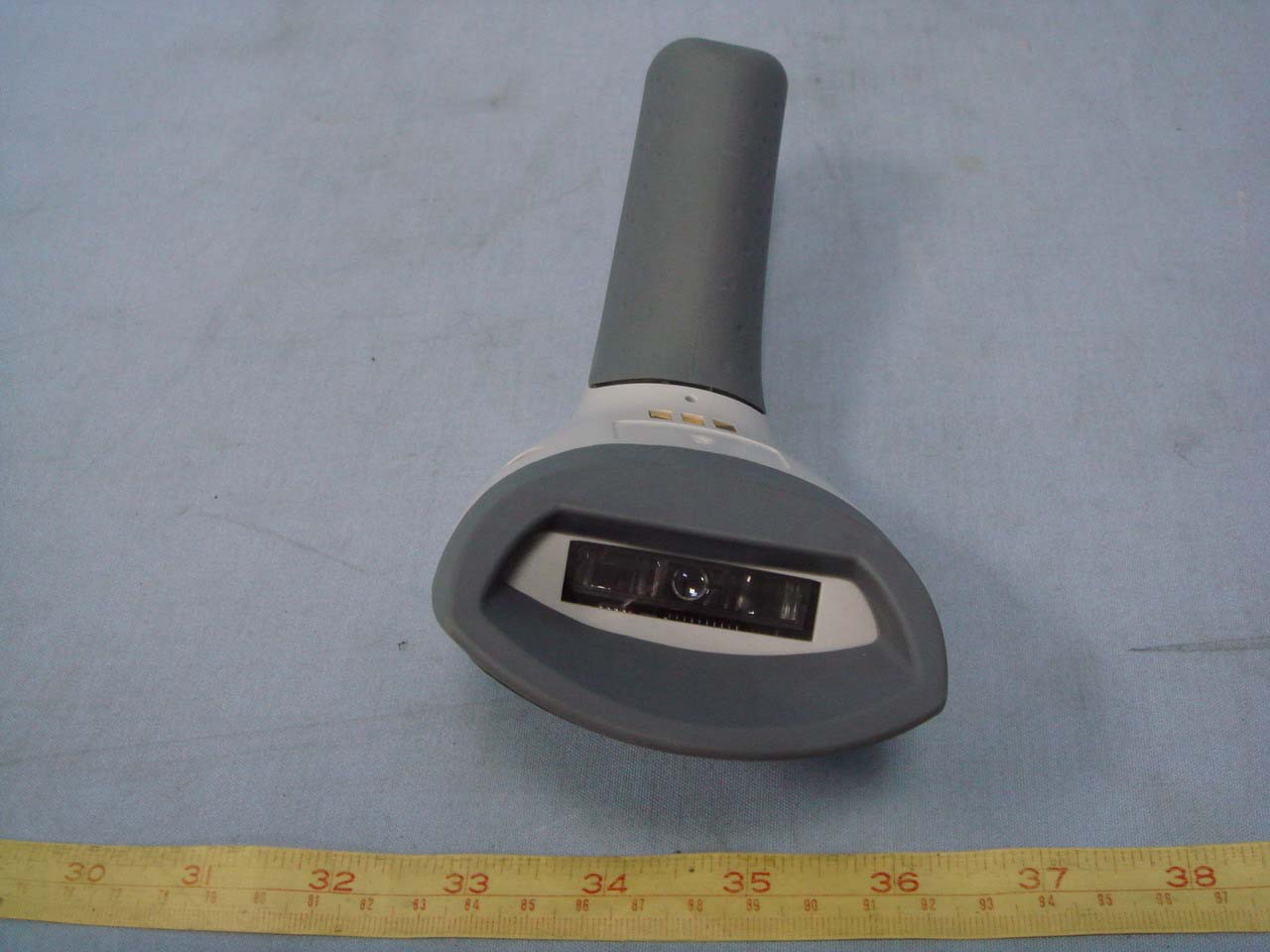

Report No: 90813020 Page 1 / 11 EXTERNAL PHOTOGRAPHS OF EUT Report No: 90813020 Page 2 Report No: 90813020 Page 3

ÕΩø≤≤ªÆ ‘ø檥 ›Æøº¥ª ‘ø檥

Report No: 90813020 Page 4 INTERNAL PHOTOGRAPHS OF EUT Report No: 90813020 Page 5 Report No: 90813020 Page 6 Chip Antenna Report No: 90813020 Page 7 Report No: 90813020 Page 8 PCB Antenna Report No: 90813020 Page 9 Report No: 90813020 Page 10 Report No: 90813020 Page 11

Report No: 90813020-RP1 FCC ID: WOI-0852202T1000 Date of Issue: October 27, 2009 Page 106 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emission Setup Photo Report No: 90813020-RP1 FCC ID: WOI-0852202T1000 Date of Issue: October 27, 2009 Page 107 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Radiated Emission Setup Photos 30 ~ 1000 MHz Report No: 90813020-RP1 FCC ID: WOI-0852202T1000 Date of Issue: October 27, 2009 Page 108 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Above 1GHz Report No: 90813020-RP1 FCC ID: WOI-0852202T1000 Date of Issue: October 27, 2009 Page 109 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Powerline Conducted Emissions Setup Photos
