WOR-5011FIP CAM

1 Content Safety Instruction .............................................................................................................................................................. 2 Minimum System Requirement & Product Feature .......................................................................................................... 4 Main Page ......................................................................................................................................................................... 6 Information ....................................................................................................................................................................... 7 Basic Setup ........................................................................................................................................................................ 8 Account ......................................................................................................................................................................... 8 Network......................................................................................................................................................................... 9 Image Setting .............................................................................................................................................................. 14 Video ........................................................................................................................................................................... 14 Audio........................................................................................................................................................................... 15 Camera Setting ............................................................................................................................................................ 15 Events .......................................................................................................................................................................... 16 System ............................................................................................................................................................................. 20 Maintenance ................................................................................................................................................................ 20 Date Time .................................................................................................................................................................... 21 Language ......................................................................................................................................................................... 23 2 User Manual Safety Instruction  Before you use this product This product has been designed with safety in mind. However, the electrical products can cause fires which may lead to serious body injury if it is not used properly. To avoid such accidents, be sure to heed the following.  Legal Caution Video and audio surveillance can be forbidden by laws that vary from country to country. Check the laws in your local region before using this product for surveillance purposes.  Don't open the housing of the product Don't try to open the housing or remove the covers which may expose yourself to dangerous voltage or other hazards.  Don't use the accessories not recommend by the manufacturer  Heed the safety precautions Be sure to follow the general safety precautions and the “Operation Notice.”  Operation Notice - Operating or storage location Avoid operating or storing the camera in the following locations: • Extremely hot or cold places (Operating temperature: 0 °C to + 40 °C [32 °F to 104°F] ) • Exposed to direct sunlight for a long time, or close to heating equipment (e.g., near heaters) • Close to water (e.g.,near a bathtub, kitchen sink, laundry tub) • Close to sources of strong magnetism • Close to sources of powerful electromagnetic radiation, such as radios or TV transmitters • Locations subject to strong vibration or shock  In case of a breakdown In case of system breakdown, discontinue use and contact your authorized dealer.  In case of abnormal operation 3 • If the unit emits smoke or an unusual smell, • If water or other foreign objects enter the cabinet. • If you drop the unit or damage the cabinet:1 Disconnect the cable and the connecting cables. 2 Contact your authorized dealer or the store where you purchased the product.  Transportation When transporting the camera, repack it as originally packed at the factory or in materials of equal quality.  Ventilation To prevent heat buildup, do not block air circulation around the device.  Cleaning • Use a soft, dry cloth to clean the external surfaces of the device. Stubborn stains can be removed using a soft cloth dampened with a small quantity of detergent solution, then wipe dry. • Do not use volatile solvents such as alcohol, benzene or thinners as they may damage the surface. 4 Minimum System Requirement & Product Feature System Requirement For normal operation and viewing of the network camera, it’s recommended that your system meet these minimum requirements for proper operation: Item Requirements CPU Pentium 4 2.8GHz (or equivalent AMD) Graphic Card 256 MB RAM graphic cards (or equivalent on-board graphic cards) RAM 2 GB RAM Operating System Window 2000, 2003, XP, Vista or Windows 7 Mac OS Leopard 10.5 Web Browser Internet Explorer 8 or later Note: 1. If using Windows 98 or Windows ME, please install IP Installer before using WEB UI to ensure the system runs normally. 2. If not able to view the recorded video file, please install Xvid codec while installing Intelligent IP Installer. (For Windows 98, ME or 2000 server, the codec might not work properly. Please download Xvid codec 1.0 from the internet.) 3. Ple…

Text truncated - open the document above for the full version.

ZAVIO Inc. August. 8, 2013 FCC IDWOR-5011F Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: 989-1 Wenshan Rd., Shang Shan Village, Qionglin Shiang, Hsinchu County 30741, Taiwan R.O.C. Name: Rubeca Yu Job Title: Deputy Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: ZAVIO / F1105 FCC ID: WOR-5011F Product Name: IP Cam Signature FCC grantee contact person information : Name/Title: Minar Lin/ Chief Technology Officer Company Name: ZAVIO Inc. ADDRESS: 2F, No.13, R&D Rd.II, Science-Based Industrial Park, Hsinchu, Taiwan TEL: 886 3 5790275 FAX: 886 3 6686845 Email: [email protected]

ZAVIO Inc. Date: August. 8, 2013 Subject: Ad Hoc Mode Function Declaration FCC ID: WOR-5011F To Whom it may concern, This device is acting as master and operating on 2.4GHz band. Ad Hoc function is available on client mode and not able to work on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Signature FCC grantee contact person information. Name/Title: Minar Lin/ Chief Technology Officer Company Name: ZAVIO Inc. ADDRESS: 2F, No.13, R&D Rd.II, Science-Based Industrial Park, Hsinchu, Taiwan TEL: 886 3 5790275 FAX: 886 3 6686845 Email: [email protected]

Company Name: ZAVIO INC. Aug. 8 th , 2013 Federal Communications Commission Authorization and Evaluation Division FCC IDWOR-5011F Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Signature Name/Title: Minar Lin/ Chief Technology Officer Company Name: Zavio Inc. Address: No.1,Lising 1st Rd. Science Based Industrial Park,Hsinchu,Taiwan TEL: +886-3-579-0275 FAX: +886-3-668-6845 Email: [email protected]

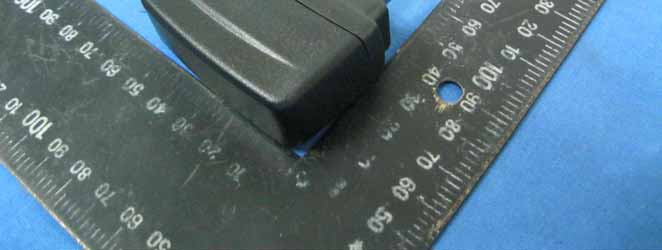

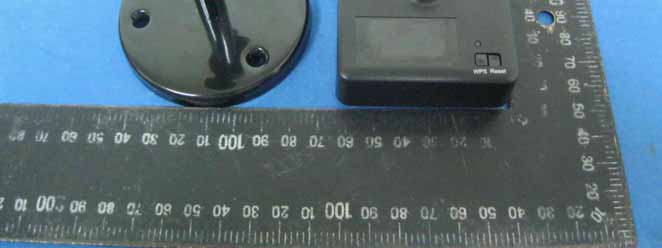

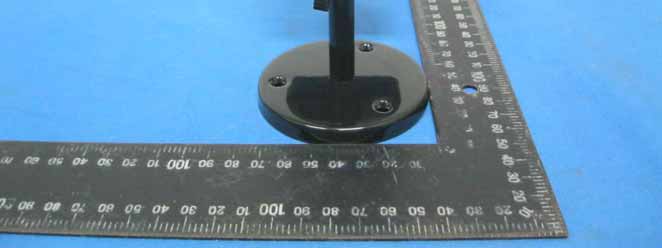

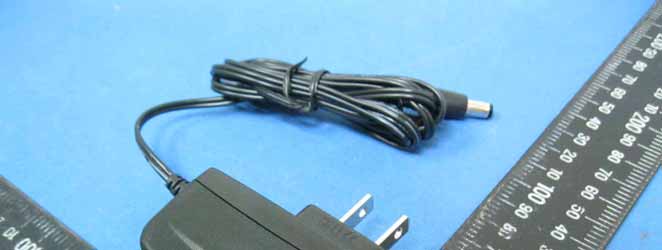

Report No.T120326S04 Page 1 of 5 External Photo Report No.T120326S04 Page 2 of 5 Report No.T120326S04 Page 3 of 5 Report No.T120326S04 Page 4 of 5 Power Adapter Photo (Model : DSC-6PFA-05 FUS 050100) Report No.T120326S04 Page 5 of 5

Label Location

Report No.T120326S04 Page 1 of 8 Internal Photo Report No.T120326S04 Page 2 of 8 Report No.T120326S04 Page 3 of 8 Report No.T120326S04 Page 4 of 8 Report No.T120326S04 Page 5 of 8 Report No.T120326S04 Page 6 of 8 Report No.T120326S04 Page 7 of 8 Report No.T120326S04 Page 8 of 8 Antenna Photo

FCC IDWOR-5011F Report No.T120326S04-RP1 Page 1 / 2 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate theenvironment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d G×P×30 =E & 3770 E =S 2 Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 d3770 G×P×30 =S Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 22 d G×P ×0796.0= 100/d×3770 G×1000/P×30 =S Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm2 FCC IDWOR-5011F Report No.T120326S04-RP1 Page 2 / 2 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS Mode Antenna Gain (dBi) Minimum separation distance (cm) Output Power (dBm) Numeric antenna gain (mW) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11b 2.7 20 12.20 1.86 1.00 0.006148 IEEE 802.11g 2.7 20 14.04 1.86 1.00 0.009391 IEEE 802.11n HT202.7 20 13.26 1.86 1.00 0.007847 IEEE 802.11n HT402.7 20 14.04 1.86 1.00 0.009391 Remark: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

FCC IDWOR-5011F Report No.T120326S04-RP1 Page 1 / 89 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C/Oct. 2012 AND ANSI 63.4:2003 TEST REPORT For IP CAM Model : F1105 Trade Name : ZAVIO Issued for ZAVIO Inc. 2F, No.13, R&D Rd.II, Science Based Industrial Park, Hsinchu, Taiwan Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Issued Date: September 06, 2013 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. FCC IDWOR-5011F Report No.T120326S04-RP1 Page 2 / 89 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 04/27/2012 Initial Issue All Page 89 Cindy Pon 01 08/15/2013 Revised FCC STANDARD , MEASUREMENT UNCERTAINTY AND TEST SETUP P.1 & P.4 & P.7 & P.8 & 11 & 22 & 25 & 28& 39 & 86 Gloria Chang 02 09/06/2013 Revised POWER SPECTRAL DENSITY Data P.28 ~ P.37 Rubeca Yu FCC IDWOR-5011F Report No.T120326S04-RP1 Page 3 / 89 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 6 4. TEST METHODOLOGY ............................................................................................... 7 5. FACILITIES AND ACCREDITATION ........................................................................... 7 5.1 FACILITIES ............................................................................................................ 7 5.2 ACCREDITATIONS................................................................................................ 7 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 8 6. SETUP OF EQUIPMENT UNDER TEST......................................................................8-10 7. FCC PART 15.247 REQUIREMENTS .......................................................................... 8 7.1 6dB BANDWIDTH .................................................................................................. 8-21 7.2 MAXIMUM PEAK OUTPUT POWER ..................................................................... 8-24 7.3 AVERAGE POWER ............................................................................................... 8-27 7.4 POWER SPECTRAL DENSITY ............................................................................. 8-38 7.5 CONDUCTED SPURIOUS EMISSION .................................................................. 8-51 7.6 RADIATED EMISSION........................................................................................... 8-84 7.7 CONDUCTED EMISSION ...................................................................................... 8-89 FCC IDWOR-5011F Report No.T120326S04-RP1 Page 4 / 89 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant ZAVIO Inc. Address 2F, No.13, R&D Rd.II, Science Based Industrial Park, Hsinchu, Taiwan Equipment Under Test IP CAM Model F1105 Trade Name ZAVIO Tested Date March 26 ~ April 12, 2012 ; September 05, 2013 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C/Oct. 2012 AND ANSI C63.4:2003 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Sb. Lu Gundam Lin Sr. Engineer Sr. Engineer FCC IDWOR-5011F Report No.T120326S04-RP1 Page 5 / 89 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name IP CAM Model Number F1105 Identify Number T120326S04 Received Date March 26, 2012 IEEE 802.11b/g : 2412MHz ~ 2462MHz Frequency Range IEEE 802.11n HT40 : 2422MHz～2452MHz IEEE 802.11b : 12.20 dBm (0.0166W) IEEE 802.11g : 14.04 dBm (0.0254W) IEEE 802.11n HT20: 13.26 dBm (0.0212W) Transmit Power IEEE 802.11n HT40: 14.04 dBm (0.0254W) Channel Spacing IEEE 802.11b/g, 802.11n HT20/HT40 : 5MHz IEEE 802.11b/g, 802.11n HT20 : 11 Channels Channel Number IEEE 802.11n HT40 : 7 Channels IEEE 802.11b : 11, 5.5, 2, 1 Mbps IEEE 802.11g : 54, 48, 36, 24, 18, 12, 9, 6 Mbps IEEE 802.11n HT20 : 65, 58.5, 52, 39, 26, 19.5, 13, 6.5Mbps Transmit Data Rate IEEE 802.11n HT40 : 135, 121.5, 108, 81, 54, 40.5, 27, 13.5Mbps IEEE 802.11b : DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g : OFDM (64QAM, 16QAM, QPSK, BPSK) Type of Modulation IEEE 802.11n HT20/40 : OFDM (64QAM, 16QAM, QPSK, BPSK) Antenna Type Embedded Antenna ,Antenna Gain 2.70dBi Power Rating 5Vdc Test Voltage 120Vac, 60Hz DC Power Cable Type Non-shielded cable, 1.5m (…

Text truncated - open the document above for the full version.

FCC IDWOR-5011F Report No.T120326S04-RP1 Page 1 / 4 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX II SETUP PHOTOS RADIATED EMISSION SETUP Below 1 GHz FCC IDWOR-5011F Report No.T120326S04-RP1 Page 2 / 4 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Above 1 GHz FCC IDWOR-5011F Report No.T120326S04-RP1 Page 3 / 4 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP FCC IDWOR-5011F Report No.T120326S04-RP1 Page 4 / 4 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CONDUCTED EMISSION SETUP
