WOR-6115PIP CAM

1 Content Safety Instruction ............................................................................................................................................................ 2 Minimum System Requirement & Product Feature .................................................................................................... 4 Minimum System Requirement .................................................................................................................................... 4 Product Feature .............................................................................................................................................. 5 Main Page ........................................................................................................................................................................ 6 Basic Setup ........................................................................................................................................................ 9 Account .......................................................................................................................................................... 9 Network........................................................................................................................................................ 10 Date Time ..................................................................................................................................................... 12 Video ............................................................................................................................................................ 13 Live View......................................................................................................................................................... 16 Video ............................................................................................................................................................ 16 Camera Setting ............................................................................................................................................. 16 PT Setting ..................................................................................................................................................... 18 Playback .......................................................................................................................................................... 20 Client PC ...................................................................................................................................................... 20 Network Storage .......................................................................................................................................... 21 Local Storage ............................................................................................................................................... 21 Event................................................................................................................................................................ 22 Event Server ................................................................................................................................................. 22 Event List ..................................................................................................................................................... 22 Motion Detection ......................................................................................................................................... 24 Tampering Detection .................................................................................................................................... 24 Schedule ....................................................................................................................................................... 25 System ............................................................................................................................................................. 25 Maintenance ................................................................................................................................................. 25 Date Time ..................................................................................................................................................... 25 Security ........................................................................................................................................................ 26 Network Basic .............................................................................................................................................. 26 Network Advanced....................................................................................................................................... 26 LED .............................................................................................................................................................. 28 System Log .................................................................................................................................................. 28 2 User Manual Safety Instruction  Before you use this product This product has been designed with safety in mind. However, the electrical products can cause fires which may lead to serious body injury if it is not used properly. To avoid such accidents, be sure to heed the following.  Legal Caution Video and audio surveillance can be forbidden by laws that vary from country to country. Check the laws in your local region before using this product for surveillance purposes.  Don't open the housing of the product Don't try to open the housing or remove the covers which may expose yourself to dangerous voltage or other hazards.  Don't use the accessories not recommend by the manufacturer  Heed the safety precautions Be sure to follow the general …

Text truncated - open the document above for the full version.

ZAVIO Inc. Aug. 8th, 2013 Federal Communications Commission Authorization and Evaluation Division FCC IDWOR-6115P Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below : 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Signature Name/Title: Minar Lin/ Chief Technology Officer Applicant: Minar Lin Company Name: ZAVIO Inc. ADDRESS: 2F, No.13, R&D Rd.II, Science-Based Industrial Park, Hsinchu, Taiwan TEL: 886 3 5790275 FAX: 886 3 6686845 Email: [email protected]

ZAVIO Inc. August. 8, 2013 FCC IDWOR-6115P Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: 989-1 Wenshan Rd., Shang Shan Village, Qionglin Shiang, Hsinchu County 30741, Taiwan R.O.C. Name: Rubeca Yu Job Title: Deputy Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: ZAVIO / P5116 FCC ID: WOR-6115P Product Name: IP Cam Note: The registered grantee contact is not available, ZAVIO Inc. is signing for grantee contact. He can be reached at email: [email protected] Signature FCC grantee contact person information : Name/Title: Minar Lin/ Chief Technology Officer Company Name: ZAVIO Inc. ADDRESS: 2F, No.13, R&D Rd.II, Science-Based Industrial Park, Hsinchu, Taiwan TEL: 886 3 5790275 FAX: 886 3 6686845 Email: [email protected]

ZAVIO Inc. Date: August. 8, 2013 Subject: Ad Hoc Mode Function Declaration FCC ID: WOR-6115P To Whom it may concern, This device is acting as master and operating on 2.4GHz band. Ad Hoc function is available on client mode and not able to work on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Signature FCC grantee contact person information. Name/Title: Minar Lin/ Chief Technology Officer Company Name: ZAVIO Inc. ADDRESS: 2F, No.13, R&D Rd.II, Science-Based Industrial Park, Hsinchu, Taiwan TEL: 886 3 5790275 FAX: 886 3 6686845 Email: [email protected]

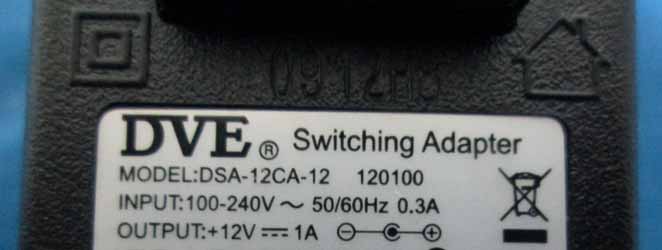

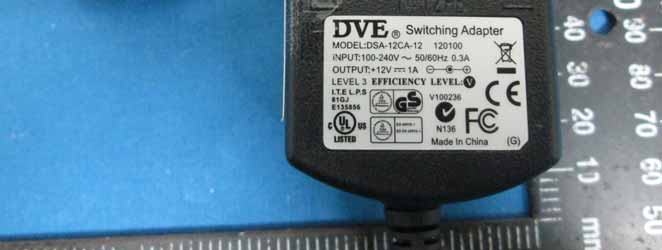

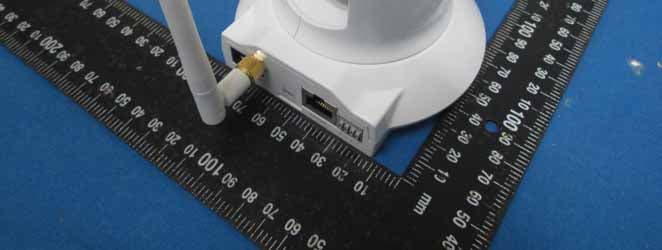

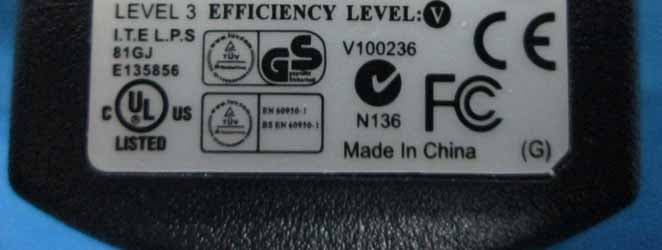

Report No.T121206S02 Page 1 of 7 External Photo Report No.T121206S02 Page 2 of 7 Report No.T121206S02 Page 3 of 7 Report No.T121206S02 Page 4 of 7 Report No.T121206S02 Page 5 of 7 Report No.T121206S02 Page 6 of 7 Antenna Report No.T121206S02 Page 7 of 7

Label Location

Report No.T121206S02 Page 1 of 13 Internal Photo Report No.T121206S02 Page 2 of 13 Report No.T121206S02 Page 3 of 13 Report No.T121206S02 Page 4 of 13 Report No.T121206S02 Page 5 of 13 Report No.T121206S02 Page 6 of 13 Report No.T121206S02 Page 7 of 13 Report No.T121206S02 Page 8 of 13 Report No.T121206S02 Page 9 of 13 Report No.T121206S02 Page 10 of 13 Report No.T121206S02 Page 11 of 13 Report No.T121206S02 Page 12 of 13 Report No.T121206S02 Page 13 of 13

TO: SPECIFICATION FOR APPROVAL DESCRIPTION : 2.4GHz Antenna SMA () CUSTOMER DWG. NO. /PART NO : KINSUN PROD. NO : 6602108083 DATE : 2008.04.18 PLEASE RETURN TO US ONE COPY OF “ SPECIFICATION FOR APPROVAL ” WITH YOUR APPROVED SIGNATURES APPROVED SIGNA TURES KINSUN INDUSTRIES INC. 21120 TEL : 886-3-4353551 FAX : 886-3-4353951 http://www.kinsun.com e-mail: [email protected] APPROVED CHECKED PREPARED NAME Yang Alan Roy Wu Stella Wang GP TECHNICAL DATA Electrical Properties Frequency Range: 2.4~2.5GHz Impedance: 50 Ohm nominal VSWR : 1.92Max. Radiation: Omni Return loss : -10dB Max. Electrical Wave : 1/2 wavelength dipole Gain : 2.0dBi (PEAK) Admitted power : 1W Polarization: Vertical Mechanical Properties Antenna Cover: PU Antenna Base : PC Color : WHITE Operation Temperature:-20°C~+60°C Storage Temperature:-30°C~+75°C Connector: SMA MALE RP http://www.kinsun.com TEL：(03) 4353551 FAX：(03) 4353951 Frequency(MHz)：2450.00 Pattern Field：E plane Average Gain(dB)：-2.46dB Maximum Gain(dB)：1.97dB Maximum Gain(degree)：-71.43 Minimum Gain(dB)：-26.29dB Minimum Gain(degree)：-180.00 Brand / Model：6602108083 Remark：2450MHz Tested by：Allen Yu --：Max. deg *Unit：dBi http://www.kinsun.com TEL：(03) 4353551 FAX：(03) 4353951 Frequency(MHz)：2450.00 Pattern Field：H plane Average Gain(dB)：1.78dB Maximum Gain(dB)：1.97dB Maximum Gain(degree)：85.50 Minimum Gain(dB)：1.54dB Minimum Gain(degree)：228.81 Brand / Model：6602108083 Remark：2450MHz Tested by：Allen Yu --：Max. deg *Unit：dBi 6602108083 S11 VSWR Elastollan ® SSeries Technical BulletinPolyester Type Elastollan ® S series of products are polyester-based thermoplastic polyurethanes that exhibit good hydrolytic stability. They also exhibit good oil, fuel and solvent resistance. These products can be injection molded, blow molded and extruded. All grades should be dried before processing. Elastollan ® products can be stored for up to 1 year in their original container. Containers should be stored in a cool, dry area. Extrusion grades: S90A Injection molding grades: S80A to S60D Physical Properties Units ASTM Method S80A 3 S85A 3 S90A 3 S95A 3 S98A 3 S60D 3 Specific gravitygr./cm 3 D-7921.211.221.231.231.241.25 HardnessShore A D-2240 80±285±292±296±298±2 - D- 41±248±254±260±2 Tensile strengthMPaD-41227.53439424243 psi400049005600610061006200 Tensile stressD-412 @100 % elongationMPa5.56.911141922 psi80010001550200027003200 @300 % elongationMPa9.61420263237 psi140019802900380047005300 Elongation @brk.%D-412650690540510425450 Tensile set @brk.%D-4124535557080110 Tear strengthN/mmD-624104128154185195 lb./in.DIE C59073087510501150 Abrasion resistancemgD-1044 2 252525305050 (Loss)(Taber) Test samples were cured 20 hours @ 1OO°C before testing. NOTE: 1 These products can only be ordered in minimum quantities. Please contact your sales representative for details. 2 H-18 wheel, 1000 gm weight and 1000 cycles. 3 Products with an N designation do not contain hydrolytic stabilizers. Contact Elastollan Technical Service Rep for further information Caution:Contact with product dusts from regrinding operations may cause temporary irritation of the eyes and the respiratory tract. Use with local exhaust. Under hot melt processing conditions (170-230°C), wear personal protective equipment to prevent thermal burns. First aid:Eyes-Flush eyes with flowing water at least 15 minutes. If irritation develops, consult a physician.Skin-Skin contact with hot melt may cause thermal burns. Call a physician immediately.Inhalation-If vapors generated from the hot melt process are inhaled, move to fresh air. Aid in breathing. If breathing difficulties develop, see a physician immediately. In case of fire:Use water fog, foam, CO 2 , or dry chemical extinguishing media. Firefighters should be equipped with self-contained breathing apparatus and turnout gear. Disposal:Waste material, unused contents and empty containers must be disposed of in accordance withapplicable local, state or federal regulations. Refer to our Material Safety Data Sheet for specific disposal instructions. In case of chemical emergency:Call CHEMTREC day or night for assistance and information concerning spilled material, fire, exposure and other chemical accidents. 800-424- 9300 Attention:This product is sold solely for use by industrial institutions. Refer to our Material Safety Data Sheet regarding safety, usage, applications, hazards, procedures and disposal of this product. Consult your supervisor for additional information. No warranties of any kind, either express or implied, including warranties of merchantability or fitness for a particular purpose, are made regarding products described or designs, data or information set forth or that the products designs, data or information may be used without infringing the intellectual property rights of others in no case shall the descriptions information, data or designs provided be considered a part of our terms and conditions of sale. Further, you expressly understand and agree that the descriptions, designs, data and information furnished byBASF hereunder are provided gratis and BASF assumes no obligation or liability for the description, designs data and information given or results obtained, all such being given and accepted at your risk. BASF Corporation, 1609 Biddle Avenue, Wyandotte, Michigan 48192 (800) 892-3111 x21, www.basf.com/elastollan ©BASF Corporation 2000 http://www.kinsun.com TELΚ(03) 4353551 FAXΚ(03) 4353951 Ꭽጥޗᔆᢞࣔ

FCC IDWOR-6115P Report No.T121206S02-RP1 Page 1 / 2 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate theenvironment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d G×P×30 =E & 3770 E =S 2 Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 d3770 G×P×30 =S Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 22 d G×P ×0796.0= 100/d×3770 G×1000/P×30 =S Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm2 FCC IDWOR-6115P Report No.T121206S02-RP1 Page 2 / 2 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS Mode Antenna Gain (dBi) Minimum separation distance (cm) Output Power (dBm) Numeric antenna gain (mW) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11b 2.00 20 21.19 1.58 1.00 0.041469 IEEE 802.11g 2.00 20 24.50 1.58 1.00 0.088863 IEEE 802.11n HT202.00 20 24.05 1.58 1.00 0.080116 IEEE 802.11n HT402.00 20 23.32 1.58 1.00 0.067720 Remark: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

FCC IDWOR-6115P Report No.T121206S02-RP1 Page 1 / 86 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C/Oct. 2012 AND ANSI 63.4:2003 TEST REPORT For IP CAM Model : P5116 Trade Name : ZAVIO Issued for ZAVIO Inc. 2F, No.13, R&D Rd.II, Science Based Industrial Park, Hsinchu, Taiwan Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Issued Date: September 06, 2013 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. FCC IDWOR-6115P Report No.T121206S02-RP1 Page 2 / 86 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 12/27/2012 Initial Issue All Page 86 Rubeca Yu 01 09/06/2013 Revised P.1 & P.4 & P.6 & P.26 ~ P.35 Gloria Chang FCC IDWOR-6115P Report No.T121206S02-RP1 Page 3 / 86 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 6-7 4. TEST METHODOLOGY ............................................................................................... 8 5. FACILITIES AND ACCREDITATION ........................................................................... 8 5.1 FACILITIES ............................................................................................................ 8 5.2 ACCREDITATIONS................................................................................................ 8 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 9 6. SETUP OF EQUIPMENT UNDER TEST...................................................................... 10-11 7. FCC PART 15.247 REQUIREMENTS.......................................................................... 12 7.1 6dB BANDWIDTH .................................................................................................. 12-21 7.2 MAXIMUM PEAK OUTPUT POWER..................................................................... 22-24 7.3 POWER SPECTRAL DENSITY............................................................................. 25-35 7.4 CONDUCTED SPURIOUS EMISSION .................................................................. 36-48 7.5 RADIATED EMISSION........................................................................................... 49-81 7.6 CONDUCTED EMISSION ...................................................................................... 82-86 FCC IDWOR-6115P Report No.T121206S02-RP1 Page 4 / 86 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant ZAVIO Inc.. Address 2F, No.13, R&D Rd.II, Science Based Industrial Park, Hsinchu, Taiwan Equipment Under Test IP CAM Model P5116 Trade Name ZAVIO Tested Date December 06 ~ 26, 2012 ; September 05, 2013 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C/Oct. 2012 AND ANSI C63.4:2003 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Sb. Lu Gundam Lin Sr. Engineer Sr. Engineer FCC IDWOR-6115P Report No.T121206S02-RP1 Page 5 / 86 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name IP CAM Model Number P5116 Identify Number T121206S02 Received Date December 06,2012 Frequency Range IEEE 802.11b/g, 802.11n HT20 : 2412MHz ~ 2462MHz IEEE 802.11n HT40 : 2422MHz ~ 2452MHz IEEE 802.11b : 21.19dBm (0.1315W) IEEE 802.11g : 24.50dBm (0.2818W) IEEE 802.11n HT20 : 24.05dBm (0.2541W) Transmit Power IEEE 802.11n HT40 : 23.32dBm (0.2148W) Channel Spacing IEEE 802.11b/g/n : 5MHz IEEE 802.11b/g, 802.11n HT20: 11 Channels Channel Number IEEE 802.11n HT40 : 7 Channels IEEE 802.11b : 11, 5.5, 2, 1 Mbps IEEE 802.11g : 54, 48, 36, 24, 18, 12, 9, 6 Mbps IEEE 802.11n HT20 : 65, 58.5, 52, 39, 26, 19.5, 13, 6.5 Mbps Transmit Data Rate IEEE 802.11n HT40 : 135, 121.5, 108, 81, 54, 40.5, 27, 13.5Mbps IEEE 802.11b : DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g : OFDM (64QAM, 16QAM, QPSK, BPSK) Type of Modulation IEEE 802.11n HT20/40 : OFDM (64QAM, 16QAM, QPSK, BPSK) Antenna Type Dipole Antenna, Antenna Gain 2dBi Power Rating 12Vdc Test Voltage 120Vac, 60Hz DC Power Cable Type Non-shielded cable 1.5m (Non-detachable), with a ferrite core I/O Port Power Port × 1, RJ-45 Port × 1, Micro SD Port × 1, DI/DO Port × 1 Power Adapter : No. ManufacturerModel No. Power Input Power Output 1 DVE DSA-12CA-12 120100 100-240Vac 50/60Hz 0.3A +12Vdc, 1A Remark : 1. The sample sele…

Text truncated - open the document above for the full version.

FCC IDWOR-6115P Report No.T121206S02-RP1 Page 1 / 4 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX II SETUP PHOTOS RADIATED EMISSION SETUP Below 1 GHz FCC IDWOR-6115P Report No.T121206S02-RP1 Page 2 / 4 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Above 1 GHz FCC IDWOR-6115P Report No.T121206S02-RP1 Page 3 / 4 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP FCC IDWOR-6115P Report No.T121206S02-RP1 Page 4 / 4 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CONDUCTED EMISSION SETUP
